Abstract

本实用新型涉及太阳能温室凸窗，它包括凸窗框架，设于凸窗框架上的玻璃围板，玻璃围板形成一个植物放置腔，且包括顶部玻璃围板、底板、左玻璃围板、右玻璃围板、前玻璃围板和后玻璃围板；后玻璃围板上具有用于透气的玻璃百叶，玻璃百叶通过横向设置的转轴设于凸窗框架上；底板上具有横向设置的滑槽，前玻璃围板具有底部设于滑槽中，且能沿滑槽来回滑动的滑动部；还包括设于植物放置腔中的长条形的植物种植件。夏季可在植物放置腔中种植植物，利用绿色植物既能达到遮阳效果，又能净化室内空气，提高氧气含量；冬季可去掉植物放置腔中的植物使其成为玻璃温室，既起到双层隔空玻璃窗的保温效果，又能使太阳光直接射入，提高室内保暖效果。

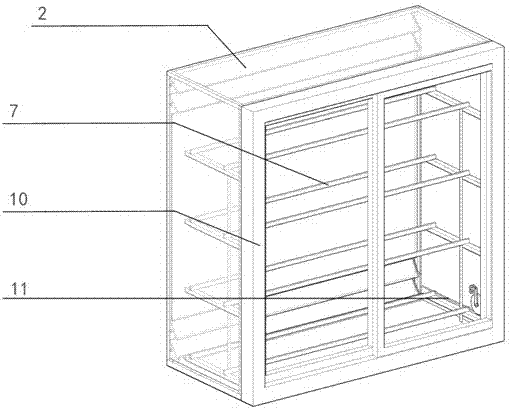

Figure 201320152128

The utility model relates to a bay window of a solar greenhouse, which comprises a bay window frame, a glass fence arranged on the bay window frame, the glass fence forms a plant placement cavity, and includes a top glass fence, a bottom board, a left glass fence, a right Glass enclosure, front glass enclosure and rear glass enclosure; the rear glass enclosure has glass louvers for ventilation, and the glass louvers are arranged on the frame of the bay window through a horizontally arranged rotating shaft; the bottom plate has a horizontally arranged chute, The front glass enclosure has a sliding part whose bottom is arranged in the chute and can slide back and forth along the chute; it also includes a strip-shaped plant planting part arranged in the plant placement cavity. Plants can be planted in the plant placement chamber in summer, and the use of green plants can not only achieve sunshade effect, but also purify the indoor air and increase the oxygen content; in winter, the plants in the plant placement chamber can be removed to make it a glass greenhouse, which not only acts as a double-layer insulation The thermal insulation effect of the empty glass windows can also allow sunlight to directly enter, improving the indoor thermal effect.

Figure 201320152128

Description

The solar energy greenhouse bay window
Technical field
The utility model relates to building bay window field, relates in particular to a kind of solar energy greenhouse bay window.
Background technology
Bay window generally is divided into two kinds, and a kind of have a step, another kind be land fully, with the ground one integrated mass.Bay window has not only increased the function of house type daylighting, ventilation, and for the outer facade in house has increased infinite building glamour, therefore house in recent years mostly has a bay window.It is glass that bay window has only one side unlike traditional flat window, and its three face all is equipped with glass.The height of windowsill is also lower, and short windowsill makes people that more wide visual field arranged, the sensation and more press close to naturally.
Bay window has increased the transparency area of window opening, has brought the increase of heating air conditioning energy consumption.Because bay window is difficult to arrange the external sunshade device, in order to reduce the influence of solar radiation in summer, existing building often adopts dual mode, and a kind of is that the glass employing of bay window and other windows is double-deck every empty glass; Another kind is the glass employing heat insulation reflecting coated glass with bay window and other windows.First kind of mode can be gathered sunlight heating and insulation in the winter time, but in summer since can't block sunlight inject indoor, thereby make the summer interior temperature higher; The second way can block sunlight be injected indoor in summer, though reduced indoor temperature to a certain extent, but this mode just reflects away most sunshines, it is indoor to avoid sunlight to inject, solar energy is not effectively utilized, in addition, this mode is in the winter time the time, because the indoor sunlight of can not fully gathering is warmed oneself, so indoor heat insulating is poor.
The effect of vertical greening sun shading and energy-saving is extensively admitted, and at present people on balcony to plant seeds of flowering plants dish commonplace, but be limited to low layer and multistory building, and the wind of highrise building is bigger, dangerous.Architectural some window daylighting is stuffy on the other hand, penetrates a large amount of solar radiation heats summer, causes air conditioning energy consumption to increase.
The utility model content
At the problems referred to above that prior art exists, the purpose of this utility model is: how to provide a kind of and can effectively utilize solar energy, in the winter time can be for indoor warming, and can be the solar energy greenhouse bay window of indoor sunshade summer.
For achieving the above object, the utility model adopts following technical scheme: the solar energy greenhouse bay window, comprise the bay window framework, and establish
Glass coaming plate on the bay window framework, described glass coaming plate forms a plant placed cavity, and this glass coaming plate comprises top glass coaming plate, base plate, left glass coaming plate, right glass coaming plate, is positioned at indoor front glass coaming plate and is positioned at outdoor back glass coaming plate;
Have for ventilative glass louvre on the glass coaming plate of described back, described glass louvre is located on the bay window framework by the rotating shaft of horizontally set; The sliding part that the chute that has horizontally set on the described base plate, described front glass coaming plate are made by the tempering non-shatterable glass and had that the bottom is located in the chute and can slidably reciprocate along chute; Also comprise the plant plantation part of being located at the strip in the described plant placed cavity, have planting groove on the described plant plantation part.
Further, described left glass coaming plate and right glass coaming plate are provided with many to being used near the sidewall of described plant placed cavity
Support the support member of described plant plantation part, described support member in the vertical direction is arranged in pairs.
Further, be provided with between described every pair of support member for the support bar that supports plant plantation part.
The bottom of described plant plantation part has the draw-in groove with described support bar clamping.
As optimization, be provided with the control lever that opens and closes angle for the described glass louvre of control in the described plant placed cavity.
As optimization, described top glass coaming plate is by the making of tempering non-shatterable glass and be positioned at downward-sloping 2-5 ° of an outdoor side level.
As optimization, the bottom of described planting groove has the infiltration hole, described plant plantation part also have the planting groove of being positioned at bottom and with
The aqua storage tank that the infiltration hole is communicated with.
As optimization, plant plantation part is a plurality of, and a plurality of plant plantation part in the vertical direction is arranged.
As optimization, the top of described aqua storage tank 14 sidewalls has spout hole.
As optimization, the solar energy greenhouse bay window also comprises the catch basin top of being located at described base plate and corresponding with the spout hole on the aqua storage tank of minimum one deck plant plantation part.
Compared to existing technology, the utlity model has following beneficial effect:
1, the solar energy greenhouse bay window that provides of the utility model is compared with existing bay window, has a plant placed cavity, during summer, can in this plant placed cavity, plant plant, flowers and plants or vegetables, utilize the green plants sunshade can absorb 60%～80% luminous energy and 90% radiant energy, and the solar radiation conversion that absorbs, wherein major part is consumed in the transpiration of self, reach the effect of sunshade on the one hand, photosynthesis of plants can also purify the air of a room on the other hand, improves the content of indoor oxygen; During winter, can remove the plant in the plant placed cavity, this plant placed cavity just becomes glasshouse, plays double-deck heat insulation effect every empty glass window on the one hand, and on the other hand, sunshine can directly be injected indoor, improves indoor warming effect.
2, because the solar energy greenhouse bay window that the utility model provides is the improvement of carrying out on the basis of existing building bay window, do not need to change the structure of the original bay window of building, more do not need to install separately, therefore, well solved the safety issue of vertical greening in bay window is combined in the highrise building.
3, the solar energy greenhouse bay window that provides of the utility model not only solves the problem of window sunshade, also solar energy is used and opens up vegetable garden, family greenhouse, and can reduce the city and dredge the far pressure of production and transport of dish, and applicable to highrise building.
Description of drawings
Fig. 1 is the structural representation of embodiment.
Fig. 2 is the structural representation of plant plantation part.
Fig. 3 is solar energy greenhouse bay window outboard shafts mapping.
Fig. 4 cuts open axonometric drawing for the solar energy greenhouse bay window outside.
Among the figure, glass louvre 1, top glass coaming plate 2, bay window framework 3, base plate 4, plant plantation part 5, support bar 7; Collection
Tank 8; Front glass coaming plate 10; Control lever 11; Infiltration hole 12; Planting groove 13; Aqua storage tank 14; Draw-in groove 15.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is described in further details.
Embodiment:Shown in Fig. 1-4, the solar energy greenhouse bay window comprises bay window framework 3, is located at the glass on the bay window framework 3
Coaming plate, the glass coaming plate forms a plant placed cavity, and this glass coaming plate comprises top glass coaming plate 2, base plate 4, left glass coaming plate, right glass coaming plate, is positioned at indoor front glass coaming plate 10 and is positioned at outdoor back glass coaming plate; Base plate 4 can adopt glass material, or other materials in the prior art; Have on the back glass coaming plate for ventilative glass louvre 1, glass louvre 1 is located on the bay window framework 3 by the rotating shaft of horizontally set; Glass louvre 1 is preferably disposed on top and/or the bottom of back glass coaming plate vertical direction when the solar energy greenhouse bay window is used for highrise building, this mainly is to consider that the back glass coaming plate that highrise building is positioned at the building outside can bear bigger wind-force, be arranged on top and/or the bottom that back glass louvre 1 is arranged on glass coaming plate vertical direction and can play suitable ventilation effect, requirement of strength to back glass coaming plate also can suitably reduce simultaneously, thereby has reduced cost.
The user can manual adjustments glass louvre 1 switch angle, as preferably, also be provided with the control lever 11 that opens and closes angle for control glass louvre 1 in the plant placed cavity.The user can be by the angle of control lever 11 adjusting glass louvres 1 switch.During concrete enforcement, use for convenience, control lever can be connected with rotating shaft by universal joint, and the push-and-pull control lever rotates rotating shaft, thereby reaches the purpose of regulating glass louvre 1 switch angle.
The chute that has horizontally set on the base plate 4, front glass coaming plate 10 have the bottom to be located in the chute, and the sliding part that can slidably reciprocate along chute, and base plate can be wing; Sliding part plant in the plant placed cavity of can conveniently taking is set.During concrete enforcement, front glass coaming plate 10 can be made of left and right sides two parts, and this two-part bottom all is located in the chute, and can slidably reciprocate along chute, and at this moment, the left and right sides two parts that constitute the front glass coaming plate are sliding part; Also can only allow in the left and right sides two parts that constitute the front glass coaming plate left half or right half slidably reciprocate along chute, and another part is fixed, can slide left half or right half then are the sliding part of front glass coaming plate herein.Also comprise the plant plantation part 5 of being located at the strip in the plant placed cavity, have planting groove 13 on the plant plantation part 5.
For the space in the better utilization plant placed cavity, make when summer that plant can play better sunshade in the plant placed cavity
Effect, the sidewall of the close plant placed cavity of left glass coaming plate and right glass coaming plate are provided with many to being used for supporting the support member of described plant plantation part 5, and the support member in the vertical direction is arranged in pairs.The quantity of support member can determine according to the size of the bay window of building, generally at 3-5 to getting final product.Support member can adopt existing any material of being convenient to be connected with glass to make, and when specifically implementing, supports the plant plantation part 5 of strip for convenience, and support member is the length strip suitable with plant plantation part 5 width preferably.
The support member in the vertical direction is arranged in pairs, and namely in the every pair of support member, one is arranged on the left glass coaming plate, and another is arranged on the right glass coaming plate corresponding with its position.
For the ease of better supporting plant plantation part 5, between every pair of support member, be provided with for the support bar 7 that supports planting groove, every pair of support member preferably arranges two support bars that are parallel to each other 7, and is more flexible like this, assembling for convenience detach.
In order to make plant plantation part 5 can be placed on more reposefully on the support bar 7, the bottom of enforcement plant plantation part 5 has the draw-in groove 15 with support bar 7 clampings.When having only a support bar 7, draw-in groove 15 can be arranged on the centre position of the bottom of plant plantation part 5, and in the time of two, draw-in groove 15 can be arranged on two side positions of the bottom width direction of plant plantation part 5.
For the ease of draining, top glass coaming plate 2 is by the making of tempering non-shatterable glass and be positioned at downward-sloping 2-5 ° of an outdoor side level.
Plant plantation part 5 can be club-shaped material, also can be that other are convenient to be stuck on two frames of support frame vertical direction
Draw-in groove 15 in structure.The bottom of planting groove 13 has infiltration hole 12, and plant plantation part 5 also has the aqua storage tank 14 that is positioned at planting groove 13 bottoms and is communicated with infiltration hole 12.The bottom of planting groove has the infiltration hole, both can discharge water unnecessary in the planting groove 13, can breathe freely again.Planting groove 13 is used to the plant growth that necessary soil and nutrient is provided.
According to the size of using the building bay window, plant plantation part 5 is a plurality of, and the arrangement of a plurality of plant plantation part 5 in the vertical directions, and the top of described aqua storage tank 14 sidewalls has spout hole.According to the size of using the building bay window, plant plantation part arranges 3-5 usually, after all like this plant plantation parts place, during pouring from being positioned at the planting groove of last layer, water unnecessary in this layer planting groove can ooze to aqua storage tank for 12 times by the infiltration hole of planting groove bottom, when the water in this layer effluent trough was expired the spout hole of its top side wall, water can naturally and understandably flow to the following one deck plant species that adjoins with this layer and plant in the planting groove of part 5, and the like.
As optimization, the solar energy greenhouse bay window also comprises the top of being located at base plate 4, and with minimum one deck plant plantation part 5
The catch basin 8 that spout hole on the aqua storage tank 14 is corresponding.When water flowed out from the spout hole on the minimum aqua storage tank, this catch basin can be collected the water that flows out, thereby has saved water on the one hand, has avoided water to flow on the ground on the other hand.
Explanation is at last, above embodiment is only unrestricted in order to the technical solution of the utility model to be described, although with reference to preferred embodiment the utility model is had been described in detail, those of ordinary skill in the art is to be understood that, can make amendment or be equal to replacement the technical solution of the utility model, and not breaking away from aim and the scope of technical solutions of the utility model, it all should be encompassed in the middle of the claim scope of the present utility model.

Claims (10)

1.太阳能温室凸窗，包括凸窗框架（3），其特征在于：还包括设于凸窗框架（3）上的玻璃围板，所述玻璃围板形成一个植物放置腔，且该玻璃围板包括顶部玻璃围板（2）、底板（4）、左玻璃围板、右玻璃围板、位于室内的前玻璃围板（10）和位于室外的后玻璃围板； 1. Solar greenhouse bay window, including the bay window frame (3), characterized in that: it also includes a glass enclosure arranged on the bay window frame (3), the glass enclosure forms a plant placement cavity, and the glass enclosure The panels include a top glass enclosure (2), a bottom panel (4), a left glass enclosure, a right glass enclosure, a front glass enclosure (10) located indoors and a rear glass enclosure located outdoors; 所述后玻璃围板上具有用于透气的玻璃百叶（1），所述玻璃百叶（1）通过横向设置的转轴设于凸窗框架（3）上； There are glass louvers (1) used for ventilation on the rear glass panel, and the glass louvers (1) are arranged on the bay window frame (3) through a horizontally arranged rotating shaft;  所述底板（4）上具有横向设置的滑槽，所述前玻璃围板（10）由钢化抗震玻璃制作且具有底部设于滑槽中且能沿滑槽来回滑动的滑动部； The bottom plate (4) has a chute arranged transversely, and the front glass enclosure (10) is made of toughened shock-resistant glass and has a sliding part whose bottom is set in the chute and can slide back and forth along the chute; 还包括设于所述植物放置腔中的长条形的植物种植件（5），所述植物种植件（5）上具有种植槽（13）。 It also includes a strip-shaped plant planting piece (5) arranged in the plant placement cavity, and the plant planting piece (5) has planting grooves (13). 2.如权利要求1所述的太阳能温室凸窗，其特征在于：所述左玻璃围板和右玻璃围板靠近所述植物放置腔的侧壁上设有多对用于支撑所述植物种植件（5）的支撑件，所述支撑件在竖直方向上成对排列。 2. The solar greenhouse bay window as claimed in claim 1, characterized in that: the left glass enclosure and the right glass enclosure are provided with a plurality of pairs for supporting the planting on the side wall of the plant placement cavity. The supports of the member (5) are arranged in pairs in the vertical direction. 3.如权利要求2所述的太阳能温室凸窗，其特征在于：所述每对支撑件之间设有用于支撑植物种植件（5）的支撑杆（7）。 3. The solar greenhouse bay window according to claim 2, characterized in that: a support rod (7) for supporting a plant planting member (5) is provided between each pair of support members. 4.如权利要求3所述的太阳能温室凸窗，其特征在于：所述植物种植件（5）的底部具有与所述支撑杆（7）卡接的卡槽（15）。 4. The solar greenhouse bay window according to claim 3, characterized in that: the bottom of the plant planting member (5) has a card slot (15) which is clamped with the support rod (7). 5.如权利要求1所述的太阳能温室凸窗，其特征在于：所述植物放置腔内设有用于控制所述玻璃百叶（1）开闭角度的控制杆（11）。 5. The solar greenhouse bay window according to claim 1, characterized in that: a control rod (11) for controlling the opening and closing angle of the glass louvers (1) is provided in the plant placement chamber. 6.如权利要求1所述的太阳能温室凸窗，其特征在于：所述顶部玻璃围板（2）由钢化抗震玻璃制作且位于室外的一侧水平向下倾斜2-5°。 6. The solar greenhouse bay window according to claim 1, characterized in that: the top glass enclosure (2) is made of toughened shock-resistant glass and the side located outside is horizontally inclined downward by 2-5°. 7.如权利要求1-6任一项所述的太阳能温室凸窗，其特征在于：所述种植槽（13）的底部具有渗水孔（12），所述植物种植件（5）还具有位于种植槽（13）下部且与渗水孔（12）连通的储水槽（14）。 7. The solar greenhouse bay window according to any one of claims 1-6, characterized in that: the bottom of the planting groove (13) has a water seepage hole (12), and the plant planting piece (5) also has a The water storage tank (14) at the lower part of the planting tank (13) and communicated with the seepage hole (12). 8.如权利要求7所述的太阳能温室凸窗，其特征在于：植物种植件（5）为多个，且多个植物种植件（5）在竖直方向上排列。 8. The solar greenhouse bay window according to claim 7, characterized in that there are multiple plant planting pieces (5), and the multiple plant planting pieces (5) are arranged in a vertical direction. 9.如权利要求7所述的太阳能温室凸窗，其特征在于：所述储水槽14侧 壁的顶部具有溢流孔。 9. solar greenhouse bay window as claimed in claim 7, is characterized in that: the top of described water storage tank 14 sidewalls has overflow hole. 10.如权利要求9所述的太阳能温室凸窗，其特征在于：还包括设于所述底板（4）的上方的且与最低一层植物种植件（5）的储水槽（14）上的溢流孔相对应的集水槽（8）。 10. The solar greenhouse bay window according to claim 9, characterized in that: it also includes a water storage tank (14) arranged above the bottom plate (4) and connected to the lowest layer of plant planting parts (5) The sump (8) corresponding to the overflow hole.
