Abstract
The utility model discloses a high steep slope greening structure of concrete, including the concrete slope body, be provided with on the slope body and stretch out domatic and along a plurality of storage platform that the high low direction of slope distributes side by side, all pile up ecological bag on every storage platform, this concrete side slope places ecological bag through storage platform, realizes afforesting, has alleviateed the destruction of concrete side slope to the environment effectively.
Description
Technical field
The utility model relates to a kind of earth structure, particularly a kind of slope planting structure.
Background technology
Traditional bank protection mainly contains and grouts, placed rockfill bank protection, cast-in-situ concrete bank protection and precast concrete block etc.; For high gradient slope; Adopt the slope project of concreting to have good side slope protection effect, but, also do not have solid soil because concrete surface does not have the condition of plant growing; Can't afforest, so it is very serious to environment damage.
To the problems referred to above, need the steep concrete side slope of existing high structure is improved, it can be afforested, to alleviate the concrete side slope to environment damage.
The utility model content
In view of this, the utility model provides a kind of concrete high gradient slope greening structure, and this structure can be placed ecological bag through the glove platform and afforested, and reaches to alleviate the purpose of concrete side slope to environmental disruption.
The concrete high gradient slope greening structure of the utility model comprises coagulation slight slope body, and said sloping body is provided with a plurality of glove platforms that stretch out low direction of the sloping height of sloping external surface and edge and column distribution, and all piling up on each glove platform has ecological bag.
Further, also comprise long anchor pole, be respectively arranged with the through hole that axis is a straight line on said a plurality of glove platforms, said ecological bag is through passing the long anchor pole serial connection of said through hole;
Further, be respectively arranged with leaking hole on said a plurality of glove platform;
Further, said leaking hole is arranged on the glove platform edge near sloping body;
Further, between adjacent two glove platforms 2 meters at interval;
Further, said glove platform and sloping body are built through concrete mold and are integral.
The beneficial effect of the utility model: the concrete high gradient slope greening structure of the utility model; Comprise coagulation slight slope body; Said sloping body is provided with and stretches out a plurality of glove platforms domatic and domatic height direction in edge and column distribution, and all piling up on each glove platform has ecological bag, and this concrete side slope is placed the ecology bag through the glove platform; Realize greening, alleviated the concrete side slope effectively environment damage.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further described.

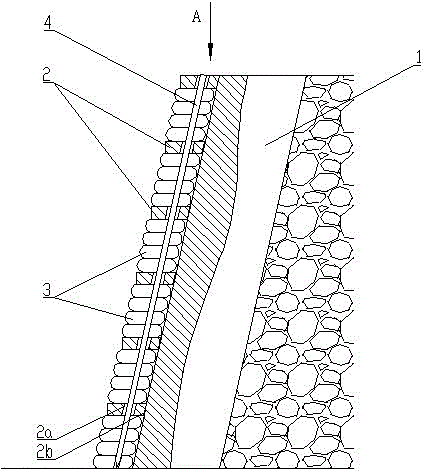

Fig. 1 is the structural representation of the utility model;
Fig. 2 is that the A of Fig. 1 is to view.
The specific embodiment
Below will combine accompanying drawing that the utility model is elaborated; As shown in the figure: the concrete high gradient slope greening structure of present embodiment, comprise coagulation slight slope body 1, said sloping body 1 is provided with a plurality of glove platforms 2 that stretch out sloping body 1 height direction of sloping external surface and edge and column distribution; All pile up ecological bag 3 on each glove platform 2; The width of glove platform is corresponding with the use width of ecological bag, places ecological bag through the glove platform and realizes greening, to alleviate the concrete side slope to environment damage.
Further improvement as technique scheme also comprises anchor pole 4, is respectively arranged with the through hole 2a that axis is a straight line on said a plurality of glove platforms 2; The diameter of through hole is greater than the diameter of anchor pole, so that anchor pole passes anchor pole 4 serial connections of said ecological bag 3 through passing said through hole 2a; Make ecological bag fixing, prevent its landing, simultaneously; Through hole also can be got rid of rainwater, prevents ponding.
Further improvement as technique scheme; Be respectively arranged with leaking hole 2b on said a plurality of glove platform 2; From the side slope top plant that grows on the ecological bag is watered, water just can arrive the ecological bag of each layer through leaking hole, can make the ecological bag of whole side slope all obtain pouring.
As the further improvement of technique scheme, said leaking hole 2b is arranged on the glove platform 2 edge near sloping body 1, with the corner ponding that prevents that glove platform and sloping body from intersecting.
As the further improvement of technique scheme, between adjacent two glove platforms 22 meters at interval, the choose reasonable spacing distance can reduce construction volume in the afforestation effect reaching preferably.
As the further improvement of technique scheme, said glove platform 2 and sloping body 1 are built through concrete mold and are integral, to improve the bonding strength of glove platform and sloping body.
Explanation is at last; Above embodiment is only unrestricted in order to the technical scheme of explanation the utility model; Although with reference to preferred embodiment the utility model is specified, those of ordinary skill in the art should be appreciated that and can make amendment or be equal to replacement the technical scheme of the utility model; And not breaking away from the aim and the scope of the utility model technical scheme, it all should be encompassed in the middle of the claim scope of the utility model.
Claims (6)
1. concrete high gradient slope greening structure; Comprise coagulation slight slope body (1); It is characterized in that: said sloping body (1) is provided with a plurality of glove platforms (2) that stretch out sloping external surface and the sloping body in edge (1) height direction and column distribution, and all piling up on each glove platform (2) has ecological bag (3).
2. concrete high gradient slope greening structure according to claim 1; It is characterized in that: also comprise long anchor pole (4); Be respectively arranged with axis on said a plurality of glove platforms (2) and be the through hole (2a) of a straight line, said ecological bag (3) is connected in series through the long anchor pole (4) that passes said through hole (2a).
3. concrete high gradient slope greening structure according to claim 2 is characterized in that: be respectively arranged with leaking hole (2b) on said a plurality of glove platforms (2).
4. concrete high gradient slope greening structure according to claim 3 is characterized in that: said leaking hole (2b) is arranged at glove platform (2) and goes up the edge near sloping body (1).
5. according to any described concrete high gradient slope greening structure of claim 1-4, it is characterized in that: the interval is 2 meters between adjacent two glove platforms (2).
6. concrete high gradient slope greening structure according to claim 5 is characterized in that: said glove platform (2) is built through concrete mold with sloping body (1) and is integral.
