WO2023157612A1 - 車両用灯具、車両用灯具システム - Google Patents

車両用灯具、車両用灯具システム Download PDF

Info

Publication number
WO2023157612A1
WO2023157612A1 PCT/JP2023/002667 JP2023002667W WO2023157612A1 WO 2023157612 A1 WO2023157612 A1 WO 2023157612A1 JP 2023002667 W JP2023002667 W JP 2023002667W WO 2023157612 A1 WO2023157612 A1 WO 2023157612A1
Authority
WO
WIPO (PCT)
Prior art keywords
lens
scanning mirror
vehicle
phosphor plate
light
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2023/002667
Other languages
English (en)
French (fr)
Japanese (ja)
Inventor
泰樹 森
敏光 渡辺
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Stanley Electric Co Ltd
Original Assignee
Stanley Electric Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Stanley Electric Co Ltd filed Critical Stanley Electric Co Ltd
Priority to US18/837,768 priority Critical patent/US20250146642A1/en
Priority to CN202380021617.9A priority patent/CN118679345A/zh
Publication of WO2023157612A1 publication Critical patent/WO2023157612A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/60—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution
    • F21S41/67—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution by acting on reflectors
    • F21S41/675—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution by acting on reflectors by moving reflectors
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/176—Light sources where the light is generated by photoluminescent material spaced from a primary light generating element
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/16—Laser light sources
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F21S41/25—Projection lenses
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F21S41/285—Refractors, transparent cover plates, light guides or filters not provided in groups F21S41/24 - F21S41/2805
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/30—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by reflectors
    • F21S41/32—Optical layout thereof
    • F21S41/321—Optical layout thereof the reflector being a surface of revolution or a planar surface, e.g. truncated
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/30—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by reflectors
    • F21S41/32—Optical layout thereof
    • F21S41/36—Combinations of two or more separate reflectors
    • F21S41/365—Combinations of two or more separate reflectors successively reflecting the light
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21V—FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES OR SYSTEMS THEREOF; STRUCTURAL COMBINATIONS OF LIGHTING DEVICES WITH OTHER ARTICLES, NOT OTHERWISE PROVIDED FOR
    • F21V14/00—Controlling the distribution of the light emitted by adjustment of elements
    • F21V14/04—Controlling the distribution of the light emitted by adjustment of elements by movement of reflectors
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21V—FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES OR SYSTEMS THEREOF; STRUCTURAL COMBINATIONS OF LIGHTING DEVICES WITH OTHER ARTICLES, NOT OTHERWISE PROVIDED FOR
    • F21V9/00—Elements for modifying spectral properties, polarisation or intensity of the light emitted, e.g. filters
    • F21V9/40—Elements for modifying spectral properties, polarisation or intensity of the light emitted, e.g. filters with provision for controlling spectral properties, e.g. colour, or intensity
    • F21V9/45—Elements for modifying spectral properties, polarisation or intensity of the light emitted, e.g. filters with provision for controlling spectral properties, e.g. colour, or intensity by adjustment of photoluminescent elements
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21W—INDEXING SCHEME ASSOCIATED WITH SUBCLASSES F21K, F21L, F21S and F21V, RELATING TO USES OR APPLICATIONS OF LIGHTING DEVICES OR SYSTEMS
    • F21W2102/00—Exterior vehicle lighting devices for illuminating purposes
    • F21W2102/10—Arrangement or contour of the emitted light
    • F21W2102/13—Arrangement or contour of the emitted light for high-beam region or low-beam region
    • F21W2102/135—Arrangement or contour of the emitted light for high-beam region or low-beam region the light having cut-off lines, i.e. clear borderlines between emitted regions and dark regions
    • F21W2102/14—Arrangement or contour of the emitted light for high-beam region or low-beam region the light having cut-off lines, i.e. clear borderlines between emitted regions and dark regions having vertical cut-off lines; specially adapted for adaptive high beams, i.e. wherein the beam is broader but avoids glaring other road users
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21Y—INDEXING SCHEME ASSOCIATED WITH SUBCLASSES F21K, F21L, F21S and F21V, RELATING TO THE FORM OR THE KIND OF THE LIGHT SOURCES OR OF THE COLOUR OF THE LIGHT EMITTED
    • F21Y2115/00—Light-generating elements of semiconductor light sources
    • F21Y2115/30—Semiconductor lasers

Definitions

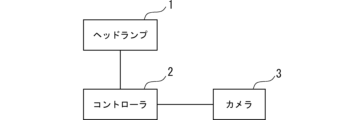

  • the present disclosure relates to a vehicle lamp and a vehicle lamp system.
  • the light distribution pattern has high beam HB and low beam LB.
  • the high beam HB is irradiated in the range of about +3.8° to -3.6° in the V direction (vertical direction) in the drawing and in the range of about ⁇ 14.4° in the H direction in the drawing.

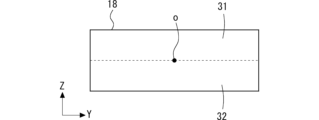

  • This high beam HB is formed by the first laser beam L1 that irradiates the second region 32 of the phosphor plate 18 .
  • such a light distribution pattern can be realized by switching on and off during scanning with the first laser light L1. .
  • the low beam LB is irradiated in the range of 0° to about -7.5° in the V direction in the figure and in the range of about ⁇ 19.4° in the H direction in the figure. Comparing the irradiation range in the H direction, the low beam LB is wider than the high beam HB. Also, comparing the irradiation range in the V direction, the low beam LB and the high beam HB are almost the same.
  • This low beam LB is formed by the second laser beam L2 with which the first region 31 of the phosphor plate 18 is irradiated. As shown, the high beam HB partially overlaps the low beam LB.
  • Such a light distribution pattern is realized by lens design of the projection lens 19 .
  • the distance Dr of the optical path leading to the phosphor plate 18 via the first scanning mirror 12 and the first brightness correction lens 13, which are relatively arranged on the upper side of the lamp unit 1, needs to be shortened.
  • the distance Db of the optical path leading to the phosphor plate 18 via the second scanning mirror 16 and the second brightness correcting lens 17 can be easily secured.
