Abstract
Полезная модель относится к промышленности строительных материалов и может быть использована при возведении и облицовке зданий и сооружений, в частности, в малоэтажном строительстве гражданских и промышленных объектов с высокими требованиями по тепло- и звукоизоляции помещений, например жилых домов, коттеджей и т.п. Строительный блок содержит внешний лицевой 1, внутренний 2 бетонные слои, теплоизоляционный 3 слой и, как минимум, один дополнительный 4 слой, имеющий зеркальную поверхность 5. Теплоизоляционный 3 слой и дополнительный 4 слой расположены между внешним лицевым 1 и внутренним 2 бетонными слоями, причем дополнительный 4 слой расположен между теплоизоляционным 3 слоем и внутренним 2 бетонным слоем. Зеркальная поверхность 5 на дополнительный 4 слой нанесена со стороны внешнего лицевого 1 бетонного слоя. Для обеспечения воздухопроницаемости дополнительный 4 слой строительного блока выполнен перфорированным. При выполнении строительного блока с двумя дополнительными 4 слоями, один располагают между теплоизоляционным 3 слоем и внутренним 2 бетонным слоем, а второй между теплоизоляционным 3 слоем и внешним лицевым 1 бетонным слоем, при этом их зеркальные поверхности 5 расположены со стороны соответствующих бетонных 1, 2 слоев. Для обеспечения связи между слоями 1, 2, 3, 4 и достаточной прочности всего строительного блока в нем под разными углами размещены арматурные стержни 6. Такая конструкция строительного блока позволяет обеспечить возможность уменьшения толщины его слоев при требуемых значениях термического сопротивления и значительно снизить материалоемкость изделия.The utility model relates to the building materials industry and can be used in the construction and cladding of buildings and structures, in particular, in low-rise construction of civil and industrial facilities with high requirements for heat and sound insulation of premises, such as residential buildings, cottages, etc. The building block contains an outer front 1, an inner 2 concrete layers, a heat-insulating 3 layer and at least one additional 4 layer having a mirror surface 5. A heat-insulating 3 layer and an additional 4 layer are located between the outer front 1 and the inner 2 concrete layers, with an additional The 4th layer is located between the heat-insulating 3 layer and the inner 2 concrete layer. Mirror surface 5 on an additional 4 layer is applied from the side of the outer front 1 concrete layer. To ensure breathability, an additional 4 layer of the building block is perforated. When building block with two additional 4 layers, one is placed between the heat-insulating 3 layer and the inner 2 concrete layer, and the second between the heat-insulating 3 layer and the outer front 1 concrete layer, while their mirror surfaces 5 are located on the side of the corresponding concrete 1, 2 layers . To ensure the connection between layers 1, 2, 3, 4 and sufficient strength of the entire building block, reinforcing bars 6 are placed in it at different angles. Such a construction of the building block makes it possible to reduce the thickness of its layers at the required values of thermal resistance and significantly reduce the material consumption of the product.
Description
Полезная модель относится к промышленности строительных материалов и может быть использована при возведении и облицовке зданий и сооружений, в частности, в малоэтажном строительстве гражданских и промышленных объектов с высокими требованиями по тепло- и звукоизоляции помещений, например жилых домов, коттеджей и т.п.The utility model relates to the building materials industry and can be used in the construction and cladding of buildings and structures, in particular, in low-rise construction of civil and industrial facilities with high requirements for heat and sound insulation of premises, such as residential buildings, cottages, etc.
Известен строительный блок, содержащий бетонные слои и расположенный между ними теплоизоляционный слой, выполненный из пенополистирола, причем строительный блок имеет лицевой слой, слои по толщине выбраны из соотношения А:В:С:Д = 0.4:1.2:3.2:5.3, где А - лицевой слой, В - бетонный внутренний слой, С - теплоизоляционный слой, Д - бетонный внутренний несущий слой, бетонные слои соединены стержнями, пронизывающими теплоизоляционный слой и выполненными в виде стеклопластиковых стержней, а по периметру лицевого слоя выполнена фаска (см. патент РФ №2208101, заявл. 17.12.2001 г., опубл. 10.07.2003 г., по кл. Е 04 С 1/40).A known building block containing concrete layers and a heat-insulating layer located between them, made of polystyrene foam, the building block having a front layer, the thickness layers are selected from the ratio A: B: C: D = 0.4: 1.2: 3.2: 5.3, where A is the front layer, B is the concrete inner layer, C is the heat-insulating layer, D is the concrete inner supporting layer, the concrete layers are connected by rods penetrating the heat-insulating layer and made in the form of fiberglass rods, and a chamfer is made along the perimeter of the front layer (see RF patent No. 2208101 , ayavl. 17.12.2001, publ. 10.07.2003, by Cl. E 04 C 1/40).
Бетонные слои, теплоизоляционный слой и размещение теплоизоляционного слоя между бетонными слоями являются общими существенными признаками известного и заявляемого технических решений.Concrete layers, the insulating layer and the placement of the insulating layer between the concrete layers are common essential features of the known and claimed technical solutions.
Толщина слоев блока варьируется в зависимости от требуемого термического сопротивления. Например, для условий средней полосы России значение сопротивления теплопередачи для стен из блоков должно быть до R=3 кв.м. С/Вт, а для условий Крайнего севера до R=5 кв.м. С/Вт (см. Термоблок// Строительные материалы. 1999, - 2, с.40). В условиях Сибири с резко континентальным климатом и продолжительными The thickness of the layers of the block varies depending on the required thermal resistance. For example, for the conditions of central Russia, the value of heat transfer resistance for walls of blocks should be up to R = 3 sq.m. C / W, and for conditions of the Far North up to R = 5 sq.m. C / W (see. Thermoblock // Building materials. 1999, - 2, p. 40). In Siberia with a sharply continental climate and long
температурами в зимнее время в пределах минус 30°-35° требуется увеличение суммарной толщины слоев строительного блока до 40 см и более, что приводит к увеличению расхода строительных материалов и удорожанию объектов.temperatures in the wintertime in the range of minus 30 ° -35 ° require an increase in the total thickness of the layers of the building block up to 40 cm or more, which leads to an increase in the consumption of building materials and more expensive objects.
Наиболее близким по совокупности существенных признаков к заявляемому (прототипом) является строительный блок, содержащий внешний лицевой и внутренний бетонные слои, между которыми установлен теплоизоляционный слой, причем он снабжен Х-образными элементами для скрепления внешнего лицевого и внутреннего слоев строительного блока с противоположных торцов, а концы Х-образных элементов замоноличены во внешний лицевой и внутренний слои, остальная часть каждого из Х-образных элементов, замоноличивающаяся в кладочный раствор, установлена в соответствующем Х-образном углублении слоя утеплителя (см. патент РФ №2191873, заявл. 05.02.2001 г., опубл. 27.10.2002 г., по кл. Е 04 С 1/40).The closest set of essential features to the claimed (prototype) is a building block containing an outer front and inner concrete layers, between which a heat-insulating layer is installed, and it is equipped with X-shaped elements for fastening the outer face and inner layers of the building block from opposite ends, and the ends of the X-shaped elements are monolithic in the outer face and inner layers, the rest of each of the X-shaped elements monolithic in the masonry mortar is installed corresponding to an X-shaped recess insulation layer (see. №2191873 RF patent appl. of 05.02.2001, publ. 27.10.2002, at for Cl. E 04 C 1/40).
Признаки: внешний лицевой бетонный слой, внутренний бетонный слой, теплоизоляционный слой и размещение между внешним лицевым и внутренним бетонными слоями теплоизоляционного слой являются общими существенными признаками известного и заявляемого технических решений.Signs: the outer front concrete layer, the inner concrete layer, the insulating layer and the placement of the insulating layer between the outer front and inner concrete layers are common essential features of the known and claimed technical solutions.
Недостатком данного строительного блока является то, что строительство объектов в условиях со значительными минусовыми температурами также требует максимального увеличения толщины слоев, что приводит к неоправданному расходу строительных материалов для изготовления стеновых строительных блоков и их удорожанию.The disadvantage of this building block is that the construction of facilities in conditions with significant subzero temperatures also requires a maximum increase in the thickness of the layers, which leads to an unjustified consumption of building materials for the manufacture of wall building blocks and their cost.
Задача, на решение которой направлена настоящая полезная модель состоит в том, чтобы обеспечить возможность уменьшения толщины слоев The problem to be solved by the present utility model is to provide the possibility of reducing the thickness of the layers
строительного блока при требуемых значениях термического сопротивления.building block at the required values of thermal resistance.
Поставленная задача решается тем, что в строительном блоке, содержащем внешний лицевой и внутренний бетонные слои, между которыми установлен теплоизоляционный слой, согласно полезной модели, строительный блок снабжен как минимум одним дополнительным слоем, имеющим зеркальную поверхность и расположенным между теплоизоляционным слоем и внутренним или внешним лицевым бетонными слоями.The problem is solved in that in a building block containing an external front and inner concrete layers between which a heat-insulating layer is installed, according to a utility model, the building block is provided with at least one additional layer having a mirror surface and located between the heat-insulating layer and the inner or outer face concrete layers.
Дополнительный слой зеркальную поверхность имеет со стороны внешнего лицевого слоя.The additional layer has a mirror surface on the side of the outer face layer.
Дополнительный слой выполнен перфорированным.The additional layer is perforated.
Наличие как минимум одного дополнительного слоя с зеркальной поверхностью и размещение его между теплоизоляционным слоем и внутренним или внешним лицевым бетонными слоями являются существенными признаками, отличающими заявляемую полезную модель от ее ближайшего аналога.The presence of at least one additional layer with a mirror surface and its placement between the heat-insulating layer and the inner or outer front concrete layers are essential features that distinguish the claimed utility model from its closest analogue.

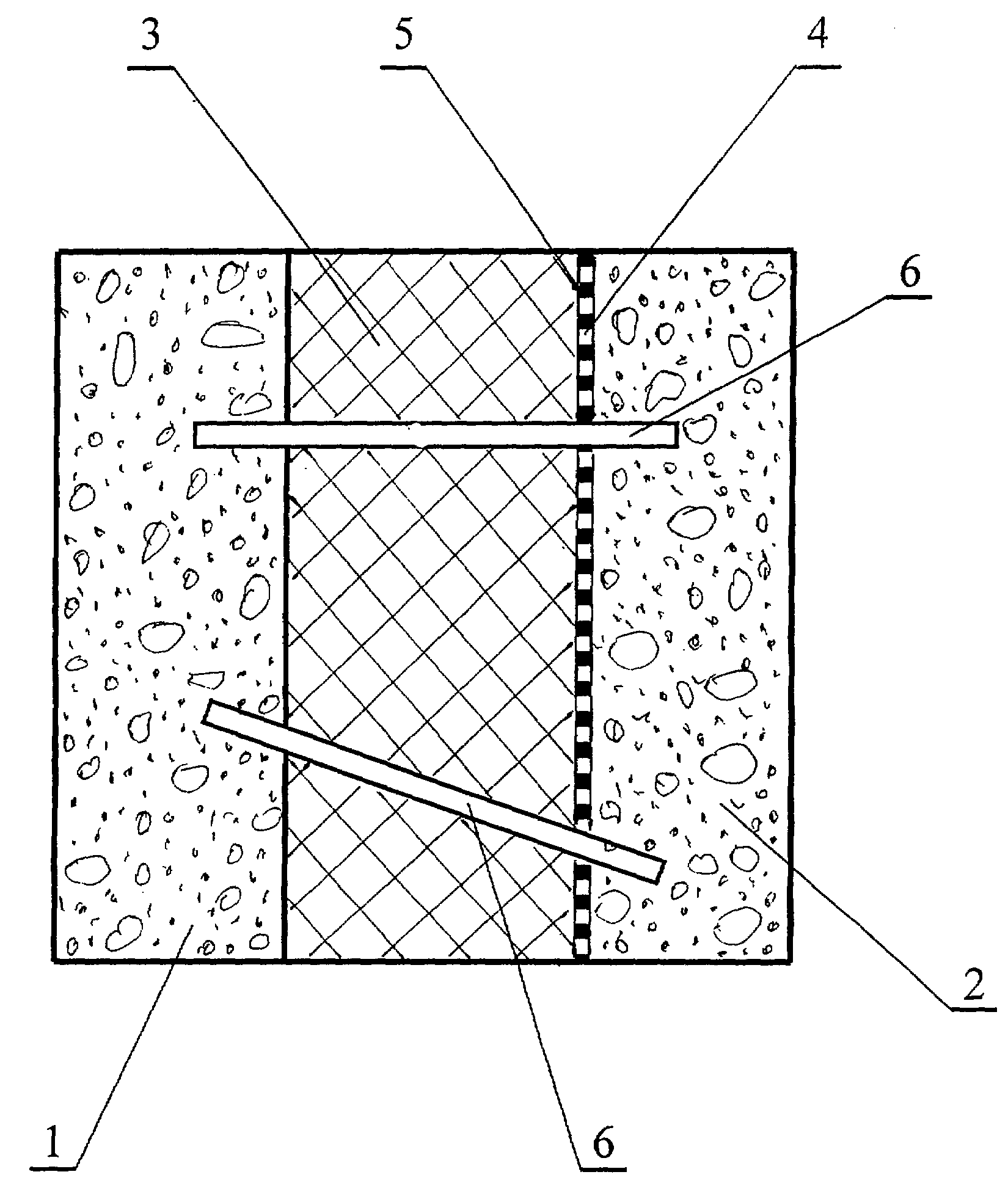

В дальнейшем сущность полезной модели поясняется описанием ее конструкции и чертежом, где схематично изображен строительный блок.In the future, the essence of the utility model is illustrated by a description of its design and a drawing, which schematically depicts a building block.
Строительный блок содержит внешний лицевой 1, внутренний 2 бетонные слои, теплоизоляционный 3 слой и, как минимум, один дополнительный 4 слой, имеющий зеркальную поверхность 5. Теплоизоляционный 3 слой и дополнительный 4 слой расположены между внешним лицевым 1 и внутренним 2 бетонными слоями, причем дополнительный 4 слой может быть расположен как между теплоизоляционным 3 слоем и внутренним 2 бетонным слоем, так и между теплоизоляционным 3 слоем и внешним лицевым 1 бетонным слоем. На чертеже дополнительный 4 слой расположен между теплоизоляционным 3 и внутренним 2 бетонным слоем. Зеркальная поверхность 5 на The building block contains an outer front 1, an inner 2 concrete layers, a heat-insulating 3 layer and at least one additional 4 layer having a mirror surface 5. A heat-insulating 3 layer and an additional 4 layer are located between the outer front 1 and the inner 2 concrete layers, with an additional The 4th layer can be located both between the heat-insulating 3 layer and the inner 2 concrete layer, and between the heat-insulating 3 layer and the outer front 1 concrete layer. In the drawing, an additional 4 layer is located between the heat-insulating 3 and the inner 2 concrete layer. 5 mirror surface
дополнительном 4 слое может быть выполнена с одной или с двух его сторон. На чертеже зеркальная поверхность 5 нанесена со стороны внешнего лицевого 1 бетонного слоя. Для обеспечения воздухопроницаемости дополнительный 4 слой строительного блока выполнен перфорированным. Дополнительный 4 слой может быть выполнен из полимерной пленки или из фольги. Строительный блок может содержать два и более дополнительных 4 слоя (на чертеже не показаны). При выполнении строительного блока с двумя дополнительными 4 слоями, один может быть расположен между теплоизоляционным 3 слоем и внутренним 2 бетонным слоем, а второй между теплоизоляционным 3 слоем и внешним лицевым 1 бетонным слоем, при этом их зеркальные поверхности 5 могут быть расположены со стороны соответствующих бетонных 1, 2 слоев. Для обеспечения связи между слоями 1, 2, 3, 4 и достаточной прочности всего строительного блока в нем под разными углами размещены арматурные стержни 6.an additional 4 layer can be performed on one or both sides. In the drawing, the mirror surface 5 is applied from the side of the outer front 1 concrete layer. To ensure breathability, an additional 4 layer of the building block is perforated. An additional 4 layer can be made of polymer film or foil. A building block may contain two or more additional 4 layers (not shown in the drawing). When building block with two additional 4 layers, one can be located between the heat-insulating 3 layer and the inner 2 concrete layer, and the second between the heat-insulating 3 layer and the outer front 1 concrete layer, while their mirror surfaces 5 can be located on the side of the corresponding concrete 1, 2 layers. To ensure communication between layers 1, 2, 3, 4 and sufficient strength of the entire building block, reinforcing bars 6 are placed in it at different angles.
Стеновой строительный блок изготавливают следующим образом.Wall building block is made as follows.
В прессформу дозированно заливают керамзитобетонную смесь для образования внешнего лицевого 1 слоя. Затем закладывают теплоизоляционный 3 слой, выполненный, например, из пенополистирола. На теплоизоляционный 3 слой укладывают дополнительный 4 слой, выполненный, например, из полимерной пленки или из фольги, располагая его зеркальную поверхность 5 со стороны внешнего лицевого 1 слоя. Далее, укладывают керамзитобетонную смесь для образования внутреннего 2 слоя. Для обеспечения связи между слоями в строительном блоке под разными углами располагают арматурные стержни 6.Expanded clay mixture is dosed into the mold in order to form the outer front 1 layer. Then lay a heat-insulating 3 layer, made, for example, of expanded polystyrene. An additional 4 layer, for example, made of a polymer film or foil, is placed on the heat-insulating 3 layer, having its mirror surface 5 on the side of the external front 1 layer. Then, claydite-concrete mixture is laid to form an inner 2 layer. To ensure communication between the layers in the building block at different angles have reinforcing bars 6.
Наличие отражающей зеркальной поверхности 5 уменьшает лучистый теплообмен и значительно снижает скорость изменения температуры по толщине строительного блока. При укладке двух дополнительных 4 слоев, одного между теплоизоляционным 3 и внешним The presence of a reflecting mirror surface 5 reduces radiant heat transfer and significantly reduces the rate of temperature change across the thickness of the building block. When laying two additional 4 layers, one between heat-insulating 3 and external
лицевым 1 слоем, а второго между теплоизоляционным 3 и внутренним 2 бетонным слоем, и при расположении их зеркальных поверхностей 5 со стороны бетонных 1, 2 слоев, соответственно, создается своеобразный тепловой замок, эффективно ограничивающий лучистый теплообмен. Кроме того, наличие дополнительного 4 слоя, выполненного, например, из полимерной пленки уменьшает конвекционный теплообмен.the front 1 layer, and the second between the heat-insulating 3 and inner 2 concrete layers, and when their mirror surfaces 5 are located on the side of concrete 1, 2 layers, respectively, a peculiar thermal lock is created that effectively limits radiant heat transfer. In addition, the presence of an additional 4 layers made, for example, of a polymer film reduces convection heat transfer.
Такая конструкция строительного блока позволяет обеспечить возможность уменьшения толщины его слоев при требуемых значениях термического сопротивления и значительно снизить материалоемкость изделия.This design of the building block makes it possible to reduce the thickness of its layers at the required values of thermal resistance and significantly reduce the material consumption of the product.
