Description

  The present invention relates to a technology such as a game system provided on a general website or an SNS (Social Networking Service) site.

In recent years, games that progress while displaying web pages on a portable communication device using the Internet have become widespread. In such a game, the game program is not executed by the communication device, but a web page is generated by the server device in response to an input operation of the communication device and displayed on the communication device.
As such a browser game, one that requires account registration provided on the SNS is known (Non-Patent Document 1). With this account registration, even if the game is interrupted in the middle, the game can be resumed from there.
There is also a web page that visually displays in a cross-sectional view of the brain what the user thinks by inputting character information such as the user's name on the browser screen (non-patented). Reference 2). In this case, if the same name is input, the same result is displayed.

“Social Game General Information Magazine Application STYLE Vol.2”, East Press, Inc., April 1, 2011, p.26-p.29

“Brain maker”, [online], [Search June 3, 2011], Internet <URL: http://maker.usoko.net/nounai.html>

  However, in the conventional game, in order to specify the same user, it is necessary to register an account in advance in the server device in order to execute the game. On the other hand, in a web page that is visually displayed in a cross-sectional view of the brain, you can obtain a result immediately by entering “name” on the browser screen, but you can display a new game result that is linked to the previous game result. Couldn't get.

  The present invention has been made in view of the above-described problems, and an object of the present invention is to provide a server device that can obtain a continuous game result without a user registering authentication information in the server device. .

  Means employed by the present invention to solve the above problems will be described below. In order to facilitate understanding of the present invention, reference numerals in the drawings will be appended in parentheses for convenience in the following, but the present invention is not intended to be limited to the illustrated forms.

When the server device according to the present invention receives a request generated by a web browser, the server device provides a game by returning a response according to the request, and is assigned to each web browser that has transmitted the request. An identification information determination unit (S1) that determines whether or not the identification information (ID1) is included in the request, and an identification that generates the identification information when the determination result of the identification information determination unit is negative When the determination result of the information generation unit (S2) and the identification information determination unit is negative, the identification information generated by the identification information generation unit is acquired (S2), and the determination result of the identification information determination unit is positive If it is, the identification information included in the request is acquired (S5, S9, S13), a web page is generated as a response to the request, and the web page is transmitted. A response unit for, the input information acquisition unit which the user obtains input information inputted by using the web browser from the request (S5), a message indicating the progress of the game by using the web browser user An execution information acquisition unit (S5) that acquires execution information instructing execution of the process to be generated from the request, the input information, user access information including the number of times of execution of the process, and the identification A storage unit (DB) for storing information in association, and when the execution information is included in the request, the input information corresponding to the identification information acquired from the storage unit by the identification information acquisition unit, and the number-of-times information reading from said storage unit includes a, a result generation unit (S7) for performing a pre-Symbol processing based on the input information and the count information, the response unit, the identification information When generating the identification information generating unit, generates and transmits the web page including the identification information, also when generating a message indicating the progress of the game in the result generation unit, the web comprising the message A feature is that a page is generated and transmitted.

According to this invention, when a user accesses a server device using a web browser, identification information for specifying the web browser used for the access is generated, and this is included in the web page and transmitted. The web browser stores the identification information, and transmits the identification information in the request to the server device. Thereby, the server device can specify the web browser using the identification information. Therefore, the user even without without advance account registered in the server device can be started feel free to game. Furthermore, since the server device generates a message based on the input information and the number-of-times information, a game or the like can proceed according to the name given by the user and the number of accesses. Further, the same message can be obtained if the number of times the message is generated is the same, but a part of the message may be given randomness.
The “identification information assigned to each web browser that transmitted the request” does not identify the type of web browser, but identifies “the web browser that transmitted the request”. Accordingly, if the same type of web browser is used in different communication devices, different identification information is assigned. On the other hand, when a plurality of types of web browsers are installed in the same communication device, when a request is transmitted by the first web browser, identification information in the first web browser that is the transmission source of the request is given, and thereafter When the request is transmitted by the second web browser, identification information different from the identification information given to the first web browser is given to the second web browser.
Further, the execution information may be a flag included in the request, or may be a URL included in the request.

In the server device described above, the storage unit stores time information related to the execution of the process as the access information in association with the identification information, and the response unit stores the execution information based on the time information. When the time interval at which the request including the request is received is shorter than a predetermined time, a web page different from the web page including the message is transmitted.
According to this invention, even if the execution of processing is requested at a time interval shorter than the predetermined time, a different web page is transmitted, so that the message can be prevented from being updated. Therefore, even if a large number of execution instructions are given in a short time, the game can be progressed in an appropriate time without proceeding.

  In the server device described above, when the identification information is the first identification information (ID1), the storage unit stores the second identification information (in association with the first identification information and the access information). Preferably, a first table that associates ID1) and a second table that associates the second identification information with the access information are stored. According to the present invention, a record is recorded in the first table even if the user does not input input information. On the other hand, when the user inputs input information and gives an execution instruction, a record is recorded in the second table. Therefore, by comparing the number of records in the first table and the second table, it is possible to grasp the usage status of the server device.

In the server device described above, when the identification information is first identification information (ID1), the first identification information generated by the identification information generation unit is preferably a session ID. In the communication with the web browser, the session ID is generated. According to the present invention, since the first identification information is generated based on the session ID, the server device generates the first identification information. Can reduce the processing load.

  In the server device described above, the first identification information generated by the identification information generation unit may be generated based on information of the web browser that transmitted the request.

  Further, in the above-described server device, the identification information generation unit may store the identification information generated when the determination result of the identification information determination unit is negative in the request that does not include the execution information. It is preferable to memorize. According to the present invention, since the identification information is stored in the storage unit before the message is generated, when the page is closed without a name input in the next page, the access information is not recorded in the storage unit and only the identification information is stored. Will be recorded. Even if only the identification information is stored, it is possible to grasp the number of users who have visited the page.

  Further, in the server device described above, the identification information generation unit is configured to store the identification information generated when the determination result of the identification information determination unit is negative in the request including the execution information. It is preferable to store the identification information and the access information in association with each other. According to this invention, since only the information of the user who executed the process is stored in the storage unit, the storage capacity of the storage unit can be reduced.

1 is a block diagram of a game system according to a first embodiment of the present invention. It is a block diagram which shows the structure of a server apparatus. It is explanatory drawing which shows an example of the data structure of a database. It is a sequence diagram which shows the sequence at the time of the first access using a web browser. It is explanatory drawing which shows an example of the memory content of a database. It is explanatory drawing which shows an example of a name input page. It is explanatory drawing which shows an example of the memory content of a database. It is explanatory drawing which shows an example of a name input page. It is a sequence diagram which shows the sequence at the time of the 2nd access using a web browser. It is explanatory drawing which shows an example of a name input page. It is explanatory drawing which shows an example of the memory content of a database. It is a sequence diagram which shows the sequence at the time of the first access using the web browser in the game system which concerns on 2nd Embodiment. It is explanatory drawing which shows an example of the memory content of the database which concerns on a modification.

<A. First Embodiment>
<1. Game system configuration>
FIG. 1 is a block diagram of a game system 100 according to an embodiment of the present invention. The game system 100 includes the Internet 1 functioning as a communication network, user communication devices 2-1, 2-2, 2-3,..., 2-n, and a server device 3. The communication devices 2-1 to 2-n of the user can communicate via the Internet 1, have a web browser (software) installed therein, and correspond to, for example, a personal computer or a mobile phone. The server device 3 includes a database DB that manages games, and generates a web page of a game screen by referring to the stored contents of the database DB.

  FIG. 2 shows the configuration of the server device. As shown in this figure. The server device 3 includes a CPU (Central Processing Unit) 30 that controls the entire device, a RAM (Random Access Memory) 31 that functions as a work area of the CPU 30, a ROM (Read Only Memory) 32 that stores a boot program, and various programs. And a hard disk 33 for storing data, an input unit 34 including a keyboard and a mouse, a display 35 for displaying images, and a communication interface for communicating with an external device via the Internet 1.

  The hard disk 33 stores a database DB. The server device 3 may be composed of a plurality of servers, and a server for managing and a server for providing the database DB may be provided independently.

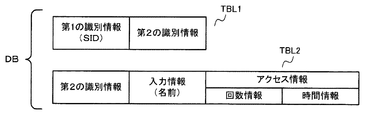

  FIG. 3 shows a part of the data structure of data stored in the database DB. As shown in this figure, the database DB includes a first table TBL1 and a second table TBL2. In the first table TBL1, the first identification information ID1 and the second identification information ID2 are stored in association with each other. The first identification information ID1 is information for the server device 3 to identify the web browser of each communication device 2 as will be described later. When the server apparatus 3 transmits the web page to the communication apparatus 2, the server apparatus 3 sets the value of the first identification information ID1 to the cookie variable to which a predetermined variable name (GAMESID) is assigned and transmits the variable. The web browser stores the first identification information ID1 and transmits a request including a cookie when accessing the server device 3. Since the request includes the first identification information ID1, the server device 3 can specify the web browser that has transmitted the request.

  The second identification information ID2 is a user ID associated with the first identification information ID1. The second identification information ID2 is used inside the server device 3 and is not transmitted to the web browser. This is different from the first identification information ID1 transmitted to the web browser. By using the first identification information ID1 for transmission and the second identification information ID2 for management, security is improved.

  In the second table TBL2, the second identification information ID2, the input information, and the access information are stored in association with each other. The input information is information input by the user on the input form on the screen displaying the web page of the communication device 2, and in this example, is the name used by the user in the game. Further, the access information includes number information indicating the number of times that the process of generating a message by accessing the server device 3 is performed, and time information indicating the time when the process is performed.

<2. Operation of the game system>
<2-1: First access>
Next, the operation of the game system 100 will be described. FIG. 4 shows a sequence at the first access using a web browser.

  When the user of the communication device 2 starts a web browser and inputs the URL of a game page to be published on the server device 3, a request REQ <b> 1 is transmitted to the server device 3. In this case, since the game page is accessed for the first time, the cookie (GAMESID) of the request REQ1 is empty.

  Upon receiving the request REQ1, the server device 3 determines whether it is the first access (S1). Specifically, if the first identification information ID1 is not included in the cookie of the request REQ1, it is determined that it is the first time, and if the first identification information ID1 is included in the cookie of the request REQ1, it is determined that it is not the first time. To do. In this example, since the cookie of the request REQ1 is empty, it is determined that this is the first time.

Thereafter, the server device 3 generates the first identification information ID1 and the second identification information ID2, and stores them in the first table TBL1 of the database DB in association with each other (S2). In this example, a session ID (hereinafter referred to as SID) is adopted as the first identification information ID1. The SID is unique information given for identification of a user who is accessing or capturing an action in a web application or the like, and is a character string made up of, for example, 32 random numbers and alphabets given by a session function. is there. By adopting the SID as the first identification information ID1, it is not necessary to generate unique identification information separately from the session function, so that the processing load on the server device 3 can be reduced. The uniquely generated second identification information ID2 is associated with the first identification information ID1 and stored in the first table TBL1. For example, when the first identification information ID1 (SID) is “123456” and the second identification information ID2 is “QWE987”, the storage contents of the database DB are as shown in FIG. At this time, information related to the second identification information ID2 “QWE987” is not stored in the second table TBL2.
Then, the server device 3 returns a response RES1 including the first identification information ID1 (SID) in the cookie to the web browser. This response RES1 includes a name input page.

  Next, when the response RES1 is received by the web browser of the communication device 2, the web browser displays a name input page on the display unit of the communication device 2 (S2), and stores the first identification information ID1 in a cookie. FIG. 6 shows an example of the name input page. In this example, since the web browser has accessed the game site of the server device 3 for the first time, the name input field, the action record field, the status field, and the collection field are all blank.

  Here, when the user inputs a name in the name input field and clicks the execution button to give an execution instruction (S4), the web browser transmits a request REQ2 to the server device 3. The request REQ2 includes execution information for instructing execution, input information indicating the input name, and a cookie in which the first identification information ID1 (SID) is recorded.

  Next, the server device 3 acquires execution information and input information from the request REQ2 (S5). Further, the first identification information ID1 included in the cookie is acquired, and the second identification information ID2 corresponding to the first identification information ID1 is read from the first table TBL1 of the database DB. Next, the server device 3 stores the input information and the access information in the second table TBL2 in association with the second identification information ID2. Here, assuming that the current time is “June 3, 10:10” and the input name is “Ichiro Onami”, the stored contents of the database DB are as shown in FIG.

  In this example, the first table TBL1 and the second table TBL2 are provided independently. A record is recorded in the second table TBL2 only when the user inputs a name on the name input page and gives an execution instruction. Therefore, when the name input page is accessed but the page is closed without inputting the name, the record is recorded in the first table TBL1, but the record is not recorded in the second table TBL2. become. Therefore, if the number of records in the first table TBL1 is counted, the number of visitors to the page can be grasped, and if the number of records in the second table TBL2 is counted, the number of users who executed the game can be grasped. it can.

  Next, the server apparatus 3 generates an initial message based on the input information and the frequency information (S7), and generates a result page including the initial message. The response RES2 includes a result page, which is transmitted from the server device 3 to the web browser.

  Next, when the response RES2 is received by the web browser of the communication device 2, the web browser displays the result page on the display unit of the communication device 2 (S8). FIG. 8 shows an example of a result page when the input information is “Ichiro Onami” and the frequency information is “1”.

<2-2: Second and subsequent access>
FIG. 9 shows a sequence at the second access using a web browser. When the user of the communication device 2 inputs the URL of the game page, a request REQ1 is transmitted to the server device 3. In this case, since the game page has been accessed before, the cookie of the request REQ1 includes the first identification information ID1.

  When the server device 3 receives the request REQ1, it determines whether or not the access is the first access based on whether or not the first identification information ID1 is included in the cookie (S9). In the second access, since the first identification information ID1 is included in the cookie of the request REQ1, the server device 3 determines that it is not the first time.

  Thereafter, the server device 3 reads out the second identification information ID2 and the input information corresponding to the first identification information ID1 from the database DB (S10). And the server apparatus 3 produces | generates the name input page which set the name beforehand (name has already been input) as an initial value of the name input column. The first identification information ID1 is recorded in the cookie of the name input page.

  When the communication device 2 receives the response RES1 transmitted from the server device 3, the web browser of the communication device 2 displays a name input page on the display unit. The name input page shown in FIG. 10 is displayed. In this example, since the web browser has already accessed the game site of the server device 3 and entered a name, “Ichiro Onami” is displayed in the name entry field. Although the action record column, status column, and collection column are all blank, the previous result page may be generated by the server device 3 and returned as a response RES1. In this case, the previous result page (see FIG. 8) is displayed.

  Here, when the user clicks the execute button to give an execution instruction (S12), the web browser transmits a request REQ2 to the server device 3. The request REQ2 includes execution information for instructing execution, input information indicating the input name, and a cookie in which the first identification information ID1 (SID) is recorded.

  Next, the server device 3 acquires execution information and input information from the request REQ2 (S13). Also, the first identification information ID1 included in the cookie is acquired, the second identification information ID2 corresponding to the first identification information ID1 is read from the first table TBL1 of the database DB, and the time corresponding to the second identification information ID2 Information and number-of-times information are read from the second table TBL2. And the server apparatus 3 determines whether predetermined time passed since the last process based on the read time information and the present time (S14).

If the predetermined time has elapsed, the number information is incremented by “1” and stored in the database DB, and the time information is updated to the current time. For example, if the predetermined time is 3 hours and the current time is “June 3, 15:30”, the stored contents of the database DB shown in FIG. 7 are updated to those shown in FIG. In this case, the server device 3 generates a second message based on the input information “Ichiro Onami” and the frequency information “2” (S15).
On the other hand, if the predetermined time has not elapsed, the server apparatus 3 does not update the database DB, and generates a second message, for example, “in adventure” is displayed in the action record column (S15). .
Thereafter, the server device 3 generates a result page including the second message. The response RES2 includes a result page, which is transmitted from the server device 3 to the web browser.

  Next, when the response RES2 is received by the web browser of the communication device 2, the web browser displays the result page on the display unit of the communication device 2 (S15). If this execution instruction has passed a predetermined time from the previous execution instruction, the result of the adventure progressing is displayed, and if the predetermined time has not elapsed, for example, in the action record column, Is displayed.

As described above, according to the game system 100 according to the present embodiment, when the user accesses the game page provided by the server device 3 using the web browser, the first identification information ID1 that identifies the web browser used for the access. Since this is included in the cookie and transmitted, the server device 3 can specify the web browser using the first identification information ID1. Therefore, the user can easily start the game without registering a password or ID in the server device in advance.
Further, since the server device 3 generates a message based on the input information and the number-of-times information, the game can be advanced according to the name and the number of accesses given by the user.

  In the first embodiment described above, the CPU 30 of the server device 3 receives the request REQ1 and the request REQ2 shown in FIGS. 3 and 9 and determines whether or not the first identification information ID1 is included. Functions as an information determination unit. Further, when the first identification information ID1 is not included, the CPU 30 of the server device 3 functions as an identification information generation unit that generates the first identification information ID1 (S2). In addition, when the first identification information ID1 is not included, the CPU 30 of the server device 3 acquires the generated first identification information ID1 (S2), and the first identification information ID1 is included. The first identification information ID1 included in the request is acquired (S5, S9, S13), and functions as an identification information acquisition unit.

<B. Second Embodiment>
Next, the game system 100 according to the second embodiment will be described. The game system 100 of the second embodiment is the same as the game system 100 of the first embodiment except for the timing of generating the first identification information ID1 and the second identification information ID2 and storing them in the database DB.
FIG. 12 shows a sequence at the first access in the game system 100 according to the second embodiment. The description of the same operation as that of the sequence of the first embodiment shown in FIG. 4 will be omitted as appropriate.

  When the server device 3 receives the request REQ1, the server device 3 determines whether or not the first identification information ID1 is included in the cookie of the request REQ1, and determines whether it is the first access (S1). Further, when the execution information is not included in the request REQ1, the server device 3 generates a response RES1 including a name input page and transmits the response RES1 to the communication device 2. Since the server device 3 does not generate the first identification information ID1 until the response RES1 is generated, the cookie of the response RES2 does not include the first identification information ID1.

  Next, when the response RES1 is received by the web browser of the communication device 2, the web browser displays the name input page on the display unit of the communication device 2 (S2), and when the user inputs the name and gives an execution instruction, A request REQ2 that does not include the first identification information ID1 is transmitted to the server device 3.

  Next, the server device 3 determines whether or not the first identification information ID1 is included in the cookie of the request REQ2, and determines whether it is the first access (S1a). Since the request REQ2 does not include the first identification information ID1, the server device 3 determines that this is the first time, and acquires execution information and input information from the request REQ2 (S5).

  Then, the server apparatus 3 produces | generates 1st identification information ID1 and 2nd identification information ID2, and memorize | stores these in database DB. The first identification information ID1 is an SID as in the first embodiment. That is, the server device 3 generates the first identification information ID1 and the second identification information ID2 when the request including the execution information does not include the first identification information ID1. In the first embodiment, even when the name input page is displayed on the display unit of the communication device 2 and the user closes the name input page without inputting the name, the first identification information ID1 and the second ID Identification information ID2 has already been generated and stored in the database DB. On the other hand, in the second embodiment, when the user gives an execution instruction, the first identification information ID1 and the second identification information ID2 are generated. As a result, since generation and storage of identification information that is not used can be reduced, the processing load of the server device 3 can be reduced and the storage capacity of the database DB can be reduced.

  Next, the server device 3 stores the input information and access information in the database D in association with the second identification information ID2 (S6), generates an initial message as in the first embodiment (S7), and responds. RES2 is transmitted to the communication device 2. The first identification information ID1 is recorded in the cookie of the response RES2. Therefore, after the second time, when the web browser of the communication device 2 accesses the game page provided by the server device 3, the request includes the first identification information ID1 as in the first embodiment. Become. This makes it possible to provide game results with continuity. The operation at the second access is the same as that of the first embodiment described with reference to FIG.

  In the second embodiment described above, the CPU 30 of the server device 3 receives the request REQ1 and the request REQ2 illustrated in FIGS. 12 and 9 and determines whether or not the first identification information ID1 is included. Functions as an information determination unit. Further, when the first identification information ID1 is not included, the CPU 30 of the server device 3 functions as an identification information generation unit that generates the first identification information ID1 (S2a). In addition, when the first identification information ID1 is not included, the CPU 30 of the server device 3 acquires the generated first identification information ID1 (S2a), and the first identification information ID1 is included. The first identification information ID1 included in the request is acquired (S9, S13), and functions as an identification information acquisition unit.

<C. Modification>
The present invention is not limited to the above-described embodiments. For example, the following modifications are possible. In addition, one or a plurality of aspects arbitrarily selected from the following examples can be appropriately combined.
(1) In each embodiment described above, the database DB includes the first table TBL1 and the second table TBL2, but the first identification information ID1 and the second identification information are included in one table. ID2, input information, and access information may be stored in association with each other.

(2) In each embodiment mentioned above, you may make it preserve | save 2nd identification information ID2 in a cookie. The SID may be the second identification information ID2. Further, the second identification information ID2 may not be provided. Further, client information (browser information) may be used instead of the SID as the first identification information ID2, or may be combined with the SID.

(3) In each of the above-described embodiments, the server device 3 reads input information from the database DB at the second and subsequent accesses, and displays a name input page in which a name is preset as an initial value in the name input field. Although it transmitted to the communication apparatus 3 as response RES1, this invention is not limited to this, You may transmit the name input page in which the name is not set as an initial value of the name input column. In this case, the user may input the same name again in the input field. Further, even when a name is set in advance as an initial value in the name input field, it may be changed to a different name. Here, when a name different from the previous name is input, the server device 3 may overwrite the input information stored in the database DB with the new name and set the number of times information to “1”. This is a mode in which only one name is allowed in one web browser.

In an aspect in which a plurality of names are allowed in one web browser, a set of input information and access information may be stored in a database in association with the second identification information ID2 (first identification information ID1). For example, when “Ichiro Minami” and “Jiro Minami” are set as input information, the storage contents of the database DB are as shown in FIG. 13, for example. In this case, the number information and the time information are independently managed by “Ichiro Onami” and “Jiro Onami”.
In addition, when a plurality of input information is recorded in the database DB, on the name input page transmitted from the server apparatus 3, a plurality of names may be selected from the pull-down menu in the name input field.

(4) In each of the above-described embodiments, the time at which the process for generating a message is executed is stored in the database DB as time information. However, the present invention is not limited to this, and the time for the process for generating a message is used. Any time is acceptable. For example, the offset time may be added to or subtracted from the time when the message is actually generated, or may be the time obtained by adding a predetermined time to the processing time for generating the message. In this case, the time information stored in the database DB is compared with the current time, and if the current time is late, it is determined that the predetermined time has elapsed, and a message can be generated.

(5) In each of the embodiments described above, the same message can be obtained as long as the number of times the message is generated is the same. However, a part of the message may be given randomness. For example, if the message uniquely determined based on the input information and the number of times information includes acquiring an item on the game, the type of the acquired item is randomly selected from a plurality of types of items prepared in advance. It may be. In this case, the specific information for specifying the acquired item may be stored in the database DB (second table TBL2) in association with the second identification information ID2. Then, when the result page is generated in the server device 3, the item acquired using the specific information may be generated as a part of the message.

(6) In each of the above-described embodiments, the execution information is generated when the user instructs the execution of the process. However, as an aspect, the execution information may be a flag included in the request REQ1. Alternatively, ULR designation may be used. That is, when the user clicks the execution button on the name input page, the user may move to a page provided in advance for execution of the process. In this case, the request REQ2 is transmitted to the URL associated with the execution button, but the URL included in the request REQ2 may be regarded as execution information.

(7) In each of the above-described embodiments, the number of times a message is generated by an execution instruction (hereinafter referred to as the number of accesses) is not limited, but the present invention is not limited to this, and the number of accesses is An upper limit may be provided. Alternatively, the number of accesses may be managed as the number of floors of the dungeon (tower) to be adventured, and messages may be created indefinitely.

(8) In each of the above-described embodiments, it has been described that the same message is generated if the input information matches the number-of-times information. In this case, the same message may be generated when the input information matches and the frequency information is different. For example, the input information is “Ichiro Onami”. The same message may be generated when the number information is “10” and “30”. In addition, when the input information does not match and the number information matches, in principle, different messages are generated. However, when the number of messages is limited (for example, 10,000), the input information does not match and the number information It may be allowed that the same message is generated when the two match.

DESCRIPTION OF SYMBOLS 1 ... Internet, 2-1 to 2-n ... Communication apparatus, 3 ... Server apparatus, DB ... Database, TBL1 ... 1st table, TBL2 ... 2nd table.

Claims (7)

When a request generated by a web browser is received, the server device provides a game by returning a response according to the request,
An identification information determination unit that determines whether the identification information assigned to each web browser that transmitted the request is included in the request;
When the determination result of the identification information determination unit is negative, an identification information generation unit that generates the identification information;
When the determination result of the identification information determination unit is negative, the identification information generated by the identification information generation unit is acquired, and when the determination result of the identification information determination unit is positive, the identification included in the request An identification information acquisition unit for acquiring information;
A response unit that generates a web page as a response to the request and transmits the web page;
An input information acquisition unit for acquiring input information input by the user using the web browser from the request;
An execution information acquisition unit for acquiring execution information from the request instructing execution of a process in which a user generates a message indicating a progress of a game using the web browser;
A storage unit that associates and stores the input information, user access information including the number of times indicating the number of times the process has been performed, and the identification information;
When the execution information is included in the request, the input information and the number-of-times information corresponding to the identification information acquired from the storage unit by the identification-information acquisition unit are read from the storage unit, and the input information and the number of times are read out and a result generation unit for executing pre Symbol processing based on the information,
The response unit is:
When the identification information is generated by the identification information generation unit, the web page including the identification information is generated and transmitted,
Further, when a message indicating the progress of the game is generated by the result generation unit, the web page including the message is generated and transmitted.
The server apparatus characterized by the above-mentioned. In the storage unit, time information related to the execution of the process is stored as the access information in association with the identification information,
The response unit transmits a web page different from the web page including the message when a time interval in which the request including the execution information is received is shorter than a predetermined time based on the time information. The server apparatus of description. When the identification information is the first identification information,
The storage unit associates the first identification information with the second identification information associated with the access information and manages the second identification information, and associates the second identification information with the access information. A second table is stored,
The server device according to claim 1 or 2, wherein Wherein the first identification information generated by the identification information generating section, the server device according to claim 3, characterized in that the session ID.   The server apparatus according to claim 3, wherein the first identification information generated by the identification information generation unit is generated based on information of the web browser that transmitted the request.   The identification information generation unit stores the identification information generated when the determination result of the identification information determination unit is negative in the request that does not include the execution information in the storage unit. The server device according to any one of claims 1 to 5.   The identification information generation unit stores the identification information generated when the determination result of the identification information determination unit is negative in the request including the execution information in the storage unit and the access information. The server device according to claim 1, wherein the server device is stored in association with each other.
