EP1234915A3 - Snowplough consisting of several plough blade elements - Google Patents

Snowplough consisting of several plough blade elements Download PDF

Info

Publication number
EP1234915A3
EP1234915A3 EP02001832A EP02001832A EP1234915A3 EP 1234915 A3 EP1234915 A3 EP 1234915A3 EP 02001832 A EP02001832 A EP 02001832A EP 02001832 A EP02001832 A EP 02001832A EP 1234915 A3 EP1234915 A3 EP 1234915A3
Authority
EP
European Patent Office
Prior art keywords
share
segments
plow frame
snowplough
blade elements
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP02001832A
Other languages
German (de)
French (fr)
Other versions
EP1234915A2 (en
Inventor
Christian Sammer
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Toni Kahlbacher & Cokg GmbH
Original Assignee
Toni Kahlbacher & Cokg GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Toni Kahlbacher & Cokg GmbH filed Critical Toni Kahlbacher & Cokg GmbH
Publication of EP1234915A2 publication Critical patent/EP1234915A2/en
Publication of EP1234915A3 publication Critical patent/EP1234915A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
    • E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
    • E01H5/00—Removing snow or ice from roads or like surfaces; Grading or roughening snow or ice
    • E01H5/04—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material
    • E01H5/06—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material dislodging essentially by non-driven elements, e.g. scraper blades, snow-plough blades, scoop blades
    • E01H5/065—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material dislodging essentially by non-driven elements, e.g. scraper blades, snow-plough blades, scoop blades characterised by the form of the snow-plough blade, e.g. flexible, or by snow-plough blade accessories
    • E01H5/066—Snow-plough blade accessories, e.g. deflector plates, skid shoes
    • E—FIXED CONSTRUCTIONS
    • E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
    • E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
    • E01H5/00—Removing snow or ice from roads or like surfaces; Grading or roughening snow or ice
    • E01H5/04—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material
    • E01H5/06—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material dislodging essentially by non-driven elements, e.g. scraper blades, snow-plough blades, scoop blades
    • E01H5/063—Apparatus propelled by animal or engine power; Apparatus propelled by hand with driven dislodging or conveying levelling elements, conveying pneumatically for the dislodged material dislodging essentially by non-driven elements, e.g. scraper blades, snow-plough blades, scoop blades by snow-plough blades tiltable for shock-absorbing purposes

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Soil Working Implements (AREA)

Abstract

Schneepflug mit einer aus mehreren Scharsegmenten (2, 3) bestehenden Pflugschar, die von einem Pflugrahmen (1) getragen wird, wobei die Scharsegmente (2, 3) jeweils über Tragarme (4, 5) mit dem Pflugrahmen (1) verbunden sind, die zumindest teilweise elastisch verformbar ausgebildet sind, dadurch gekennzeichnet, daß für zumindest eines der beiden äußeren Scharsegmente (3), vorzugsweise für beide äußeren Scharsegmente (3), zumindest ein Zugstabilisator (7) zur Entgegenwirkung eines seitlichen Ausweichens bei der Einwirkung einer Seitenkraft auf dieses äußere Scharsegment (3) vorgesehen ist, wobei der Zugstabilisator (7) an diesem äußeren Scharsegment (3) und am Pflugrahmen (1) angreift und der Angriffspunkt (26) am Scharsegment (3) weiter seitlich außen liegt als der Angriffspunkt (25) am Pflugrahmen (1) (Fig. 1).

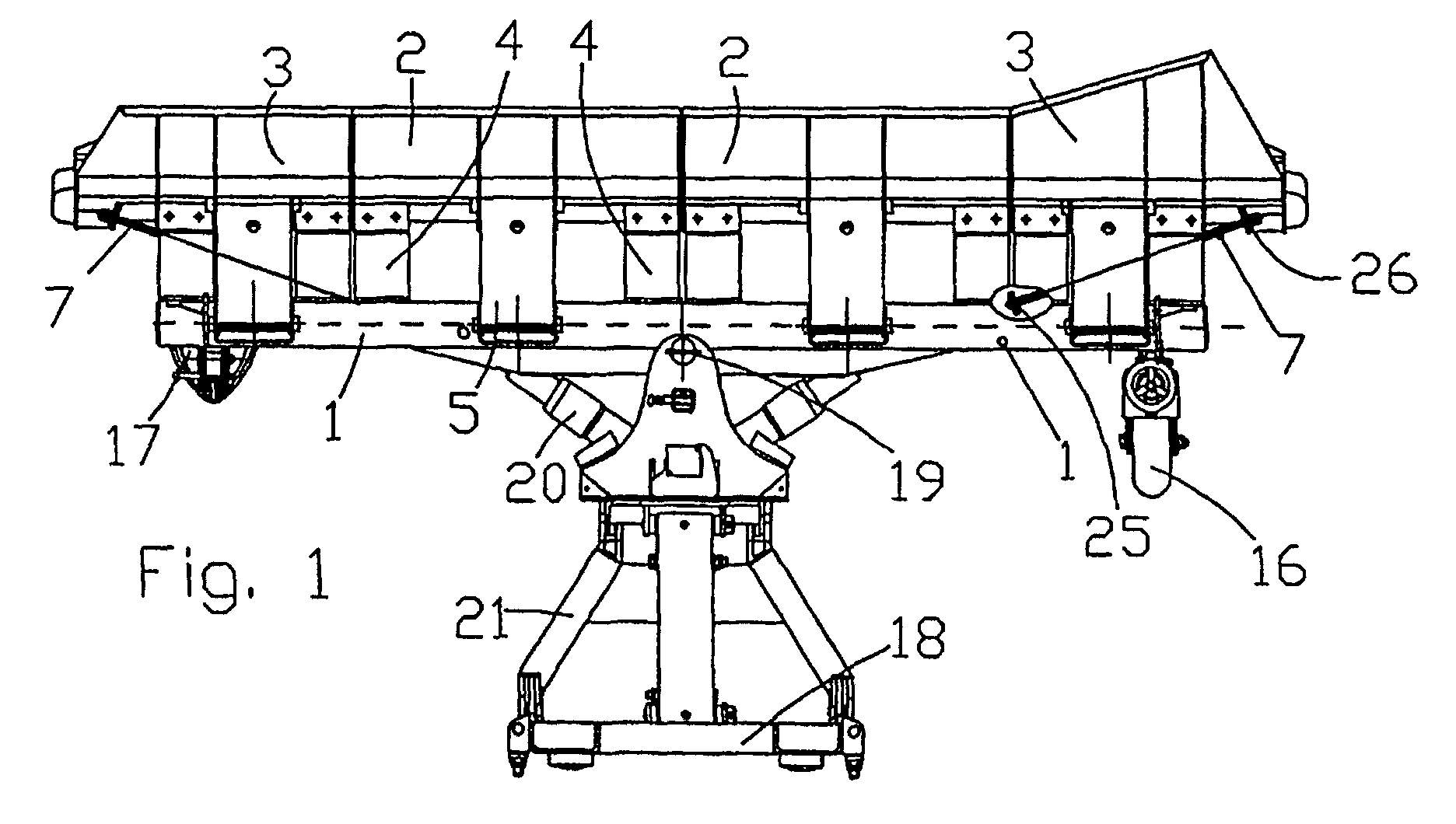

Figure 00000001
Snow plow with a ploughshare consisting of a plurality of share segments (2, 3), which is carried by a plow frame (1), the share segments (2, 3) each being connected to the plow frame (1) by support arms (4, 5) which are at least partially elastically deformable, characterized in that for at least one of the two outer coulter segments (3), preferably for both outer coulter segments (3), at least one tensile stabilizer (7) to counteract lateral deflection when a lateral force acts on this outer coulter Share segment (3) is provided, the tension stabilizer (7) acting on this outer share segment (3) and on the plow frame (1) and the point of attack (26) on the share segment (3) lying further to the side than the point of attack (25) on the plow frame (1) (Fig. 1).
Figure 00000001
