Abstract

Die Erfindung betrifft einen wasserlöslichen, wasserenthärtenden Builder in Form einer Tablette bestehend aus A) 60-98 Gew.% einer Kombination aus a) Citrat und/oder Citronensäure und b) einem als Enthärter wirksamen Polymer in einem Gewichtsverhältnis von a:b von 70:30 bis 50:50, vorzugsweise 65:35 bis 55:45, B) 0,5-6 Gew.% Polyethylenglykol, C) 0-38 Gew.% weiterer Hilfsstoffe.

Description

  • Gegenstand der Erfindung ist ein wasserlöslicher, vorwiegend organischer, wasserenthärtender Builder.
  • Die DE 36 14 779 offenbart ein granulares, phosphatfreies Wasserenthärtungsmittel zum Enthärten von Waschlaugen als auch als Zusatz zu Waschmitteln, welches aus 50-60 Gew.% feinkristallinem Zeolith, 3-5 Gew.% Natriumsalz eines Polyacrylsäure-, Polymethacrylsäure- oder Acrylsäure-Maleinsäure-Copolymeren, 4-15 Gew.% Natriumcitrat, 4-12 Gew.% Natriumcarbonat und gegebenenfalls bis zu 2 Gew.% Natrium-Carboxymethylcellulose besteht.
  • In der DE 40 22 005 wird ein Feinwaschmittel offenbart, welches als einzigen Builder eine Kombination aus einem wasserlöslichen Citrat mit einem Polyacrylat oder einem Polymer aus Acrylsäure und Maleinsäure enthält.
  • Die DE 36 03 471 offenbart ein phosphorarmes, bzw. phosphorfreies Wasch- und/oder Reinigungsmittel, welches ein Tensid, einen anorganischen und/oder organischen Builder und mindestens ein kolloidales Schichtsilikat enthält, sowie zusätzlich mindestens ein wasserlösliches Kalzium- und/oder Magnesiumsalz und Polyacrylsäure.
  • Die DE 39 31 871 beschreibt ein granulares, phosphatfreies Wasserenthärtungsmittel enthaltend 50-70 Gew.% feinkristallinen Zeolith, 2-10 Gew.% eines Schichtsilikates, 5-15 Gew.% des Natriumsalzes einer (Co-)polymeren Carbonsäure und 1-10 Gew.% Natriumsulfat.
  • Die DE 39 43 019 offenbart ein granulares Waschmitteladditiv enthaltend 20-45 Gew.% eines Schichtsilikates, 15-50 Gew.% eines feinkristallinen, synthetischen Zeoliths, 0-15 Gew.% eines Sulfats, Carbonats oder Phosphats, 0-8 Gew.% des Natriumsalzes einer homopolymeren, bzw. copolymeren (Meth-)acrylsäure, 0-2 Gew.% an Celluloseether, 0-20 Gew.% an nichtionischen Tensiden aus der Klasse der Polyglykolether. Eine ähnliche sprühgetrocknete Zusammensetzung wird in der DE 40 09 618 offenbart.
  • Die FR-PS 1 599 547 offenbart eine Zusammensetzung zur Inhibierung der Kesselsteinbildung durch Erdalkalisalze in wässrigen Systemen, enthaltend eine Carbonsäure wie beispielsweise Zitronensäure und ein wasserlösliches organisches Polymer wie beispielsweise ein Acrylsäurepolymer oder -copolymer.
  • Die CH-PS 577 937 offenbart ein Mittel in Tablettenform zur Verhinderung von Kalkansatz, enthaltend entweder Zitronensäure und Zusätze von Acetylsalizylsäure und/oder Borsäure und/oder Nikotinsäure oder Nikotinsäure.
  • Es ist dem Fachmann bekannt und durch den zitierten Stand der Technik dokumentiert, daß Waschmitteladditive und insbesondere Wasserenthärter bislang in möglichst kleinteiliger, vorzugsweise Pulverform, allenfalls in Granulatform angeboten werden, da die Meinung bestand, daß nur dadurch die erforderliche schnelle Löslichkeit eines Wasserenthärters gewährleistet werden kann.
  • Die Anmelderin hat sich zur Aufgabe gesetzt, einen Wasserenthärter in leicht handhabbarer, gut dosierbarer Form zur Verfügung zu stellen.
  • Erfindungsgemäß wird dies durch einen wasserlöslichen, wasserenthärtenden Builder in Form einer Tablette erreicht, wobei die Tablette eine bestimmte Zusammensetzung aufweist, die einerseits eine gute Handhabbarkeit der Tablette, andererseits eine schnelle Auflösung der Tablette in der Waschlauge gewährleistet.
  • Der erfindungsgemäße wasserlösliche, wasserenthärtende Builder in Form einer Tablette besteht aus
    • A) 60-98 Gew.% einer Kombination aus
      • a) Citrat und/oder Citronensäure und
      • b) einem als Enthärter wirksamen Polymer
      in einem Gewichtsverhältnis von a:b von 70:30 bis 50:50, vorzugsweise 65:35 bis 55:45,
    • B) 0,5-6 Gew.% Polyethylenglykol
    • C) 0-38 Gew.% weiterer Hilfsstoffe.
  • Die erfindungsgemäß in Kombination mit Citrat und/oder Citronensäure einzusetzenden, als Enthärter wirksamen Polymeren sind bekannte Substanzen. Hierfür eignen sich Maleinsäure/Acrylsäure-Copolymerisate und vorzugsweise biologisch abbaubare Polymere, insbesondere solche auf Peptid-Basis. Solche Polymere auf Peptid-Basis sind beispielsweise die Cygnus-Produkte der Cygnus Corporation. Als Builder geeignete Serin-N-N-Diessigsäurederivate werden in der EP 287 885 beschrieben.
  • Als Builder geeignete Maleinsäure/Acrylsäure-Copolymerisate sind unter verschiedenen Sokalan-Marken im Handel, beispielsweise ein Maleinsäure/Acrylsäure-Copolymerisat, Natriumsalz, unter der Marke "Sokalan CP 5".
  • Ein wesentlicher Bestandteil der erfindungsgemäßen Buildertabletten stellt das Polyethylenglykol dar, welches in einer Menge von 0,5-6 Gew.%, vorzugsweise 1-3 Gew.%, anwesend sein sollte. Als geeignete Polyethylenglykole sind die Polyethylenglykole (1000-6000) zu nennen, insbesondere Polyethylenglykol (4000-6000). Diese Polyethylenglykole wirken als Tablettierungshilfsmittel. Daß Polyethylenglykol als Tablettierungshilfsmittel brauchbar ist, war bekannt. Jedoch ergab sich überraschenderweise, daß, während bei anderen Tablettierungshilfsmitteln Auflösungsschwierigkeiten sich ergaben, die genannten Polyethylenglykole für den erfindungsgemäßen Zweck vorzüglich geeignet sind.
  • Ein Polyethylenglykol mit niederem Ethoxylierungsgrad, beispielsweise Polyethylenglykol 200, eignet sich nicht als Tablettierungsmittel, wohl aber als Staubbindemittel und kann als solches in der erfindungsgemäßen Tablette ebenfalls in geringer Menge, beispielsweise in einer Menge von 0,5-5 Gew.%, anwesend sein.
  • Die erfindungsgemäße Tablette sollte ein Sprengmittel enthalten. Als solches eignet sich ein unlösliches Polyvinylpyrrolidon, welches in einer Menge von 1-20 Gew.%, vorzugsweise 7-12 Gew.%, vorliegen kann. Ein für diesen Zweck geeignetes Polyvinylpyrrolidon ist unter der Marke "Sokalan HP 50" im Handel.
  • Es wird jedoch besonders bevorzugt in der Builderkombination (A) Citronensäure und/oder teilneutralisiertes, sauer wirkendes Polymer einzusetzen und als weiteren Hilfsstoff Carbonat und/oder Bicarbonat, beispielsweise Natriumcarbonat, Natriumhydrogencarbonat und/oder Kaliumcarbonat, welches in Kombination mit der vorerwähnten sauren Komponente als Sprengmittel dient. Das Carbonat/Bicarbonat kann in Mengen von 5-30 Gew.% eingesetzt werden.
  • Vorzugsweise stellen die in der erfindungemäßen Kombination (A) genannten Builder die einzigen Builder in der Tablette dar. Zeolithe werden vorzugsweise nicht mitvervendet, obwohl gegebenenfalls die Tablette 5-20 Gew.% eines Schichtsilikates enthalten kann, was den Builder besonders geeignet macht für hartes Wasser mit hohen Anteilen Magnesiumhärte.
  • Als weitere Hilfsmittel zusätzlich zu den bereits genannten können beispielsweise Cellulosederivate, wie Methylhydroxyethylcellulose, oder Paraffinöl in geringen Mengen mitverwendet werden.
  • Eine bevorzugte Builder-Tablette gemäß vorliegender Erfindung enthält:
    16-40 Gew.%, vorzugsweise 18-35 Gew.% Trinatriumcitrat,
    14-21 Gew.%, vorzugsweise 17-19 Gew.% Citronensäure,
    20-40 Gew.%, vorzugsweise 30-36 Gew.% Maleinsäure/Acrylsäure-Copolymerisat, Na-Salz und/oder Polymer auf Peptidbasis,
    2-5 Gew.% Polyethylenglykol (4000-6000)
    15-30 Gew.% Carbonat/Bicarbonat
    1-2 Gew.% Polyvinylpyrrolidon
    Die erfindungsgemäße Buildertablette besitzt besondere Vorteile bei Anwendung mit bunten Textilien. Sie gewährleistet hierbei sehr gute Farberhaltung und vermeidet eine Farbübertragung.
  • Außerdem wirkt sie einer Vergrauung bei weißen Textilien entgegen, verringert den Wäscheverschleiß und die Knitterbildung der Wäsche, erhält die natürliche Weichheit der Textilien durch deutliche Inkrustationsverminderung und verringert den Gewebeschrumpf insbesonders bei der Heißwäsche (60 - 95°C) von Baumwolltextilien.

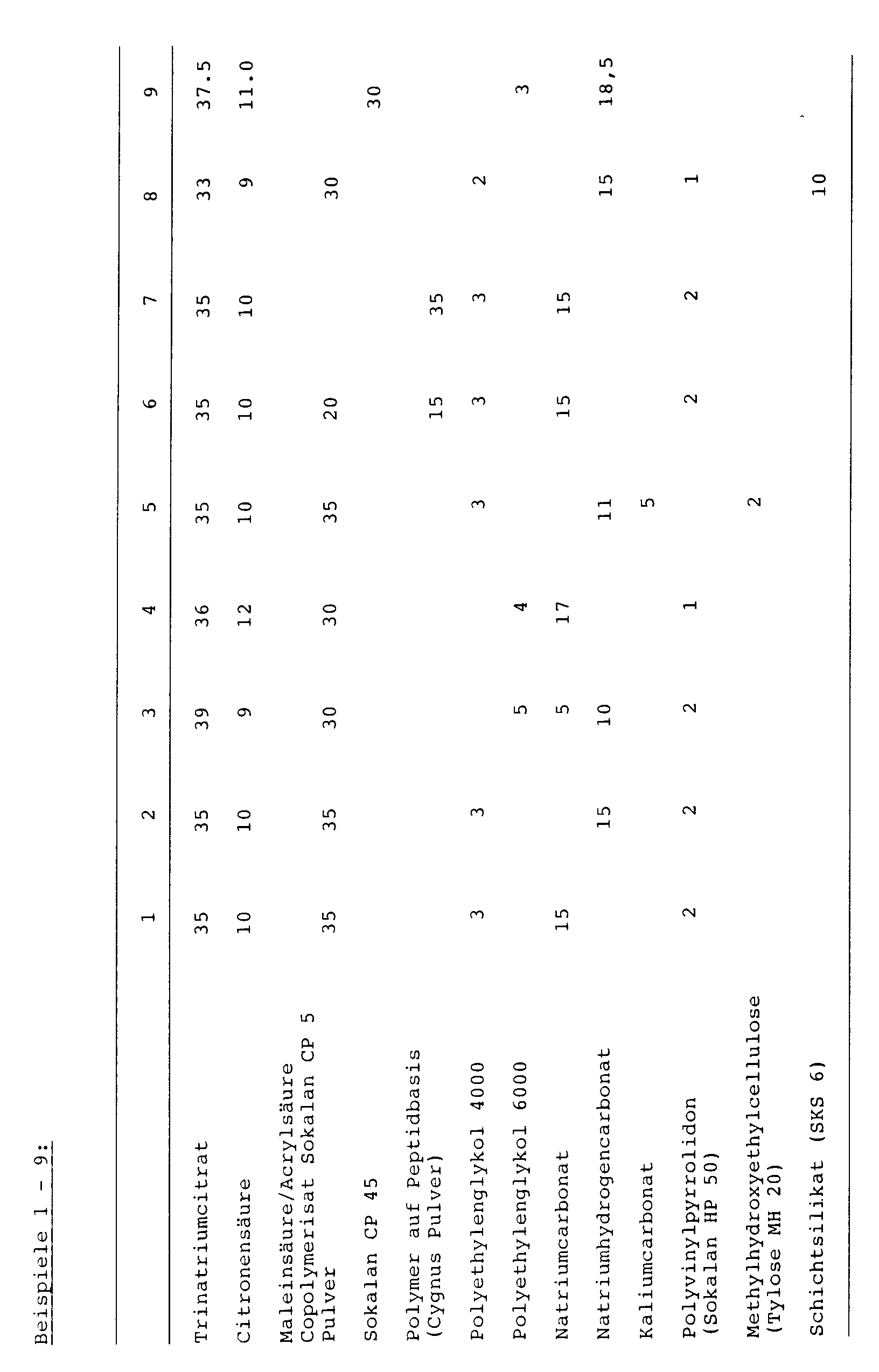

    • Beispiele 1-9:
  • Figure imgb0001
    • Beispiel 10:
  • Aus folgenden Bestandteilen wurde eine Builder-Tablette gepreßt:
    Maleinsäure/Acrylsäure-Copolymerisat, Granulat (Sokalan ® CP 45), pH 4 30 %
    Trinatriumcitrat 19 %
    Citronensäure 18 %
    Natriumcarbonat 30 %
    Paraffinöl 0,2 %
    Polyethylenglykol (1500) 2,8%
    100,0 % ¯
    Figure imgb0002

Claims (9)

  1. Wasserlöslicher, wasserenthärtender Builder in Form einer Tablette bestehend aus
    A) 60-98 Gew.% einer Kombination aus
    a) Citrat und/oder Citronensäure und
    b) einem als Enthärter wirksamen Polymer
    in einem Gewichtsverhältnis von a:b von 70:30 bis 50:50, vorzugsweise 65:35 bis 55:45,
    B) 0,5-6 Gew.% Polyethylenglykol
    C) 0-38 Gew.% weiterer Hilfsstoffe.
  2. Wasserenthärtender Builder nach Anspruch 1, dadurch gekennzeichnet, daß das Polymer ein biologisch abbaubares Polymer auf Peptid-Basis ist.
  3. Wasserenthärtender Builder nach Anspruch 1, dadurch gekennzeichnet, daß das Polymer ein Maleinsäure/Acrylsäure Copolymerisat ist.
  4. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche, dadurch gekennzeichnet, daß er in der Kombination A Citronensäure und/oder teilneutralisiertes, sauer wirkendes Polymer enthält und als weiteren Hilfsstoff Carbonat und/oder Bicarbonat als Sprengmittel.
  5. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche , dadurch gekennzeichnet, daß er 1-3 Gew.% Polyethylenglykol (1.000-6.000) enthält.
  6. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche, dadurch gekennzeichnet, daß er als weiteren Hilfsstoff 0,5-5 Gew.% Polyethylenglykol (200) als Staubbindemittel enthält.
  7. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche, dadurch gekennzeichnet, daß er als weiteren Hilfsstoff 1-20 Gew.% eines unlöslichen Polyvinylpyrrolidons als Sprengmittel enthält.
  8. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche, dadurch gekennzeichnet, daß er als weiteren Hilfsstoff 5-20 Gew.% eines Schichtsilikats enthält.
  9. Wasserenthärtender Builder nach einem der vorgehenden Ansprüche, dadurch gekennzeichnet, daß er
    a1) 16-40 Gew.%, vorzugsweise 18-35 Gew.% Trinatriumcitrat,
    a2) 14-21 Gew.%, vorzugsweise 17-19 Gew.% Citronensäure,
    b) 20-40 Gew.%, vorzugsweise 30-36 Gew.% Maleinsäure/Acrylsäure-Copolymerisat, Na-Salz und/oder Polymer auf Peptidbasis,
    2-5 Gew.% Polyethylenglykol (4000-6000)
    15-30 Gew.% Carbonat/Bicarbonat
    1-2 Gew.% Polyvinylpyrrolidon
    enthält.
EP94108688A 1993-06-07 1994-06-07 Wasserlöslicher, wasserenthärtender Builder Expired - Lifetime EP0628627B1 (de)

Priority Applications (1)

Application Number Priority Date Filing Date Title
SI9430037T SI0628627T1 (en) 1993-06-07 1994-06-07 Water-soluble, water softening builder

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
DE4318902A DE4318902C2 (de) 1993-06-07 1993-06-07 Wasserlösliches, wasserenthärtendes Mittel
DE4318902 1993-06-07

Publications (2)

Publication Number Publication Date
EP0628627A1 true EP0628627A1 (de) 1994-12-14
EP0628627B1 EP0628627B1 (de) 1997-03-12

Family

ID=6489821

Family Applications (1)

Application Number Title Priority Date Filing Date
EP94108688A Expired - Lifetime EP0628627B1 (de) 1993-06-07 1994-06-07 Wasserlöslicher, wasserenthärtender Builder

Country Status (7)

Country Link
EP (1) EP0628627B1 (de)
AT (1) ATE150081T1 (de)
DE (2) DE4318902C2 (de)
DK (1) DK0628627T3 (de)
ES (1) ES2098820T3 (de)
GR (1) GR3023207T3 (de)
SI (1) SI0628627T1 (de)

Cited By (15)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1995021908A1 (de) * 1994-02-10 1995-08-17 Henkel Kommanditgesellschaft Auf Aktien Tablette mit buildersubstanzen
EP0736595A1 (de) * 1995-04-03 1996-10-09 The Procter & Gamble Company Zusammensetzungen zum Einweichen
DE19714657C1 (de) * 1997-04-09 1999-01-07 Benckiser Nv Wasserlöslicher, wasserenthärtender Builder
WO2000037596A3 (de) * 1998-12-19 2000-11-23 Henkel Kgaa Verhinderung von ablagerungen
WO2001085888A3 (en) * 2000-05-11 2002-07-11 Procter & Gamble Laundry system having unitized dosing
DE10123621A1 (de) * 2001-05-15 2002-11-28 Henkel Kgaa Verfahren zur Herstellung einer Wasserenthärtertablette
WO2005073361A1 (en) * 2004-01-31 2005-08-11 Reckitt Benckiser N.V. Cleaning method
WO2006005913A1 (en) * 2004-07-08 2006-01-19 Reckitt Benckiser N.V. Method of removing laundry ash
WO2006005919A1 (en) * 2004-07-08 2006-01-19 Reckitt Benckiser N.V. Method of removing laundry ash
US7867968B1 (en) 2009-11-05 2011-01-11 The Procter & Gamble Company Laundry scent additive
WO2012069895A1 (en) 2010-11-12 2012-05-31 Dental Care Innovation Gmbh Soluble tablet, containing abrasive media
US8476219B2 (en) 2009-11-05 2013-07-02 The Procter & Gamble Company Laundry scent additive
WO2014003845A1 (en) * 2012-06-27 2014-01-03 Amcol International Corporation Low density builder and detergent particles via high shear agglomeration
US9453188B2 (en) 2012-12-20 2016-09-27 The Procter & Gamble Company Laundry scent additive
US10959931B2 (en) 2017-02-02 2021-03-30 Water Pik, Inc. Tablet including abrasive for dental cleaning

Families Citing this family (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE19606765A1 (de) * 1996-02-23 1997-08-28 Henkel Kgaa Verfahren zur Herstellung von Geschirrspülmitteltabletten
EP1004661A1 (de) 1998-11-11 2000-05-31 DALLI-WERKE WÄSCHE- und KÖRPERPFLEGE GmbH & Co. KG Verdichtetes Granulat, Herstellungsverfahren und Verwendung als Sprengmittel für gepresste Formkörper (2)
DE19937428A1 (de) * 1999-08-07 2001-02-08 Henkel Kgaa Reinigungs- und Waschmittelformkörper
DE102007059677A1 (de) * 2007-12-10 2009-06-25 Henkel Ag & Co. Kgaa Reinigungsmittel
CA2770869A1 (en) * 2009-09-02 2011-03-10 Unilever Plc Composition and process for treatment of a fabric
CN103981713B (zh) * 2014-05-21 2016-08-17 吴江市英力达塑料包装有限公司 一种织物保养柔顺剂及其制备方法

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0203523A2 (de) * 1985-05-30 1986-12-03 Henkel Kommanditgesellschaft auf Aktien Schmelzblockförmige, alkalihydroxidhaltige Mittel für das maschinelle Reinigen von Geschirr und Verfahren zu ihrer Herstellung
WO1991017238A1 (en) * 1990-05-04 1991-11-14 Department Of The Navy Extended-release plaque preventing and dissolving compositions and their method of use
EP0504091A1 (de) * 1991-03-15 1992-09-16 Cleantabs A/S Phosphatfreies Maschinengeschirrspülmittel

Family Cites Families (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1258068A (de) * 1968-01-29 1971-12-22
CH577937A5 (de) * 1973-07-03 1976-07-30 Lonza Ag

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0203523A2 (de) * 1985-05-30 1986-12-03 Henkel Kommanditgesellschaft auf Aktien Schmelzblockförmige, alkalihydroxidhaltige Mittel für das maschinelle Reinigen von Geschirr und Verfahren zu ihrer Herstellung
WO1991017238A1 (en) * 1990-05-04 1991-11-14 Department Of The Navy Extended-release plaque preventing and dissolving compositions and their method of use
EP0504091A1 (de) * 1991-03-15 1992-09-16 Cleantabs A/S Phosphatfreies Maschinengeschirrspülmittel

Cited By (42)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1995021908A1 (de) * 1994-02-10 1995-08-17 Henkel Kommanditgesellschaft Auf Aktien Tablette mit buildersubstanzen
US5900399A (en) * 1994-02-10 1999-05-04 Henkel Kommanditgesellschaft Auf Aktien Tablet containing builders
EP0965565A1 (de) * 1994-02-10 1999-12-22 Henkel KGaA Wasserenthärtungstablette
EP0736595A1 (de) * 1995-04-03 1996-10-09 The Procter & Gamble Company Zusammensetzungen zum Einweichen
DE19714657C1 (de) * 1997-04-09 1999-01-07 Benckiser Nv Wasserlöslicher, wasserenthärtender Builder
WO2000037596A3 (de) * 1998-12-19 2000-11-23 Henkel Kgaa Verhinderung von ablagerungen
US7091171B2 (en) 2000-05-11 2006-08-15 The Procter & Gamble Company Laundry system having unitized dosing
US7056877B2 (en) 2000-05-11 2006-06-06 The Procter & Gamble Company Laundry system having unitized dosing
WO2001085888A3 (en) * 2000-05-11 2002-07-11 Procter & Gamble Laundry system having unitized dosing
US7166565B2 (en) 2000-05-11 2007-01-23 The Procter & Gamble Company Laundry system having unitized dosing
US7186680B2 (en) 2000-05-11 2007-03-06 The Procter & Gamble Company Laundry system having unitized dosing
US7494965B2 (en) 2000-05-11 2009-02-24 The Procter & Gamble Company Laundry system having unitized dosing
US7544651B2 (en) 2000-05-11 2009-06-09 The Procter & Gamble Company Laundry system having unitized dosing
DE10123621A1 (de) * 2001-05-15 2002-11-28 Henkel Kgaa Verfahren zur Herstellung einer Wasserenthärtertablette
DE10123621B4 (de) * 2001-05-15 2006-12-07 Henkel Kgaa Verfahren zur Herstellung einer Wasserenthärtertablette
WO2005073361A1 (en) * 2004-01-31 2005-08-11 Reckitt Benckiser N.V. Cleaning method
WO2006005913A1 (en) * 2004-07-08 2006-01-19 Reckitt Benckiser N.V. Method of removing laundry ash
WO2006005919A1 (en) * 2004-07-08 2006-01-19 Reckitt Benckiser N.V. Method of removing laundry ash
US11142728B2 (en) 2009-11-05 2021-10-12 The Procter & Gamble Company Laundry scent additive
US12104145B2 (en) 2009-11-05 2024-10-01 The Procter & Gamble Company Laundry scent additive
US12091644B2 (en) 2009-11-05 2024-09-17 The Procter & Gamble Company Laundry scent additive
US12006492B2 (en) 2009-11-05 2024-06-11 The Procter & Gamble Company Laundry scent additive
US8476219B2 (en) 2009-11-05 2013-07-02 The Procter & Gamble Company Laundry scent additive
US11859159B2 (en) 2009-11-05 2024-01-02 The Procter & Gamble Company Laundry scent additive
US7871976B1 (en) 2009-11-05 2011-01-18 The Procter & Gamble Company Laundry scent additive
US9453189B2 (en) 2009-11-05 2016-09-27 The Procter & Gamble Company Laundry scent additive
US9708574B2 (en) 2009-11-05 2017-07-18 The Procter & Gamble Company Laundry scent additive
US12319898B2 (en) 2009-11-05 2025-06-03 The Procter & Gamble Company Laundry scent additive
US10167441B2 (en) 2009-11-05 2019-01-01 The Procter & Gamble Company Laundry scent additive
US12139692B2 (en) 2009-11-05 2024-11-12 The Procter & Gamble Company Laundry scent additive
US7867968B1 (en) 2009-11-05 2011-01-11 The Procter & Gamble Company Laundry scent additive
US12104146B2 (en) 2009-11-05 2024-10-01 The Procter & Gamble Company Laundry scent additive
US11608481B2 (en) 2009-11-05 2023-03-21 The Procter & Gamble Company Laundry scent additive
US11753606B2 (en) 2009-11-05 2023-09-12 The Procter & Gamble Company Laundry scent additive
US11834637B2 (en) 2009-11-05 2023-12-05 The Procter & Gamble Company Laundry scent additive
DE102010051226A1 (de) 2010-11-12 2012-05-31 Dental Care Innovation Gmbh Ausspültablete mit abrasiven Bestandteilen
WO2012069895A1 (en) 2010-11-12 2012-05-31 Dental Care Innovation Gmbh Soluble tablet, containing abrasive media
WO2014003845A1 (en) * 2012-06-27 2014-01-03 Amcol International Corporation Low density builder and detergent particles via high shear agglomeration
US9453188B2 (en) 2012-12-20 2016-09-27 The Procter & Gamble Company Laundry scent additive
US10160936B2 (en) 2012-12-20 2018-12-25 The Procter & Gamble Company Laundry scent additive
US11596587B2 (en) 2017-02-02 2023-03-07 Water Pik, Inc. Tablet including abrasive for dental cleaning
US10959931B2 (en) 2017-02-02 2021-03-30 Water Pik, Inc. Tablet including abrasive for dental cleaning

Also Published As

Publication number Publication date
GR3023207T3 (en) 1997-07-30
SI0628627T1 (en) 1997-10-31
ATE150081T1 (de) 1997-03-15
DE4318902C2 (de) 1996-10-24
EP0628627B1 (de) 1997-03-12
DE59402005D1 (de) 1997-04-17
DE4318902A1 (de) 1994-12-08
ES2098820T3 (es) 1997-05-01
DK0628627T3 (da) 1997-08-25

Similar Documents

Publication Publication Date Title
EP0628627B1 (de) Wasserlöslicher, wasserenthärtender Builder
DE69210669T2 (de) Waschmittel enthaltender Gegenstand
EP0264701B1 (de) Reinigungsmitteltabletten für das maschinelle Geschirrspülen
DE69408530T2 (de) Feste waschmittelbriketten
EP0692020B1 (de) Stabile, bifunktionelle, phosphat-, metasilikat- und polymerfreie niederalkalische reinigungsmitteltabletten für das maschinelle geschirrspülen und verfahren zu ihrer herstellung
DE69724336T2 (de) Wasserenthärtende Tabletten
DE69109193T2 (de) Detergenszusammensetzungen.
DE2342461C3 (de) Reinigungsmittelzusammensetzungen
DE19963569B4 (de) Zusammensetzung zur Verwendung in einer Geschirrspülmaschine
DE3541146A1 (de) Mehrschichtige reinigungsmitteltabletten fuer das maschinelle geschirrspuelen
DE2321001A1 (de) Zusammensetzung mit kristallisationsimpfwirkung
EP0523095B1 (de) Stabile, bifunktionelle, phosphatfreie reinigungsmitteltabletten für das maschinelle geschirrspülen
EP2754708B1 (de) Reinigertablette mit integriertem Vorreiniger
EP0973861B1 (de) Wasserlöslicher, wasserenthärtender builder
DE69724519T2 (de) Reinigungsmitteltabletten
EP0523681A2 (de) Maschinengeschirrspülmittel und Verfahren zu seiner Herstellung
WO1993017089A1 (de) Verfahren zur herstellung niederalkalischer, aktivchlor-, silikat-, und phosphatfreier maschinengeschirrspülmittel in form von schwergranulaten
DE4210363A1 (de) Verfahren zur Herstellung niederalkalischer, aktivchlor-, silikat- und phosphatfreier Maschinengeschirrspülmittel in Form von Schwergranulaten
DE60120668T3 (de) Wasserenthärter in form eines brausepulvers
EP0407626A1 (de) Phosphatfreies, flüssiges Wasch- und Reinigungsmittel
DE3010590A1 (de) Reinigungsmasse
DE4022005C2 (de) Feinwaschmittel
DE102008008744A1 (de) Reinigungsmittel
DE19632283A1 (de) Verwendung von Lipasen in niederalkalischen Mitteln zum Vorspülen im Rahmen des maschinellen Geschirrspülens
DE3832989A1 (de) Fluessiges phosphatfreies reinigungsmittel fuer geschirrspuelmaschinen (geschirrspuelmittel)

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): AT BE CH DE DK ES FR GB GR IE IT LI LU MC NL PT SE

RAX Requested extension states of the european patent have changed

Free format text: SI PAYMENT 940607

17P Request for examination filed

Effective date: 19950522

GRAG Despatch of communication of intention to grant

Free format text: ORIGINAL CODE: EPIDOS AGRA

17Q First examination report despatched

Effective date: 19960514

GRAH Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOS IGRA

GRAH Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOS IGRA

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): AT BE CH DE DK ES FR GB GR IE IT LI LU MC NL PT SE

AX Request for extension of the european patent

Free format text: SI PAYMENT 940607

REF Corresponds to:

Ref document number: 150081

Country of ref document: AT

Date of ref document: 19970315

Kind code of ref document: T

REG Reference to a national code

Ref country code: CH

Ref legal event code: EP

GBT Gb: translation of ep patent filed (gb section 77(6)(a)/1977)

Effective date: 19970314

ITF It: translation for a ep patent filed
REF Corresponds to:

Ref document number: 59402005

Country of ref document: DE

Date of ref document: 19970417

ET Fr: translation filed
REG Reference to a national code

Ref country code: ES

Ref legal event code: FG2A

Ref document number: 2098820

Country of ref document: ES

Kind code of ref document: T3

REG Reference to a national code

Ref country code: IE

Ref legal event code: FG4D

Free format text: 72712

REG Reference to a national code

Ref country code: CH

Ref legal event code: NV

Representative=s name: PATENTANWAELTE SCHAAD, BALASS, MENZL & PARTNER AG

REG Reference to a national code

Ref country code: PT

Ref legal event code: SC4A

Free format text: AVAILABILITY OF NATIONAL TRANSLATION

Effective date: 19970327

Ref country code: GR

Ref legal event code: FG4A

Free format text: 3023207

REG Reference to a national code

Ref country code: DK

Ref legal event code: T3

PLBI Opposition filed

Free format text: ORIGINAL CODE: 0009260

PLBQ Unpublished change to opponent data

Free format text: ORIGINAL CODE: EPIDOS OPPO

PLBI Opposition filed

Free format text: ORIGINAL CODE: 0009260

26 Opposition filed

Opponent name: HENKEL KGAA PATENTE (TTP)

Effective date: 19971209

26 Opposition filed

Opponent name: UNILEVER PLC/ UNILEVER NV

Effective date: 19971212

Opponent name: HENKEL KGAA PATENTE (TTP)

Effective date: 19971209

PLBF Reply of patent proprietor to notice(s) of opposition

Free format text: ORIGINAL CODE: EPIDOS OBSO

NLR1 Nl: opposition has been filed with the epo

Opponent name: UNILEVER PLC/ UNILEVER NV

Opponent name: HENKEL KGAA PATENTE (TTP)

PLBF Reply of patent proprietor to notice(s) of opposition

Free format text: ORIGINAL CODE: EPIDOS OBSO

PLBQ Unpublished change to opponent data

Free format text: ORIGINAL CODE: EPIDOS OPPO

PLBI Opposition filed

Free format text: ORIGINAL CODE: 0009260

PLBF Reply of patent proprietor to notice(s) of opposition

Free format text: ORIGINAL CODE: EPIDOS OBSO

RAP2 Party data changed (patent owner data changed or rights of a patent transferred)

Owner name: BENCKISER N.V.

26 Opposition filed

Opponent name: CLARO PRODUCTS GMBH

Effective date: 19990125

Opponent name: UNILEVER PLC/ UNILEVER NV

Effective date: 19971212

Opponent name: HENKEL KGAA PATENTE (TTP)

Effective date: 19971209

NLR1 Nl: opposition has been filed with the epo

Opponent name: CLARO PRODUCTS GMBH

Opponent name: UNILEVER PLC/ UNILEVER NV

Opponent name: HENKEL KGAA PATENTE (TTP)

NLT2 Nl: modifications (of names), taken from the european patent patent bulletin

Owner name: BENCKISER N.V.

REG Reference to a national code

Ref country code: CH

Ref legal event code: PUE

Owner name: JOH. A. BENCKISER GMBH TRANSFER- BENCKISER N.V.

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: PT

Payment date: 19990521

Year of fee payment: 6

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: IE

Payment date: 19990524

Year of fee payment: 6

REG Reference to a national code

Ref country code: GB

Ref legal event code: 732E

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DK

Payment date: 19990617

Year of fee payment: 6

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: SE

Payment date: 19990621

Year of fee payment: 6

Ref country code: LU

Payment date: 19990621

Year of fee payment: 6

Ref country code: CH

Payment date: 19990621

Year of fee payment: 6

Ref country code: BE

Payment date: 19990621

Year of fee payment: 6

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: NL

Payment date: 19990622

Year of fee payment: 6

Ref country code: MC

Payment date: 19990622

Year of fee payment: 6

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: GR

Payment date: 19990625

Year of fee payment: 6

NLS Nl: assignments of ep-patents

Owner name: BENCKISER N.V.

REG Reference to a national code

Ref country code: FR

Ref legal event code: TP

REG Reference to a national code

Ref country code: PT

Ref legal event code: PC4A

Free format text: BENCKISER N.V. NL

Effective date: 19990719

BECA Be: change of holder's address

Free format text: 19990409 *BENCKISER N.V.:WORLD TRADE CENTER AA SCHIPHOL BOULEVARD 229, 1118 BH SCHIPHOL

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LU

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000607

Ref country code: IE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000607

Ref country code: DK

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000607

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000608

PLBQ Unpublished change to opponent data

Free format text: ORIGINAL CODE: EPIDOS OPPO

PLAB Opposition data, opponent's data or that of the opponent's representative modified

Free format text: ORIGINAL CODE: 0009299OPPO

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MC

Free format text: THE PATENT HAS BEEN ANNULLED BY A DECISION OF A NATIONAL AUTHORITY

Effective date: 20000630

Ref country code: LI

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000630

Ref country code: GR

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000630

Ref country code: CH

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000630

Ref country code: BE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20000630

PLBO Opposition rejected

Free format text: ORIGINAL CODE: EPIDOS REJO

R26 Opposition filed (corrected)

Opponent name: HENKEL KGAA PATENTE (TTP) * 19971212 UNILEVER PLC/

Effective date: 19971209

APAC Appeal dossier modified

Free format text: ORIGINAL CODE: EPIDOS NOAPO

APAE Appeal reference modified

Free format text: ORIGINAL CODE: EPIDOS REFNO

NLR1 Nl: opposition has been filed with the epo

Opponent name: UNILEVER PLC/UNILEVER NV

Opponent name: HENKEL KGAA PATENTE (TTP)

APAC Appeal dossier modified

Free format text: ORIGINAL CODE: EPIDOS NOAPO

BERE Be: lapsed

Owner name: BENCKISER N.V.

Effective date: 20000630

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: PT

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20001231

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: NL

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20010101

REG Reference to a national code

Ref country code: DK

Ref legal event code: EBP

REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

EUG Se: european patent has lapsed

Ref document number: 94108688.6

NLV4 Nl: lapsed or anulled due to non-payment of the annual fee

Effective date: 20010101

REG Reference to a national code

Ref country code: IE

Ref legal event code: MM4A

REG Reference to a national code

Ref country code: PT

Ref legal event code: MM4A

Free format text: LAPSE DUE TO NON-PAYMENT OF FEES

Effective date: 20001231

REG Reference to a national code

Ref country code: GB

Ref legal event code: IF02

APAC Appeal dossier modified

Free format text: ORIGINAL CODE: EPIDOS NOAPO

PLAB Opposition data, opponent's data or that of the opponent's representative modified

Free format text: ORIGINAL CODE: 0009299OPPO

PLBN Opposition rejected

Free format text: ORIGINAL CODE: 0009273

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: OPPOSITION REJECTED

27O Opposition rejected

Effective date: 20030306

REG Reference to a national code

Ref country code: FR

Ref legal event code: CD

Ref country code: FR

Ref legal event code: CA

APAH Appeal reference modified

Free format text: ORIGINAL CODE: EPIDOSCREFNO

REG Reference to a national code

Ref country code: FR

Ref legal event code: CA

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: ES

Payment date: 20120626

Year of fee payment: 19

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: AT

Payment date: 20120521

Year of fee payment: 19

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DE

Payment date: 20130627

Year of fee payment: 20

Ref country code: GB

Payment date: 20130627

Year of fee payment: 20

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 20130702

Year of fee payment: 20

Ref country code: IT

Payment date: 20130624

Year of fee payment: 20

REG Reference to a national code

Ref country code: DE

Ref legal event code: R071

Ref document number: 59402005

Country of ref document: DE

REG Reference to a national code

Ref country code: GB

Ref legal event code: PE20

Expiry date: 20140606

REG Reference to a national code

Ref country code: AT

Ref legal event code: MK07

Ref document number: 150081

Country of ref document: AT

Kind code of ref document: T

Effective date: 20140607

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: GB

Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION

Effective date: 20140606

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: DE

Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION

Effective date: 20140611

REG Reference to a national code

Ref country code: ES

Ref legal event code: FD2A

Effective date: 20140926

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: ES

Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION

Effective date: 20140608
