The utility model relates to a room water-saving tank, which is a water tank 1 enclosed by a tank wall and a tank bottom, and the water tank is provided with a water inlet 2, an overflow pipe 3 and a flushing pipe 4. The water inlet 2 can be connected with the sewer pipe of the face washing basin in the toilet, and the flushing opening 4 is connected with the water inlet of the water storage device in the urinal. The water tank is installed in the toilet of the room, and can be used for flushing the urinal with domestic waste water such as face washing water, vegetable washing water and the like.
Description
Technical field: the utility model is a kind of living facilities, promptly a kind of room water-saving cistern.
Background technology: at present, all with the clear water flushing, water supply volume is bigger for the urinal in the washroom, room.And some can be used to the daily life sewage that washes one's face, has a bath, does washing, washes dish of flushing toilet bowl fully and have been thrown away in vain.Wherein, an important reasons is exactly that original sanitary equipment are constructed unreasonable.The gutter of existing wash basin, bathtub, washing machine, vegetable sink directly communicates with sewer, and the water inlet of the water tank above the urinal directly communicates with running water pipe, the urinal that has does not have water tank but directly to communicate with water pipe, has therefore caused the waste of living water use.
Summary of the invention: the new purpose of this practicality is a kind of room water-saving cistern that living water use can be utilized once more of development.Be characterized in: this water-saving cistern, by a water tank of forming at the bottom of tank wall, the case, water tank upper is provided with a water inlet pipe that can communicate with water drain pipe of washbowl, and the bottom of water tank is provided with dashing just of communicating with urinal and manages.
Said water tank the inside also is provided with a bleed off pipe that can join with sewer.
Said water tank bottom dash just that the end of pipe is provided with the joint that can be connected with urinal.
The just end of pipe of dashing of said water tank bottom is provided with the joint that can be connected with the water inlet of water receiver on the urinal.
The top of said water tank is provided with seal cover, on the seal cover, is provided with water injection hole, and water injection hole is provided with gland.
The removable filter net is equipped with in the water inlet bottom of said water tank.
On the said tank lid wash basin is housed, the tap water halter is arranged on the wash basin, the sewer pipe of wash basin enters in the water tank.
The bottom of said water tank is middle low, high concave surface all around, at lowest part one mudhole is arranged downwards, and sealing bolt is housed on the mudhole.
Said water tank highest point is provided with the moisturizing halter, on the moisturizing halter mouth, a seal valve is arranged, and a lever is arranged behind the seal valve, and lever is connected in rotating shaft on the tank wall as fulcrum by one, the big end of lever be bent downwardly extend to water tank dash just pipe on the right horizontal plane.
The room water-saving cistern that adopts such scheme to make can be bathing, do washing, wash daily life sewage such as dish and collect, and is used for washing away urinal, thereby reaches the purpose of water saving.
Accompanying drawing is introduced: Fig. 1 is the front view of first kind of embodiment, and Fig. 2 is its left view; Fig. 3 is a kind of schematic diagram of mode of occupation; Fig. 4 is the schematic diagram of another kind of mode of occupation; Fig. 5 is the front view of second kind of embodiment, and Fig. 6 is its vertical view, and Fig. 7 is the schematic diagram of the another kind of mode of occupation of second kind of embodiment.
Among the figure as seen: water tank 1, water inlet pipe 2, bleed off pipe 3, dash just manage 4, washing basin 5, manually discharging valve 6, water receiver 7, urinal 8, seal valve 9, moisturizing halter 10, mudhole 11.
Embodiment:
First kind of embodiment: as shown in the figure, this room water-saving cistern, the volume of water tank is big as far as possible, preferably makes more flat shape by the water tank 1 that constitutes at the bottom of wall and the case also to be one, so that by the wall installation, rationally utilize the interior space.One side of water tank has a through hole near upper edge, inserts water inlet pipe 2.Water tank bottom has through hole, picks out bleed off pipe 3.The downside of water tank is opened a through hole, picks out defaecation pipe 4.The mode of occupation of this water tank has following two kinds:
First kind: as shown in Figure 3, the water inlet pipe 2 of water tank 1 connects the following mouth of a river of washing basin, and it is received on water receiver 7 water inlets of toilet seat towards the other end of just managing 4.Like this, face washing water just can directly enter water tank.Other daily life sewages also can also can when the urinal water, be handled by original method from the water tank water tank of directly pouring into suitable for reading by manually pouring water tank into through washing basin, and waste water can wash urinal.If daily life sewage is few, then can open the water halter of washing basin, in water tank, replenish clear water.
Second kind: as shown in Figure 4, omit the water receiver 7 on the urinal, and directly replace with this water tank.Need in water tank, set up control valve like this.
This water tank can uncovered, but considers that waste water has peculiar smell sometimes, should have lid.Tank lid should be able to be sealed into suitable.After water tank is added a cover, can box out covering in order not influence artificial recharge.
In each inlet opening bottom of water tank, all screen pack should be housed, so that the foreign material in the waste water are leached, prevent to stop up sewer.

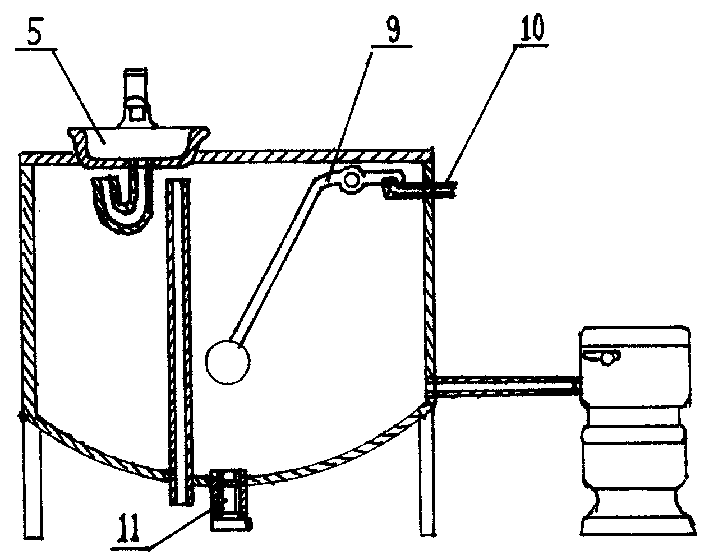

Second kind of embodiment: as shown in Figure 5, cover on this water tank wash basin 5 is installed, the sewer pipe of wash basin 5 enters in the water tank.The bottom of water tank is recessed, and lowest part is provided with mudhole 11, and mudhole 11 is tightened by bolt and airtight at ordinary times, when the following precipitating sludge of water tank, can open bolt, discharges to sewer.Also be provided with a tap water moisturizing halter 10 at water tank upper.This halter is subjected to the control of a seal valve 9.Seal valve 9 is lever constructions, and fulcrum is a rotating shaft that is connected on the water tank wall, and the big end of lever is bent downwardly, there is ball float the end, dashes when just managing relative water level moisturizing halter closure when ball float is in, when water level in the case continued to descend, the moisturizing halter was opened, and replenished tap water in case.
As shown in Figure 7, in washing room and building structure that the lavatory links to each other, can do also not only flat but also long shape to this water tank, one places below the wash basin 5, and the other end places on the urinal 8, also is provided with manual discharging valve 6 in urinal one side.
The third embodiment: this water tank dash just that pipe is terminal to be provided with the joint that can be connected with urinal, thereby waste water is inserted urinal, and by independent valve control, and do not influence the structure of the former water receiver of urinal.Perhaps set up two cavitys separately in water-saving cistern, a cover control device is respectively arranged, one of them adorns waste water, another the same clear water that inserts with former Water tank for urinal.This mode can be washed away once with clear water after dashing just with waste water again, pollutes the room with the bad smell that prevents waste water.
Claims (9)
1, a kind of room water-saving cistern, it is characterized in that: the main body of this water-saving cistern, by a water tank (1) of forming at the bottom of tank wall, the case, water tank (1) top is provided with a water inlet pipe (2) that can communicate with wash basin (5) sewer pipe, and the bottom of water tank (1) is provided with dashing of communicating with urinal (8) and just manages (4).
2, room according to claim 1 water-saving cistern is characterized in that: also be provided with a bleed off pipe (3) that can join with sewer in water tank (1) the inside.
3, room according to claim 1 water-saving cistern is characterized in that: said water tank (1) bottom dash just that the end of pipe (4) is provided with the joint that can be connected with urinal (8).
4, room according to claim 1 water-saving cistern is characterized in that: the just end of pipe (4) of dashing of said water tank (1) bottom is provided with the joint that can be connected with the water inlet of water receiver (7) on the urinal (1).
5, room according to claim 1 water-saving cistern, it is characterized in that: the top of said water tank is provided with seal cover, and seal cover is provided with water injection hole, but the gland of switch is arranged on the water injection hole.
6, room according to claim 1 water-saving cistern is characterized in that: the removable filter net is housed on the water inlet of water tank.
7, room according to claim 1 water-saving cistern, it is characterized in that: wash basin (5) is housed on the said tank lid, the tap water halter is arranged on the wash basin, the sewer pipe of wash basin enters in the water tank.
8, room according to claim 1 water-saving cistern is characterized in that: low in the middle of the bottom of said water tank is, high all around concave surface has a mudhole (11) downwards at lowest part, and mudhole is equipped with sealing bolt on (11).
9, room according to claim 1 water-saving cistern, it is characterized in that: said water tank highest point, be provided with moisturizing halter (10), on the moisturizing halter mouth, one seal valve (9) is arranged, there is a lever seal valve (9) back, and lever is connected in rotating shaft on the tank wall as fulcrum by one, the big end of lever be bent downwardly extend to water tank dash just pipe (4) on the right horizontal plane.
