Abstract

The utility model relates to a waste water utilizing device for toilets, which is characterized in that a water storage tank is divided into an upper and a lower water storage tanks which are respectively arranged in the non bearing wall of a toilet, and the top of the upper storage water tank is provided with two water inlets which are respectively connected to a discharge port, a washing water discharging pipe port and an overflow pipe of a floor of a toilet on the upper floor through water pipes; the top of the upper storage water tank is also provided with a water overflow pipeline, and a water outlet of the pipeline is connected to a water inlet of an upper storage water tank of a toilet on the lower floor; the top of the lower water storage tank is provided with a water inlet pipe, and a water pump which can be started and stopped through a water pipe according to the depth of a water level for realizing that the waste water of respective toilets can be realized by respective householders. The bottom of the lower water storage tank is provided with a water outlet joint, and the joint can be connected with a water pipe with a tap; a water outlet of the water pipe is arranged in the water inflow position of a large (small) urinal or a water closet. The utility model can save clean tap water, save water resource and reduce the expense of the household water cost. The waste water utilizing device for toilets is suitable for all buildings, particularly toilets of buildings of arid water-deficient areas.

Description

The waste water utilization device of washroom
[technical field]
The utility model is a kind of waste water utilization device of washroom.
[background technology]
Nearly all home dwelling, particularly building residence all are provided with the washroom.Existing washroom generally all is provided with tears leak and sewer pipe, closet stall or water closet and the water inlet pipe and the switch on wash basin, bathtub, washing machine, ground.Though the washroom of this structure is convenient, healthy, an obvious defects is arranged, can not utilize the waste water later that washes one's face, has a bath, does washing exactly, but these waste water have been emitted from sewer pipe respectively.This is to have wasted water resource, particularly those arid areas on the one hand, the cities and towns of lack of water, and it is unfortunately tangible to have wasted.Water rate because of present each cities and towns is all more expensive on the other hand, uses 1m 3Tap water will be spent 2~4 yuans, and this also is a no small spending for the not many family of income.There was the people in the washroom, to set up a water tank afterwards, with face washing water, laundry water is artificial or pack in the case with water pump, establishes an outlet pipe at the bottom of the case, in order to flushing toilet bowl, though this device can be economized on water, following defective is arranged: 1. waste water is poured in the water tank, wasted time and energy by the people; 2. water tank is placed on ground or hangs on the wall, need take the space of washroom, makes the washroom seem crowded; 3. visually not attractive in appearance yet.
[summary of the invention]
In order to utilize water resource more fully, overcoming existing residence toilet does not have to utilize automatically the equipment of discarded water, cause the defective of water resource and water rate waste, the utility model provides a kind of improved waste water of toilet use device, so that make full use of daily life sewages such as having a bath, do washing, wash one's face, with its automatic collection, be used to wash faeces trough and urinal or water closet by pipeline, reach the purpose of recycling.
For solving its technical problem, the technical scheme that the utility model adopted is: comprising body of wall, the bathtub pond, the wash basin pond, washing machine, two storage tanks up and down are installed in the non in the existing washroom of (little) urinal or water closet greatly, be used for storing discarded water, on the floor, washroom except that being provided with the tears leak, also be provided with laundry water, the discharging mouth of pipe of face washing water, be provided with a bleed off pipe and two water inlet pipes at the top of last storage tank, one of them water inlet pipe is connected to the tears leak and the laundry water on the floor, washroom of next level by water pipe, on the discharging mouth of pipe of face washing water, or be connected on the rain-water drainage pipe on roof by water pipe and multistage fence cover, the discarded water that the washroom of last layer building flows down or the rainwater on roof are flow to down in the storage tank of washroom, first floor room automatically; Be connected by the overflow pipe of pipeline on another water inlet pipe with the storage tank top of last layer building washroom.The bleed off pipe of last storage tank is connected by the water inlet pipe of storage tank on pipeline and the following first floor washroom.Be provided with water inlet pipe at the lower water tank top, link to each other with the last storage tank of water pump with following first floor washroom by pipeline, the lower water tank bottom is provided with delivery port, is connected to the water inlet of urinal or water closet by water pipe and water-control valve.
The beneficial effects of the utility model are: be to be connected on the tears leak and laundry, the face washing water discharging mouth of pipe and bleed off pipe of next level washroom because of storage tank water inlet pipe of the present utility model 1., the discarded water of doing washing, have a bath etc. and used in the next level washroom, will flow to down automatically in the washroom storage tank in first floor room, attic house washroom storage tank water inlet, can be connected to the tears leak on roof, when raining, the rainwater of roof will flow to storage tank automatically.The storage tank top also is provided with overflow pipe, can be in overflow pipe flows into the storage tank of following one deck washroom when the waste water of storage tank overflows.When the washroom need wash greatly (little) pond or water closet, the discarded water in the available storage tank, rather than tap water can reach and makes full use of water resource, reduce the purpose of water rate spending.2. because storage tank is located on the non of washroom, do not take the space of washroom, do not influence the overall structure of building yet, do not influence indoor sense organ effect, be convenient to the user and accept.3. because storage tank structure is simple, make easily, available cement board is bonding or with the corrosion resistant plate welding, so cost is low, and is easy to use, do not influence normal water custom, easy to utilize.4. be two casings independently up and down because of storage tank, the waste water of toilet in this building is stored in down in the last storage tank of first floor washroom, according to the buoyancy of water principle, make water pump utilize the degree of depth of water to open automatically, stop, waste water in the last storage tank of lower floor washroom is extracted in the lower water tank of this layer washroom automatically, in order to wash the lavatory of this layer washroom, realize that each resident family utilizes waste water separately, in order to the enthusiasm that improves user's water saving.The washroom that this device is fit to various buildings uses, and the building washroom that especially is fit to the drought and water shortage area uses.
[description of drawings]
The utility model is described in further detail below in conjunction with drawings and Examples.

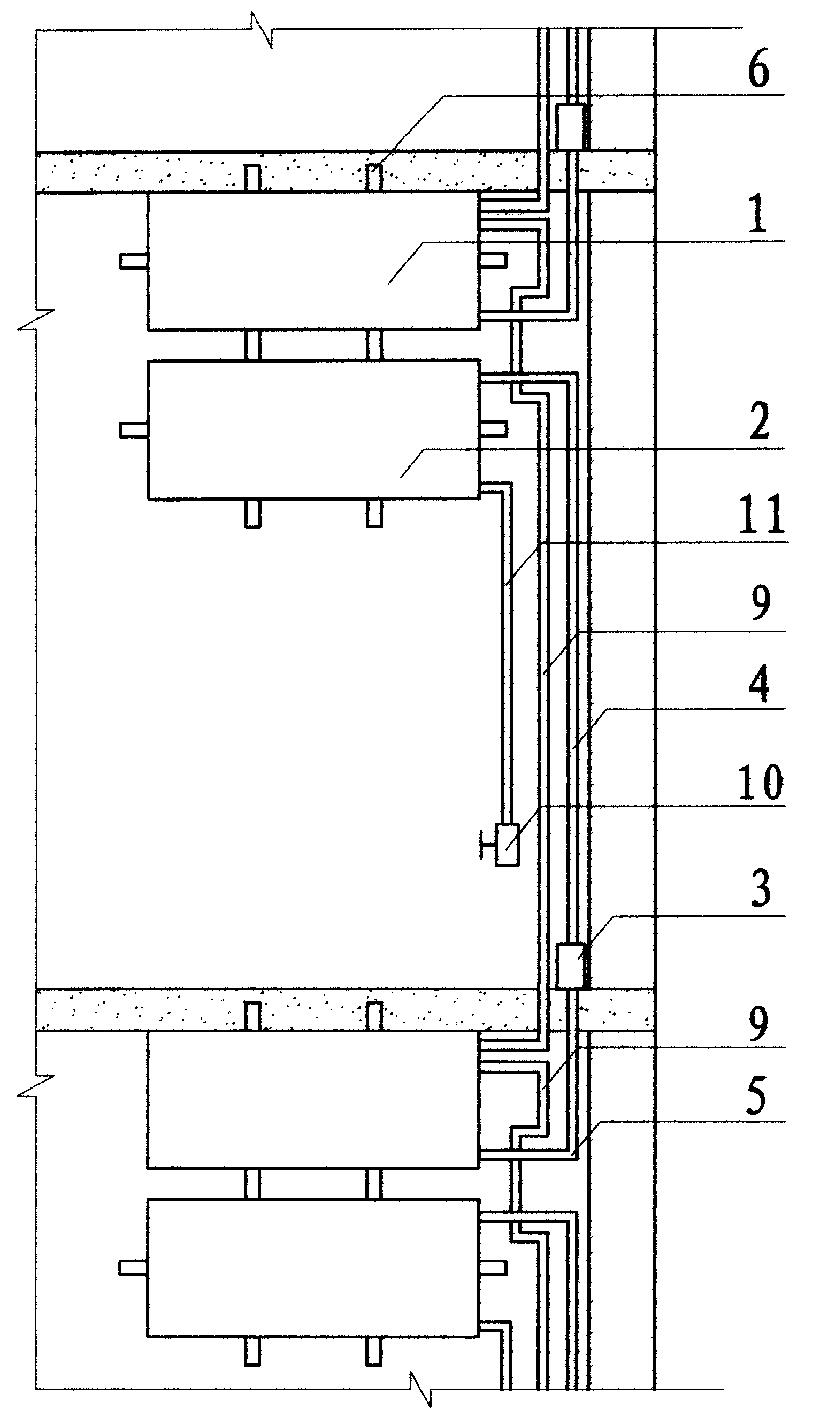

Fig. 1 is a structural representation front view of the present utility model.
Fig. 2 is a structural representation left view of the present utility model.
Among the figure: storage tank on 1,2 lower water tanks, 3 water pumps, 4 water pump lifting pipes, 5 water pump drinking-water pipes, 6 stay pipes, 7 tears leak, the 8 laundry water and the face washing water discharging mouth of pipe, 9 bleed off pipes, 10 outlet pipes, 11 water-control valves.
[specific embodiment]
Embodiment 1: with reference to accompanying drawing: in the non of building washroom, storage tank (1) and lower water tank (2) are installed, last, the casing of lower water tank is provided with the firm degree that a plurality of stay pipes (6) are convenient to strengthen water tank, on the floor of washroom except that being provided with tears leak (7), also be provided with laundry water, the face washing water discharging mouth of pipe (8), be provided with two water inlets at the top of last storage tank (1), water inlet is connected respectively to tears leak (7) and laundry on the floor, last layer washroom by pipeline, the face washing water discharging mouth of pipe (8), if the washroom of top floor, water inlet pipe mouth then are connected on the rainwater effluent pipe mouth on roof by pipeline and multi-stag fence cover.Another water inlet is connected with the bleed off pipe (9) of last layer washroom storage tank by pipeline; Also be provided with waste water outflow pipe (9) at the top of last storage tank (1), the lower end outlet of this bleed off pipe is connected to down on the water inlet at storage tank top on the first floor washroom, when the waste water storage of last storage tank is completely excessive, can be in bleed off pipe flows to down the last storage tank of one deck washroom.Top at lower water tank (2) is provided with water inlet pipe, be connected by small pump (3), water pump lifting pipe (4) and the last storage tank of water pump drinking-water pipe (5) with following first floor washroom, be extracted in the lower water tank of this washroom in order to the waste water that this washroom is flowed out, so that wash the manure pit of this washroom.Be provided with the wastewater effluent mouth of pipe in lower water tank (2) bottom, be connected to big (little) urinal or the water closet water inlet of washroom,, reach the purpose of utilizing waste water so that wash when needing by outlet pipe (10) and water-control valve (11).
Embodiment 2: the bilevel storage tank that band stay pipe (6) is installed in the washroom non-bearing wall body, the top of last layer box body (1) is provided with two water inlets, link to each other with bleed off pipe (9) and tears leak (7), the laundry water outfall (8) that washes one's face of storage tank on the last layer washroom respectively through pipeline, storage tank top, upper strata also is provided with a bleed off pipe (9).Top at lower floor's storage tank is provided with water inlet, be connected to down in the last storage tank of one deck washroom the purpose of washing this washroom urinal in order to the waste water of realizing the discharging of this washroom by small pump (3), water pump lifting pipe (4) and the water pump drinking-water pipe (5) that is located in the non-bearing wall body.Be provided with the outlet pipe (10) of band water-control valve (1) in the bottom of lower floor's water storage casing (2), the end of this outlet pipe reaches the water inlet place of urinal.

Claims (3)

1, a kind of waste water utilization device of washroom, it is characterized in that: in the non-bearing wall body of washroom, be provided with store waste water on storage tank (1) and lower water tank (2), last storage tank (1) top is provided with a bleed off pipe (9) and two water inlet pipe mouths, one of them water inlet pipe mouth is by the tears leak (7) and the laundry on pipeline and floor, last layer washroom, the face washing water draining mouth of pipe (8) is connected, another water inlet pipe mouth is connected with the last storage tank bleed off pipe of last layer washroom by pipeline, and the bleed off pipe of last storage tank (1) is connected by the water inlet pipe of pipeline with following one deck washroom storage tank; Lower water tank (2) top is provided with water inlet pipe mouth, link to each other with the last storage tank (1) of following one deck washroom by lifting pipe (4), drinking-water pipe (5) and water pump (3), lower water tank (2) bottom is provided with effluent pipe mouth, is connected to the water inlet of urinal by water pipe (10) and water-control valve (11).
2, waste water utilization device according to claim 1, it is characterized in that: the bilevel storage tank that is divided into that in the nonweight-bearing body of wall in washroom, is provided with band stay pipe (6), the top of last layer box body (1) is provided with two water inlet pipe mouths, through pipeline respectively with the washroom, upper strata on the bleed off pipe (9) of storage tank be connected with tears leak (7), face washing water, laundry water outfall (8), the top of last layer box body (1) also is provided with a bleed off pipe (9); The top of following layer box body (2) is provided with water inlet, is connected to down by water pump lifting pipe (4), small pump (3) and water pump drinking-water pipe (5) in the last water storage casing of one deck washroom; Be provided with the outlet pipe (10) of band water-control valve (11) in the bottom of lower floor's water storage casing (2).
3, waste water utilization device according to claim 1 and 2 is characterized in that: the tank wall of described storage tank is provided with stay pipe (6), and described water pump (3) is installed in the cavity of non-bearing wall body.
