Abstract
用于楼房的节水箱式盥洗台，对废水进行沉淀、过滤，同时可以储存废水，以满足冲洗厕所的需要，支撑盥洗台的支墩为水箱，水箱的盖子由盥洗槽和挡水板组成，水箱分成两个蓄水仓，盥洗槽分为两个盥洗分槽，盥洗分槽为蓄水仓的盖子，盥洗分槽上开有引导废水流入蓄水仓的进水孔，两个蓄水仓之间的隔板上开有过水孔，在左边的蓄水仓的另一侧仓壁上开有三个孔，其中通厕孔与所在楼房的下一层的卫生间冲厕水管相连，溢流孔与下水管道连接，自来水接孔与自来水管连接。
The water-saving tank-type washstand used in buildings can precipitate and filter waste water, and at the same time store waste water to meet the needs of flushing toilets. The pier supporting the washstand is a water tank, and the cover of the water tank is composed of a washbasin and a water retaining plate , the water tank is divided into two water storage bins, the washbasin is divided into two wash sub-tanks, the wash sub-trough is the cover of the water storage bin, and there is a water inlet hole on the wash sub-trough to guide the waste water into the water storage bin, and the two water storage tanks There are water holes on the partition between the warehouses, and three holes are opened on the other side of the warehouse wall on the left side of the water storage warehouse. Among them, the toilet hole is connected with the toilet flushing water pipe on the next floor of the building where it is located. The orifice is connected with the sewer pipe, and the tap water connection hole is connected with the tap water pipe.
Description
Technical field
The utility model relates to a kind of building water saving fixtures.
Background technology
Lavatory in public building such as the student dormitory and washroom are the big facilities of water supply volume, the waste water major part of lavatory is the water of washing clothes and washing one's face etc. and using, through being used for washing the lavatory after the simple precipitation filtration fully, like this, just can make washing wastewater obtain second use, reach the purpose of water saving.
Summary of the invention
The utility model provides a kind of water saving box washstand, in the water tank type washstand waste water is precipitated, filters, and can store waste water simultaneously, to satisfy the needs in flushing lavatory.
The utility model is the box washstand of water saving that is used for building, buttress by washstand and support washstand is formed, the buttress that supports washstand is water tank (2), the lid of water tank (2) is made up of washing trough (1) and watertight shutter (12), water tank (2) is divided into water storing bin (3) and water storing bin (4), washing trough (1) is divided into two washings and divides groove (13,14), it is the lid of water storing bin (3) that washing divides groove (13), it is the lid of water storing bin (4) that washing divides groove (14), washing divides the inlet opening (5) that has guiding waste water inflow water storing bin (4) on the groove (14), have water hole (6) on the dividing plate between water storing bin (3) and the water storing bin (4), on the opposite side bulkhead of water storing bin (3), have three holes (7,8,9), wherein toilet dredging hole (7) and the washroom of following one deck of place building the water pipe of flushing the toilet links to each other, spout hole (9) is connected with sewer pipe, and tap water connects hole (8) and is connected with running water pipe.
Connect an installation flap valve (10) between the hole (8) at running water pipe joint and tap water, the tap water in water storing bin (3) connects hole (8) and goes up an installation float valve (11).
Screen pack (15) is installed on water hole (6).
The beneficial effects of the utility model are: the washstand in the public building is combined with the waste water water storage box, make waste water obtain second use, reach the purpose of water saving, water-saving result is remarkable, and washstand made an integral product, be convenient to suitability for industrialized production, construction and installation are simple, and the waterproof of lavatory flooring, metope is also had certain positive role.
Description of drawings
Below in conjunction with accompanying drawing the utility model is further specified

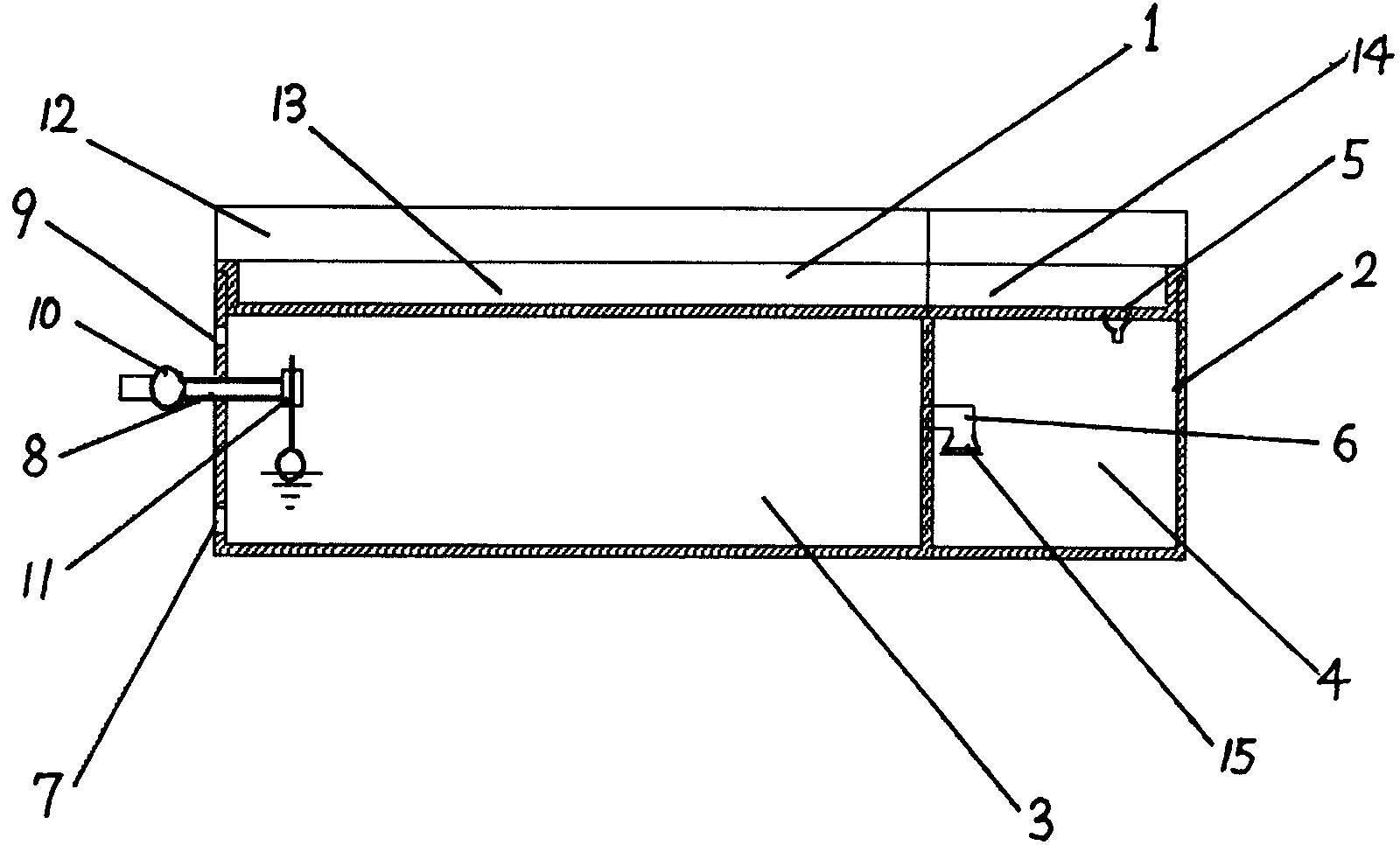

Fig. 1 looks sectional view for water tank type washstand master, Fig. 2 be among Fig. 1 A-A to sectional view, Fig. 1 also be among Fig. 2 B-B to sectional view.
The specific embodiment
As shown in Figure 1, 2, divide groove (13) and washing to divide groove (14) and coupled watertight shutter to form by washing, it is the lid of water storing bin (3) that washing divides groove (13), washing trough (14) is the lid of water storing bin (4), washing trough purpose divided into two parts mainly is the convenient water tank cleaning foreign material of opening respectively, water storing bin (4) need often be opened the cleaning foreign material as precipitation and water tank with strainer, and water storing bin (3) can be opened the cleaning foreign material in longer cycle.It is in order to prevent that the water that splashes in the washing trough (1) from flowing down along metope, causes metope and leakage on floor surface water that watertight shutter (12) is made integral body with washing trough (1).The collection that washing wastewater divides groove (13) and washing to divide groove (14) by washing, water inlet (5) from washing trough (14) injects water storing bin (4), through precipitation in water storing bin (4), enter water storing bin (3) by the water hole (6) on the dividing plate between water storing bin (4) and the water storing bin (3) again, go up downward elbow of installation at water hole (6), at elbow ends a screen pack (15) is installed, downward elbow is used for the floating thing in the waste water is isolated in the water storing bin (4).The washroom that water in the water storing bin (3) inserts one deck under the building of place by its toilet dredging hole (7) of offering of bottom feedwater piping of flushing the toilet.Tap water connects hole (8) and is the tap water inlet, external running water pipe, a flap valve (10) is installed on running water pipe, a float valve (11) is installed in water storing bin (3), the purpose that inserts tap water is when preventing that waste water is not enough in the water storing bin (3), replenish by tap water, keep the water in the water storing bin (3) constantly can satisfy the flushing supply needs, float valve (11) is used for controlling the water level that injects tap water, the effect of flap valve (10) is to prevent that waste water blows back in the running water pipe in the water storing bin (3), causes the pollution to tap water.Spout hole (9) links to each other with sewer pipe, and purpose is directly to drain when waste water is too much, avoids waste water to overflow water storing bin (3) and water storing bin (4), influences the health of lavatory.
Claims (3)
1, the box washstand of water saving that is used for building, buttress by washstand and support washstand is formed, the buttress that it is characterized in that supporting washstand is water tank (2), the lid of water tank (2) is made up of washing trough (1) and watertight shutter (12), water tank (2) is divided into water storing bin (3) and water storing bin (4), washing trough (1) is divided into two washings and divides groove (13,14), it is the lid of water storing bin (3) that washing divides groove (13), it is the lid of water storing bin (4) that washing divides groove (14), washing divides the inlet opening (5) that has guiding waste water inflow water storing bin (4) on the groove (14), have water hole (6) on the dividing plate between water storing bin (3) and the water storing bin (4), on the opposite side bulkhead of water storing bin (3), have three holes (7,8,9), wherein toilet dredging hole (7) and the washroom of following one deck of place building the water pipe of flushing the toilet links to each other, spout hole (9) is connected with sewer pipe, and tap water connects hole (8) and is connected with running water pipe.
2, the box washstand of water saving that is used for building according to claim 1, it is characterized in that connecing an installation flap valve (10) between the hole (8) at running water pipe joint and tap water, the tap water in water storing bin (3) connects hole (8) and goes up an installation float valve (11).
3, the box washstand of water saving that is used for building according to claim 1 is characterized in that being equipped with screen pack (15) on water hole (6).
