The utility model discloses an agricultural Internet of things acquisition device convenient to apply, and relates to the technical field of agricultural acquisition equipment. The lifting component is vertically arranged on the fixed plate; the lifting assembly comprises a screw rod and a thread bush which is in threaded connection with the screw rod; the pair of acquisition rods are symmetrically arranged on two sides of the threaded sleeve; the acquisition rod is provided with a meteorological monitoring unit. According to the utility model, the lifting assembly and the traction structure are arranged, and under the cooperation of the cooperative operation of the lifting assembly and the traction structure, the detection requirements of the weather monitoring unit on different heights and different directions can be simultaneously met, so that the structural cost of the weather monitoring unit for carrying out adjustment on different heights and different directions is effectively reduced by utilizing the lifting assembly and the traction structure which are simple, reasonable and effective in design while the diversity of detection information in an agricultural environment is improved.
Description
Technical Field
The utility model belongs to the technical field of agricultural acquisition equipment, and particularly relates to an agricultural Internet of things acquisition device convenient to apply.
Background
The internet of things is an important component of a new generation of information technology and is also an important development stage of the information age. With the continuous development of modern agriculture, information acquisition of agriculture is an indispensable important link. The Internet of things acquisition device is widely applied to various industries at present, particularly the field of agricultural production environments, so as to perform correct intervention on agricultural production.
Through retrieving, the authorized bulletin number is CN 212228098U's an agricultural thing networking collection equipment, which comprises a fixed base, elevating gear, the lifter plate, rotating device, gather the frame, two collection poles, temperature sensor, humidity transducer, the collection box, the singlechip, wireless transmission device and wind speed monitoring device, elevating gear's bottom is installed at the top central authorities of fixing base, the lifter plate is connected with elevating gear's top output, rotating device installs at the top of lifter plate, gather the bottom of frame and rotating device's top output is connected, the left end and the right-hand member in collection frame bottom are fixed respectively on the top of two collection poles, temperature sensor and humidity transducer install the bottom at two collection poles respectively, the top at collection frame is installed to the collection box, it can gather the information in the agricultural production environment of different co-altitude, the integrality of information acquisition is improved.
Above-mentioned agricultural thing networking acquisition facility has realized the information in the agricultural production environment of different co-altitude and has gathered, but because of adopting electrified elevating gear and rotating device to come as the facility of altitude mixture control, and goes up and down and pivoted operation are all comparatively independent, then increased the use cost and the cost of maintenance of whole agricultural thing networking acquisition facility, because of whole knot design is not enough simplistic, use comparatively inconveniently.
Therefore, the existing agricultural internet of things acquisition equipment cannot meet the requirements in actual use, so that the agricultural internet of things acquisition equipment with simple and humanized structure and low use cost and maintenance cost is urgently needed in the market, and the problems are solved.
Disclosure of Invention
The utility model aims to provide an agricultural Internet of things acquisition device convenient to apply, and the lifting assembly and the traction structure are arranged, so that the detection requirements of a weather monitoring unit in different heights and different directions are met, the diversity of detection information in an agricultural environment is improved, meanwhile, the lifting assembly and the traction structure which are simple and reasonable in design and effective are utilized, the structural cost of the weather monitoring unit for adjusting different heights and different directions is effectively reduced, and the existing problem is solved.
In order to solve the technical problems, the utility model is realized by the following technical scheme:
the utility model relates to an agricultural Internet of things acquisition device convenient to apply, which comprises:
a fixing plate;
a lifting assembly vertically installed on the fixing plate; the lifting assembly comprises a screw rod and a thread bush which is in threaded connection with the screw rod;
the pair of acquisition rods are symmetrically arranged on two side surfaces of the threaded sleeve; the acquisition rod is provided with a meteorological monitoring unit;
the supporting seat is fixedly arranged at the top end of the screw rod; the supporting seat is provided with a wireless communicator which is electrically connected with the weather monitoring unit, and the wireless communicator is connected with a ground agricultural workstation;
the traction structure is arranged on the supporting seat and is movably connected with the pair of acquisition rods;
the turntable is rotationally connected to the fixed plate and fixedly connected with the traction structure.
Further, the weather monitoring unit comprises a temperature and humidity detecting mechanism and a solar irradiation detecting mechanism;
the temperature and humidity detection mechanism and the solar irradiation detection mechanism are respectively arranged at the end parts of the pair of acquisition rods;
the temperature and humidity detection mechanism and the solar irradiation detection mechanism are electrically connected with the wireless communicator.
Further, a pair of the collection rods are each provided with a photoelectric plate.
Further, the traction structure comprises a motor fixedly arranged at the top of the supporting seat, a T-shaped swing rod fixedly arranged at the output end of the motor and a pair of pull rods fixedly arranged at the two ends of the T-shaped swing rod;
the pair of pull rods and the pair of acquisition rods are movably arranged in a penetrating mode one by one.
Further, a protective cover is arranged on the outer side of the motor and positioned on the supporting seat, and the T-shaped swing rod is rotatably connected to the protective cover.
Further, the bottom ends of the pair of pull rods are fixedly arranged on the rotary table, the rotary table is of a hollow convex structure, and the screw rod penetrates through the rotary table and is fixedly arranged on the fixing plate.
Further, a landing bolt is arranged on the fixed plate.
The utility model has the following beneficial effects:
1. according to the utility model, the lifting assembly and the traction structure are arranged, and under the cooperation of the cooperative operation of the lifting assembly and the traction structure, the detection requirements of the weather monitoring unit in different heights and different directions can be simultaneously met, so that the diversity of detection information in an agricultural environment is improved, meanwhile, the lifting assembly and the traction structure which are simple and reasonable in design are utilized, the structural cost of the weather monitoring unit for adjusting different heights and different directions is effectively reduced, the structural design is simple, and the use is more convenient.
2. According to the utility model, the turntable is arranged, so that the rotary support for running the traction structure can be provided, and the stability of the longitudinal displacement of the lifting assembly driven by the traction structure is improved.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present utility model, the drawings that are needed for the description of the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present utility model, and that other drawings may be obtained according to these drawings without inventive effort for a person skilled in the art.

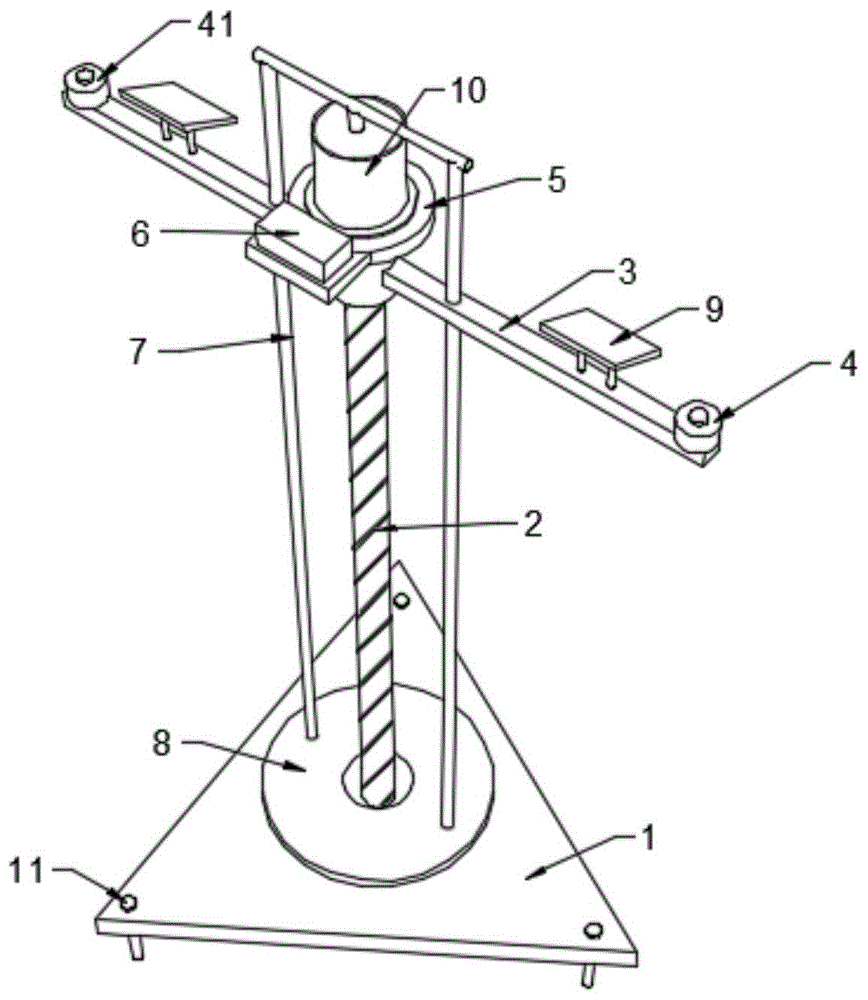

FIG. 1 is a schematic view of the overall structure of the present utility model;
FIG. 2 is a rear view of the present utility model without the protective cover of FIG. 1;
FIG. 3 is a schematic diagram of the connection of the acquisition rod of the present utility model;
fig. 4 is a schematic diagram of the connection of the lifting assembly, the traction structure and the turntable according to the present utility model.
In the drawings, the list of components represented by the various numbers is as follows:
1. a fixing plate; 2. a lifting assembly; 21. a screw rod; 22. a thread sleeve; 3. a collection rod; 4. a temperature and humidity detection mechanism; 41. a solar radiation detection mechanism; 5. a support base; 6. a wireless communicator; 7. a traction structure; 71. a motor; 72. t-shaped swing rod; 73. a pull rod; 8. a turntable; 9. a photovoltaic panel; 10. a protective cover; 11. a landing bolt.
Detailed Description
The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model.
Referring to fig. 1-4, the utility model is an agricultural internet of things acquisition device convenient for application, comprising a fixed plate 1, a lifting assembly 2, a pair of acquisition rods 3, a weather monitoring unit, a supporting seat 5, a wireless communicator 6, a traction structure 7 and a turntable 8;
the fixed plate 1 is provided with a landing bolt 11; the advantage of the design is that the falling bolt 11 can be disassembled into the soil, so that the integral falling stability of the agricultural Internet of things acquisition device convenient for application can be improved;
the lifting assembly 2 is vertically arranged on the fixed plate 1; the lifting assembly 2 comprises a screw rod 21 and a threaded sleeve 22 which is in threaded connection with the screw rod 21; the design has the advantages that the threaded sleeve 22 can rotate and lift on the screw rod 21 under the drive of external force;
the pair of acquisition rods 3 are symmetrically arranged on two sides of the threaded sleeve 22; the acquisition rod 3 is provided with a meteorological monitoring unit; the advantage of this design is that when the screw sleeve 22 is rotated and lifted, the collecting rod 3 can drive the weather monitoring unit to carry out detection adjustment of different heights and different directions so as to improve the diversity of the weather monitoring unit for monitoring the agricultural production environment;
the supporting seat 5 is fixedly arranged at the top end of the screw rod 21; the supporting seat 5 is provided with a wireless communicator 6 which is electrically connected with the weather monitoring unit, and the wireless communicator 6 is connected with a ground agricultural workstation;
the weather monitoring unit comprises a temperature and humidity detecting mechanism 4 and a solar irradiation detecting mechanism 41; the temperature and humidity detection mechanism 4 in the application adopts a temperature and humidity sensor, and the solar irradiation detection mechanism 41 adopts a solar irradiation instrument;
the temperature and humidity detection mechanism 4 and the solar irradiation detection mechanism 41 are respectively arranged at the end positions of the pair of acquisition rods 3;
the temperature and humidity detection mechanism 4 and the solar irradiation detection mechanism 41 are electrically connected with the wireless communicator 6;
specifically, the temperature and humidity in the agricultural production environment and the weather information of solar radiation are detected by the temperature and humidity detecting mechanism 4 and the solar radiation detecting mechanism 41, and the detected signals can be transmitted to an agricultural workstation on the ground by the wireless communicator 6, so that the correct intervention on the agricultural production can be performed by providing reliable agricultural environment information;
it should be noted that, the weather monitoring unit in the present application is not limited to use of the temperature and humidity detecting mechanism 4 and the solar irradiation detecting mechanism 41, and may be used by other detecting mechanisms related to agricultural production environment information;
the pair of acquisition rods 3 are provided with photoelectric plates 9; the photoelectric board 9 can supply power for the weather monitoring unit by accessing a storage battery;
referring to fig. 4, the traction structure 7 is disposed on the support seat 5 and is movably connected to the pair of collection rods 3; the traction structure 7 comprises a motor 71 fixedly arranged at the top of the supporting seat 5, a T-shaped swing rod 72 fixedly arranged at the output end of the motor 71 and a pair of pull rods 73 fixedly arranged at the two ends of the T-shaped swing rod 72;
the pair of pull rods 73 and the pair of acquisition rods 3 are movably arranged in a penetrating manner one by one; the collecting rod 3 is provided with a perforation which is matched with the pull rod 73;
the outer side of the motor 71 and positioned on the supporting seat 5 is provided with a protective cover 10, and a T-shaped swing rod 72 is rotatably connected to the protective cover 10; the T-shaped swing rod 72 is rotatably connected with the protective cover 10 through a sealed bearing, and the protective cover 10 can increase the waterproof performance of the motor 71;
in this embodiment, when the detection height and the azimuth of the weather monitoring unit need to be adjusted, the motor 71 may be started, and the motor 71 drives the pull rod 73 to toggle the collection rod 3, so that the collection rod 3 can vertically rotate and lift through the threaded connection of the threaded sleeve 22 on the screw rod 21, and then the detection requirements of different heights and azimuths of the weather monitoring unit can be satisfied.
The turntable 8 is rotationally connected to the fixed plate 1 and is fixedly connected with the traction structure 7; the bottom ends of the pair of pull rods 73 are fixedly arranged on the turntable 8, the turntable 8 is of a hollow convex structure, and the screw rod 21 penetrates through the turntable 8 and is fixedly arranged on the fixed plate 1; the rotary table 8 is rotationally connected with the fixed plate 1 through a bearing;
when the pull rod 73 rotates based on the T-shaped swing rod 72, the turntable 8 can be linked with the pull rod 73 to synchronously rotate, and the turntable 8 provides a certain supporting force for the bottom of the pull rod 73, so that the stability of the acquisition rod 3 during displacement on the pull rod 73 is ensured.
The foregoing is only a preferred embodiment of the present utility model, and the present utility model is not limited thereto, and any modification, equivalent replacement, and improvement of some of the technical features described in the foregoing embodiments are all within the scope of the present utility model.
Claims (7)
1. Agricultural thing networking collection system convenient to use, its characterized in that includes:
a fixed plate (1);
a lifting assembly (2) which is vertically arranged on the fixed plate (1); the lifting assembly (2) comprises a screw rod (21) and a threaded sleeve (22) in threaded connection with the screw rod (21);
the pair of acquisition rods (3) are symmetrically arranged on two side surfaces of the threaded sleeve (22); a meteorological monitoring unit is arranged on the acquisition rod (3);
the supporting seat (5) is fixedly arranged at the top end of the screw rod (21); the supporting seat (5) is provided with a wireless communicator (6) which is electrically connected with the weather monitoring unit, and the wireless communicator (6) is connected with a ground agricultural workstation;
the traction structure (7) is arranged on the supporting seat (5) and is movably connected with the pair of collecting rods (3);
the rotary table (8) is rotationally connected to the fixed plate (1) and is fixedly connected with the traction structure (7).
2. An agricultural internet of things collection device for facilitating application according to claim 1, wherein the weather monitoring unit comprises a temperature and humidity detection mechanism (4) and a solar radiation detection mechanism (41);
the temperature and humidity detection mechanism (4) and the solar irradiation detection mechanism (41) are respectively arranged at the end parts of the pair of acquisition rods (3);
the temperature and humidity detection mechanism (4) and the solar irradiation detection mechanism (41) are electrically connected with the wireless communicator (6).
3. An agricultural internet of things collection device convenient for application according to claim 1, wherein a pair of collection rods (3) are each provided with a photovoltaic panel (9).
4. The agricultural internet of things collection device convenient for application according to claim 1, wherein the traction structure (7) comprises a motor (71) fixedly installed at the top of the supporting seat (5), a T-shaped swing rod (72) fixedly installed at the output end of the motor (71) and a pair of pull rods (73) fixedly installed at the two ends of the T-shaped swing rod (72);
the pair of pull rods (73) and the pair of collecting rods (3) are movably arranged in a penetrating mode one by one.
5. The agricultural internet of things collection device convenient for application according to claim 4, wherein a protective cover (10) is arranged on the outer side of the motor (71) and on the supporting seat (5), and the T-shaped swing rod (72) is rotatably connected to the protective cover (10).
6. The agricultural internet of things collection device convenient for application according to claim 4, wherein the bottom ends of the pair of pull rods (73) are fixedly mounted on the rotary table (8), the rotary table (8) is of a hollow convex structure, and the screw rod (21) penetrates through the rotary table (8) and is fixedly mounted on the fixing plate (1).
7. The agricultural internet of things collection device convenient for application according to claim 1, wherein a landing bolt (11) is arranged on the fixed plate (1).
