CN219230578U

CN219230578U - Pelvic floor muscle repairing instrument

Info

Publication number: CN219230578U
Application number: CN202223522380.4U
Authority: CN
Inventors: 黄敏杰
Original assignee: LELO Inc
Current assignee: LELO Inc
Priority date: 2022-12-27
Filing date: 2022-12-27
Publication date: 2023-06-23
Anticipated expiration: 2032-12-27

Abstract

The utility model relates to the technical field of pelvic floor muscle repair and discloses a pelvic floor muscle repair instrument, which comprises a fixed lying plate, wherein the tail end of the fixed lying plate is hinged with a movable lying plate, the tail end of the movable lying plate is provided with a pelvic floor muscle U-shaped supporting plate, a user can lie on the fixed lying plate and the movable lying plate, the movable lying plate is driven to rotate through the cooperation of a second motor, a second driving shaft, a gear, a rotating ring and clamping teeth, the buttocks of the user are lifted and put down by being matched with the pelvic floor muscle U-shaped supporting plate, muscle groups for sealing the pelvic floor are pulled to move, the pelvic floor muscles of the user can be massaged and exercised through the cooperation of a first motor, a first driving shaft and a massage roller, meanwhile, the pelvic floor muscles can feel warm through an electric heating lamp, the blood circulation of the pelvic floor muscles is accelerated, the repair exercise effect is further improved, and the pelvic floor muscle repair exercise work is facilitated without legs and waist force.

Description

Pelvic floor muscle repairing instrument

Technical Field

The utility model relates to the technical field of pelvic floor muscle repair, in particular to a pelvic floor muscle repair instrument.

Background

Pelvic floor muscles refer to the group of muscles that occlude the pelvic floor. This muscle group acts like a "sling net" by which the organs such as the urethra, bladder, vagina, uterus, rectum, etc. are held tightly to maintain their normal position for their function. Once the elasticity of the net is poor, the lack of hanging force can lead to that the organs in the net can not be maintained at normal positions, so that corresponding dysfunction such as incontinence of urine and feces, prolapse of pelvic floor viscera and the like can occur, however, the pelvic floor muscles are inevitably destroyed by females in the processes of pregnancy, obesity, cough, constipation, genitourinary infection and delivery, and the pelvic floor muscle dysfunction is caused, so that the normal life of females is influenced.

At present, aiming at the problem of pelvic floor muscle dysfunction, a complete pelvic floor muscle rehabilitation exercise method is provided for pelvic floor muscle training, in particular to a method for body lying on the ground, knee bending and sole supporting, then buttocks are lifted and put down, and continuous circulation is carried out to pull muscle groups closing the pelvic floor to exercise, so that the effect of pelvic floor muscle rehabilitation exercise is achieved, but the method needs to continuously lift and put down the buttocks through leg and waist exertion, and the condition that the leg and waist are painful and difficult to train is avoided in the long-time training process, so that the pelvic floor muscle rehabilitation exercise work is affected.

We have therefore proposed a pelvic floor muscle repair apparatus in order to solve the problems set out above.

Disclosure of Invention

The utility model aims to solve the problem that the current pelvic floor muscle rehabilitation exercise method needs to continuously lift and put down the buttocks through the force of the legs and the waist, and the situation that the legs and the waist are ache and are difficult to train in the long-time training process is unavoidable, so that the pelvic floor muscle rehabilitation exercise work is influenced.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a pelvic floor muscle repair instrument, includes fixed service creeper, fixed service creeper tail end articulates there is the activity service creeper, activity service creeper tail end is provided with pelvic floor muscle U-shaped layer board, symmetrically be provided with two silica gel covers on the intrados of pelvic floor muscle U-shaped layer board, just hidden the chamber has been seted up to symmetry on the intrados of pelvic floor muscle U-shaped layer board, be provided with the massage roller between hiding intracavity wall and the silica gel cover internal surface, the top of massage roller is connected with first drive shaft, symmetrically be provided with two first motor casees on the external surface of pelvic floor muscle U-shaped layer board, first motor incasement is fixed with the first motor that is connected with first drive shaft, the central point of pelvic floor muscle U-shaped layer board intrados is provided with the electric warming lamp;

the utility model discloses a movable lying plate, including fixed lying plate, movable lying plate, fixed lying plate, be provided with the lower bottom plate below with the movable lying plate, just be connected with a plurality of first support columns between fixed lying plate and the lower bottom plate, the lower bottom plate upper surface is connected with a plurality of second support columns with the corresponding position of movable lying plate, a plurality of second support column tops are connected with the arc backup pad, movable lying plate lower surface is close to the fixed lying plate the position symmetry be connected with two rotation rings, two all be provided with the latch on the intrados of rotation ring, the lower bottom plate upper surface is provided with two second motor boxes, second motor box internal fixation has the second motor, just the second motor box outside is provided with the second drive shaft that is connected with the latch looks meshing gear.

Further, the lower plate upper surface is provided with the equipment box, be provided with control host computer equipment in the equipment box, just the equipment box outside is provided with the electric connection line, the one end of electric connection box is connected with the electric plug, fixed service creeper side is provided with control panel, the one end that the lower plate is close to pelvic floor flesh U-shaped layer board is provided with two L shape bracing pieces, the top of L shape bracing piece is provided with the running-board.

Further, a rubber back cushion and a rubber pillow cushion are arranged on the upper surface of the fixed lying plate.

Further, the upper surface of the movable lying plate is provided with a plurality of evenly distributed rubber waist pads.

Further, two handle bars are symmetrically connected to two side surfaces of the lower bottom plate.

Further, the positions, close to the top ends, of the surfaces of the two handle bars are provided with protective gloves.

Further, the massage roller comprises a roller body, a plurality of massage balls which are uniformly distributed are arranged on the surface of the roller body, and the whole roller body is of an elliptical structure.

Further, the upper surface of the arc-shaped supporting plate is provided with a rubber buffer pad.

The utility model has the beneficial effects that: the user can lie on fixed service creeper and activity service creeper, cooperation between through second motor, the second drive shaft, the gear, swivel becket and latch, drive activity service creeper rotates, thereby cooperation pelvic floor muscle U-shaped layer board lifts the user buttock and puts down, the muscle crowd who closes the pelvic floor moves, and can carry out massage exercise through the cooperation of first motor, first drive shaft and massage roller, massage roller to user's pelvic floor muscle, simultaneously can make the pelvic floor muscle feel warm through the electric warming lamp, the blood circulation at pelvic floor muscle position has further improved the restoration exercise effect, need not through shank and waist power, fine avoiding appearing shank and waist soreness and be difficult to carry out the condition of training, the going on of exercise work is restoreed to the pelvic floor muscle of being convenient for.

Drawings

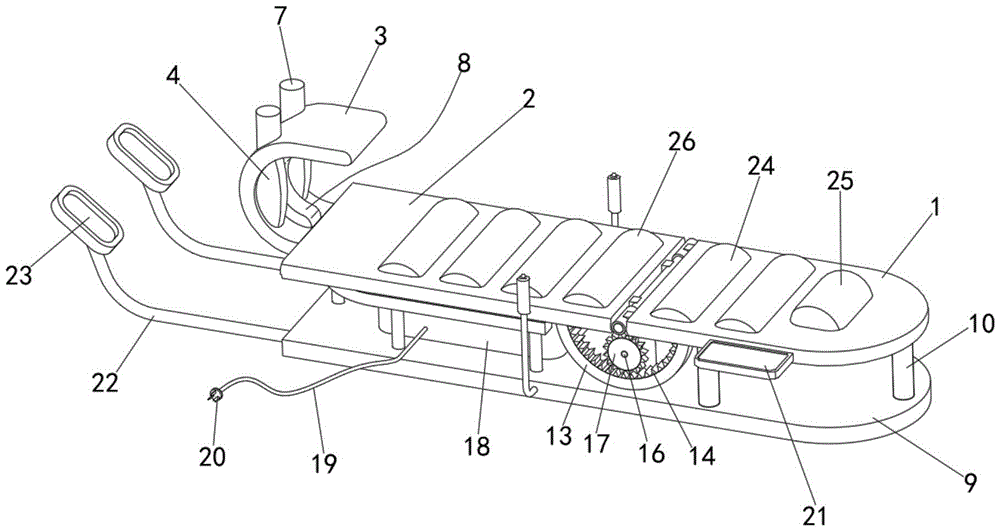

FIG. 1 is a first schematic structural view of the pelvic floor muscle repair apparatus of the present utility model;

FIG. 2 is a schematic diagram of the front view structure of the pelvic floor muscle repair instrument of the utility model;

FIG. 3 is a schematic side view of the pelvic floor muscle repair apparatus of the present utility model;

FIG. 4 is a second schematic structural view of the pelvic floor muscle repair apparatus of the present utility model;

FIG. 5 is a schematic view of a partial cross-sectional structure of the pelvic floor muscle repair apparatus of the present utility model;

fig. 6 is a schematic view of the structure of the massage roller of the pelvic floor muscle repair instrument of the utility model.

Name corresponding to each label in the figure:

1. fixing the lying plate; 2. a movable lying plate; 3. u-shaped supporting plate for pelvic floor muscles; 301. hiding the cavity; 4. a silica gel cover; 5. a massage roller; 501. a roller body; 502. a massage ball; 6. a first drive shaft; 7. a first motor case; 8. an electric heating lamp; 9. a lower base plate; 10. a first support column; 11. a second support column; 12. an arc-shaped supporting plate; 13. a rotating ring; 14. latch teeth; 15. a second motor case; 16. a second drive shaft; 17. a gear; 18. an equipment box; 19. an electrical connection line; 20. an electrical plug; 21. a control panel; 22. an L-shaped support rod; 23. a foot pedal; 24. a rubber back pad; 25. a rubber pillow; 26. a rubber waist pad; 27. a handle bar; 28. a protective glove; 29. rubber cushion pad.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which are derived by a person skilled in the art based on the embodiments of the utility model, fall within the scope of protection of the utility model.

Embodiments of the utility model:

example 1

As shown in fig. 1-6, the utility model provides a pelvic floor muscle repairing instrument, which comprises a fixed lying plate 1, wherein the tail end of the fixed lying plate 1 is hinged with a movable lying plate 2, the tail end of the movable lying plate 2 is provided with a pelvic floor muscle U-shaped supporting plate 3, two silica gel covers 4 are symmetrically arranged on the inner cambered surface of the pelvic floor muscle U-shaped supporting plate 3, a hidden cavity 301 is arranged at the position of the silica gel cover 4 arranged on the inner cambered surface of the pelvic floor muscle U-shaped supporting plate 3, a massage roller 5 is arranged between the inner wall of the hidden cavity 301 and the inner surface of the silica gel cover 4, the top end of the massage roller 5 is connected with a first driving shaft 6, two first motor boxes 7 are symmetrically arranged on the outer surface of the pelvic floor muscle U-shaped supporting plate 3, a first motor connected with the first driving shaft 6 is fixed in the first motor boxes 7, an electric heating lamp 8 is arranged at the center position of the inner cambered surface of the pelvic floor muscle U-shaped supporting plate 3, the massage roller 5 comprises a roller body 501, the surface of the roller body 501 is provided with a plurality of evenly distributed massage balls 502, the whole roller body 501 is in an elliptical structure, when the pelvic floor muscle repair instrument is used, the electric warming lamp 8 can be started to heat the pelvic floor muscles to improve the blood circulation of the pelvic floor muscles, the lower parts of the fixed lying plate 1 and the movable lying plate 2 are provided with the lower base plate 9, the fixed lying plate 1 and the movable lying plate 2 are connected with a plurality of first support columns 10 between the fixed lying plate 1 and the lower base plate 9, the upper surface of the lower base plate 9 is connected with a plurality of second support columns 11 in the position corresponding to the movable lying plate 2, the top ends of the plurality of second support columns 11 are connected with an arc-shaped support plate 12, the lower surface of the movable lying plate 2 is close to the position of the fixed lying plate 1 and is symmetrically connected with two rotating rings 13, a plurality of uniformly distributed clamping teeth 14 are arranged on the intrados of the two rotating rings 13, two second motor boxes 15 are arranged on the upper surface of the lower base plate 9, a second motor is fixed in the second motor boxes 15, a second driving shaft 16 connected with the second motor is arranged on the outer side of the second motor boxes 15, a gear 17 meshed with the clamping teeth 14 is fixed on the surface of the second driving shaft 16 close to one end, an equipment box 18 is arranged on the upper surface of the lower base plate 9, a control host machine equipment is arranged in the equipment box 18, an electric connecting wire 19 is arranged on the outer side of the equipment box 18, an electric plug 20 is connected to one end of the electric connecting box 19, a control panel 21 is arranged on the side of the fixed lying plate 1, one end of the lower base plate 9 close to the basin muscle U-shaped 3 is provided with two L-shaped support rods 22, a pedal 23 is arranged on the top end of the L-shaped support rods 22, the pedal 23 is meshed with the second motor, the pedal 23 is meshed with the clamping teeth 17, and the second pedal 17 is meshed with the gear 17, and the pedal 17 is meshed with the clamping teeth 14, so that the pedal is driven to rotate, the pedal 17, and the pedal is driven to rotate, and the pedal plate is driven to rotate, the pedal plate and the pedal 17, the pedal plate is meshed with the pedal plate and the pedal plate 13.

Example two

As shown in fig. 1 to 4, on the basis of the first embodiment of the present utility model: the upper surface of the fixed lying plate 1 is provided with a rubber back cushion 24 and a rubber pillow cushion 25, the upper surface of the movable lying plate 2 is provided with a plurality of evenly distributed rubber waist cushions 26, the comfort level of a user is improved, two sides of the lower base plate 9 are symmetrically connected with two handle bars 27, the positions, close to the top ends, of the surfaces of the two handle bars 27 are provided with protective gloves 28, when the pelvic floor muscle repair instrument is used, the handle bars 27 can be held to prevent a body from sliding, and the upper surface of the arc-shaped supporting plate 12 is provided with a rubber cushion 29, so that the movable lying plate 2 can be prevented from being damaged.

Claims

1. The utility model provides a pelvic floor muscle repair appearance which characterized in that: including fixed service creeper (1), fixed service creeper (1) tail end articulates there is activity service creeper (2), activity service creeper (2) tail end is provided with pelvic floor muscle U-shaped layer board (3), the below of fixed service creeper (1) and activity service creeper (2) is provided with lower plate (9), just the position symmetry that activity service creeper (2) lower surface is close to fixed service creeper (1) is connected with two rotation rings (13), two all be provided with latch (14) on the intrados of rotation ring (13), lower plate (9) upper surface is provided with two second motor casees (15), second motor casees (15) internal fixation has the second motor, just second motor casees (15) outside is provided with second drive shaft (16) that are connected with the second motor, the position that second drive shaft (16) surface is close to one end is fixed with gear (17) with latch (14) looks meshing.

2. The pelvic floor muscle repair apparatus according to claim 1, wherein: the utility model discloses a basin bottom muscle U-shaped layer board, including basin bottom muscle U-shaped layer board (3), basin bottom muscle U-shaped layer board (3) and basin bottom muscle U-shaped layer board, the intrados symmetry is provided with two silica gel covers (4), just hidden chamber (301) have been seted up to symmetry on basin bottom muscle U-shaped layer board (3) intrados, be provided with massage roller (5) between hidden chamber (301) inner wall and the intrados of silica gel cover (4), the top of massage roller (5) is connected with first drive shaft (6), symmetry is provided with two first motor casees (7) on basin bottom muscle U-shaped layer board (3) surface, first motor that is fixed with first drive shaft (6) in first motor case (7), the central point of basin bottom muscle U-shaped layer board (3) intrados is provided with electric warming lamp (8), be connected with a plurality of first support column (10) between fixed service creeper (1) and the underfloor (9), the upper surface of underfloor (9) is connected with a plurality of second support column (11) corresponding positions of activity service creeper (2), a plurality of second support column (11) top are connected with arc backup pad (12).

3. The pelvic floor muscle repair apparatus according to claim 1, wherein: the utility model discloses a basin, including lower plate (9), control host computer equipment, electric connection line (19) are provided with in lower plate (9) upper surface, be provided with control host computer equipment in equipment box (18), just equipment box (18) outside is provided with electric connection line (19), the one end of electric connection line (19) is connected with electric plug (20), fixed service creeper (1) side is provided with control panel (21), one end that lower plate (9) is close to pelvic floor flesh U-shaped layer board (3) is provided with two L shape bracing pieces (22), the top of L shape bracing piece (22) is provided with running-board (23).

4. The pelvic floor muscle repair apparatus according to claim 1, wherein: the upper surface of the fixed lying plate (1) is provided with a rubber back cushion (24) and a rubber pillow cushion (25), and the upper surface of the movable lying plate (2) is provided with a plurality of uniformly distributed rubber waist cushions (26).

5. The pelvic floor muscle repair apparatus according to claim 1, wherein: two handle bars (27) are symmetrically connected to two side surfaces of the lower bottom plate (9).

6. The pelvic floor muscle repair apparatus according to claim 5, wherein: the positions, close to the top ends, of the surfaces of the two handle bars (27) are provided with protective gloves (28).

7. The pelvic floor muscle repair apparatus according to claim 2, wherein: the massage roller (5) comprises a roller body (501), a plurality of massage balls (502) which are uniformly distributed are arranged on the surface of the roller body (501), and the roller body (501) is integrally arranged into an elliptical structure.

8. The pelvic floor muscle repair apparatus according to claim 2, wherein: the upper surface of the arc-shaped supporting plate (12) is provided with a rubber buffer pad (29).
