The utility model discloses an injection moulding machine convenient to material loading, its technical scheme includes: equipment platform and the host computer of moulding plastics, the workstation is installed through the support column to equipment bench top one side, equipment bench top is close to workstation one side and installs the workbin, the host computer of moulding plastics is installed at the workstation top, mould plastics host computer top one side and install the hopper, it installs material room B to go up inside being close to workstation one side of workbin, go up inside being close to material room B one side of workbin and install material room A, glassware A in the spiral is installed at the top in the material room A, glassware A surface is connected in the hopper through conveyer pipe B in the spiral. The utility model provides an injection moulding machine convenient to material loading has solved current partial injection moulding machine and has required the workman to weigh the ratio to the raw materials of different colours when raw materials material loading, leads to raw materials material loading cost time long, influences product production efficiency's problem, has reduced the material loading cost time of raw materials to injection moulding machine's production efficiency has been improved.

Description

Injection molding machine convenient to material loading

Technical Field

The utility model relates to an injection moulding technical field specifically is an injection moulding machine convenient to material loading.

Background

The injection molding machine has a working principle similar to that of an injection syringe for injection, and is a technological process of injecting plastic in a plasticized molten state into a closed mold cavity by means of the thrust of a screw rod, solidifying and shaping to obtain a product, wherein the basic requirements of injection molding are plasticization, injection and molding. Plasticizing is a prerequisite for realizing and ensuring the quality of a molded product, and in order to meet the molding requirement, sufficient pressure and speed must be ensured during injection, and an injection molding machine is required to be used during the production of the garbage can.

Through the magnanimity retrieval, discover that injection moulding machine among the prior art is like a novel machine-shaping injection molding machine that publication number is CN216760598U discloses, the material mouth device in original machine-shaping injection molding machine has been changed, the discharge gate device includes ejection of compact smooth ramp way A, ejection of compact smooth ramp way B and knob bolt, earlier use two knob bolts to connect ejection of compact smooth ramp way A and ejection of compact smooth ramp way B, then use the bolt to install the inside at the injection molding machine frame with the discharge gate device, use machine-shaping injection molding machine to process, earlier pour raw and other materials into in the feed inlet, melt raw and other materials through high temperature melting device, carry the inside mould shaping that carries out of shaping cooling device through conveyer with the material that melts, the cooling, the goods passes through the discharge gate device and slides down, when the workman need to change and accomodate the basket or can not find when accomodating the basket, the workman can be the horizontal state through rotatory ejection of compact smooth ramp way A, thereby make the product can not directly drop and make subaerial, thereby avoid the waste of material.

The existing part of injection molding machines need workers to weigh and proportion raw materials with different colors when the raw materials are fed, so that the feeding time of the raw materials is long, and the production efficiency of products is influenced.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an injection moulding machine convenient to material loading possesses the advantage of the automatic ratio material loading of being convenient for, has solved current partial injection moulding machine and needs the workman to weigh the ratio to the raw materials of different colours when raw materials material loading, leads to raw materials material loading cost time long, influences product production efficiency's problem.

In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides an injection moulding machine convenient to material loading, includes equipment platform and the host computer of moulding plastics, wherein the workstation is installed through the support column to equipment bench top one side, equipment bench top is close to workstation one side and installs the workbin, the host computer of moulding plastics is installed at the workstation top, the mixing hopper is installed to host computer top one side of moulding plastics, go up the inside workstation one side of being close to of workbin and install material room B, go up the inside material room A of being close to of workbin one side and install material room A, glassware A is gone up to the spiral in the material room A top is installed, glassware A surface is connected in mixing hopper through conveyer pipe B in the spiral, glassware B surface is gone up to the spiral is installed at the top and is gone up glassware B in the spiral, glassware B surface is close to the top and passes through conveyer pipe A and connects inside mixing hopper.

Preferably, there is the baffle material room A and material room B internally mounted, the feeder hopper is installed to material room A and material room B top one side, material room A and material room B top are close to feeder hopper one side and install level sensor.

Preferably, install driving motor in the middle of the compounding fill top, the pivot is installed to the driving motor output shaft position in the inside centre of compounding fill, the scraper blade is installed through the connecting rod to pivot one side, the puddler is all installed to the surface about the connecting rod.

Preferably, the rotating shaft is provided with an inclined rod on one side deviating from the connecting rod, and the lower surface of the inclined rod is provided with a mixing rod.

Preferably, the rotating shaft outer surface is close to the top and is provided with a screening plate, the lower surface of the screening plate is provided with a screening hole, and the rotating shaft outer surface is close to the bottom and is provided with a lifting blade.

Preferably, the material mixing hopper is internally provided with a preheating chamber, the middle of the outer surface of the injection molding main machine is provided with a heat exchange box, one side of the heat exchange box is connected to the preheating chamber through an oil inlet pipe, the middle of the oil inlet pipe is provided with a circulating pump, and the top of the heat exchange box is far away from one side of the oil inlet pipe and is connected to the top in the preheating chamber through a return pipe.

Preferably, an observation window is arranged in the middle of the front surface of the mixing hopper.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up glassware A on the spiral, glassware B on the spiral, go up workbin, material room A and material room B, reach the effect of being convenient for carry on the material loading to solve partial injection moulding machine and need the workman to weigh the ratio to the raw materials of different colours when raw materials material loading, lead to raw materials loading cost time long, influence product production efficiency's problem, reduced the material loading cost time of raw materials, thereby improved injection moulding machine's production efficiency.

2. The utility model discloses a set up driving motor, pivot, puddler and mixing rod, reach the effect of mixing the stirring to the batching raw materials to the stirring that solves the batching raw materials mixes the effect limitedly, and the batching raw materials mixes the degree of consistency poor, leads to product production colour difference to appear, influences product quality's problem, has improved the batching raw materials and has mixed the degree of consistency, thereby has improved the production quality of product.

Drawings

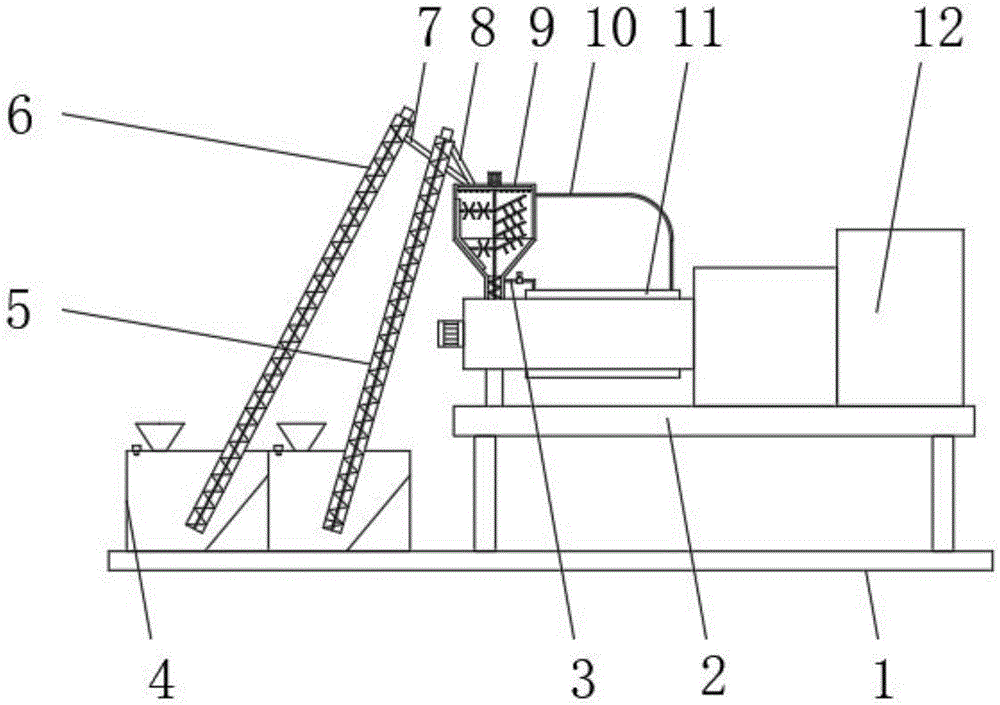

Fig. 1 is a schematic view of the structure of the present invention;

FIG. 2 is a schematic sectional view of the mixing hopper of the present invention;

fig. 3 is a schematic view of the sectional structure of the feeding box of the present invention.

Reference numerals: 1. an equipment table; 2. a work table; 3. an oil inlet pipe; 4. feeding a material box; 5. a spiral feeder A; 6. a spiral feeder B; 7. a conveying pipe A; 8. a delivery pipe B; 9. a mixing hopper; 10. a return pipe; 11. a heat exchange box; 12. injection molding the main machine; 13. a material sieving plate; 14. a drive motor; 15. sieving holes; 16. a connecting rod; 17. a squeegee; 18. a stirring rod; 19. lifting the blade; 20. a circulation pump; 21. a rotating shaft; 22. a mixing rod; 23. a preheating chamber; 24. a diagonal bar; 25. a material chamber A; 26. a material chamber B; 27. a guide plate; 28. a level sensor; 29. a feed hopper.

Detailed Description

The following describes the technical solution of the present invention with reference to the accompanying drawings and specific embodiments.

As shown in fig. 1-3, to achieve the above purpose, the present invention provides the following technical solutions: the utility model provides an injection moulding machine convenient to material loading, including equipment platform 1 and injection moulding host computer 12, equipment platform 1 top one side installs workstation 2 through the support column, 1 top of equipment platform is close to workstation 2 one side and installs

material loading case

4, 2 tops of workstation install injection moulding host computer 12, injection moulding host computer 12 top one side installs mixing hopper 9, material loading case 4 is inside to be close to workstation 2 one side and installs material room B26, material loading case 4 is inside to be close to material room B26 one side and installs material room A25, material room A25 installs the interior top spiral glassware A5, the spiral glassware A5 surface is connected in mixing hopper 9 through conveyer pipe B8, material room A25 installs spiral glassware B6 at the interior top of material room B26, spiral glassware B6 surface is close to the top and connects in mixing hopper 9 through conveyer pipe A7 inside, material room A25 and material room B26 internally mounted have a baffle 27, material room A25 and material room B26 top one side are installed material sensor 28, material room A25 and material room B26 top are close to one side and install material room 29, the internal surface of preheating hopper 23 is installed with preheating room B26 and is equipped with material room C and installs material room C20, it is convenient for preheating hopper 11 to preheat the internal surface of mixing hopper 11 to preheat the internal connection in the middle heat transfer hopper 11, it observes the heat transfer case 11 to observe through the internal heat transfer pump 11 to install the internal heat transfer hopper 11 through the feeder 11 before the feeder 11, the feeder 11 observation of the internal heat transfer case 11, it observes the internal heat transfer pump 11 to preheat the internal heat transfer pump to pass through the internal combustion of preheating chamber 11 to install.

The working principle of the injection molding machine convenient for feeding based on the embodiment 1 is as follows: will the utility model discloses install the back, place the plastic granules of different colours inside feeder hopper 29 in both sides respectively, through material room A25 and material room B26, store the plastic granules of different colours, again start glassware A5 on the spiral respectively and glassware B6 on the spiral, carry material room A25 and the inside raw materials of material room B26 to the compounding fill 9 inside, after fighting 9 inside plastic granules through the compounding and mixing, carry plastic granules to injection moulding host 12 inside through pivot 21 and promotion blade 19, so far, this equipment work flow is accomplished.

Example two

As shown in fig. 1-3, the utility model provides an injection molding machine convenient to material loading compares in embodiment one, and this embodiment still includes: install driving motor 14 in the middle of the 9 tops of mixing hopper, driving motor 14 output shaft is located and installs pivot 21 in the middle of mixing hopper 9 is inside, scraper blade 17 is installed through connecting rod 16 in pivot 21 one side, puddler 18 is all installed to the surface about connecting rod 16, pivot 21 deviates from connecting rod 16 one side and installs down tube 24, down tube 24 lower surface mounting has mixing beam 22, through puddler 18 and mixing beam 22, mix the raw materials, pivot 21 surface is close to the top and installs sieve flitch 13, sieve flitch 13 lower surface is equipped with sieve material hole 15, sieve flitch 13 and sieve material hole 15 through setting up disperse the raw materials, thereby be convenient for the raw materials mixes, pivot 21 surface is close to the bottom and installs promotion blade 19.

In this embodiment, inside raw materials are carried to compounding fill 9, start driving motor 14, it rotates to drive pivot 21 through driving motor 14, it rotates to drive sieve flitch 13 through pivot 21, through sieve flitch 13 and sieve material hole 15, disperse the raw materials, raw materials after the dispersion fall to compounding fill 9 inside, drive puddler 22 and down tube 24 through pivot 21 and rotate, it rotates to drive scraper blade 17 and connecting rod 16 through pivot 21 simultaneously, it rotates to drive puddler 18 through connecting rod 16, through puddler 18 and puddler 22, mix the raw materials, after mixing the completion, control driving motor 14 upset, drive pivot 21 and promotion blade 19 reversal through driving motor 14, carry the raw materials to inside the host computer 12 of moulding plastics.

The above embodiments are merely some preferred embodiments of the present invention, and many alternative modifications and combinations can be made to the above embodiments by those skilled in the art based on the technical solution of the present invention and the related teachings of the above embodiments.

Claims

1. The utility model provides an injection moulding machine convenient to material loading, includes equipment platform (1) and injection moulding host computer (12), its characterized in that: equipment platform (1) top one side is installed workstation (2) through the support column, equipment platform (1) top is close to workstation (2) one side and installs workbin (4), host computer (12) of moulding plastics is installed at workstation (2) top, host computer (12) top one side of moulding plastics is installed and is mixed hopper (9), go up workbin (4) inside and be close to workstation (2) one side and install material room B (26), go up workbin (4) inside and be close to material room B (26) one side and install material room A (25), material room A (25) interior top is installed on the spiral and is gone up glassware A (5), glassware A (5) surface is passed through conveyer pipe B (8) and is connected in mixed hopper (9) on the spiral, glassware B (6) are installed on the spiral at material room B (26) interior top, glassware B (6) surface is close to the top on the spiral and is connected in mixed hopper (9) inside through conveyer pipe A (7).

2. An injection molding machine facilitating loading according to claim 1, wherein: material room A (25) and material room B (26) internally mounted have baffle (27), feeder hopper (29) are installed to material room A (25) and material room B (26) top one side, material room A (25) and material room B (26) top are close to feeder hopper (29) one side and install level sensor (28).

3. An injection molding machine facilitating loading according to claim 1, wherein: install driving motor (14) in the middle of mixing hopper (9) top, driving motor (14) output shaft is located mixing hopper (9) inside and installs pivot (21) in the middle of, scraper blade (17) are installed through connecting rod (16) in pivot (21) one side, puddler (18) are all installed to the surface about connecting rod (16).

4. An injection molding machine facilitating loading according to claim 3, wherein: the utility model discloses a mixing rod, including pivot (21), connecting rod (16), down tube (24), mixing rod (22) are installed to pivot (21) one side that deviates from connecting rod (16), down tube (24) lower surface mounting.

5. An injection molding machine facilitating loading according to claim 3, wherein: the sieve plate (13) is installed near the top to pivot (21) surface, sieve plate (13) lower surface is equipped with sieve material hole (15), pivot (21) surface is near the bottom and installs promotion blade (19).

6. An injection molding machine facilitating loading according to claim 1, wherein: mix hopper (9) internally surface mounting and have preheating chamber (23), install heat transfer case (11) in the middle of injection molding host computer (12) surface, heat transfer case (11) one side is connected in preheating chamber (23) through advancing oil pipe (3), advance the middle circulating pump (20) of installing of oil pipe (3), heat transfer case (11) top is kept away from into oil pipe (3) one side and is passed through back flow (10) and connect in preheating chamber (23) interior top.

7. An injection molding machine facilitating loading according to claim 1, wherein: an observation window is arranged in the middle of the front surface of the mixing hopper (9).
