CN218579851U - Fertile device of preparing of carbon of organic waste

Info

Publication number: CN218579851U
Application number: CN202222904590.3U
Authority: CN
Inventors: 孙刚; 王青柏
Original assignee: Jinzhou Jiaxi Renewable Resources Co ltd
Current assignee: Jinzhou Jiaxi Renewable Resources Co ltd
Priority date: 2022-11-02
Filing date: 2022-11-02
Publication date: 2023-03-07
Anticipated expiration: 2032-11-02

Abstract

The utility model discloses a device is prepared to organic waste's carbon fertilizer, including the base, the surperficial left and right symmetry fixed mounting of base has the backup pad, rotates between two backup pads to be connected with the fermentation storehouse, and the lateral wall fixed mounting of right side backup pad has the motor, the output of motor and the side fixed connection in fermentation storehouse. The organic waste that enters into the fermentation intracavity is carried out solid-liquid separation through the solid-liquid separation subassembly that assembles in the fermentation storehouse at first at the in-process that uses and is handled, reduces the moisture in the organic waste, improves the follow-up quality that generates the carbon fertilizer, and after organic waste filled the completion, through the rotation of motor drive fermentation storehouse, carries out the intensive mixing through the organic waste of rabbling mechanism in to the fermentation rate of the follow-up fermentation production carbon fertilizer of organic waste.

Description

Fertile device of preparing of carbon of organic waste

Technical Field

The utility model relates to a carbon fertilizer prepares technical field, concretely relates to organic waste's carbon fertilizer prepares device.

Background

The organic waste is a main raw material for preparing the carbon fertilizer, and the organic waste refers to excrement, waste, garbage, straw and the like containing plant cellulose. The organic waste is prepared into the carbon fertilizer by fermenting the organic waste. The raw materials are mostly directly added into the fermentation tank in the using process of the existing carbon fertilizer preparation device, and the organic waste is subsequently fermented to form the carbon fertilizer, so that the carbon fertilizer is prepared by the method, and the following defects can be caused: directly ferment organic waste, do not carry out preliminary treatment to organic waste, can lead to organic waste to mix inadequately before the fermentation to influence efficiency and quality of subsequent carbon fertilizer preparation. Therefore, the carbon fertilizer preparation device for the organic waste is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a fertile device of preparing of carbon of organic waste to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides a following technical scheme: a carbon fertilizer preparation device for organic waste comprises a base, wherein supporting plates are symmetrically and fixedly assembled on the left and right sides of the surface of the base, a fermentation bin is rotatably connected between the two supporting plates, a motor is fixedly installed on the side wall of the supporting plate on the right side, and the output end of the motor is fixedly connected with the side end of the fermentation bin;

the fermentation chamber has been seted up in the fermentation storehouse, the drain pipe that the bottom fixedly connected with in fermentation storehouse is linked together with the fermentation chamber, the bottom spiro union of drain pipe has the closing cap, the fixed solid-liquid separation subassembly that is equipped with in the fermentation chamber, the top in fermentation storehouse is equipped with the apron through fixing bolt is fixed, the lower surface of apron is equipped with rabbling mechanism.

Preferably, the solid-liquid separation assembly comprises a filter plate, the filter plate is fixedly arranged in the fermentation cavity, filter holes are uniformly formed in the surface of the filter plate, a liquid discharge groove communicated with the liquid outlet pipe is formed in the bottom of the fermentation cavity, and the liquid discharge groove is inclined in the direction of the liquid outlet pipe.

Preferably, the distance between the filter plate and the bottom of the fermentation chamber is 10cm.

Preferably, rabbling mechanism includes spacing axle, spacing axle fixed mounting is at the lower surface of apron, the mounting panel has been cup jointed to the lateral wall of spacing axle, the even fixed mounting of lower surface of mounting panel has the installation axle, the lateral wall of installation axle evenly is fixed with the (mixing) shaft, the fixed surface of mounting panel installs the atress piece that runs through the apron, the fixed surface of base installs the trigger block.

Preferably, the number of the limiting shafts is at least four, and the four limiting shafts are respectively positioned at four corners of the bottom of the cover plate.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model provides a device is prepared to organic waste's carbon fertilizer, moreover, the steam generator is simple in structure, the operation is easy, the in-process of using carries out solid-liquid separation through the solid-liquid separation subassembly that assembles in the fermentation storehouse at first carries out solid-liquid separation to the organic waste who enters into the fermentation intracavity and handles, reduce the moisture in the organic waste, improve the follow-up quality that generates the carbon fertilizer, after organic waste fills the completion, drive the rotation in fermentation storehouse through the motor, carry out the intensive mixing through the organic waste of rabbling mechanism in to the fermentation rate of the follow-up fermentation production carbon fertilizer of organic waste improves.

Drawings

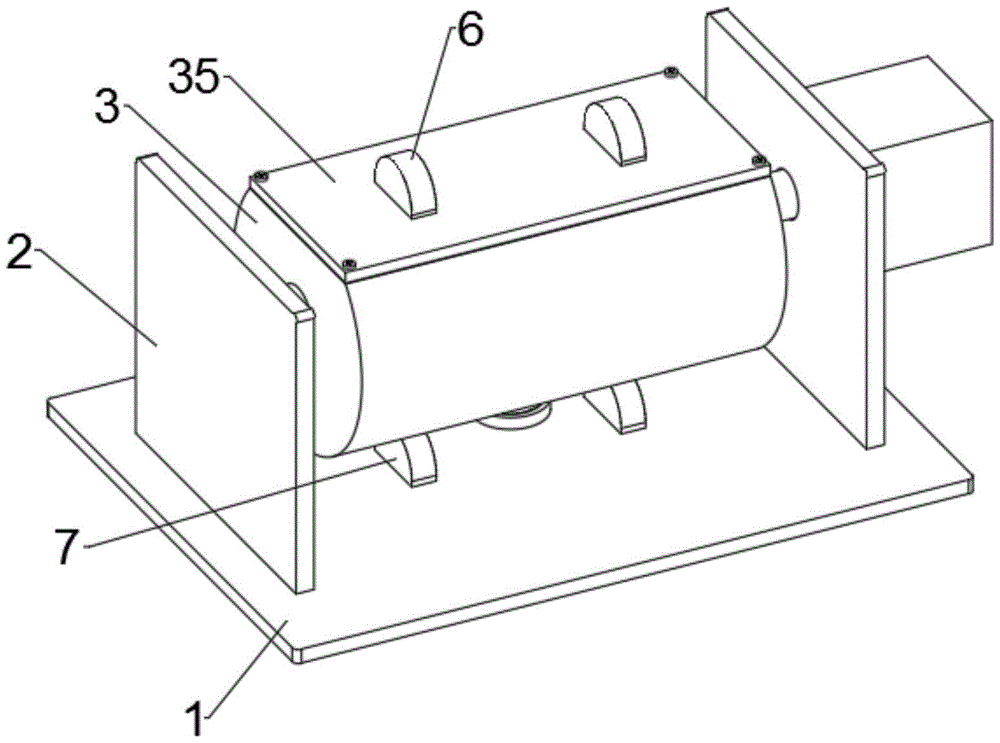

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a front sectional view of the present invention.

Fig. 3 is a schematic structural diagram of the stirring mechanism of the present invention.

In the figure: 1. the fermentation device comprises a base, 2, a supporting plate, 3, a fermentation bin, 31, a fermentation cavity, 32, a liquid outlet pipe, 33, a sealing cover, 34, a fixing bolt, 35, a cover plate, 4, a motor, 5, a solid-liquid separation assembly, 51, a filtering plate, 52, a filtering hole, 53, a liquid outlet groove, 6, a stirring mechanism, 61, a limiting shaft, 62, an installing plate, 63, an installing shaft, 64, a stirring shaft, 65, a stress block, 7 and a trigger block.

Detailed Description

The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.

Referring to fig. 1, fig. 2 and fig. 3, the present invention provides a technical solution: the utility model provides a fertile device of preparing of carbon of organic waste, includes base 1, and base 1's the left and right symmetric welding in surface is fixed with backup pad 2, rotates between two backup pads 2 and is connected with fermentation storehouse 3, and the lateral wall fixedly connected with motor 4 of right side backup pad 2, external power source is connected to motor 4 electricity, and motor 4's output passes through the side fixed connection of shaft coupling with fermentation storehouse 3, can drive fermentation storehouse 3 through motor 4 and rotate.

Offer the fermentation chamber 31 that is used for carrying out the windrow to organic waste in the inner chamber of fermentation storehouse 3, be equipped with solid-liquid separation subassembly 5 to organic waste solid-liquid separation in the fermentation chamber 31, the bottom integrated into one piece of fermentation storehouse 31 has the drain pipe 32 with fermentation chamber 31 UNICOM, the bottom spiro union of drain pipe 32 has closing cap 33, closing cap 33 is used for sealing up fermentation chamber 31, the top of fermentation storehouse 3 can be dismantled through fixing bolt 34 and be equipped with apron 35, the bottom fixed assembly of apron 35 has rabbling mechanism 6, when motor 4 drives fermentation storehouse 31 and carries out the pivoted, can trigger rabbling mechanism 6 through the trigger block 7 that is located base 1 surface, make rabbling mechanism 6 stir the organic waste in to fermentation storehouse 31 and mix, be convenient for follow-up organic waste makes the fermentation of carbon fertilizer.

Solid-liquid separation subassembly 5 is used for carrying out solid-liquid separation to the organic waste who enters into in the fermentation storehouse 3, solid-liquid separation subassembly 5 includes filter 51 of fixed mounting in fermentation chamber 31, filter 52 has evenly been seted up on filter 51's surface, distance between filter 51 and the fermentation chamber 31 bottom is 10cm, through setting up certain interval, the convenience is discharged the filtration of waste liquid, the organic waste who enters into in the fermentation chamber 31 carries out solid-liquid separation through filtering 51, liquid outlet tank 53 that is used for waste liquid exhaust is seted up to the bottom of fermentation chamber 31, liquid outlet tank 53 is the slope form to drain pipe 32, the waste liquid passes through liquid outlet tank 53 and collects the concentrated emission of back in entering into drain pipe 32.

As shown in fig. 3, the stirring mechanism 6 includes a limiting shaft 61, the limiting shaft 61 is fixedly installed at four corners of the bottom of the cover plate 35, the outer side walls of the four limiting shafts 61 are sleeved with the mounting plates 62 in sliding connection with the limiting shaft, the bottom of the mounting plates 62 is welded and fixed with the mounting shafts 63, the number of the mounting shafts 63 is at least 6, the mounting shafts are uniformly distributed at the bottom of the mounting plates 62, the side walls of the mounting plates 63 are unevenly welded and fixed with the stirring shafts 64, the surface of the mounting plates 62 is welded and fixed with the stress blocks 65 penetrating through the cover plate 35, the stress blocks 65 and the top of the trigger block 7 are both arc-shaped, the stress blocks 65 correspond to the positions of the trigger block 7, a sealing gasket having a sealing effect is arranged at the connection part of the stress blocks 65 and the cover plate 35, and the sealing gasket seals between the stress blocks 65 and the cover plate 33 in the process that the mounting plates 62 move along the limiting shaft 61. After the cover plate 33 is closed, the fermentation chamber 3 rotates, so that the trigger block 7 on the surface of the base 1 of the stress block 65 is contacted, the stress block 65 is stressed to drive the mounting plate 62 to move along the limiting shaft 61, and the organic waste in the fermentation chamber 31 is stirred and mixed by the stirring shaft 64, so that the fermentation speed of the organic waste in the subsequent fermentation chamber 31 is increased.

The working principle is as follows: in the using process, firstly, the fermentation chamber 3 is adjusted to be in a state that the cover plate 35 faces upwards and the liquid outlet pipe 32 faces downwards, after the cover plate 35 is taken down, organic waste to be made into carbon fertilizer is added into the fermentation chamber 31, the organic waste entering the fermentation chamber 31 is subjected to solid-liquid separation through the solid-liquid separation component 5 in the fermentation chamber 31, waste liquid in the waste is discharged from the liquid outlet pipe 32, after the organic waste is filled and is not discharged any more, the sealing cover 33 is sealed, then the cover plate 35 is assembled and fixed, the motor 4 is started, the fermentation chamber 3 is driven to rotate through the motor 4, the trigger block 7 can apply pressure to the stress block 65 in the rotating process of the fermentation chamber 3, the mounting plate 62 can move along the limiting shaft 61, the organic waste in the fermentation chamber 31 is stirred and mixed through the stirring shaft 64, and the subsequent organic waste is made into the carbon fertilizer, so that the fermentation is more sufficient.

Claims

1. The utility model provides a device is prepared to organic waste's carbon fertilizer, includes base (1), its characterized in that: the fermentation device is characterized in that supporting plates (2) are symmetrically and fixedly assembled on the left and right sides of the surface of the base (1), a fermentation bin (3) is rotatably connected between the two supporting plates (2), a motor (4) is fixedly installed on the side wall of the supporting plate (2) on the right side, and the output end of the motor (4) is fixedly connected with the side end of the fermentation bin (3);

fermentation chamber (31) have been seted up in fermentation storehouse (3), drain pipe (32) that the bottom fixedly connected with of fermentation storehouse (3) is linked together with fermentation chamber (31), the bottom spiro union of drain pipe (32) has closing cap (33), fermentation chamber (31) internal fixation is equipped with solid-liquid separation subassembly (5), the top of fermentation storehouse (3) is through fixing bolt (34) fixed assembly has apron (35), the lower surface of apron (35) is equipped with rabbling mechanism (6).

2. The organic waste carbon fertilizer preparation device according to claim 1, wherein: the solid-liquid separation assembly (5) comprises a filter plate (51), the filter plate (51) is fixedly installed in the fermentation chamber (31), filter holes (52) are uniformly formed in the surface of the filter plate (51), a liquid discharge groove (53) communicated with the liquid outlet pipe (32) is formed in the bottom of the fermentation chamber (31), and the liquid discharge groove (53) is inclined in the direction of the liquid outlet pipe (32).

3. The organic waste carbon fertilizer preparation device according to claim 2, characterized in that: the distance between the filter plate (51) and the bottom of the fermentation cavity (31) is 10cm.

4. The organic waste carbon fertilizer preparation device according to claim 1, wherein: rabbling mechanism (6) are including spacing axle (61), spacing axle (61) fixed mounting is at the lower surface of apron (35), mounting panel (62) have been cup jointed to the lateral wall of spacing axle (61), the even fixed mounting of lower surface of mounting panel (62) has installation axle (63), the lateral wall of installation axle (63) evenly is fixed with (mixing) shaft (64), the fixed surface of mounting panel (62) installs atress piece (65) that runs through apron (35), the fixed surface of base (1) installs trigger block (7).

5. The organic waste carbon fertilizer preparation device according to claim 4, wherein: the number of the limiting shafts (61) is at least four, and the four limiting shafts (61) are respectively positioned at four corners of the bottom of the cover plate (35).
