Recyclable fish farming equipment

Technical Field

The utility model relates to a cultured equipment technical field specifically is a circulated planting equipment of breeding fish.

Background

The fish and vegetable symbiosis is a novel composite culture system, two originally completely different farming techniques of aquaculture and hydroponic culture are combined, and scientific synergistic symbiosis is achieved through ingenious ecological design, so that the ecological symbiosis effect that water is not changed during fish culture, water quality is not worried, vegetables are not fertilized, and the fish and vegetable symbiosis grows normally is achieved.

Publication (bulletin) no: CN203675872U discloses a town house energy-saving and environment-friendly seed maintaining balancing device, it relates to miniature ecological farm seed maintaining device technical field, the one end of water purifier is passed through the second water purification wet return and is connected with the main bucket of breeding fish, the upper end of water purifier is passed through the micro organic matter defeated pipe and is connected with organic liquid fertilizer fermentation ware, the one end of organic liquid fertilizer fermentation ware is passed through organic liquid fertilizer conveyer pipe and is connected with the one end in organic pipeline vegetable planting district, the other end in organic pipeline vegetable planting district is passed through the fertilizer surplus water recovery pipe and is connected with fertilizer surplus water recoverer. Its structural design is reasonable, operation convenient to use, and accessory combination and maintenance are changed easily, not only can breed fish and breed the dish and combine together, can also combine together with balcony roof planting flowers, solve the safety that the resident eats fish and uses the dish effectively, make family teenagers and children know the agriculture, increase ecological agriculture knowledge, make the house old man and old as, old happy, add family harmony and happiness.

Above-mentioned kind of balancing unit of breeding can breed fish and plant the dish and combine together, but this kind of equipment structure of planting of breeding fish is complicated, and the filter effect is low, uses inconveniently.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a circulated planting equipment of breeding fish to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a recyclable fish farming plant comprising:

the fish farming device comprises a fish farming box, a water inlet pipe, a water outlet pipe and a water outlet pipe, wherein the top of the fish farming box is in an open state and is used for farming fish, a submersible pump for pumping water is mounted at the bottom in the fish farming box, and the water outlet end of the submersible pump is connected with the water outlet pipe;

the planting box is arranged above the fish culture box, a filtering layer for treating fish feces or impurities in water is arranged in the planting box, and the water outlet end of the water conveying pipe is connected to the planting box;

plant the otter board, it inlays to locate and plants the incasement to plant the otter board, plant the through-hole of offering a plurality of even equidistance arrangements on the otter board, all install the planting box that is used for planting flowers and plants, vegetables in every through-hole.

Preferably, the filter layer is provided with a filter screen, a stream stone layer and a volcanic stone layer from bottom to top in sequence.

Preferably, the diameter of the granules of the stream stone layer is 4-9mm, and the laying thickness is 2-3cm.

Preferably, the particle diameter of the volcanic stone layer is 3-5mm, and the laying thickness is 3-4cm.

Preferably, an overflow pipe for overflowing water flow is installed on the outer wall of the planting box and is located above the planting net plate.

Preferably, the two sides of the inner wall of the planting box are symmetrically provided with limiting seats for fixing the planting net plate.

Preferably, the planting box is filled with water plant mud for fixing flowers, plants, vegetable seedlings or seeds, and the addition amount of the water plant mud does not exceed two thirds of the volume of the planting box.

Preferably, the lateral wall of planting the box is provided with the inlet opening of a plurality of even equidistance arrangements, install on the top outer wall of planting the box and be annular spacing ring.

Compared with the prior art, the beneficial effects of the utility model are that:

1. in this circulated planting equipment of breeding fish, the cooperation through the case of breeding fish and planting the case that sets up both can breed fish and can plant flowers and plants, vegetables to form into water circulation through immersible pump and water delivery pipe, the filter layer of planting the incasement can be handled the fish of aquatic just or impurity, improves the quality of water of breeding fish incasement, and the fish of aquatic just or impurity can supply with flowers and plants, vegetables root system and absorb the weight gain, simple structure, convenient operation.

2. In the recyclable fish-farming equipment, the vesuvianite is a functional environment-friendly material, has the characteristics of being porous and large in surface area, can adsorb harmful bacteria in water and heavy metal ions such as chromium, arsenic and the like which affect organisms, and even comprises residual chlorine in some water. The brook stone and the vesuvianite which can adsorb the residue which can not be absorbed and filtered by the filter and the excrement are placed in the planting box to keep the water in the tank clean.

3. Among this circulated planting equipment of breeding fish, it is provided with the spacing seat that is used for fixed planting otter board to plant incasement wall bilateral symmetry, improves spacing effect, plants the box intussuseption and is filled with the pasture and water mud that is used for carrying out flowers and plants, vegetable seedling or seed to fix, and the addition of pasture and water is no longer than planting the volumetric two-thirds of box, is favorable to vegetation.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention.

Fig. 1 is a schematic structural view of the present invention;

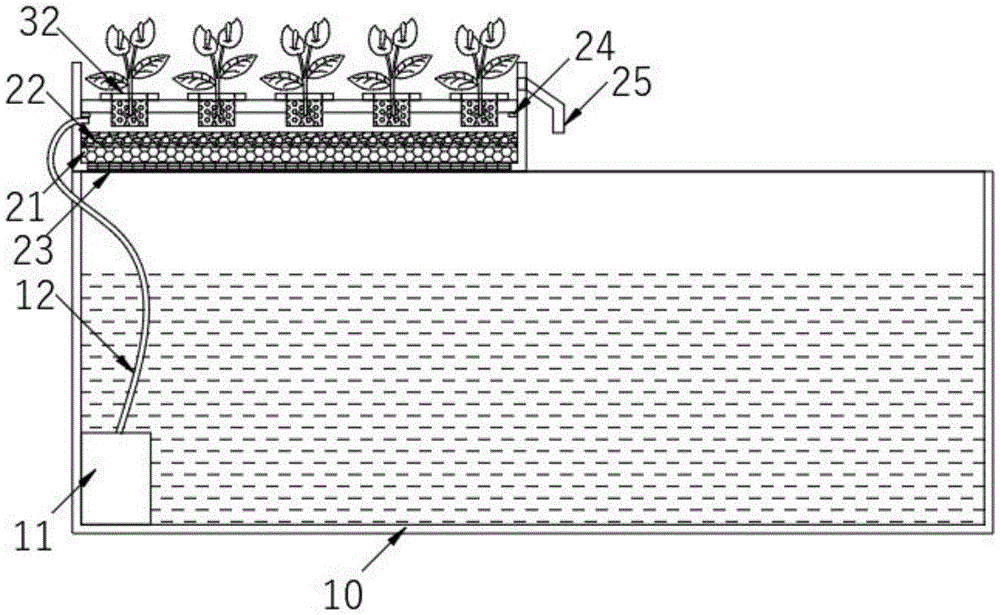

fig. 2 is a schematic view of a cross section of the present invention;

fig. 3 is a schematic structural view of the planting box of the present invention.

The meaning of the various reference symbols in the drawings:

10. a fish farming box; 11. a submersible pump; 12. a water delivery pipe;

20. planting a box; 21. a layer of brook rock; 22. a volcanic rock layer; 23. a filter screen; 24. a limiting seat; 25. an overflow pipe;

30. planting a screen plate; 31. a through hole; 32. planting boxes; 33. a water inlet hole; 34. a limit ring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely below with reference to the embodiments of the present invention and the accompanying drawings of the specification, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "center", "vertical", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

A recyclable fish farming plant, as shown in fig. 1 to 3, comprising: the fish farming system comprises a fish farming box 10, wherein the top of the fish farming box 10 is in an open state and is used for farming fishes, a submersible pump 11 for pumping water is installed at the bottom in the fish farming box 10, and the water outlet end of the submersible pump 11 is connected with a water delivery pipe 12; the planting box 20 is provided with a drainage port at the bottom of the planting box 20, the water delivery amount of the submersible pump 11 is larger than the drainage amount of the drainage port, the planting box 20 is arranged above the fish culture box 10, a filter layer for treating fish feces or impurities in water is arranged in the planting box 20, and the water outlet end of the water delivery pipe 12 is connected to the planting box 20;

plant otter board 30, plant otter board 30 and inlay and locate in planting case 20, the through-hole 31 of a plurality of even equidistance arrangements has been seted up on planting otter board 30, all install in every through-hole 31 and be used for planting flowers and plants, the planting box 32 of vegetables, fish box 10 and planting case 20 through the setting cooperation both can breed fish and can plant flowers and plants, vegetables, and form hydrologic cycle through immersible pump 11 and raceway 12, the filter layer of planting in the case 20 can be handled just or impurity with the fish of aquatic, improve the quality of water in the fish box 10, just or impurity of aquatic can supply with flowers and plants, the vegetable roots absorbs and increases fertile.

Furthermore, the filtering layer is sequentially provided with a filtering net 23, a stream stone layer 21 and a volcanic stone layer 22 from bottom to top, the particle diameter of the stream stone layer 21 is 4-9mm, the laying thickness is 2-3cm, the particle diameter of the volcanic stone layer 22 is 3-5mm, the laying thickness is 3-4cm, through the arrangement of the stream stone layer 21 and the volcanic stone layer 22, the volcanic stone is a functional environment-friendly material, and the volcanic stone has the characteristics of porosity and large surface area, can adsorb harmful bacteria in water and heavy metal ions such as chromium, arsenic and the like which affect organisms, and even comprises some residual chlorine in the water. The stream stone and the vesuvianite can be placed in the aquarium to adsorb the residue which can not be sucked and filtered by the filter and the excrement so as to keep the water quality in the aquarium clean.

Specifically, an overflow pipe 25 for water overflow is installed on the outer wall of the planting box 20, and the overflow pipe 25 is located above the planting net plate 30 to prevent water from overflowing from the top of the planting box 20.

It is worth explaining that the limiting seats 24 used for fixing the planting net plates 30 are symmetrically arranged on two sides of the inner wall of the planting box 20, the limiting effect is improved, the planting box 32 is filled with the float grass mud used for fixing flowers, plants, vegetable seedlings or seeds, the adding amount of the float grass mud is not more than two thirds of the volume of the planting box 32, and plant growth is facilitated.

In addition, the lateral wall of planting box 32 is provided with a plurality of inlet openings 33 that evenly arrange at an equal distance, installs the spacing ring 34 that is annular on the top outer wall of planting box 32.

The utility model discloses circulated fish farming equipment's theory of operation: during the use, operating personnel places flowers and plants, vegetable seedling or seed in planting the box 32 to cover the pasture and water mud, switch on external power supply with immersible pump 11, and open the switch, with the water suction of breeding in the fish box 10 to planting the case 20 in, the filter layer in planting the case 20 can be handled the fish excrement and urine or impurity in aquatic, improves the quality of water in the fish box 10, and the fish excrement and urine or impurity in aquatic can supply with flowers and plants, vegetables root system absorption and increase fertile.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a circulated planting equipment of breeding fish which characterized in that: the method comprises the following steps:

the fish farming device comprises a fish farming box (10), wherein the top of the fish farming box (10) is in an open state and is used for farming fishes, a submersible pump (11) for pumping water is installed at the bottom in the fish farming box (10), and the water outlet end of the submersible pump (11) is connected with a water delivery pipe (12);

the planting box (20), the planting box (20) is arranged above the fish culturing box (10), a filtering layer for treating fish feces or impurities in water is arranged in the planting box (20), and the water outlet end of the water conveying pipe (12) is connected to the planting box (20);

plant otter board (30), plant otter board (30) and inlay and locate in planting case (20), set up through-hole (31) that a plurality of even equidistance were arranged on planting otter board (30), all install planting box (32) that are used for planting flowers and plants, vegetables in every through-hole (31).

2. The recyclable fish farming apparatus of claim 1, wherein: the filtering layer is provided with a filtering net (23), a stream stone layer (21) and a volcanic stone layer (22) from bottom to top in sequence.

3. A recyclable fish farming plant according to claim 2, wherein: the diameter of the granules of the brook rock layer (21) is 4-9mm, and the laying thickness is 2-3cm.

4. A recyclable fish farming plant according to claim 2, wherein: the particle diameter of the volcanic stone layer (22) is 3-5mm, and the laying thickness is 3-4cm.

5. The recyclable fish farming apparatus of claim 1, wherein: an overflow pipe (25) used for water flow overflow is installed on the outer wall of the planting box (20), and the overflow pipe (25) is located above the planting net plate (30).

6. A recyclable fish farming plant according to claim 1, wherein: limiting seats (24) used for fixing the planting net plate (30) are symmetrically arranged on two sides of the inner wall of the planting box (20).

7. The recyclable fish farming apparatus of claim 1, wherein: the planting box (32) is filled with water plant mud for fixing flowers, plants, vegetable seedlings or seeds, and the addition amount of the water plant mud does not exceed two thirds of the volume of the planting box (32).

8. A recyclable fish farming plant according to claim 1, wherein: the lateral wall of planting box (32) is provided with inlet opening (33) that a plurality of even equidistance were arranged, install on the top outer wall of planting box (32) and be annular spacing ring (34).
