The utility model discloses an agricultural straw rubbing crusher is equipped with crushing case on the bottom plate, and the exit of smashing the case is equipped with first reel, and a plurality of first sieve meshes have been seted up to the bottom surface of first reel, first reel is kept away from and is smashed case one end intercommunication and have first discharging pipe, the position that the bottom plate corresponds first discharging pipe is equipped with substandard product magazine, first discharging pipe extends to the top of substandard product magazine, the fixed vibration axle that is equipped with in bottom surface of first reel, vibration axle one end is equipped with the second driving piece, the second driving piece is used for driving the vibration axle vibration, the below of first reel is equipped with the material frame. The utility model provides an agricultural straw rubbing crusher can filter out and not smash complete straw material, smashes once more to thoroughly smash the straw, satisfy user's demand.
Description
Technical Field
The utility model relates to an agricultural equipment technical field especially relates to an agricultural straw rubbing crusher.
Background
The straw is a general term of stem leaf (ear) part of mature crops. Typically refers to the remainder of the wheat, rice, corn, potatoes, oilseed rape, cotton, sugar cane and other crops (typically roughages) after harvesting the seed. More than half of the products of crop photosynthesis exist in the straws, and the straws are rich in nitrogen, phosphorus, potassium, calcium, magnesium, organic matters and the like, are multipurpose renewable biological resources, and are also coarse feeds. It features high coarse fibre content (30-40%), and lignin content. Although the lignocellulose cannot be utilized by pigs and chickens, the lignocellulose can be absorbed and utilized by livestock such as ruminants, cattle and sheep.
The most common treatment mode of the prior straw is incineration, however, the straw is incinerated to cause the straw with potential nutrition to be wasted, and on the other hand, smoke generated by combustion can cause great pollution to air, so that the straw is crushed into fine particles by a crusher in the current straw treatment mode to be absorbed and utilized by cattle, sheep and other livestock. The existing straw crusher usually comprises a crushing box, and when straws are sent into the crushing box to be crushed, crushed straw particles can flow out of a sieve plate at an outlet. But the crushing quality of the existing crusher is low, the straw is crushed not thoroughly enough, and the crushed straw can usually comprise more incompletely crushed straw, so that the cattle, sheep and other livestock can not well meet the user demand because the cattle, sheep and other livestock can cause damage to organs such as intestines and stomach when eating.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an agricultural straw rubbing crusher can filter out and not smash complete straw material, smashes once more to thoroughly smash the straw, satisfy user's demand.
The utility model discloses an agricultural straw rubbing crusher adopted technical scheme is:
the agricultural straw pulverizer comprises a bottom plate, wherein a support plate is fixedly arranged above the bottom plate, the support plate is obliquely arranged relative to the bottom plate, a supporting seat is arranged on one side of the top surface of the support plate, a pulverizing box is arranged on the supporting seat, a pulverizing roller is arranged in the pulverizing box in a rotating mode, a first driving piece is arranged outside the pulverizing box and used for driving the pulverizing roller to rotate, the top surface of the pulverizing box is communicated with a feed hopper, a discharge port is formed in the bottom surface of the pulverizing box, a sieve plate is fixedly arranged between the discharge port and the pulverizing roller, a first sieve frame is arranged at a position, corresponding to the discharge port, of the support plate and is parallel to the support plate, a plurality of first sieve holes are formed in the bottom surface of the first sieve frame, one end, far away from the pulverizing box, of the first sieve frame is communicated with a first discharge pipe, a defective material box is arranged at a position, corresponding to the first discharge pipe, of the bottom plate extends to the upper side of the defective material box, a bottom surface of the first sieve frame is fixedly provided with a vibrating shaft, one end of the vibrating shaft is provided with a second driving piece, the vibrating shaft is used for driving the vibrating shaft to vibrate, a material frame is arranged at a position, one end, the lower side of the vibrating frame is arranged at an opening of the first sieve frame, and is arranged at an opening of the bottom plate, and is arranged at an opening of the position, and is arranged at an opening of the bottom plate, and is arranged corresponding to the finished product box, and is arranged at an opening of the bottom plate.
According to a preferable scheme, a second sieve frame is arranged between the first sieve frame and the material frame and fixedly connected with the first sieve frame, the vibration shaft is fixedly arranged on the bottom surface of the second sieve frame, a plurality of elastic support members are fixedly arranged on two sides of the bottom surface of the second sieve frame, one end, away from the second sieve frame, of each elastic support member is fixedly connected with the support plate, a plurality of second sieve holes are formed in the bottom surface of the second sieve frame, one end, away from the crushing box, of the second sieve frame is communicated with a second discharge pipe, and the second discharge pipe extends to the upper portion of the defective material box.
Preferably, the diameter of the second screen hole is smaller than the diameter of the first screen hole.
Preferably, the first driving member is a rotating motor, and an output end of the rotating motor is in transmission connection with the crushing roller.
Preferably, the second driving member is a vibration motor, and an output end of the vibration motor is in transmission connection with the vibration shaft.
As a preferred scheme, four universal wheels are fixedly arranged on the bottom surface of the bottom plate and are distributed in a rectangular shape.
The utility model discloses an agricultural straw rubbing crusher's beneficial effect is: the bottom plate level is placed subaerial, the straw that will treat to smash is put into from the feeder hopper and is smashed the incasement, first driving piece drives and smashes the roller and rotates, thereby smash the straw, the good straw of smashing falls into first reel through sieve and discharge gate, the vibration of second driving piece area vibration axle, thereby drive the vibration of first reel, and first reel sets up for the bottom plate slope, first reel is when vibrating, qualified straw material can fall into the material frame from first sieve mesh, the complete straw material of not smashing can downstream, fall into the inferior goods workbin through first material pipe, thereby filter out and not smash complete straw material, then pour the straw material in the inferior goods workbin once more and smash the incasement, smash once more, thereby thoroughly smash the straw, the straw in the material frame also slowly flows into the finished goods workbin simultaneously, be convenient for accomodate.
Drawings

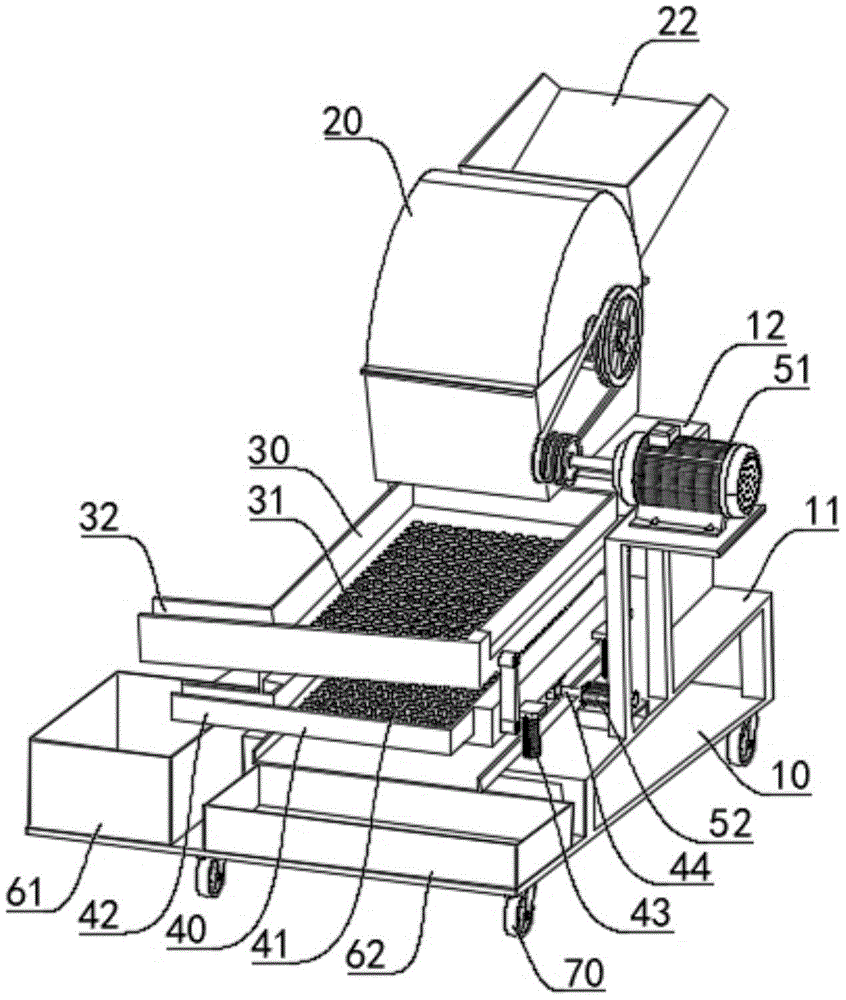

FIG. 1 is a schematic structural view of the agricultural straw pulverizer of the present invention.
Fig. 2 is a schematic structural view of the agricultural straw pulverizer at another view angle.
10. A base plate; 11. a carrier plate; 12, supporting a seat; 20. a crushing box; 21. a crushing roller; 22. a feed hopper; 23. A sieve plate; 30. a first screen frame; 31. a first screen hole; 32. a first discharge pipe; 40. a second screen frame; 41. A second sieve pore; 42. a second discharge pipe; 43. an elastic support member; 44. a vibration shaft; 51. a first driving member; 52. a second driving member; 61. a defective material box; 62. a finished product material box; 70. a universal wheel.
Detailed Description
The invention will be further elucidated and described with reference to the following embodiments and drawings in which:
referring to fig. 1 and 2, an agricultural straw pulverizer includes a bottom plate 10, a support plate 11 is fixedly disposed above the bottom plate 10, the support plate 11 is disposed to be inclined with respect to the bottom plate 10, a support seat 12 is disposed on one side of a top surface of the support plate, a pulverizing box 20 is disposed on the support seat 12, a pulverizing roller 21 is rotatably disposed in the pulverizing box 20, a first driving member 51 is disposed outside the pulverizing box 20, the first driving member 51 is used for driving the pulverizing roller 21 to rotate, a feed hopper 22 is communicated with a top surface of the pulverizing box 20, a discharge port is disposed on a bottom surface of the pulverizing box 20, a sieve plate 23 is fixedly disposed between the discharge port and the pulverizing roller 21, a first sieve frame 30 is disposed at a position of the support plate 11 corresponding to the discharge port, the first sieve frame 30 is disposed parallel to the support plate 11, a plurality of first sieve holes 31 are disposed on a bottom surface of the first sieve frame 30, a first discharge pipe 32 is communicated with one end of the first sieve frame 30 far from the pulverizing box 20, a material box 61 is disposed at a position of the bottom plate 10 corresponding to the first discharge pipe 32, the first discharge pipe 32 extends to a position of the defective box, a vibrating shaft 44 is fixedly disposed at a position of the bottom plate 30, an end of the vibrating shaft 52, an opening of the vibrating shaft 52 is disposed below the vibrating box 20, and extends to an opening of the vibrating box 20, and an opening of the vibrating frame 20.
The bottom plate 10 is horizontally placed on the ground, the straw to be crushed is placed into the crushing box 20 from the feed hopper 22, the first driving piece 51 drives the crushing roller 21 to rotate, thereby crushing the straw, the crushed straw falls into the first screen frame 30 through the screen plate 23 and the discharge port, the second driving piece 52 vibrates with the vibration shaft 44, thereby driving the first screen frame 30 to vibrate, and the first screen frame 30 is obliquely arranged relative to the bottom plate 10, the first screen frame 30 vibrates, the qualified straw can fall into the material frame from the first screen hole 31, the straw which is not completely crushed can move downwards, and falls into the defective material box 61 through the first material pipe, thereby filtering out the straw which is not completely crushed, then the straw in the defective material box 61 is poured into the crushing box 20 again, and is crushed again, thereby completely crushing the straw, the straw in the material frame also slowly flows into the finished product material box 62 at the same time, and is convenient for storage.
Specifically, referring to fig. 1 and fig. 2, a second sieve frame 40 is disposed between the first sieve frame 30 and the material frame, the second sieve frame 40 is fixedly connected to the first sieve frame 30, the vibration shaft 44 is fixedly disposed on the bottom surface of the second sieve frame 40, a plurality of elastic support members 43 are fixedly disposed on both sides of the bottom surface of the second sieve frame 40, one end of each elastic support member 43 away from the second sieve frame 40 is fixedly connected to the carrier plate 11, a plurality of second sieve holes 41 are disposed on the bottom surface of the second sieve frame 40, one end of the second sieve frame 40 away from the crushing box 20 is communicated with a second discharge pipe 42, and the second discharge pipe 42 extends to the upper side of the defective material box 61. Smash the straw material after case 20 is smashed and fall into in second reel 40 after filtering through first reel 30, vibration shaft 44 drives the vibration of second reel 40, and second reel 40 sets up for bottom plate 10 slope, second reel 40 is when the vibration, qualified straw can second sieve mesh 41 fall into the material frame in, the straw material that does not smash completely can the downstream, fall into the substandard product box through the second material pipe, thereby filter out and not smash complete straw material, further filter straw material through second reel 40, thereby obtain the straw material of smashing the high quality in making finished product magazine 62, satisfy user's demand.
Specifically, the diameter of the second screen hole 41 is smaller than the diameter of the first screen hole 31. The first screen frame 30 filters the straw material with larger particles firstly, the second screen frame 40 filters the straw material with smaller particles again, and the straw material with high crushing quality is obtained by filtering layer by layer.
Specifically, the first driving member 51 is a rotating motor, and an output end of the rotating motor is in transmission connection with the crushing roller 21. In the present embodiment, the output end of the rotating motor is drivingly connected to the crushing roller 21 through a belt. It should be noted that the crushing roller 21 includes a rotating shaft and a cutter, and is used for crushing straw, which belongs to the public technology and is not described in detail.
Specifically, the second driving member 52 is a vibration motor, and an output end of the vibration motor is in transmission connection with the vibration shaft 44. In this embodiment, the output end of the vibration motor is fixedly connected to the vibration shaft 44.
Specifically, referring to fig. 1, four universal wheels 70 are fixedly disposed on the bottom surface of the bottom plate 10, and the four universal wheels 70 are distributed in a rectangular shape. The four universal wheels 70 distributed in a rectangular shape play a supporting role and are convenient for moving the straw pulverizer. In this embodiment, the universal wheel 70 is a self-locking universal wheel 70.
The utility model provides an agricultural straw rubbing crusher, the bottom plate level is placed subaerial, it smashes the incasement to treat that kibbling straw is put into from the feeder hopper, first driving piece drives crushing roller and rotates, thereby smash the straw, kibbling straw falls into first reel through sieve and discharge gate, second driving piece area vibration axle vibration, thereby drive first reel vibration, and first reel sets up for the bottom plate slope, first reel is when vibrating, qualified straw material can fall into the material frame from first sieve mesh, not smash complete straw material can the downstream, fall into inferior material box through first material pipe, thereby filter out and put complete straw material, then pour the straw material in inferior material box into once more and smash the incasement, smash once more, thereby thoroughly smash the straw, the straw material in the material frame also slowly flows into the finished product material box simultaneously, be convenient for accomodate.
It should be finally noted that the above embodiments are only intended to illustrate the technical solutions of the present invention, and not to limit the scope of the present invention, and although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that the technical solutions of the present invention can be modified or replaced with equivalents without departing from the spirit and scope of the technical solutions of the present invention.
Claims (6)
1. The agricultural straw pulverizer is characterized by comprising a bottom plate, a support plate is fixedly arranged above the bottom plate, the support plate is obliquely arranged relative to the bottom plate, a supporting seat is arranged on one side of the top surface of the support plate, a pulverizing box is arranged on the supporting seat, a pulverizing roller is rotationally arranged in the pulverizing box, a first driving piece is arranged outside the pulverizing box and used for driving the pulverizing roller to rotate, the top surface of the pulverizing box is communicated with a feed hopper, a discharge port is formed in the bottom surface of the pulverizing box, a sieve plate is fixedly arranged between the discharge port and the pulverizing roller, a first sieve frame is arranged at a position of the support plate corresponding to the discharge port and parallel to the support plate, a plurality of first sieve holes are formed in the bottom surface of the first sieve frame, a first discharging pipe is communicated with one end of the first sieve frame, a second driving piece is arranged at one end of the first sieve frame, a material box is arranged at a position of the bottom plate corresponding to the first discharging pipe, the first discharging pipe extends to the upper side of a defective box, a vibrating shaft is fixedly arranged at the bottom surface of the first sieve frame, a second driving piece is arranged at one end of the vibrating shaft and extends to the opening of the material box.
2. The agricultural straw pulverizer as claimed in claim 1, wherein a second screen frame is disposed between the first screen frame and the material frame, the second screen frame is fixedly connected with the first screen frame, the vibration shaft is fixedly disposed on the bottom surface of the second screen frame, a plurality of elastic support members are fixedly disposed on both sides of the bottom surface of the second screen frame, one end of each elastic support member away from the second screen frame is fixedly connected with the carrier plate, a plurality of second screen holes are disposed on the bottom surface of the second screen frame, one end of each second screen frame away from the pulverizing box is communicated with a second discharge pipe, and the second discharge pipe extends to the upper side of the defective material box.
3. The agricultural straw pulverizer of claim 2, wherein the diameter of the second screen aperture is smaller than the diameter of the first screen aperture.
4. The agricultural straw pulverizer of claim 1, wherein the first driving member is a rotary motor, and an output end of the rotary motor is in transmission connection with the pulverizing roller.
5. The agricultural straw pulverizer of claim 1, wherein the second driving member is a vibration motor, and an output end of the vibration motor is in transmission connection with the vibration shaft.
6. The agricultural straw pulverizer of claim 1, wherein four universal wheels are fixedly arranged on the bottom surface of the bottom plate, and the four universal wheels are distributed in a rectangular shape.
