CN218176110U - Waterproof drainage structure for balcony - Google Patents
Waterproof drainage structure for balcony Download PDFInfo
- Publication number
- CN218176110U CN218176110U CN202221612911.6U CN202221612911U CN218176110U CN 218176110 U CN218176110 U CN 218176110U CN 202221612911 U CN202221612911 U CN 202221612911U CN 218176110 U CN218176110 U CN 218176110U
- Authority
- CN
- China
- Prior art keywords
- balcony
- drain pipe
- wall
- drain
- pipe
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The application discloses waterproof drainage structures of balcony relates to balcony drainage technical field, including balcony ground and building outer wall, balcony ground and building outer wall fixed connection, a plurality of catchment grooves have been seted up to one side that balcony ground is close to the building outer wall, and the catchment groove is equipped with the drain pipe close to the one end of building outer wall. This application is through catchment groove, the drain pipe, cooperation setting between sewer pipe isotructure, the balcony is subaerial to offer a plurality ofly with building outer wall looks vertically catchment groove, catchment groove is close to the embedded drain pipe that has had of balcony ground inside of building outer wall one end, catchment groove and drain pipe inner chamber are linked together, and the one end of drain pipe is sealed, the other end is linked together with the subaerial sewer pipe that sets up of balcony, after outside rainwater drippage is behind the balcony ground, can collect the rainwater through catchment groove, and discharge into to the sewer pipe rapidly the rainwater through the drain pipe, the rainwater probably splashes into the balcony surface when having avoided the rainy day as far as possible, cause the balcony surface wet and smooth, influence the problem that the user used.
Description
Technical Field
The application relates to balcony drainage technical field, especially relates to waterproof drainage structures of balcony.
Background
The balcony is the indoor extension of building, is that the place that the resident breathes fresh air, sunning clothing, puts cultivated in a pot, and its design needs to compromise practical and pleasing to the eye principle. Balcony is generally classified into overhanging type, embedded type and corner type.
In order to guarantee the lighting effect of the balcony, the window is generally arranged on the wall outside the balcony, the sealing effect of the window is reduced after a long time, rainwater can splash into the surface of the balcony in rainy days, the surface of the balcony is wet and smooth, and the use of a user is affected.
SUMMERY OF THE UTILITY MODEL
In order to improve and generally to have seted up the window on the wall in the current balcony outside, the sealed effect of long-time back window reduces, and the rainwater probably splashes into the balcony surface during the rainy day, causes the balcony surface wet and slippery, influences the problem that the user used, and this application provides the waterproof drainage structures of balcony.
The application provides waterproof drainage structure of balcony adopts following technical scheme:
the balcony waterproof drainage structure comprises a balcony ground and a building outer wall, wherein the balcony ground is fixedly connected with the building outer wall, a window is formed in the building outer wall, a plurality of water collecting grooves are formed in one side, close to the building outer wall, of the balcony ground, one ends, close to the building outer wall, of the water collecting grooves are provided with drain pipes, the drain pipes are located in inner cavities of the balcony ground, the water collecting grooves are communicated with inner cavities of the drain pipes, a sewer pipeline is arranged on the balcony ground, one ends of the drain pipes are sealed, the other ends of the drain pipes are communicated with the inner cavities of the sewer pipeline, a water baffle is arranged at the joint of the sewer pipeline and the drain pipes and located in the inner cavities of the sewer pipeline, hinges are fixedly connected to the tops of the water baffle and rotatably connected with the inner walls of the sewer pipeline, and the water baffle is attached to the joint of the drain pipes and the sewer pipeline.
By adopting the technical scheme, when in use, a user firstly cuts a plurality of water collecting grooves vertical to the outer wall of a building on the balcony ground along the length direction of the balcony ground, then embeds a drain pipe vertical to the water collecting grooves in the balcony ground at one end of the water collecting grooves close to the outer wall of the building, so that one end of the water collecting grooves close to the drain pipe is communicated with the inner cavity of the drain pipe, then the user seals one end of the drain pipe, and penetrates the other end of the drain pipe through a sewer pipe arranged on the balcony ground, so that the drain pipe is communicated with the inner cavity of the sewer pipe.
Optionally, a rain shield is fixedly connected to the building outer wall at the top of the window.
Through adopting above technical scheme, install the weather shield on the building outer wall in the window outside for block the rainwater, avoid the rainwater to fall into through the window to indoor balcony subaerial as far as possible.
Optionally, the two sides of the rain shield are both provided with support rods, one end of each support rod is fixedly connected with the rain shield, and the other end of each support rod is fixedly connected with the building outer wall on the two sides of the window.
Through adopting above technical scheme, set up the bracing piece on the weather shield for form the triangle-shaped structure between with building outer wall and the weather shield, improve the stability of weather shield installation.
Optionally, the height of the bottom wall of the inner cavity at the end of the water collecting tank close to the drain pipe is lower than the height of the bottom wall of the inner cavity at the end of the water collecting tank far away from the drain pipe.
Through adopting above technical scheme, the inner chamber diapire height that is close to drain pipe one end with the catchment groove sets up to be less than the catchment groove and keeps away from the inner chamber diapire height of drain pipe one end. The rainwater or domestic water collected in the water collecting tank can be rapidly drained into the drainage pipe under the action of the gravity of the rainwater collecting tank, and the problem that the rainwater further seeps downwards to influence residents on the lower layer is solved as much as possible.
Optionally, a sealing ring is fixedly connected to the inner wall of the top of the sewer line, a plurality of clamping grooves are formed in the periphery of the sealing ring and are symmetrically distributed on the top of the sealing ring, a floor drain is arranged at the top of the sealing ring, a plurality of clamping plates matched with the clamping grooves are fixedly connected to the periphery of the floor drain, the floor drain is connected with the clamping grooves in a clamped mode through the clamping plates, the clamping grooves are formed in the sealing ring, and a plurality of water leakage holes are formed in the floor drain.
By adopting the technical scheme, the sealing rings are arranged on the peripheral sides of the sewer pipeline and used for sealing the joint of the sewer pipeline and the balcony ground, so that the problem of water leakage at the joint of the sewer pipeline and the balcony ground is avoided as much as possible; the floor drain is arranged for sealing the top of the sewer pipeline, so that the problem that substances with large diameters fall into the sewer pipeline to cause internal blockage of the sewer pipeline is avoided as much as possible, and the floor drain is convenient to install and disassemble by a user due to the adoption of a clamping connection mode.
Optionally, one side of the water baffle close to the drain pipe is attached to the inner wall of one side of the sewer pipe connected with the drain pipe, and the cross-sectional area of the water baffle is larger than the pipe diameter cross-sectional area of the drain pipe.
Through adopting above technical scheme, enough seal the junction of drain pipe and sewer pipe through the breakwater, inside avoiding sewage to get into the drain pipe through the junction of sewer pipe and drain pipe as far as possible, cause the moist problem of balcony ground.
Optionally, floor tiles are further laid on the top of the balcony floor.
Through adopting above technical scheme, lay the collection basin that floor tile was used for hiding the balcony and offered on the ground on the balcony ground, make balcony ground surface more pleasing to the eye, convenience of customers uses and closes.
In conclusion, the beneficial effects of the application are as follows:
this application is through catchmenting the groove, the drain pipe, the cooperation setting between sewer pipe isotructure, the balcony is subaerial has seted up a plurality ofly and building outer wall looks vertically catchment groove, catchment the groove and be close to the embedded drain pipe that has of balcony ground inside of building outer wall one end, catchment groove and drain pipe inner chamber are linked together, and the one end of drain pipe is sealed, the other end is linked together with the subaerial sewer pipe that sets up of balcony, after outside rainwater drippage is on the balcony ground, can collect the rainwater through catchment the groove, and discharge into to the sewer pipe rapidly the rainwater through the drain pipe, rainwater probably splashes into the balcony surface when having avoided the rainy day as far as possible, cause the balcony surface wet and smooth, influence the problem that the user used.
Drawings

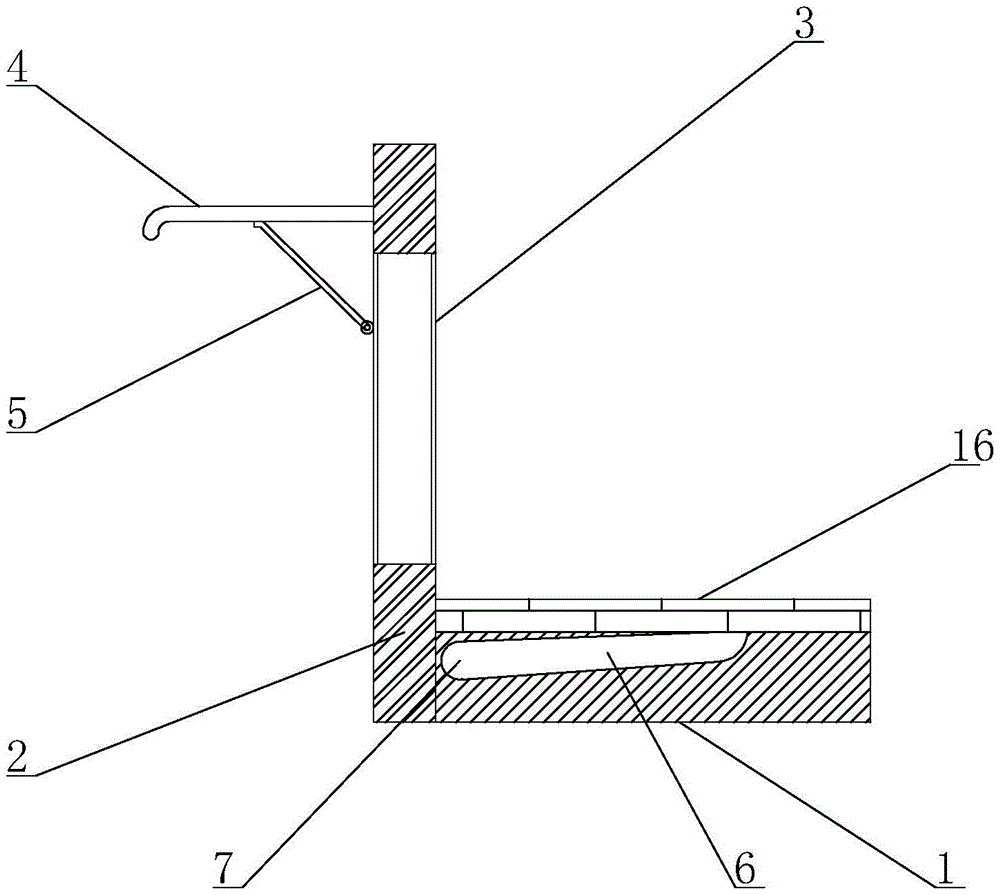

FIG. 1 is a schematic view of the overall cross-sectional structure of the present application;
FIG. 2 is a schematic view of the connection of the drainage structure of the present application;
FIG. 3 is an enlarged detail view of FIG. 2A of the present application;
FIG. 4 is a cross-sectional view of a sewer pipe of the present application.
Description of reference numerals: 1. balcony floor; 2. building exterior walls; 3. a window; 4. a rain shield; 5. a support bar; 6. a water collection tank; 7. a drain pipe; 8. a sewer pipeline; 9. a seal ring; 10. a card slot; 11. a floor drain; 12. clamping a plate; 13. a water leakage hole; 14. a hinge; 15. a water baffle; 16. a floor tile.
Detailed Description
The present application is described in further detail below with reference to figures 1-4.
Referring to fig. 1-3, the waterproof and drainage structure for balcony includes a balcony floor 1 and a building outer wall 2, wherein the balcony floor 1 is fixedly connected to the building outer wall 2. The building outer wall 2 is provided with a window 3, and the building outer wall 2 is provided with the window 3 for improving lighting of a balcony. A plurality of catchment grooves 6 are arranged on one side of the balcony ground 1 close to the building outer wall 2, and the plurality of catchment grooves 6 are distributed at equal intervals along the length direction of the balcony ground 1. One end of the water collecting groove 6 close to the building outer wall 2 is provided with a drain pipe 7, the drain pipe 7 is positioned in the inner cavity of the balcony ground 1, and the water collecting groove 6 is communicated with the inner cavity of the drain pipe 7. Rainwater or domestic water dropping on the surface of the balcony ground 1 can be gathered through the water gathering tank 6, and the gathered rainwater and domestic water are discharged into the drain pipe 7. A sewer pipeline 8 is arranged on the balcony floor 1, one end of the drain pipe 7 is sealed, and the other end of the drain pipe 7 is communicated with the inner cavity of the sewer pipeline 8. The inner cavity of the drain pipe 7 is communicated with the inner cavity of the sewer pipeline 8. The height of the sealed end of the drain pipe 7 is higher than that of the end of the drain pipe 7 connected with the sewer pipe 8. After rainwater and domestic water are discharged into the inner cavity of the drain pipe 8 through the water collecting groove 6, water flow can be rapidly discharged into the drain pipeline 8 under the action of self gravity, and rainwater and domestic water are prevented from silting and infiltrating on the balcony ground 1 as much as possible.
Referring to fig. 4, a water baffle 15 for blocking water is provided at the junction between the drain pipe 7 and the sewer pipe 8. The water baffle 15 is arranged in the inner cavity of the sewer pipeline 8, the top of the water baffle 15 is fixedly connected with a hinge 14, and the hinge 14 is rotatably connected with the inner wall of the sewer pipeline 8. The breakwater 15 is laminated with drain pipe 7 and sewer pipe 8's junction mutually, when sewage circulates downwards from sewer pipe 8 top, sewage can strike the breakwater 15, make breakwater 15 and 8 inner walls of sewer pipe laminate, seal drain pipe 7 and sewer pipe 8's link, prevent that sewage from getting into inside drain pipe 7, and when the inside rivers of drain pipe 7 strike the breakwater 15, breakwater 15 can encircle hinge 14 and rotate, make breakwater 15 and 8 inner walls of sewer pipe produce the clearance, domestic water and rainwater that will collect are discharged to inside sewer pipe 8, and discharge through sewer pipe 8.
When the balcony window is used, a user firstly cuts a plurality of water collecting grooves 6 which are vertical to the building outer wall 2 on the balcony floor 1 along the length direction of the balcony floor 1, then embeds a drain pipe 7 which is vertical to the water collecting grooves 6 in the balcony floor 1 at one end of the water collecting grooves 6, which is close to the building outer wall 2, so that one end of the water collecting grooves 6, which is close to the drain pipe 7, is communicated with the inner cavity of the drain pipe 7, then the user seals one end of the drain pipe 7 and penetrates through a sewer pipeline 8 arranged on the balcony floor 1 at the other end of the drain pipe 7, so that the drain pipe 7 is communicated with the inner cavity of the sewer pipeline 8, when rainwater or domestic water drops on the balcony floor 1, the rainwater and the domestic water can be rapidly collected into the inner cavity of the water collecting grooves 6 under the action of self gravity, and the rainwater and the domestic water are discharged into the drain pipe 7 along the water groove 6, because the height of the sealed end of the drain pipe 7 is higher than the height of one end of the drain pipe 7, which is connected with the sewer pipeline 8, the rainwater and the domestic water collected in the drain pipe 7 can be rapidly conveyed into the sewer pipeline 8 through the drain pipe 7 and discharged through the drain pipe 8, the drain pipe, the rainwater and the problem that the rainwater and the surface of the window on the outer side of the balcony window on the balcony window can be reduced, and the rainwater can be used for a long time, and the rainwater can be used in the balcony window, and the rainwater can be generally used in the balcony window, and the effect of the balcony window is reduced.
Referring to fig. 1, a rain shield 4 is fixedly attached to an outer wall 2 of a building at the top of a window 3. Install weather shield 4 on the building outer wall 2 outside window 3 for block the rainwater, avoid the rainwater to fall into to indoor balcony ground 1 through window 3 as far as possible.
Referring to fig. 1, two sides of a rain shield 4 are provided with support rods 5, one end of each support rod 5 is fixedly connected with the rain shield 4, and the other end of each support rod 5 is fixedly connected with the building outer walls 2 on two sides of a window 3. Set up bracing piece 5 on weather shield 4 for form the triangle-shaped structure between with building outer wall 2 and weather shield 4, improve the stability of weather shield 4 installation.
Referring to fig. 2, the height of the bottom wall of the inner cavity of the water collection tank 6 near the end of the drain pipe 7 is lower than the height of the bottom wall of the inner cavity of the water collection tank 6 far away from the end of the drain pipe 7. The height of the bottom wall of the inner cavity at one end of the water collection groove 6 close to the drain pipe 7 is set to be lower than the height of the bottom wall of the inner cavity at one end of the water collection groove 6 far away from the drain pipe 7. The rainwater or domestic water that make to collect in catchment 6 inside can be under self action of gravity inside discharging pipe 7 rapidly, avoids the rainwater further to infiltrate down as far as possible, causes the problem of influence to the resident family of lower floor.
Referring to fig. 2 and 3, a sealing ring 9 is fixedly connected to the inner wall of the top of the sewer pipe 8, a plurality of clamping grooves 10 are formed in the periphery of the sealing ring 9, the clamping grooves 10 are symmetrically distributed along the top of the sealing ring 9, a floor drain 11 is arranged at the top of the sealing ring 9, a plurality of clamping plates 12 matched with the clamping grooves 10 are fixedly connected to the periphery of the floor drain 11, the floor drain 11 is clamped with the clamping grooves 10 formed in the sealing ring 9 through the clamping plates 12, and a plurality of water leakage holes 13 are further formed in the floor drain 11. The sealing ring 9 is arranged on the periphery of the sewer pipeline 8 and used for sealing the joint of the sewer pipeline 8 and the balcony ground 1, so that the problem of water leakage at the joint of the sewer pipeline 8 and the balcony ground 1 is avoided as much as possible; the floor drain 11 is arranged for sealing the top of the sewer pipeline 8, the problem that substances with large diameters fall into the sewer pipeline 8 to cause internal blockage of the sewer pipeline 8 is avoided as much as possible, and a user can install and detach the floor drain 11 conveniently by adopting a clamping connection mode.
Referring to fig. 4, one side of the water baffle 15 close to the drain pipe 7 is attached to the inner wall of the side of the drain pipe 7 connected with the drain pipe 8, and the cross-sectional area of the water baffle 15 is larger than the pipe diameter cross-sectional area of the drain pipe 7. Can seal the junction of drain pipe 7 and sewer pipe 8 through breakwater 15, avoid sewage to get into inside the drain pipe 7 through the junction of sewer pipe 8 and drain pipe 7 as far as possible, cause the moist problem of balcony ground.
Referring to fig. 1, floor tiles 16 are further laid on the top of the balcony floor 1. The floor tiles 16 are laid on the balcony floor 1 to hide the water collecting groove 6 formed on the balcony floor 1, so that the surface of the balcony floor 1 is more attractive, and the balcony floor is convenient for a user to use.
The implementation principle of the application is as follows: when the balcony window is used, a user firstly cuts a plurality of water collecting grooves 6 which are vertical to the building outer wall 2 on the balcony floor 1 along the length direction of the balcony floor 1, then a drain pipe 7 which is vertical to the water collecting grooves 6 is embedded in the balcony floor 1 at one end, close to the building outer wall 2, of the water collecting grooves 6, one end, close to the drain pipe 7, of the water collecting grooves 6 is communicated with the inner cavity of the drain pipe 7, then the user seals one end of the drain pipe 7 and penetrates through a drain pipe 8 arranged on the balcony floor 1 at the other end of the drain pipe 7, the drain pipe 7 is communicated with the inner cavity of the drain pipe 8, when rainwater or domestic water drops on the balcony floor 1, the rainwater and the domestic water can be rapidly collected into the inner cavity of the water collecting grooves 6 under the action of self gravity, the rainwater and the domestic water are discharged into the drain pipe 7 along the water collecting grooves 6, the height of the sealed end of the drain pipe 7 is higher than that of one end, which the drain pipe 7 is connected with the drain pipe 8, the rainwater and the domestic water can be rapidly conveyed into the drain pipe 8 through the drain pipe 7 and can be discharged out of the drain pipe 8, the outer side of the balcony window, the problem that the rainwater and the problem that the rainwater and the surface of the balcony window can be used on the balcony window can be reduced after the balcony window can be used for a long time is solved, and the problem that the rainwater can be generally caused by the influence on the surface of the balcony.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (7)
1. Waterproof drainage structures of balcony, including balcony ground (1) and building outer wall (2), its characterized in that: balcony ground (1) with building outer wall (2) fixed connection, window (3) have been seted up on building outer wall (2), balcony ground (1) are close to one side of building outer wall (2) has seted up a plurality of catchment grooves (6), catchment groove (6) are close to the one end of building outer wall (2) is equipped with drain pipe (7), drain pipe (7) are located in balcony ground (1) inner chamber, catchment groove (6) with drain pipe (7) inner chamber is linked together, be equipped with sewer pipe (8) on balcony ground (1), one of them end of drain pipe (7) is sealed, the drain pipe (7) other end with sewer pipe (8) inner chamber is linked together, sewer pipe (8) with the junction of drain pipe (7) is equipped with breakwater (15), breakwater (15) are located in sewer pipe (8) inner chamber, the top fixedly connected with hinge (14) of breakwater (15), hinge (14) with sewer pipe (8) inner wall rotates to be connected, breakwater (15) with breakwater (7) with the junction of sewer pipe (8) mutually laminates.
2. The balcony waterproof drain structure according to claim 1, wherein: and the building outer wall (2) at the top of the window (3) is fixedly connected with a rain baffle (4).
3. The balcony waterproof drain structure according to claim 2, wherein: the two sides of the rain baffle (4) are provided with support rods (5), one end of each support rod (5) is fixedly connected with the rain baffle (4), and the other end of each support rod (5) is fixedly connected with the building outer walls (2) on the two sides of the window (3).
4. The balcony waterproof drain structure according to claim 1, wherein: the height of the bottom wall of the inner cavity at one end of the water collection groove (6) close to the drain pipe (7) is lower than that of the bottom wall of the inner cavity at one end of the water collection groove (6) far away from the drain pipe (7).
5. The balcony waterproof drain structure according to claim 1, wherein: fixedly connected with sealing washer (9) on the top inner wall of sewer pipe (8), a plurality of draw-in grooves (10) have been seted up to sealing washer (9) week side, and are a plurality of draw-in groove (10) are followed the top symmetric distribution of sealing washer (9), the top of sealing washer (9) is equipped with floor drain (11), floor drain (11) week side fixedly connected with a plurality of with cardboard (12) of draw-in groove (10) looks adaptation, floor drain (11) are passed through cardboard (12) with set up on sealing washer (9) draw-in groove (10) looks joint, a plurality of holes of leaking (13) have still been seted up on floor drain (11).
6. The balcony waterproof drain structure according to claim 5, wherein: one side of the water baffle (15) close to the drain pipe (7) is attached to the inner wall of one side of the drain pipe (8) connected with the drain pipe (7), and the section area of the water baffle (15) is larger than the pipe diameter section area of the drain pipe (7).
7. The balcony waterproof drain structure according to claim 1, wherein: the top of the balcony floor (1) is also paved with floor tiles (16).
