Abstract

The utility model discloses a device of growing seedlings that waters with protect function relates to the technical field of growing seedlings, the utility model overcomes among the prior art present chinese-medicinal material when growing seedlings, need water to it at the in-process of growing seedlings, and it is not enough even to water at present manual work, and manual watering is comparatively troublesome, when meetting rainy day, the uncontrollable because the rainwater leads to the problem of too much volume of watering, now proposes following scheme: it includes the culture rack, and culture rack middle part sets up cultivates the basin, both ends set up the water tank, and equipment water pump is connected flexible water pipe in the water tank, cultivates the basin top and is equipped with first screw rod, and the power take off end of first motor is connected to first screw rod left end, and first motor is installed in the culture rack lateral wall, and the screw thread department spiro union slider of first screw rod, slider rear end sliding connection remove about realizing on the slide bar. The utility model discloses a to watering on a large scale of chinese herbal medicine, be convenient for grow seedlings, realize keeping out rain, sunshade of chinese herbal medicine, the growth of protection seedling.

Description

Watering and seedling raising device with protection function

Technical Field

The utility model relates to a technical field that grows seedlings especially relates to a device of growing seedlings that waters with protect function.

Background

The raising of seedlings means the cultivation of seedlings. The original meaning is that the seedlings are cultivated in nursery, hotbed or greenhouse for transplanting to land for planting. It can also refer to the stage of various organisms after artificial protection until they can survive independently. In common words, "the seedling is strong and half harvested". The seedling culture is a work with high labor intensity, time consumption and strong technical performance.

At present, traditional Chinese medicinal materials need to be watered in the seedling growing process, manual watering is not uniform enough at present, manual watering is troublesome, and when the traditional Chinese medicinal materials are in rainy days, the amount of watering caused by rainwater cannot be controlled.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problems that the traditional Chinese medicinal materials need to be watered in the seedling growing process when the traditional Chinese medicinal materials are grown seedlings, the traditional Chinese medicinal materials are watered unevenly and troublesome manually, and the watering amount caused by rainwater cannot be controlled in rainy days, so that the watering seedling growing device with the protection function is provided to solve the technical problems, and comprises a cultivation frame;

the middle part of the cultivation frame is provided with a cultivation basin, two ends of the cultivation frame are provided with water tanks, and equipment water pumps in the water tanks are connected with telescopic water pipes;

a first screw rod is arranged above the cultivating basin, the left end of the first screw rod is connected with the power output end of a first motor, the first motor is installed on the side wall of the cultivating frame, a sliding block is screwed at the thread of the first screw rod, the rear end of the sliding block is connected to a sliding rod in a sliding mode to achieve left-right movement, the bottom of the sliding block is rotatably connected with a circular pipe, the bottom of the circular pipe is communicated with a transverse pipe, a telescopic water pipe penetrates through the sliding block and is inserted into the communicated circular pipe, and the bottom of the transverse pipe is communicated with and provided with a spray head;

a foldable and storable rain shielding plate is arranged above the cultivation frame.

Preferably, the cultivating pot is in a shape of Chinese character 'shan'.

Preferably, cultivate basin middle part top installation second motor, the power take off end rigid coupling second screw rod of second motor, second screw rod unthreaded department rotates and connects linking piece, run through and rotate the first screw rod of connection in the linking piece, just the position of first screw rod and second screw rod staggers each other, the screw thread department spiro union elevator block, the top of second screw rod rotate and connect the kicking block, fixed connection gag lever post between kicking block bottom and the linking piece, the elevator block runs through and slips in the gag lever post, the elevator block both ends are the one end of articulated connecting rod respectively, the flashing divide into two and articulate respectively in the both ends of kicking block, the other end of connecting rod articulates on the flashing.

Preferably, a rack is arranged below the first screw rod, the rack is divided into two sections and is respectively connected with the side wall of the cultivation frame and the side wall of the connection block, a gear is arranged on the outer side of the circumference of the circular tube, and the gear is rotatably connected with and meshed with the rack.

Preferably, the first screw is a double-thread screw with two threads in opposite directions, and the two sliding blocks are respectively screwed on the threads on the two sides.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses an annotate water toward flexible water pipe in the water tank, water finally sprays through the shower nozzle and goes out, through removing and pivoted shower nozzle, has realized watering on a large scale to the chinese-medicinal material, is convenient for grow seedlings.

When rainy days or sunshine is too big, start the second motor, drive the rotation of second screw rod, drive the elevator upward movement, the cooperation connecting rod drives the flashing and upwards opens, realizes keeping out rain, sunshade to cultivating the basin, the growth of protection seedling.

Drawings

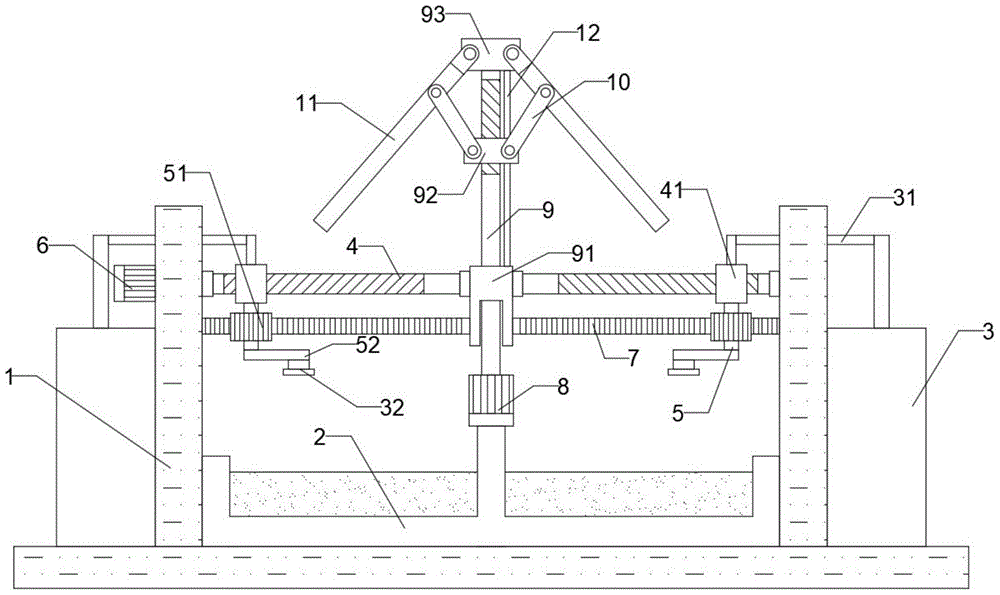

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is the structure schematic diagram of the middle telescopic water pipe communicating circular pipe of the utility model.

Reference numbers in the figures: 1. a cultivation shelf; 2. cultivating pots; 3. a water tank; 31. a telescopic water pipe; 32. a spray head; 4. a first screw; 41. a slider; 5. a circular tube; 51. a gear; 52. a transverse tube; 6. a first motor; 7. a rack; 8. a second motor; 9. a second screw; 91. a joining block; 92. a lifting block; 93. a top block; 10. a connecting rod; 11. a flashing; 12. a limiting rod.

Detailed Description

In order to make the technical solutions better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only partial embodiments of the present application, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.

It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the accompanying drawings are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances in order to facilitate the description of the embodiments of the application herein. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.

In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the present application and its embodiments, and are not used to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation.

It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.

Referring to fig. 1-2, a watering and seedling raising device with protection function comprises a cultivation frame 1;

the middle part of the cultivation frame 1 is provided with a cultivation basin 2, the two ends of the cultivation frame are provided with water tanks 3, and water pumps are arranged in the water tanks 3 and are connected with telescopic water pipes 31;

a first screw rod 4 is arranged above the cultivating basin 2, the left end of the first screw rod 4 is connected with the power output end of a first motor 6, the first motor 6 is installed on the side wall of the cultivating frame 1, a slide block 41 is screwed at the thread of the first screw rod 4, the rear end of the slide block 41 is connected to the slide rod in a sliding mode to move left and right, the bottom of the slide block 41 is rotatably connected with a circular pipe 5, the bottom of the circular pipe 5 is communicated with a transverse pipe 52, the telescopic water pipe 31 penetrates through the slide block 41 and is inserted into the communicated circular pipe 5, and the bottom of the transverse pipe 52 is communicated with and provided with a spray head 32;

a foldable and storable rain shielding plate 11 is arranged above the cultivation frame 1.

In order to better grow seedlings, the utility model discloses still include cultivate basin 2 and be mountain style of calligraphy. Cultivate 2 middle part tops of basin installation second motors 8, the power take off end rigid coupling second screw rod 9 of second motor 8, second screw rod 9 does not have screw thread department and rotates and connect and link up piece 91, link up and run through and rotate in the piece 91 and connect first screw rod 4, just first screw rod 4 staggers each other with the position of second screw rod 9, the screw thread department spiro union lifting block 92, the top of second screw rod 9 are rotated and are connected kicking block 93, fixed connection gag lever post 12 between kicking block 93 bottom and the linking piece 91, lifting block 92 runs through and the sliding connection in gag lever post 12, the one end of connecting rod 10 is articulated respectively at lifting block 92 both ends, flashing 11 divide into two and articulate respectively in the both ends of kicking block 93, the other end of connecting rod 10 articulates on flashing 11. The utility model discloses a cultivation frame, including first screw rod 4, rack 7, cultivation frame 1 lateral wall and linking piece 91 lateral wall, the circular tube 5 circumference outside sets up gear 51, gear 51 rotates to connect and meshes rack 7, rack 7 is set up to first screw rod 4 below, rack 7 divide into two sections and connects cultivation frame 1 lateral wall and linking piece 91 lateral wall respectively, gear 51 rotates. The first screw 4 is a double-threaded screw with two threads with opposite screwing directions, and the two sliding blocks 41 are respectively screwed on the threads on the two sides.

The working principle is as follows: the utility model discloses a plant chinese-medicinal material in cultivating basin 2. When watering is needed, the first motor 6 is started to drive the first screw rod 4 to rotate, the slide block 41 is driven to move, the circular tube 5 is driven to move, the gear 51 is meshed with the rack 7, the circular tube 5 is driven to rotate, and the transverse tube 52 is matched to drive the spray head 32 to rotate within a certain range. Water is injected into the telescopic water pipe 31 through the water tank 3, water is finally sprayed out through the spray head 32, and large-scale watering of the Chinese medicinal materials and convenient seedling growing are realized through the movable and rotatable spray head 32. When rainy days or sunshine is too big, the second motor 8 is started to drive the second screw rod 9 to rotate, the lifting block 92 is driven to move upwards, the connecting rod 10 is matched to drive the rain shielding plate 11 to open upwards, rain shielding and sun shielding of the cultivation pot 2 are realized, and growth of seedlings is protected.

The above-mentioned embodiments only express the preferred embodiments of the present invention, and the description thereof is more specific and detailed, but the present invention is not limited to these embodiments, and it should be noted that it is obvious to those skilled in the art. Without departing from the spirit of the present invention, any improvement is within the scope of the present invention. Therefore, the protection scope of the present invention should be subject to the appended claims.

Claims

1. The utility model provides a device of growing seedlings that waters with protect function which characterized in that: comprises a cultivation frame (1);

a cultivating basin (2) is arranged in the middle of the cultivating frame (1), water tanks (3) are arranged at two ends of the cultivating frame, and water pumps are arranged in the water tanks (3) and are connected with telescopic water pipes (31);

a first screw rod (4) is arranged above the cultivation basin (2), the left end of the first screw rod (4) is connected with the power output end of a first motor (6), the first motor (6) is installed on the side wall of the cultivation frame (1), a sliding block (41) is in threaded connection with the thread of the first screw rod (4), the rear end of the sliding block (41) is in sliding connection with a sliding rod to move left and right, the bottom of the sliding block (41) is rotatably connected with a circular pipe (5), the bottom of the circular pipe (5) is communicated with a transverse pipe (52), a telescopic water pipe (31) penetrates through the sliding block (41) and is inserted into the communicated circular pipe (5), and the bottom of the transverse pipe (52) is communicated with and provided with a spray head (32);

a foldable and storable rain shielding plate (11) is arranged above the cultivation frame (1).

2. A watering and seedling raising device with a protection function according to claim 1, characterized in that: the cultivating pot (2) is in a shape of Chinese character 'shan'.

3. A watering and seedling raising device with a protection function according to claim 2, characterized in that: cultivate basin (2) middle part top installation second motor (8), power take off end rigid coupling second screw rod (9) of second motor (8), second screw rod (9) unthreaded department rotates and connects linking piece (91), run through and rotate in linking piece (91) and connect first screw rod (4), just first screw rod (4) stagger each other with the position of second screw rod (9), the screw thread department spiro union elevator block (92), the top of second screw rod (9) are rotated and are connected kicking block (93), fixed connection gag lever post (12) between kicking block (93) bottom and linking piece (91), elevator block (92) run through and the sliding connection in gag lever post (12), elevator block (92) both ends articulate the one end of connecting rod (10) respectively, weather shield (11) divide into two and articulate respectively in the both ends of kicking block (93), the other end of connecting rod (10) articulates on weather shield (11).

4. A watering and seedling raising device with a protection function according to claim 3, characterized in that: the utility model discloses a cultivation frame, including first screw rod (4), first screw rod (4) below sets up rack (7), rack (7) divide into two sections and connect cultivation frame (1) lateral wall and linking piece (91) lateral wall respectively, pipe (5) circumference outside sets up gear (51), gear (51) rotate to be connected and mesh rack (7).

5. A watering and seedling raising device with a protection function according to claim 1, characterized in that: the first screw (4) is a double-thread screw with two threads in opposite directions, and the two sliding blocks (41) are respectively screwed on the threads on the two sides.
