Abstract
A piglet breastfeeding system, comprising: a feeding system for storing and supplying the powdered milk; a water supply system for storing and supplying clean water; the constant-temperature stirring system is connected with the feeding system and the water supply system, and is used for uniformly stirring and mixing the milk powder and the water, heating the milk powder to a set temperature and keeping the constant temperature; the blanking system is connected with the constant-temperature stirring system and used for conveying the liquid milk to a trough of the pigsty; and the control system is connected with the feeding system, the water supply system, the constant-temperature stirring system and the discharging system to realize the control of the operation process.
Description
Technical Field
The utility model relates to a livestock-raising technical field, concretely relates to piglet system of suckleing.
Background
At present, the feeding management of a piggery in China on suckling piglets is realized in such a way that nutrients and antibodies are mainly obtained from sow milk within one month after the piglets are born, and a small amount of creep feed is added at the later stage of suckling.
Breeding 3 pain spots of pig farm:
1. contradiction between effective number of nipples of sow and actual piglets
2. Contradiction between actual feed intake of sow and milk demand of piglet
3. The excessive consumption of the sow body condition, the subsequent reproductive performance and the production efficiency.
With the rapid development of modern pig raising industry in China, the number of born sows is increased, so that the lactation amount of the sows cannot meet the growth demand of newborn piglets, and the weaning diarrhea rate and the death rate of the piglets are increased. To avoid this, pig farms usually transfer weak piglets to the foster sows, so that the remaining piglets are sufficiently nourished by lactation, however, the foster nursing requires careful handling, requires a lot of expertise and technicians, and the foster raising easily causes stress to the piglets and also increases the risk of cross-infection diseases.
At present, the price of pigs is low, and the pig farm only deals with the reduction of cost and the improvement of production efficiency. The growth speed and the feed conversion rate of the pigs in the whole feeding period are directly influenced by the quality of the suckling piglet management, and the economic benefit of a pig farm is related. The piglets with heavier weight have low mortality rate in the nursing period during weaning, and the incidence rate of intestinal diseases is lower. The suckling piglets are provided with a milk supplementing system when in a delivery bed, the average weight of the weaned piglets of each sow per year can be increased by 1-2, the weaning is carried out for 28 days, and the average weight of each piglet is increased by 0.8 kg.
At present, no nursing management is carried out on suckling piglets in domestic pig farms, mature full-automatic piglet nursing and feeding system products are not available in domestic pigs, and only milk feeders operated by hands are available. Therefore, an automatically controlled feeding system for providing nutrition to piglets is a very important issue.
SUMMERY OF THE UTILITY MODEL
The utility model provides a piglet system of suckleing, this system is used in the piglet from birth to this transition period of normally eating the material, one can slow down the pressure of suckleing of sow, and the second can alleviate the stress response of piglet when normally eating the material to the process of throwing something and feeding can be controlled automatically, in order to solve above-mentioned technical problem.
The above technical purpose of the present invention can be achieved by the following technical solutions:
a piglet nursing system, comprising:
a feeding system for storing and supplying the powdered milk;
a water supply system for storing and supplying clean water;
the constant-temperature stirring system is connected with the feeding system and the water supply system, and is used for uniformly stirring and mixing the milk powder and the water, heating the milk powder to a set temperature and keeping the milk powder at a constant temperature;
the blanking system is connected with the constant-temperature stirring system and is used for conveying the liquid milk to a trough of a pigsty;
and the control system is connected with the feeding system, the water supply system, the constant-temperature stirring system and the discharging system to realize the control of the operation process.
Further, the constant-temperature stirring system comprises a stirring tank;
the stirring tank is connected with the feeding system and the water supply system.
Further, the feeding system comprises a storage hopper and a conveying device;
an outlet is arranged below the storage hopper and is connected with the conveying device;
the other end of the conveying device is connected with the stirring tank.
Further, the water supply system comprises a water storage tank and a water pump;
the water storage tank is connected with the stirring tank through a pipeline, and the water pump is arranged between the water storage tank and the stirring tank.
Further, the blanking system comprises a conveying pipeline and a blanking pump;
the blanking pump is connected with the conveying pipeline;
the conveying pipeline is connected with the stirring tank, and the outlet end of the conveying pipeline is connected to the trough.
Further, each outlet of the conveying pipeline is provided with a miniature electric valve.
Further, the conveying device is an auger mechanism.
Further, the storage hopper is made of stainless steel.
The utility model has the advantages that:
carry out automatic blending through storage hopper and water storage box in to the agitator tank, the agitator tank is liquid milk with milk powder and water stirring mixture to heat and keep invariable temperature through built-in structure of heating and carry to the silo of every pig house through pipeline, and can carry out timing ration through control system and carry.
Drawings

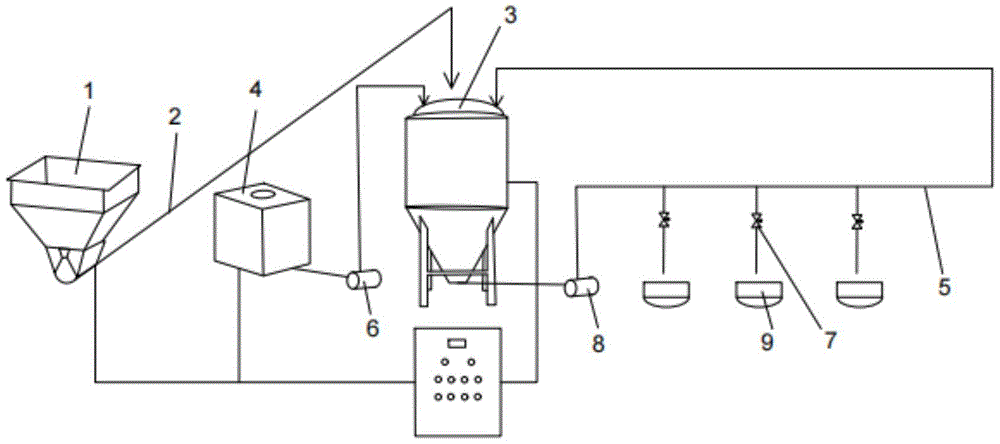

Fig. 1 is a schematic mechanism diagram of a piglet feeding system.
1. A storage hopper; 2. a conveying device; 3. a stirring tank; 4. a water storage tank; 5. a delivery line; 6. a water pump; 7. a micro electrically operated valve; 8. a discharge pump; 9. a trough.
Detailed Description
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected" and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood as a specific case by those skilled in the art.
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended for purposes of illustration only and is not intended to limit the scope of the present disclosure. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
As shown in fig. 1, a piglet feeding system comprises:
a feeding system for storing and supplying the powdered milk;
a water supply system for storing and supplying clean water;
the constant-temperature stirring system is connected with the feeding system and the water supply system, and is used for uniformly stirring and mixing the milk powder and the water, heating the milk powder to a set temperature and keeping the constant temperature;
the blanking system is connected with the constant-temperature stirring system and used for conveying the liquid milk to a trough 9 of the pigsty;
and the control system is connected with the feeding system, the water supply system, the constant-temperature stirring system and the discharging system to realize the control of the operation process.
Specifically, the control system can be used for adaptively controlling the feeding system, the water supply system, the constant-temperature stirring system and the discharging system, the amount of water and milk powder to be added is calculated and set, clear water is added into the constant-temperature stirring system through the water supply system until the set weight is reached, and milk powder is added into the constant-temperature stirring system through the feeding system until the specified weight is reached; set for the churning time through control system to stir water and milk powder through constant temperature mixing system and mix and form liquid milk, keep constant temperature again, be full of the conveying line with liquid milk, put in to silo 9 again, can carry out the input of timing ration to liquid milk through control system. The control system comprises a PLC, a touch screen and an electric element and is responsible for automatic operation control of the whole feeding process.
Optionally, the constant temperature stirring system comprises a stirring tank 3;
the stirring tank 3 is connected with a feeding system and a water supply system.
Technical scheme more than adopting, agitator tank 3 embeds electric heater unit, and feeding system, water supply system carry milk powder, water to agitator tank 3 respectively according to the setting value and stir the mixture, heat again and keep invariable temperature.
Optionally, the feeding system comprises a storage hopper 1 and a conveying device 2;
an outlet is arranged below the storage hopper 1 and is connected with the conveying device 2;
the other end of the conveying device 2 is connected with a stirring tank 3.
Technical scheme more than adopting, milk powder is deposited to storage hopper 1, carries to agitator tank 3 through conveyor 2. The amount of milk powder delivered can be controlled by a control system.
Optionally, the water supply system comprises a water storage tank 4 and a water pump 6;
the water storage tank 4 is connected with the stirring tank 3 through a pipeline, and a water pump 6 is arranged between the water storage tank and the stirring tank.
Technical scheme more than adopting, clear water is deposited to water storage box 4, in pumping water to agitator tank 3 through water pump 6, the volume of the water of pumping can be controlled through control system.
Optionally, the blanking system includes a conveying pipeline 5 and a blanking pump 8;
the blanking pump 8 is connected with the conveying pipeline 5;
conveying pipeline 5 is connected with agitator tank 3, and the exit end is connected to silo 9.
Technical scheme more than adopting, pump the liquid milk in agitator tank 3 to conveying line 5 through unloading pump 8 to put in silo 9, can put in liquid milk through control system regularly and quantitively.
Optionally, each outlet of the conveying pipeline 5 is provided with a micro electric valve 7.
By adopting the technical scheme, the miniature electric valve 7 can facilitate the opening and closing of the outlet and control the throwing process.
Optionally, the conveying device 2 is an auger mechanism.
Technical scheme more than adopting, auger mechanism can conveniently carry milk powder, and in some embodiments, the storage hopper 1 below is carried and needs from up carry milk powder to agitator tank 3 top down, and auger mechanism can conveniently carry.
Optionally, the storage hopper 1 is made of stainless steel.
The storage hopper 1 is made of stainless steel materials and can prevent the corrosion, so that the quality of the milk powder is ensured.
It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modifications, equivalents, improvements and the like which are made without departing from the spirit and scope of the present invention should be considered within the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.
Claims (8)
1. A piglet breastfeeding system, comprising:
a feeding system for storing and supplying the powdered milk;
a water supply system for storing and supplying clean water;
the constant-temperature stirring system is connected with the feeding system and the water supply system, and is used for uniformly stirring and mixing the milk powder and the water, heating the milk powder to a set temperature and keeping the milk powder at a constant temperature;
the blanking system is connected with the constant-temperature stirring system and is used for conveying the liquid milk to a trough (9) of the pigsty;
and the control system is connected with the feeding system, the water supply system, the constant-temperature stirring system and the discharging system to realize the control of the operation process.
2. The piglet feeding system of claim 1, wherein:
the constant-temperature stirring system comprises a stirring tank (3);
the stirring tank (3) is connected with the feeding system and the water supply system.
3. The piglet feeding system of claim 2, wherein:
the feeding system comprises a storage hopper (1) and a conveying device (2);
an outlet is arranged below the storage hopper (1) and is connected with the conveying device (2);
the other end of the conveying device (2) is connected with the stirring tank (3).
4. The piglet feeding system of claim 2, wherein:
the water supply system comprises a water storage tank (4) and a water pump (6);
the water storage tank (4) is connected with the stirring tank (3) through a pipeline, and the water pump (6) is arranged between the water storage tank and the stirring tank.
5. The piglet feeding system of claim 2, wherein:
the blanking system comprises a conveying pipeline (5) and a blanking pump (8);
the blanking pump (8) is connected with the conveying pipeline (5);
the conveying pipeline (5) is connected with the stirring tank (3), and the outlet end of the conveying pipeline is connected to the trough (9).
6. The piglet feeding system of claim 5, wherein:
each outlet of the conveying pipeline (5) is provided with a miniature electric valve (7).
7. The piglet feeding system of claim 3, wherein:
the conveying device (2) is an auger mechanism.
8. The piglet feeding system of claim 3, wherein:
the storage hopper (1) is made of stainless steel.
