A building outer wall heat preservation layer repairing platform aims at solving the problem that the repairing platform is unstable at an overhead position; the technical scheme for solving the technical problem is as follows: a building outer wall heat preservation layer repairing platform comprises a fixing plate, wherein a guardrail is arranged on the periphery of the fixing plate, a fixing rod moving back and forth is arranged at the bottom of the fixing plate, a plurality of traveling wheels are fixed on the fixing rod, the directions of the traveling wheels are consistent, springs are arranged between the traveling wheels and the fixing rod, the traveling wheels are enabled to be simultaneously contacted with the wall surface of an outer wall through the springs, a first hand wheel for controlling the fixing rod to move back and forth is arranged on the rear side of the fixing plate, and a second hand wheel for controlling the directions of the traveling wheels is arranged on the side of the fixing plate; the utility model discloses simple structure is ingenious, and a plurality of walking wheels are contacted the back with the wall, can make repair platform and outer wall relatively fixed, do not produce and rock, protect constructor's safety.
Description
Technical Field
The utility model relates to an outer wall is repaired technical field, especially relates to a building outer wall heat preservation repairs platform.
Background
The external thermal insulation system of the thin-plastered outer wall of the foam plastic thermal insulation board is a common thermal insulation layer design structure, and along with the gradual increase of service life, the thermal insulation outer wall is easy to crack, peel and crack in a decorative finish layer, so that great potential safety hazards exist, and the thermal insulation system needs to be repaired.
When the outer wall heat-insulating layer is repaired, if the outer wall heat-insulating layer is a low-rise building, a scaffold or a suggested support can be used for supporting, so that a repairing platform is built, workers can stand on the repairing platform to repair the outer wall heat-insulating layer, if the outer wall heat-insulating layer is a high-rise building, a hanging basket construction mode is generally adopted, the position of an existing hanging basket is not easy to fix and easy to shake when the hanging basket is used, and great potential safety hazards exist for constructors.
SUMMERY OF THE UTILITY MODEL
For overcoming prior art's defect, the utility model provides a building outer wall heat preservation repairs platform, its aim at solve the unstable problem of repair platform in high altitude position.
The technical scheme for solving the technical problem is as follows: the utility model provides a building outer wall heat preservation repairing platform, which comprises a fixing plate and i, the fixed plate periphery is equipped with the guardrail, the fixed plate bottom is equipped with the dead lever of back-and-forth movement, be fixed with a plurality of walking wheels on the dead lever, the direction of a plurality of walking wheels is unanimous, be equipped with the spring between walking wheel and the dead lever, the spring makes a plurality of walking wheels simultaneously and outer wall contact, the fixed plate rear side is equipped with the first hand wheel of control dead lever back-and-forth movement, fixed plate side is equipped with the second hand wheel of control walking wheel direction.
The utility model discloses simple structure is ingenious, and a plurality of walking wheels are contacted the back with the wall, can make repair platform and outer wall relatively fixed, do not produce and rock, protect constructor's safety.
Drawings

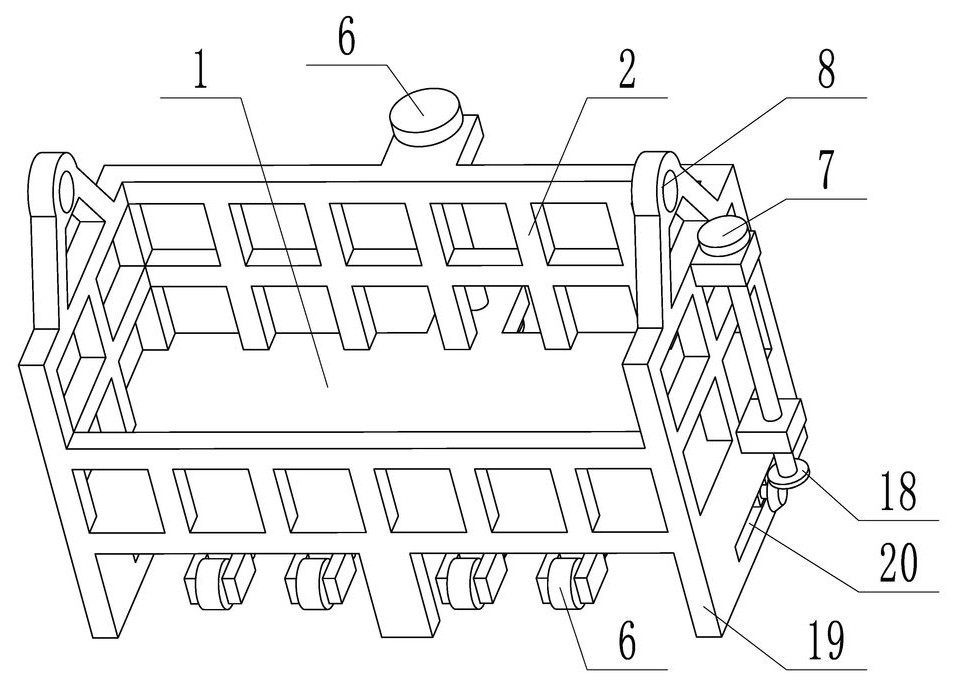

Fig. 1 is a schematic front view of the present invention.
Fig. 2 is a schematic view of the bottom structure of the present invention.
Fig. 3 is a schematic side view of the present invention.
Fig. 4 is an enlarged schematic view of a portion a in fig. 2 according to the present invention.
Fig. 5 is an enlarged schematic view of the structure of fig. 2B according to the present invention.
Detailed Description
The following describes the embodiments of the present invention in further detail with reference to the accompanying drawings.
As can be known from fig. 1 to 5, a building outer wall heat preservation renovation platform, including fixed plate 1, fixed plate 1 periphery is equipped with guardrail 2, be located and be equipped with rings 8 on the guardrail 2 of fixed plate 1 both sides, 2 front side guardrails highly are less than the guardrail 2 of other three directions, 1 bottom of fixed plate is equipped with the dead lever 3 of back-and-forth movement, be fixed with a plurality of walking wheels 4 on the dead lever 3, a plurality of walking wheels 4's orientation is unanimous, be equipped with spring 5 between walking wheel 4 and the dead lever 3, spring 5 makes a plurality of walking wheels 4 contact with the outer wall surface simultaneously, 1 rear side of fixed plate is equipped with the first hand wheel 6 of 3 back-and-forth movements of control dead lever, 1 side of fixed plate is equipped with the second hand wheel 7 of 4 orientations of control walking wheel.
When using, processing rings 8 are hung on building top pulley, the constructor stands on fixed plate 1, descend it to suitable height, before descending, constructor rotates second hand wheel 7, make the rotation direction of a plurality of walking wheels 4 be vertical direction, then rotate first hand wheel 6, make dead lever 3 remove to paste a plurality of walking wheels 4 on the outer wall, walking wheel 4 adopts rubber material, can not produce gliding phenomenon when in close contact with the outer wall, only can roll in vertical direction, thereby make repair platform can keep the position of same vertical direction on the outer wall, and repair platform can not rock after the rigidity, guarantee constructor's safety.
When the movable plate needs to move in the horizontal direction, the second wheels 7 are rotated, so that the plurality of travelling wheels 4 rotate in the direction of 90 degrees at the same time, the vertical rotation is converted into the horizontal rotation, and the fixed plate 1 can move in the horizontal direction at the moment.
For realizing the horizontal migration of walking wheel 4 in 1 bottom of fixed plate, 1 bottom of fixed plate is equipped with slide rail 9, dead lever 3 slides on slide rail 9, be equipped with the accessory plate 10 parallel with dead lever 3 on the slide rail 9, walking wheel 4 wears to establish in dead lever 3 and the restriction of connecting rod 11 tip is in the accessory plate 10 outside through connecting rod 11, dead lever 3 drives accessory plate 10 and removes simultaneously when removing, walking wheel 4 wears to establish between dead lever 3 and accessory plate 10, realize the parallel translation with fixed plate 1, spring 5 promotes walking wheel 4 and makes it be close to the outer wall, even there is the place of unevenness on the outer wall, a plurality of walking wheels 4 also can contact with the outer wall simultaneously.
In order to realize the operation of the fixed rod 3, a first lead screw 12 is rotatably arranged at the bottom of the fixed plate 1 in the front-back direction, the first lead screw 12 is in threaded connection with the fixed rod 3, a first bevel gear 13 is fixed at the end part of the first lead screw 12, a second bevel gear 14 meshed with the first bevel gear 13 is arranged at the lower end of the first hand wheel 6, and the fixed rod 3 is controlled to move back and forth at the bottom of the fixed plate 1 by rotating the first hand wheel 6.
In order to realize the adjustment of the angles of the travelling wheels 4, a second lead screw 15 perpendicular to the first lead screw 12 is rotatably arranged below the fixing plate 1 and the auxiliary plate 10, a gear is arranged on the part, located between the fixing plate 1 and the auxiliary plate 10, of the connecting rod 11 and meshed with the same toothed plate 16, the back of the toothed plate 16 is in threaded connection with the second lead screw 15, a third bevel gear 17 is arranged at the end of the second lead screw 15, a fourth bevel gear 18 meshed with the third bevel gear 17 is arranged at the lower end of the second hand wheel 7, the second lead screw 15 is rotated by rotating the second hand wheel 7, the toothed plate 16 generates transverse displacement by rotating the second lead screw 15, the connecting rod 11 meshed with the toothed plate 16 synchronously rotates, and therefore the travelling wheels 4 are controlled to rotate simultaneously.
Because the fixed rod 3 moves back and forth below the fixed plate 1, the second lead screw 15 is fixed on the fixed rod 3, the second lead screw 15 moves back and forth below the fixed plate 1, the supporting plates 19 are arranged on two sides of the bottom of the fixed plate 1, the sliding groove 20 is formed in the supporting plate 19, the sliding block 21 sliding in the sliding groove 20 is arranged outside the second lead screw 15, the second lead screw 15 is rotatably connected with the sliding block 21, the second lead screw 15 is driven to move when the fixed rod 3 moves back and forth, the second lead screw 15 drives the sliding block 21 to move in the sliding groove 20, the second hand wheel 7 is always connected with the second lead screw 15 on the side of the fixed plate 1, and the second hand wheel 7 is also in a sliding state on the side of the fixed plate 1.
Compared with the prior art, the utility model, following beneficial effect has: the plurality of walking wheels are in contact with the wall surface of the outer wall, so that the stability of the repairing platform in the horizontal direction is kept, the influence of the shaking of the platform on constructors is avoided, and the safety of the constructors is protected.
Claims (6)
1. The utility model provides a building outer wall heat preservation repairs platform, a serial communication port, including fixed plate (1), fixed plate (1) periphery is equipped with guardrail (2), fixed plate (1) bottom is equipped with dead lever (3) of back-and-forth movement, be fixed with a plurality of walking wheels (4) on dead lever (3), the direction of a plurality of walking wheels (4) is unanimous, be equipped with spring (5) between walking wheel (4) and dead lever (3), spring (5) make a plurality of walking wheels (4) contact with the outer wall surface simultaneously, fixed plate (1) rear side is equipped with first hand wheel (6) of control dead lever (3) back-and-forth movement, fixed plate (1) side is equipped with second hand wheel (7) of control walking wheel (4) direction.
2. The platform for repairing the thermal insulation layer of the exterior wall of a building as claimed in claim 1, wherein the guardrail (2) positioned at both sides of the fixing plate (1) is provided with a hanging ring (8).
3. The repairing platform for the thermal insulation layer of the outer wall of the building as claimed in claim 1, wherein the bottom of the fixing plate (1) is provided with a sliding rail (9), the fixing rod (3) slides on the sliding rail (9), the sliding rail (9) is provided with an auxiliary plate (10) parallel to the fixing rod (3), the traveling wheel (4) is arranged in the fixing rod (3) through a connecting rod (11) in a penetrating manner, and the end of the connecting rod (11) is limited outside the auxiliary plate (10).
4. The building exterior wall thermal insulation layer repairing platform according to claim 3, wherein a first screw (12) is rotatably arranged at the bottom of the fixing plate (1) in the front-back direction, the first screw (12) is in threaded connection with the fixing rod (3), a first bevel gear (13) is fixed at the end of the first screw (12), a second bevel gear (14) meshed with the first bevel gear (13) is arranged at the lower end of the first hand wheel (6), and the fixing rod (3) is controlled to move back and forth at the bottom of the fixing plate (1) by rotating the first hand wheel (6).
5. The building exterior wall thermal insulation layer repairing platform according to claim 4, wherein a second lead screw (15) perpendicular to the first lead screw (12) is rotatably arranged below the fixing plate (1) and the auxiliary plate (10), a gear is arranged on a portion, located between the fixing plate (1) and the auxiliary plate (10), of the connecting rod (11) and meshed with a toothed plate (16), the back of the toothed plate (16) is in threaded connection with the second lead screw (15), a third bevel gear (17) is arranged at the end of the second lead screw (15), a fourth bevel gear (18) meshed with the third bevel gear (17) is arranged at the lower end of the second hand wheel (7), and the second hand wheel (7) is rotated to control the plurality of traveling wheels (4) to rotate simultaneously.
6. The building exterior wall thermal insulation layer repairing platform according to claim 5, wherein supporting plates (19) are arranged on two sides of the bottom of the fixing plate (1), sliding grooves (20) are formed in the supporting plates (19), sliding blocks (21) sliding in the sliding grooves (20) are arranged outside the second screw rods (15), and the second screw rods (15) are rotatably connected with the sliding blocks (21).
