CN212762370U

CN212762370U - Pushing device for aluminum profile machining

Info

Publication number: CN212762370U
Application number: CN202021486028.8U
Authority: CN
Inventors: 汪建欣; 汪柯
Original assignee: Henan Xinke Yizhou Heavy Industry Technology Co ltd
Current assignee: Henan Xinke Yizhou Heavy Industry Technology Co ltd
Priority date: 2020-07-24
Filing date: 2020-07-24
Publication date: 2021-03-23
Anticipated expiration: 2030-07-24

Abstract

The utility model relates to an aluminium alloy automatic production processing equipment technical field, concretely relates to blevile of push is used in aluminium alloy processing, including the carriage, push away skip and end baffle, the push away skip is installed on the carriage and can be removed along loose direction by pushing away material motor drive, install a plurality of fixture that are used for the centre gripping aluminium alloy on the push away skip, fixture includes adjusting motor and holder, adjusting motor can drive the holder and adjust along the direction of delivery displacement, install the end baffle that can accomodate on the carriage, end baffle and a plurality of adjusting motor cooperation can make a plurality of aluminium alloy tip by the centre gripping align, thereby effectively reduced the excision volume of aluminium alloy, the production and processing and the equipment integration of aluminium alloy have still made things convenient for greatly simultaneously.

Description

Pushing device for aluminum profile machining

Technical Field

The utility model relates to an aluminium alloy automatic production processing equipment technical field, concretely relates to blevile of push is used in aluminium alloy processing.

Background

The aluminium alloy wide application is in each field, in aluminium alloy production, needs continuous to carry other production lines to the continuous transfer of aluminium alloy, because the aluminium alloy is mostly square form or cylindric and length great, consequently carries the inevitable process that becomes in the aluminium alloy production to the centre gripping of aluminium alloy. Among the existing aluminium alloy automatic processing equipment, generally be with a plurality of aluminium alloy one ends centre gripping, cut the parallel and level in order to realize the aluminium alloy both ends to a plurality of aluminium alloy other ends same position through cutting device, when the difference in length is great between many aluminium alloys in same processing batch, the excision volume of long aluminium alloy is too big, causes very big loss, and longer excision volume also can lead to the waste recovery inconvenient moreover.

SUMMERY OF THE UTILITY MODEL

For solving the problem, the utility model provides a blevile of push is used in aluminium alloy processing, which comprises a carriage, pusher and end baffle, the pusher is installed on the carriage and can be removed along loose direction by pushing away material motor drive, install a plurality of fixture that are used for the centre gripping aluminium alloy on the pusher, fixture includes adjusting motor and holder, adjusting motor can drive the holder and adjust along the direction of delivery displacement, install the end baffle that can accomodate on the carriage, the end baffle can make by a plurality of aluminium alloy tip alignments of centre gripping with a plurality of adjusting motor cooperations, thereby effectively reduced the excision volume of aluminium alloy, the production and processing and the equipment integration of aluminium alloy have still made things convenient for greatly simultaneously.

The utility model provides a what solve above-mentioned problem provides is a blevile of push for aluminium alloy processing, including carriage, pusher and end baffle, the pusher is movable mounting on the carriage and is moved along the direction of delivery by pushing away the material motor drive, and movable mounting has a plurality of fixture that are used for centre gripping aluminium alloy on the pusher, fixture includes adjusting motor and holder, and the holder is movable mounting on the pusher in order to centre gripping aluminium alloy, and adjusting motor fixed mounting is on the pusher, and adjusting motor and holder swing joint are in order to drive the holder to move the regulation along the direction of delivery; the conveying frame is longitudinally provided with a movable cylinder, the end baffle is movably arranged on the conveying frame and is driven by the movable cylinder to lift and adjust, and the end baffle is matched with a plurality of adjusting motors so that the end parts of a plurality of clamped aluminum profiles are aligned.

As the utility model relates to a blevile of push for aluminum profile machining's further scheme, evenly be provided with a plurality of supporting mechanism that are used for supporting the aluminium alloy on the carriage, supporting mechanism includes bottom plate, backing roll and clamping piece, bottom plate fixed mounting is on the carriage, and the backing roll is installed at the last face of bottom plate and perpendicular with the direction of delivery of carriage, evenly installs a plurality of clamping pieces along the length direction of backing roll on the bottom plate, and clamping piece includes clamping cylinder, tight pulley and loose pulley, the tight pulley is a plurality of and sets up along direction of delivery, and the loose pulley is located one side of tight pulley and is connected with the piston rod of clamping cylinder, and the clamping cylinder cooperates the aluminium alloy clamping with the tight pulley with drive loose pulley with tight pulley with backing roll parallel arrangement.

As the utility model relates to a blevile of push is used in aluminium alloy processing's further scheme, the end baffle is a plurality of and corresponds respectively with a plurality of holders, and a plurality of end baffles are all installed on the lifter plate, the activity cylinder vertically installs on the carriage, and the top of activity cylinder is connected with the lifter plate and is less than the transport face of carriage along going up of baffle when making the activity cylinder shrink.

As the utility model relates to a blevile of push for aluminum profile machining's further scheme, there is the transport slide rail along direction of delivery fixed mounting on the carriage, and pushing away skip movable mounting is on the transport slide rail, and the pushing away skip is including removing frame and alignment jig, removes the installation slider that sets firmly through its bottom and transport slide rail sliding connection, removes to be provided with horizontal slide rail, mounting panel and horizontal counterpoint motor on the frame, horizontal slide rail is perpendicular with direction of delivery, and mounting panel movable mounting is on horizontal slide rail and adjusted along horizontal slide rail removal by horizontal counterpoint motor drive, the mounting panel is the L shaped plate, and alignment jig movable mounting is on the mounting panel and by the vertical motor drive vertical regulation of counterpointing that sets up on the mounting panel, fixture installs on the alignment jig.

As the utility model relates to a blevile of push for aluminum profile machining's further scheme, the both sides of carriage have set firmly the drive rack, and the drive rack is the rectangular shape board parallel with direction of delivery, has evenly seted up a plurality of cusp grooves along its length direction on the drive rack, the removal frame is the gantry frame body, pushes away the material motor and is two and install respectively in the both sides of removing the frame, pushes away the epaxial drive gear who installs and drive rack toothing of power of material motor.

As a further scheme of the pushing device for aluminum profile processing of the present invention, the clamping member includes an installation rod, a push rod and a clamping head, the installation rod is movably installed on the adjusting bracket through a connecting bracket, the connecting bracket is connected with the adjusting motor and the bracket body is provided with a clamping cylinder, the end surface of the installation rod away from the adjusting motor is provided with a clamping groove, the bottom of the clamping groove is provided with an adjusting groove along the length direction of the installation rod, the push rod is movably arranged in the adjusting groove and one end of the push rod is arranged in the clamping groove, the rod body of the installation rod is provided with a strip-shaped groove and a connecting rod is arranged in the strip-shaped groove, and the two ends of the connecting rod are respectively connected; the clamping head comprises clamping blocks, clamping jaws and a rotating shaft, the rotating shaft is fixedly arranged in the clamping groove in a penetrating mode and perpendicular to the installation rod, the two clamping blocks are located on two sides of the rotating shaft respectively and hinged to the rotating shaft, the clamping jaws are fixedly arranged at one ends, located on the outer portions of the clamping grooves, of the clamping blocks, and the distance between the two clamping jaws, located in the clamping groove, of the push rod, between the two clamping blocks, and the distance between the two clamping jaws, located on the tail ends of the two clamping jaws.

As a further proposal of the pushing device for aluminum profile processing, the one end of the clamping block at the bottom of the clamping groove is connected with the groove wall of the clamping groove through the elastic sheet, and the elastic sheet is a U-shaped sheet and the two ends of the U-shaped sheet respectively support the groove wall of the clamping groove and the side wall of the clamping block.

Advantageous effects

The adjusting frame is provided with a plurality of clamping mechanisms, clamping heads of the clamping mechanisms can be driven by the adjusting motors to move, the adjusting motors are independent of one another, the adjusting motors are matched with the end baffle plates, so that the end parts of a plurality of aluminum profiles processed in the same batch can be aligned, a small amount of end waste materials can be cut during cutting, and subsequent processing can be carried out, so that material loss is greatly reduced; the holder is including installation pole, push rod and holding head, and the push rod is worn to establish and is connected at installation pole inside and with the outside centre gripping cylinder of installation pole, and the push rod can drive the holding head action along its length direction displacement to realize the holder to the operation of snatching or releasing of aluminium alloy, be convenient for install and use.

Drawings

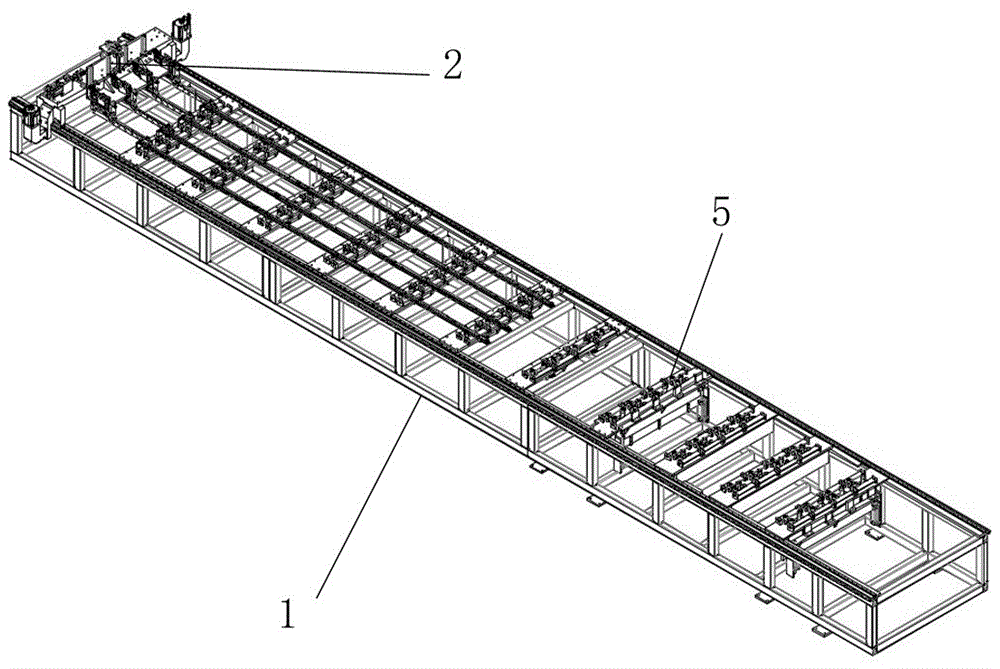

FIG. 1 is a schematic view of the structure distribution of the pushing device of the present invention;

fig. 2 is a schematic perspective view of a material pushing cart of the material pushing device of the present invention;

FIG. 3 is a schematic structural view of a clamping member of the pushing device of the present invention;

FIG. 4 is a schematic view of the internal structure of the holding member of the pushing device of the present invention;

FIG. 5 is a schematic view of the installation of the clamping head of the pushing device of the present invention;

fig. 6 is a schematic structural view of the supporting mechanism of the pushing device of the present invention;

FIG. 7 is a schematic view of the installation of the end baffle of the pushing device of the present invention;

the labels in the figure are: 1. the device comprises a conveying frame, 2, a pushing trolley, 3, an end baffle, 4, a movable air cylinder, 5, a supporting mechanism, 201, an adjusting motor, 202, a pushing motor, 203, a moving frame, 204, an adjusting frame, 205, a mounting plate, 206, a transverse alignment motor, 207, a longitudinal alignment motor, 208, a mounting rod, 209, a push rod, 210, a clamping air cylinder, 211, a clamping block, 212, a clamping jaw, 213, an elastic sheet, 301, a lifting plate, 501, a bottom plate, 502, a supporting roller, 503, a fixed wheel, 504 and a movable wheel.

Detailed Description

As shown in the figure: a pushing device for processing aluminum profiles comprises a conveying frame 1, a pushing trolley 2 and an end baffle 3, wherein the conveying frame 1 is of a cubic frame structure, and the pushing trolley 2 is arranged on the conveying frame 1 and moves along the conveying direction so as to drive a plurality of aluminum profiles clamped by the pushing trolley to be automatically processed at a plurality of processing devices respectively; the conveying slide rail is installed on the conveying frame 1 along the conveying direction, the top ends of two side surfaces of the conveying frame 1 are fixedly provided with driving racks, each driving rack is a long strip-shaped plate, a plurality of toothed grooves are formed in the surface of each driving rack along the length direction, a plurality of supporting mechanisms 5 for supporting aluminum profiles are distributed and installed on the conveying frame 1 along the conveying direction, each supporting mechanism 5 comprises a bottom plate 501, supporting rollers 502 and clamping pieces, each bottom plate 501 is a rectangular plate and is horizontally and fixedly installed on the conveying frame 1, the supporting rollers 502 are installed on the upper surface of each bottom plate 501, the supporting rollers 502 are one or more and are vertical to the conveying direction of the conveying frame 1, the supporting rollers 502 of the supporting mechanisms 5 are arranged at equal height, the plurality of clamping pieces are evenly installed on the bottom plate 501 along the conveying direction of the supporting

rollers

502, 4 clamping pieces are taken as an example in the embodiment, namely, the clamping piece comprises a clamping cylinder, a fixed wheel 503 and a movable wheel 504, the fixed wheel 503 is multiple and is arranged along the conveying direction, the wheel shaft of the fixed wheel 503 is perpendicular to the bottom plate 501, the movable wheel 504 is located on one side of the fixed wheel 503, the wheel shaft of the movable wheel 504 is vertically arranged and is connected with the piston rod of the clamping cylinder, the movable wheel 504 and the fixed wheel 503 are arranged at the same height, the clamping cylinder is installed on the bottom plate 501 and is arranged in parallel with the supporting roller 502, the clamping cylinder stretches out and draws back to drive the movable wheel 504 to move, when the movable wheel 504 moves towards the side where the fixed wheel 503 is located, the movable wheel 504 and the fixed wheel 503 are respectively abutted to the side of the aluminum profile, so that the aluminum.

The material pushing trolley 2 comprises a moving frame 203 and an adjusting frame 204, the moving frame 203 is a gantry frame, the bottom end of the moving frame 203 is fixedly provided with an installation sliding block, the moving frame 203 is connected with a conveying sliding rail in a sliding mode through the installation sliding block, two material pushing motors 202 are arranged on two sides of the moving frame 203 respectively, a power shaft of each material pushing motor 202 is provided with a driving gear, the driving gear is meshed with a tooth-shaped groove in a driving rack, and the two material pushing motors 202 run synchronously to drive the material pushing trolley 2 to move forwards or backwards along the conveying direction; the upper surface of the moving frame 203 is provided with a transverse sliding rail, a mounting plate 205 and a transverse alignment motor 206, the transverse sliding rail is perpendicular to the conveying direction, the transverse alignment motor 206 is mounted at one end of the transverse sliding rail, the mounting plate 205 is movably mounted on the transverse sliding rail and is driven by the transverse alignment motor 206 to move and adjust along the transverse sliding rail, specifically, a transverse screw rod is connected to a power shaft of the transverse alignment motor 206 and is in threaded connection with a mounting block, and the transverse screw rod is driven by the transverse alignment motor 206 to rotate so as to drive the mounting plate 205 to move and adjust along the transverse sliding rail because the mounting plate 205 cannot rotate; the mounting panel 205 is the L shaped plate, is provided with vertical slide rail on the vertical board of mounting panel 205, and alignment jig 204 movable mounting is on the vertical board of mounting panel 205, be provided with vertical counterpoint motor 207 on the mounting panel 205, vertical counterpoint motor 207's power shaft transmission is connected with vertical screw rod, vertical screw rod and alignment jig 204 threaded connection, and vertical counterpoint motor 207 can drive alignment jig 204 through vertical screw rod and move along vertical slide rail and carry out lift adjustment.

The number of the clamping mechanisms is multiple and the clamping mechanisms are arranged on the adjusting frame 204, the number of the clamping mechanisms is 4 in the embodiment, each clamping mechanism comprises an adjusting motor 201 and a clamping piece, the adjusting motors 201 are fixedly arranged on the adjusting frames 204 of the material pushing cars 2, power shafts of the adjusting motors 201 are parallel to the conveying direction, and the power shafts of the adjusting motors 201 are movably connected with the clamping pieces through adjusting screws so as to drive the clamping pieces to move and adjust along the conveying direction; vertically install movable cylinder 4 on carriage 1 and movable cylinder 4's top is connected with lifter plate 301, lifter plate 301's face level, 4 end baffle 3 are installed perpendicularly on lifter plate 301 and are corresponded respectively with four fixture, the last face that is less than carriage 1 of going up of baffle when movable cylinder 4 contracts is in order to avoid influencing the removal of pusher 2, the face of baffle corresponds with 4 fixture when movable cylinder 4 extends, end baffle 3 and a plurality of accommodate motor 201 cooperation are so that to be aligned by a plurality of aluminium alloy tip of centre gripping.

The clamping piece comprises a mounting rod 208, a push rod 209 and a clamping head, the mounting rod 208 is a rectangular long rod, the mounting rod 208 is movably mounted on the adjusting frame 204 through a connecting frame, the bottom surface of the adjusting frame 204 is provided with a plurality of adjusting slide rails parallel to the conveying direction, the connecting frame is movably mounted on the adjusting slide rails through slide blocks at the top of the connecting frame, the top of the connecting frame is provided with a connecting block, a threaded hole is formed in the connecting block, and the adjusting motor 201 is connected with the connecting block through an adjusting screw rod to drive the clamping head to move; a clamping cylinder 210 is arranged on the connecting frame, a clamping groove is formed in the end face, away from the adjusting motor 201, of the mounting rod 208, an adjusting groove is formed in the bottom of the clamping groove along the length direction of the mounting rod 208, the push rod 209 is movably arranged in the adjusting groove in a penetrating manner, one end of the push rod 209 is located in the clamping groove, a bar-shaped groove communicated with the adjusting groove is formed in the rod body of the mounting rod 208, a connecting rod is arranged in the bar-shaped groove in a penetrating manner, one end, located in the adjusting groove, of the connecting rod is fixedly connected with the push rod 209, one end, located outside the mounting rod 208, of the connecting rod is connected with a piston rod of the clamping cylinder 210, and the clamping cylinder 210 can drive the; the clamping head comprises clamping blocks 211, clamping jaws 212 and a rotating shaft, the rotating shaft is fixedly arranged in the clamping grooves in a penetrating mode and is perpendicular to the mounting rod 208, the two clamping blocks 211 are respectively positioned on two sides of the rotating shaft and hinged with the rotating shaft, the clamping jaws 212 are fixedly arranged at one ends, positioned outside the clamping grooves, of the clamping blocks 211, one end, positioned in the clamping grooves, of the push rod 209 is positioned between the two clamping blocks 211, so that the distance between the tail ends of the two clamping jaws 212 can be adjusted by driving the two clamping blocks 211 to rotate around the rotating shaft when the push rod 209 moves towards the clamping grooves, preferably, one end, positioned at the bottoms of the clamping grooves, of the clamping blocks 211 is connected with the groove walls of the clamping grooves through elastic pieces 213, the elastic pieces 213 are U-shaped pieces, two ends of the elastic pieces are respectively abutted against the groove walls of the clamping grooves and the side walls of the clamping blocks 211, when the push rod 209 moves towards the clamping grooves, the tail ends of the two clamping jaws, the distance between the ends of the two jaws 212 is increased to release the aluminium profile.

When in use, 4 aluminum profiles to be processed are placed on the conveying

frame

1, 4 aluminum profiles are clamped in place by the action of 4 clamping cylinders, the movable cylinder 4 extends to drive the end baffle 3 to be in place, the positions of 4 clamping mechanisms are adjusted by matching the transverse alignment motor 206 and the longitudinal alignment motor 207, the end parts of 4 aluminum profiles are clamped by 4 clamping pieces, 4 adjusting motors 201 work to respectively drive 4 clamping pieces to adjust the matching end baffles 3 along the conveying direction to enable the tail ends of the 4 aluminum profiles to be flush, then the movable cylinder 4 contracts to take back the end baffle 3, the pushing motor 202 works to drive the pushing trolley 2 and the clamped aluminum profile to be conveyed along the conveying direction, and multiple working procedures of the rear section are realized.

The above description is only a preferred embodiment of the present invention, and the present invention is not limited to the above embodiments, and although the present invention has been disclosed with the preferred embodiments, it is not limited to the present invention, and any skilled person in the art can make some modifications or equivalent changes without departing from the technical scope of the present invention.

Claims

1. The utility model provides a blevile of push is used in aluminium alloy processing which characterized in that: the aluminum profile pushing device comprises a conveying frame (1), a pushing trolley (2) and an end baffle (3), wherein the pushing trolley (2) is movably mounted on the conveying frame (1) and driven by a pushing motor (202) to move along the conveying direction, a plurality of clamping mechanisms used for clamping aluminum profiles are movably mounted on the pushing trolley (2), each clamping mechanism comprises an adjusting motor (201) and a clamping piece, the clamping pieces are movably mounted on the pushing trolley (2) to clamp the aluminum profiles, the adjusting motors (201) are fixedly mounted on the pushing trolley (2), and the adjusting motors (201) are movably connected with the clamping pieces to drive the clamping pieces to move and adjust along the conveying direction; vertically install activity cylinder (4) on carriage (1), end baffle (3) activity sets up on carriage (1) and drives lift adjustment by activity cylinder (4), and end baffle (3) and a plurality of accommodate motor (201) cooperation are so that a plurality of aluminium alloy tip by the centre gripping align.

2. The pushing device for processing the aluminum profile as claimed in claim 1, wherein: evenly be provided with a plurality of supporting mechanism (5) that are used for supporting the aluminium alloy on carriage (1), supporting mechanism (5) include bottom plate (501), backing roll (502) and clamping piece, bottom plate (501) fixed mounting is on carriage (1), and backing roll (502) are installed at the last face of bottom plate (501) and perpendicular with the direction of delivery of carriage (1), and a plurality of clamping pieces are evenly installed along the length direction of backing roll (502) on bottom plate (501), and clamping piece includes clamping cylinder, tight pulley (503) and loose pulley (504), tight pulley (503) are a plurality of and set up along direction of delivery, and loose pulley (504) are located one side of tight pulley (503) and are connected with the piston rod of clamping cylinder, and the clamping cylinder is with backing roll (502) parallel arrangement in order to drive loose pulley (504) and tight pulley (503) cooperation with the aluminium alloy clamping.

3. The pushing device for processing the aluminum profile as claimed in claim 1, wherein: the end baffle (3) are a plurality of and correspond respectively with a plurality of holders, and a plurality of end baffles (3) are all installed on lifter plate (301), activity cylinder (4) vertically install on carriage (1), and the top of activity cylinder (4) is connected with lifter plate (301) and the last edge of baffle is less than the plane of delivery of carriage (1) when making activity cylinder (4) shrink.

4. The pushing device for processing the aluminum profile as claimed in claim 1, wherein: conveying slide rail is installed along direction of delivery fixed mounting on carriage (1), and pushing away skip (2) movable mounting is on conveying slide rail, and pushing away skip (2) are including removing frame (203) and alignment jig (204), removes the installation slider and the conveying slide rail sliding connection that frame (203) set firmly through its bottom, removes to be provided with transverse slide rail, mounting panel (205) and horizontal counterpoint motor (206) on frame (203), transverse slide rail is perpendicular with direction of delivery, and mounting panel (205) movable mounting is on transverse slide rail and adjusted along transverse slide rail removal by horizontal counterpoint motor (206) drive, mounting panel (205) are the L shaped plate, and alignment jig (204) movable mounting is on mounting panel (205) and by vertical counterpoint motor (207) drive vertical regulation that sets up on mounting panel (205), fixture installs on alignment jig (204).

5. The pushing device for processing the aluminum profile as claimed in claim 4, wherein: the conveying device is characterized in that driving racks are fixedly arranged on two sides of the conveying frame (1), the driving racks are long-strip-shaped plates parallel to the conveying direction, a plurality of tooth-shaped grooves are uniformly formed in the driving racks along the length direction of the driving racks, the moving frame (203) is a gantry-shaped frame body, two pushing motors (202) are arranged on two sides of the moving frame (203) respectively, and driving gears meshed with the driving racks are arranged on power shafts of the pushing motors (202).

6. The pushing device for processing the aluminum profile as claimed in claim 4, wherein: the clamping piece comprises a mounting rod (208), a push rod (209) and a clamping head, the mounting rod (208) is movably mounted on the adjusting frame (204) through a connecting frame, the connecting frame is connected with the adjusting motor (201), a clamping cylinder (210) is mounted on a frame body, a clamping groove is formed in the end face, away from the adjusting motor (201), of the mounting rod (208), an adjusting groove is formed in the bottom of the clamping groove along the length direction of the mounting rod (208), the push rod (209) is movably arranged in the adjusting groove in a penetrating mode, one end of the push rod (209) is located in the clamping groove, a strip-shaped groove is formed in the rod body of the mounting rod (208), a connecting rod is arranged in the strip-shaped groove in a penetrating mode, and two ends of the connecting rod are respectively connected with; the clamping head comprises clamping blocks (211), clamping jaws (212) and a rotating shaft, the rotating shaft is fixedly arranged in a clamping groove in a penetrating mode and perpendicular to an installation rod (208), the two clamping blocks (211) are respectively located on two sides of the rotating shaft and hinged to the rotating shaft, the clamping jaws (212) are fixedly arranged at one ends, located outside the clamping groove, of the clamping blocks (211), and one end, located in the clamping groove, of a push rod (209) is located between the two clamping blocks (211) and can rotate around the rotating shaft to adjust the distance between the two clamping jaws (212) through driving the two clamping blocks (211) when the push rod (209) moves along the axial direction.

7. The pushing device for processing the aluminum profile as claimed in claim 6, wherein: one end of the clamping block (211) at the bottom of the clamping groove is connected with the groove wall of the clamping groove through an elastic sheet (213), the elastic sheet (213) is a U-shaped sheet, and two ends of the U-shaped sheet respectively abut against the groove wall of the clamping groove and the side wall of the clamping block (211).
