Abstract
The utility model relates to an aluminium alloy automatic processing equipment technical field, concretely relates to location pusher carriage for aluminium alloy processing equipment, including removing the frame, alignment jig and holder, remove frame movable mounting and can be driven by driving motor on the carriage of aluminium alloy automatic processing equipment, the holder passes through the alignment jig and installs on removing the frame, still can carry out vertical and horizontal comprehensive regulation under the effect of alignment jig when carrying along with removing the frame synchronous, the holder is including the installation pole, push rod and centre gripping head, the push rod drives the displacement by the cylinder parallel with it, thereby it carries out grabbing of aluminium alloy to drive the centre gripping head action and puts the operation.
Description
Technical Field
The utility model relates to an aluminium alloy automatic processing equipment technical field, concretely relates to location pushing cart for aluminium alloy processing equipment.
Background
The aluminium alloy wide application is in each field, in aluminium alloy production, needs continuous to carry other production lines to the continuous transfer of aluminium alloy, because the aluminium alloy is mostly square form or cylindric, and length is long moreover, consequently, becomes the indispensable process in the aluminium alloy production to the centre gripping of aluminium alloy and carry. The operation is carried in aluminium alloy centre gripping generally is through equipment with its one end centre gripping, and the clamping is carried out through the cylinder cooperation mostly to current clamping part, drives two clamping jaw actions through the cylinder of slope, because aluminium alloy raw materials is longer and different in size, and a plurality of aluminium alloy simultaneous processing need be amputated the tip, and the excision volume need be confirmed according to the shortest in a plurality of aluminium alloy of simultaneous processing or many, causes the waste of raw materials very easily.
SUMMERY OF THE UTILITY MODEL
In order to solve the problem, the utility model provides a location pusher carriage for aluminium alloy processing equipment, including removing the frame, alignment jig and holder, remove frame movable mounting on the carriage of aluminium alloy automatic processing equipment and can be driven by driving motor, the holder passes through the alignment jig and installs on removing the frame, still can carry out vertical and horizontal comprehensive regulation under the effect of alignment jig when carrying along with removing the frame synchronous stay, the holder is including the installation pole, push rod and holding head, the push rod drives the displacement by the cylinder parallel with it, thereby it carries out grabbing of aluminium alloy to drive the holding head action and puts the operation.
The utility model provides a positioning material pushing vehicle for aluminum profile processing equipment, which comprises a movable frame, an adjusting frame and a clamping piece, wherein the movable frame is movably arranged on a conveying frame of the aluminum profile processing equipment and is driven by a driving motor to move and adjust along the length direction of the conveying frame, a mounting plate is longitudinally arranged on the movable frame, a lifting slide rail is longitudinally and fixedly arranged on the mounting plate, the adjusting frame is movably arranged on the mounting plate and can be longitudinally adjusted along the lifting slide rail, a plurality of end adjusting motors are fixedly arranged above the adjusting frame, a power shaft of the end adjusting motor is parallel to the moving direction of the movable frame, the tail end of the end adjusting motor is movably connected with the clamping piece, the clamping piece comprises a mounting rod, a push rod and a clamping head, the mounting rod is movably arranged on the bottom surface of the adjusting frame through a connecting frame and is parallel to the power shaft of the end adjusting motor, a through groove is arranged in the mounting rod along the length direction of the mounting, the connecting frame is provided with an air cylinder used for driving the push rod to move axially, and the clamping head is movably arranged at the end part of the mounting rod so as to drive the push rod to clamp the aluminum profile.
As a further scheme of a location pusher for aluminium alloy processing equipment, the one end that the removal frame was kept away from to the installation pole has been seted up the centre gripping groove and the pivot is worn to be equipped with to the centre gripping inslot is fixed, and the supporting head includes grip block and gripper jaw, and two grip blocks are located the both sides of pivot respectively and articulated with the pivot, and the one end rigid coupling that the grip block is located the grip block outside of groove has the gripper jaw, the one end that the push rod is located the centre gripping inslot is located between two grip blocks, thereby the accessible drives two grip blocks when the push rod moves along its length direction revolutes the rotation of axes and adjusts the terminal interval of two clamping jaws.
As a further scheme of a location pusher for aluminium alloy processing equipment, the one end that the grip block is located the centre gripping groove tank bottom passes through the flexure strip with the cell wall in centre gripping groove to be connected, the flexure strip for U-shaped piece and its both ends support respectively with the cell wall in centre gripping groove and the lateral wall of grip block.
As a further scheme of a location pusher for aluminium alloy processing equipment, the bar groove has been seted up to the side of installation pole and the connecting rod is worn to be equipped with by the activity of bar inslot, and the both ends of connecting rod are connected with the piston rod of push rod and cylinder respectively.
As a further scheme of a location pusher for aluminium alloy processing equipment, the alignment jig bottom surface sets firmly a plurality of and the parallel regulation slide rail of removal frame activity direction, and link movable mounting is in the bottom of alignment jig and is adjusted the motor drive by the end and remove along adjusting the slide rail.
As the utility model relates to a further scheme of location pusher for aluminium alloy processing equipment, the top of link has set firmly the connecting plate, sets up threaded hole on the connecting plate, and end accommodate motor's the terminal rigid coupling of power shaft has end adjusting screw and end adjusting screw connects with the screw hole soon.
As a further scheme of a location pusher for aluminium alloy processing equipment, the upper surface of removing the frame set firmly with remove a moving direction vertically lateral slide rail, remove movable mounting and have the diaphragm on the frame, the diaphragm is connected with the positioning motor of installing on removing the frame and is adjusted in order to be removed along lateral slide rail by positioning motor drive.
As a further scheme of a location pusher for aluminium alloy processing equipment, install the lifting screw through taking a pedestal bearing on mounting panel and diaphragm rigid coupling and its face, the lifting screw vertically sets up and its top is connected with the elevator motor transmission that sets up on the diaphragm, lifting screw's bottom and alignment jig threaded connection.
As a further scheme of a location pusher for aluminium alloy processing equipment, be provided with the rack on the carriage and evenly be provided with a plurality of teeth along its length direction on the rack, remove the both sides of frame and all install driving motor, driving motor's last rigid coupling of power shaft has drive gear and rack drive to be connected.
Advantageous effects
The plurality of clamping pieces are arranged on the moving frame through the adjusting frame, the transverse positions, the height positions and the positions along the conveying direction of the plurality of clamping pieces can be adjusted, the applicability of the device is greatly improved, the plurality of clamping pieces are respectively adjusted by the plurality of end adjusting motors, and the end parts of the aluminum profiles to be processed can be aligned, so that the waste amount of raw materials is effectively reduced; the push rod of the clamping head is movably arranged in the mounting rod in a penetrating mode and driven by the air cylinder outside the mounting rod to be adjusted in the axial direction, the air cylinder drives the push rod to move axially through the connecting rod to be adjusted, so that the action adjustment of the clamping head can be achieved, the air cylinder and the mounting rod are parallel to each other, the space occupation of the device can be greatly reduced, and the action smoothness of equipment is improved; the push rod can drive two grip blocks of holding head when removing to the centre gripping groove and revolve round the pivot to make two clamping jaws that are located the centre gripping groove outside be close and the centre gripping aluminium alloy, two installation pieces reset under the effect of flexure strip when push rod reverse movement drive two clamping jaws and reset, thereby loosen the aluminium alloy.
Drawings

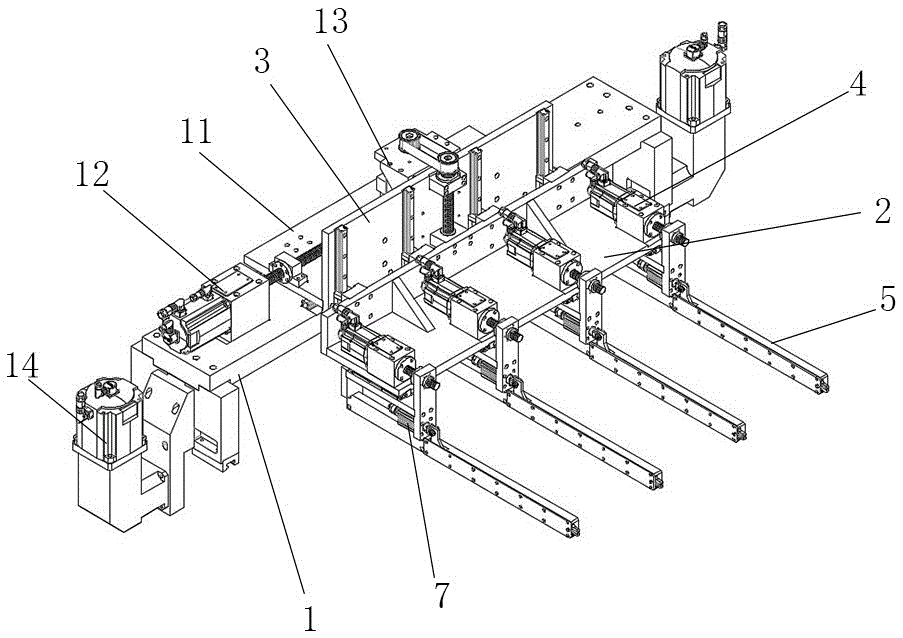

Fig. 1 is a schematic perspective view of the pushing device of the present invention;
FIG. 2 is a schematic view of the external structure of the pushing device of the present invention;
FIG. 3 is a schematic side view of the pushing device of the present invention;
FIG. 4 is a schematic view of the external structure of the holding member of the pushing device of the present invention;
FIG. 5 is a schematic side view of the internal structure of the holding member of the pushing device according to the present invention;
FIG. 6 is a schematic view of the installation of the clamping head of the clamping member of the pushing device of the present invention;
the labels in the figure are: 1. the device comprises a moving frame, 2, an adjusting frame, 3, an installing plate, 4, an end adjusting motor, 5, an installing rod, 6, a push rod, 7, a cylinder, 8, a clamping block, 9, a clamping claw, 10, an elastic sheet, 11, a transverse plate, 12, a positioning motor, 13, a lifting motor, 14 and a driving motor.
Detailed Description
As shown in the figure: a positioning pusher used for aluminum profile processing equipment, which comprises a movable frame 1, an adjusting frame 2 and a clamping piece, the movable frame 1 is movably arranged on a conveying frame of the aluminum profile processing equipment, a guide slide rail is fixedly arranged on the upper surface of the conveying frame along the length direction of the conveying frame, the movable frame 1 is in a gantry shape, a slide block is arranged on the bottom surface of a transverse plate 11 of the movable frame, the movable frame 1 is movably arranged on the conveying frame through the slide block at the bottom of the movable frame, the conveying frame is fixedly provided with racks, the racks are long-strip-shaped plates with rectangular sections, a plurality of teeth are uniformly arranged on the surfaces of the racks along the length direction, the two racks are positioned on the upper surface of the conveying frame and close to the edges of the two sides, the racks are parallel to the guide sliding rail, the two sides of the moving frame 1 are both provided with driving motors 14, the tail ends of power shafts of the driving motors 14 are fixedly provided with driving gears, the two driving gears are respectively in transmission connection with the two racks, and the driving motors 14 can drive the moving frame 1 to move along the length direction of the guide sliding rail when working; the upper surface of the moving frame 1 is provided with a transverse sliding rail, the transverse sliding rail is perpendicular to the moving direction of the moving frame 1, the upper surface of the moving frame 1 is movably provided with a transverse plate 11, the transverse plate 11 is movably arranged on the transverse sliding rail through a sliding block on the lower surface of the transverse plate 11, the upper surface of the moving frame 1 is provided with a positioning motor 12, a power shaft of the positioning motor 12 is parallel to the transverse sliding rail, a positioning screw rod is fixedly connected to the shaft end of the transverse sliding rail, a connecting block is arranged on the transverse plate 11, a threaded hole is formed in the connecting block, the positioning screw rod is connected with the threaded hole of the connecting block in a screwing mode, and the;
the movable frame 1 is longitudinally provided with a mounting plate 3, the mounting plate 3 is fixedly connected with the transverse plate 11 and synchronously moves along with the transverse plate 11, a plurality of lifting slide rails are longitudinally and fixedly arranged on the surface of the mounting plate 3 away from the transverse plate 11, and the adjusting frame 2 is movably mounted on the mounting plate 3 through a slide block fixedly arranged on the side surface of the adjusting frame and can move along the lifting slide rails; preferably, the lifting screw is installed through the pedestal bearing on the face of mounting panel 3, and the lifting screw is parallel with the lift slide rail and its bottom connects with alignment jig 2 soon, installs elevator motor 13 on the face of diaphragm 11, and elevator motor 13's power shaft passes through belt or gear drive with the top of lifting screw to be connected, and elevator motor 13 accessible drives the rotatory alignment jig 2 that drives of elevator screw and carries out lift adjustment. The adjustable rack 2 is an L-shaped rack, the upper surface of the adjustable rack 2 is provided with a plurality of end adjusting motors 4, the power shafts of the end adjusting motors 4 are parallel to the guide sliding rails, the bottom surface of the adjustable rack 2 is fixedly provided with a plurality of adjusting sliding rails, and the adjusting sliding rails are parallel to the guide sliding rails and used for installing a clamping piece.
The clamping piece comprises an installation rod 5, a push rod 6 and a clamping head, the installation rod 5 is installed at the bottom of the adjusting frame 2 through a connecting frame, the connecting frame is movably installed on the adjusting slide rail through a sliding block at the upper end of the connecting frame, a connecting plate is fixedly arranged at the top end of the connecting frame, a threaded hole is formed in the connecting plate, an end adjusting screw rod is fixedly connected to the tail end of a power shaft of the end adjusting motor 4 and is in screwed connection with the threaded hole, and the end adjusting motor 4 can drive the clamping piece to move along the length direction of the adjusting slide rail when working; the clamping heads are multiple, and each clamping head is respectively arranged on one adjusting slide rail and is independently adjusted by an end adjusting motor 4; a through groove is formed in the installation rod 5 along the length direction of the installation rod, a clamping groove is formed in the end face, far away from the moving frame 1, of the installation rod 5 and communicated with the through groove, a rotating shaft perpendicular to the installation rod 5 is fixedly arranged in the clamping groove, a strip-shaped groove is formed in the rod body of the installation rod 5, the length direction of the strip-shaped groove is parallel to the rod length of the installation rod 5, a connecting rod movably penetrates through the strip-shaped groove, one end, located in the through groove, of the connecting rod is connected with a push rod 6, an air cylinder 7 is fixedly arranged outside the installation rod 5 or on a connecting frame, the stretching direction of the air cylinder 7 is parallel to the installation rod 5, the tail end of a piston rod of the air cylinder is connected; the clamping head is movably arranged in the clamping groove and comprises two clamping blocks 8 and clamping claws 9, the two clamping blocks 8 are respectively positioned at two sides of the rotating shaft, the clamping blocks 8 are hinged with the rotating shaft, one ends of the clamping blocks 8, which are positioned at the outer parts of the clamping grooves, are fixedly connected with clamping jaws, two sides, which are positioned on the rotating shaft, of the opposite sides of the two clamping blocks 8 are inclined planes, so that the two clamping blocks 8 have certain moving space around the rotating shaft, one ends, which are positioned at the bottom of the clamping groove, of the push rods 6 are conical surfaces and positioned between the two clamping blocks 8, the push rods 6 can drive the clamping blocks 8 to rotate around the rotating shaft when moving to the side of the clamping groove, one ends, which are positioned at the bottom of the clamping grooves, of the two clamping blocks 8 are far away from each other and the other ends of the two clamping jaws are close to clamp the end part of the aluminum profile, when the push rods 6 move reversely, the two installation blocks are not stressed to, the elastic piece 10 is a U-shaped piece, two ends of the elastic piece are respectively abutted against the groove wall of the clamping groove and the side wall of the clamping block 8, and the two clamping blocks 8 reset under the action of the elastic piece 10 when the push rod 6 moves towards the direction away from the clamping groove.
This device is used for cooperating aluminium alloy automatic processing equipment, the holding head is a plurality of so that carry out the processing of a plurality of aluminium alloies simultaneously, the position of a plurality of holding heads is adjusted to positioning motor 12 during the use, the height of holding head is adjusted to elevator motor 13, thereby make the holding head be in the position of centre gripping aluminium alloy, thereby driving motor 14 drives this device moving as a whole makes the aluminium alloy tip be in between the clamping jaw of holder, 7 extensions of cylinder make the holding head with the aluminium alloy clamping, end accommodate motor 4 work drives the holding head and removes, make the free end parallel and level of aluminium alloy, the operation such as cutting and punching in the later stage of being convenient for.
The above description is only a preferred embodiment of the present invention, and the present invention is not limited to the above embodiments, and although the present invention has been disclosed with the preferred embodiments, it is not limited to the present invention, and any skilled person in the art can make some modifications or equivalent changes without departing from the technical scope of the present invention.
Claims (9)
1. The utility model provides a location pusher car for aluminium alloy processing equipment which characterized in that: including removing frame (1), alignment jig (2) and holder, remove frame (1) movable mounting and by driving motor (14) drive along the carriage length direction removal regulation on the carriage of aluminium alloy processing equipment, vertically be provided with mounting panel (3) on removing frame (1) and vertically set firmly the lift slide rail on mounting panel (3), alignment jig (2) movable mounting is on mounting panel (3) and can vertically adjust along the lift slide rail, and the top fixed mounting of alignment jig (2) has a plurality of end adjusting motor (4), and the power shaft of end adjusting motor (4) is parallel with the moving direction of removing frame (1) and its end and a holder swing joint, the holder includes installation pole (5), push rod (6) and centre gripping head, and installation pole (5) are parallel with the power shaft of end adjusting motor (4) through link movable mounting in the bottom surface of alignment jig (2), the installation rod (5) is internally provided with a through groove along the length direction of the installation rod, the push rod (6) is movably arranged in the through groove in a penetrating manner, the connecting frame is provided with a cylinder (7) used for driving the push rod (6) to move axially, and the clamping head is movably arranged at the end part of the installation rod (5) to drive the clamping aluminum profile by the push rod (6).
2. The positioning pusher for aluminum profile processing equipment as recited in claim 1, characterized in that: the utility model discloses a clamping device, including installation pole (5), installation pole (5) are kept away from the one end of removing frame (1) and have been seted up the centre gripping groove and the pivot is worn to be equipped with to the centre gripping inslot internal fixation, and the centre gripping head includes grip block (8) and gripper jaw (9), and two grip block (8) are located the both sides of pivot respectively and are articulated with the pivot, and the one end rigid coupling that grip block (8) are located the grip groove outside has gripper jaw (9), the one end that push rod (6) are located the centre gripping inslot is located between two grip block (8), and the accessible drives two grip block (8) revolute the rotation of axes when push rod (6) move along its length direction and.
3. The positioning pusher for aluminum profile processing equipment as recited in claim 2, characterized in that: one end of the clamping block (8) at the bottom of the clamping groove is connected with the groove wall of the clamping groove through an elastic sheet (10), the elastic sheet (10) is a U-shaped sheet, and two ends of the elastic sheet are respectively abutted against the groove wall of the clamping groove and the side wall of the clamping block (8).
4. The positioning pusher for aluminum profile processing equipment as recited in claim 3, wherein: a strip-shaped groove is formed in the side face of the mounting rod (5), a connecting rod is movably arranged in the strip-shaped groove in a penetrating mode, and the two ends of the connecting rod are connected with a piston rod of the push rod (6) and a piston rod of the air cylinder (7) respectively.
5. The positioning pusher for aluminum profile processing equipment as recited in claim 1, characterized in that: the bottom surface of the adjusting frame (2) is fixedly provided with a plurality of adjusting slide rails parallel to the moving direction of the moving frame (1), and the connecting frame is movably arranged at the bottom of the adjusting frame (2) and driven by the end adjusting motor (4) to move along the adjusting slide rails.
6. The positioning pusher for aluminum profile processing equipment as recited in claim 5, wherein: the top of the connecting frame is fixedly provided with a connecting plate, the connecting plate is provided with a threaded hole, the tail end of a power shaft of the end adjusting motor (4) is fixedly connected with an end adjusting screw rod, and the end adjusting screw rod is in screwed connection with the threaded hole.
7. The positioning pusher for aluminum profile processing equipment as recited in claim 1, characterized in that: the upper surface of the moving frame (1) is fixedly provided with a transverse sliding rail vertical to the moving direction of the moving frame (1), a transverse plate (11) is movably mounted on the moving frame (1), and the transverse plate (11) is connected with a position adjusting motor (12) mounted on the moving frame (1) and is driven by the position adjusting motor (12) to move and adjust along the transverse sliding rail.
8. The positioning pusher carriage for the aluminum profile machining equipment as recited in claim 7, characterized in that: mounting panel (3) and diaphragm (11) rigid coupling and install lifting screw through taking the seat bearing on its face, lifting screw vertically sets up and its top is connected with elevator motor (13) transmission that sets up on diaphragm (11), lifting screw's bottom and alignment jig (2) threaded connection.
9. The positioning pusher for aluminum profile processing equipment as recited in claim 1, characterized in that: the conveying frame is provided with a rack, a plurality of teeth are uniformly arranged on the rack along the length direction of the rack, driving motors (14) are arranged on two sides of the moving frame (1), and driving gears are fixedly connected to power shafts of the driving motors (14) and are in transmission connection with the rack.
