The utility model belongs to the power generation facility field, especially, pursuit type solar photovoltaic power generation device, including placing the case and being located the solar cell panel who places the case top, the top of placing the case is rotated and is installed the rotor plate, and the top fixed mounting of rotor plate has the montant that two symmetries set up, and one side that two montants are close to each other is rotated and is installed same bull stick, and solar cell panel's bottom fixed mounting has the roating seat, and the fixed cover of roating seat is established on the bull stick, and the one end of bull stick extends to the outside of montant and fixed mounting has first belt pulley, and one side of a montant in two montants is rotated and is installed the pivot, and fixed cover is equipped with. The utility model relates to a rationally, through the rotation of motor, can drive solar cell panel and carry out the angle and rotate to can make the abundant irradiation of sunshine on solar cell panel, thereby can improve the conversion of light energy.

Description

Tracking type solar photovoltaic power generation device
Technical Field
The utility model relates to a power generation facility technical field especially relates to a pursuit type solar photovoltaic power generation device.
Background
Solar energy is a clean renewable new forms of energy, receives people's favor more and more, and through the retrieval, the patent document who authorizes the publication number for CN209844887U discloses a pursuit type solar photovoltaic power generation device, which comprises a fixed base, be provided with the support column on the fixing base, be provided with heat dissipation window, gear motor and bearing on the support column, heat dissipation window fixed connection be in the inside left side of support column, gear motor fixed connection be in the inside middle upper place of support column, bearing fixed connection be in the inside upper end of support column, gear motor's upper end is provided with the motor shaft, the center department of bearing is provided with the jogged column, the upper end of jogged column is provided with the fixed plate, the upper end of fixed plate is provided with the frame, be provided with sunlight tracking sensor and photovoltaic board on the frame. The utility model discloses a realized that the photovoltaic board changes the direction of oneself following the position of sun, avoided the photovoltaic board because of the change of sun exposure position can not receive illumination, improved the sufficiency of photovoltaic board when receiving illumination.
However, the above design still has disadvantages, and in the above design, only the solar photovoltaic panel can be rotated, and the angle adjustment cannot be performed, so that the solar photovoltaic panel cannot be sufficiently illuminated, and the problem that the solar photovoltaic panel cannot be conveniently adjusted exists, so we provide a tracking type solar photovoltaic power generation device for solving the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the shortcoming that has the solar photovoltaic board of being not convenient for to adjust among the prior art, and the tracking type solar photovoltaic power generation device who proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a tracking type solar photovoltaic power generation device comprises a placing box and a solar cell panel positioned above the placing box, wherein a rotating plate is rotatably arranged at the top of the placing box, two symmetrically arranged vertical rods are fixedly arranged at the top of the rotating plate, one side, close to each other, of the two vertical rods is rotatably arranged with the same rotating rod, a rotating seat is fixedly arranged at the bottom of the solar cell panel, the rotating seat is fixedly sleeved on the rotating rod, one end of the rotating rod extends to the outer side of the vertical rods and is fixedly provided with a first belt pulley, one side of one vertical rod of the two vertical rods is rotatably arranged with a rotating shaft, the rotating shaft is fixedly sleeved with a second belt pulley, the second belt pulley is in transmission connection with the same belt corresponding to the first belt pulley, a gear is fixedly sleeved on the rotating shaft, a push rod is slidably arranged at the top of the rotating plate, a rack is fixedly arranged at the top, the top of rotor plate has been seted up the promotion groove, and the bottom fixed mounting of catch bar has the screw rod seat, and screw rod seat slidable mounting is in the promotion groove, and one side of promotion groove rotates the one end of installing the threaded rod, and the other end of threaded rod extends to the outside of rotor plate, and screw rod seat threaded sleeve establishes on the threaded rod, and one side fixed mounting of rotor plate has the motor, and the output shaft fixed mounting of motor is on the threaded rod.
Preferably, first rotation groove has all been seted up to one side that two montants are close to each other, and the bull stick rotates and installs at first rotation inslot, owing to be provided with first rotation groove, can make the bull stick carry out stable rotation.
Preferably, all seted up the spacing groove on the both sides inner wall of push groove, the equal fixed mounting in both sides of screw rod seat has spacing seat, and spacing seat has corresponding spacing groove sliding connection, owing to be provided with spacing seat and spacing groove, can make the screw rod seat carry out stable removal.
Preferably, a sliding groove is formed in the top of the rotating plate in a clamped mode, a sliding seat is fixedly mounted at the bottom of the push rod and is connected with the corresponding sliding groove in a sliding mode, and the push rod can be moved stably.
Preferably, place the incasement and be equipped with the singlechip, solar cell panel's top is installed sunlight and is tracked the sensor, and solar cell panel's bottom is installed angle sensor, and the singlechip all with sunlight tracking sensor, angle sensor and motor electric connection.
Preferably, a rotating hole is formed in the inner wall of one side of the pushing groove, and the threaded rod is rotatably connected with the rotating hole.
In the utility model, when the sun moves, and when the sunlight tracking sensor detects the movement of the sun and transmits a point signal to the singlechip, the singlechip controls the motor, the motor can drive the threaded rod to rotate through the output shaft, the threaded rod can drive the screw rod seat to move, the screw rod seat can move through the gear of the rack, the gear can drive the second belt pulley to rotate through the rotating shaft, the second belt pulley can drive the first belt pulley to rotate through the belt, the rotating rod of the first belt pulley can rotate, the rotating rod can drive the rotating seat to rotate, the rotating seat can drive the solar cell panel to rotate, thereby adjusting the angle of the solar cell panel, and fully irradiating the sunlight on the solar cell panel, thereby improving the conversion of light energy and facilitating the use.
The utility model relates to a rationally, through the rotation of motor, can drive solar cell panel and carry out the angle and rotate to can make the abundant irradiation of sunshine on solar cell panel, thereby can improve the conversion of light energy.
Drawings

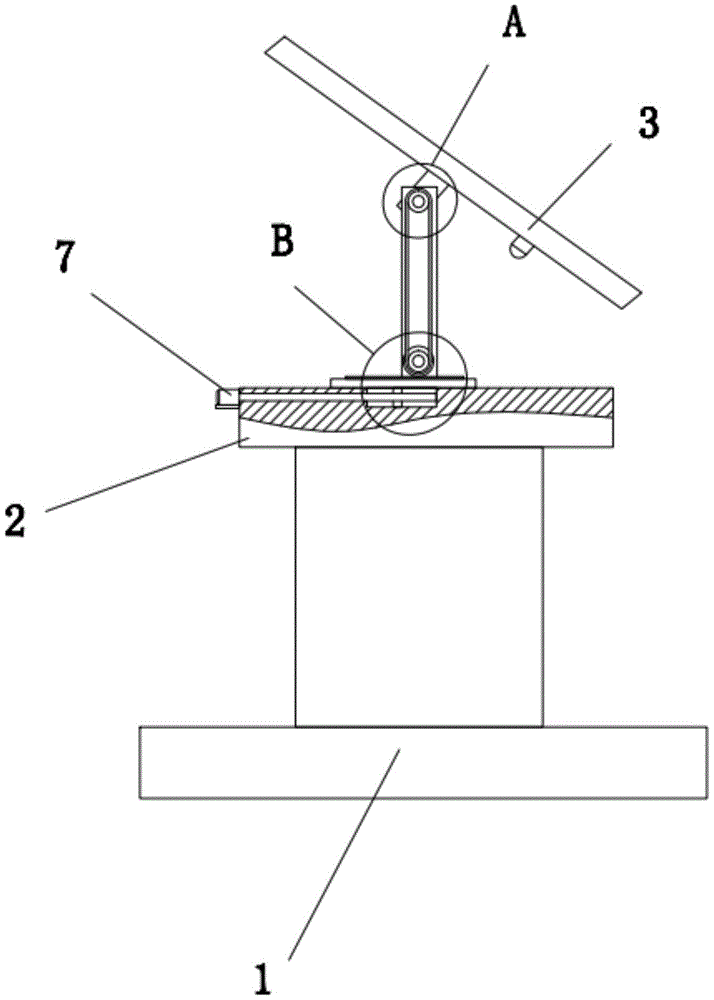

Fig. 1 is a schematic structural diagram of a tracking type solar photovoltaic power generation device provided by the present invention;
fig. 2 is a schematic structural diagram of a portion a of a tracking-type solar photovoltaic power generation apparatus provided by the present invention;
fig. 3 is a schematic structural diagram of a part B of the tracking type solar photovoltaic power generation apparatus provided by the present invention.
In the figure: 1. placing a box; 2. a rotating plate; 3. a solar panel; 4. a vertical rod; 5. a rotating rod; 6. a rotating base; 7. a motor; 8. a first pulley; 9. a rotating shaft; 10. a second pulley; 11. a belt; 12. a gear; 13. a push rod; 14. a rack; 15. a push groove; 16. a threaded rod; 17. a screw seat.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a tracking type solar photovoltaic power generation device comprises a placing box 1 and a solar panel 3 located above the placing box 1, wherein a rotating plate 2 is rotatably installed at the top of the placing box 1, two symmetrically arranged vertical rods 4 are fixedly installed at the top of the rotating plate 2, one side, close to each other, of the two vertical rods 4 is rotatably installed with a same rotating rod 5, a rotating seat 6 is fixedly installed at the bottom of the solar panel 3, the rotating seat 6 is fixedly sleeved on the rotating rod 5, one end of the rotating rod 5 extends to the outer side of the vertical rod 4 and is fixedly installed with a first belt pulley 8, one side of one vertical rod 4 of the two vertical rods 4 is rotatably installed with a rotating shaft 9, a second belt pulley 10 is fixedly sleeved on the rotating shaft 9, the same belt 11 is in transmission connection between the second belt pulley 10 and the corresponding first belt pulley 8, a gear 12 is fixedly sleeved on, the top slidable mounting of rotor plate 2 has catch bar 13, the top fixed mounting of catch bar 13 has rack 14, and gear 12 meshes with rack 14 mutually, push groove 15 has been seted up at the top of rotor plate 2, the bottom fixed mounting of catch bar 13 has screw rod seat 17, and screw rod seat 17 slidable mounting is in push groove 15, the one end of installing threaded rod 16 is rotated to one side of push groove 15, the other end of threaded rod 16 extends to the outside of rotor plate 2, and screw rod seat 17 threaded sleeve establishes on threaded rod 16, one side fixed mounting of rotor plate 2 has motor 7, and the output shaft fixed mounting of motor 7 is on threaded rod 16.
The utility model discloses in, first rotation groove has all been seted up to one side that two montants 4 are close to each other, and bull stick 5 rotates and installs at first rotation inslot, owing to be provided with first rotation groove, can make bull stick 5 carry out stable rotation.
The utility model discloses in, all seted up the spacing groove on the both sides inner wall of thrust groove 15, the equal fixed mounting in both sides of screw rod seat 17 has spacing seat, and spacing seat has corresponding spacing groove sliding connection, owing to be provided with spacing seat and spacing groove, can make screw rod seat 17 carry out stable removal.
The utility model discloses in, the sliding tray has been seted up to the top card of rotor plate 2, and the bottom fixed mounting of catch bar 13 has a sliding seat, and sliding seat and the sliding tray sliding connection who corresponds can make catch bar 13 carry out stable removal.
The utility model discloses in, place and be equipped with the singlechip in the case 1, solar cell panel 3's top is installed the sunlight and is tracked the sensor, and angle sensor is installed to solar cell panel 3's bottom, and the singlechip all with sunlight tracking sensor, angle sensor and 7 electric connection of motor.
The utility model discloses in, seted up on one side inner wall of promotion groove 15 and rotated the hole, and threaded rod 16 rotates with rotating the hole and is connected.
In the utility model, when the sun moves, when the sunlight tracking sensor detects the movement of the sun and transmits a point signal to the singlechip, the singlechip controls the motor 7, the motor 7 can drive the threaded rod 16 to rotate through the output shaft, the threaded rod 16 can drive the screw rod seat 17 to move, the screw rod seat 17 can move through the gear 12 which can be rotated by the rack 14, the gear 12 can drive the second belt pulley 10 to rotate through the rotating shaft 9, the second belt pulley 10 can drive the first belt pulley 8 to rotate through the belt 11, the rotating rod 5 which can be rotated by the first belt pulley 8 can drive the rotating seat 6 to rotate, the rotating seat 6 can drive the solar panel 3 to rotate, the rotating angle of the solar panel 3 can be detected through the angle sensor, thereby the angle of the solar panel 3 can be accurately adjusted, thereby be convenient for adjust solar cell panel 3's angle to can make the abundant irradiation of sunshine on solar cell panel 3, thereby can improve the conversion of light energy, convenient to use.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (6)

1. A tracking type solar photovoltaic power generation device comprises a placing box (1) and a solar cell panel (3) positioned above the placing box (1), and is characterized in that the top of the placing box (1) is rotatably provided with a rotating plate (2), the top of the rotating plate (2) is fixedly provided with two symmetrically arranged vertical rods (4), one side of each two vertical rods (4) close to each other is rotatably provided with a same rotating rod (5), the bottom of the solar cell panel (3) is fixedly provided with a rotating seat (6), the rotating seat (6) is fixedly sleeved on the rotating rod (5), one end of the rotating rod (5) extends to the outer side of the vertical rod (4) and is fixedly provided with a first belt pulley (8), one side of one vertical rod (4) of the two vertical rods (4) is rotatably provided with a rotating shaft (9), the rotating shaft (9) is fixedly sleeved with a second belt pulley (10), the second belt pulley (10) and the corresponding first belt pulley (8) are connected with the same belt (11) in a transmission manner, a gear (12) is fixedly sleeved on the rotating shaft (9), a push rod (13) is slidably mounted at the top of the rotating plate (2), a rack (14) is fixedly mounted at the top of the push rod (13), the gear (12) is meshed with the rack (14), a push groove (15) is formed in the top of the rotating plate (2), a screw rod seat (17) is fixedly mounted at the bottom of the push rod (13), the screw rod seat (17) is slidably mounted in the push groove (15), one side of the push groove (15) is rotatably provided with one end of a threaded rod (16), the other end of the threaded rod (16) extends to the outer side of the rotating plate (2), the screw rod seat (17) is sleeved on the threaded rod (16), a motor (7) is fixedly mounted at one side of the rotating plate (2, and the output shaft of the motor (7) is fixedly arranged on the threaded rod (16).
2. The tracking solar photovoltaic power generation device according to claim 1, wherein the side of the two vertical rods (4) close to each other is provided with a first rotating groove, and the rotating rod (5) is rotatably installed in the first rotating groove.
3. The tracking type solar photovoltaic power generation device as claimed in claim 1, wherein the pushing groove (15) is provided with a limiting groove on the inner wall of both sides, and the screw seat (17) is fixedly provided with a limiting seat on both sides and is slidably connected with the limiting groove.
4. The tracking solar photovoltaic power generation device as claimed in claim 1, wherein the top of the rotating plate (2) is provided with a sliding groove, the bottom of the pushing rod (13) is fixedly provided with a sliding seat, and the sliding seat is slidably connected with the corresponding sliding groove.
5. The tracking type solar photovoltaic power generation device according to claim 1, wherein a single chip microcomputer is arranged in the placing box (1), a sunlight tracking sensor is installed at the top of the solar panel (3), an angle sensor is installed at the bottom of the solar panel (3), and the single chip microcomputer is electrically connected with the sunlight tracking sensor, the angle sensor and the motor (7).
6. The tracking solar photovoltaic generator as claimed in claim 1, wherein the pushing groove (15) has a rotation hole on one side of its inner wall, and the threaded rod (16) is rotatably connected to the rotation hole.
