The utility model discloses an automatic change make-up machine belongs to panel processing technology field, including support frame, removal subassembly, conveying component, lifting subassembly and clearance subassembly, it includes moving member and two cutting members to remove the subassembly, the removal end setting of moving member is in the mounting groove, two cutting member symmetry sets up on the removal end of moving member, the vertical top that sets up at the support frame of conveying component, the lifting subassembly sets up on the support frame, and the clearance subassembly includes clearance piece and dust absorption piece, and the clearance piece sets up at the top of support frame, and the dust absorption piece sets up the below at the support frame. The utility model discloses a driving motor work drives the driving gear and rotates, thereby the driving gear rotates and drives driven gear and rotate and drive the drive shaft and rotate on the mounting bracket, and the drive shaft rotates and drives the link and rotate, and the link rotates and drives a plurality of air nozzles and rotate, realizes carrying out the omnidirectional clearance operation to the panel that has processed, clears up the operation to the dust on the processing panel.

Description

Automatic forming machine

Technical Field

The utility model relates to a panel processing technology field specifically is to relate to an automatic change make-up machine.

Background

Sheet forming is the process of processing a processed sheet. At present, the processing mode of the plate material is various and is changed according to different requirements. The method is to carry out the calendering or embossing fine grain processing on the surface of the required plate, and is a fine processing for the plate. Such machining is used, for example, in floors and the like where high demands are made on surface quality and shape accuracy.

The patent with the publication number of CN208179812U relates to a hydraulic forming device is used in furniture wooden plate production, including the punching press platform, the equal fixed mounting in both sides of punching press bench end has the erection column, two fixedly connected with punching press board between the erection column, the upper end fixed mounting of punching press board has hydraulic cylinder, hydraulic cylinder's piston end runs through punching press board and fixedly connected with punching press head, the below of punching press head is equipped with first mounting panel, the both ends of first mounting panel fixedly connected with respectively rotate cover and U type piece, it cup joints on one of them erection column to rotate the cover, it rotates with the erection column to connect to rotate the cover, the connection can be dismantled on another erection column to U type piece, the upper end of first mounting panel runs through and is equipped with the mounting groove. The utility model discloses, can carry out the successive layer with saw-dust and glue and lay, make the crisscross stone material in glue layer and saw-dust layer, make glue and saw-dust mix more fully, saw-dust stamping forming is easier, improves shaping plank intensity.

However, the above-mentioned devices also have the following problems in use: firstly, when carrying out the shaping, can not clear up the powder that produces when shaping, when the shaping, produce a large amount of powders and influence the fashioned going on, secondly, in the in-process of carrying out processing, can not automatic treat the panel of processing and carry forward, lead to the efficiency of processing to reduce.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem that an automatic make-up machine is provided to solve among the prior art and can not clear up the powder of production when carrying out the shaping and can not be automatic carry forward the technical problem that leads to the efficiency reduction of processing to the panel of treating processing when carrying out the shaping.

In order to solve the technical problem, the utility model provides a following technical scheme: an automatic forming machine comprises a supporting frame, a moving assembly, a conveying assembly, a lifting assembly and a cleaning assembly, the supporting frame is vertically arranged, an installation groove is arranged on the supporting frame, the moving component is arranged in the installation groove, the moving assembly comprises a moving part and two cutting parts, the moving end of the moving part is arranged in the mounting groove and is in sliding fit with the mounting groove, the two cutting parts are symmetrically arranged on the moving end of the moving part, the conveying assembly is vertically arranged at the top of the supporting frame and is positioned at the feeding end of the supporting frame, the lifting assembly is arranged on the supporting frame and is in sliding fit with the supporting frame, the lifting component is arranged beside the mounting groove, the cleaning component comprises a cleaning piece and a dust suction piece, the output that clearance piece set up at the top of support frame and clearance piece is towards lifting assembly setting, dust absorption piece sets up in the below of support frame and the dust absorption end of dust absorption piece is located the mounting groove.

Furthermore, the moving member comprises a moving motor, a rotating cam plate, two sliding plates, two sliding rails and two connecting rods, the moving motor is arranged at the bottom of the support frame, an output shaft of the moving motor is vertically and upwards arranged, the rotating cam plate is horizontally arranged on the output shaft of the moving motor and is positioned in the mounting groove, the two sliding rails are symmetrically arranged in the mounting groove, the two sliding plates are symmetrically arranged on the two sliding rails and are in sliding fit with the two sliding rails, two ends of the two connecting rods are respectively arranged at two ends of the rotating cam plate and the two sliding plates, and each connecting rod is rotatably connected with the corresponding sliding plate and the corresponding rotating cam plate.

Furthermore, the top of the mounting groove is provided with two closed plates in sliding fit with the support frame, the end part of each closed plate is provided with a movable spring fixedly connected with the support frame, each closed plate is fixedly connected with a corresponding sliding plate, and the support frame is provided with a sliding groove in sliding fit with the two closed plates.

Furthermore, every cutting piece all includes cutting motor, first rotating gear, second rotating gear, axis of rotation and cutting gear, the cutting motor sets up on the sliding plate, first rotating gear sets up on the output shaft of cutting motor, the second rotating gear passes through the axis of rotation and is connected with the sliding plate rotation, the cutting gear sets up in the axis of rotation.

Furthermore, the lifting assembly comprises a lifting cylinder and a lifting plate, the lifting cylinder is arranged at the bottom of the support frame, the output end of the lifting cylinder is vertically upwards arranged, the lifting plate is horizontally arranged on the support frame and is in sliding fit with the support frame, the bottom of the lifting plate is fixedly connected with the output end of the lifting cylinder, and a lifting groove in sliding fit with the lifting plate is formed in the support frame.

Further, the conveying assembly comprises conveying rollers, a conveying motor, two conveying cylinders and two conveying plates, the two conveying plates are symmetrically arranged at the top of the supporting frame, the two conveying cylinders are vertically arranged at the top of the two conveying plates, the output end of each conveying cylinder is vertically arranged downwards, each conveying plate is provided with a moving groove, each moving groove is internally provided with a moving block in sliding fit with the moving block, each moving block is fixedly connected with the output end of the corresponding conveying cylinder, the bottom of each moving block is provided with two connecting springs which are symmetrically arranged, two ends of each connecting spring are respectively and fixedly connected with the moving block and the moving groove, two ends of each conveying roller are respectively arranged on the two moving blocks, the conveying motor is arranged on one moving block, and the output shaft of the conveying motor is fixedly connected with one end of each conveying roller, the conveying roller is provided with a plurality of convex points which are distributed in a circumferential manner.

Further, the clearance piece includes mounting bracket, driving motor, driving gear, drive shaft, link, connecting pipe and a plurality of air nozzle, the vertical top that sets up at the support frame of mounting bracket, the both ends of drive shaft set up respectively on the mounting bracket and rotate with the mounting bracket and be connected, driving motor sets up on the lateral wall of mounting bracket, the driving gear sets up on driving motor's output shaft, be equipped with in the drive shaft with driving gear meshed's driven gear, the both ends setting of link is in the drive shaft, and is a plurality of the equidistant setting of air nozzle is on the link, the connecting pipe is linked together with a plurality of air nozzle, be equipped with the air inlet rather than being linked together on the connecting pipe.

Furthermore, the dust absorption piece includes dust absorption air pump, dust collection box, dust absorption pipe and two suction hoods, two the suction hood symmetry sets up in the bottom of mounting groove and is linked together with the mounting groove, the dust absorption air pump sets up the below at the support frame, the suction hood sets up the side at the dust absorption air pump and is linked together through the hose, the both ends of dust absorption pipe are linked together with two suction hoods and dust absorption air pump respectively.

Compared with the prior art, the utility model beneficial effect who has is:

one of which, the utility model discloses after processing panel, the air supply passes through in the air inlet gets into the connecting pipe, the connecting pipe is with gas transport to a plurality of air nozzles in, a plurality of air nozzles blowout gas is to the dust on the panel that is processed the operation of clearing up, driving motor work drives the driving gear and rotates, thereby the driving gear rotates and drives driven gear and rotate and drive the drive shaft and rotate on the mounting bracket, the drive shaft rotates and drives the link and rotate, the link rotates and can drive a plurality of air nozzles and rotate, realize carrying out the omnidirectional clearance operation to the panel that is processed, the operation of clearing up is carried out to the dust on the processing panel.

Two, the utility model discloses when panel is carried forward, two output downshifts of carrying the cylinder drive two movable blocks and remove in the shifting chute on two delivery boards, and two movable blocks move down and drive the conveying roller downshifting, and conveying motor work drives the conveying roller and rotates, and the conveying roller rotates and moves panel forward, can increase the frictional force between conveying roller and the panel at a plurality of bumps of in-process of carrying, realizes the automatic transport operation to panel.

Thirdly, the utility model discloses adding man-hour to panel, dust absorption air pump work absorbs the dust in two suction hoods through the dust absorption pipe, carry the dust to the dust collection box in through the hose after absorbing, and the dust collection box is collected the dust, is favorable to absorbing and collecting the dust of cutting when cutting after collecting the dust, is favorable to the cutting operation in later stage after collecting.

Drawings

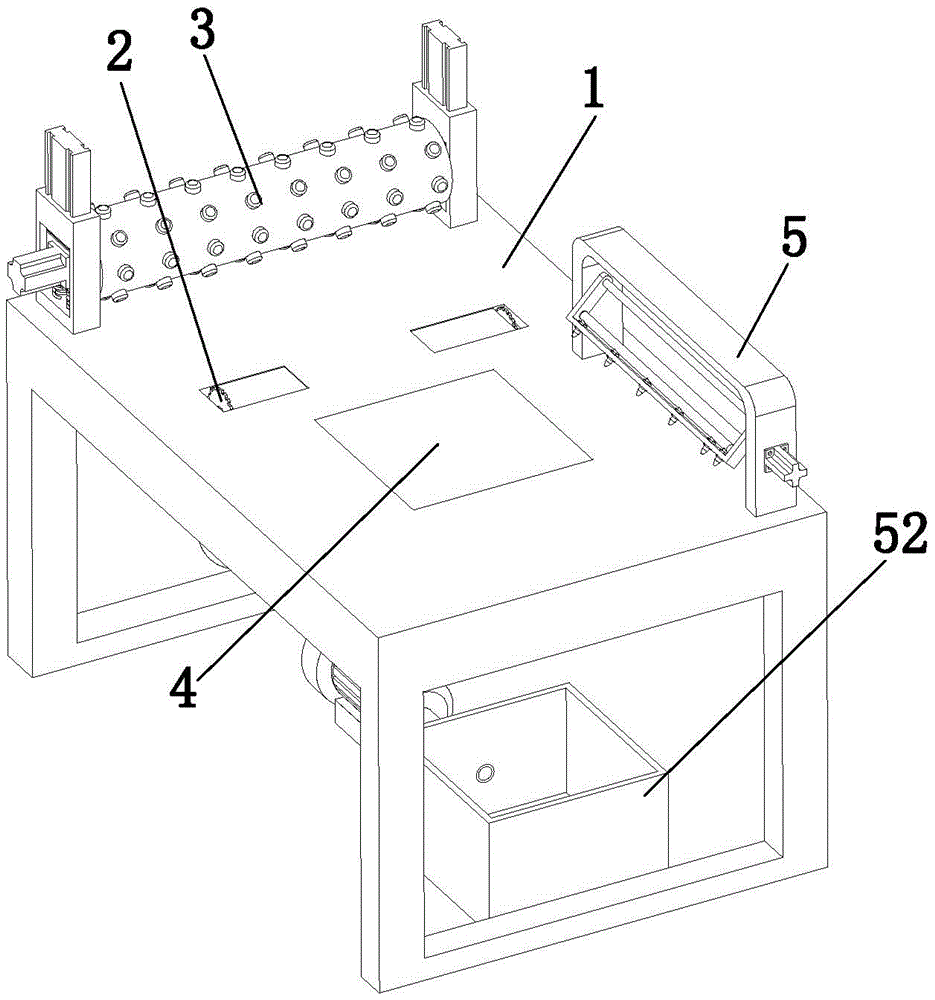

Fig. 1 is a schematic perspective view of the present invention;

fig. 2 is a side view of the present invention;

fig. 3 is a schematic perspective view of the conveying assembly of the present invention;

FIG. 4 is a schematic perspective view of the cleaning member of the present invention;

FIG. 5 is a schematic perspective view of a moving member according to the present invention;

FIG. 6 is a schematic perspective view of the cutting member of the present invention;

fig. 7 is a schematic view of a partial three-dimensional structure of the present invention.

The reference numbers in the figures are:

the cleaning device comprises a support frame 1, a mounting groove 11, a lifting groove 12, a moving component 2, a moving component 21, a moving motor 211, a rotating cam plate 212, a sliding plate 213, a sliding rail 214, a connecting rod 215, a closing plate 216, a moving spring 217, a cutting component 22, a cutting motor 221, a first rotating gear 222, a second rotating gear 223, a rotating shaft 224, a cutting gear 225, a conveying component 3, a conveying roller 31, a conveying motor 32, a conveying cylinder 33, a conveying plate 34, a moving groove 35, a moving block 36, a connecting spring 37, a lifting component 4, a lifting cylinder 41, a lifting plate 42, a cleaning component 5, a cleaning component 51, a mounting frame 511, a driving motor 512, a driving gear 513, a driving shaft 514, a connecting frame 515, a connecting pipe 516, an air nozzle 517, a driven gear 518, a dust suction piece 52, a dust suction piece 521, an air pump 522, a dust collection.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description of the present invention, and do not indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1 to 7, the utility model provides an automatic forming machine, which comprises a support frame 1, a moving component 2, a conveying component 3, a lifting component 4 and a cleaning component 5, wherein the support frame 1 is vertically arranged, a mounting groove 11 is arranged on the support frame 1, the moving component 2 is arranged in the mounting groove 11, the moving component 2 comprises a moving component 21 and two cutting components 22, the moving end of the moving component 21 is arranged in the mounting groove 11 and is in sliding fit with the mounting groove 11, the two cutting components 22 are symmetrically arranged on the moving end of the moving component 21, the conveying component 3 is vertically arranged at the top of the support frame 1 and is positioned at the feeding end of the support frame 1, the lifting component 4 is arranged on the support frame 1 and is in sliding fit with the support frame 1, the lifting component 4 is arranged beside the mounting groove 11, the cleaning component 5 comprises a cleaning component 51 and a dust suction component 52, the cleaning piece 51 is arranged at the top of the support frame 1, the output end of the cleaning piece 51 is arranged towards the lifting assembly 4, and the dust suction piece 52 is arranged below the support frame 1, and the dust suction end of the dust suction piece 52 is positioned in the mounting groove 11.

Specifically, the moving member 21 includes a moving motor 211, a rotating cam plate 212, two sliding plates 213, two sliding rails 214 and two connecting rods 215, the moving motor 211 is disposed at the bottom of the support frame 1, an output shaft of the moving motor 211 is disposed vertically upward, the rotating cam plate 212 is horizontally disposed on the output shaft of the moving motor 211 and is located in the mounting groove 11, the two sliding rails 214 are symmetrically disposed in the mounting groove 11, the two sliding plates 213 are symmetrically disposed on the two sliding rails 214 and are in sliding fit with the two sliding rails 214, two ends of the two connecting rods 215 are respectively disposed at two ends of the rotating cam plate 212 and the two sliding plates 213, and each connecting rod 215 is rotatably connected with the corresponding sliding plate 213 and rotating cam plate 212; when using, the work of mobile motor 211 drives and rotates cam plate 212, rotates cam plate 212 and rotates and drive two connecting rods 215 and rotate, and two rotate connecting rod 215 and rotate and drive two sliding plates 213 and move on two slide rails 214 relatively or in opposite directions, and two sliding plates 213 remove and bring two cutting member 22 and remove and carry out the cutting operation to panel, and the sliding plate 213 removes and can realize carrying out the cutting operation of different sizes to panel, can be applicable to different user demands.

Specifically, the top of the mounting groove 11 is provided with two closing plates 216 in sliding fit with the support frame 1, the end of each closing plate 216 is provided with a movable spring 217 fixedly connected with the support frame 1, each closing plate 216 is fixedly connected with a corresponding sliding plate 213, and the support frame 1 is provided with a sliding groove in sliding fit with the two closing plates 216; the two closing plates 216 are driven to slide on the two support frames 1 in the moving process of the two sliding plates 213, the two closing plates 216 move on the support frames 1 through the two moving springs 217, and the two closing plates 216 move to block cut waste materials when the plate materials are cut.

Specifically, each of the cutting members 22 includes a cutting motor 221, a first rotating gear 222, a second rotating gear 223, a rotating shaft 224 and a cutting gear 225, the cutting motor 221 is disposed on the sliding plate 213, the first rotating gear 222 is disposed on the output shaft of the cutting motor 221, the second rotating gear 223 is rotatably connected to the sliding plate 213 through the rotating shaft 224, and the cutting gear 225 is disposed on the rotating shaft 224; when cutting, the cutting motor 221 is operated to rotate the first rotation gear 222, the first rotation gear 222 rotates to rotate the second rotation gear 223 to rotate on the sliding plate 213 through the rotation shaft 224, and the rotation shaft 224 rotates to drive the cutting gear 225 to rotate the cutting gear 225 to cut the plate.

Specifically, the lifting assembly 4 comprises a lifting cylinder 41 and a lifting plate 42, the lifting cylinder 41 is arranged at the bottom of the support frame 1, an output end of the lifting cylinder 41 is vertically arranged upwards, the lifting plate 42 is horizontally arranged on the support frame 1 and is in sliding fit with the support frame 1, the bottom of the lifting plate 42 is fixedly connected with the output end of the lifting cylinder 41, and a lifting groove 12 in sliding fit with the lifting plate 42 is arranged on the support frame 1; after the plate is cut, the output end of the lifting cylinder 41 moves downwards to drive the lifting plate 42 to move on the support frame 1, the lifting plate 42 moves to move the processed plate upwards, the processed plate is favorably taken after the plate moves upwards, and dust on the plate is favorably cleaned.

Specifically, the conveying assembly 3 includes a conveying roller 31, a conveying motor 32, two conveying cylinders 33 and two conveying plates 34, the two conveying plates 34 are symmetrically arranged at the top of the support frame 1, the two conveying cylinders 33 are vertically arranged at the top of the two conveying plates 34, an output end of each conveying cylinder 33 is vertically arranged downward, a moving groove 35 is arranged on each conveying plate 34, a moving block 36 in sliding fit with each moving groove 35 is arranged in each moving groove 35, each moving block 36 is fixedly connected with an output end of the corresponding conveying cylinder 33, two connecting springs 37 are symmetrically arranged at the bottom of each moving block 36, two ends of each connecting spring 37 are fixedly connected with the moving block 36 and the moving groove 35 respectively, two ends of the conveying roller 31 are arranged on the two moving blocks 36 respectively, the conveying motor 32 is arranged on one moving block 36, and an output shaft of the conveying motor 32 is fixedly connected with one end of the conveying roller 31 Fixedly connected, a plurality of convex points which are distributed circumferentially are arranged on the conveying roller 31; when panel carried forward, two carry the output of cylinder 33 to move down and drive two movable blocks 36 and remove in the shifting chute 35 on two delivery boards 34, two movable blocks 36 move down and drive conveying roller 31 and move down, and conveying motor 32 work drives conveying roller 31 and rotates, and conveying roller 31 rotates and moves panel forward, and a plurality of bumps can increase the frictional force between conveying roller 31 and the panel at the in-process of carrying, realize the automatic transport operation to panel.

Specifically, the cleaning element 51 comprises an installation frame 511, a driving motor 512, a driving gear 513, a driving shaft 514, a connecting frame 515, a connecting pipe 516 and a plurality of air nozzles 517, wherein the installation frame 511 is vertically arranged at the top of the support frame 1, two ends of the driving shaft 514 are respectively arranged on the installation frame 511 and rotatably connected with the installation frame 511, the driving motor 512 is arranged on the side wall of the installation frame 511, the driving gear 513 is arranged on an output shaft of the driving motor 512, a driven gear 518 meshed with the driving gear 513 is arranged on the driving shaft 514, two ends of the connecting frame 515 are arranged on the driving shaft 514, the plurality of air nozzles 517 are arranged on the connecting frame 515 at equal intervals, the connecting pipe 516 is communicated with the plurality of air nozzles 517, and an air inlet communicated with the connecting pipe 516 is arranged on the connecting pipe; after processing panel, the air supply passes through in the air inlet gets into connecting pipe 516, connecting pipe 516 with gas transport to a plurality of air nozzle 517, a plurality of air nozzle 517 blowout gas clear up the operation to the dust on the panel that has processed, driving motor 512 work drives driving gear 513 and rotates, thereby driving gear 513 rotates and drives driven gear 518 and rotate and drive shaft 514 and rotate on mounting bracket 511, drive shaft 514 rotates and drives link 515 and rotate, link 515 rotates and can drive a plurality of air nozzles 517 and rotate, the realization carries out the omnidirectional clearance operation to the panel that has processed, the operation is cleared up to the dust on the processing panel.

Specifically, the dust suction part 52 includes a dust suction air pump 521, a dust collection box 522, a dust suction pipe 523 and two dust suction covers 524, the two dust suction covers 524 are symmetrically arranged at the bottom of the mounting groove 11 and communicated with the mounting groove 11, the dust suction air pump 521 is arranged below the support frame 1, the dust suction covers 524 are arranged beside the dust suction air pump 521 and communicated with each other through hoses, and two ends of the dust suction pipe 523 are respectively communicated with the two dust suction covers 524 and the dust suction air pump 521; when processing the panel, dust absorption air pump 521 work is absorbed the dust in two dust absorption cover 524 through dust absorption pipe 523, carry the dust to dust collection box 522 in through the hose after absorbing, and dust collection box 522 collects the dust, is favorable to absorbing and collecting the dust of cutting when cutting after collecting the dust, is favorable to the cutting operation in later stage after collecting.

The utility model discloses a theory of operation: when the utility model is used, when a plate is conveyed forwards, the output ends of the two conveying cylinders 33 move downwards to drive the two moving blocks 36 to move in the moving grooves 35 on the two conveying plates 34, the two moving blocks 36 move downwards to drive the conveying rollers 31 to move downwards, the conveying motor 32 works to drive the conveying rollers 31 to rotate, the conveying rollers 31 rotate to move the plate forwards, a plurality of salient points can increase the friction force between the conveying rollers 31 and the plate in the conveying process, so that the automatic conveying operation of the plate is realized, the moving motor 211 works to drive the rotating cam plate 212 to rotate, the rotating cam plate 212 rotates to drive the two connecting rods 215 to rotate, the two rotating connecting rods 215 rotate to drive the two sliding plates 213 to move relatively or relatively on the two sliding rails 214, the two sliding plates 213 move to bring the two cutting pieces 22 to move the plate for cutting operation, when the plate is cut, the cutting motor 221 drives the first rotating gear 222 to rotate, the first rotating gear 222 drives the second rotating gear 223 to rotate on the sliding plate 213 through the rotating shaft 224, the rotating shaft 224 drives the cutting gear 225 to rotate the cutting gear 225 to perform cutting operation on the plate, when the plate is processed, the dust suction air pump 521 works to suck dust in the two dust suction covers 524 through the dust suction pipe 523, the dust is conveyed into the dust collection box 522 through a hose after being sucked, the dust collection box 522 collects the dust, the later-stage cutting operation is facilitated, the driving motor 512 works to drive the driving gear 513 to rotate, the driving gear 513 rotates to drive the driven gear 518 to rotate so as to drive the driving shaft 514 to rotate on the mounting frame 511, the driving shaft 514 rotates to drive the connecting frame 515 to rotate, the connecting frame 515 rotates to drive the plurality of air nozzles 517 to rotate, and omnibearing cleaning operation on the processed plate is realized, and cleaning the dust on the processed plate.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.

Claims

1. An automatic forming machine is characterized in that: comprises a support frame (1), a moving component (2), a conveying component (3), a lifting component (4) and a cleaning component (5), wherein the support frame (1) is vertically arranged, a mounting groove (11) is formed in the support frame (1), the moving component (2) is arranged in the mounting groove (11), the moving component (2) comprises a moving member (21) and two cutting members (22), the moving end of the moving member (21) is arranged in the mounting groove (11) and is in sliding fit with the mounting groove (11), the two cutting members (22) are symmetrically arranged on the moving end of the moving member (21), the conveying component (3) is vertically arranged at the top of the support frame (1) and is positioned at the feeding end of the support frame (1), the lifting component (4) is arranged on the support frame (1) and is in sliding fit with the support frame (1), and the lifting component (4) is arranged beside the mounting groove (11), the cleaning assembly (5) comprises a cleaning piece (51) and a dust collection piece (52), wherein the cleaning piece (51) is arranged at the top of the support frame (1) and the output end of the cleaning piece (51) is arranged towards the lifting assembly (4), and the dust collection piece (52) is arranged below the support frame (1) and the dust collection end of the dust collection piece (52) is positioned in the mounting groove (11).

2. An automated molding machine according to claim 1, wherein: the moving member (21) comprises a moving motor (211), a rotating cam plate (212), two sliding plates (213), two sliding rails (214) and two connecting rods (215), the moving motor (211) is arranged at the bottom of the support frame (1) and the output shaft of the moving motor (211) is vertically arranged upwards, the rotating cam plate (212) is horizontally arranged on an output shaft of the moving motor (211) and is positioned in the mounting groove (11), the two sliding rails (214) are symmetrically arranged in the mounting groove (11), the two sliding plates (213) are symmetrically arranged on the two sliding rails (214) and are in sliding fit with the two sliding rails (214), two ends of the two connecting rods (215) are respectively arranged at two ends of the rotating cam plate (212) and the two sliding plates (213), and each connecting rod (215) is rotatably connected with the corresponding sliding plate (213) and the rotating cam plate (212).

3. An automated molding machine according to claim 2, wherein: the top of the mounting groove (11) is provided with two closed plates (216) which are in sliding fit with the support frame (1), the end part of each closed plate (216) is provided with a movable spring (217) which is fixedly connected with the support frame (1), each closed plate (216) is fixedly connected with a corresponding sliding plate (213), and the support frame (1) is provided with a sliding groove which is in sliding fit with the two closed plates (216).

4. An automated molding machine according to claim 2, wherein: each cutting member (22) comprises a cutting motor (221), a first rotating gear (222), a second rotating gear (223), a rotating shaft (224) and a cutting gear (225), wherein the cutting motor (221) is arranged on the sliding plate (213), the first rotating gear (222) is arranged on an output shaft of the cutting motor (221), the second rotating gear (223) is rotatably connected with the sliding plate (213) through the rotating shaft (224), and the cutting gear (225) is arranged on the rotating shaft (224).

5. An automated molding machine according to claim 1, wherein: lifting subassembly (4) are including lifting cylinder (41) and lifting board (42), lifting cylinder (41) set up in the bottom of support frame (1) and the vertical upwards setting of output of lifting cylinder (41), lift board (42) level setting on support frame (1) and with support frame (1) sliding fit, the bottom of lifting board (42) and the output fixed connection of lifting cylinder (41), be equipped with on support frame (1) with lift board (42) sliding fit's lifting groove (12).

6. An automated molding machine according to claim 1, wherein: the conveying assembly (3) comprises conveying rollers (31), a conveying motor (32), two conveying cylinders (33) and two conveying plates (34), the two conveying plates (34) are symmetrically arranged at the top of the support frame (1), the two conveying cylinders (33) are vertically arranged at the tops of the two conveying plates (34), the output end of each conveying cylinder (33) is vertically and downwards arranged, each conveying plate (34) is provided with a moving groove (35), each moving groove (35) is internally provided with a moving block (36) in sliding fit with the moving block, each moving block (36) is fixedly connected with the output end of the corresponding conveying cylinder (33), the bottom of each moving block (36) is provided with two connecting springs (37) which are symmetrically arranged, and two ends of each connecting spring (37) are respectively fixedly connected with the moving block (36) and the moving groove (35), the two ends of the conveying roller (31) are respectively arranged on two moving blocks (36), the conveying motor (32) is arranged on one of the moving blocks (36), an output shaft of the conveying motor (32) is fixedly connected with one end of the conveying roller (31), and a plurality of convex points which are distributed circumferentially are arranged on the conveying roller (31).

7. An automated molding machine according to claim 1, wherein: the cleaning part (51) comprises an installation frame (511), a driving motor (512), a driving gear (513), a driving shaft (514), a connecting frame (515), a connecting pipe (516) and a plurality of air nozzles (517), wherein the installation frame (511) is vertically arranged at the top of the support frame (1), two ends of the driving shaft (514) are respectively arranged on the installation frame (511) and are rotationally connected with the installation frame (511), the driving motor (512) is arranged on the side wall of the installation frame (511), the driving gear (513) is arranged on the output shaft of the driving motor (512), a driven gear (518) meshed with the driving gear (513) is arranged on the driving shaft (514), two ends of the connecting frame (515) are arranged on the driving shaft (514), a plurality of air nozzles (517) are equidistantly arranged on the connecting frame (515), and the connecting pipe (516) is communicated with the air nozzles (517), the connecting pipe (516) is provided with an air inlet communicated with the connecting pipe.

8. An automated molding machine according to claim 1, wherein: dust absorption piece (52) are including dust absorption air pump (521), dust collection box (522), dust absorption pipe (523) and two suction hood (524), two suction hood (524) symmetry sets up the bottom in mounting groove (11) and is linked together with mounting groove (11), dust absorption air pump (521) set up the below at support frame (1), suction hood (524) set up the side in dust absorption air pump (521) and are linked together through the hose, the both ends of dust absorption pipe (523) are linked together with two suction hood (524) and dust absorption air pump (521) respectively.
