Abstract
The utility model discloses a double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine, which comprises a mounting bracket, the both ends of the bottom of mounting bracket are fixed with the fixed plate, two the both ends of fixed plate all rotate through the bearing and are connected with first pivot, first pivot runs through the side of fixed plate and is connected with first gear, the side-mounting of fixed plate has the motor, the fixed second gear that has cup jointed on the output shaft of motor, first gear and second gear meshing transmission, it has first solid fixed ring to cup joint through the spline in the first pivot, the both ends at the top of mounting bracket are fixed with the support column, the top of support column is fixed with the mixing box. The utility model has simple structure and convenient use, combines rotary tillage and seeding together, improves the working efficiency, and simultaneously separates and crushes the caked seeds or fertilizers, so that the seeding and fertilizing are more uniform; through setting up casing, fly leaf and brush, make things convenient for the brush to keep the unblocked of sieve, improve the efficiency of seeding fertilization.
Description
Technical Field
The utility model relates to the technical field of agricultural machinery, in particular to a double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine.
Background
Agricultural machinery refers to various machines used in the production process of crop planting and animal husbandry, as well as in the primary processing and treatment process of agricultural and animal products. Agricultural machinery includes agricultural power machinery, farmland construction machinery, soil farming machinery, planting and fertilizing machinery, plant protection machinery, farmland irrigation and drainage machinery, crop harvesting machinery, agricultural product processing machinery, animal husbandry machinery, agricultural transportation machinery and the like.
The current seeder function singleness only can realize the function of seeding or fertilization, is difficult to carry out the rotary tillage to the soil simultaneously and fertilizes to need to use multiple agricultural apparatus, it is lower to use efficiency, and is very inconvenient, and is difficult to handle the fertilizer and the seed of caking during the fertilization, uses to exist not enoughly.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine, including the mounting bracket, the both ends of the bottom of mounting bracket are fixed with the fixed plate, two the both ends of fixed plate all are rotated through the bearing and are connected with first pivot, first pivot runs through the side of fixed plate and is connected with first gear, the side-mounting of fixed plate has the motor, fixed the second gear that has cup jointed on the output shaft of motor, first gear and second gear meshing transmission, first solid fixed ring has been cup jointed through the spline in the first pivot, the both ends at the top of mounting bracket are fixed with the support column, the top of support column is fixed with the mixing box, the mixing box is hollow cylinder structure, the bottom of mixing box has run through the funnel, the bottom of funnel has run through the discharging pipe, the discharging pipe runs through the mounting bracket, the inside fixedly connected with sieve of mixing box, the utility model discloses a screen plate, including sieve, the bottom of sieve is installed the second motor, the bottom fixedly connected with screw rod of the output shaft of second motor, the screw rod insert the inside of discharging pipe and with discharging pipe swing joint, the case lid has been cup jointed through the screw thread in the top of mixing box, the third motor is installed at the top of case lid, the output shaft of third motor runs through the case lid and is connected with the second pivot.
Preferably, the bottom fixedly connected with second of second pivot is solid fixed ring, the side welding of the solid fixed ring of second has the casing, the casing is hollow cuboid structure, the swing joint of casing has the fly leaf, the bottom fixedly connected with brush of fly leaf.
Preferably, be provided with the spring between the top of fly leaf and the inside top of casing, the quantity of spring is a plurality of groups, brush and sieve sliding connection.
Preferably, the side welding of first solid fixed ring has the rotary tillage claw, the quantity of rotary tillage claw is four, four the side that the rotary tillage claw is located first solid fixed ring is the circumference array and distributes.
Preferably, the side of the second rotating shaft is welded with a plurality of stirring rods.
Preferably, the side of the mixing box is fixedly connected with a maintenance door through bolts.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in: when the device is used, the device is installed on a rack, the device is driven to move by pushing the rack, a first motor is started, the first motor drives a second gear, the second gear drives the first gear through meshing transmission, the first gear drives a first rotating shaft, the first rotating shaft drives a first fixing ring, the first fixing ring drives a rotary tillage claw to carry out stubble cleaning and rotary tillage on soil, fertilizer or seeds are put into a mixing box, a box cover is screwed, a second motor is started, a third motor drives a second rotating shaft, the second rotating shaft drives a stirring rod to crush agglomerated seeds or fertilizer, the crushed seeds or fertilizer enter a hopper through a sieve plate, the second motor is started, the screw drives a screw to extrude the seeds or fertilizer to complete sowing, the structure is simple, the use is convenient, the rotary tillage and the sowing are combined, the working efficiency is improved, the agglomerated seeds or fertilizer are separated and crushed at the same time, the seeding and fertilizing are more uniform;
2. the utility model discloses in: when the device is used, the third motor drives the second rotating shaft, the second rotating shaft drives the second fixing ring, the second fixing ring drives the shell, the shell drives the movable plate, the movable plate drives the hairbrush, the multiple groups of springs are arranged to enable the hairbrush to be tightly attached to the sieve plate, smoothness of the sieve plate is kept by the hairbrush conveniently, and seeding and fertilizing efficiency is improved.
Drawings

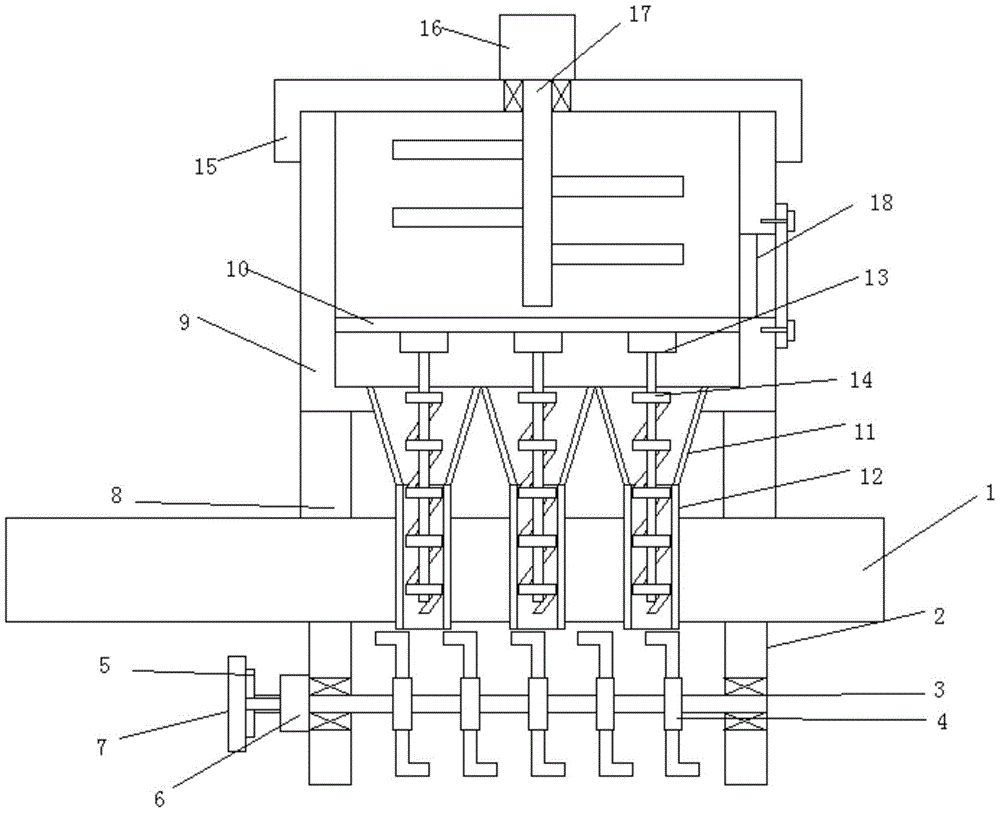

FIG. 1 is a schematic structural view of a first embodiment of the double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine of the present invention;
FIG. 2 is a bottom view of the double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine provided by the utility model;
FIG. 3 is a schematic structural view of a second embodiment of the double-shaft rotary tillage stubble-cleaning seed and fertilizer drill provided by the present invention;
fig. 4 is an enlarged schematic view of the part a of the double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine provided by the utility model.
In the figure: the automatic feeding device comprises a mounting frame, a fixing plate, a first rotating shaft, a first fixing ring, a first gear, a first click, a second gear, a supporting column 8, a mixing box 9, a sieve plate 10, a funnel 11, a discharge pipe 12, a second motor 13, a screw 14, a box cover 15, a third motor 16, a second rotating shaft 17, a maintenance door 18, a second fixing ring 19, a shell 20, a movable plate 21 and a hairbrush 22.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
The first embodiment is as follows:
referring to fig. 1-2, a double-shaft rotary tillage stubble cleaning fertilizing and seeding machine comprises a mounting frame 1, wherein two ends of the bottom of the mounting frame 1 are fixed with fixing plates 2, two ends of the two fixing plates 2 are rotatably connected with first rotating shafts 3 through bearings, the first rotating shafts 3 penetrate through the side faces of the fixing plates 2 and are connected with first gears 5, the side faces of the fixing plates 2 are provided with motors 6, output shafts of the motors 6 are fixedly sleeved with second gears 7, the first gears 5 and the second gears 7 are in meshing transmission, the first rotating shafts 3 are sleeved with first fixing rings 4 through splines, two ends of the top of the mounting frame 1 are fixed with support columns 8, the top of each support column 8 is fixed with a mixing box 9, each mixing box 9 is of a hollow cylindrical structure, the bottom of each mixing box 9 penetrates through a funnel 11, the bottom of each funnel 11 penetrates through a discharge pipe 12, each discharge pipe 12 penetrates through the mounting frame 1, the second motor 13 is installed to the bottom of sieve 10, and the bottom fixedly connected with screw rod 14 of the output shaft of second motor 13, screw rod 14 insert the inside of discharging pipe 12 and with discharging pipe 12 swing joint, the top of mixing box 9 has cup jointed case lid 15 through the screw thread, and third motor 16 is installed at the top of case lid 15, and the output shaft of third motor 16 runs through case lid 15 and is connected with second pivot 17.
Wherein, the side welding of first solid fixed ring 4 has the rotary tillage claw, and the quantity of rotary tillage claw is four, and four rotary tillage claws are located the side of first solid fixed ring 4 and are the circumference array and distribute.
Wherein, the side welding of second pivot 17 has the puddler, and the quantity of puddler is a plurality of.
Wherein, the side of the mixing box 9 is fixedly connected with a maintenance door 18 through bolts.
Example two:
referring to fig. 2-4, a double-shaft rotary tillage stubble cleaning fertilizing and seeding machine comprises a mounting frame 1, wherein two ends of the bottom of the mounting frame 1 are fixed with fixing plates 2, two ends of the two fixing plates 2 are rotatably connected with first rotating shafts 3 through bearings, the first rotating shafts 3 penetrate through the side faces of the fixing plates 2 and are connected with first gears 5, the side faces of the fixing plates 2 are provided with motors 6, output shafts of the motors 6 are fixedly sleeved with second gears 7, the first gears 5 and the second gears 7 are in meshing transmission, the first rotating shafts 3 are sleeved with first fixing rings 4 through splines, two ends of the top of the mounting frame 1 are fixed with support columns 8, the top of each support column 8 is fixed with a mixing box 9, each mixing box 9 is of a hollow cylindrical structure, the bottom of each mixing box 9 penetrates through a funnel 11, the bottom of each funnel 11 penetrates through a discharge pipe 12, each discharge pipe 12 penetrates through the mounting frame 1, the second motor 13 is installed to the bottom of sieve 10, and the bottom fixedly connected with screw rod 14 of the output shaft of second motor 13, screw rod 14 insert the inside of discharging pipe 12 and with discharging pipe 12 swing joint, the top of mixing box 9 has cup jointed case lid 15 through the screw thread, and third motor 16 is installed at the top of case lid 15, and the output shaft of third motor 16 runs through case lid 15 and is connected with second pivot 17.
The bottom of the second rotating shaft 17 is fixedly connected with a second fixing ring 19, a shell 20 is welded on the side surface of the second fixing ring 19, the shell 20 is a hollow cuboid structure, a movable plate 21 is movably connected to the shell 20, and a brush 22 is fixedly connected to the bottom of the movable plate 21.
Wherein, a plurality of groups of springs are arranged between the top of the movable plate 21 and the top inside the casing 20, and the brush 22 is connected with the sieve plate 10 in a sliding way.
Wherein, the side welding of first solid fixed ring 4 has the rotary tillage claw, and the quantity of rotary tillage claw is four, and four rotary tillage claws are located the side of first solid fixed ring 4 and are the circumference array and distribute.
Wherein, the side welding of second pivot 17 has the puddler, and the quantity of puddler is a plurality of.
Wherein, the side of the mixing box 9 is fixedly connected with a maintenance door 18 through bolts.
The working principle is as follows: when the device is used, the device is arranged on a rack, the device is driven to move by pushing the rack, a first motor 6 is started, the first motor 6 drives a second gear 7, the second gear 7 drives a first gear 5 through meshing transmission, the first gear 5 drives a first rotating shaft 3, the first rotating shaft 3 drives a first fixing ring 4, the first fixing ring 4 drives a rotary tillage claw to carry out stubble cleaning and rotary tillage on the soil, fertilizer or seeds are put into a mixing box 9, a box cover 15 is screwed, a second motor 16 is started, a third motor 16 drives a second rotating shaft 17, the second rotating shaft 17 drives a stirring rod to crush agglomerated seeds or fertilizer, the crushed seeds or fertilizer enter a funnel 11 through a sieve plate 10, a second motor 13 is started, the second motor 13 drives a screw 14, the screw 14 extrudes the seeds or fertilizer to complete seeding, the device is simple in structure and convenient to use, the rotary tillage and the seeding are combined together, the working efficiency is improved, and simultaneously, the agglomerated seeds or fertilizers are separated and crushed, so that the sowing and fertilizing are more uniform;
when the device is used, the third motor 16 drives the second rotating shaft 17, the second rotating shaft 17 drives the second fixing ring 19, the second fixing ring 19 drives the shell 20, the shell 20 drives the movable plate 21, the movable plate 21 drives the brush 22, and the brush 22 is tightly attached to the sieve plate 10 through the multiple groups of springs, so that the brush 22 can keep the sieve plate 10 smooth, and the seeding and fertilizing efficiency is improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. Double-shaft rotary tillage stubble-cleaning fertilizing and seeding machine, including mounting bracket (1), its characterized in that, the both ends of the bottom of mounting bracket (1) are fixed with fixed plate (2), two the both ends of fixed plate (2) all are connected with first pivot (3) through the bearing rotation, first pivot (3) run through the side of fixed plate (2) and are connected with first gear (5), the side-mounting of fixed plate (2) has motor (6), it has second gear (7) to fix the cover on the output shaft of motor (6), first gear (5) and second gear (7) meshing transmission, it has first solid fixed ring (4) to cup joint through the spline on first pivot (3), the both ends at the top of mounting bracket (1) are fixed with support column (8), the top of support column (8) is fixed with mixing box (9), mixing box (9) are hollow cylinder structure, the bottom of mixing box (9) runs through there is funnel (11), the bottom of funnel (11) runs through there is discharging pipe (12), mounting bracket (1) is run through in discharging pipe (12), inside fixedly connected with sieve (10) of mixing box (9), second motor (13) are installed to the bottom of sieve (10), bottom fixedly connected with screw rod (14) of the output shaft of second motor (13), screw rod (14) insert the inside of discharging pipe (12) and with discharging pipe (12) swing joint, case lid (15) have been cup jointed through the screw thread in the top of mixing box (9), third motor (16) are installed at the top of case lid (15), the output shaft of third motor (16) runs through case lid (15) and is connected with second pivot (17).
2. A double-shaft rotary tillage, stubble ploughing, fertilizing and seeding machine as claimed in claim 1, characterized in that the bottom of the second rotating shaft (17) is fixedly connected with a second fixing ring (19), a housing (20) is welded on the side of the second fixing ring (19), the housing (20) is a hollow cuboid structure, a movable plate (21) is movably connected to the housing (20), and a brush (22) is fixedly connected to the bottom of the movable plate (21).
3. A twin axle rotary tillage stubble ploughing, fertilizing and seeding machine as claimed in claim 2, characterised in that springs are provided between the top of the movable plate (21) and the top inside the housing (20), the number of said springs being several groups, the brushes (22) being in sliding connection with the sieve plate (10).
4. A double-shaft rotary tillage, stubble ploughing, fertilizing and seeding machine as claimed in claim 1, characterized in that the side of the first fixing ring (4) is welded with four rotary tillage claws, and the four rotary tillage claws are located on the side of the first fixing ring (4) and distributed in a circumferential array.
5. A double-shaft rotary tillage, stubble ploughing, fertilizing and seeding machine as claimed in claim 1, characterized in that the side of the second rotating shaft (17) is welded with a plurality of stirring rods.
6. A twin axle rotary tillage stubble ploughing fertilizing and seeding machine as claimed in claim 1, characterised in that the side of the mixing box (9) is fixedly connected with a maintenance door (18) by means of bolts.
