The utility model relates to a packaging bag counting and collecting device, which solves the technical problem that the packaging bag collecting device cannot count and is provided with a fixed supporting plate and is characterized in that a first lifting and translation mechanism, a second lifting and translation mechanism and a board inserting mechanism are fixedly arranged on the fixed supporting plate, the first lifting and translation mechanism is provided with a first lifting cylinder, a first lifting rod, a lifting fixing plate and a front plate, the second lifting and translation mechanism is provided with a second lifting cylinder, a second lifting rod, a first fixing plate, a second fixing plate and a right plate, a groove is arranged on the fixed supporting plate, the groove is transversely inserted with the board inserting mechanism, the board inserting mechanism is provided with a board inserting plate, the lower end of the board inserting plate is provided with a board inserting slider, the board inserting slider is sleeved on a guide rod fixed on the fixed supporting plate, the two guide rods are arranged and are in the same horizontal displacement, the upper end of the board inserting plate is provided with, the baffle is connected with the fixed supporting plate through a fixed rod. The utility model discloses but wide application in equipment for packing field.
Description
Technical Field
The utility model belongs to the technical field of equipment for packing and specifically relates to a wrapping bag count material collecting device.
Background
The packaging bag receiving device is an operation procedure for collecting packaging bags in a production and processing procedure, has a wide application range, and has the characteristics of large storage capacity, stable work, good performance and the like; the current wrapping bag material collecting device has certain drawback when using, and the collection process of wrapping bag can only be carried out to the single structure of device, can't count the wrapping bag, brings many inconveniences for subsequent packing work. Therefore, a packaging bag counting and receiving device is provided.
Disclosure of Invention
The utility model discloses just for solve above-mentioned background art's problem, provide a wrapping bag count material collecting device that can count the wrapping bag.
To achieve the purpose, the utility model provides a packaging bag counting and material receiving device, which is provided with a fixed supporting plate, a first lifting and translation mechanism, a second lifting and translation mechanism and a board inserting mechanism are fixedly arranged on the fixed supporting plate, the first lifting and translation mechanism is provided with a first lifting cylinder, a first lifting rod, a lifting fixed plate and a front plate, the second lifting and translation mechanism is provided with a second lifting cylinder, a second lifting rod, a first fixed plate, a second fixed plate and a right plate, a groove is arranged on the fixed supporting plate, the groove is transversely inserted with the board inserting mechanism, the board inserting mechanism is provided with a board inserting, the lower end of the board inserting is provided with a board inserting slider, the board inserting slider is sleeved on a guide rod fixed on the fixed supporting plate, the guide, and the upper end of the inserting plate is provided with an inserting plate pushing block, the inserting plate is provided with a U-shaped groove, a baffle is arranged at the U-shaped groove, and the baffle is connected with the fixed supporting plate through a fixed rod.
Preferably, a first lifting cylinder is fixed on the cylinder bottom plate, lifting rods are arranged on two sides of the first lifting cylinder, a lifting slide block is sleeved on each lifting rod and fixed on a lifting fixing plate perpendicular to the cylinder bottom plate, and first end plates are arranged at two ends of the lifting fixing plate.
Preferably, two first connecting rods which are parallel up and down are arranged between the two first end plates, a connecting sliding block is arranged on each first connecting rod, and each connecting sliding block is connected with the front plate.
Preferably, an adjusting screw rod is arranged between the two first connecting rods and is in through connection with a first end plate on one side of the lifting fixing plate.
Preferably, the fixed support plate is fixed with a second end plate, the second end plate is connected with two second connecting rods which are parallel up and down, and each second connecting rod is sleeved with a first sliding block and a second sliding block.
Preferably, a second adjusting screw rod is arranged between the two second connecting rods and is in through connection with the second end plate.
Preferably, the second lifting cylinder both sides all are equipped with the second lifter, and the second lifter is fixed in on the first fixed plate, and first fixed plate top is equipped with the second fixed plate, and the right board is connected to the second fixed plate upper end.
Preferably, the conveying mechanism is arranged above the inserting plate mechanism and provided with a conveying support, a driving wheel and a driven wheel are arranged on the conveying support, and a conveying belt is arranged between the driving wheel and the driven wheel.
Preferably, a reduction motor is fixed to one side end of the conveying bracket.
The utility model has the advantages that:
the utility model discloses be equipped with picture peg mechanism, picture peg mechanism is equipped with the picture peg, divide into two boxes through picture peg mechanism, is the first box of compriseing fixed support board, front bezel, left board, right board and bottom plate and the second box of compriseing picture peg, left board, right board and front bezel respectively. When the number of the packaging bags in the first box body reaches the target number, the pushing cylinder pushes the inserting plate to move forwards, and the inserting plate is automatically inserted into the first box body; meanwhile, the front plate moves along the first connecting rod and the left plate along the second connecting rod and is connected with the inserting plate; the packaging bag automatically falls into a second box body which is composed of a plug board, a front board, a left board and a right board. At the moment, the first lifting cylinder drives the front plate to move upwards, the first box body is opened, and the packaging bag is taken out. The front plate moves downwards, the right plate moves upwards under the action of the second lifting cylinder, the inserting plate automatically returns, the packaging bags automatically fall onto the right plate, and the right plate moves downwards to continue to accept the packaging bags, so that the counting purpose is achieved.
Drawings

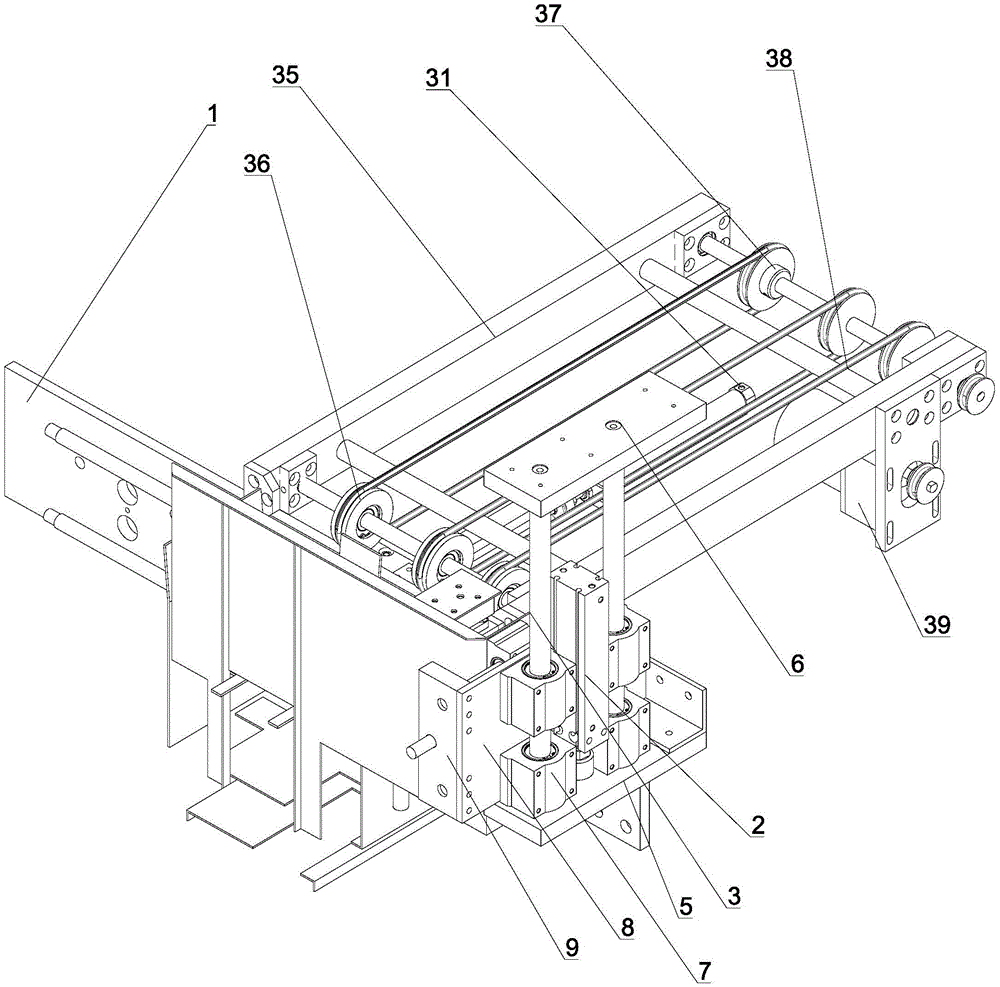

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic structural view of the removing and conveying mechanism of the present invention;
fig. 3 is a schematic structural view of a second lifting and translating mechanism of the present invention;
fig. 4 is a schematic structural view of a plate insertion mechanism according to the present invention.
Reference numerals:
1. fixing the support plate; 2. a first lifting cylinder; 3. a first lifting rod; 4. a left panel; 5. a cylinder bottom plate; 6. lifting the end plate; 7. a lifting slide block; 8. a lifting fixing plate; 9. a first end plate; 10. a first connecting rod; 11. connecting the sliding block; 12. a front plate; 13. a first end plate; 14. a second end plate; 15. a second connecting rod; 16. a first slider; 17. a second slider; 18. a second adjusting screw; 19. a second lifting cylinder; 20. a first fixing plate; 21. a second lifting rod; 22. a second fixing plate; 23. a right plate; 24. a base plate; 25. a slide plate; 26. a groove; 27. inserting plates; 28. an inserting plate sliding block; 29. a guide bar; 30. a plug board push block; 31. a push cylinder; a U-shaped groove; 33. a baffle plate; 34. a connecting rod; 35. a delivery carriage; 36, driving wheel; 37. a driven wheel; 38. a conveyor belt; 39. a reduction motor; 40. the first adjusting lead screw.
Detailed Description
The preferred embodiments of the present invention will be described in detail below with reference to the accompanying drawings, and it should be understood that the preferred embodiments described herein are only for the purpose of illustrating and explaining the present invention and are not limited to the present invention.
The utility model provides a packing count material collecting device, it is equipped with fixed support plate 1, fixed being equipped with first lift translation mechanism, second lift translation mechanism and picture peg mechanism on the fixed support plate 1.
As shown in fig. 1, the first lifting and translating mechanism is provided with a first lifting cylinder 2, a first lifting rod 3, a lifting fixing plate 8 and a front plate 12, the first lifting cylinder 2 is fixed on a cylinder bottom plate 5, and the cylinder bottom plate 5 is located at one end of the fixing and supporting plate 1. The both sides of first lift cylinder 2 all are equipped with first lifter 3, and the bottom mounting of every first lifter 3 is on cylinder bottom plate 5, and the upper end is fixed in on the lift end plate 6. Two lifting slide blocks 7 are sleeved on each lifting rod 3, and the lifting slide blocks 7 are fixed on a lifting fixing plate 8 which is vertical to the cylinder bottom plate 5. The two ends of the lifting fixing plate 8 are provided with first end plates 9 for limiting.
As shown in fig. 2, two parallel first connecting rods 10 are disposed between the two first end plates 9, and two connecting sliders 11 are disposed on the first connecting rods 10. The four connecting sliders 11 are fixedly connected with the front plate 12. An adjusting screw rod 11 is arranged between the two first connecting rods 10, and the adjusting screw rod 11 is connected with a first end plate 13 on one side of the lifting fixing plate 8 in a penetrating manner.
A second end plate 14 is fixed on the fixed supporting plate 1, the second end plate 14 is connected with two second connecting rods 15 which are parallel up and down, and two sliders, namely a first slider 16 and a second slider 17, are sleeved on the second connecting rods 15. A second adjusting screw 18 is arranged between the two second connecting rods 15, and the second adjusting screw 18 is connected with the second end plate 14 in a penetrating manner. The first sliding blocks of the first connecting rod and the second connecting rod are connected with the left plate, and the two sliding blocks are connected with the second lifting and translation mechanism.
As shown in fig. 3, the second lifting and translating mechanism is provided with a second lifting cylinder 19, and the second lifting cylinder 19 is fixedly connected to the first fixing plate 20. The two sides of the second lifting cylinder 19 are both provided with a second lifting rod 21, and the second lifting rod 21 is fixed on the first fixing plate 20. A second fixing plate 22 is arranged above the first fixing plate 20, and a cushion block is arranged between the first fixing plate 20 and the second fixing plate 22 to play a role in buffering. The upper end of the second fixing plate 22 is connected with a right plate 23. Under the action of the second lifting cylinder 19, the second fixing plate 22 can be moved up and down, so that the right plate 23 is driven to move up and down. A bottom plate 24 is arranged below the right plate 23, and the bottom plate 24 is fixed on the fixed supporting plate 1.
Further, a sliding plate 25 is connected to one side of the first fixing plate 20, and the sliding plate 25 is connected to the first sliding blocks of the first connecting rod 10 and the second connecting rod 15. When the first sliding block 16 on the first connecting rod 10 and the second connecting rod 15 moves, the sliding plate 25 can be driven to move, and then the right plate 23 is driven to move.
Furthermore, the left plate 4, the right plate 23, the front plate 12 and the bottom plate 24 form a first box body for receiving the packaging bag.
As shown in fig. 1 and 4, a groove 26 is formed in the fixed support plate 1, a board inserting mechanism is transversely inserted into the groove 26, the board inserting mechanism is provided with two inserting boards 27, a board inserting slide block 28 is arranged at the lower end of each inserting board, the board inserting slide block 28 is sleeved on a guide rod 29 on the fixed support plate, and the two guide rods 29 are in the same horizontal displacement. The upper end of the inserting plate 27 is provided with an inserting plate pushing block 30, and the inserting plate pushing block 30 is connected with a pushing cylinder 31. The inserting plate pushing block 30 is pushed by the pushing cylinder 31, so that the inserting plate 27 is pushed to move along the guide rod 29. The inserting plate 27 is further provided with a U-shaped groove 32, a baffle 33 is arranged at the U-shaped groove 32 of the inserting plate, and the baffle 33 is connected with the fixed supporting plate 1 through a fixing rod 34 and used for ensuring that the packaging bag falls into the first box body or the second box body smoothly.
Wherein, picture peg 27, front bezel 12, left side board 4 and right side board 23 constitute the second box for hold the wrapping bag.
Additionally, the utility model discloses still be equipped with transport mechanism, transport mechanism arranges the top of picture peg mechanism in for the conveying wrapping bag. The conveying mechanism is provided with a conveying bracket 35, a driving wheel 36 and a driven wheel 37 are arranged on the conveying bracket 35, and a conveying belt 38 is arranged between the driving wheel 36 and the driven wheel 37. A gear motor 39 is fixed to one side of the transport carriage 35 for controlling the speed of the transport mechanism.
The utility model discloses a theory of operation does:
firstly, the packaging bags are transported on the conveyor belt 38, the speed reducing motor 39 is started, the conveying speed is reduced, and the packaging bags stably fall into the first box body formed by the left plate 4, the front plate 12, the right plate 23 and the bottom plate 24. When the number of the packing bags reaches the target number, the pushing cylinder 31 pushes the inserting plate pushing block 30, and the inserting plate 27 moves forwards and is inserted between the first box bodies to be used as a baffle plate. Meanwhile, the front plate 12 moves along the first connecting rod 10 and the left plate 4 moves along the second connecting rod 26 to be connected with the inserting plate 27; the subsequent packages are automatically dropped into the second box formed by the insert 27, the front panel 12, the left panel 4 and the right panel 23. At this time, the first lifting cylinder 2 drives the front plate 12 to move upwards, the first box body is opened, and the packaging bag is taken out. The front plate 12 moves downwards, the right plate 23 moves under the action of the second lifting cylinder 19, the inserting plate 27 automatically returns, the packaging bags automatically fall onto the right plate 23, the right plate 23 moves downwards, and the packaging bags are continuously received, so that the counting purpose is achieved.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (9)
1. A packaging bag counting and collecting device is provided with a fixed supporting plate and is characterized in that a first lifting and translating mechanism, a second lifting and translating mechanism and a plate inserting mechanism are fixedly arranged on the fixed supporting plate, the first lifting and translating mechanism is provided with a first lifting cylinder, a first lifting rod, a lifting fixing plate and a front plate, the second lifting and translating mechanism is provided with a second lifting cylinder, a second lifting rod, a first fixing plate, a second fixing plate and a right plate, a groove is formed in the fixed supporting plate, the groove is transversely inserted into the plate inserting mechanism, the plate inserting mechanism is provided with a plate inserting plate, a plate inserting sliding block is arranged at the lower end of the plate inserting plate and sleeved on a guide rod fixed on the fixed supporting plate, the two guide rods are in the same horizontal displacement, a plate inserting push block is arranged at the upper end of the plate inserting plate, a U-shaped groove is formed in the plate inserting plate, a baffle is arranged at the, the baffle is connected with the fixed supporting plate through a fixed rod.
2. The counting and material receiving device for the packaging bags according to claim 1, wherein the first lifting cylinder is fixed on a cylinder bottom plate, lifting rods are arranged on both sides of the first lifting cylinder, each lifting rod is sleeved with a lifting slider, the lifting sliders are fixed on a lifting fixing plate perpendicular to the cylinder bottom plate, and first end plates are arranged at both ends of the lifting fixing plate.
3. The counting and material receiving device for the packaging bags according to claim 2, wherein two first connecting rods are arranged between the two first end plates in parallel up and down, and each first connecting rod is provided with a connecting slide block which is connected with the front plate.
4. The counting and material receiving device for the packaging bags as claimed in claim 3, wherein an adjusting screw rod is arranged between the two first connecting rods and is connected with the first end plate on one side of the lifting fixing plate in a penetrating manner.
5. The counting and material receiving device for the packaging bags according to claim 1, wherein a second end plate is fixed on the fixed support plate, the second end plate is connected with two second connecting rods which are parallel up and down, and a first sliding block and a second sliding block are sleeved on each second connecting rod.
6. The counting and material receiving device for the packaging bags as claimed in claim 5, wherein a second adjusting screw rod is arranged between the two second connecting rods and is connected with the second end plate in a penetrating manner.
7. The counting and material receiving device for the packaging bags as claimed in claim 1, wherein the second lifting cylinder is provided with a second lifting rod on both sides, the second lifting rod is fixed on the first fixing plate, a second fixing plate is arranged above the first fixing plate, and the upper end of the second fixing plate is connected with the right plate.
8. The packaging bag counting and collecting device as claimed in claim 1, further comprising a conveying mechanism disposed above the inserting plate mechanism, wherein the conveying mechanism is provided with a conveying support, the conveying support is provided with a driving wheel and a driven wheel, and a conveying belt is disposed between the driving wheel and the driven wheel.
9. The counting and receiving device for the packaging bags according to claim 8, wherein a speed reduction motor is fixed at one side end of the conveying support.
