Abstract

The utility model discloses a simple pepper seedling bed, comprising a water tank, brackets are fixedly assembled on the front and rear sides of the inner wall of the water tank, a tray is fixedly assembled between the two brackets, and the number of the trays is three, A seedling tray is placed on the inner wall of the tray, and a top plate is fixedly assembled on the top of the two brackets. The water tank collects and stores the overflowed water during watering to avoid waste of water. Through the cooperation of the water tank and the top plate, the water in the water tank is sprayed out through the drain pipe. When the pepper seedlings need a lot of water, a large amount of water is discharged from the drain pipe. The water flows along the surface of the stepped side plate, and the rubber plug is inserted into the opening. You can choose to water the seedling trays on different trays. The water flows into different trays from the openings. Pepper seedlings need a small amount of water. When water is used, the adjusting device is used to spray the water from the nozzle and spray it on the pepper seedlings, so that the pepper seedlings can absorb the water, grow normally, and the operation is simple.

Description

A simple pepper seedling bed

technical field

The utility model relates to the technical field of pepper seedling beds, in particular to a simple pepper seedling bed.

Background technique

The germination stage is the beginning of the growth of pepper, and it is usually unearthed about 5-8 days after germination and sowing. The first true leaf appears in about 15 days. When the flower buds are revealed, it is the seedling stage. The first flower ear to the door pepper is mainly in the flowering stage. When the seedlings are pulled out as the fruiting period, the suitable temperature for pepper is between 15-34 degrees, and the suitable temperature for seed germination is 25-30 degrees. It takes 5-7 days for germination. The temperature is high during the period, 25-30 degrees in the daytime, and 15-18 degrees in the night. The seedlings are not resistant to low temperature, so pay attention to cold protection. If the pepper is at 35 degrees, it will cause flowers and fruits to fall. When cultivating peppers, it will be used. The pepper seedling bed is inconvenient to water the peppers during use, and cannot be adjusted according to the water demand for the pepper seedlings, which is not conducive to the growth of the pepper seedlings, and will also cause a waste of water resources.

Utility model content

The purpose of this utility model is to provide a simple pepper seedling bed to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a simple pepper seedling bed, comprising a water tank, the inner wall of the water tank is fixedly equipped with brackets on both sides, and a tray is fixedly assembled between the two brackets, so the The number of the trays is three, the inner walls of the trays are placed with seedling trays, the tops of the two brackets are fixedly assembled with a top plate, the tops of the top plates are fixedly equipped with a water tank, and both sides of the bottom end of the water tank are fixed. There is a drain pipe running through it, the drain pipe runs through the top plate, the two sides of the three trays are provided with side plates, the surface of the side plates is provided with an opening, and the inner wall of the opening is inserted with a rubber plug, the drain The outer wall of the pipe is provided with an adjustment device, the bottom end of the adjustment device is equipped with a collar, the side of the collar is fixedly equipped with a sleeve, and the inner wall of the sleeve is fixedly equipped with a nozzle.

Preferably, the adjusting device includes a top rod, the top rod is fixedly assembled on the drain pipe, the side surface of the drain pipe is provided with a casing, the casing is provided with a cavity, and the top rod extends into the cavity , the side of the casing is fixedly assembled with a connecting rod, the bottom end of the connecting rod is sleeved with a collar, the surface of the connecting rod is screwed with bolts, and both sides of the lower surface of the top plate are fixedly assembled with supports , the bottom end of the support is rotatably assembled with a rotating rod, and the bottom end of the rotating rod is fixedly assembled with a nut.

Preferably, the inner wall of the cavity is provided with a chute, the inner wall of the chute is slidably clamped with a sliding block, and the sliding block is fixedly assembled with the ejector rod.

Preferably, cotton cloth is laid in the tray.

Preferably, the diameters and lengths of the three trays decrease sequentially from top to bottom.

Preferably, the side plate is in a stepped shape.

Compared with the prior art, the beneficial effect of the utility model is: a simple pepper seedling bed, through the cooperation of a water tank and a support, three trays with different sizes are fixed on the support, and the water tank collects the overflowing water during watering. and storage to avoid water waste, through the cooperation of the water tank and the top plate, the water in the water tank is sprayed out through the drain pipe. When the pepper seedlings need a lot of water, the large amount of water discharged by the drain pipe runs along the surface of the stepped side plate. Flow, plug the rubber plug into the opening, and water the seedling trays on different trays. When the water is filled, the water is sprayed from the nozzle by the adjusting device and sprayed on the pepper seedlings, so that the pepper seedlings can absorb the water and grow normally, with simple operation and strong flexibility.

Description of drawings

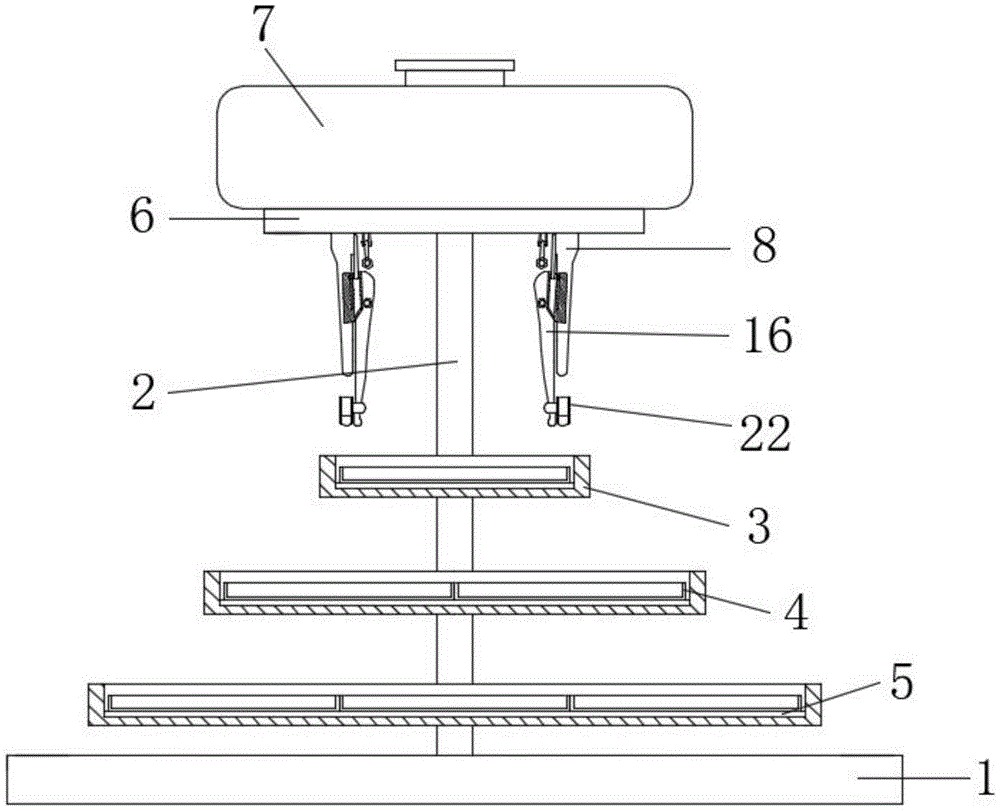

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural schematic diagram of the installation side plate of the utility model;

Fig. 3 is the structural representation of A place in Fig. 2;

FIG. 4 is a schematic diagram of the structure at B in FIG. 2 .

In the picture: 1-water tank, 2-support, 3-tray, 4-seedling tray, 5-cotton cloth, 6-top plate, 7-water tank, 8-drain pipe, 9-side plate, 10-opening, 11-rubber stopper , 12-shell, 13-chute, 14-slider, 15-top rod, 16-connecting rod, 17-bolt, 18-nut, 19-rotating rod, 20-support, 21-collar, 22- Sleeve, 23-Nozzle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-4 , the present utility model provides a technical solution: a simple pepper seedling bed, comprising a water tank 1 , and brackets 2 are fixedly assembled on both the front and rear sides of the inner wall of the water tank 1 , and a bracket 2 is fixedly assembled between the two brackets 2 Tray 3, the number of the tray 3 is three, the inner wall of the tray 3 is placed with a seedling tray 4, the top of the two brackets 2 is fixedly equipped with a top plate 6, the top of the top plate 6 is fixedly equipped with a water tank 7, and the bottom of the water tank 7 is fixedly equipped with a water tank 7. There are drain pipes 8 running through both sides of the end, and the drain pipes 8 are running through the top plate 6. Both sides of the three trays 3 are provided with side plates 9. The surface of the side plates 9 is provided with an opening 10, and the inner wall of the opening 10 is inserted with a rubber plug. 11. The outer wall of the drain pipe 8 is provided with an adjustment device, the bottom end of the adjustment device is equipped with a collar 21, the side of the collar 21 is fixedly equipped with a sleeve 22, and the inner wall of the sleeve 22 is fixedly equipped with a nozzle 23.

The top tray 3 stores one seedling tray 4, the middle tray 3 stores two seedling trays 4, and the bottom tray 3 stores three seedling trays 4, and the three trays 3 are in the shape of a ladder. When the water is poured into the tray 3, the water overflows and flows into the tray 3 in the middle, then flows into the tray 3 at the bottom, and finally flows into the water tank 1 to collect the water for easy recycling. Water is injected, and a valve is installed on the drain pipe 8 to control whether the water flows out. When the pepper seedlings need a lot of water, the side plate 9 is set up on the tray 3, the rubber stopper 11 is opened, and the water discharged from the drain pipe 8 flows from the side plate 9. Flow, and finally flow from the opening 10 to the tray 3, the water flows along the surface of the side plate 9, and a piece of feng shui will directly flow into the water tank, which will reduce the impact force of the water on the seedling tray 4 and avoid damage to the pepper seedlings , saves the time of manual watering, improves work efficiency, and has strong practical performance. When using the nozzle 23 to directly spray the pepper seedlings, the side plate 9 is removed, and the nozzle 23 is placed at the bottom of the drain pipe 8. The pepper seedlings are sprayed with a small amount of water, and the position of the seedling tray 4 is changed regularly, so as to change the amount of water that the pepper seedlings can absorb, and also change the position receiving light.

Specifically, the adjusting device includes a top rod 15, the top rod 15 is fixedly assembled on the drain pipe 8, a casing 12 is provided on the side of the drain pipe 8, a cavity is provided in the casing 12, the top rod 15 extends into the cavity, and the casing The side surface of 12 is fixedly assembled with a connecting rod 16, the bottom end of the connecting rod 16 is sleeved with a collar 21, the surface of the connecting rod 16 is screwed with bolts 17, and both sides of the lower surface of the top plate 6 are fixedly assembled with supports 20. The bottom end of the seat 20 is rotatably assembled with a rotating rod 19 , and the bottom end of the rotating rod 19 is fixedly assembled with a nut 18 .

When the nozzle 23 needs to be used, pull the nozzle 23, the sleeve 22 located on the outer wall of the nozzle 23 drives the collar 21 to rotate, rotate the nozzle 23 to the bottom of the drain pipe 8, and sleeve the sleeve 22 to the bottom of the drain pipe 8. , the connecting rod 16 drives the casing 12 to move together, the casing 12 moves to the outside of the ejector rod 15, the bolt 17 is removed from the connecting rod 16, and the nut 18 is pulled at the same time, the nut 18 drives the rotating rod 19 to rotate, and the support 20 rotates The rod 19 is supported, and the bolt 17 is screwed into the nut 18 to fix the position of the connecting rod 16. At this time, the water discharged from the drain pipe 8 is sprayed through the nozzle 23 inside the sleeve 22, and a small amount of water can be sprayed evenly. .

Specifically, the inner wall of the cavity is provided with a chute 13 , the inner wall of the chute 13 is slidably clamped with a sliding block 14 , and the sliding block 14 is fixedly assembled with the ejector rod 15 .

During the movement of the ejector rod 15 , the slider 14 moves on the inner wall of the chute 13 , and the slider 14 and the chute 13 limit the movement position of the ejector rod 15 .

Specifically, the cotton cloth 5 is laid in the tray 3 .

The cotton cloth 5 is laid in the tray 3 to avoid rapid evaporation and loss of moisture.

Specifically, the diameters of the three trays 3 decrease sequentially from top to bottom.

After the top tray 3 is filled with water and overflows, it will flow into the middle tray 3, and then flow into the bottom tray 3. Finally, the water tank 1 collects the water for easy recovery and reuse.

Specifically, the side plate 9 has a stepped shape.

The water can continuously flow downward along the surface of the side plate 9 and finally flow into the water tank 1 .

Working principle: Use a water pump to inject water into the water tank 7. There is an opening on the water tank 7 to facilitate the entry of water into the water tank 7. A valve is installed on the drain pipe 8 to control whether the water flows out. When the pepper seedlings need a lot of water, the side The plate 9 is erected on the tray 3, the rubber plug 11 is opened, the water discharged from the drain pipe 8 flows from the side plate 9, and finally flows to the tray 3 from the opening 10, and the water flows along the surface of the side plate 9, a feng shui It will directly flow into the water tank, which will reduce the impact of water on the seedling tray 4, avoid damage to the pepper seedlings, save the time for manual watering, improve work efficiency, and have strong practical performance. Use the nozzle 23 to directly spray the pepper seedlings During the water, the side plate 9 is removed, and the nozzle 23 is placed at the bottom end of the drain pipe 8 at the same time, and the pepper seedlings can be sprayed with a small amount of water, and the position of the seedling tray 4 can be changed regularly, thereby changing the amount of water that can be absorbed by the pepper seedlings. Change the location of the light.

In the description of the present invention, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection", "connection" and "fixation" should be interpreted in a broad sense, for example, it may be a fixed connection, or It can be a detachable connection or an integrated body; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium, and it can be the internal connection of two elements or the interaction between the two elements. . For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional model in the prior art, and the circuit connection adopts the conventional connection manner in the prior art, which will not be described in detail here.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a simple and easy hot pepper bed of growing seedlings, includes basin (1), its characterized in that: both sides all are fixedly equipped with support (2) around the inner wall of basin (1), two fixedly equipped with tray (3) between support (2), the quantity of tray (3) is three, educate seedling tray (4) all placed to the inner wall of tray (3), two the top of support (2) is fixedly equipped with roof (6), the top of roof (6) is fixed to be equipped with water tank (7), drain pipe (8) have all been run through to the bottom both sides of water tank (7), drain pipe (8) run through roof (6), three the both sides of tray (3) all are equipped with curb plate (9), opening (10) have been seted up on the surface of curb plate (9), rubber buffer (11) have been pegged graft to the inner wall of opening (10), the outer wall of drain pipe (8) is equipped with adjusting device, the adjusting device bottom is equipped with the lantern ring (21), the side surface of the collar (21) is fixedly provided with a sleeve (22), and the inner wall of the sleeve (22) is fixedly provided with a nozzle (23).

2. The simple pepper seedling raising bed as claimed in claim 1, wherein: adjusting device includes ejector pin (15), ejector pin (15) fixed mounting is on drain pipe (8), the side of drain pipe (8) is equipped with shell (12), be equipped with the cavity in shell (12), ejector pin (15) extend to in the cavity, the side fixed mounting of shell (12) has connecting rod (16), lantern ring (21) has been cup jointed to the bottom of connecting rod (16), the surperficial spiro union of connecting rod (16) has bolt (17), the equal fixed mounting in lower surface both sides of roof (6) has support (20), the bottom of support (20) is rotated and is equipped with bull stick (19), the bottom fixed mounting of bull stick (19) is equipped with nut (18).

3. A simple pepper seedling raising bed as claimed in claim 2, wherein: the inner wall of cavity has seted up spout (13), the inner wall sliding clamp of spout (13) has slider (14), slider (14) and ejector pin (15) fixed assembly.

4. The simple pepper seedling raising bed as claimed in claim 1, wherein: cotton cloth (5) is laid in the tray (3).

5. The simple pepper seedling raising bed as claimed in claim 1, wherein: the diameter and the length of the three trays (3) are sequentially reduced from top to bottom.

6. The simple pepper seedling raising bed as claimed in claim 1, wherein: the side plate (9) is in a step shape.
