CN202455979U - Greenhouse irrigation system - Google Patents
Greenhouse irrigation system Download PDFInfo
- Publication number
- CN202455979U CN202455979U CN2012200916584U CN201220091658U CN202455979U CN 202455979 U CN202455979 U CN 202455979U CN 2012200916584 U CN2012200916584 U CN 2012200916584U CN 201220091658 U CN201220091658 U CN 201220091658U CN 202455979 U CN202455979 U CN 202455979U
- Authority
- CN
- China
- Prior art keywords
- water
- greenhouse
- pipeline
- green house
- vegetables
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A40/00—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production
- Y02A40/10—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production in agriculture
- Y02A40/25—Greenhouse technology, e.g. cooling systems therefor
Landscapes
- Greenhouses (AREA)
Abstract
The utility model discloses a high-efficiency water-saving greenhouse irrigation system capable of realizing uniform irrigation. The greenhouse irrigation system comprises a water storage area which is arranged outside a greenhouse, and a water spray pipeline which is arranged in the greenhouse. The water spray pipeline is arranged in the greenhouse at a position adjacent to the upper part. The water storage area is connected with the water spray pipeline through a water diversion pipeline. A water pump is arranged on the water diversion pipeline. By adopting the structure, the greenhouse irrigation system has the advantages that the structure is simple, the system is convenient to use, the cost is low, the water in the water storage area can be diverted into the greenhouse to irrigate vegetables in use, and by adopting a water spray method, the goal of even irrigation can be realized and the quantity of the used water can be easily controlled; and since the water is sprayed from positions above the vegetables, the leaves and the stems of the vegetables can be washed and the growth of the vegetables is facilitated.
Description
Technical field
The utility model relates to a kind of green house structure, especially a kind of green house irrigation system that vegetables are irrigated of being used for.
Background technology
Green house is widely used in the crops production process.In north China, because climate reasons, can't carry out growing vegetables production winter in natural surroundings, and therefore modal growing vegetables mode utilizes green house to carry out planting vegetable exactly.North of china in winter does not have rain, therefore when carrying out greenhouse gardening, and must be to the irrigation of watering of the vegetables in the booth.Existing irrigation method is: carry out diversion through manual work or water pump to the inner soil of booth ground, water circulates through ground irrigation canals and ditches, until the whole booth internal ground of flowing through.This mode is not only slow, and waste water resource, and the zone that while water is flowed through is earlier irrigated too much, and the zone of then flowing through is irrigated not enough, thereby causes irrigation uneven, influences yield of vegetables.
The utility model content
It is high that the technical problem that the utility model will solve provides a kind of efficient, water saving, and irrigate uniform green house irrigation system.
For addressing the above problem; A kind of green house irrigation system of the utility model; It is characterized in that: this green house irrigation system; Comprise being arranged on the outside retaining zone of green house, and be arranged on the inner trickle pipeline of green house, said trickle pipeline is positioned at the inner top of leaning on of green house; Link to each other through the diversion pipeline between retaining zone and the trickle pipeline, the diversion pipeline is provided with water pump.
Said spray pipe route water pipe connects to form, the spaced apart leaking hole that is provided with on the said water pipe.
Adopt the green house irrigation system of the utility model structure, simple in structure, the convenient use; With low cost, can say during use that water in the retaining zone is incorporated in the green house vegetables are irrigated, and adopt the mode of trickle; Can make and irrigate evenly, control easily the water yield use what; Water can wash vegetable leaf, stem under drenching on vegetables top, is of value to the growth of vegetables.
Description of drawings

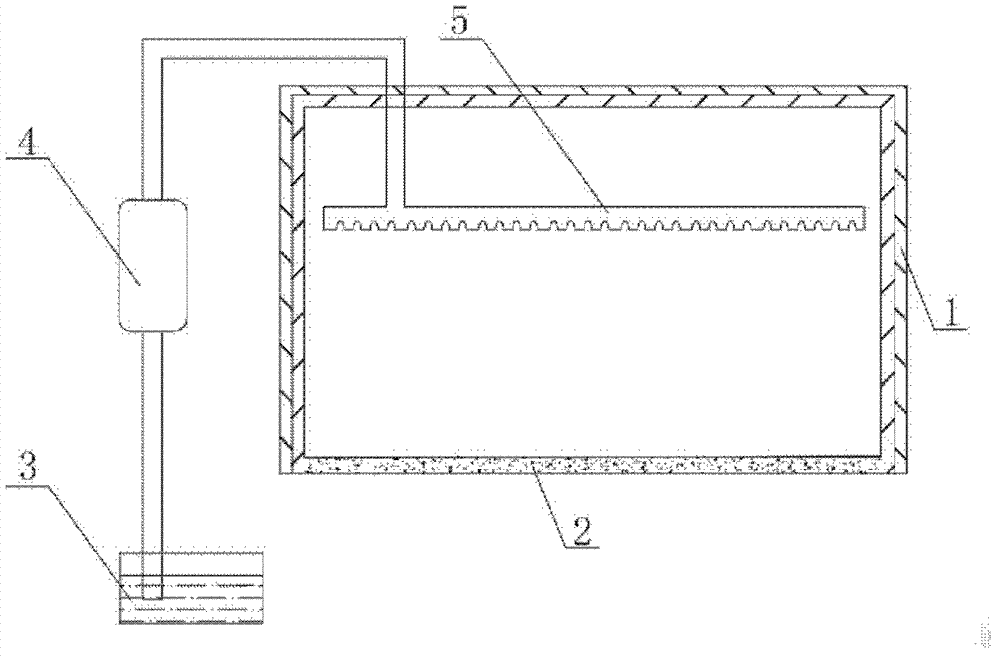

Fig. 1 is the utility model front view.
Fig. 2 is the structural representation of trickle pipeline in the utility model.
Embodiment
In order to make those skilled in the art person understand the utility model technical scheme better, the utility model is done further to specify below in conjunction with accompanying drawing and embodiment.
As shown in Figure 1; A kind of green house irrigation system of the utility model; Comprise the retaining zone 3 that is arranged on green house 1 outside; And the trickle pipeline 5 that is arranged on green house 1 inside, said trickle pipeline 5 is positioned at the green house 1 inner top of leaning on, and makes surface soil 2 and vegetables be positioned at the below of trickle pipeline; Link to each other through the diversion pipeline between retaining zone 3 and the trickle pipeline 5, the diversion pipeline is provided with water pump 4, the water introducing trickle pipeline 5 that water pump can be interior with retaining zone 3.
As shown in Figure 2, said trickle pipeline 5 connects to form the spaced apart leaking hole 6 that is provided with on the said water pipe by water pipe.
Adopt the green house irrigation system of the utility model structure, simple in structure, the convenient use; With low cost, can say during use that water in the cistern is incorporated in the green house vegetables are irrigated, and adopt the mode of trickle; Can make and irrigate evenly, control easily the water yield use what; Water can wash vegetable leaf, stem under drenching on vegetables top, is of value to the growth of vegetables.
Claims (2)
1. green house irrigation system is characterized in that: this green house irrigation system comprises being arranged on the outside retaining zone of green house, and is arranged on the inner trickle pipeline of green house that said trickle pipeline is positioned at the inner top of leaning on of green house; Link to each other through the diversion pipeline between retaining zone and the trickle pipeline, the diversion pipeline is provided with water pump.
2. green house irrigation system as claimed in claim 1 is characterized in that: said spray pipe route water pipe connects to form, the spaced apart leaking hole that is provided with on the said water pipe.
