Abstract

The utility model discloses a speed reduction belt public parking intelligence charging system, including deceleration strip and support column, the fixed case of top fixedly connected with of support column, the fixed slot has been seted up to the inside of deceleration strip to it is connected with the dwang to rotate between the both sides of fixed slot inner wall, the bottom fixedly connected with motor of fixed slot inner wall to the output of motor is connected with first bevel gear through the connecting rod rotation, the utility model relates to an intelligence charge technical field. This speed reduction belt formula public parking intelligence charging system, the removal of vehicle double round can be restricted to the lift baffle, and is located the comparatively intermediate position in parking stall, avoids the not enough still mobilizable problem of vehicle restriction, also can let the vehicle standardize to berth, and this design appearance is the deceleration strip shape, places on the road surface, except that erection equipment need punch to the road fixed, need not to reform transform the road by a wide margin, and all facilities all are on the road surface, and the installation is simple and easy, and the engineering volume is little, is fit for promoting on a large scale.

Description

Deceleration belt type intelligent charging system for public parking
Technical Field
The invention relates to the technical field of intelligent charging, in particular to a deceleration belt type public parking intelligent charging system.
Background
The intelligent parking lot charging system is a network system which is set up by a computer, network equipment and lane management equipment and is used for managing the work of vehicle access, traffic flow guidance and parking fee charging of a parking lot, is a necessary tool for professional vehicle field management companies, and realizes dynamic and static comprehensive management of vehicle access and vehicle in the field by collecting and recording the vehicle access record and the position in the field.
In recent years, with the increase of the owned quantity of private cars of residents in China, the demand of urban public parking lots is gradually increased, and the management difficulty of the public parking lots is greatly increased, at present, the urban public parking lots are mainly open public parking lots on two sides of urban trunk roads, the parking lots have great mobility, and the governments are inconvenient to manage.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides a speed-reducing belt type public parking intelligent charging system, which solves the problems that the limitation to private cars is insufficient, the private cars are still movable, and the payment software used for payment is complicated and inconvenient.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: a deceleration strip type public parking intelligent charging system comprises a deceleration strip and a support column, wherein a fixed box is fixedly connected to the top of the support column, a fixed groove is formed in the deceleration strip, a rotating rod is rotatably connected between two sides of the inner wall of the fixed groove, a motor is fixedly connected to the bottom of the inner wall of the fixed groove, the output end of the motor is rotatably connected with a first bevel gear through a connecting rod, a second bevel gear meshed with the first bevel gear is fixedly connected to the surface of the rotating rod, a limiting sleeve is rotatably connected to each of two sides between the top and the bottom of the inner wall of the fixed groove, a threaded sleeve is movably connected to the inside of the limiting sleeve, the top of the threaded sleeve penetrates through the limiting sleeve and extends to the outside of the limiting sleeve, a threaded rod is movably connected to the inside of the threaded sleeve, and the top, the top fixedly connected with baffle of threaded rod to the spacing groove with baffle looks adaptation is seted up at the top of deceleration strip, the top fixedly connected with radar sensor of baffle, the left side fixedly connected with bill-board of fixed case to the right side fixedly connected with display screen of fixed case.
Preferably, the fixed surface of limiting sleeve is connected with the worm wheel, the fixed surface of dwang is connected with the worm sleeve with worm wheel engaged with.
Preferably, the upper surface and the lower surface of the baffle are both provided with arc shapes, transition areas of the upper surface and the lower surface of the baffle are smooth, and the maximum height of the baffle is 30 cm.
Preferably, the bottom of the threaded sleeve is located on a first fixed plate of the internal fixed connection of the limiting sleeve, first clamping grooves matched with the first fixed plate are formed in the two sides of the top of the inner wall of the limiting sleeve, the bottom end of the threaded rod is located on a second fixed plate of the internal fixed connection of the threaded sleeve, and second clamping grooves matched with the second fixed plate are formed in the two sides of the top of the inner wall of the threaded sleeve.
Preferably, the bottom fixedly connected with central processing unit of fixed slot inner wall, the top fixedly connected with battery of fixed incasement wall to the top fixedly connected with dc-to-ac converter on fixed incasement wall right side, the left bottom fixedly connected with control module of fixed incasement wall, the top fixedly connected with solar cell panel of fixed case.
Preferably, the output of central processing unit passes through the input electric connection of wire and radar sensor to the output of radar sensor passes through the input electric connection of wire and contrast module, the output of contrast module passes through the input electric connection of wire and feedback module, and the output of feedback module passes through the input electric connection of wire and central processing unit, central processing unit's output pass through the wire respectively with the input electric connection of contrast module and motor.
Preferably, the input end of the central processing unit is electrically connected with the output end of the power supply module through a wire, the output end of the power supply module is electrically connected with the radar sensor and the input end of the intelligent payment unit through wires, the central processing unit is in bidirectional connection with the wireless signal transceiver module through wireless, and the wireless signal transceiver module is in bidirectional connection with the intelligent payment unit through wireless.
Preferably, the intelligent payment unit comprises a control module, the output end of the control module is electrically connected with the input ends of the payment module, the display screen and the timing module through wires, the output end of the solar cell panel is electrically connected with the input end of the inverter through wires, and the output end of the inverter is electrically connected with the input end of the storage battery through wires.
(III) advantageous effects
The invention provides a speed-reducing belt type public parking intelligent charging system. Compared with the prior art, the method has the following beneficial effects:
(1) the speed-reducing belt type public parking intelligent charging system is characterized in that a fixing groove is formed in a speed-reducing belt, a rotating rod is rotatably connected between two sides of the inner wall of the fixing groove, the bottom of the inner wall of the fixing groove is fixedly connected with a motor, the output end of the motor is rotatably connected with a first bevel gear through a connecting rod, the surface of the rotating rod is fixedly connected with a second bevel gear meshed with the first bevel gear, two sides between the top and the bottom of the inner wall of the fixing groove are rotatably connected with limiting sleeves, the inner parts of the limiting sleeves are movably connected with threaded sleeves, the top parts of the threaded sleeves penetrate through the limiting sleeves and extend to the outer parts of the limiting sleeves, the inner parts of the threaded sleeves are movably connected with threaded rods, the top ends of the threaded rods penetrate through the threaded sleeves and, and the spacing groove with baffle looks adaptation is seted up at the top of deceleration strip, the removal of vehicle double round can be restricted to the lift baffle, and be located the comparatively intermediate position in parking stall, avoid the not enough still mobilizable problem of vehicle restriction, also can let the vehicle standardize and berth, this design appearance is the deceleration strip shape, place on the road surface, except that erection equipment need punch the road surface fixedly, need not to reform transform the road by a wide margin, all facilities all are on the road surface, the installation is simple and easy, the engineering volume is little, and basic component is with low costs, the equipment is simple and easy, the totality cost is low to be fit for promoting on a large scale, in addition, because the lift unit main part is the deceleration strip form, the obstacle that goes to the vehicle is not big, can still regard as the.
(2) This speed reduction belt formula public parking intelligence charging system, top fixedly connected with battery through fixed incasement wall, and the top fixedly connected with dc-to-ac converter on fixed incasement wall right side, the top fixedly connected with solar cell panel of fixed case, the wisdom formula is realized to all procedures, the stable performance, need not the manpower and accomplish, reducible manpower is extravagant and manual management's negligence, make the administrative cost of government enterprise descend, and adopt solar energy power supply mode, can independently supply power, realize green efficiency, need not external circuit operation procedure.
(3) This speed reduction belt formula public parking intelligence charging system, the left side fixedly connected with bill-board through the fixed box to the right side fixedly connected with display screen of fixed box, the payment module adopts the two-dimensional code of modernization to collect fee the mode, accords with the payment mode of modern mainstream, also realizes no cash transaction simultaneously, makes to collect fee more convenient just, and the bill-board can just increase the income to pedestrian's passageway.
(4) This speed reduction belt formula public parking intelligence charging system all sets the arc to through the upper surface and the lower surface of baffle to baffle upper surface and lower surface transition district are more slick and sly, because the baffle design is the arc, can effectively reduce vehicle and baffle self damage, but radar detector on the baffle automatic adjustment sleeve rise simultaneously avoids haring vehicle chassis.
Drawings

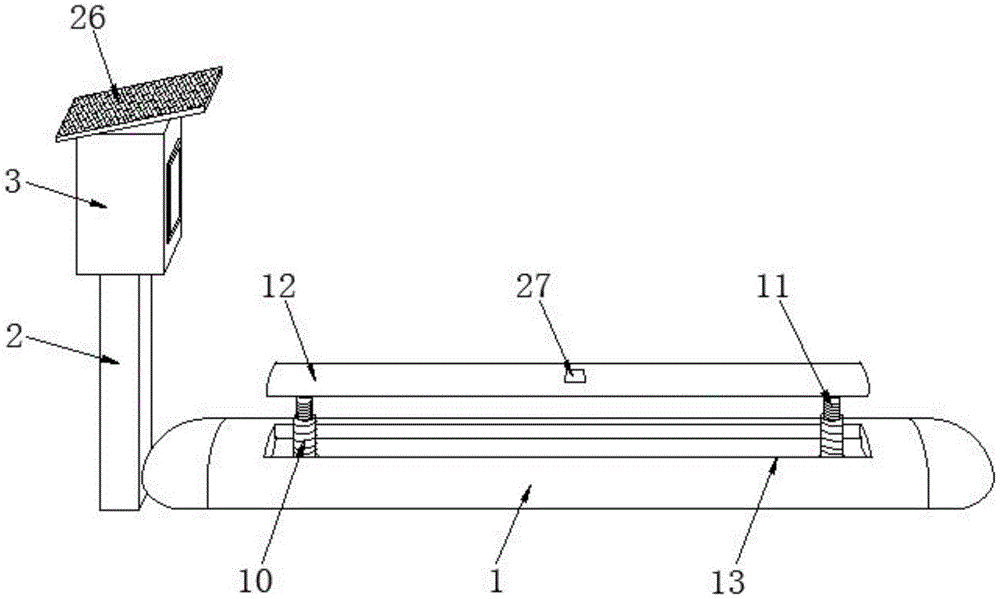

FIG. 1 is a perspective view of the structure of the present invention;
FIG. 2 is a cross-sectional view of the deceleration strip construction of the present invention;
FIG. 3 is an enlarged view of a portion of the invention at A in FIG. 2;
FIG. 4 is an enlarged view of a portion of the present invention at B of FIG. 2;
FIG. 5 is a cross-sectional view of the stationary box structure of the present invention;
FIG. 6 is a schematic block diagram of the architecture of the system of the present invention;
fig. 7 is a schematic block diagram of the structure of the power supply module of the present invention.
In the figure, 1 is a speed reducing belt, 2 is a supporting column, 3 is a fixing box, 4 is a fixing groove, 5 is a rotating rod, 6 is a motor, 7 is a first bevel gear, 8 is a second bevel gear, 9 is a limiting sleeve, 10 is a threaded sleeve, 11 is a threaded rod, 12 is a baffle, 13 is a limiting groove, 14 is a billboard, 15 is a wireless signal transceiver module, 16 is a worm gear, 17 is a worm sleeve, 18 is an intelligent payment unit, 181 is a control module, 182 is a payment module, 183 is a timing module, 184 is a display screen, 19 is a first fixing plate, 20 is a first clamping groove, 21 is a second fixing plate, 22 is a second clamping groove, 23 is a central processing unit, 24 is a storage battery, 25 is an inverter, 26 is a solar cell panel, 27 is a.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-7, an embodiment of the present invention provides a technical solution: a deceleration strip type public parking intelligent charging system is basically located at monitoring places such as two sides of a trunk road, if the behavior of a device is damaged intentionally can be monitored and locked through calling, no place is left after the device is damaged intentionally, the deceleration strip type public parking intelligent charging system comprises a deceleration strip 1 and a support column 2, the top of the support column 2 is fixedly connected with a fixing box 3, a fixing groove 4 is formed in the deceleration strip 1, the bottom of the inner wall of the fixing groove 4 is fixedly connected with a central processing unit 23, the input end of the central processing unit 23 is electrically connected with the output end of a power supply module 30 through a lead, the output end of the power supply module 30 is electrically connected with a radar sensor 27 and the input end of an intelligent charging unit 18 through leads, the intelligent charging unit 18 comprises a control module 181, the output end of the control module 181 is electrically connected with the input ends of a charging module 182, a display screen 184 and, the output end of the solar cell panel 26 is electrically connected with the input end of the inverter 25 through a wire, the output end of the inverter 25 is electrically connected with the input end of the storage battery 24 through a wire, the central processing unit 23 is in bidirectional connection with the wireless signal transceiver module 15 through wireless, the wireless transceiver module 15 is arranged in the control module 181 to realize wireless transmission of signal instructions, the difficulty of circuit installation and the damage to pavement are reduced, the wireless signal transceiver module 15 is in bidirectional connection with the intelligent payment unit 18 through wireless, the output end of the central processing unit 23 is electrically connected with the input end of the radar sensor 27 through a wire, the output end of the radar sensor 27 is electrically connected with the input end of the comparison module 28 through a wire, the output end of the comparison module 28 is electrically connected with the input end of the feedback module 29 through a wire, and the output end of the feedback module 29 is electrically connected with the input end of the central processing, the output end of the central processing unit 23 is respectively electrically connected with the comparison module 28 and the input end of the motor 6 through conducting wires, the top of the inner wall of the fixed box 3 is fixedly connected with a storage battery 24, the top of the right side of the inner wall of the fixed box 3 is fixedly connected with an inverter 25, the bottom of the left side of the inner wall of the fixed box 3 is fixedly connected with a control module 181, the top of the fixed box 3 is fixedly connected with a solar cell panel 26, a rotating rod 5 is rotatably connected between the two sides of the inner wall of the fixed groove 4, the bottom of the inner wall of the fixed groove 4 is fixedly connected with the motor 6, the output end of the motor 6 is rotatably connected with a first bevel gear 7 through a connecting rod, the surface of the rotating rod 5 is fixedly connected with a second bevel gear 8 meshed with the first bevel gear 7, a worm sleeve 17 meshed with a worm wheel 16 is fixedly connected to the surface of the rotating rod 5, a threaded sleeve 10 is movably connected inside the limiting sleeve 9, a first fixing plate 19 is fixedly connected to the bottom of the threaded sleeve 10 and located inside the limiting sleeve 9, first clamping grooves 20 matched with the first fixing plate 19 are formed in two sides of the top of the inner wall of the limiting sleeve 9, a second fixing plate 21 is fixedly connected to the bottom of the threaded rod 11 and located inside the threaded sleeve 10, second clamping grooves 22 matched with the second fixing plate 21 are formed in two sides of the top of the inner wall of the threaded sleeve 10, the top of the threaded sleeve 10 penetrates through the limiting sleeve 9 and extends to the outside of the limiting sleeve 9, a threaded rod 11 is movably connected inside the threaded sleeve 10, the top of the threaded rod 11 penetrates through the threaded sleeve 10 and extends to the outside of the threaded sleeve 10, and a baffle plate 12 is fixedly connected to the top of, the width of the baffle 12 is larger than the vehicle width, at least 1.8 meters, the baffle 12 is started after parking for a certain time, the situation that the intelligent payment system judges the intelligent payment system as a parked vehicle by mistake when a temporary parking or a vehicle runs or other objects pass through can be avoided, correspondingly, the parking space can be used as a driving channel and a temporary parking place for a short time when no vehicle is parked, the upper surface and the lower surface of the baffle 12 are both arranged into arcs, the transition areas of the upper surface and the lower surface of the baffle 12 are smooth, the maximum height of the raised baffle 12 is 30cm, when the radar sensor 27 senses that the vehicle enters, the baffle 12 is raised to a position 0.5cm away from the bottom of the vehicle and stops, if the bottom of the vehicle is higher than the maximum height of the baffle 12, the baffle 12 is raised to the maximum height and stops, the top of the deceleration strip 1 is provided with the limiting groove 13 matched with the baffle 12, the top of the baffle 12 is fixedly connected with the radar sensor 27, and a certain time, the automobile parking device has the advantages that when a main road parking space is used as a lane, misjudgment that a running vehicle is a parking vehicle when the vehicle is parked in a wrong mode, and other objects pass through the limiting lifting unit, so that trouble and loss are caused by misjudgment, the radar sensor 27 can detect the distance between the baffle 12 and the automobile chassis, the height of the baffle 12 is controlled, the distance between the baffle 12 and the automobile chassis is controlled to be 0.5cm, the advertising board 14 is fixedly connected to the left side of the fixed box 3, the display screen 184 is fixedly connected to the right side of the fixed box 3 and can display payment information, parking time, payment two-dimensional codes and other information, the display screen 184 is arranged on one side, facing the parking space, of the fixed box 3 and basically located beside the automobile window, payment is facilitated for an owner, and meanwhile the advertising board 14 on the back of the fixed box.
When a vehicle enters a parking space, the radar sensor 27 senses that the vehicle is parked in the parking space, the central processing unit 23 transmits a signal to the intelligent payment unit 18 through the wireless signal transceiver module 15, the control module 181 enables the timing module 183 to start running, when the timing module 183 reaches a certain time, the intelligent payment unit 18 transmits the signal to the central processing unit 23 through the wireless signal transceiver module 15, the central processing unit 23 controls the motor 6 to work, the first bevel gear 7 rotates to drive the second bevel gear 8 to rotate, the rotating rod 5 is driven to rotate, the limiting sleeve 9 is driven to rotate under the mutual matching of the worm sleeve 17 and the worm wheel 16, the threaded sleeve 10 moves upwards, after the first fixing plate 19 is clamped in the first clamping groove 20, the threaded sleeve 10 rotates together with the limiting sleeve 9, at the moment, the threaded rod 11 starts to move upwards, and the baffle 12 is driven to move upwards, when the radar sensor 27 detects that the distance between the baffle 12 and the automobile chassis reaches a certain value, the feedback module 29 transmits a signal to the central processor 23, the central processor 23 controls the motor 6 to stop working, the payment module 182 starts working, the display screen 184 displays parking time, payment amount and other information, a driver can directly pay by scanning the payment two-dimensional code on the display screen 184 through a mobile phone, after payment is completed, the central processor 23 controls the motor 6 to work, the baffle 12 is lowered into the limiting groove 13, meanwhile, the timing module and the charging module are cleared together, the automobile can be driven away, the solar panel 26 can absorb solar energy, the solar energy is converted into electric energy through the inverter 25 and then stored in the storage battery 24, and power is supplied to electric appliances in the system.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (8)

1. The utility model provides a deceleration strip formula public parking intelligence charging system, includes deceleration strip (1) and support column (2), the fixed case of top fixedly connected with (3) of support column (2), its characterized in that: the deceleration strip is characterized in that a fixing groove (4) is formed in the deceleration strip (1), a rotating rod (5) is rotatably connected between two sides of the inner wall of the fixing groove (4), a motor (6) is fixedly connected to the bottom of the inner wall of the fixing groove (4), the output end of the motor (6) is rotatably connected with a first bevel gear (7) through a connecting rod, a second bevel gear (8) meshed with the first bevel gear (7) is fixedly connected to the surface of the rotating rod (5), limiting sleeves (9) are rotatably connected to two sides between the top and the bottom of the inner wall of the fixing groove (4), a threaded sleeve (10) is movably connected to the inside of each limiting sleeve (9), the top of each threaded sleeve (10) penetrates through each limiting sleeve (9) and extends to the outside of each limiting sleeve (9), and a threaded rod (11) is movably connected to, the top of threaded rod (11) runs through threaded sleeve (10) and extends to the outside of threaded sleeve (10), the top fixedly connected with baffle (12) of threaded rod (11) to spacing groove (13) with baffle (12) looks adaptation are seted up at the top of deceleration strip (1), the top fixedly connected with radar sensor (27) of baffle (12), the left side fixedly connected with bill-board (14) of stationary box (3) to the right side fixedly connected with display screen (184) of stationary box (3).
2. The deceleration strip type intelligent toll collection system for public parking according to claim 1, wherein: the fixed surface of limit sleeve (9) is connected with worm wheel (16), the fixed surface of dwang (5) is connected with worm sleeve (17) with worm wheel (16) looks meshing.
3. The deceleration strip type intelligent toll collection system for public parking according to claim 1, wherein: the upper surface and the lower surface of the baffle (12) are both arranged in an arc shape, transition areas of the upper surface and the lower surface of the baffle (12) are smooth, and the maximum height of the baffle (12) is 30 cm.
4. The deceleration strip type intelligent toll collection system for public parking according to claim 1, wherein: the bottom of threaded sleeve (10) just is located the first fixed plate of inside fixedly connected with (19) of spacing sleeve (9), first draw-in groove (20) with first fixed plate (19) looks adaptation is all seted up to the both sides at spacing sleeve (9) inner wall top, the bottom of threaded rod (11) just is located the inside fixedly connected with second fixed plate (21) of threaded sleeve (10), second draw-in groove (22) with second fixed plate (21) looks adaptation are all seted up to the both sides at threaded sleeve (10) inner wall top.
5. The deceleration strip type intelligent toll collection system for public parking according to claim 1, wherein: the solar energy water heater is characterized in that a central processing unit (23) is fixedly connected to the bottom of the inner wall of the fixing groove (4), a storage battery (24) is fixedly connected to the top of the inner wall of the fixing box (3), an inverter (25) is fixedly connected to the top of the right side of the inner wall of the fixing box (3), a control module (181) is fixedly connected to the bottom of the left side of the inner wall of the fixing box (3), and a solar cell panel (26) is fixedly connected to the top of the fixing box (.
6. The deceleration strip type intelligent toll collection system for public parking according to claim 5, wherein: the output of central processing unit (23) passes through the input electric connection of wire with radar sensor (27) to the output of radar sensor (27) passes through the input electric connection of wire and contrast module (28), the output of contrast module (28) passes through the input electric connection of wire and feedback module (29), and the output of feedback module (29) passes through the input electric connection of wire and central processing unit (23), the output of central processing unit (23) pass through the wire respectively with the input electric connection of contrast module (28) and motor (6).
7. The deceleration strip type intelligent toll collection system for public parking according to claim 5, wherein: the input end of the central processing unit (23) is electrically connected with the output end of the power supply module (30) through a lead, the output end of the power supply module (30) is electrically connected with the radar sensor (27) and the input end of the intelligent payment unit (18) through leads, the central processing unit (23) is in bidirectional connection with the wireless signal receiving and sending module (15) through wireless, and the wireless signal receiving and sending module (15) is in bidirectional connection with the intelligent payment unit (18) through wireless.
8. The deceleration strip type intelligent toll collection system for public parking according to claim 7, wherein: the intelligent payment unit (18) comprises a control module (181), the output end of the control module (181) is respectively electrically connected with the input ends of the payment module (182), the display screen (184) and the timing module (183) through leads, the output end of the solar cell panel (26) is electrically connected with the input end of the inverter (25) through leads, and the output end of the inverter (25) is electrically connected with the input end of the storage battery (24) through leads.
