The utility model discloses an extractor with cleaning function, concretely relates to draws technical field, the power distribution box comprises a box body, two baffles of the inside top end fixedly connected with of box, one of them baffle one side bottom fixedly connected with diaphragm, the diaphragm top is equipped with the threaded rod, the threaded rod bottom is equipped with the brush, the baffle bottom is equipped with draws the mechanism, box one side fixedly connected with glove compartment, glove compartment top fixedly connected with scraper blade. The utility model discloses a pour the material into to the filter belt on, impurity can follow the filter belt motion, when impurity moves scraper blade department, can be scraped by the scraper blade, the debris scraped by the scraper blade can drop to the debris incasement and collect, when filtering, can pass through rotatory threaded rod with the brush and drop, utilizes the brush to brush the filter belt totally, then will wash the external water source of inlet tube of shower nozzle, makes the washing shower nozzle wash the bottom half to easy abluent purpose has been reached.

Description

Extractor with cleaning function
Technical Field
The utility model relates to an extract technical field, more specifically say, the utility model relates to an extractor with cleaning function.
Background
The liquid medicine extracted in basic experimental research, especially the traditional Chinese medicine extracting solution, is often required to be filtered, and the common method for filtering the extracted liquid medicine is to filter the extracted liquid medicine by using gauze or filter paper.
However, the existing filtering extractor still has disadvantages, for example, the filtering extractor usually needs to be continuously used, but the filtering extractor has a complex internal structure, is not easy to clean by workers, and causes long cleaning time, and the extraction quality is affected when the filtering extractor is not completely cleaned and is continuously used.
Therefore, it is necessary to invent an extractor with a cleaning function.
SUMMERY OF THE UTILITY MODEL
In order to overcome prior art's above-mentioned defect, the embodiment of the utility model provides an extractor with cleaning function, through pour the material into to the filter belt from the feeder hopper on, impurity can follow the filter belt motion, when impurity moves scraper blade department, can be scraped by the scraper blade, the debris of being scraped by the scraper blade can drop to the collection of debris incasement, thereby make the filter belt not blockked up, when filtering, can pass through rotatory threaded rod with the brush and drop, utilize the brush to brush the filter belt clean, then will wash the external water source of inlet tube of shower nozzle, make the washing shower nozzle wash bottom half, thereby easy abluent mesh has been reached, in order to solve the problem of proposing in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an extractor with a cleaning function comprises a box body, wherein the top end of the inside of the box body is fixedly connected with two baffle plates, the bottom of one side of one baffle plate is fixedly connected with a transverse plate, a threaded rod is arranged at the top of the transverse plate and extends to the bottom of the transverse plate through the transverse plate, a brush is arranged at the bottom of the threaded rod, the front end and the rear end of the brush are both contacted with the inner wall of the box body, the brush is movably connected with the threaded rod through a bearing, the threaded rod is in threaded connection with the transverse plate, an extraction mechanism is arranged at the bottom of the baffle plate, a sundry box is fixedly connected to one side;
draw the mechanism and include cassette, two band pulleys and two roller bearings, logical groove has been seted up on a box lateral wall, one of them the roller bearing is located logical inslot, one of them the both ends of roller bearing all through the bearing respectively with lead to the groove around inner wall swing joint, another the inside one side of box, another the roller bearing all through the bearing respectively with box around inner wall swing joint, another the roller bearing rear end runs through the box and extends the box outside, two the band pulley is fixed connection respectively on two roller bearings, the cassette cover is located between two band pulleys, cassette one end extends to the box outside, box rear side fixedly connected with fixed plate, fixed plate top fixedly connected with motor, motor and roller bearing fixed connection.
In a preferred embodiment, a cleaning spray head is arranged on one side inside the box body, a water inlet pipe of the cleaning spray head penetrates through the box body and extends out of the box body, and the cleaning spray head is arranged on one side of the bottom of the filter belt.
In a preferred embodiment, a buffer plate is arranged at the bottom of the cleaning spray head, and two ends of the buffer plate are fixedly connected with the inner wall of the box body.
In a preferred embodiment, a feed hopper is fixedly connected to the top of the box body, and the bottom end of the feed hopper extends through the box body to the inside of the box body.
In a preferred embodiment, a fan is fixedly connected to one side of the top end inside the box body, the fan air inlet pipe penetrates through the box body and extends to the outer side of the box body, and the fan is arranged on one side of the baffle.
In a preferred embodiment, a filter screen is sleeved on the outer side of the top end of the air inlet pipe of the fan, the filter screen is fixedly connected with the box body, and the cross section of the filter screen is in a U shape.
In a preferred embodiment, a door plate is embedded in one side wall of the tidy, and one side of the door plate is hinged with the tidy.
In a preferred embodiment, a water outlet pipe is arranged at the bottom of one side of the box body, one end of the water outlet pipe penetrates through the box body and extends into the box body, and a switch valve is arranged on the water outlet pipe and is arranged on the outer side of the box body.
The utility model discloses a technological effect and advantage:
1. the material is poured onto the filter belt from the feed hopper, liquid can pass through the filter belt and flow into the bottom of the box body, then impurities can move along with the filter belt, when the impurities move to the scraper blade, the impurities can be scraped off by the scraper blade, the impurities scraped off by the scraper blade can fall into the impurity box and be collected, so that the filter belt is not blocked, when the filtration is finished, the brush can be lowered through the rotary threaded rod, the filter belt is brushed clean by the brush, then the water inlet pipe of the cleaning nozzle is externally connected with a water source, so that the cleaning nozzle can clean the bottom of the box body, and the aim of easy cleaning is fulfilled.
2. Through the inside fan that is equipped with of box, open the fan after wasing, let the box inside air-dry with higher speed through the fan to save time, again because the air intake of fan goes out the department and is provided with the filter screen, make inside the dust can not get into the box, the influence draws the quality, compares with prior art, the utility model discloses air-dry with higher speed, prevent that the dust from getting into, lead to the influence to draw and made progress on the quality.
Drawings

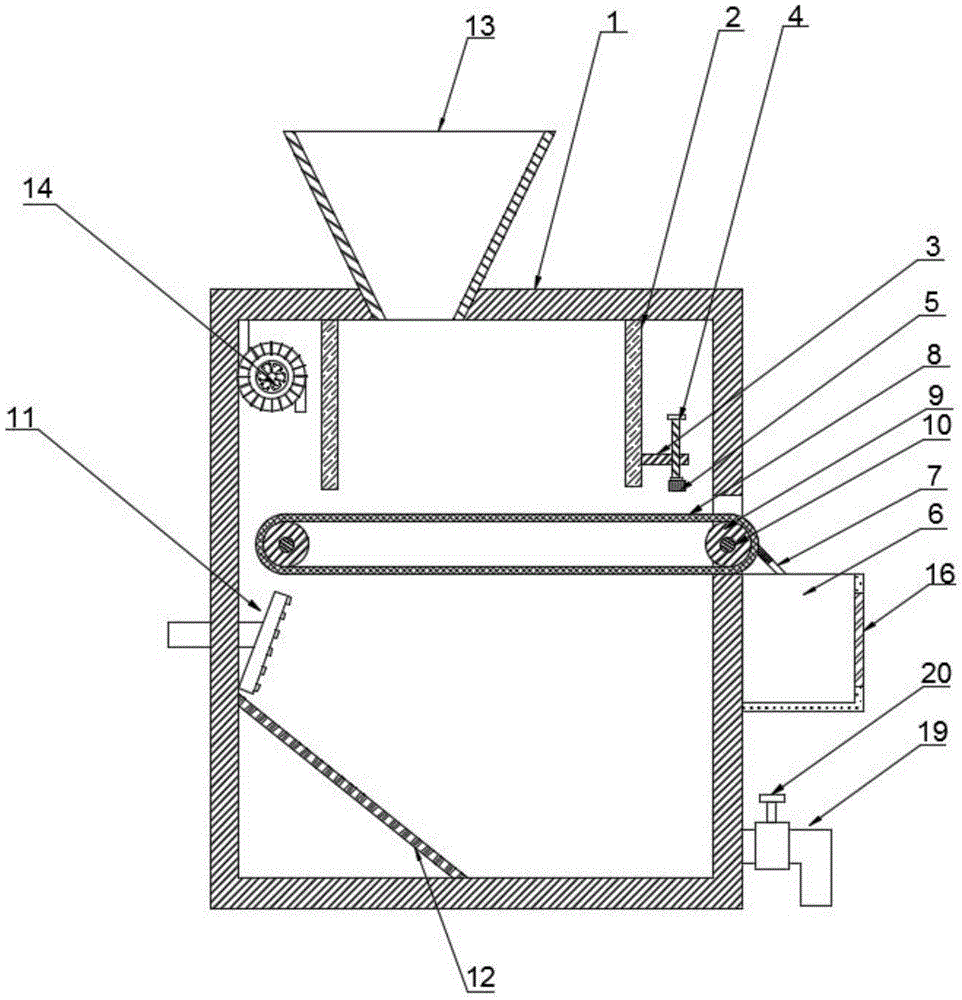

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a side view of the present invention.
Fig. 3 is a top view of the present invention.
Fig. 4 is a schematic view of the baffle structure of the present invention.
Fig. 5 is a schematic view of the three-dimensional structure of the brush and the threaded rod of the present invention.
The reference signs are: the cleaning device comprises a box body 1, a baffle 2, a transverse plate 3, a threaded rod 4, a brush 5, a sundries box 6, a scraper 7, a filter belt 8, a belt wheel 9, a roller 10, a cleaning sprayer 11, a buffer plate 12, a feed hopper 13, a fan 14, a filter screen 15, a door plate 16, a fixed plate 17, a motor 18, a water outlet pipe 19 and a switch valve 20.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides an extractor with cleaning function as shown in figures 1-5, which comprises a box body 1, two baffles 2 are fixedly connected to the top end inside the box body 1, one of them baffle 2 one side bottom fixedly connected with diaphragm 3, diaphragm 3 top is equipped with threaded rod 4, threaded rod 4 runs through diaphragm 3 and extends to diaphragm 3 bottom, threaded rod 4 bottom is equipped with brush 5, brush 5 front end and rear end all contact with the box body 1 inner wall, brush 5 is through bearing and threaded rod 4 swing joint, threaded rod 4 and diaphragm 3 threaded connection, baffle 2 bottom is equipped with the extraction mechanism, box 1 one side fixedly connected with glove compartment 6, glove compartment 6 top fixedly connected with scraper blade 7;
the extraction mechanism comprises a filter belt 8, two belt wheels 9 and two rolling shafts 10, a through groove is arranged on one side wall of the box body 1, one of the rollers 10 is arranged inside the through groove, two ends of one of the rollers 10 are respectively movably connected with the front inner wall and the rear inner wall of the through groove through bearings, the other roller 10 is arranged at one side inside the box body 1, two ends of the other roller 10 are respectively movably connected with the front inner wall and the rear inner wall of the box body 1 through bearings, the rear end of the other roller 10 penetrates through the box body 1 and extends out of the box body 1, the two belt wheels 9 are respectively and fixedly connected with the two rollers 10, the filter belt 8 is sleeved between the two belt wheels 9, one end of the filter belt 8 extends to the outer side of the box body 1, a fixed plate 17 is fixedly connected to the rear side of the box body 1, a motor 18 is fixedly connected to the top of the fixed plate 17, and the motor 18 is fixedly connected with the roller 10;
a cleaning spray head 11 is arranged on one side inside the box body 1, a water inlet pipe of the cleaning spray head 11 penetrates through the box body 1 and extends out of the box body 1, and the cleaning spray head 11 is arranged on one side of the bottom of the filter belt 8;
the bottom of the cleaning spray head 11 is provided with a buffer plate 12, and two ends of the buffer plate 12 are fixedly connected with the inner wall of the box body 1;
the top of the box body 1 is fixedly connected with a feed hopper 13, and the bottom end of the feed hopper 13 penetrates through the box body 1 and extends into the box body 1;
a door plate 16 is embedded in one side wall of the tidy 6, and one side of the door plate 16 is hinged with the tidy 6;
the water tank is characterized in that a water outlet pipe 19 is arranged at the bottom of one side of the tank body 1, one end of the water outlet pipe 19 penetrates through the tank body 1 and extends into the tank body 1, a switch valve 20 is arranged on the water outlet pipe 19, and the switch valve 20 is arranged on the outer side of the tank body 1.
The implementation mode is specifically as follows: when the utility model is used, firstly the motor 18 is opened, the motor 18 drives the roller 10 to rotate, because the roller 10 is fixedly connected with the belt wheel 9, the belt wheel 9 can be driven to rotate by the rotation of the roller 10, because the filter belt 8 is sleeved between the two belt wheels 9, the two belt wheels 9 can be simultaneously rotated by utilizing the friction force of the filter belt 8, the belt wheel 9 also drives the filter belt 8 to rotate, then the material is poured into the box body 1 from the feed hopper 13 to the filter belt 8, after the filter belt 8 is filtered, the liquid can pass through the filter belt 8 to fall onto the buffer plate 12 and then flow into the bottom of the box body 1, however, the impurities can be blocked by the filter belt 8, because the filter belt 8 is rotated, the impurities on the filter belt 8 can move along with the filter belt 8, when the impurities move to the scraper 7, the impurities can be scraped by the scraper 7, and because the bottom of the scraper 7 is provided with the impurity box 6, so the debris scraped by scraper blade 7 will drop to collect in debris case 6, thereby make the cassette 8 not blockked up, the liquid of crossing off the filter can be through opening on-off valve 20, make liquid flow from outlet pipe 19, when filtering the end, can drop brush 5 through rotatory threaded rod 4 with brush 5 of 2 one sides of baffle, make brush 5 direct contact cassette 8, then pour clear water into from feeder hopper 13 and erode cassette 8, then utilize brush 5 to brush 8 of cassette, then will wash the external water source of shower nozzle 11 inlet tube, make washing shower nozzle 11 wash 1 bottom of box, discharge sewage from the delivery port at last, thereby easy abluent mesh has been reached, the complicated difficult abluent problem of extractor inner structure that exists among the prior art has specifically been solved to this embodiment.
The extractor with the cleaning function shown in fig. 1-2 further comprises a fan 14, wherein the fan 14 is fixedly connected to one side of the top end inside the box body 1, an air inlet pipe of the fan 14 penetrates through the box body 1 and extends to the outer side of the box body 1, and the fan 14 is arranged on one side of the baffle plate 2;
the outer side of the top end of the air inlet pipe of the fan 14 is sleeved with a filter screen 15, the filter screen 15 is fixedly connected with the box body 1, and the cross section of the filter screen 15 is U-shaped.
The implementation mode is specifically as follows: when the utility model discloses all dry naturally after wasing usually, this kind of mode is long consuming time, and easily advance the dust, at this moment through 1 inside fan 14 that is equipped with of box, open fan 14 after wasing, let 1 inside air-dry with higher speed of box, thereby save time, again because the air intake play of fan 14 is provided with filter screen 15, make the dust can not get into 1 inside of box, the influence is drawed the quality, the inside air-dry method of machine that this embodiment specifically exists has been solved among the prior art is long consuming time, the problem of easily advancing the dust.
The utility model discloses the theory of operation:
referring to the attached drawings 1-5 of the specification, a motor 18 is turned on, rotation of a roller 10 can drive a belt wheel 9 to rotate, the belt wheel 9 drives a filter belt 8 to rotate, then materials are poured onto the filter belt 8, impurities can be blocked by the filter belt 8, impurities on the filter belt 8 can move along with the filter belt 8, when the impurities move to a scraper 7, the impurities can be scraped off by the scraper 7, the impurities scraped off by the scraper 7 can fall into an impurity box 6 to be collected, filtered liquid can flow out from a water outlet pipe 19 by opening a switch valve 20, when filtering is finished, a brush 5 on one side of a baffle 2 can be lowered through a rotating threaded rod 4, clean water is poured into the filter belt 8 from a feed hopper 13 to wash the filter belt 8, then the water inlet pipe of a cleaning nozzle 11 is externally connected with a water source, so that the cleaning nozzle 11 cleans the bottom of a box body 1, finally, sewage is discharged from the water outlet, so that the aim of easy cleaning is fulfilled;
referring to the attached drawings 1-2 of the specification, the fan 14 is arranged in the box body 1, and after the box body 1 is cleaned, the fan 14 is opened to accelerate air drying in the box body 1, so that time is saved, and dust cannot enter the box body 1 to affect extraction quality because the filter screen 15 is arranged at the air inlet of the fan 14.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (8)

1. The utility model provides an extractor with cleaning function, includes box (1), its characterized in that: the inner top end of the box body (1) is fixedly connected with two baffle plates (2), the bottom of one side of one baffle plate (2) is fixedly connected with a transverse plate (3), the top of the transverse plate (3) is provided with a threaded rod (4), the threaded rod (4) penetrates through the transverse plate (3) and extends to the bottom of the transverse plate (3), the bottom of the threaded rod (4) is provided with a brush (5), the front end and the rear end of the brush (5) are both contacted with the inner wall of the box body (1), the brush (5) is movably connected with the threaded rod (4) through a bearing, the threaded rod (4) is in threaded connection with the transverse plate (3), the bottom of the baffle plate (2) is provided with an extraction mechanism, one side of the box body (1) is fixedly connected with a sundry box (6);
the extraction mechanism comprises a filter belt (8), two belt wheels (9) and two rolling shafts (10), a through groove is formed in one side wall of the box body (1), one of the rolling shafts (10) is arranged in the through groove, the two ends of one of the rolling shafts (10) are respectively movably connected with the front inner wall and the rear inner wall of the through groove through bearings, the other rolling shaft (10) is arranged on one side of the inner part of the box body (1), the two ends of the other rolling shaft (10) are respectively movably connected with the front inner wall and the rear inner wall of the box body (1) through bearings, the rear end of the other rolling shaft (10) penetrates through the box body (1) and extends out of the box body (1), the two belt wheels (9) are respectively and fixedly connected to the two rolling shafts (10), the filter belt (8) is sleeved between the two belt wheels (9), one end of the filter belt (8) extends to the outer side of the box body, the top of the fixing plate (17) is fixedly connected with a motor (18), and the motor (18) is fixedly connected with the roller (10).
2. The extractor with cleaning function according to claim 1, wherein: a cleaning spray head (11) is arranged on one side inside the box body (1), a water inlet pipe of the cleaning spray head (11) penetrates through the box body (1) and extends out of the outer side of the box body (1), and the cleaning spray head (11) is arranged on one side of the bottom of the filter belt (8).
3. An extractor with cleaning function according to claim 2, characterized in that: the cleaning sprayer is characterized in that a buffer plate (12) is arranged at the bottom of the cleaning sprayer (11), and two ends of the buffer plate (12) are fixedly connected with the inner wall of the box body (1).
4. The extractor with cleaning function according to claim 1, wherein: the top of the box body (1) is fixedly connected with a feed hopper (13), and the bottom end of the feed hopper (13) penetrates through the box body (1) and extends to the inside of the box body (1).
5. The extractor with cleaning function according to claim 1, wherein: the air inlet pipe of the air blower (14) penetrates through the box body (1) and extends to the outer side of the box body (1), and the air blower (14) is arranged on one side of the top end inside the box body (1).
6. The extractor with cleaning function according to claim 5, wherein: fan (14) air-supply line top outside cover is equipped with filter screen (15), filter screen (15) and box (1) fixed connection, filter screen (15) cross sectional shape sets up to the U-shaped.
7. The extractor with cleaning function according to claim 1, wherein: a door plate (16) is embedded in one side wall of the tidy (6), and one side of the door plate (16) is hinged with the tidy (6).
8. The extractor with cleaning function according to claim 1, wherein: the water tank is characterized in that a water outlet pipe (19) is arranged at the bottom of one side of the tank body (1), one end of the water outlet pipe (19) penetrates through the tank body (1) and extends to the inside of the tank body (1), a switch valve (20) is arranged on the water outlet pipe (19), and the switch valve (20) is arranged on the outer side of the tank body (1).
