The invention relates to the technical field of glass fiber powder raw material processing, and discloses environment-friendly glass fiber powder manufacturing and processing raw material cleaning equipment which comprises a box body, wherein a feeding hole is formed in the top of the box body, a same round rod is fixed between the front side wall and the rear side wall of the box body, a sleeve is movably sleeved on the outer circular surface of the round rod, an inner box is fixed on the outer circular surface of the sleeve, a discharging hole is formed in the lower end of the left side wall of the inner box, a fixing plate is fixed at the upper end of the left side wall of the inner box, a hydraulic cylinder is movably hinged to the top of the fixing plate, the top end of the hydraulic cylinder is movably hinged to the inner top wall of the box body, a first telescopic hose is communicated between the top of. The invention solves the problems that the existing cleaning equipment cannot completely clean the glass fiber raw material, and a large amount of impurities are still adhered to the raw material after cleaning, so that the quality of the processed product is poor.
Description
Technical Field
The invention relates to the technical field of glass fiber powder raw material processing, in particular to environment-friendly glass fiber powder manufacturing and processing raw material cleaning equipment.
Background
The glass fiber powder is obtained by chopping, grinding and screening specially-drawn continuous glass fiber strands, and is widely applied to various thermosetting resins and thermoplastic resins as a filling reinforcing material. The glass fiber powder is used as a filling material to improve the hardness and the compressive strength of a product and reduce the shrinkage rate, the width of a grinding mark, the abrasion and the production cost of the product, and when the glass fiber is in production, the glass fiber is processed by the steps of crushing, hot melting, wire drawing and the like of raw materials, and the most basic factor for determining the quality of the glass fiber is whether the raw materials are thoroughly cleaned.
Glass fiber preparation raw materials need carry out the cleaning before smashing, guarantees that the quality after smashing is better, and current glass fiber raw materials cleaning equipment is comparatively traditional, utilizes the vertical rotation of puddler, and abluent not thorough to when giving out waste water, impurity after the washing can the adhesion at raw material tank, leads to the clearance incomplete, still influences the quality of follow-up processing back product, and efficiency is very low, and operating time is long.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides the cleaning equipment for the raw materials for manufacturing and processing the environment-friendly glass fiber powder, and solves the problems that the existing cleaning equipment cannot completely clean the glass fiber raw materials, and a large amount of impurities are still adhered to the raw materials after cleaning, so that the quality of the processed product is poor.
(II) technical scheme
In order to achieve the purpose, the invention provides the following technical scheme: an environment-friendly cleaning device for raw materials for manufacturing and processing glass fiber powder comprises a box body, wherein a feed inlet is formed in the top of the box body, the same round rod is fixed between the front side wall and the rear side wall of the box body, a sleeve is movably sleeved on the outer circular surface of the round rod, an inner box is fixed on the outer circular surface of the sleeve, a discharge outlet is formed in the lower end of the left side wall of the inner box, a fixed plate is fixed at the upper end of the left side wall of the inner box, a hydraulic cylinder is movably hinged to the top of the fixed plate, the top end of the hydraulic cylinder is movably hinged to the inner top wall of the box body, a first telescopic hose is communicated between the top of the inner box and the feed inlet of the box body, a material guide cover is fixed at the upper end of the left inner wall of the inner box, two fixed bearings are fixed between the inner top wall and the inner bottom wall of the inner box through fixed blocks, a, the inner ring of the circular ring is provided with a circle of gears, the right inner wall of the inner box is rotatably connected with a rotating rod, a driven gear is fixed at the left end of the rotating rod and is meshed with the gears on the circular ring, a first motor is fixedly installed in the middle of the right side wall of the inner box, a brush roll is fixed at an output shaft of the first motor, the left end of the brush roll penetrates through the right side wall of the inner box and the right side wall of the cleaning barrel and is rotatably connected with the left side wall of the inner box, a driving gear is sleeved on a shaft of the brush roll, and the driving gear is meshed with the driven;
the inner bottom wall of the box body is fixedly provided with a material receiving box and a water tank, a second telescopic hose is communicated between the top of the water tank and the bottom of the inner box, a filter screen is fixed between the inner walls of the water tank, a support is fixed on the inner bottom wall of the water tank, the upper end of the support is rotatably connected with a rotating rod, a bar-shaped brush is fixed at the right end of the rotating rod, the brush hair end of the bar-shaped brush is contacted with the filter screen, a second motor is fixedly arranged at the top of the water tank, belt wheels are fixed on the output shaft of the second motor and the outer circular surface of the rotating rod, the two belt wheels are connected through a belt in a transmission manner, the belt penetrates through the top of the water tank, the lower end of the right side wall of the water tank is communicated with a conduit, a water pump is fixedly arranged on the conduit, the water pump is fixed on the inner bottom wall of the box body, the shower nozzle is fixed on the inner box, and the shower nozzle end runs through and extends to the inner box inside.
Preferably, the top end of the material guide cover is located right below the bottom end of the first telescopic hose, and the discharge end of the material guide cover extends into the cleaning barrel.
Preferably, the drain net is cylindrical, and the drain net is made of stainless steel.
Preferably, a triangular guide plate is fixed at the left end of the inner bottom wall of the inner box.
Preferably, the end of the conduit remote from the cistern is closed.
Preferably, the inner parts of the two ends of the cleaning barrel are in a truncated cone shape and are inclined.
Preferably, the box body is provided with a box door and an observation window, and the observation window is made of toughened glass.
Preferably, the number of the spray heads is four, and the spray heads are positioned right above the drain net.
(III) advantageous effects
Compared with the prior art, the invention provides equipment for cleaning environment-friendly glass fiber powder manufacturing and processing raw materials, which has the following beneficial effects:
1. according to the invention, through the arranged cleaning barrel, under the driving of the first motor, raw materials can roll in the cleaning barrel and repeatedly contact and scrub with the brush roller rotating in the reverse direction, so that all the raw materials can be thoroughly and effectively cleaned.
2. According to the invention, through the arranged leakage net, when the cleaning barrel rotates, water sprayed by the plurality of spray heads is continuously washed, and enough impurities washed fall down along with water flow through the leakage net holes, so that circulating water cleaning is realized, the cleaning cleanliness is effectively improved, secondary pollution during water drainage is avoided, and the cleaning quality is improved.
3. According to the invention, the driven gear and the gear on the circular ring are arranged, so that the brush roller and the cleaning barrel rotate reversely, and the cleaning effect of the brush roller on raw materials is further improved.
4. According to the invention, the inner box is inclined downwards leftwards under the pushing of the hydraulic cylinder through the arranged round rod and the sleeve, so that the raw materials cleaned in the cleaning barrel can be effectively poured out to the material receiving box for collection.
5. The invention can filter the waste water led into the water tank after cleaning through the filter screen, thereby reusing the used water, saving water resources and having environmental protection.
6. According to the invention, through the belt wheel and the rotating rod, the strip-shaped brush is driven by the second motor to clean dust and impurities accumulated on the surface of the filter screen, so that the filter screen is prevented from being blocked after long-time use to filter the impurities.
Drawings

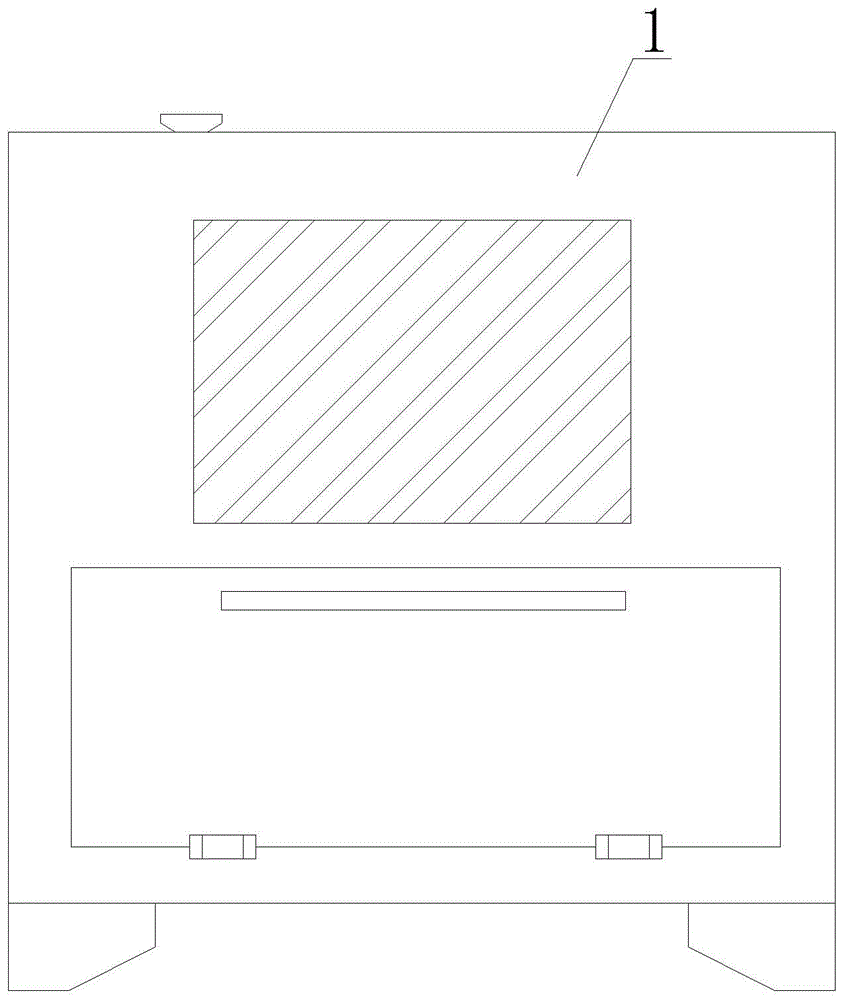

FIG. 1 is a front view of an apparatus for cleaning raw materials for manufacturing and processing environment-friendly glass fiber powder according to the present invention;
FIG. 2 is a sectional view of an apparatus for cleaning raw materials for manufacturing and processing environment-friendly glass fiber powder according to the present invention;
FIG. 3 is an enlarged view of the structure of FIG. 2 at A according to the present invention;
FIG. 4 is an enlarged view of the structure of FIG. 2 at B according to the present invention;
fig. 5 is a side view of the screen of the present invention in cooperation with a strip brush.
In the figure: the device comprises a box body 1, a round rod 2, a sleeve 3, an inner box 4, a fixing plate 5, a hydraulic cylinder 6, a first telescopic hose 7, a material guide cover 8, a fixed bearing 9, a cleaning barrel 10, a screen 11, a circular ring 12, a rotating rod 13, a driven gear 14, a first motor 15, a brush roller 16, a driving gear 17, a material collecting box 18, a water tank 19, a second telescopic hose 20, a filter screen 21, a support 22, a rotating rod 23, a strip-shaped brush 24, a second motor 25, a belt wheel 26, a guide pipe 27, a water pump 28, a rubber hose 29 and a spray head 30.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 5, the present invention provides a technical solution: an environment-friendly cleaning device for glass fiber powder manufacturing and processing raw materials comprises a box body 1, wherein a feeding hole is formed in the top of the box body 1, a box door and an observation window are arranged on the box body 1, the observation window is made of toughened glass materials, workers can conveniently observe the internal working conditions of the device and can do work timely, a same round rod 2 is fixed between the front side wall and the rear side wall of the box body 1, a sleeve 3 is movably sleeved on the outer circular surface of the round rod 2, an inner box 4 is fixed on the outer circular surface of the sleeve 3, a discharging hole is formed in the lower end of the left side wall of the inner box 4, a triangular guide plate is fixed at the left end of the inner bottom wall of the inner box 4 so as to conveniently prevent water leaked from the discharging hole of the inner box 4 from leaking out from a leakage net 11, on the other hand, the raw materials guided out when a cleaning barrel 10 is discharged are effectively guided to the discharging hole of the inner box, the top end of the hydraulic cylinder 6 is movably hinged with the inner top wall of the box body 1, a first telescopic hose 7 is communicated between the top of the inner box 4 and the feed inlet of the box body 1, a material guide cover 8 is fixed at the upper end of the inner wall on the left side of the inner box 4, the top end of the material guide cover 8 is positioned under the bottom end of the first telescopic hose 7, the discharge end of the material guide cover 8 extends into the cleaning barrel 10, two fixed bearings 9 are fixed between the inner top wall and the inner bottom wall of the inner box 4 through fixed blocks, the cleaning barrel 10 is fixed on the inner ring of each fixed bearing 9, the insides of the two ends of the cleaning barrel 10 are in a circular truncated cone inclined shape, on one hand, the cleaning operation of the raw materials poured in the material guide cover 8 entering the middle part of the cleaning barrel 10 is facilitated, on the other hand, the raw materials are prevented from leaking when the cleaning barrel 10 rotates, a leakage net 11 is arranged in the middle part of the outer circular surface of the cleaning, the water of the spray head 30 is ensured to enter more conveniently, and the outflow of waste water after cleaning is also facilitated, a ring 12 is fixed on the right side wall of the cleaning barrel 10, a circle of gears are arranged on the inner ring of the ring 12, a rotating rod 13 is connected on the right side inner wall of the inner box 4 in a rotating mode, a driven gear 14 is fixed on the left end of the rotating rod 13, the driven gear 14 is meshed with the gears on the ring 12, a first motor 15 is fixedly installed in the middle of the right side wall of the inner box 4, a brush roller 16 is fixed on an output shaft of the first motor 15, the left end of the brush roller 16 penetrates through the right side wall of the inner box 4 and the right side wall of the cleaning barrel 10 and is connected with the left side wall of the inner box 4 in a rotating mode, a driving gear 17 is sleeved on the shaft of the;
a material receiving box 18 and a water tank 19 are fixedly installed on the inner bottom wall of the box body 1, a second flexible hose 20 is communicated between the top of the water tank 19 and the bottom of the inner box 4, a filter screen 21 is fixed between the inner walls of the water tank 19, a support 22 is fixed on the inner bottom wall of the water tank 19, the upper end of the support 22 is rotatably connected with a rotating rod 23, a bar-shaped brush 24 is fixed at the right end of the rotating rod 23, the brush end of the bar-shaped brush 24 contacts with the filter screen 21, a second motor 25 is fixedly installed on the top of the water tank 19, belt wheels 26 are fixed on the output shaft of the second motor 25 and the outer circumferential surface of the rotating rod 23, the two belt wheels 26 are connected through a belt in a transmission manner, the belt penetrates through the top of the water tank 19, a guide pipe 27 is communicated with the lower end of the right side wall of the water tank 19, the end of the, one end of the conduit 27, which is far away from the water tank 19, extends to the inner top wall of the tank body 1, the outer circular surface of the conduit 27 is communicated with a plurality of rubber hoses 29, the other ends of the rubber hoses 29 are fixedly provided with spray heads 30, the spray heads 30 are fixed on the inner tank 4, the water spraying ends of the spray heads 30 penetrate through the inner tank 4, the number of the spray heads 30 is four, and the spray heads 30 are positioned right above the leakage net 11.
Further, the top of the water tank 19 is provided with a water tank door, so that the water tank 19 is provided with a drain pipe for conveniently cleaning impurities and injecting water after the filter screen is cleaned, and the waste water after the water tank is used is conveniently discharged.
The working principle is as follows: when the cleaning device works, the first motor 15 and the water pump 28 are started to work, raw materials are put in from the feeding hole, enter the inner box 4 through the first telescopic hose 7 and enter the inside of the cleaning barrel 10 through the guide of the guide cover 8, the first motor 15 drives the brush roller 16 to rotate, the driving gear 17 drives the circular ring 12 to rotate reversely through the cooperation of the driven gear 14, the cleaning barrel 10 and the brush roller 16 rotate reversely at the moment, the raw materials entering the cleaning barrel 10 rotate through the cleaning barrel 10 to drive rolling and contact with the brush roller 16 for cleaning, the water pump 28 pumps water in the water tank 19 to the guide pipe 27, the water is guided to the spray head 30 through the rubber hose 29 and uniformly sprayed on the perforated net 11, the raw materials are cleaned through the perforated holes of the perforated net 11, the cleaned falling waste water enters the water tank 19 through the second telescopic hose 20 and is filtered through the filter screen 21 and then is guided out for use, after the cleaning is finished, the hydraulic, the left end of the inner box 4 is pushed to move downwards, the inner box 4 inclines, and the cleaned raw materials are led out from the left end of the cleaning barrel 10 and fall into a material collecting box 18 from a discharge hole of the inner box 4 to be collected;
when filter screen 21 cleared up, start second motor 25, through band pulley 26 and belt cooperation for dwang 23 drives the rotation of bar brush 24, to the impurity clearance on filter screen 21 surface.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides an environment-friendly glass fiber powder preparation processing raw materials cleaning equipment, includes box (1), its characterized in that: the cleaning device is characterized in that a feeding hole is formed in the top of the box body (1), a same round rod (2) is fixed between the front side wall and the rear side wall of the box body (1), a sleeve (3) is movably sleeved on the outer circular surface of the round rod (2), an inner box (4) is fixed on the outer circular surface of the sleeve (3), a discharging hole is formed in the lower end of the left side wall of the inner box (4), a fixed plate (5) is fixed on the upper end of the left side wall of the inner box (4), a hydraulic cylinder (6) is movably hinged to the top of the fixed plate (5), the top end of the hydraulic cylinder (6) is movably hinged to the inner top wall of the box body (1), a first telescopic hose (7) is communicated between the top of the inner box (4) and the feeding hole of the box body (1), a material guide cover (8) is fixed on the upper end of the left inner wall of the inner box (4), two fixed bearings (9) are fixed, a leakage net (11) is arranged in the middle of the outer circular surface of the cleaning barrel (10), the left side of the cleaning barrel (10) is in a through shape, a circular ring (12) is fixed on the right side wall of the cleaning barrel (10), a circle of gears are arranged on the inner ring of the circular ring (12), a rotating rod (13) is rotatably connected on the right side inner wall of the inner box (4), a driven gear (14) is fixed at the left end of the rotating rod (13), the driven gear (14) is meshed with a gear on the circular ring (12), a first motor (15) is fixedly installed in the middle of the right side wall of the inner box (4), a brush roller (16) is fixed on an output shaft of the first motor (15), the left end of the brush roller (16) penetrates through the right side wall of the inner box (4) and the right side wall of the cleaning barrel (10) and is rotatably connected with the left side wall of the inner box (4), a driving gear (17) is sleeved on a shaft of the brush roller (16), and the driving gear (17) is meshed with the driven gear (14);
the inner bottom wall of the box body (1) is fixedly provided with a material receiving box (18) and a water tank (19), the top of the water tank (19) and the bottom of the inner box (4) are communicated with a second telescopic hose (20), a filter screen (21) is fixed between the inner walls of the water tank (19), a support (22) is fixed on the inner bottom wall of the water tank (19), the upper end of the support (22) is rotatably connected with a rotating rod (23), the right end of the rotating rod (23) is fixedly provided with a strip-shaped brush (24), the brush end of the strip-shaped brush (24) is contacted on the filter screen (21), the top of the water tank (19) is fixedly provided with a second motor (25), the output shaft of the second motor (25) and the outer circular surface of the rotating rod (23) are both fixedly provided with belt wheels (26), the two belt wheels (26) are connected through a belt transmission, the belt penetrates through the top of the water tank (19), and, and fixed mounting has water pump (28) on pipe (27), and water pump (28) are fixed on the interior diapire of box (1), the one end that water tank (19) were kept away from in pipe (27) extends to the interior roof of box (1), and the outer disc intercommunication of pipe (27) has a plurality of rubber hose (29), and the other end fixed mounting of rubber hose (29) has shower nozzle (30), shower nozzle (30) are fixed on inner box (4), and shower nozzle (30) nozzle end runs through and extends to inside inner box (4).
2. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the top end of the material guide cover (8) is positioned under the bottom end of the first flexible hose (7), and the discharge end of the material guide cover (8) extends into the cleaning barrel (10).
3. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the leakage net (11) is cylindrical, and the material of the leakage net (11) is stainless steel.
4. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: and a triangular guide plate is fixed at the left end of the inner bottom wall of the inner box (4).
5. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the end of the conduit (27) remote from the water tank (19) is closed.
6. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the inner parts of the two ends of the cleaning barrel (10) are in a truncated cone shape and are inclined.
7. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the box body (1) is provided with a box door and an observation window, and the observation window is made of toughened glass.
8. The cleaning equipment for the environment-friendly glass fiber powder manufacturing and processing raw material as claimed in claim 1, wherein: the number of the spray heads (30) is four, and the spray heads (30) are positioned right above the drain net (11).
