CN210782456U - Walking and cleaning device of dirty clean dolly of live pig excrement - Google Patents

Walking and cleaning device of dirty clean dolly of live pig excrement Download PDF

Info

Publication number
CN210782456U
CN210782456U CN201921826650.6U CN201921826650U CN210782456U CN 210782456 U CN210782456 U CN 210782456U CN 201921826650 U CN201921826650 U CN 201921826650U CN 210782456 U CN210782456 U CN 210782456U
Authority
CN
China
Prior art keywords
cleaning
rotary drum
blanket
walking
vehicle body
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN201921826650.6U
Other languages
Chinese (zh)
Inventor
郝兴旺
姚腾飞
李昊伦
季照潼
李东明
张莉
王娟
曾立华
邵利敏
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Hebei Agricultural University
Original Assignee
Hebei Agricultural University
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Hebei Agricultural University filed Critical Hebei Agricultural University
Priority to CN201921826650.6U priority Critical patent/CN210782456U/en
Application granted granted Critical
Publication of CN210782456U publication Critical patent/CN210782456U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Cleaning By Liquid Or Steam (AREA)

Abstract

The utility model discloses a walking and cleaning device of a pig manure cleaning trolley, which comprises a trolley body, wherein the front end of the trolley body is provided with a driving wheel, the rear end of the trolley body is provided with a steering wheel, and the driving wheel is connected with a cleaning rotary drum through a driving gear; a cleaning blanket is wound outside the cleaning rotary drum, a cleaning water bucket is arranged in the vehicle body, guide wheels are arranged on two sides of the cleaning water bucket and the tail of the vehicle body, the cleaning blanket passes over the guide wheels, a pressing wheel is arranged above the cleaning water bucket, and the cleaning blanket passes under the pressing wheel; the cleaning blanket comprises an elastic frame, a plurality of mounting grooves are slidably mounted in the elastic frame, cleaning sponge is fixed in the mounting grooves, and adjacent mounting grooves are connected through springs; the vehicle body is provided with a high-pressure water spray nozzle which is positioned above the cleaning rotary drum and is arranged towards the cleaning rotary drum. The utility model discloses can improve the not enough of prior art, reduce the pollution of cleaning the process to cleaning equipment itself when guaranteeing to clean the effect.

Description

Walking and cleaning device of dirty clean dolly of live pig excrement
Technical Field
The utility model relates to an agricultural machine, especially a walking and cleaning device of dirty clean dolly of live pig excrement.
Background
The live pig breeding is an important industry in rural areas in China, rapid progress is achieved in recent years, and with the progress of agricultural technology, risks and challenges facing the development of the live pig breeding industry are increased day by day. The live pig breeding occupies the main position in the breeding industry of China, accounts for 51 percent of the animal husbandry, is indispensable in the life of people, and the living standard of people is raised at present, so that the people not only are full but also need to eat the live pig, and the people pay more and more attention to the health standard of the live pig. The mode that the brush was swept is mostly adopted to clean in order to guarantee to clean the effect in current pig house cleaning equipment, and this kind of mode of cleaning can carry out comparatively thorough cleaning to the excrement dirt of pig house, nevertheless sweeps the mud that the in-process splashes and can cause the pollution to cleaning equipment this application at the brush, needs the great manpower and materials of cost to wash away disinfection after the use and handle cleaning equipment.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to provide a walking and cleaning device of dirty clean dolly of live pig excrement, can solve the not enough of prior art, reduce the pollution of cleaning the process to cleaning equipment itself when guaranteeing to clean the effect.
In order to solve the technical problem, the utility model adopts the following technical proposal.
A walking and cleaning device of a pig manure cleaning trolley comprises a trolley body, wherein the front end of the trolley body is provided with a driving wheel, the rear end of the trolley body is provided with a steering wheel, and the driving wheel is connected with a cleaning rotary drum through a driving gear; a cleaning blanket is wound outside the cleaning rotary drum, a cleaning water bucket is arranged in the vehicle body, guide wheels are arranged on two sides of the cleaning water bucket and the tail of the vehicle body, the cleaning blanket passes over the guide wheels, a pressing wheel is arranged above the cleaning water bucket, and the cleaning blanket passes under the pressing wheel; the cleaning blanket comprises an elastic frame, a plurality of mounting grooves are slidably mounted in the elastic frame, cleaning sponge is fixed in the mounting grooves, and adjacent mounting grooves are connected through springs; the vehicle body is provided with a high-pressure water spray nozzle which is positioned above the cleaning rotary drum and is arranged towards the cleaning rotary drum.
Preferably, the surface of the cleaning sponge is provided with a tooth-shaped part, and the surface of the pressing wheel is uniformly provided with a plurality of axial strip-shaped flanges.
Preferably, the bottom of the mounting groove is provided with an arc-shaped part, and the arc-shaped part is slidably mounted with the elastic frame.
Preferably, the surface of the cleaning rotary drum is uniformly provided with a plurality of through holes, the side surface of the cleaning rotary drum is movably connected with a rotary table, a negative pressure suction pipe is inserted into the rotary table, and a filter is connected onto the negative pressure suction pipe.
Preferably, the bottom of the cleaning water barrel is provided with an aeration disc, and the outer side of the aeration disc is sleeved with a metal filter cylinder.
Preferably, the air inlet pipe of the aeration disc is connected with an ozone generator.
Adopt the beneficial effect that above-mentioned technical scheme brought to lie in: the utility model discloses a special design cleans the blanket and cleans pig house bottom surface. The cleaning blanket obtains power through the rotation of the wheels, and a driving motor is not required to be arranged independently. The elastic structure of the cleaning blanket can improve the cleaning effect on the uneven area when cleaning the bottom surface, and can perform sufficient elastic deformation through the extrusion of the pressing wheel in the cleaning bucket, so that dirt can be cleaned quickly, and the cleanliness of the cleaning blanket is kept. Through the installation angle of adjustment high pressure water spray nozzle, not only can avoid directly scouring the sewage problem of splashing that ground caused, through spraying water to cleaning the blanket in addition, improve the water content that cleans the blanket, and then improve and clean the cleanliness factor. The tooth-shaped part on the cleaning sponge not only improves the effective cleaning area of the cleaning sponge, but also is in mutual compression joint with the strip-shaped flanges on the surface of the pressing wheel, so that the cleaning sponge can be fully cleaned in the cleaning water bucket. Negative pressure suction is carried out on the cleaning blanket through the through hole, so that the water volume and the dirt in the cleaning blanket gradually move towards the inner side of the cleaning blanket, and the dropping of the sewage is reduced. Meanwhile, the negative pressure is utilized to absorb the water quantity of the cleaning blanket, so that the absorption of the cleaning blanket on the water sprayed by the high-pressure water nozzle can be further improved, and the dirt content in the cleaning blanket is effectively reduced. The aeration disc is arranged in the cleaning bucket, so that the cleaning effect of the cleaning blanket can be improved by utilizing the gathering and breaking of micro bubbles in water, and the circulating flow of the water body in the whole cleaning bucket can be realized by utilizing the upward flowing trend of air flow, so that dirt in water is filtered when passing through the metal filter cylinder, and the service life of the water body in the cleaning bucket is prolonged. The cleaning bucket is disinfected in real time by utilizing the full contact between ozone in the aeration gas and the water body.
Drawings
Fig. 1 is a structural view of an embodiment of the present invention.

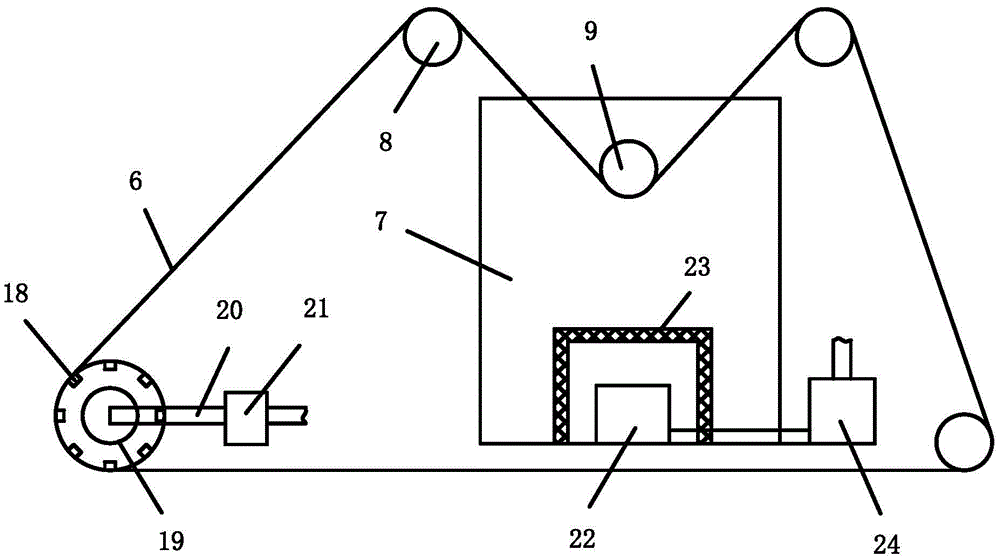

Fig. 2 is a structural diagram of a transmission path of a cleaning carpet according to an embodiment of the present invention.
Fig. 3 is a block diagram of a sweeping carpet according to an embodiment of the present invention.
Figure 4 is a diagram of the construction of the puck according to one embodiment of the present invention.
Detailed Description
Referring to fig. 1-4, a specific embodiment of the present invention includes a vehicle body 1, a driving wheel 2 is installed at the front end of the vehicle body 1, a steering wheel 3 is installed at the rear end of the vehicle body 1, and the driving wheel 2 is connected with a cleaning drum 5 through a driving gear 4; a cleaning blanket 6 is wound on the outer side of the cleaning rotary drum 5, a cleaning water bucket 7 is installed in the car body 1, guide wheels 8 are installed on two sides of the cleaning water bucket 7 and the tail of the car body 1, the cleaning blanket 6 passes over the guide wheels 8, a pressing wheel 9 is installed above the cleaning water bucket 7, and the cleaning blanket 6 passes under the pressing wheel 9; the cleaning blanket 6 comprises an elastic frame 10, a plurality of mounting grooves 11 are slidably mounted in the elastic frame 10, cleaning sponges 12 are fixed in the mounting grooves 11, and adjacent mounting grooves 11 are connected through springs 13; the bottom of the vehicle body 1 is provided with a high-pressure water nozzle 14, the high-pressure water nozzle 14 is positioned at the rear of the cleaning rotary drum 5, and the high-pressure water nozzle 14 is arranged towards the cleaning rotary drum 5. The cleaning blanket 6 obtains power through the rotation of the wheels without separately arranging a driving motor. The elastic structure of the cleaning blanket 6 can improve the cleaning effect on the uneven area when cleaning the bottom surface, and can perform sufficient elastic deformation through the extrusion of the pressing wheel 9 in the cleaning water bucket 7, so that the dirt can be cleaned quickly, and the cleanliness of the cleaning blanket 6 is kept. Through the installation angle of adjustment high pressure water nozzle 14, not only can avoid directly scouring the sewage problem of splashing that ground caused, through spraying water to cleaning blanket 6 in addition, improve the water content that cleans blanket 6, and then improve and clean the cleanliness factor. The surface of the cleaning sponge 12 is provided with a tooth-shaped part 15, and the surface of the pressing wheel 9 is uniformly provided with a plurality of axial strip-shaped flanges 16. The tooth-shaped part 15 on the cleaning sponge 12 not only improves the effective cleaning area of the cleaning sponge 12, but also is in mutual press fit with the strip-shaped flanges 16 on the surface of the pressing wheel 9, so that the cleaning sponge 12 can be fully cleaned in the cleaning water bucket 7. The bottom of the mounting groove 11 is provided with an arc-shaped part 17, and the arc-shaped part 17 is slidably mounted with the elastic frame 10. When the cleaning sponge 12 is squeezed, the installation groove 11 can realize flexible change of the contact angle with the elastic frame 10, thereby improving the cleaning effect. The surface of the cleaning rotary drum 5 is uniformly provided with a plurality of through holes 18, the side surface of the cleaning rotary drum 5 is movably connected with a rotary disc 19, a negative pressure suction pipe 20 is inserted on the rotary disc 19, and a filter 21 is connected on the negative pressure suction pipe 20. Negative pressure suction is performed on cleaning blanket 6 through hole 18, so that the amount of water and dirt in cleaning blanket 6 gradually move to the inner side of cleaning blanket 6, and the dropping of sewage is reduced. Meanwhile, the water quantity of the cleaning blanket 6 is absorbed by utilizing the negative pressure, so that the absorption of the cleaning blanket 6 on the water sprayed by the high-pressure water nozzle 14 can be further improved, and the dirt content in the cleaning blanket 6 is effectively reduced. An aeration disc 22 is arranged at the bottom of the cleaning water barrel 7, and a metal filter cartridge 23 is sleeved outside the aeration disc 22. By installing the aeration disc 22 in the washing water tub 7, the cleaning effect of the cleaning carpet 6 can be improved by the accumulation and breakage of micro bubbles in water, and the circulation flow of the water body in the whole washing water tub 7 can be realized by the upward flow tendency of the air flow, so that the dirt in the water is filtered when passing through the metal filter cartridge 23, and the service life of the water body in the washing water tub 7 is prolonged. The air inlet pipe of the aeration disc 22 is connected with an ozone generator 24, and the cleaning water bucket 7 is disinfected in real time by utilizing the full contact between the ozone in the aeration gas and the water body.
In addition, a first diversion hole 25 is formed in the strip-shaped flange 16, a plurality of second diversion holes 26 are connected to two sides of the first diversion hole 25, and in the rotating process of the pressing wheel 9, water can circularly flow in the strip-shaped flange 16 through the first diversion hole 25 and the second diversion holes 26, so that the cleaning effect of the inside of the tooth-shaped part 15 is improved.
The utility model discloses cleaning performance to the pig house is good, can not produce the spot that splashes in a large number, and the later stage maintenance of the equipment of being convenient for is maintained.
In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description of the present invention, and do not indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (6)

1. The utility model provides a walking and cleaning device of dirty clean dolly of live pig excrement, includes automobile body (1), its characterized in that: the front end of the vehicle body (1) is provided with a driving wheel (2), the rear end of the vehicle body (1) is provided with a steering wheel (3), and the driving wheel (2) is connected with a cleaning rotary drum (5) through a driving gear (4); a cleaning blanket (6) is wound on the outer side of the cleaning rotary drum (5), a cleaning water bucket (7) is installed in the car body (1), guide wheels (8) are installed on the two sides of the cleaning water bucket (7) and the tail of the car body (1), the cleaning blanket (6) passes through the guide wheels (8) from the upper part, a pressing wheel (9) is installed above the cleaning water bucket (7), and the cleaning blanket (6) passes through the lower part of the pressing wheel (9); the cleaning blanket (6) comprises an elastic frame (10), a plurality of mounting grooves (11) are arranged in the elastic frame (10) in a sliding mode, cleaning sponges (12) are fixed in the mounting grooves (11), and adjacent mounting grooves (11) are connected through springs (13); the bottom of the vehicle body (1) is provided with a high-pressure water nozzle (14), the high-pressure water nozzle (14) is positioned behind the cleaning rotary drum (5), and the high-pressure water nozzle (14) is arranged towards the cleaning rotary drum (5).
2. The walking and sweeping device of the pig manure cleaning trolley according to claim 1, which is characterized in that: the surface of the cleaning sponge (12) is provided with a tooth-shaped part (15), and the surface of the pressing wheel (9) is uniformly provided with a plurality of axial strip-shaped flanges (16).
3. The walking and sweeping device of the pig manure cleaning trolley according to claim 2, characterized in that: the bottom of the mounting groove (11) is provided with an arc-shaped part (17), and the arc-shaped part (17) and the elastic frame (10) are installed in a sliding mode.
4. The walking and sweeping device of the pig manure cleaning trolley according to claim 3, characterized in that: the cleaning device is characterized in that a plurality of through holes (18) are uniformly formed in the surface of the cleaning rotary drum (5), a rotary table (19) is movably connected to the side surface of the cleaning rotary drum (5), a negative pressure suction pipe (20) is inserted into the rotary table (19), and a filter (21) is connected to the negative pressure suction pipe (20).
5. The walking and sweeping device of the pig manure cleaning trolley according to claim 1, which is characterized in that: an aeration disc (22) is arranged at the bottom of the cleaning water bucket (7), and a metal filter cartridge (23) is sleeved on the outer side of the aeration disc (22).
6. The walking and sweeping device of the pig manure cleaning trolley according to claim 5, characterized in that: the air inlet pipe of the aeration disc (22) is connected with an ozone generator (24).
