The utility model provides a can level the finish turning that detects to the cutting surface. The finish turning machine capable of carrying out leveling detection on a cutting face comprises a base, wherein the bottom of the inner wall of the base is respectively fixedly connected with a first motor and a supporting seat from left to right, a first belt pulley fixedly connected with an output shaft of the first motor is arranged on the top of the supporting seat, a rotating shaft is rotatably connected to the top of the supporting seat, a second belt pulley fixedly connected with the top end of the rotating shaft is arranged on the top of the rotating shaft, the surface of the first belt pulley is connected with the surface of the second belt pulley through a first belt in a transmission mode, and a clamping seat is fixedly connected to the surface of. The utility model provides a can carry out the finish turning that levels the detection to the cutting surface has that the practicality is strong, easy operation, precision is high, stability is good, has avoided testing process to be carried out by the manual work completely, and detection efficiency is lower to need the people's eye to judge, the great problem of detection error, whether can be quick, accurate detection go out the cutting surface flat, make the advantage that the efficiency that detects promoted greatly.
Description
Technical Field
The utility model relates to a level the detection area, especially relate to a can level the finish turning that detects to the cutting surface.
Background
Flatness detection is sometimes called face detection or coplanarity detection. The flatness detection system is specially used for detecting the indexes of horizontal straightness, coplanarity, gap, stitch width and the like of stitches of various electronic components such as various IC chips, electronic connectors and the like, and the finish turning is a finish machining process in a machining process and needs to ensure the corresponding requirements of the dimensional tolerance and the line tolerance surface roughness of products. The finish machining mainly meets the whole size and technical requirements of parts, the semi-finish machining and the finish machining should select smaller cutting depth and feeding amount as much as possible, and the cutting speed can be a high point.
Present roughness detects and directly transports panel or sheet to the test table usually, still need demolish partial device this moment to lay, in addition, in the compression process, panel or sheet take place slight displacement on the workstation again probably, influence final testing result, and detect the belt transport table that the table generally is the slow motion, whether the manual work judges that the sheet surface has arch or sunken, there is human error in this kind of mode, it is poor to detect the accuracy, and waste time and energy, efficiency is lower.
Therefore, it is necessary to provide a finish turning machine capable of performing a leveling inspection on a cut surface to solve the above-mentioned technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a can level the finish turning that detects to the cutting surface, solve the existence human error of current equipment, detect the poor problem of accuracy.
In order to solve the technical problems, the utility model provides a finish turning machine capable of carrying out leveling detection on a cutting surface, which comprises a base, wherein the bottom of the inner wall of the base is respectively and fixedly connected with a first motor and a supporting seat from left to right, an output shaft of the first motor is fixedly connected with a first belt pulley, the top of the supporting seat is rotatably connected with a rotating shaft, the top end of the rotating shaft is fixedly connected with a second belt pulley, the surface of the first belt pulley is in transmission connection with the surface of the second belt pulley through a first belt, the front side and the rear side of the surface of the first belt are both fixedly connected with clamping seats, the tops of the two clamping seats are both fixedly connected with connecting rods, the top ends of the connecting rods penetrate through the base and extend to the outside of the base, a supporting rod is fixedly connected between the side of the first motor opposite to the supporting seat, and a, the top of the sliding seat is fixedly connected with the bottom of the clamping seat through a connecting rod.
Preferably, the top of base is from a left side to the right side respectively the first backup pad of fixedly connected with and second backup pad, the first telescopic cylinder of bottom fixedly connected with of first backup pad inner wall, the top fixedly connected with spirit level of first telescopic cylinder, the outside that first backup pad just extended to first backup pad is run through to the one end of spirit level.
Preferably, fixedly connected with third backup pad between the top of first backup pad and second backup pad, the top fixedly connected with compression case of third backup pad, the flexible cylinder of top fixedly connected with second of compression incasement wall, the bottom fixedly connected with telescopic link of the flexible cylinder of second, the bottom of telescopic link is from last to running through compression case and third backup pad respectively down and extending to the outside of third backup pad, the bottom fixedly connected with clamp plate of telescopic link.
Preferably, one side of the inner wall of the pressing plate is rotatably connected with a screw rod, one end of the screw rod penetrates through the pressing plate and extends to the outside of the pressing plate, one end of the screw rod, far away from the pressing plate, is fixedly connected with a third belt pulley, one side of the top of the pressing plate is fixedly connected with a second motor, an output shaft of the second motor is fixedly connected with a fourth belt pulley, and the surface of the third belt pulley is in transmission connection with the surface of the fourth belt pulley through a second belt.
Preferably, one side of the surface of the screw rod is in threaded connection with a fixture block, the top of the fixture block is in sliding connection with the top of the inner wall of the pressing plate, two baffles are fixedly connected to the two sides of the bottom of the fixture block, two baffles are fixedly connected to the top of the opposite side of the baffle, two baffles are fixedly connected to the bottom of the opposite side of the baffle, a second placing plate is fixedly connected to the bottom of the opposite side of the baffle, a switch is arranged on each of the first placing plate and the second placing plate, one side of the opposite side of the baffle, which is located between the first placing plate and the opposite side of the second placing plate, is in sliding connection with a connecting shaft, and the connecting shaft is located on two inspection columns.
Preferably, the screw has been run through to the inside of connecting rod, the one end fixedly connected with connecting plate of screw, the top and the equal fixedly connected with flexible post in bottom of connecting plate one side, the one end fixedly connected with buffer board of connecting plate is kept away from to flexible post, two the surface that flexible post is located one side relative with the buffer board of connecting plate all overlaps and is equipped with the spring.
Preferably, an alarm is fixedly connected to the top of one side of the second supporting plate.
Compared with the prior art, the utility model provides a can level the finish turning that detects to the cutting surface has following beneficial effect:
the utility model provides a finish turning machine capable of carrying out leveling detection on a cutting face, a material is placed on a base, a first motor is enabled to work to drive a first belt pulley to move, the first belt pulley drives a first belt to move to drive a clamping seat to move, a sliding seat is driven to move on a supporting rod, a buffer plate and the material are primarily fixed, at the moment, a first telescopic cylinder is enabled to work to drive a spirit level to slide on a first supporting plate, the height of the spirit level is adjusted to be consistent with the material, so that the cutting face of the material is adjusted to be in a horizontal state, then a screw is screwed, the material is fixed again, after the material is fixed, a second telescopic cylinder is enabled to work to drive a pressing plate to move downwards, when an inspection column contacts the cutting face to be detected, a second motor is opened, a clamping block is enabled to move rightwards, when the inspection column rises or falls due to uneven cutting face, a connecting, just can trigger the siren work, cutting plane is uneven promptly, and the device practicality is strong, easy operation, precision are high, stability is good, has avoided testing process to be carried out by the manual work completely, and detection efficiency is lower to need the people's eye to judge, whether the great problem of detection error can be fast, accurate detection cutting plane is flat, makes the efficiency that detects promote greatly.
Drawings

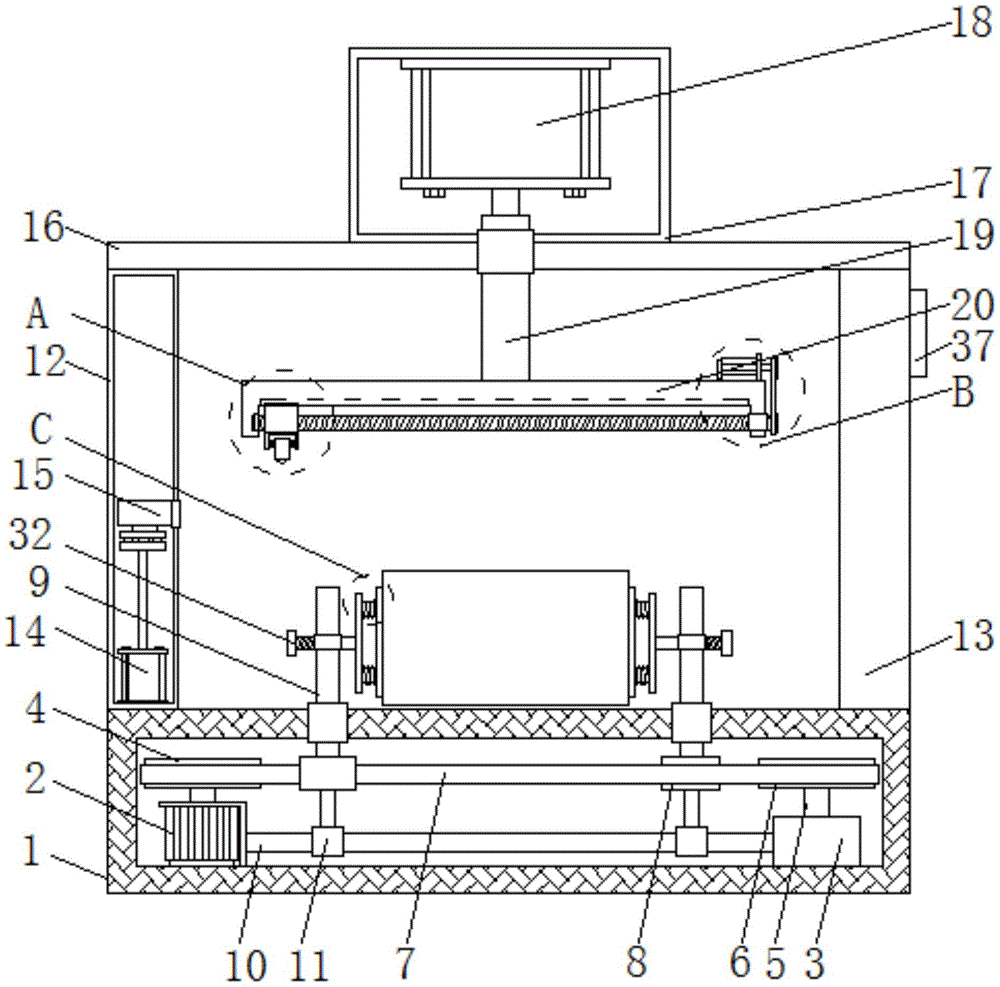

Fig. 1 is a schematic structural diagram of a finish turning machine according to a preferred embodiment of the present invention, which can perform leveling detection on a cut surface;
FIG. 2 is an enlarged view of a portion of FIG. 1 at A;
FIG. 3 is an enlarged view of a portion of FIG. 1 at B;
fig. 4 is a partially enlarged view of the portion C shown in fig. 1.
Reference numbers in the figures: 1. the base, 2, the first motor, 3, the supporting seat, 4, the first belt pulley, 5, the pivot, 6, the second belt pulley, 7, the first belt, 8, the cassette, 9, the connecting rod, 10, the bracing piece, 11, the slide, 12, the first backup pad, 13, the second backup pad, 14, the first telescopic cylinder, 15, the spirit level, 16, the third backup pad, 17, the compression box, 18, the second telescopic cylinder, 19, the telescopic link, 20, the clamp plate, 21, the screw rod, 22, the third belt pulley, 23, the second motor, 24, the fourth belt pulley, 25, the second belt, 26, the fixture block, 27, the baffle, 28, the first board of placing, 29, the second board of placing, 30, the connecting axle, 31, the inspection post, 32, the screw, 33, the connecting plate, 34, the telescopic post, 35, the spring, 36, the buffer board, 37, the siren, 38, the switch.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2, fig. 3 and fig. 4 in combination, wherein fig. 1 is a schematic structural diagram of a finish turning machine according to a preferred embodiment of the present invention for performing leveling detection on a cut surface; FIG. 2 is an enlarged view of a portion of FIG. 1 at A; FIG. 3 is an enlarged view of a portion of FIG. 1 at B; fig. 4 is a partially enlarged view of the portion C shown in fig. 1. The finish turning machine capable of carrying out leveling detection on a cut surface comprises a base 1, wherein the bottom of the inner wall of the base 1 is fixedly connected with a first motor 2 and a supporting seat 3 from left to right respectively, an output shaft of the first motor 2 is fixedly connected with a first belt pulley 4, the top of the supporting seat 3 is rotatably connected with a rotating shaft 5, the top end of the rotating shaft 5 is fixedly connected with a second belt pulley 6, the surface of the first belt pulley 4 is in transmission connection with the surface of the second belt pulley 6 through a first belt 7, the front side and the rear side of the surface of the first belt 7 are both fixedly connected with clamping seats 8, the tops of the two clamping seats 8 are both fixedly connected with connecting rods 9, the top ends of the connecting rods 9 penetrate through the base 1 and extend to the outside of the base 1, a supporting rod 10 is fixedly connected between the opposite sides of the first motor 2 and the supporting seat 3, and a sliding seat 11, the top of the sliding seat 11 is fixedly connected with the bottom of the clamping seat 8 through a connecting rod, the first motor 2 drives the first belt pulley to move 4, the first belt pulley 4 drives the first belt 7 to move, and therefore the clamping seat 8 is driven to move, and the sliding seat 11 is driven to move on the supporting rod 10.
The top of base 1 is from a left side to the right side respectively the first backup pad 12 of fixedly connected with and second backup pad 13, the first telescopic cylinder 14 of bottom fixedly connected with of the 12 inner walls of first backup pad, the top fixed connection of first telescopic cylinder 14 has spirit level 15, the outside that first backup pad 12 just extended to first backup pad 12 is run through to the one end of spirit level 15, and first backup pad 12 is seted up the spout that has 15 cooperations of spirit level to use, makes the work of first telescopic cylinder 14, drives spirit level 15 and slides on first backup pad 12.
Fixedly connected with third backup pad 16 between the top of first backup pad 12 and second backup pad 13, the top fixedly connected with compression case 17 of third backup pad 16, the flexible cylinder 18 of top fixedly connected with second of compression case 17 inner wall, the bottom fixedly connected with telescopic link 19 of the flexible cylinder 18 of second, the bottom of telescopic link 19 is from last to running through compression case 17 and third backup pad 16 respectively down and extending to the outside of third backup pad 16, the bottom fixedly connected with clamp plate 20 of telescopic link 19, the flexible cylinder 18 work of second drives clamp plate 20 downstream.
One side of the inner wall of the pressing plate 20 is rotatably connected with a screw rod 21, one end of the screw rod 21 penetrates through the pressing plate 20 and extends to the outside of the pressing plate 20, one end of the screw rod 21, which is far away from the pressing plate 20, is fixedly connected with a third belt pulley 22, one side of the top of the pressing plate 20 is fixedly connected with a second motor 23, an output shaft of the second motor 23 is fixedly connected with a fourth belt pulley 24, the surface of the third belt pulley 22 is connected with the surface of the fourth belt pulley 24 through a second belt 25 in a transmission manner, the second motor 23 works to drive the fourth belt pulley 24 to move, and the second belt 25 drives the third belt pulley 22 again, so that the screw rod.
A clamping block 26 is connected with one side of the surface of the screw 21 through a thread, the top of the clamping block 26 is connected with the top of the inner wall of the pressing plate 20 in a sliding manner, baffle plates 27 are fixedly connected with two sides of the bottom of the clamping block 26, a first placing plate 28 is fixedly connected between the tops of the opposite sides of the two baffle plates 27, a second placing plate 29 is fixedly connected between the bottoms of the opposite sides of the two baffle plates 27, switches 38 are arranged on the first placing plate 28 and the second placing plate 29, a connecting shaft 30 is connected between the opposite sides of the two baffle plates 27 and the opposite sides of the first placing plate 28 and the second placing plate 29 in a sliding manner, an inspection column 31 is fixedly connected with the surface of the opposite side of the two baffle plates 27, when the inspection column 31 is descended, the inspection column 31 contacts with a cutting surface to be detected and moves rightwards through the thread connection with, when the inspection column 31 is raised or lowered due to the unevenness of the cut surface, the connecting shaft 30 may hit the switch 38.
The inside of connecting rod 9 is run through there is screw 32, the one end fixedly connected with connecting plate 33 of screw 32, the top and the equal fixedly connected with telescopic column 34 in bottom of connecting plate 33 one side, telescopic column 34 keeps away from the one end fixedly connected with buffer board 36 of connecting plate 33, two telescopic column 34 is located the surface of connecting plate 33 and the relative one side of buffer board 36 and all overlaps and is equipped with spring 35, and when buffer board 36 and material were tentatively fixed, the cutting plane to the horizontality of adjusting material twisted screw 32 again, makes telescopic link 34 extend to make buffer board 36 and connecting plate 33 keep away from, fix the material once more promptly.
An alarm 37 is fixedly connected to the top of one side of the second supporting plate 13, and when the connecting shaft 30 touches the switch 38, the alarm 37 is triggered to work, that is, the cutting surface is uneven.
The utility model provides a can level the theory of operation of the finish turning that detects to the cutting surface as follows:
before work, the material is placed on the base 1, the first motor 2 works to drive the first belt pulley to move 4, the first belt pulley 4 drives the first belt 7 to move, the clamping seat 8 is driven to move, the sliding seat 11 is driven to move on the supporting rod 10, the buffer plate 36 is preliminarily fixed with the material, at the moment, the first telescopic cylinder 14 works to drive the level gauge 15 to slide on the first supporting plate 12, the height of the level gauge 15 is adjusted to be consistent with the material, the cutting surface of the material is adjusted to be in a horizontal state, the screw 32 is screwed again to fix the material, after the material is fixed, the second telescopic cylinder 18 works to drive the pressing plate 20 to move downwards, the second motor 23 is opened when the inspection column 31 contacts with the cutting surface to be detected, the clamping block 26 moves rightwards, when the inspection column 31 rises or falls due to uneven cutting surface, the connecting shaft 30 can touch the switch 38, the alarm 37 is triggered to operate, i.e., the cutting surface is not flat.
Compared with the prior art, the utility model provides a can level the finish turning that detects to the cutting surface has following beneficial effect:
the material is placed on the base 1, the first motor 2 works to drive the first belt pulley to move 4, the first belt pulley 4 drives the first belt 7 to move, the clamping seat 8 is driven to move, the sliding seat 11 is driven to move on the supporting rod 10, the buffer plate 36 is preliminarily fixed with the material, at the moment, the first telescopic cylinder 14 works to drive the level gauge 15 to slide on the first supporting plate 12, the height of the level gauge 15 is adjusted to be consistent with that of the material, the cutting surface of the material is adjusted to be in a horizontal state, the screw 32 is screwed to fix the material again, after the material is fixed, the second telescopic cylinder 18 works to drive the pressing plate 20 to move downwards, the inspection column 31 contacts with the cutting surface to be detected, the second motor 23 is started to enable the clamping block 26 to move rightwards, when the inspection column 31 rises or falls due to uneven cutting surface, the connecting shaft 30 can touch the switch 38 to trigger the alarm 37 to work, the device practicality is strong, easy operation, precision are high, stability is good promptly, has avoided testing process to be carried out by the manual work completely, and detection efficiency is lower to need the people eye to judge, detect the great problem of error, whether can be fast, accurate detection go out the cutting plane flat, make the efficiency that detects promote greatly.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a can level the finish turning that detects to cutting surface, includes base (1), its characterized in that: the bottom of the inner wall of the base (1) is fixedly connected with a first motor (2) and a supporting seat (3) from left to right respectively, an output shaft of the first motor (2) is fixedly connected with a first belt pulley (4), the top of the supporting seat (3) is rotatably connected with a rotating shaft (5), the top end of the rotating shaft (5) is fixedly connected with a second belt pulley (6), the surface of the first belt pulley (4) is in transmission connection with the surface of the second belt pulley (6) through a first belt (7), the front side and the rear side of the surface of the first belt (7) are both fixedly connected with clamping seats (8), the tops of the two clamping seats (8) are both fixedly connected with connecting rods (9), the top ends of the connecting rods (9) penetrate through the base (1) and extend to the outside of the base (1), and a supporting rod (10) is fixedly connected between one side of the first motor (2) opposite to the supporting seat (3), the surface of the supporting rod (10) is connected with a sliding seat (11) in a sliding mode, and the top of the sliding seat (11) is fixedly connected with the bottom of the clamping seat (8) through a connecting rod.
2. The finish turning machine capable of carrying out leveling detection on a cut surface according to claim 1, wherein a first support plate (12) and a second support plate (13) are fixedly connected to the top of the base (1) from left to right respectively, a first telescopic cylinder (14) is fixedly connected to the bottom of the inner wall of the first support plate (12), a level gauge (15) is fixedly connected to the top end of the first telescopic cylinder (14), and one end of the level gauge (15) penetrates through the first support plate (12) and extends to the outside of the first support plate (12).
3. The finish turning machine capable of performing leveling detection on a cut surface according to claim 2, wherein a third support plate (16) is fixedly connected between the tops of the first support plate (12) and the second support plate (13), a compression box (17) is fixedly connected to the top of the third support plate (16), a second telescopic cylinder (18) is fixedly connected to the top of the inner wall of the compression box (17), a telescopic rod (19) is fixedly connected to the bottom end of the second telescopic cylinder (18), the bottom end of the telescopic rod (19) penetrates through the compression box (17) and the third support plate (16) from top to bottom respectively and extends to the outside of the third support plate (16), and a pressing plate (20) is fixedly connected to the bottom end of the telescopic rod (19).
4. The finish turning machine capable of carrying out flatness detection on a cut surface according to claim 3, wherein a screw (21) is rotatably connected to one side of the inner wall of the pressing plate (20), one end of the screw (21) penetrates through the pressing plate (20) and extends to the outside of the pressing plate (20), a third belt pulley (22) is fixedly connected to one end, far away from the pressing plate (20), of the screw (21), a second motor (23) is fixedly connected to one side of the top of the pressing plate (20), a fourth belt pulley (24) is fixedly connected to an output shaft of the second motor (23), and the surface of the third belt pulley (22) is in transmission connection with the surface of the fourth belt pulley (24) through a second belt (25).
5. The finish turning machine capable of carrying out leveling detection on a cutting surface according to claim 4, characterized in that a clamping block (26) is connected to one side of the surface of the screw rod (21) in a threaded manner, the top of the clamping block (26) is slidably connected with the top of the inner wall of the pressing plate (20), baffles (27) are fixedly connected to both sides of the bottom of the clamping block (26), a first placing plate (28) is fixedly connected between the tops of the two opposite sides of the baffles (27), a second placing plate (29) is fixedly connected between the bottoms of the two opposite sides of the baffles (27), a switch (38) is arranged on each of the first placing plate (28) and the second placing plate (29), a connecting shaft (30) is slidably connected between the two opposite sides of the baffles (27) and between the first placing plate (28) and the second placing plate (29), the surface of the connecting shaft (30) on the opposite side of the two baffles (27) is fixedly connected with an inspection column (31).
6. The finish turning machine capable of carrying out leveling detection on a cut surface according to claim 1, wherein a screw (32) penetrates through the connecting rod (9), a connecting plate (33) is fixedly connected to one end of the screw (32), telescopic columns (34) are fixedly connected to the top and the bottom of one side of the connecting plate (33), a buffer plate (36) is fixedly connected to one ends of the telescopic columns (34) far away from the connecting plate (33), and springs (35) are sleeved on the surfaces of the two telescopic columns (34) on the side, opposite to the buffer plate (36), of the connecting plate (33).
7. Finish turning machine capable of level detection of cut surfaces according to claim 2, characterized in that an alarm (37) is fixedly connected to the top of one side of the second support plate (13).
