The utility model provides a movable type fruit and vegetable dehydrator which comprises a dehydrator frame, wherein a material bucket of which the top is opened is fixedly connected to the dehydrator frame. The material bucket is provided with a rotating shaft which is connected to the dehydrator frame in a rotating mode. The rotating shaft is in power connection with a power device which is fixedly connected to the dehydrator frame. The rotating shaft is provided with a rotating bucket which is detachable and divides an inner cavity of the material bucket into a material containing cavity in the upper portion and a water draining cavity in the lower portion, wherein the upper end of the rotating bucket is opened. A movable rotating disc which is connected to the dehydrator frame in a rotating mode and serves as a material carrier disc is arranged at the bottom of the rotating bucket. The movable rotating disc is in power connection with the power device which is fixedly connected to the dehydrator frame. A plurality of water passing holes are formed in the bucket wall of the rotating bucket. According to the movable type fruit and vegetable dehydrator, material boards, scrapping materials and other devices do not need to be installed, breeding of bacteria and the like is reduced, and cleaning is more convenient. Due to the facts that supporting arms are short and firm and the size of a chassis is large enough, the rotating bucket is effectively prevented from shaking, and accordingly the service life of the dehydrator is prolonged. A base is provided with movable fixing pulleys, so that convenience is brought to moving operation in workshops.
Description
Technical field
The utility model relates to a kind of packaged type fruits and vegetables ' dehydration machine.
Background technology
Along with the raising of production efficiency, the processing technology step of fruit and vegetable product is more and more perfect.At present, the dehydration of fruits and vegetables such as edible mushroom is about to fruits and vegetables and gets up with bundle all by manually finishing, and dewaters by manually constantly wringing out.In whole piece explained hereafter flow process, the dehydration link not only with the correlation of attributes of fruit and vegetable tin product, as dehydration not to the utmost, may cause the space between cells that pore is arranged, also affect the brittleness of fruits and vegetables; All must be through seasoning because of all canned packs, the moisture of the product after the rehydration affects the addition of flavoring greatly.Above-mentioned dehydration, operating personnel need waste a lot of energy, and not only labour intensity is very big, and sanitary condition is difficult to reach, and dewatering efficiency is low.
Chinese patent application (patent) numbers 200820087865.1 discloses a kind of dewaterer, and during use, vegetables are placed on staving inside, and hand crank is limited in the axle center by roller with turning barrel and rotates, to reach the fruits and vegetables ' dehydration purpose.This invention is simple in structure, easy to use, but it is applicable to family's vegetables cleaning, still needs to carry out crank by hand, is unsuitable for the industrial mass washing and cleaning operation.
Chinese patent application (patent) number: 201120002940.6, disclose a kind of fruits and vegetables ' dehydration machine, the dehydration of fresh fruit of vegetables mainly is to be undertaken by the mode of oven dry, and the fresh fruit vegetables that are about to be cut into bulk, sheet are sent in the charging basket, send into hot blast to the charging basket bottom, dewater by hot blast.Above-mentioned dewatering type energy consumption is big, and dewatering efficiency is low.
Chinese patent application (patent) number: 201120389114.1, a kind of fruits and vegetables ' dehydration machine is disclosed, its complex structure, and be provided with manual refining and screeding device, rotating shaft and screeding device must be fixed on the two ends of inwall by support arm, but partial material can be leaked in the crack of device and is difficult to take out, cause breed bacteria etc., cleaning is also inconvenient, considers from result of use, operating efficiency and labour intensity equal angles, also is necessary to do further perfect on the basis of technique scheme.
Summary of the invention
Existing fruits and vegetables ' dehydration machine dewatering efficiency is low, power consumption is big and loom itself cleans shortcomings such as difficulty is big in order to overcome, and the utility model provides a kind of simple in structure, occupation of land is little, cost is low, efficient is high packaged type fruits and vegetables ' dehydration machine.
The technical solution adopted in the utility model is:
Packaged type fruits and vegetables ' dehydration machine, comprise frame, be connected with the charging basket of open top on the described frame, be provided with the rotating shaft that is rotatably connected on the frame in the described charging basket, described rotating shaft is connected with power set power on being fixed in frame, it is characterized in that: described rotating shaft is provided with the uncovered turning barrel in dismountable upper end described charging basket inner chamber is divided into the feeding chamber on top and the drain chamber of bottom, the bottom of described turning barrel is provided with the movable disk as care feed tray that is rotatably connected on the frame, and described movable disk is connected with power set power on being fixed in frame; Be laid with several water holes on the bucket wall of described turning barrel.
Further, be connected with described turning barrel by support arm on the described movable disk.
Further, the bottom of described charging basket is provided with the water leg between charging basket and turning barrel, and described water leg is provided with delivery port, and described delivery port is connected with outlet pipe.
Further, the top of described charging basket is connected with the bung with described turning barrel main header casing envelope.
Further, described power set are motor.
Further, the bottom of described frame is provided with and is convenient to mobile roller.
When the utility model uses, fruits and vegetables to be drained off are sent in the feeding chamber of charging basket, start power set driving rotating shaft rotation turning barrel is rotated at a high speed, in the rotating shaft rotating process, bottom and the chassis of turning barrel have constituted care feed tray, add the fruits and vegetables after the fresh or rehydration of sheet or chunky shape this moment in the turning barrel, rotate at a high speed with turning barrel, under action of centrifugal force, be attached on the turning barrel inwall, really, the moisture in the vegetables is by the water hole on the turning barrel bucket wall, be pooled to drain chamber and be discharged from.The dehydration finish after, with bung open fruits and vegetables through tapping channel to the charging basket outside.
In the utility model dehydration, the moisture in the fruits and vegetables is got rid of in the water leg to turning barrel by water hole under the effect of centripetal force, and water is discharged from delivery port after water leg compiles, and reaches the purpose of fixed point discharging.
When the utility model fruits and vegetables enter, collect in the centre of turning barrel, can effectively reduce the vibrations of dewaterer in the dehydration.Whole process need not be considered the refining problem, in the high speed centrifugation process, can realize that fruit and vegetable materials can be brought together to the stirring of fruits and vegetables, and fruits and vegetables just can flow to the charging basket outside through tapping channel, and dehydration is settled at one go.
The beneficial effects of the utility model are embodied in:
1, simple in structure, working stability, the dewatering efficiency height, its rotating disk is limited in the axle center with charging basket and rotates, and overlaps with the center of gravity of raw material, and charging basket can not rock, thereby has prolonged the life-span of dewaterer;
2, effectively reduce labour intensity, improve dewatering efficiency;
3, rotating shaft directly is connected with the chassis, need not to install the devices such as scraper that flitch, supplies scrape, and can reduce the cleaning that inwall and axle are gone up attachment, reduces growing of bacterium etc., makes cleaning convenient;
4, firm because support arm is short, and the chassis area is enough big, can prevent effectively that turning barrel from rocking, thus prolong the life-span of dewaterer;
5, base is equipped with movably fixed block, can move to suitable position and be fixed up, makes things convenient for the flow operation in workshop;
6, barrel can bear 10 kilograms material at most, open turn knob, whole process about 10 seconds, can dry the moisture of material outer surface about 90% rapidly, fruits and vegetables only have been subjected to the dual impact of air-flow and water wave and the whipping concussion, so can not rubbed thoroughly cookedization, the fruit and vegetable product after the dehydration provides stable quality for ensuing technology.
Description of drawings
Fig. 1 is the utility model overall structure schematic diagram.

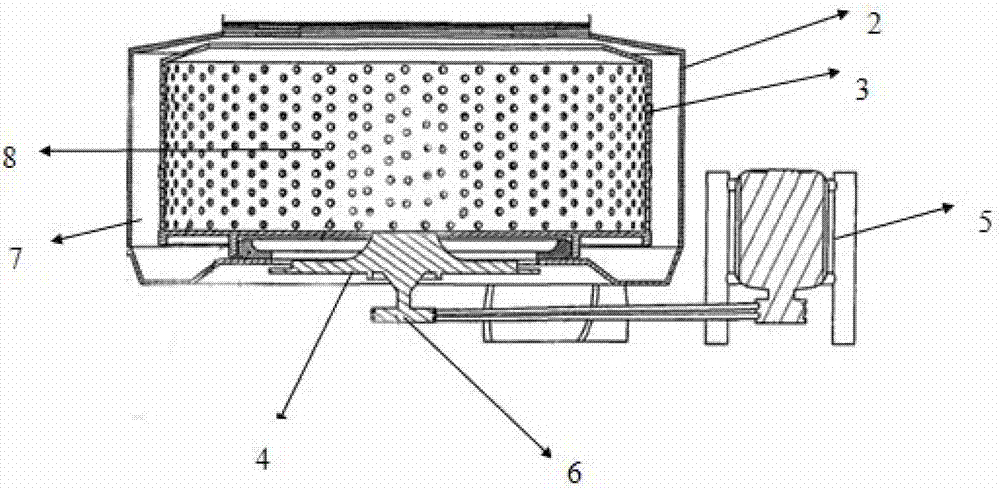

Fig. 2 is the utility model internal structure schematic diagram.
The specific embodiment
See figures.1.and.2, packaged type fruits and vegetables ' dehydration machine, comprise frame 1, be connected with the charging basket 2 of open top on the described frame 1, be provided with the rotating shaft that is rotatably connected on the frame 1 in the described charging basket 2, described rotating shaft is connected with power set power on being fixed in frame 1, described rotating shaft is provided with the uncovered turning barrel in dismountable upper end 3 described charging basket 2 inner chambers is divided into the feeding chamber on top and the drain chamber of bottom, the bottom of described turning barrel 3 is provided with the movable disk 4 as care feed tray that is rotatably connected on the frame 1, and described movable disk 4 is connected with power set power on being fixed in frame 1; Be laid with several water holes 8 on the bucket wall of described turning barrel 3.
Further, be connected with described turning barrel 3 by support arm 6 on the described movable disk 4.
Further, the bottom of described charging basket 2 is provided with the water leg 7 between charging basket 2 and turning barrel 3, and described water leg 7 is provided with delivery port, and described delivery port is connected with outlet pipe 9.
Further, the top of described charging basket 2 is connected with the bung 10 with described turning barrel 3 main header casings envelope.
Further, described power set are motor 5.
Further, the bottom of described frame 1 is provided with and is convenient to mobile roller.
When the utility model uses, fruits and vegetables to be drained off are sent in the feeding chamber of charging basket, start power set driving rotating shaft rotation turning barrel is rotated at a high speed, in the rotating shaft rotating process, bottom and the chassis of turning barrel have constituted care feed tray, add the fruits and vegetables after the fresh or rehydration of sheet or chunky shape this moment in the turning barrel, rotate at a high speed with turning barrel, under action of centrifugal force, be attached on the turning barrel inwall, really, the moisture in the vegetables is by the water hole on the turning barrel bucket wall, be pooled to drain chamber and be discharged from.The dehydration finish after, with bung open fruits and vegetables through tapping channel to the charging basket outside.
In the utility model dehydration, the moisture in the fruits and vegetables is got rid of in the water leg to turning barrel by water hole under the effect of centripetal force, and water is discharged from delivery port after water leg compiles, and reaches the purpose of fixed point discharging.
When the utility model fruits and vegetables enter, collect in the centre of turning barrel, can effectively reduce the vibrations of dewaterer in the dehydration.Whole process need not be considered the refining problem, in the high speed centrifugation process, can realize that fruit and vegetable materials can be brought together to the stirring of fruits and vegetables, and fruits and vegetables just can flow to the charging basket outside through tapping channel, and dehydration is settled at one go.
The described content of this specification embodiment only is enumerating the way of realization of inventive concept; protection domain of the present utility model should not be regarded as only limiting to the concrete form that embodiment states, protection domain of the present utility model also reach in those skilled in the art according to the utility model design the equivalent technologies means that can expect.
Claims (6)
1. packaged type fruits and vegetables ' dehydration machine, comprise frame, be connected with the charging basket of open top on the described frame, be provided with the rotating shaft that is rotatably connected on the frame in the described charging basket, described rotating shaft is connected with power set power on being fixed in frame, it is characterized in that: described rotating shaft is provided with the uncovered turning barrel in dismountable upper end described charging basket inner chamber is divided into the feeding chamber on top and the drain chamber of bottom, the bottom of described turning barrel is provided with the movable disk as care feed tray that is rotatably connected on the frame, and described movable disk is connected with power set power on being fixed in frame; Be laid with several water holes on the bucket wall of described turning barrel.
2. packaged type fruits and vegetables ' dehydration machine as claimed in claim 1 is characterized in that: be connected with described turning barrel by support arm on the described movable disk.
3. packaged type fruits and vegetables ' dehydration machine as claimed in claim 2, it is characterized in that: the bottom of described charging basket is provided with the water leg between charging basket and turning barrel, and described water leg is provided with delivery port, and described delivery port is connected with outlet pipe.
4. packaged type fruits and vegetables ' dehydration machine as claimed in claim 3 is characterized in that: the top of described charging basket is connected with the bung with described turning barrel main header casing envelope.
5. packaged type fruits and vegetables ' dehydration machine as claimed in claim 4, it is characterized in that: described power set are motor.
6. as the described packaged type fruits and vegetables ' dehydration of one of claim 1～5 machine, it is characterized in that: the bottom of described frame is provided with is convenient to mobile roller.
