Abstract
The utility model belongs to the technical field of construction materials, in particular to a hollow sound proof wall. The sound proof wall comprises a fixing plate, a rectangular rib, a hollow rib, a pillar, inner plates and face plates, wherein the lower end of the hollow rib is connected with the fixing plate; the inner plates are arranged on the two sides of the hollow rib; the two inner plates and the hollow rib form hollow layers; the lower end of the pillar is arranged on the fixing plate; the hollow layers are connected with the two side surfaces of the pillar respectively; the face plates are arranged on the two sides of the fixing plate; each inner plate and each face plate on the same side form a heat insulation layer; and the two end surfaces of the pillar are connected with the face plates. The hollow sound proof wall has the advantages that the structure is simple; the wall is formed through the assembly of various components; the operation of cutting can be finished in a factory; the assembly is performed in a construction site; only sheet materials and thermal insulation materials are needed to be conveyed; the assembly structure from parts to whole and from simplicity to complexity is realized; the transportation is performed conveniently; the construction is performed easily; all the components of the hollow sound proof wall can be disassembled; and the operation of assembly in the site is realized.
Description
Technical field
The utility model belongs to building material technical field, particularly a kind of hollow noise barrier.
Background technology
The building trade vertical partition wall mainly adopts building block partition wall and lightgage steel joist gypsum structure partition wall at present, the complex process of building block partition wall, and the finishing time is long, and link is more, just needs bigger thickness as reaching good soundproof effect.And lightgage steel joist gypsum structure partition wall, its soundproof effect is poor, and non-watertight (gypsum is water funk).
Existing patent is also improved vertical partition wall, be CN201020565838.2 as the patent No., the applying date is 2010-10-18, name is called the utility model patent of " warming sound insulation module walling ", its technical scheme is: the utility model relates to a kind of constructional materials, especially a kind of general warming sound insulation module walling that is used for indoor partition wall or indoor top, it is the material of the block hexahedron structure made by the specification requirement, the hollow structure of block hexahedron structure for fixedly being formed through glue and/or nail by six panels on six faces, middle vacancy is filled with the cotton piece of sound-insulating and heat-insulating, panel can be wooden PLASTIC LAMINATED etc., the cotton piece of sound-insulating and heat-insulating is acetate fiber piece etc., has at least on the facade on two facades under the cotton piece use of the sound-insulating and heat-insulating state to be stained with waterproof layer.Above-mentioned patent is a kind of modularization wallboard, and this modularization board wall is as a whole, can't dismantle, and very heavy, be inconvenient to transport and go upstairs.
The utility model content
In order to overcome the problems referred to above that existing vertical partition wall exists, special now a kind of simple, convenient transportation, hollow noise barrier that decoration cost is low assembled proposed.
For realizing above-mentioned technique effect, technical solutions of the utility model are as follows:
A kind of hollow noise barrier, it is characterized in that: comprise fixed head, rectangular fin, hollow rib, column, back veneer and panel, described hollow rib lower end is connected with fixed head, both sides in hollow rib are provided with back veneer, and two back veneers and hollow rib constitute hollow layer, and column lower end is arranged on the fixed head, the two sides of column all are connected with hollow layer, both sides at fixed head are provided with panel, and the back veneer of homonymy and panel constitute insulation layer, and the both ends of the surface of column link to each other with panel.
Be provided with ribs between described two back veneers, described ribs is connected with two back veneers.
Be provided with ribs between described back veneer and the panel, described ribs is connected with panel with back veneer respectively.
Be provided with rectangular fin in the described column.
Be provided with rock wool, glass wool or foam cement in the described insulation layer.
Described back veneer and ribs are fixed by tack coat and stainless steel nail, fix by tack coat and stainless steel nail between panel and the ribs.
Advantage of the present utility model is:
1, the utility model is simple in structure, is assembled by each parts, can finish cutting in factory, assembles at the construction field (site), only needs transportation sheet material and heat insulating material.Realized by zero to putting in order the package assembly that goes from the simple to the complex.Make things convenient for transportation and be easy to construction.All parts of the present utility model can be dismantled, and realize on-the-spot the installation.
2, the utility model installation does not almost have waste material, present major part usefulness be that the foam cement brick assembles and forms, just need fix with the cement river sand, will produce some waste materials like this.And the utility model calculate in advance after the materials assembling of taking away again, so there is not waste material.
3, the utility model forms hollow structure, has improved soundproof effect so greatly.And be provided with two independently insulation layers, and namely be equivalent to always have three layers of hollow structure, guaranteed heat insulating ability and the sound insulation of noise barrier.
4, the utility model has been broken through the structure of existing partition wall, because the sheet material of panel is mechanization production, the surface is very smooth, can not coat or paster behind the hole, Rusty Nail so only need handle well, has saved a large sum of decoration cost.Existing partition wall will reach same soundproof effect and the finishing effect is then long in time limit, and increases integrated cost.
5, hollow rib of the present utility model is the location hollow layer, and rectangular fin location column makes that hollow layer and column are more firm, and is not yielding.
Description of drawings

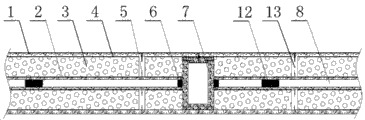

Fig. 1 is the utility model lateral view.
Fig. 2 is the lateral view of the utility model column.
Fig. 3 is the utility model vertical view.
In the accompanying drawing: panel 1, back veneer 2, insulation layer 3, tack coat 4, stainless steel nail 5, hollow rib 6, column 7, hollow layer 8, fixed head 9, floor 10, rectangular fin 11, ribs 12, ribs 13.
The specific embodiment
Embodiment 1
From Fig. 1,2 as can be known, the hollow noise barrier comprises fixed head 9, rectangular fin 11, hollow rib 6, column 7, back veneer 2 and panel 1, described hollow rib 6 lower ends are connected with fixed head 9, the below of fixed head 9 is floor 10, be provided with back veneer 2 in the both sides of hollow rib 6, back veneer 2 distributes for vertical direction, two back veneers that vertically distribute 2 constitute hollow layer 8 with the hollow rib 6 of below, be symmetrical because noise barrier of the present utility model is upper and lower, both structures are identical, so above two back veneers 2, be provided with hollow rib 6 equally, above this hollow rib 6, be connected with attic plate 10.All parts of the present utility model can be dismantled, and realize on-the-spot the installation.
Column 7 is vertical the setting, column 7 height are identical with the noise barrier height, the lower end of column 7 is arranged on the fixed head 9, and as can be seen from Figure 3, the utility model inside is divided into a plurality of zones by column 7, each zone is provided with hollow layer 8 and insulation layer 3, the two sides of column 7 all are connected with hollow layer 8, and fixed head 9 is wideer than hollow rib 6, are provided with panel 1 in the both sides of fixed head 9, the back veneer 2 of homonymy and panel 1 constitute insulation layer 3, and the both ends of the surface of column 7 link to each other with panel 1.
Embodiment 2
From Fig. 1,2 as can be known, the hollow noise barrier comprises fixed head 9, rectangular fin 11, hollow rib 6, column 7, back veneer 2 and panel 1, described hollow rib 6 lower ends are connected with fixed head 9, the below of fixed head 9 is floor 10, be provided with back veneer 2 in the both sides of hollow rib 6, back veneer 2 distributes for vertical direction, two back veneers that vertically distribute 2 constitute hollow layer 8 with the hollow rib 6 of below, be symmetrical because noise barrier of the present utility model is upper and lower, both structures are identical, so above two back veneers 2, be provided with hollow rib 6 equally, above this hollow rib 6, be connected with attic plate 10.
Column 7 is vertical the setting, column 7 height are identical with the noise barrier height, the lower end of column 7 is arranged on the fixed head 9, and as can be seen from Figure 3, the utility model inside is divided into a plurality of zones by column 7, each zone is provided with hollow layer 8 and insulation layer 3, the two sides of column 7 all are connected with hollow layer 8, and fixed head 9 is wideer than hollow rib 6, are provided with panel 1 in the both sides of fixed head 9, the back veneer 2 of homonymy and panel 1 constitute insulation layer 3, and the both ends of the surface of column 7 link to each other with panel 1.
Be provided with ribs 12 between two back veneers 2, described ribs 12 is connected with two back veneers 2.Be provided with ribs 13 between back veneer 2 and the panel 1, described ribs 13 is connected with panel 1 with back veneer 2 respectively.Be provided with rectangular fin 11 in the column 7.Be provided with rock wool, glass wool and/or foam cement in the insulation layer 3.Back veneer 2 is fixing by tack coat 4 and stainless steel nail 5 with ribs 13, and is fixing by tack coat 4 and stainless steel nail 5 between panel 1 and the ribs 13.All parts of the present utility model can be dismantled, and realize on-the-spot the installation.
The utility model forms hollow structure, has improved soundproof effect so greatly, and has been provided with two independently insulation layers 3, namely is equivalent to always have three layers of hollow structure, has guaranteed heat insulating ability and the sound insulation of noise barrier.Hollow rib 6 is location hollow layers 8, and rectangular fin 11 location columns 7 make that hollow layer 8 and column 7 are more firm, and are not yielding.
Claims (6)
1. hollow noise barrier, it is characterized in that: comprise fixed head (9), rectangular fin (11), hollow rib (6), column (7), back veneer (2) and panel (1), described hollow rib (6) lower end is connected with fixed head (9), be provided with back veneer (2) in the both sides of hollow rib (6), two back veneers (2) constitute hollow layer (8) with hollow rib (6), column (7) lower end is arranged on the fixed head (9), the two sides of column (7) all are connected with hollow layer (8), be provided with panel (1) in the both sides of fixed head (9), the back veneer of homonymy (2) and panel (1) constitute insulation layer (3), and the both ends of the surface of column (7) link to each other with panel (1).
2. a kind of hollow noise barrier according to claim 1, it is characterized in that: be provided with ribs (12) between described two back veneers (2), described ribs (12) is connected with two back veneers (2).
3. a kind of hollow noise barrier according to claim 2, it is characterized in that: be provided with ribs (13) between described back veneer (2) and the panel (1), described ribs (13) is connected with panel (1) with back veneer (2) respectively.
4. a kind of hollow noise barrier according to claim 2 is characterized in that: be provided with rectangular fin (11) in the described column (7).
5. according to claim 3 or 4 described a kind of hollow noise barriers, it is characterized in that: described insulation layer is provided with rock wool, glass wool or foam cement in (3).
6. a kind of hollow noise barrier according to claim 5, it is characterized in that: described back veneer (2) is fixing by tack coat (4) and stainless steel nail (5) with ribs (13), and is fixing by tack coat (4) and stainless steel nail (5) between panel (1) and the ribs (13).
