CN203062027U - Full-automatic series welding device capable of being used for welding solar cells with four grid lines and five grid lines - Google Patents
Full-automatic series welding device capable of being used for welding solar cells with four grid lines and five grid lines Download PDFInfo
- Publication number
- CN203062027U CN203062027U CN 201220589365 CN201220589365U CN203062027U CN 203062027 U CN203062027 U CN 203062027U CN 201220589365 CN201220589365 CN 201220589365 CN 201220589365 U CN201220589365 U CN 201220589365U CN 203062027 U CN203062027 U CN 203062027U
- Authority
- CN
- China
- Prior art keywords
- welding
- battery strings
- station
- grid lines
- battery
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Resistance Welding (AREA)
Abstract
Provided is a full-automatic series welding device capable of being used for welding solar cells with four grid lines and five grid lines. In a series welding machine, a cell damage and grid line position detecting and correcting device, an efficiency detecting device, a waste product eliminating device and a scaling powder spraying device are used for guaranteeing the fact that qualified solar cells can be chosen quickly. Scaling power is accurately sprayed according to the number of solar cell main grid lines, a welding strip device and a welding strip laying device are enabled to accurately and quickly pave welding strips on the main grid lines on two faces of the solar cells, a welding conveying device is used for preheating a station to preheat the solar cells, and then a cell string welding device which is arranged above the welding station of the welding conveying device is used for completing quick series welding of the solar cells with the four grid lines and the five grid lines. A cell string conveying device of a turn-over machine, a cell string grabbing and turn-over device, a cell string grabbing and moving device, an EL detecting device and a cell string collecting material platform device are used for completing conveying, turning over, detecting and collecting of the cell strings, and full-automatic series welding production of the solar cells with the four grid lines and the five grid lines is finally achieved.
Description
Technical field
The utility model relates to welding technology field, particularly a kind of full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets.
Background technology
In the crystal silicon solar battery component manufacture process, must be with battery sheet welding bunchiness, and the main grid line of battery sheet has two grid lines again, three grid lines, four grid lines, five grid lines etc., different grid line battery sheets and battery sheet series welding connect has crucial influence to the production efficiency of crystal silicon solar battery component and quality stability, present crystal silicon solar cell sheet adopts two kinds of method welding, first kind is the method welding of manual welding, usually adopt electric iron to weld during manual welding, the main grid line quantity of battery sheet is more many, production efficiency is more low, and quality stability is more poor; Second kind is to adopt full automatic welding to pick to weld, the infrared thermal weld that adds is mainly adopted in the welding that full automatic welding picks, adopt infrared heating welding manner to have following problem: speed of welding is slow, battery sheet integral body is heated yielding, and because the main grid line quantity of battery sheet increases, cause more cracky of battery sheet, energy consumption is also big.Though occur the big problem of energy consumption that the full automatic welding of employing electromagnetism heating welding manner picks and can solve existence in the market, the full automatic welding of present employing electromagnetism heating welding manner picks, and still there are the following problems: speed of welding is slow, battery sheet cracky.
Summary of the invention
In view of this, be necessary to provide a kind of full-automatic series welding equipment that improves speed of welding, reduction battery sheet breakage rate and can weld four grid lines, five grid line solar battery sheets.
A kind of full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets comprises series welding machine (100), turn-over machine (200), and described series welding machine (100) is connected with the finger setting screw with turn-over machine (200) butt joint back.Wherein, series welding machine (100) comprises cuboid series welding machine frame (101) and is installed in feeding device (102) on the cuboid series welding machine frame (101), standby material box device (103), haul robot device (104), breakage and grid line position probing means for correcting (105), efficient checkout gear (106), goods rejection device (107), scaling powder spraying device (108), scaling powder liquid feed device (109), scaling powder device for storing liquid (110), for welding device (111), lay welding device (112), transmitting device (113) before the weldering, conveying robot unit (114) before the weldering, end band fixture (115), welding transmitting device (116), battery strings welder (117); First end of series welding machine frame (101) is connected with turn-over machine (200) with screw by alignment pin.
Feeding device (102) is near second end of series welding machine frame (101), and transmitting device (113) is near second end of series welding machine frame (101) before the weldering, and transmitting device (113) is parallel with feeding device (102) before the weldering; Lay welding device (112) near second end of series welding machine frame (101), and laying welding device (112) is positioned between feeding device (102) and the preceding transmitting device (113) of weldering; First end of the close series welding machine frame (101) of welding transmitting device (116) is also parallel with laying welding device (112); Wherein transmitting device (113) comprises first station (1130), second station (1131), the 3rd station (1132), the 4th station (1133) that is arranged in order before the weldering, first station (1130) is near second end of series welding machine frame (101), and the 4th station (1133) is near first end of series welding machine frame (101); Welding transmitting device (116) comprises preheating station (1160), welding station (1161), and preheating station (1160) is near second end of series welding machine frame (101), and welding station (1161) is near first end of series welding machine frame (101).
Haul robot device (104) is positioned at second end of feeding device (102) top and close series welding machine frame, and haul robot device (104) is vertical with feeding device (102); Breakage and grid line position probing means for correcting (105), efficient checkout gear (106), goods rejection device (107), scaling powder spraying device (108) is positioned at the preceding transmitting device (113) of weldering top, damaged corresponding with first station of the preceding transmitting device (113) of weldering with grid line position probing means for correcting (105), efficient checkout gear (106) is corresponding with second station of the preceding transmitting device (113) of weldering, goods rejection device (107) is corresponding with the 3rd station of transmitting device (113) before the weldering, and scaling powder spraying device (108) is positioned between the 3rd station and the 4th station of transmitting device (113) before the weldering; Scaling powder liquid feed device (109), scaling powder device for storing liquid (110) provide scaling powder for scaling powder spraying device (108); Be positioned at laying welding device (112) top for welding device (111); Conveying robot unit (114) is near the 4th station of the preceding transmitting device (113) of weldering before the weldering; Battery strings welder (117) is positioned at the welding station top of welding transmitting device (116); End band fixture (115) is positioned at the centre of the preceding conveying robot unit (114) of weldering and battery strings welder (117);
Turn-over machine (200) comprises cuboid turn-over machine frame (201) and is arranged on battery strings conveying device (202) on the turn-over machine frame (201), battery strings and grasps turn-over rig (203), battery strings and grasp mobile device (204), EL checkout gear (205), battery strings defective products dish (208), battery strings and collect material table apparatus (206);
Turn-over machine battery string conveying device (202) is installed on the postmedian of turn-over machine frame, flushes with bonding machine welding transmitting device (116); Battery strings grasps turn-over rig (203) and is positioned at battery strings conveying device (202) top; Battery strings grasps mobile device (204) and is positioned at the top that battery strings grasps turn-over rig (203); EL checkout gear (205), battery strings defective products dish (208), battery strings is collected the side that material table apparatus (206) is positioned at battery strings conveying device (202), EL checkout gear (205) wherein, battery strings defective products dish (208), it is parallel with battery strings conveying device (202) that battery strings is collected material table apparatus (206), battery strings defective products dish (208), battery strings is collected and is expected that table apparatus (206) is distal to EL checkout gear (205) to the distance of battery strings conveying device (202) to the distance of battery strings conveying device (202), and battery strings defective products dish (208) is positioned at the centre of EL checkout gear (205) and battery strings collection material table apparatus (206).
Preferably, the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets also comprises the standby material box device (103) that is arranged on the series welding machine frame (101), and standby material box device (103) is positioned between feeding device (102) and the preceding transmitting device (113) of weldering.
Preferably, the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets comprises that also battery strings welder (117) is provided with corresponding soldering tip quantity according to main grid line quantity four grid lines, five grid lines of solar battery sheet.
Preferably, the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets comprises that also scaling powder spraying device (108) is provided with corresponding nozzle quantity according to main grid line quantity four grid lines, five grid lines of solar battery sheet, and with scaling powder spraying above the battery sheet and below.
Preferably, the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets also comprises for welding device (111) and being connected by one group of roller with laying welding device (112), and all main grid line quantity four grid lines, five grid lines according to solar battery sheet are provided with corresponding supplying welding quantity and lay welding quantity, laying welding device (112) is provided with cuts band and drawstring mechanism, welding (300) is layed in above the battery sheet and below, when battery strings was welded to last a slice, end band fixture (115) was fixed terminal welding (300).
The utility model provides welds four grid lines, the full-automatic series welding equipment of five grid line solar battery sheets, by with breakage and grid line position probing means for correcting (105), efficient checkout gear (106), goods rejection device (107), scaling powder spraying device (108) is positioned at weldering preceding transmitting device (113) top and corresponding four grid lines that guarantee that selection fast is qualified with each station of the preceding transmitting device (113) of weldering, five grid line battery sheets, accurately spray scaling powder, for welding device (111), lay welding device (112) and quickly and accurately welding is laid on four grid lines, on the main grid line on five grid line battery sheet two sides, again by welding transmitting device (116) preheating station (1160) to four grid lines, five grid line battery sheet preheatings, finish four grid lines by the battery strings welder (117) of welding station (1161) top that is arranged on welding transmitting device (116) then, the quick series welding of five grid line battery sheets connects, cuboid turn-over machine frame (201) and be arranged on battery strings conveying device (202) on the turn-over machine frame (201), battery strings grasps turn-over rig (203), battery strings grasps mobile device (204), EL checkout gear (205), battery strings defective products dish (208), battery strings is collected material table apparatus (206) and is finished the battery strings conveying, turn-over, detect and collect and finally realize four grid lines, the full-automatic series welding of five grid line solar battery sheets connects.
Description of drawings

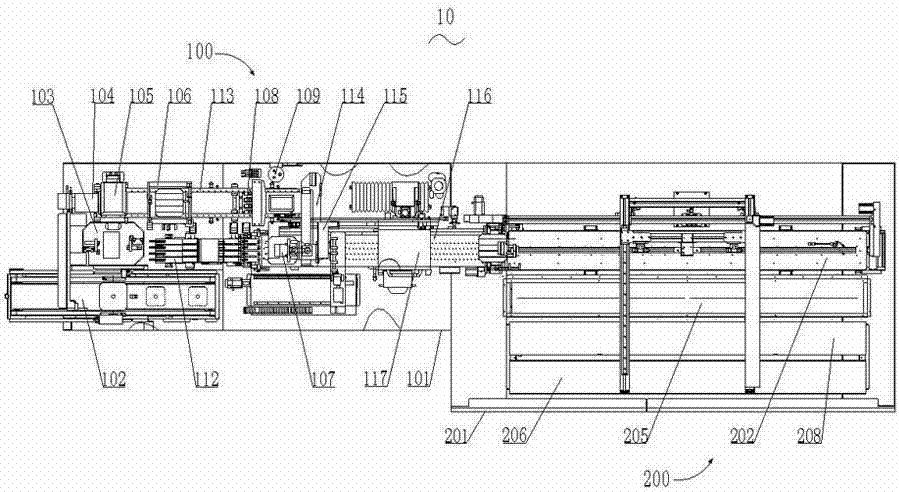

Accompanying drawing 1 is the main TV structure schematic diagram of the full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets of a preferred embodiments.
Accompanying drawing 2 is for welding the attached TV structure schematic diagram of the full-automatic series welding equipment of four grid lines, five grid line solar battery sheets among Fig. 1.
Accompanying drawing 3 is that the attached TV structure that can weld the full-automatic series welding equipment of four grid lines, five grid line solar battery sheets among Fig. 1 replenishes figure.
Accompanying drawing 4 concerns simplified schematic diagram for the scaling powder spraying device in the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets among Fig. 1, confession welding device with the position of laying the welding device.
Accompanying drawing 5 concerns schematic diagram for scaling powder spraying device, scaling powder liquid feed device, the scaling powder device for storing liquid position in the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets among Fig. 1.
Accompanying drawing 6 is for welding the workflow schematic diagram of the full-automatic series welding equipment of four grid lines, five grid line solar battery sheets among Fig. 1.
Among the figure: can weld four grid lines, the full-automatic series welding equipment 10 of five grid line solar battery sheets, series welding machine 100, series welding machine frame 101, feeding device 102, standby material box device 103, haul robot device 104, breakage and grid line position probing means for correcting 105, efficient checkout gear 106, goods rejection device 107, scaling powder spraying device 108, scaling powder liquid feed device 109, scaling powder device for storing liquid 110, for welding device 111, lay welding device 112, transmitting device 113 before the weldering, first station 1130, second station 1131, the 3rd station 1132, the 4th station 1133, conveying robot unit 114 before the weldering, end band fixture 115, welding transmitting device 116, preheating station 1160, welding station 1161, battery strings welder 117, turn-over machine 200, turn-over machine frame 201, battery strings conveying device 202, battery strings grasps turn-over rig 203, battery strings grasps mobile device 204, EL checkout gear 205, battery strings is collected material table apparatus 206, battery strings defective products dish 208, welding 300, battery sheet 400
The specific embodiment
Please be simultaneously referring to Fig. 1 to Fig. 3, the full-automatic series welding equipment 10 that can weld four grid lines, five grid line solar battery sheets comprises series welding machine 100, turn-over machine 200, described series welding machine 100 is connected with screw with finger setting with turn-over machine 200 butt joint backs.Wherein, series welding machine 100 adopts electromagnetism heating welding manner welding battery sheet.
Haul robot device 104 is positioned at second end of feeding device 102 and standby material box device 103 tops and close series welding machine frame, and haul robot device 104 is vertical with standby material box device 103 with feeding device 102; Damaged and grid line position probing means for correcting 105, efficient checkout gear 106, goods rejection device 107, scaling powder spraying device 108 are positioned at preceding transmitting device 113 tops of weldering, damaged corresponding with first station of the preceding transmitting device 113 of weldering with grid line position probing means for correcting 105, efficient checkout gear 106 is corresponding with second station of the preceding transmitting device 113 of weldering, goods rejection device 107 is corresponding with the 3rd station of transmitting device 113 before the weldering, between the 3rd station of scaling powder spraying device 108 transmitting device 113 before weldering and the 4th station; Scaling powder liquid feed device 109, scaling powder device for storing liquid 110 provide scaling powder for scaling powder spraying device 108; Be positioned at laying welding device 112 tops for welding device 111; Conveying robot unit 114 is near the 4th station of the preceding transmitting device 113 of weldering before the weldering; Battery strings welder 117 is positioned at welding station 1161 tops of welding transmitting device 116; End band fixture 115 is positioned at the centre of the preceding conveying robot unit 114 of weldering and battery strings welder 117.Wherein, scaling powder liquid feed device 109 is installed on the top of scaling powder spraying device 108 or a side of confession welding device 111.In the present embodiment, please be simultaneously referring to Fig. 4, the used scaling powder of welding battery sheet is sprayed automatically by spraying scaling powder device 108, and scaling powder liquid feed device 109 is positioned at spraying scaling powder device 108 tops, and scaling powder device for storing liquid 110 is positioned at spraying scaling powder device 108 belows; Please be simultaneously referring to Fig. 5, be connected by one group of roller for welding device 111 and laying welding device 112, laying welding device 112 is provided with cuts band and drawstring mechanism, welding 300 is layed in above the battery sheet and below, when battery strings is welded to last a slice, end band fixture 115 is fixed terminal welding 300, be delivered to the welding station by welding transmitting device 116, and finish welding with soldering tip pressing handing-over, end band fixture 115 is returned start bit and is waited for that the fixing welding of the welding 300 of a string last a slice battery sheet down arranges automatically.
Turn-over machine 200 comprises cuboid turn-over machine frame 201 and is arranged on battery strings conveying device 202 on the turn-over machine frame 201, battery strings and grasps turn-over rig 203, battery strings and grasp mobile device 204, EL checkout gear 205, battery strings and collect material table apparatus 206, battery strings defective products dish 208; Cuboid turn-over machine frame 201 is connected with the series welding machine frame 101 of series welding machine 100.Wherein, whether EL checkout gear 205 is qualified for detection of the welding of welding in the battery strings and main grid line, and whether for example detect has the rosin joint situation to take place.
Turn-over machine battery string conveying device 202 is installed on the postmedian of turn-over machine frame 201, flush with bonding machine welding transmitting device 116, wherein flush an end that refers to turn-over machine battery string conveying device 202 and an end that welds transmitting device 116 and face, and turn-over machine battery string conveying device 202 is parallel with welding transmitting device 116; Battery strings grasps turn-over rig 203 and is positioned at battery strings conveying device 202 tops; Battery strings grasps mobile device 204 and is positioned at the top that battery strings grasps turn-over rig 203; EL checkout gear 205, battery strings defective products dish 208, battery strings are collected the side that material table apparatus 206 is positioned at battery strings conveying device 202, it is parallel with battery strings conveying device 202 that wherein EL checkout gear 205, battery strings defective products dish 208, battery strings are collected material table apparatus 206, battery strings is collected material table apparatus 206, battery strings defective products dish 208 distances to battery strings conveying device 202 are distal to EL checkout gear 205 to the distance of battery strings conveying device 202, and battery strings defective products dish 208 is positioned at EL checkout gear (205) and battery strings is collected between the material table apparatus (206).
Below to welding four grid lines, the full-automatic series welding equipment flowsheet of five grid line solar battery sheets is described, please be simultaneously referring to Fig. 6 and Fig. 3: four grid lines, five grid line solar battery sheets are transported to assigned address through feeding device 102, haul robot device 104 grasps the battery sheet to first station 1130 of the preceding transmitting device 113 of weldering, if the battery sheet in the feeding device 102 is just crawled intact, the battery sheet that haul robot device 104 just grasps in the standby material box device 103 is transported to first station 1130 that welds preceding transmitting device 113, detect through damaged and grid line position probing means for correcting 105, qualified and defective battery sheet is analyzed and remembered by the microcomputer control section of checkout gear, transmitting device 113 transports battery sheet to the second station 1131 before the weldering, carrying out efficient through 106 pairs of battery sheets of efficient checkout gear detects, testing result is analyzed by the microcomputer control section and is remembered, transmitting device 113 continues to carry three stations 1132 of battery sheet to the before the weldering, defective battery sheet by 107 pairs of breakages of goods rejection device and grid line position probing means for correcting 105 and 106 detections of efficient checkout gear is rejected, be put in the waste product dish, transmitting device 113 continues to carry in qualified four station 1133 processes of battery sheet to the before the weldering, scaling powder spraying device 108 is toward four grid lines, spray scaling powder on the main grid line of five grid line battery sheet upper and lower surfaces, the battery sheet also carries out preheating simultaneously to the 4th station 1133 of the preceding transmitting device 113 of weldering, and conveying robot unit 114 is carried to the battery sheet preheating station 1160 of welding transmitting device 116 before the weldering; Simultaneously, welding 300 is by according to four grid lines, what five grid line battery sheet main grid line quantity set supplies with for welding device 111, through according to four grid lines, laying welding device 112 drawstrings that five grid line battery sheet main grid line quantity set, the process of bending and cutting band, four grid lines, five grid line battery sheets and welding 300 are delivered to according to four grid lines by welding transmitting device 116, the battery strings welder 117 that five grid line battery sheet main grid line quantity set, finish four grid lines, the welding of five grid line battery sheets 400, such process is continuously smooth automatically, when being welded to last a slice battery sheet 400, fix terminal welding 300 by end band fixture 115, welding transmitting device 116 carries weldings 300 and battery sheet to weld to battery strings welder 117 together, after finishing welding, end band fixture 115 is returned start bit, wait for the fixing welding 300 of a string last a slice battery sheet 400 down, welding transmitting device 116 carries battery strings to turn-over machine 200 and battery strings conveying device 202, after conveying puts in place, battery strings grasps turn-over rig 203 and grasps battery strings and turn-over, battery strings grasps mobile device 204 and grasps battery strings again to EL checkout gear 205, after the detection qualified battery strings is grabbed battery strings and collect material table apparatus 206, underproof battery strings grabs in the battery strings defective products dish 208 of setting, repeats such action and has just realized four grid lines, the series welding of five grid line battery sheets and the fully-automatic production of collection.
Claims (5)
1. full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets, it is characterized in that: the full-automatic series welding equipment that can weld four grid lines, five grid line solar battery sheets comprises series welding machine (100), turn-over machine (200), and described series welding machine (100) is connected with screw with alignment pin with turn-over machine (200) butt joint back;
Wherein, series welding machine (100) comprises cuboid series welding machine frame (101) and is installed in feeding device (102) on the cuboid series welding machine frame (101), haul robot device (104), damaged and the grid line position probing means for correcting (105) of battery sheet, efficient checkout gear (106), goods rejection device (107), scaling powder spraying device (108), scaling powder liquid feed device (109), scaling powder device for storing liquid (110), for welding device (111), lay welding device (112), transmitting device (113) before the weldering, conveying robot unit (114) before the weldering, end band fixture (115), welding transmitting device (116), battery strings welder (117); First end of series welding machine frame (101) is connected with turn-over machine (200) with screw by alignment pin;
Feeding device (102) is near second end of series welding machine frame (101), and transmitting device (113) is near second end of series welding machine frame (101) before the weldering, and transmitting device (113) is parallel with feeding device (102) before the weldering; Lay welding device (112) near second end of series welding machine frame (101), and laying welding device (112) is positioned between feeding device (102) and the preceding transmitting device (113) of weldering; Welding transmitting device (116) flushes near first end of series welding machine frame (101) and with laying welding device (112); Wherein transmitting device (113) comprises first station (1130), second station (1131), the 3rd station (1132), the 4th station (1133) that is arranged in order before the weldering, first station (1130) is near second end of series welding machine frame (101), and the 4th station (1133) is near first end of series welding machine frame (101); Welding transmitting device (116) comprises preheating station (1160), welding station (1161), and preheating station (1160) is near second end of series welding machine frame (101), and welding station (1161) is near first end of series welding machine frame (101);
Haul robot device (104) is positioned at second end of feeding device (102) top and close series welding machine frame, and haul robot device (104) is vertical with feeding device (102); Damaged and the grid line position probing means for correcting (105) of battery sheet, efficient checkout gear (106), goods rejection device (107), scaling powder spraying device (108) is positioned at the preceding transmitting device (113) of weldering top, the battery sheet is damaged corresponding with first station of the preceding transmitting device (113) of weldering with grid line position probing means for correcting (105), efficient checkout gear (106) is corresponding with second station of the preceding transmitting device (113) of weldering, goods rejection device (107) is corresponding with the 3rd station of transmitting device (113) before the weldering, and scaling powder spraying device (108) is positioned between the 3rd station and the 4th station of transmitting device (113) before the weldering; Scaling powder liquid feed device (109), scaling powder device for storing liquid (110) provide scaling powder for scaling powder spraying device (108); Be positioned at laying welding device (112) top for welding device (111); Conveying robot unit (114) is near the 4th station of the preceding transmitting device (113) of weldering before the weldering; Battery strings welder (117) is positioned at the welding station top of welding transmitting device (116); End band fixture (115) is positioned at the centre of the preceding conveying robot unit (114) of weldering and battery strings welder (117);
Turn-over machine (200) comprises cuboid turn-over machine frame (201) and is arranged on battery strings conveying device (202) on the turn-over machine frame (201), battery strings and grasps turn-over rig (203), battery strings and grasp mobile device (204), EL checkout gear (205), battery strings defective products dish (208), battery strings and collect material table apparatus (206);
Turn-over machine battery string conveying device (202) is installed on the postmedian of turn-over machine frame (201), flushes with bonding machine welding transmitting device (116); Battery strings grasps turn-over rig (203) and is positioned at battery strings conveying device (202) top; Battery strings grasps mobile device (204) and is positioned at the top that battery strings grasps turn-over rig (203); EL checkout gear (205), battery strings defective products dish (208), battery strings is collected the side that material table apparatus (206) is positioned at battery strings conveying device (202), EL checkout gear (205) wherein, battery strings defective products dish (208), it is parallel with battery strings conveying device (202) that battery strings is collected material table apparatus (206), battery strings is collected material table apparatus (206), battery strings defective products dish (208) is distal to EL checkout gear (205) to the distance of battery strings conveying device (202) to the distance of battery strings conveying device (202), and battery strings defective products dish (208) is positioned at EL checkout gear (205) and battery strings is collected between the material table apparatus (206).
2. the full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets as claimed in claim 1, it is characterized in that: series welding machine (100) also comprises the standby material box device (103) that is arranged on the series welding machine frame (101), and standby material box device (103) is positioned between feeding device (102) and the preceding transmitting device (113) of weldering.
3. the full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets as claimed in claim 1 or 2, it is characterized in that: battery strings welder (117) is provided with corresponding soldering tip quantity according to main grid line quantity four grid lines, five grid lines of solar battery sheet.
4. the full-automatic series welding equipment that welds four grid lines, five grid line solar battery sheets as claimed in claim 1 or 2, it is characterized in that: scaling powder spraying device (108) is provided with corresponding nozzle quantity according to main grid line quantity four grid lines, five grid lines of solar battery sheet, and with scaling powder spraying above the battery sheet and below.
5. four grid lines that weld as claimed in claim 1 or 2, the full-automatic series welding equipment of five grid line solar battery sheets, it is characterized in that: be connected by one group of roller with laying welding device (112) for welding device (111), and all according to main grid line quantity four grid lines of solar battery sheet, five grid lines are provided with corresponding supplying welding quantity and lay welding quantity, laying welding device (112) is provided with cuts band and drawstring mechanism, welding (300) is layed in above the battery sheet and below, when battery strings was welded to last a slice, end band fixture (115) was fixed terminal welding (300).
