The utility model relates to a walking type multifunctional agricultural machine, which belongs to the field of multifunctional agricultural machinery and comprises an engine, an upper machine frame, a lower machine frame, a land wheel, a motive power output wheel, handles, a speed control hand brake, a speed regulating handlebar, a motive power speed regulating box, an input motive power wheel, a land wheel motive power input belt and a combination frame, wherein the engine is arranged on the upper machine frame, an output shaft of the engine is connected with the motive power output wheel, the motive power output wheel is connected with the input motive power wheel through a chain, the input motive power wheel is arranged on the lower machine frame, the land wheel, the land wheel motive power input belt, the motive power speed regulating box and the combination frame are also arranged on the lower machine frame, the handles are also arranged on the upper machine frame, and the two handles are respectively provided with the speed control hand brake and the speed regulating handlebar. The machine has the advantages that an accessory used for the current time can be arranged on the combination frame, most farmland work can be completed under the condition of one machine frame and one engine, and the effects that the efficiency is high, and the agricultural machine idle phenomenon of one machine used for one purpose is avoided are realized.
Description
Technical field
The utility model relates to agricultural mechanical field, particularly a kind of hand-held multifunctional farm implements.
Background technology
Farmland machinery is in the majority with the special equipment of certain aspect at present, example: that plow, target ground, sowing, rotary tillage, fertilising, results etc., increase difficulty economically when so just buying agricultural machinery to peasant household.Because used plant equipment is more, deposit if assort to peasant household one by one, cause difficulty in the maintenance, therefore along with the development of agricultural economy, multifunctional assembled farmland machinery has been put on schedule.We have designed a kind of Combined walking multifunctional farm implements for this reason.
The utility model content
The shortcoming that exists in order to overcome above-mentioned prior art, the purpose of this utility model is to provide a kind of hand-held multifunctional farm implements, and it can install the several functions assembly, finishes multiple farmland operation.
In order to address the above problem, the utility model by the following technical solutions:
A kind of hand-held multifunctional farm implements comprises upper spider, lower bearing bracket, and described upper spider is installed in the top of lower bearing bracket;
Head end at upper spider is equipped with engine, and the output shaft of engine connects power output wheel;
Be provided with the power governing box at lower carriage, power governing box input arranges the input power wheel, and this input power wheel connects power output wheel by chain;
The lower bearing bracket below is equipped with front land wheel, rear land wheel, on the wheel shaft of described rear land wheel belt pulley is installed, and this belt pulley is connected with the output wheel of described power governing box by land wheel power input tape;
The tail end of lower bearing bracket is provided with for the assembled rack that the farming functional unit is installed;
Lower bearing bracket also is provided with a plurality of power output interfaces that can be connected with the power intake of described farming functional unit;
Two driving handles also are installed on the upper spider, and two handles are separately installed with the fast rim brake of control, speed regulating handle.
The beneficial effects of the utility model are: it can be by install being used at assembled rack when the functional unit that time uses, such as plow, the multiple farmland operations such as rotary tillage ground, sowing, fertilising, results, weeding, irrigation, spray medicine; Namely under the condition of an engine of a frame, finish most of fieldwork.Have efficient high, avoid the idle phenomenon of agricultural machinery of a machine one usefulness.
Description of drawings
Below in conjunction with drawings and Examples the utility model is described further:

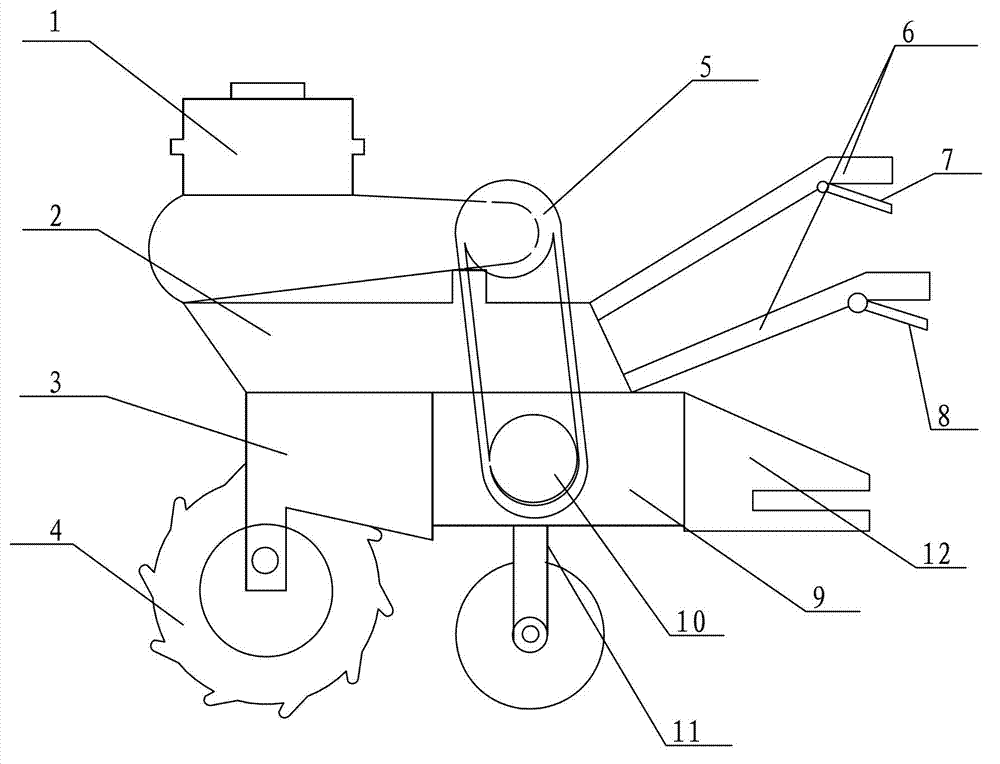

Fig. 1 is the structure of the utility model embodiment and uses view;
Among the figure: 1 engine, 2 upper spiders, 3 lower bearing brackets, 4 front land wheels, 5 power output wheels, 6 handles, the fast rim brake of 7 controls, 8 speed regulating handles, 9 power governing boxs, 10 input powers wheel, 11 land wheel power input tapes, 12 assembled racks, 13 rear land wheels.
Embodiment
As shown in Figure 1, this hand-held multifunctional farm implements comprises upper spider 2, lower bearing bracket 3, and described upper spider 2 is installed in the top of lower bearing bracket 3;
Head end at upper spider 2 is equipped with engine 1, and the output shaft of engine 1 connects power output wheel 5;
Be provided with power governing box 9 at lower carriage 3, power governing box 9 inputs arrange input power wheel 10, and this input power wheel 10 connects power output wheel 5 by chain;
Lower bearing bracket 3 belows are equipped with front land wheel 4, rear land wheel 13, on the wheel shaft of described rear land wheel 13 belt pulley are installed, and this belt pulley is connected with the output wheel of described power governing box 9 by land wheel power input tape 11;
The tail end of lower bearing bracket 3 is provided with for the assembled rack 12 that the farming functional unit is installed;
Lower bearing bracket 3 also is provided with a plurality of power output interfaces that can be connected with the power intake of described farming functional unit;
Two driving also are installed on the upper spider 2 are separately installed with the fast rim brake 7 of control, speed regulating handle 8 with 6, two handles 6 of handle.
Before the farmland operation, at assembled rack 12 annex that is used for when inferior use, such as rotary blade, weeding pears cutter etc. are installed.
During use, hand steered good handle 6, engine on 1 outputs to input power wheel 10 to power by power output wheel 5 and enters power governing box 9, land wheel 13 motions after driving by land wheel power input tape 11.
Speed regulating handle 8 is controlled the movement velocity of fast land wheel, and the fortune of controlling fast rim brake 7 control machines is stopped.
Power transfers to the farming functional unit that is installed on the assembled rack by the power output interface on the lower bearing bracket.Example: 1, rotary blade is installed, by the belt pulley drive soil is carried out rotary tillage, 2, weeding pears cutter is installed, to carrying out weeding work growing plants, 3, water pump is installed and under belt pulley drives, is finished pumping irrigation, Teat pipette is installed is carried out spray medicine deinsectization work to crops, 4, seed tray is installed just can be finished the sowing of crops, fertilising work.
Under the condition of an engine of a frame, just can finish most fieldwork like this.Avoided the agricultural machinery problem of leaving unused.
Claims (1)
1. hand-held multifunctional farm implements, it is characterized in that: comprise upper spider (2), lower bearing bracket (3), described upper spider (2) is installed in the top of lower bearing bracket (3);
Head end at upper spider (2) is equipped with engine (1), and the output shaft of engine (1) connects power output wheel (5);
Be provided with power governing box (9) at lower carriage (3), power governing box (9) input arranges input power wheel (10), and this input power wheel (10) connects power output wheel (5) by chain;
Lower bearing bracket (3) below is equipped with front land wheel (4), rear land wheel (13), on the wheel shaft of described rear land wheel (13) belt pulley is installed, and this belt pulley is connected with the output wheel of described power governing box (9) by land wheel power input tape (11);
The tail end of lower bearing bracket (3) is provided with for the assembled rack (12) that the farming functional unit is installed;
Lower bearing bracket (3) also is provided with a plurality of power output interfaces that can be connected with the power intake of described farming functional unit;
Two driving handle (6) also is installed on the upper spider (2), and two handles (6) are separately installed with control fast rim brake (7), speed regulating handle (8).
