CN202543851U - Road vacuum snow removal truck - Google Patents
Road vacuum snow removal truck Download PDFInfo
- Publication number
- CN202543851U CN202543851U CN2012201359003U CN201220135900U CN202543851U CN 202543851 U CN202543851 U CN 202543851U CN 2012201359003 U CN2012201359003 U CN 2012201359003U CN 201220135900 U CN201220135900 U CN 201220135900U CN 202543851 U CN202543851 U CN 202543851U
- Authority
- CN
- China
- Prior art keywords
- accumulated snow
- vacuum
- snow
- cleaning plant
- afterbody
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
A road vacuum snow removal truck comprises a vacuum clearing device, a helical accumulated snow clearing device, a middle accumulated snow secondary clearing device, a tail residual accumulated snow clearing device and a spray pipe lifting and rotating device. The road vacuum snow removal truck is characterized in that the helical accumulated snow clearing device is mounted at the front end of the truck and connected with the vacuum clearing device; the middle accumulated snow secondary clearing device is connected with the vacuum clearing device through a conducting pipe; the tail residual accumulated snow clearing device is mounted at the tail part of the truck; the spray pipe lifting and rotating device is mounted on the chassis at the tail part and comprises a lifting and rotating arm; and a spray pipe is made by connecting soft pipes and hard pipes alternately. The road vacuum snow removal truck increases the work efficiency of snow removal and decreases work time, thereby reducing the labor intensity of working staff.
Description
Technical field
The utility model relates to the industrial vacuum technology, is specially a kind of highway vacuum snowslinger.
Background technology
The north and expressway, middle part and urban road adopt snow removing vehicle to remove the accumulated snow of road winter, and the snow removing vehicle that sweeps away snow is used to keep the cleaning on road surface as the accumulated snow cleaning equipment, and its snow removing ability and efficient are directly connected to road safety and blocking time.
The main snow removing equipment that road uses has snow pushing car, snowslinger etc.; It is mainly used in thicker accumulated snow stacking is shifted; Perhaps melt on the spot, also useful round brush scatters the device that roll extrusion is removed with accumulated snow, and the multifunctional large-scale snowslinger that various functions are rolled into one is also arranged.
At present, generally adopt snow removal equipment to remove the snow, brush device promptly is installed at the automobile chassis rear portion, the snow removing vehicle front end is installed snow removing shovel; Most of accumulated snow is pushed away away, and the cleaning blowing device is with the accumulated snow and the preceding Snowremoval of wheel of compacting, and deicing dispenses the device snow melt; The long-pending position of the snow drift that this mode is removed crosses near and the dead angle exists, influence snow removing effect, inefficiency; The snow removing weak effect, Snow Agent can cause secondary pollution, and the winding-up snow removing causes energy waste and road damage easily.
The utility model content
The technical problem that the utility model solved is to provide a kind of highway vacuum snowslinger, to solve the shortcoming in the above-mentioned background technology.
The technical problem that the utility model solved adopts following technical scheme to realize:
A kind of highway vacuum snowslinger; Comprise that vacuum cleaning device, spiral accumulated snow cleaning plant, middle part accumulated snow secondary cleaning plant, the remaining accumulated snow cleaning plant of afterbody, jet pipe promote whirligig; The front end that said spiral accumulated snow cleaning plant is installed in car is connected with said vacuum cleaning device, and said middle part accumulated snow secondary cleaning plant is connected with said vacuum cleaning device through conduit, and the remaining accumulated snow cleaning plant of said afterbody is installed in the afterbody of car; Said jet pipe promotes whirligig; Be installed on the afterbody chassis, comprise lifting and turning arm, the spray feed pipe connects with flexible pipe hard tube interval mode.
Said vacuum cleaning device; Comprise vacuum suction apparatus, pulse spraying equipment and sintered plate filter; The roots blower or the centrifugal blower that are installed in the driver's cabin rear link to each other with motor through transfer case; The filter inlet that the outlet sound absorber is installed is connected on the snow storage box, and pulse spraying equipment is installed on the sintered plate filter.Said spiral accumulated snow cleaning plant; Comprise reverse rotation blade front end suction nozzle; Electric-control system regulator solution cylinder pressure make spiral accumulated snow cleaning plant deflection proper angle and with the ground appropriate clearance, the reverse rotation blade is gathered two front end suction nozzles to central authorities with accumulated snow, the suction pipe that is installed on the vehicle chassis through quick transition apparatus adopts the inner wall smooth flexible drinking straw; Be connected on the snow storage box, carry out after the gas solid separation gas therein and discharge through the vacuum cleaning device.Said middle part accumulated snow secondary cleaning plant; Comprise two subtend disc shaped brushes, middle part suction nozzle and suction pipe; Disc shaped brushes is installed on the flange by fluid motor-driven, and its high and low position and angle are controlled by hydraulic cylinder, the position of suction nozzle in the middle of the subtend rotation sweeps accumulated snow; Suction nozzle is connected on the disc shaped brushes flange through bolt, sucks accumulated snow and sends into snow storage box.The remaining accumulated snow cleaning plant of said afterbody comprises rotation round brush and afterbody suction nozzle, and the rotation round brush is brushed remaining accumulated snow, and the afterbody suction nozzle is sent it into snow storage box, and position angle is controlled through hydraulic cylinder by electric-control system.
Beneficial effect
A kind of highway vacuum of the utility model snowslinger adopts vacuum accumulated snow cleaning plant, adopts screw to gather accumulated snow to negative pressure suction nozzle position; Adopt vacuum draw that accumulated snow is sucked the Chu Xue railway carriage or compartment; The ejection of malleation jet pipe is adopted at the rear portion, and extension arm can be delivered to snow outside the roadbed at a distance, and bottom, Chu Xue railway carriage or compartment also can install heater additional; With the accumulated snow melt water; Be used to melt the accumulated snow that was rolled or arrange outside roadbed or focus on, the operating efficiency of having accelerated to sweep away snow with reduced the working time, alleviated staff's labour intensity.
Description of drawings

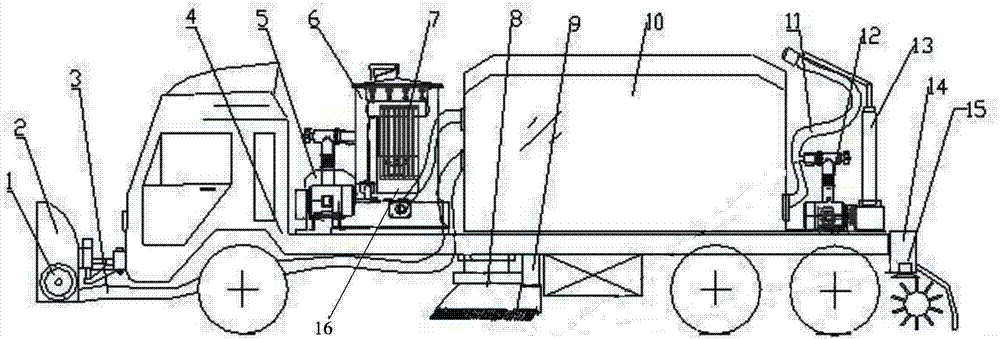

Fig. 1 is a kind of highway vacuum snowslinger sketch map.
Among the figure: vacuum slot 1, spiral accumulated snow cleaning mechanism 2, suction pipe 3, car body 4, vacuum cleaning mechanism 5, pulse spraying equipment 6, filter 7, middle part accumulated snow secondary cleaning 8, middle part suction pipe 9, snow storage box 10, winding-up pipe 11, accumulated snow blowing device 12, jet pipe promote whirligig 13, afterbody remnants accumulated snow cleaning plant 14, afterbody suction pipe 15, vacuum suction apparatus 16.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, below in conjunction with concrete diagram, further set forth the utility model.
A kind of highway vacuum snowslinger; Comprise that vacuum cleaning device 5, spiral accumulated snow cleaning plant 2, middle part accumulated snow secondary cleaning plant 8, afterbody remnants accumulated snow cleaning plant 14, jet pipe promote whirligig 13; The front end that said spiral accumulated snow cleaning plant 2 is installed in car is connected with said vacuum cleaning device 5, and said middle part accumulated snow secondary cleaning plant 8 is connected with said vacuum cleaning device 5 through conduit, and the remaining accumulated snow cleaning plant 14 of said afterbody is installed in the afterbody of car body 4; Said jet pipe promotes whirligig 13; Be installed on the afterbody chassis, comprise lifting and turning arm, winding-up pipe 11 connects with flexible pipe hard tube interval mode.
Said vacuum cleaning device 5; Comprise vacuum suction apparatus 16, pulse spraying equipment 6 and sintered plate filter; The roots blower or the centrifugal blower that are installed in the driver's cabin rear link to each other with motor through transfer case; The filter inlet that the outlet sound absorber is installed is connected on the snow storage box 10, and said pulse spraying equipment 6 is installed on the sintered plate filter.Said spiral accumulated snow cleaning plant 2; Comprise reverse rotation blade 1 front end suction nozzle; Electric-control system regulator solution cylinder pressure make spiral accumulated snow cleaning plant 2 deflection proper angle and with the ground appropriate clearance, said reverse rotation blade 1 is gathered two front end suction nozzles to central authorities with accumulated snow, the suction pipe that is installed on the vehicle chassis through quick transition apparatus adopts the inner wall smooth flexible drinking straw; Be connected on the snow storage box 10, carry out after the gas solid separation gas therein and discharge through vacuum cleaning device 5.Said middle part accumulated snow secondary cleaning plant 8; Comprise two subtend disc shaped brushes, middle part suction nozzle and suction pipe; Disc shaped brushes is installed on the flange by fluid motor-driven, and its high and low position and angle are controlled by hydraulic cylinder, the position of suction nozzle in the middle of the subtend rotation sweeps accumulated snow; Suction nozzle is connected on the disc shaped brushes flange through bolt, sucks accumulated snow and sends into snow storage box 10.The remaining accumulated snow cleaning plant of said afterbody comprises rotation round brush and afterbody suction nozzle, and the rotation round brush is brushed remaining accumulated snow, and the afterbody suction nozzle is sent it into snow storage box, and position angle is controlled through hydraulic cylinder by electric-control system.
Referring to Fig. 1; During work; Motor is that vacuum cleaning device 5 and hydraulic pressure and clearing apparatus provide power through transfer case; The engine drives vacuum blower produces vacuum; Start working after control and the hydraulic cylinder works of the remaining accumulated snow cleaning plant 14 of spiral accumulated snow cleaning plant 2, middle part accumulated snow secondary cleaning plant 8, afterbody through electric control gear adjusted to best operational position, spiral accumulated snow cleaning plant 2 adopts two groups of reverse helical blades that accumulated snow is cleared up the position of the vacuum slot 1 at middle part, makes two vacuum slots 1 get into snow storage boxs 10 through suction pipe 3; Middle part accumulated snow secondary cleaning plant 8 adopts two disc shaped brushes subtend rotations that accumulated snow is swept middle collector, and middle part suction pipe 9 sucks snow storage box 10 with it; The remaining accumulated snow cleaning plant 14 of afterbody adopts the rotation round brush that remaining accumulated snow is brushed, and sucks snow storage box 10 through afterbody suction nozzle 15.Vacuum cleaning device 5 also is equipped with sintered plate filter 7 and filters with impurity with 6 pairs of vacuum cleaning devices 5 of pulse spraying equipment and clear up.The processing of accumulated snow is carried out through accumulated snow blowing device 12, and winding-up pipe 11 is sent in accumulated snow sucking-off from snow storage box 10, promotes the position of whirligig 13 control ejections through jet pipe.Handle in the process of accumulated snow in cleaning and spray feed, the Position Control of cleaning and spray feed device is carried out closed-loop control through electric-control system, realizes the gap and the angle of the best that experiment is confirmed, simultaneously vacuum cleaning device 5 is controlled.The realization of action drives each hydraulic cylinder by hydraulic system and realizes.Each rotation cleaning accumulated snow device adopts hydraulic motor to realize.
More than show and described basic principle of the utility model and the advantage of principal character and the utility model; The technician of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the manual that the utility model just is described, under the prerequisite that does not break away from the utility model spirit and scope, the utility model also has various changes and modifications; These variations and improvement all fall in the utility model scope that requires protection, and the utility model requires protection domain to be defined by appending claims and equivalent thereof.
Claims (5)
1. highway vacuum snowslinger; Comprise that vacuum cleaning device, spiral accumulated snow cleaning plant, middle part accumulated snow secondary cleaning plant, the remaining accumulated snow cleaning plant of afterbody, jet pipe promote whirligig, is characterized in that the front end that said spiral accumulated snow cleaning plant is installed in car is connected with said vacuum cleaning device; Said middle part accumulated snow secondary cleaning plant is connected with said vacuum cleaning device through conduit; The remaining accumulated snow cleaning plant of said afterbody is installed in the afterbody of car body, and said jet pipe promotes whirligig, is installed on the afterbody chassis; Comprise lifting and turning arm, the spray feed pipe connects with flexible pipe hard tube interval mode.
2. according to a kind of highway vacuum snowslinger of claim 1; It is characterized in that; Said vacuum cleaning device comprises vacuum suction apparatus, pulse spraying equipment and sintered plate filter, and the roots blower or the centrifugal blower that are installed in the driver's cabin rear link to each other with motor through transfer case; The filter inlet that the outlet sound absorber is installed is connected on the snow storage box, and said pulse spraying equipment is installed on the said sintered plate filter.
3. according to a kind of highway vacuum snowslinger of claim 1; It is characterized in that said spiral accumulated snow cleaning plant comprises reverse rotation blade front end suction nozzle; Electric-control system regulator solution cylinder pressure make spiral accumulated snow cleaning plant deflection proper angle and with the ground appropriate clearance; Said reverse rotation blade links to each other with the front end suction nozzle, and the suction pipe that is installed on the vehicle chassis through quick transition apparatus adopts the inner wall smooth flexible drinking straw, is connected on the said snow storage box.
4. according to a kind of highway vacuum snowslinger of claim 1, it is characterized in that said middle part accumulated snow secondary cleaning plant comprises two subtend disc shaped brushes, middle part suction nozzle and suction pipe, said middle part suction nozzle is connected on the disc shaped brushes flange through bolt.
5. according to a kind of highway vacuum snowslinger of claim 1, it is characterized in that the remaining accumulated snow cleaning plant of said afterbody comprises rotation round brush and afterbody suction nozzle, said afterbody suction nozzle links to each other with said snow storage box.
