CN202190578U - Stereoscopic greening flowerpot - Google Patents
Stereoscopic greening flowerpot Download PDFInfo
- Publication number
- CN202190578U CN202190578U CN2011203188086U CN201120318808U CN202190578U CN 202190578 U CN202190578 U CN 202190578U CN 2011203188086 U CN2011203188086 U CN 2011203188086U CN 201120318808 U CN201120318808 U CN 201120318808U CN 202190578 U CN202190578 U CN 202190578U
- Authority
- CN
- China
- Prior art keywords
- vertical planting
- base
- irrigating box
- irrigating
- flowerpot
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cultivation Receptacles Or Flower-Pots, Or Pots For Seedlings (AREA)
Abstract
A stereoscopic greening flowerpot comprises a pot body, the interior of the pot body is divided into a planting tier and a water storage tier by a lower partition, an irrigation box is mounted on the planting tier and on the inner wall of the pot body, a base is arranged on the water storage layer, irrigation box fixing grooves are arranged on the left side and the right side of the base, openings fitting the fixing grooves in shape are arranged on the lower partition at positions adjacent to the irrigation box and the irrigation box fixing grooves, and water leaks are arranged on the surface of the lower partition. The stereoscopic greening flowerpot has the advantages of simple structure, low manufacturing cost, convenience in mounting and irrigation and the like, the flowerpot can be mounted to enlarge greening area without changing the original wall structure, and the appearance of a building can be beautified directly. The interior volume of the flowerpot is large, soil is thicker than 18cm, bushes, such as glossy privet, with developed root systems and capable of living through winter can be planted in the flowerpot. The stereoscopic greening flowerpot can be used for stereoscopic greening for various types of buildings, such as dwellings, office buildings, restaurants and the like.
Description
Technical field
The utility model relates to a kind of flowerpot, particularly a kind of flowerpot that is used for the external wall vertical planting.
Background technology
Along with the continuous quickening that Chinese Urbanization is built, various advanced persons' green building is shown one's talent, and has both beautified the city, has purified air again.Vertical planting is the important form of urban afforestation, and one of its kind method for planting is to adopt the method for building skeleton, will afforest good flowerpot again and be connected with skeleton, and be aided with drip irrigation or sprinkling irrigation system.
The existing flowerpot that is used for vertical planting is made up of basin body and suspension member usually, and flowerpot does not possess water-saving function, needs manual work in a large number, repeatedly water, and then directly overflows flowerpot when water waters when too much, causes water resource waste.The volume of flowerpot is less and can't regulate according to floristics, uses limitation big.Because the restriction of greening carrier, the existing plantable floristics of vertical planting flowerpot is very limited, especially can't plant the plant that can survive the winter, from having influenced the popularization process of stereoscopic greening of buildings to a great extent.The irrigation system layout that existing vertical planting is adopted is complicated, is unfavorable for the saving utilization of water resource.
The utility model content
The utility model provides a kind of vertical planting flowerpot, solve existing vertical planting flowerpot function single, can plant that floristics is limited, pouring back severe water and soil erosion, and irrigation system layout complicated technology problem.
The utility model solves the technical scheme that its technical problem adopted:
This vertical planting flowerpot; Comprise basin body, said basin body inside is divided into plantation layer and aquifer up and down by lower clapboard, and said basin body inwall is equipped with irrigating box at the plantation layer; Be provided with base at aquifer; The base left and right sides is provided with the irrigating box holddown groove, and said lower clapboard is distributed with permeable hole having the gap that shape adapts with it with irrigating box and irrigating box holddown groove adjacent on the plate face of lower clapboard;
The end face of said base is a faulting of slab ends shape structure, and wherein lower plane is lower than the end face of aquifer, and on this plane, has discharge opening, and higher plane is as the supporting surface of irrigating box;
Said irrigating box is installed on the base top, and the left and right sides panel edges of irrigating box is connected with the irrigating box holddown groove by plug, and there is together vertical dividing plate irrigating box inside; Make and be divided into pouring groove and spilling water groove about irrigating box inside; The top margin of vertical dividing plate is lower than left and right sides plate, and the top of pouring groove is a water filling port, and the bottom of pouring groove is sealed and is supported in by base plate on the higher plane of base; The pouring groove is evenly distributed with irrigation hole towards the one side of plantation layer; The top of spilling water groove is a gap, and the bottom of spilling water groove is uncovered, and is uncovered corresponding to the lower top, plane of base.
The cross section of said basin body is a rectangle, and basin body inwall one side is the plane that irrigating box is installed, and other three sides are step-like.
The different floristics of said basin body internal condition are equipped with one deck upper spacer to the requirement of thickness of soil above lower clapboard, the structure of upper spacer is identical with lower clapboard.
The surface distributed of said upper spacer and lower clapboard has ribs.
Said irrigating box has the cross-brace bar that is used to support upper spacer together towards the one side of plantation layer.
Said irrigation hole be shaped as circle, Long Circle, ellipse or polygon.
Said pouring groove respectively has the translot that is used for fixing permeable geotextiles together up and down towards the one side of plantation layer.
The planar side place that said base is lower has the gripper shoe that is used to support irrigating box.
Said discharge opening is connected with to the drainpipe that extends below, and top vertical planting flowerpot is connected through the water filling port of drainpipe with below vertical planting flowerpot.
Said basin body edge is connected with hook.
The beneficial effect of the utility model is following:
The basin body inwall of the utility model has been equipped with the irrigating box of water conservancy diversion, pouring, retaining effect, and the pouring groove of irrigating box is a mesh-like towards the one side of plantation layer, can realize planting a layer soil side and evenly water.Irrigating box inside is separated into two parts by vertical dividing plate, and the water in the pouring groove is full after vertical dividing plate top flows into the sluicing groove, and imports in the aquifer of basin bottom, thereby has avoided soil ponding.Irrigating box can be placed permeable geotextiles through two translots up and down and protect soil erosion when preventing to water.Discharge opening can connect the water filling port that a water pipe inserts the below flowerpot, can realize the pouring of flowerpot top, need not extra wiring.
This vertical planting flowerpot can supportingly have double-layer clapboard; Lower clapboard is divided into plantation layer and aquifer up and down with basin body inside; Upper two layers is the plantation layer that is used to adorn earth, and can select whether add the upper strata dividing plate according to the kind of plantation plant, thereby has expanded the scope of application of flowerpot.
The vertical planting flowerpot of the utility model has simple in structure, and characteristics such as convenient are irrigated in low preparation cost, installation.This flowerpot is installed, need not be changed original metope structure, can increase green coverage, directly beautify architectural appearance.The flowerpot internal capacity is big, and thickness of soil can be planted the shrub class plant that well developed root system can be survived the winter, like glossy privet greater than 18cm.The utility model can be used for the vertical planting of polytype buildings such as dwelling house, office building, restaurant.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

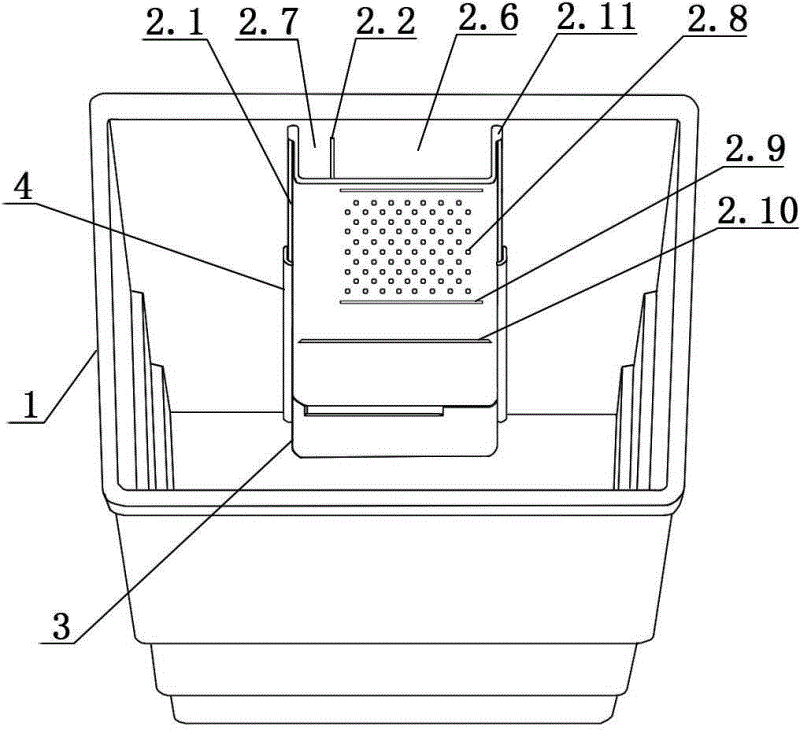

Fig. 1 is the perspective view of the utility model.
Fig. 2 is the side-looking structural representation of the utility model.
Fig. 3 is the structural representation of the utility model when irrigating box is not installed.
Fig. 4 is the Facad structure sketch map of irrigating box.
Fig. 5 is the reverse side structural representation of irrigating box.
Fig. 6 is the structural representation after the utility model is installed irrigating box.
Fig. 7 is the structural representation of upper spacer.
Fig. 8 is the structural representation of lower clapboard.
Reference numeral: 1-basin body; The 2-irrigating box; 2.1-side plate; 2.2-vertical dividing plate; 2.3-base plate; 2.4-pouring groove; 2.5-spilling water groove; 2.6-water filling port; 2.7-gap; 2.8-irrigation hole; 2.9-translot; 2.10-cross-brace bar; 2.11-plug; The 3-base; 3.1-discharge opening; 3.2-gripper shoe; 4-irrigating box holddown groove; The 5-upper spacer; 5.1-gap; 5.2-permeable hole; 5.3-ribs; The 6-lower clapboard; 6.1-gap; 6.2-permeable hole; 6.3-ribs; The 7-hook; The 8-kind is planted layer; The 9-aquifer.
Embodiment
Embodiment is referring to shown in Figure 1; This vertical planting flowerpot; Comprise basin body 1, said basin body 1 inside is divided into plantation layer 8 and aquifer 9 up and down by lower clapboard 6, and said basin body inwall is equipped with irrigating box 2 at plantation layer 8; Be provided with base 3 at aquifer 9, base 3 left and right sides are provided with irrigating box holddown groove 4.The cross section of said basin body 1 is a rectangle, and basin body inwall one side is the plane that irrigating box 2 is installed, and other three sides are step-like, and dividing plate places on the step of basin body inwall.
Referring to shown in Figure 2, said basin body 1 edge is connected with hook 7.
Referring to shown in Figure 3; The end face of said base 3 is a faulting of slab ends shape structure; Wherein lower plane is lower than the end face of aquifer 9; And on this plane, have discharge opening 3.1, and discharge opening 3.1 can be connected with to the drainpipe that extends below, and top vertical planting flowerpot is connected through the water filling port 2.6 of drainpipe with below vertical planting flowerpot.Higher plane is as the supporting surface of irrigating box 2.Lower planar side place has the gripper shoe 3.2 that is used to support irrigating box 2.
Shown in Fig. 4-6; Said irrigating box 2 is installed on base 3 tops, and left and right sides plate 2.1 edges of irrigating box 2 are connected with irrigating box holddown groove 4 by plug 2.11, and there is together vertical dividing plate 2.2 irrigating box 2 inside; Make and be divided into pouring groove 2.4 and spilling water groove 2.5 about irrigating box inside; The top margin of vertical dividing plate 2.2 is lower than left and right sides plate 2.1, and the top of pouring groove 2.4 is a water filling port 2.6, and the bottom of pouring groove 2.4 is sealed and is supported on the higher plane of base 3 by base plate 2.3; Pouring groove 2.4 is evenly distributed with irrigation hole 2.8 towards the one side of plantation layer 8; The top of spilling water groove 2.5 is a gap 2.7, and the bottom of spilling water groove 2.5 is uncovered, and is uncovered corresponding to the lower top, plane of base 3.
Referring to shown in Figure 6, said irrigating box 2 has the cross-brace bar 2.10 that is used to support upper spacer 5 together towards the one side of plantation layer 8.Pouring groove 2.4 respectively has the translot 2.9 that is used for fixing permeable geotextiles together up and down towards the one side of plantation layer 8.
Referring to Fig. 7, shown in Figure 8, said lower clapboard 6 is distributed with permeable hole 6.2 having the gap 6.1 that shape adapts with it with irrigating box 2 and irrigating box holddown groove 4 adjacents on the plate face of lower clapboard 6.The different floristics of said basin body internal condition are equipped with one deck upper spacer 5 to the requirement of thickness of soil above lower clapboard 6, the structure of upper spacer 5 is identical with lower clapboard 6.The surface distributed of upper spacer 5 and lower clapboard 6 has ribs.
The course of work of the utility model is following:
The vertical planting flowerpot of the utility model is installed irrigating box 2 at basin body 1 inwall in use, and the plug on the irrigating box dual-side 2.11 is slipped into irrigating box holddown groove 4 downwards, and the base plate 2.3 of irrigating box 2 is supported on the higher plane of base 3.
Different according to floristics, at inner individual layer or the double-layer clapboard installed of basin body, place soil in the plantation layer above dividing plate.
Water gets in the pouring groove 2.4 from the water filling port 2.6 of irrigating box during pouring, and gets into soil inside from the side through irrigation hole 2.8, soil erosion when can prevent to water through the fixing permeable geotextiles of the twice translot on the irrigating box.Water too much in the soil of pouring back can get in the aquifer 9 of flowerpot body bottom through the permeable hole on the dividing plate, and pouring groove 2.4 is filled back water can be in vertical dividing plate 2.2 tops flow into spilling water groove 2.5, and through in the uncovered inflow aquifer 9 of its underpart.Treat that water in the aquifer 9 can discharge through discharge opening 3.1 after full.Discharge opening 3.1 can connect to the drainpipe that extends below, and the drainpipe lower end is connected with the water filling port 2.6 of below vertical planting flowerpot, can realize the top pouring.
The vertical planting flowerpot that assembles is connected with the steel frame construction of building by hook 7 or other suspension members.Arrange the green wall of formation one side capable of being combined through horizontal, the parallel longitudinal of vertical planting flowerpot, be covered in outside the body of wall, realize the body of wall greening.
Claims (10)
1. vertical planting flowerpot; Comprise basin body (1); It is characterized in that: said basin body (1) is inner to be divided into plantation layer (8) and aquifer (9) up and down by lower clapboard (6); Said basin body inwall is equipped with irrigating box (2) at plantation layer (8), is provided with base (3) at aquifer (9), and base (3) left and right sides is provided with irrigating box holddown groove (4); Said lower clapboard (6) is distributed with permeable hole (6.2) having the gap (6.1) that shape adapts with it with irrigating box (2) and irrigating box holddown groove (4) adjacent on the plate face of lower clapboard (6);
The end face of said base (3) is a faulting of slab ends shape structure, and wherein lower plane is lower than the end face of aquifer (9), and on this plane, has discharge opening (3.1), and higher plane is as the supporting surface of irrigating box (2);
Said irrigating box (2) is installed on base (3) top; Left and right sides plate (2.1) edge of irrigating box (2) is connected with irrigating box holddown groove (4) by plug (2.11); There is together vertical dividing plate (2.2) irrigating box (2) inside, makes to be divided into pouring groove (2.4) and spilling water groove (2.5) about irrigating box inside, and the top margin of vertical dividing plate (2.2) is lower than left and right sides plate (2.1); The top of pouring groove (2.4) is water filling port (2.6); The bottom of pouring groove (2.4) is sealed and is supported on the higher plane of base (3) by base plate (2.3), and pouring groove (2.4) is evenly distributed with irrigation hole (2.8) towards the one side of plantation layer (8), and the top of spilling water groove (2.5) is gap (2.7); The bottom of spilling water groove (2.5) is uncovered, and is uncovered corresponding to the lower top, plane of base (3).
2. vertical planting flowerpot according to claim 1 is characterized in that: the cross section of said basin body (1) is a rectangle, and basin body inwall one side is for being equipped with the plane of irrigating box (2), and other three sides are step-like.
3. vertical planting flowerpot according to claim 1; It is characterized in that: the different floristics of said basin body (1) internal condition are to the requirement of thickness of soil; In lower clapboard (6) top one deck upper spacer (5) is installed, the structure of upper spacer (5) is identical with lower clapboard (6).
4. vertical planting flowerpot according to claim 3 is characterized in that: the surface distributed of said upper spacer (5) and lower clapboard (6) has ribs.
5. vertical planting flowerpot according to claim 3 is characterized in that: said irrigating box (2) has the cross-brace bar (2.10) that is used to support upper spacer (5) together towards the one side of plantation layer (8).
6. vertical planting flowerpot according to claim 1 is characterized in that: said irrigation hole (2.8) be shaped as circle, Long Circle, ellipse or polygon.
7. vertical planting flowerpot according to claim 1 is characterized in that: said pouring groove (2.4) respectively has the translot (2.9) that is used for fixing permeable geotextiles together up and down towards the one side of plantation layer (8).
8. vertical planting flowerpot according to claim 1 is characterized in that: the planar side place that said base (3) is lower has the gripper shoe (3.2) that is used to support irrigating box (2).
9. vertical planting flowerpot according to claim 1 is characterized in that: said discharge opening (3.1) is connected with to the drainpipe that extends below, and top vertical planting flowerpot is connected with the water filling port (2.6) of below vertical planting flowerpot through drainpipe.
10. vertical planting flowerpot according to claim 1 is characterized in that: said basin body (1) edge is connected with hook (7).
