CN202148973U - Generating set of vertical shaft tidal current turbine with telescopic arm length - Google Patents
Generating set of vertical shaft tidal current turbine with telescopic arm length Download PDFInfo
- Publication number
- CN202148973U CN202148973U CN201120193086U CN201120193086U CN202148973U CN 202148973 U CN202148973 U CN 202148973U CN 201120193086 U CN201120193086 U CN 201120193086U CN 201120193086 U CN201120193086 U CN 201120193086U CN 202148973 U CN202148973 U CN 202148973U
- Authority
- CN
- China
- Prior art keywords
- blade
- tidal current
- telescopic arm
- pinion shaft
- brachium
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000010720 hydraulic oil Substances 0.000 claims abstract description 19
- 230000008878 coupling Effects 0.000 claims abstract description 7
- 238000010168 coupling process Methods 0.000 claims abstract description 7
- 238000005859 coupling reaction Methods 0.000 claims abstract description 7
- 239000003921 oil Substances 0.000 claims description 30
- 230000008859 change Effects 0.000 claims description 21
- UJCHIZDEQZMODR-BYPYZUCNSA-N (2r)-2-acetamido-3-sulfanylpropanamide Chemical compound CC(=O)N[C@@H](CS)C(N)=O UJCHIZDEQZMODR-BYPYZUCNSA-N 0.000 claims description 8
- 241001669680 Dormitator maculatus Species 0.000 claims description 8
- 230000005540 biological transmission Effects 0.000 claims description 8
- 230000007246 mechanism Effects 0.000 claims description 8
- 238000007789 sealing Methods 0.000 claims description 6
- 210000004907 gland Anatomy 0.000 claims description 5
- 238000012856 packing Methods 0.000 claims description 5
- 238000012545 processing Methods 0.000 claims description 3
- 239000011888 foil Substances 0.000 claims description 2
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 abstract description 31
- 238000000034 method Methods 0.000 abstract description 8
- 238000011161 development Methods 0.000 abstract description 7
- 230000008569 process Effects 0.000 abstract description 5
- 230000002093 peripheral effect Effects 0.000 description 11
- 238000004904 shortening Methods 0.000 description 8
- 230000000694 effects Effects 0.000 description 3
- 230000005611 electricity Effects 0.000 description 3
- 239000012530 fluid Substances 0.000 description 3
- 238000004088 simulation Methods 0.000 description 3
- 238000013461 design Methods 0.000 description 2
- 238000009434 installation Methods 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000008901 benefit Effects 0.000 description 1
- 238000004140 cleaning Methods 0.000 description 1
- 230000003749 cleanliness Effects 0.000 description 1
- 238000006073 displacement reaction Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000005457 optimization Methods 0.000 description 1
- 230000001105 regulatory effect Effects 0.000 description 1
- 238000004153 renaturation Methods 0.000 description 1
- 238000012958 reprocessing Methods 0.000 description 1
- 230000011664 signaling Effects 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/20—Hydro energy
Landscapes
- Other Liquid Machine Or Engine Such As Wave Power Use (AREA)
Abstract
The utility model claims a generating set of the vertical shaft tidal current turbine with telescopic arm length belonging to the field of renewable energy source development. The generating set comprises blade, arm seal, telescopic arm, piston, fixed arm, retraction hydraulic cylinder, elongation hydraulic cylinder, supporting chainwheel, pressing nut, tidal current speed and direction sensor, main shaft, main shaft bearing, gearwheel, supporting seat, hydraulic oil station, retraction hydraulic pump, elongation hydraulic pump, electric brush, integrated control system, shaft journal seal, pinion shaft bearing, pinion shaft, coupling and generator. During the blade rotation process, according to the tidal current speed and direction, the telescopic arm can elongate or retract dynamically; when direction of the telescopic arm is parallel or vertical to the tidal current direction, the telescopic arm can elongate or retract maximally to make the vertical shaft tidal current turbine reach maximal energy capture efficiency. The adjustment of the telescopic arm can also increase the self-starting capacity of the turbine on low speed tidal current. The utility model can be applied to comprehensive development and utilization of river water current energy and sea tidal current energy.
Description
Technical field
The utility model belongs to the renewable energy sources development field, relates to becoming brachium pivotal axis trend hydraulic turbine generator group.
Background technique
The energy and environment are the significant problems that human kind sustainable development faces, and the renewable energy sources of development cleaning is known together by countries in the world.China marine site is vast, 4,700,000 square kilometres of the gross areas; The shore line complications are very long, and it is abundant that 1.8 ten thousand kilometers on continent water front, 1.4 ten thousand kilometers on island water front, ocean energy accumulate the resource reserve, and the trend that wherein can supply develop can 2,000 ten thousand kilowatts, river waterflow resource in addition, and development prospect is very wide.
Trend has typical integral body toward the renaturation characteristics, influenced by weather, season and ocean environment, and direction of tide also can fluctuate.Generating is the principal mode that trend can be utilized, and the core that trend can be generated electricity is the water turbine that absorbs trend.Pivotal axis trend water turbine self-starting performance is good, is fit to all directions incoming flow, has broad prospect for its application.
Trend energy capture efficient is to estimate the core technology index of water turbine.The blade of pivotal axis trend water turbine is in the process of rotating a circle, and the suffered power of blade can be decomposed into peripheral force and normal force; The product of peripheral force and brachium is the moment of torsion that is produced, and drives the transmission system generating.Pivotal axis trend water turbine is in the scope of rotating a circle; For individual blade; Because the azimuthal variation of blade; Have bigger angle range peripheral force to be in less or negative value, this peripheral force acts on the less or generation negative torque for the contribution of moment of torsion afterwards mutually with brachium, causes the whole trend energy capture of pivotal axis trend water turbine efficient not high.
To sum up, improving peripheral force or the water turbine positive moment of torsion of each blade of pivotal axis trend water turbine in a week is the key that improves its energy capture efficient.
The model utility content
The utility model has proposed a kind of change brachium pivotal axis trend hydraulic turbine generator group to the not high problem of present pivotal axis trend water turbine energy capture efficient.
The technological scheme that the utility model adopts is:
This becomes brachium pivotal axis trend hydraulic turbine generator group, comprise blade, arm sealing, telescopic arms, piston, fixed arm, shortening with oil hydraulic cylinder, elongation with oil hydraulic cylinder, support wheel disc, gland nut, strength of current direction sensor, main shaft, main shaft bearing, gearwheel, supporting base, hydraulic oil unit, shortening with oil hydraulic pump, extend with oil hydraulic pump, brush, integrated control system, journal packing, pinion shaft bearing, pinion shaft, coupling and generator.
Described change brachium pivotal axis trend hydraulic turbine generator group, its described blade are a kind of in the NACA aerofoil profile, and number is 1-6, smooth surface; It is identical that each blade presets the angle of attack, is-10 ° to+10 °; Each blade has two fixed arms.
Described change brachium pivotal axis trend hydraulic turbine generator group, its described telescopic arms, the cross section be NACA aerofoil profile, rectangular, rhombus and streamlined in a kind of, smooth surface reduces the resistance of fluid; Each blade has two telescopic arms, and an end of telescopic arms connects blade, and the other end has a rectangle or circular piston.
Described change brachium pivotal axis trend hydraulic turbine generator group, its described fixed arm, the cross section be NACA aerofoil profile, rectangular, rhombus and streamlined in a kind of, smooth surface reduces the resistance of fluid; Fixed arm inside is hollow structure, and hollow section is rectangle or circle, and fixed arm inner hollow structure is divided into shortening by the piston of telescopic arms uses oil hydraulic cylinder with oil hydraulic cylinder and elongation.
Described change brachium pivotal axis trend hydraulic turbine generator group, its described main shaft bearing has two, and one is thrust bearing, and another is a radial bearing, adopts the hydraulic oil of hydraulic oil unit to be lubricated; The pinion shaft bearing has two, and one is thrust bearing, and another is a radial bearing, adopts the hydraulic oil of hydraulic oil unit to be lubricated.
Its described gearwheel and pinion shaft, the two velocity ratio between 1: 1 to 20: 1, a kind of in spur gear, helical gear, the herringbone gear.
Replace gearwheel, pinion shaft, pinion shaft bearing to constitute the speedup transmission system with planetary gear mechanism, multilevel gear drive mechanism, pulley transmission mechanism, oil hydraulic cylinder speed increasing mechanism.
Described change brachium pivotal axis trend hydraulic turbine generator group, its characteristic is that also the end of blade plate is installed at the blade two ends respectively, the end of blade plate is between blade and telescopic arms; End of blade plate smooth surface is a thin plate, and area is greater than the sectional area of blade, and it is shaped as a kind of in circle, ellipse or the rectangular, and the edge of end of blade plate carries out that chamfered edge is handled, streamlined processing or NACA air foil shape, is used to reduce the resistance of fluid; The effect one of end of blade plate is the eddyloss slightly that reduces blade tip, the 2nd, stop blade flutter along the exhibition length direction in trend.
Each parts annexation: the blade two ends are separately fixed at an end of two telescopic arms up and down, and the other end of telescopic arms inserts in the fixed arm through piston, can in fixed arm, slide along normal direction; Fixed arm is fixed on and supports on the wheel disc, supports wheel disc and is sleeved on the main shaft, rotates synchronously through key assurance and main shaft, through the ladder restriction axial displacement in supporting wheel rim of gland nut and main shaft; The strength of current direction sensor is fixed on the upper end of main shaft; Main shaft is bearing on the supporting base through two main shaft bearings, and gearwheel is sleeved on the main shaft through key, gearwheel and pinion shaft engagement, and pinion shaft is bearing on the supporting base through the pinion shaft bearing; Pinion shaft connects generator through coupling; Hydraulic oil unit is fixed on the main shaft lower end, rotates with rotating shaft; Hydraulic oil unit inside charges into an amount of hydraulic oil, and shortens with oil hydraulic pump and elongation with respectively one of oil hydraulic pump for each blade installation; Shorten with oil hydraulic pump and elongation with oil hydraulic pump respectively the inner passage through main shaft and support wheel disc be connected fixed arm shortening with oil hydraulic cylinder, extend and use oil hydraulic cylinder; Integrated control system through brush to hydraulic oil unit power supply, through the cable transmission generator electric energy, receive the signal of strength of current direction sensor through signaling line or wireless transmitting messages; Sealing between fixed arm and the telescopic arms, journal packing between main shaft and supporting base, realize the sealing between the sound part respectively.
The beneficial effect of the utility model is following:
1, the trend that is fit to different direction; Can regulate pivotal axis trend water turbine telescopic arms, when the normal direction of telescopic arms is parallel with direction of tide according to direction of tide; Telescopic arms is stretched to the longest; When the normal direction of telescopic arms was vertical with direction of tide, telescopic arms foreshortened to the shortest, made to become the energy capture efficient that brachium pivotal axis trend water turbine reaches maximum.
2, can regulate telescopic arms according to tidal current speed, make pivotal axis trend water turbine output power relatively stable.
3,, increase the self-starting performance of pivotal axis trend water turbine for the low speed trend through regulating telescopic arms.
The utility model can be used for river waterflow can with the comprehensive development and utilization of ocean trend ability, can electricity generation grid-connecting, driving, also can generate electricity saves as instrument and equipment and independently power supply is provided, the electric energy cleanliness without any pollution that is produced.
Description of drawings

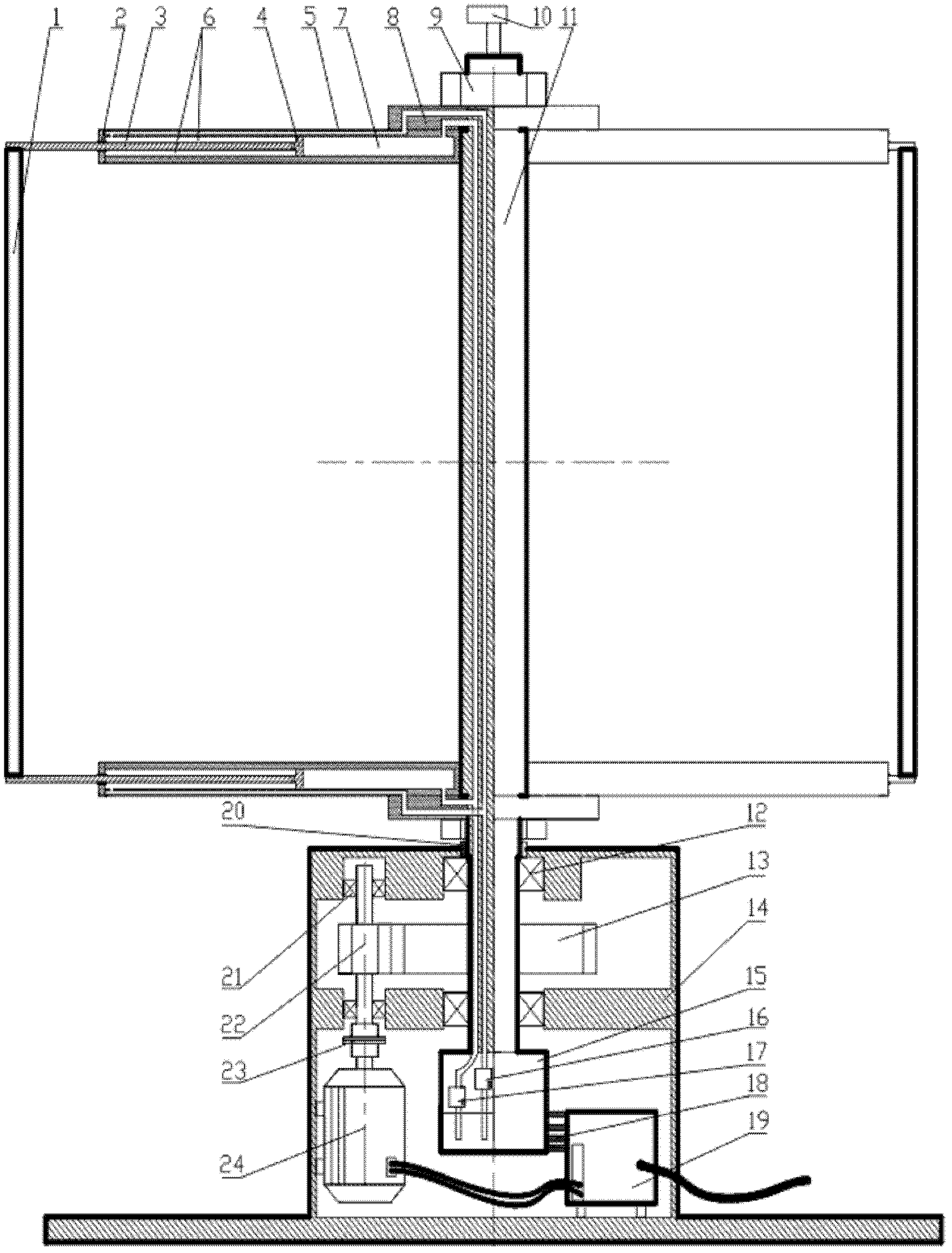

Fig. 1 is the change brachium pivotal axis trend hydraulic turbine generator group structural representation of the utility model.
Fig. 2 is the change brachium pivotal axis trend hydraulic turbine generator group plan view of the utility model.
Fig. 3 is the change brachium pivotal axis trend hydraulic turbine generator group of the utility model main axle hydraulic pressure channel layout figure when three blades are installed.
Fig. 4 (a) is a kind of computing mode schematic representation of the utility model embodiment.This state blade brachium is fixed, and the water turbine external diameter is always 0.6m.
Fig. 4 (b) is a kind of computing mode schematic representation of the utility model embodiment.This state blade becomes brachium, and along coming flow path direction, the blade brachium is maximum, is 1.2m, vertically comes flow path direction, and the blade brachium is minimum, is 0.6m, and the blade rotation track is oval.
Fig. 5 is that the utility model embodiment two states blade peripheral force is with the corner change curve.
Fig. 6 is that the utility model embodiment two states blade normal force is with the corner change curve.
Fig. 7 is that the utility model embodiment two states water turbine moment of torsion is with the corner change curve.
Among the figure: 1 blade; The sealing of 2 arms; 3 telescopic arms; 4 pistons; 5 fixed arms;
Oil hydraulic cylinder is used in 6 shortenings; Oil hydraulic cylinder is used in 7 elongations; 8 support wheel disc; 9 gland nuts;
10 strength of current direction sensors; 11 main shafts; 12 main shaft bearings; 13 gearwheels; 14 supporting bases; 15 hydraulic oil units; Oil hydraulic pump is used in 16 shortenings; Oil hydraulic pump is used in 17 elongations; 18 brushes; 19 integrated control systems; 20 journal packings; 21 pinion shaft bearings; 22 pinion shafts; 23 coupling; 24 generators.
Embodiment
As shown in the figure; The change brachium pivotal axis trend hydraulic turbine generator group of the utility model is made up of with oil hydraulic pump 17, brush 18, integrated control system 19, journal packing 20, pinion shaft bearing 21, pinion shaft 22, coupling 23, generator 24 with oil hydraulic pump 16, elongation with oil hydraulic cylinder 7, support wheel disc 8, gland nut 9, strength of current direction sensor 10, main shaft 11, main shaft bearing 12, gearwheel 13, supporting base 14, hydraulic oil unit 15, shortening with oil hydraulic cylinder 6, elongation blade 1, arm sealing 2, telescopic arms 3, piston 4, fixed arm 5, shortening.
Working procedure and principle: strength of current direction sensor 10 is given integrated control system 19 with the information transmission of trend; Integrated control system 19 is supplied with hydraulic oil unit 15 with its inner accumulator electric energy; According to predefined program; Startup is shortened with oil hydraulic pump 16 or is extended with oil hydraulic pump 17; The oily hydraulic channels entering through main shaft 11 and support wheel disc 8 inside of high-pressure and hydraulic is shortened with oil hydraulic cylinder 6 or is extended with oil hydraulic cylinder 7, and the brachium of change telescopic arms 3 makes the self-starting under current tidal current speed of pivotal axis trend water turbine; Water turbine according to predefined program and direction of tide, dynamically changes the brachium of telescopic arms 3 after starting, and it is best that the moment of torsion that pivotal axis trend water turbine is produced reaches.The water turbine moment of torsion passes to generator 24 through main shaft 11, gearwheel 13, pinion shaft 22, coupling 23; The electric energy that generator 24 is produced is transferred to the accumulator of integrated control system 19; Integrated control system 19 is supplied with hydraulic oil unit 15 with the fraction electric energy in the accumulator through brush, and most of cable transmission of passing through is to electrical network.
The practical implementation step:
(1) according to the flow velocity that belongs to the marine site trend, the aerofoil profile hydraulic performance, power demands etc. adopt numerical simulation calculating energy capture rate with the tip-speed ratio Changing Pattern, find the corresponding best tip-speed ratio of energy capture efficient maximum point.
(2) according to tidal current speed and best tip-speed ratio, optimize the dynamic brachium of water turbine, be optimization aim to the maximum with energy capture efficient, confirm the brachium rule change of water turbine under various flow velocitys.
(3) become brachium pivotal axis trend hydraulic turbine generator group according to design shown in Figure 1, processing, installation.
Embodiment:
Becoming brachium pivotal axis trend hydraulic turbine generator group with single blade is example, and the simulated effect of the utility model is explained as follows:
(1) trend condition: tidal current speed 2m/s.
(2) design result: 55 rev/mins of rotational speed of water turbine, single blade, vane airfoil profile are NACA0025, and blade chord length 0.15m opens up long 1.5m, and blade presets 0 ° of the angle of attack, does not consider resistance and dynamic effects such as rotating shaft, arm.
(3) simulation status explanation, as shown in Figure 4:
State 1: the blade brachium is fixed, and the water turbine external diameter is always 0.6m;
State 2: blade becomes brachium, and along coming flow path direction, the blade brachium is maximum, is 1.2m, vertically comes flow path direction, and the blade brachium is minimum, is 0.6m, and the blade rotation track is oval;
Vertically coming flow path direction, the two states cross section equates that promptly the incoming flow total energy equates under the two states.
(4) emulation mode: double plate face manifold tube algorithm.
(5) simulation result: Fig. 5 be two states blade peripheral force with the corner change curve, Fig. 6 be two states blade normal force with the corner change curve, Fig. 7 is that two states water turbine moment of torsion is with the corner change curve.
(6) interpretation of result: Fig. 5 shows, in blade rotation one all processes, the peripheral force peak value that the blade brachium is produced fixedly the time is less; Peripheral force approaching zero is in a big way arranged; And blade is when becoming brachium, and the peak value of peripheral force increases, and peripheral force significantly reduces near zero scope; Fig. 6 shows, in blade rotation one all processes, for negative, second half is for just in the first half angle range for the normal force that the blade brachium is produced fixedly the time, and its peak value is all less, and blade is when becoming brachium, and it is constant that normal force distributes, but the peak value increase; Fig. 7 shows; In blade rotation one all processes, the torque peak that the blade brachium is produced fixedly the time is less, and the moment of torsion that big angle range is arranged is near zero; And blade is when becoming brachium; The peak value of water turbine moment of torsion significantly increases, and moment of torsion significantly reduces near zero scope, and having moment of torsion hardly is situation about bearing.
Above-mentioned data are carried out reprocessing, and the tip-speed ratio of two states is 1.73, and the incoming flow total output is identical, and the blade brachium is fixedly the time, and average torque is 185.7Nm, and output power is 69.7W, and energy capture efficient is 13.6%; And blade is when becoming brachium, and average torque is 559.2Nm, and output power is 220.8W, and energy capture efficient is 41.0%, and average torque, output power and energy capture efficient have all increased more than 3 times.
To sum up; Pivotal axis trend water turbine is in the brachium change procedure; The average output torque of water turbine, output power and energy capture efficient all increase significantly, when the blade rotation track of water turbine, lobe numbers, aerofoil profile etc. through after optimizing, comprehensive benefit can be more outstanding.
Claims (3)
1. one kind becomes brachium pivotal axis trend hydraulic turbine generator group, comprises blade (1), arm sealing (2), telescopic arms (3), piston (4), fixed arm (5), shortens with oil hydraulic cylinder (6), extends with oil hydraulic cylinder (7), supports wheel disc (8), gland nut (9), strength of current direction sensor (10), main shaft (11), main shaft bearing (12), gearwheel (13), supporting base (14), hydraulic oil unit (15), shortens with oil hydraulic pump (16), elongation with oil hydraulic pump (17), brush (18), integrated control system (19), journal packing (20), pinion shaft bearing (21), pinion shaft (22), coupling (23) and generator (24);
Described blade (1) is a kind of in the NACA aerofoil profile, and number is 1-6, smooth surface; It is identical that each blade presets the angle of attack, is-10 ° to+10 °; Each blade has two fixed arms (5);
Described telescopic arms (3), cross section be NACA aerofoil profile, rectangular, rhombus and streamlined in a kind of, smooth surface; Each blade 1 has two telescopic arms 3, and an end of telescopic arms 3 connects blade 1, and the other end has a rectangle or circular piston (4);
Described fixed arm (5), cross section be NACA aerofoil profile, rectangular, rhombus and streamlined in a kind of, smooth surface; Fixed arm (5) inside is hollow structure, and hollow section is rectangle or circle;
Described main shaft bearing (12) has two, and one is thrust bearing, and another is a radial bearing, adopts the hydraulic oil of hydraulic oil unit (15) to be lubricated; Pinion shaft bearing (21) has two, and one is thrust bearing, and another is a radial bearing, adopts the hydraulic oil of hydraulic oil unit (15) to be lubricated;
Described gearwheel (13) and pinion shaft (22), the two velocity ratio be at 1: 1 to 20: 1, a kind of in spur gear, helical gear, the herringbone gear.
2. change brachium pivotal axis trend hydraulic turbine generator group according to claim 1; Its characteristic also is, replaces gearwheel (13), pinion shaft (22), pinion shaft bearing (21) to constitute the speedup transmission system with planetary gear mechanism, multilevel gear drive mechanism, pulley transmission mechanism, oil hydraulic cylinder speed increasing mechanism.
3. change brachium pivotal axis trend hydraulic turbine generator group according to claim 1 and 2, its characteristic is that also the end of blade plate is installed at blade (1) two ends respectively, the end of blade plate is positioned between blade (1) and the telescopic arms (3); End of blade plate smooth surface is a thin plate, and area is greater than the sectional area of blade 1, and it is shaped as a kind of in circle, ellipse or the rectangular, and the edge of end of blade plate carries out that chamfered edge is handled, streamlined processing or NACA air foil shape.
