CN201453110U - Anhydrous self-cleaning full automatic closestool - Google Patents
Anhydrous self-cleaning full automatic closestool Download PDFInfo
- Publication number
- CN201453110U CN201453110U CN2009200646672U CN200920064667U CN201453110U CN 201453110 U CN201453110 U CN 201453110U CN 2009200646672 U CN2009200646672 U CN 2009200646672U CN 200920064667 U CN200920064667 U CN 200920064667U CN 201453110 U CN201453110 U CN 201453110U
- Authority
- CN
- China
- Prior art keywords
- plate
- cleaning
- movable baffle
- baffle plate
- active clapboard
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Bidet-Like Cleaning Device And Other Flush Toilet Accessories (AREA)
Abstract
The utility model discloses an anhydrous self-cleaning full automatic closestool which comprises an excrement collector. The excrement collector is connected with a box body; a movable baffle plate is arranged at the inlet of the box body; a tilted plate is arranged under the movable baffle plate; a scraping plate matched with the tilted plate is arranged on the movable baffle plate; the movable baffle plate is connected with a driving device; and the driving device is connected with a human body induction part and a position detection component. In the utility model, the movable baffle plate can be automatically opened and closed when a user enters and departs a toilet, so that the overflow of odor can be prevented; the tilted plate can be used for shielding excrements; the scraping plate can be used for cleaning the excrements on the tilted plate in the movement process of the movable baffle plate, so that the appearance is clean and the user has good sensation; and urine also can be used for cleaning the toilet, thereby enhancing the cleaning effect and fully achieving the self-cleaning purpose under the condition of no water.
Description
Technical field
The utility model belongs to the lavatory apparatus, is specifically related to a kind of water-free self-cleaning full-automatic toilet.
Background technology
At present, known closet is a flush-type, adopts water-sealing stinking-proof, and the flush-type closet has been wasted a large amount of precious water resource.Though market has begun to have the no ability of swimming closet of producer's research, all fails effectively to promote, and specifically has following several:
1. urinate towards stool formula closet complete set of equipments: after promptly collection urine is carried out the variable color deodorizing by chemical mode, be used for flushing device for toilet.This mode operating cost is higher, maintenance comparatively bothers, and stink is bigger in the use, and has the secondary pollution problem.
2. urinate excrement separate type closet: adopt solid-liquid separation technique, men's lavatory is established male urinal, separates design before and after w.c.pan generally adopts, and makes and urinates the excrement separate storage.This kind mode exists separation not thorough, and closet can not keep totally, presses down problems such as smelly function is not strong.
3. mechanical type closet: adopt mechanical direct-type to strike off, be similar to a container type bedpan, adopt little water or few water flushing, strike off automatically at just intact back machinery.This kind mode still needs water, and causes toilet user's discomfort easily.
4. vertical drought lavatory closet: i.e. vertical pit, middle do not have block.This kind is simple, but is similar to a mao lavatory form, makes the toilet user very uncomfortable.
5. train, wheel boat form closet: i.e. straight-line closet, be used for train, steamer more, this mode must use low amounts of water, have also in conjunction with the vavuum pump use, in order to water saving.This is non-not to have ability of swimming fully.
6. packing formula closet: adopt the polybag packing manner.This kind troublesome maintenance needs secondary transportation and processing.
Above closet in use often makes the toilet user do not feel like oneself, and especially can not be applied to medium-to-high grade occasion, and can not effectively remove stink, can not keep the closet cleaning, and under complete anhydrous situation, result of use is relatively poor.
The utility model content
For overcome existing water saving, waterless toilet stool use in the sense organ discomfort, can not accomplish anhydrous fully, the effective deficiency of deodorizing etc., the purpose of this utility model provides a kind of water-free self-cleaning full-automatic toilet, this closet not only sense organ is comfortable, and can accomplish that anhydrous exempting from dashed fully, the self-sustaining cleaning.
The purpose of this utility model is achieved through the following technical solutions:
Water-free self-cleaning full-automatic toilet comprises a defecate collection device, the defecate collection device is connected with a casing, the inlet of casing is provided with active clapboard, active clapboard has swash plate, active clapboard is provided with the scraper plate that cooperates with swash plate, active clapboard is connected with a drive unit, and drive unit is connected with human body sensing parts and position detecting element.
Further technical scheme is: the urine that described defecate collection device is provided with the urine collector plate and is positioned at the swash plate top is from chute.
Active clapboard in the utility model can open and close when the user goes to toilet and leave automatically, can prevent that foul smell is excessive, swash plate can block ight soil, scraper plate is with the ight soil that can remove in the active clapboard motion process on the swash plate, the outward appearance that keeps clean makes the people that good sense organ be arranged, and also can utilize urine to clean, strengthen cleaning effect, accomplish fully that not water carries out self-cleaning and keeps a public place clean.
Description of drawings

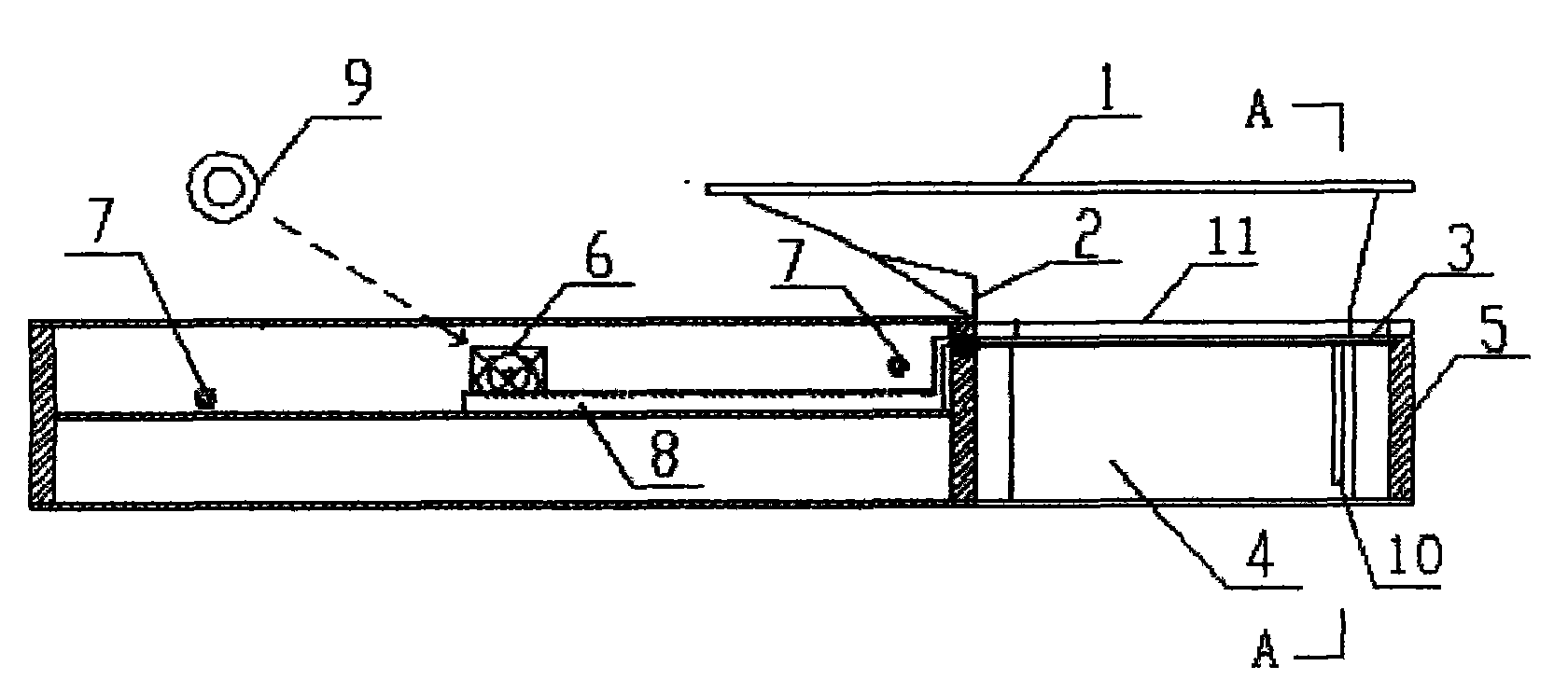

Fig. 1 is the schematic diagram of the utility model structure.
Fig. 2 is the A-A profile of Fig. 1.
Fig. 3 is that collector plate and urine are from the chute schematic diagram.
Fig. 4 is the different user mode figure of Fig. 1.
The specific embodiment
See Fig. 1, Fig. 2, water-free self-cleaning full-automatic toilet, comprise a defecate collection device 1, defecate collection device 1 is connected with a casing 5, and the inlet of casing 5 is provided with active clapboard 3, and active clapboard 3 has swash plate 4, active clapboard 3 is provided with the scraper plate 10 that cooperates with swash plate 4, active clapboard 3 is connected with the tooth bar 8 of a drive unit, and tooth bar 8 cooperates with motor 6 in the drive unit and by its driving, motor 6 is with human body sensing parts infrared electro sense switch 9 and position detecting element 7 is connected and controlled by they.
As shown in Figure 3, the urine that also can establish urine collector plate 2 on the above-mentioned defecate collection device and be positioned at the swash plate top has slotted eye 12 from chute 11 on chute 11.
As shown in Figure 4, after the people goes into the lavatory, infrared electro sense switch 9 detects human body immediately, send signal, motor 6 starts, and active clapboard 3 is opened by the tooth bar 8 that connects, the surface scraping of the swash plate 4 of scraper plate 10 interlocks carrying out simultaneously, when tooth bar 8 stroke in-position detecting elements 7, send limit signal near switch, motor 6 stops action.This moment, active clapboard 3 was all opened.Urine when the people squats just in going into the lavatory flow to swash plate 4 through urine collector plate 2 collections of defecate collection device and through urine from chute 11, reaches lubricated effect.Stool falls to dropping down onto pit through swash plate 4.Finish after the people goes out the lavatory going into the lavatory, infrared electro sense switch 9 sends the unmanned signal in lavatory after detecting nobody, motor 6 starts with aforementioned opposite direction, active clapboard 3 is driven toward swivel motion by the tooth bar 8 that connects, swiping in the surface of the swash plate 4 of scraper plate 10 interlocks carrying out once more simultaneously, finishes the automatically cleaning process of swash plate 4.
Claims (2)
1. water-free self-cleaning full-automatic toilet, comprise a defecate collection device, the defecate collection device is connected with a casing, the inlet that it is characterized in that casing is provided with active clapboard, active clapboard has swash plate, active clapboard is provided with the scraper plate that cooperates with swash plate, and active clapboard is connected with a drive unit, and drive unit is connected with human body sensing parts and position detecting element.
2. water-free self-cleaning full-automatic toilet according to claim 1 is characterized in that urine that described defecate collection device is provided with the urine collector plate and is positioned at swash plate top is from chute.
