Abstract
The invention discloses a dust-free rice fine-selection shelling device, which comprises a case and is characterized by further comprising a material port, a first material chamber, a second material chamber, a shelling chamber and a rice milling device, wherein compared with the prior art, the dust-free rice fine-selection shelling device is used for processing rice grains before husking and shelling, and the second material chamber jolts up and down through the matching of a lifting piece and a wave bulge, so that the connection between rice husks and rice cannot be too tight; the device adopts a relatively closed mode to prevent dust from escaping into the space, wherein the second material chamber can well separate the dust and the like on the rice hulls through bumping, the second material chamber is emptied by virtue of the vertical rods, the lifting plate at the bottom of the material box is provided with the filtering holes, the filtering holes are beneficial to the falling of the rice hulls and the dust, and the generation amount of the whole dust of the device is very low.
Description
Technical Field
The invention relates to the technical field of agriculture, in particular to a dust-free rice fine-selection shelling device.
Background
After harvesting, many grains need to be dried before being sold or stored, so that the grains meet the selling requirements or the storage time is prolonged.
The traditional grain drying method generally adopts natural air drying, airing and other methods for drying, but the method is long in time consumption, sand and soil are easily adhered to the surface of the grain, harmful germs are easily bred, the late-stage eating is affected, and the drying quality is greatly affected by the weather. The rice, also called rice, is the food made after the rice is cleaned, hulled, polished, finished product arrangement, etc., the rice contains nearly 64% of nutrient substance and more than 90% of nutrient elements needed by human body in rice, carbohydrate in rice is mainly starch, the protein contained is mainly glutelin, secondly gliadin and globulin, the biological value of the protein and the composition proportion of amino acid are all higher than the cereal crops such as wheat, barley, millet, corn, etc., it is the main food of people in most areas of China.
Rice contains more impurity before carrying out the rice huller among the prior art, like iron fillings, dust etc, can not carry out the preliminary treatment to the rice mostly at the in-process of rice hulling, rice and rice husk link closely to cause the rice hulling process to have great degree of difficulty, the rice husk is poor with the rice separation effect, the quality of rice hulling has been influenced, can produce a large amount of dusts and dust at the rice hulling in-process, the dust gets into the operating range, can cause serious harm to workman's health, how to guarantee that the separation of dust and rice is the same urgent problem of treating the solution.
Disclosure of Invention
The invention aims to solve the technical problems of separation of rice and dust and pretreatment before rice hulling, and can well realize the separation of the dust and jolt the rice, so that the connection between the rice and the rice hull is loose, the separation of the rice hull is facilitated, the rice hulling time is shortened, and the operation quality of rice hulling is ensured.
In order to solve the problems, the technical scheme adopted by the invention is that the dust-free rice fine-selection shelling device comprises a machine case and is characterized by further comprising a material port, a first material chamber, a second material chamber, a shelling chamber and a rice milling device, wherein the first material chamber and the second material chamber are of hollow cylindrical structures, the bottoms of the first material chamber and the second material chamber are provided with inclined slopes, the first material chamber and the second material chamber are connected through a first conduit, the bottom of the first conduit is rotatably matched with the upper portion of the second material chamber, the material port is arranged at the top of the machine case, the bottom of the material port extends into the first material chamber, the bottom of the second material chamber is provided with a discharging pipe, the discharging pipe is communicated with the interior of the second material chamber, the top of the discharging pipe is rotatably matched with the bottom of the second material chamber, one side of the discharging pipe is provided with a second conduit, and the rice milling device comprises a material box, The second guide pipe is communicated with the top of the material box, an output shaft of the rotating motor is fixedly connected with the rotating rod, the lower part of the rotating rod extends into the material box and is fixedly connected with the grinding disc, the top of the grinding disc is provided with a tilting disc, the bottom of the box body is provided with a lifting plate, the bottom of the lifting plate is fixedly connected with an output shaft of the first lifting motor, the lifting plate is provided with a filter hole, the rotating rod is provided with a first gear, the outer wall of the second material chamber is provided with a second gear, the bottom of the second material chamber is provided with an annular groove, a wave protrusion is arranged in the annular groove, one side of the case is fixedly provided with a lifting piece which is arranged in the annular groove and is used for being matched with the wave protrusion, the shelling device further comprises a vertical rod, a horizontal rod, a dust suction device and a second lifting motor, the vertical rod is arranged in the material discharging pipe, the vertical rod is fixedly connected with the cross rod, dust suction channels are arranged in the vertical rod and the cross rod, a dust suction pipe of the dust suction device is respectively communicated with the dust suction channels and the material box, the second lifting motor is fixedly connected with the cross rod, and a coarse filter screen is arranged at the top of the vertical rod.
Furthermore, an elastic plate is arranged behind the blanking pipe, and the tail end of the elastic plate is fixedly connected with the inner wall of the case.
Furthermore, the elastic plate is made of a bendable material.
Furthermore, a funnel is arranged at the top of the material port, and an openable opening is arranged above the funnel.
Further, the bottom of the material port is provided with a magnet.
Further, the tilting tray is including last disk body, lower disk body, it is including skeleton and waterproof cloth to go up the disk body, skeleton top and rotary rod bottom rigid coupling, the waterproof cloth is located between the skeleton, the lower disk body is top open-ended hollow discoid structure, skeleton below and lower disk body fixed connection.
Furthermore, a fixing plate is arranged below the framework, and the lower tray body is fixedly connected with the fixing plate through screws.
Furthermore, the framework and the lower disc body are made of hard plastic materials.
Further, rubber is arranged at the bottom and the outer side wall of the lower tray body.
Further, a baffle is arranged in the second material chamber, the baffle is arranged under the first guide pipe, and the baffle is used for scattering rice.
Compared with the prior seed drying device, the invention has the following outstanding advantages:
(1) according to the rice huller, rice grains before hulling and hulling are treated, the lifting piece is matched with the wave protrusions, so that the second material chamber jolts up and down, the rice hulls and rice are not connected too tightly, convenience is brought to subsequent rice milling operation, and the rice milling operation time is shortened;
(2) the invention adopts a relatively closed mode to prevent dust from escaping into the space, wherein the second material chamber can well separate the dust on the rice hulls and the like through bumping, the second material chamber is emptied by virtue of the vertical rods, the lifting plate at the bottom of the material box is provided with the filtering holes which are beneficial to the falling of the rice hulls and the dust, and the second material chamber is extracted by virtue of the dust suction device, so that the generation amount of the whole dust of the device is very low;
(3) after the vertical rod moves downwards, the rice in the second material chamber falls into the feeding pipe, and the rice collides with the coarse strainer at the top of the vertical rod in the falling process, so that the separation of rice glumes and dust can be further improved by the collision, and meanwhile, the connection between the rice and rice husks can be further loosened by the collision, and the rice milling efficiency is improved.
Drawings

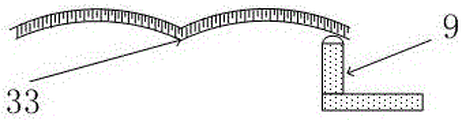

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure of the present invention at the feed pipe;
FIG. 3 is a bottom view of a second material chamber according to the present invention;
FIG. 4 is a schematic view of the engagement of the lifting member with the wave-like protrusions of the present invention;
fig. 5 is a schematic view of the structure of the rolling stand of the present invention.
The rice milling machine comprises a material inlet 1, a material outlet 2, a first material chamber 3, a second material chamber 31, a second gear 32, an annular groove 33, a wave protrusion 4, a shelling chamber 5, a rice milling device 51, a material box 52, a rotating motor 53, a rotating rod 531, a first gear 54, a milling disc 541, an inclined disc 542, a lower disc 543, a fixing plate 55, a box body 551, a lifting plate 56, a first lifting motor 6, a first guide pipe 7, a discharging pipe 71, an elastic plate 8, a second guide pipe 9, a lifting piece 10, a vertical rod 11, a cross rod 12, a dust collecting device 13 and a second lifting motor.
Detailed Description
The present invention will now be described in further detail with reference to the drawings, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and are not to be construed as limiting the invention.
As shown in the figure, the dust-free rice fine selection shelling device comprises a machine box, and further comprises a material port 1, a first material chamber 2, a second material chamber 3, a shelling chamber 4 and a rice milling device 5, wherein the first material chamber 2 and the second material chamber 3 are of hollow cylinder structures, the bottoms of the first material chamber 2 and the second material chamber 3 are provided with inclined slopes, the inclined slopes are beneficial to downward movement of materials, the first material chamber 2 and the second material chamber 3 are connected through a first conduit 6, the bottom of the first conduit 6 is rotatably matched with the upper portion of the second material chamber 3, the material port is arranged at the top of the machine box, the bottom of the material port extends into the first material chamber 2, a discharging pipe 7 is arranged at the bottom of the second material chamber 3, the discharging pipe 7 is communicated with the inside of the second material chamber 3, the top of the discharging pipe 7 is rotatably matched with the bottom of the second material chamber 3, a second conduit 8 is arranged on one side of the discharging pipe 7, the rice milling device 5 comprises a material box 51, a rotating motor 52, a rotating rod 53, a milling disc 54, a box body 55 and a first lifting motor 56, wherein the second conduit 8 is communicated with the top of the material box 51, an output shaft of the rotating motor 52 is fixedly connected with the rotating rod 53, the lower part of the rotating rod 53 extends into the material box 51 and is fixedly connected with the milling disc 54, the top of the milling disc 54 is provided with an inclined disc 541, the bottom of the box body 55 is provided with a lifting plate 551, the bottom of the lifting plate 551 is fixedly connected with an output shaft of the first lifting motor 56, the lifting plate 551 is provided with a filter hole, the rotating rod 53 is provided with a first gear 531, the outer wall of the second material chamber 3 is provided with a second gear 31, the bottom of the second material chamber 3 is provided with an annular groove 32, a wave protrusion 33 is arranged in the groove of the annular groove 32, one side of the machine case is fixedly provided with a lifting piece 9, the lifting piece 9 is arranged in the annular groove 32, the utility model provides a be used for cooperating with wave projection 33, the device of shelling is still including montant 10, horizontal pole 11, dust extraction 12 and second lifting motor 13, montant 10 is located in unloading pipe 7, montant 10 and horizontal pole 11 rigid coupling, be equipped with the dust absorption passageway in montant 10, the horizontal pole 11, dust extraction 12's dust absorption pipe communicates with each other with dust absorption passageway and magazine 51 respectively, second lifting motor 13 and horizontal pole 11 fixed connection of department, second lifting motor 13 are used for driving horizontal pole 11 and montant 10 vertical migration, the top of montant 10 is equipped with the coarse strainer.
Furthermore, an elastic plate 71 is arranged behind the discharging pipe 7, the tail end of the elastic plate 71 is fixedly connected with the inner wall of the case, and the second material chamber 3 vibrates under the lifting of the lifting piece 9 by virtue of the elastic plate to bump the materials in the second material chamber.
Further, the elastic plate 71 is made of a bendable material.
Further, the top of the material port 1 is provided with a funnel, an openable opening is formed above the funnel, and the material port 1 is used for adding rice into the first material chamber and can be closed by a switch to prevent dust from escaping.
Further, the bottom of the material port 1 is provided with a magnet for carrying out iron scrap adsorption on untreated rice.
Further, the tilting disk 541 includes an upper disk body and a lower disk body 542, the upper disk body includes a framework and a rain cloth, the upper side of the framework is fixedly connected with the bottom of the rotating rod 53, the rain cloth is arranged between the frameworks, the lower disk body 542 is a hollow disk-shaped structure with an opening at the upper side, and the lower side of the framework is fixedly connected with the lower disk body 542.
Furthermore, a fixing plate 543 is arranged below the framework, and the lower tray body 542 is fixedly connected with the fixing plate 543 through screws.
Further, the frame and the lower disc 542 are made of hard plastic.
Further, rubber is arranged at the bottom and the outer side wall of the lower tray body 542, and friction force between the lower tray body and the rice hulls is increased.
Further, a baffle is arranged in the second material chamber 3, the baffle is arranged under the first guide pipe 6, and the baffle is used for scattering rice.
According to the rice huller, rice grains before hulling and hulling are treated, the lifting piece 9 is matched with the wave protrusion 33, so that the second material chamber 3 is bumped up and down, the rice hulls and rice are not connected too tightly, convenience is brought to subsequent rice milling operation, and the rice milling operation time is shortened; the invention adopts a relatively closed mode to prevent dust from escaping into the space, wherein the dust on the rice hulls can be well separated from the second material chamber 3 through bumping, the second material chamber is emptied by virtue of the vertical rod 10, the lifting plate 551 at the bottom of the material box 51 is provided with the filtering holes which are beneficial to the falling of the rice hulls and the dust, and the rice hulls and the dust are extracted by virtue of the dust suction device 12, so that the generation amount of the whole dust of the device is very low; after the second lifting motor 13 drives the vertical rod 10 to move downwards, rice falls into the discharging pipe 7 in the second material chamber 3, the rice falls and collides with a coarse filter screen at the top of the vertical rod 10 in the process, separation of rice glumes and dust can be further improved through collision, the dust is pumped and discharged by the dust suction device 12 through a dust suction channel, and meanwhile, the rice and rice husks can be further loosely connected through collision, so that the rice milling efficiency is improved.
Although embodiments of the present invention have been shown and described above, it is understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that variations, modifications, substitutions and alterations can be made in the above embodiments by those of ordinary skill in the art without departing from the principle and spirit of the present invention.
Claims (10)
1. The utility model provides a dustless rice choice hulling device, includes the quick-witted case, its characterized in that still includes material mouth, first material room, second material room, hulling chamber, rice milling device and constitutes, first material room, second material room are the hollow cylinder structure, the bottom of first material room, second material room is equipped with the slope, link to each other through first pipe between first material room, the second material room, first pipe bottom and second material room top normal running fit, the material mouth is located machine roof portion, material mouth bottom stretches into in the first material room, the bottom of second material room is equipped with the unloading pipe, the unloading pipe communicates with each other with second material room inside, the top and the second material room bottom normal running fit of unloading pipe, unloading pipe one side is equipped with the second pipe, rice milling device is including magazine, rotating electrical machines, rotary rod, The second guide pipe is communicated with the top of the material box, the output shaft of the rotating motor is fixedly connected with a rotating rod, the lower part of the rotating rod extends into the material box and is fixedly connected with the grinding disc, the top of the grinding disc is provided with a tilting disc, the bottom of the box body is provided with a lifting plate, the bottom of the lifting plate is fixedly connected with the output shaft of the first lifting motor, the lifting plate is provided with a filter hole, the rotating rod is provided with a first gear, the outer wall of the second material chamber is provided with a second gear, the bottom of the second material chamber is provided with an annular groove, the annular groove is internally provided with wave protrusions, one side of the case is fixedly provided with a lifting piece which is arranged in the annular groove and is used for being matched with the wave protrusions, the shelling device further comprises a vertical rod, a horizontal rod, a dust suction device and a second lifting motor, the vertical rod is arranged in the material discharging pipe and is fixedly connected with the horizontal rod, be equipped with the dust absorption passageway in montant, the horizontal pole, dust extraction's dust absorption pipe communicates with each other with dust absorption passageway and magazine respectively, second lifting motor and horizontal pole department fixed connection, the top of montant is equipped with the coarse strainer.
2. The dust-free rice fine-selecting and shelling device as claimed in claim 1, wherein an elastic plate is arranged behind the blanking pipe, and the tail end of the elastic plate is fixedly connected with the inner wall of the case.
3. The dust-free rice fine-selecting shelling apparatus as claimed in claim 1, wherein said flexible panel is constructed of a flexible material.
4. The dust-free rice fine-selecting and shelling device as claimed in claim 1, wherein a hopper is provided at a top of said hopper, and an openable opening is provided above said hopper.
5. The dust-free rice fine-selecting and shelling device as claimed in claim 1, wherein a magnet is disposed at a bottom of said hopper.
6. The dust-free rice fine-selection shelling device as claimed in claim 1, wherein said inclined plate comprises an upper plate body and a lower plate body, said upper plate body comprises a framework and a rain cloth, said framework is fixedly connected with the bottom of the rotating rod above, said rain cloth is disposed between the frameworks, said lower plate body is a hollow disc-shaped structure with an opening above, and said framework is fixedly connected with the lower plate body below.
7. The dust-free rice fine-selection shelling device as defined in claim 1, wherein a fixing plate is provided below said frame, and said lower tray body is fixedly connected with said fixing plate by means of screws.
8. The dust-free rice fine-selecting and shelling device as claimed in claim 1, wherein said frame and said lower plate are constructed of rigid plastic material.
9. The dust-free rice fine-selecting and shelling device as claimed in claim 6, wherein rubber is disposed on the bottom and outside walls of said lower tray body.
10. The dust-free rice fine-selection shelling device as claimed in claim 1, wherein said second material chamber has a baffle disposed therein, said baffle being disposed directly below said duct, said baffle being configured to break up rice.
