Abstract
The invention discloses a multi-angle head support traction device, a support frame is fixedly connected with an operating table, a guide cylinder is arranged on the support frame and can move back and forth, a spring cylinder is arranged on the front side of the guide cylinder through a push rod, a spring, a gasket and a first pressure sensor are sequentially and coaxially arranged in the spring cylinder from front to back, an electric cylinder arranged on the front side of the spring cylinder can push the spring cylinder to move, the traction cylinder can apply thrust to the push rod through the spring and further push the guide cylinder to move so as to realize traction on the head of a patient, a lifting column can move up and down and be positioned, a motor is arranged at the upper end of the lifting column and can drive a transverse swing arm to horizontally rotate, a chute frame is rotatably connected with the front end of a transverse swing arm, a rotating frame is rotatably arranged at the upper end of the chute frame and can be locked by a locking wheel, a retainer has six spatial degrees of freedom and is rotatably arranged at the front end of the rotating frame, and the retainer can be connected with the head of the patient through a plurality of skull nails, the torsion column can be coaxially nested with the skull nail, and the skull nail can not loosen and fall off.
Description
Technical Field
The invention relates to the technical field of medical instruments, in particular to a multi-angle head support traction device.
Background
With the development of society and the progress of human, more and more cervical vertebra injury patients are caused by traffic accidents, high-altitude falling and other reasons, the cervical vertebra injury is a common acute, dangerous and serious disease, particularly cervical vertebra fracture accompanied by joint dislocation and spinal cord injury, and the possibility of life danger and high paraplegia at any time is provided; as is well known, the cervical vertebra surgery has high difficulty and high risk, requires very high quality for each surgery link, is careless, and is very likely to cause surgery failure, paralysis is disabled at a low rate, and patients die quickly at a high rate.
Head traction is the first choice treatment method for treating cervical vertebra fracture and dislocation in clinic, especially for patients with spinal cord injury, and is also an important means for traction reduction before and during operation; the head traction refers to fixing a skull nail on the skull of a patient, and connecting a weight through a traction rope and a pulley to form a traction device, so that the traction force resists the force of spasm or contraction of limb muscles, and the purpose of fracture reduction or fixation is achieved; the traction direction should be consistent with the axial direction of the cervical vertebrae in principle, but needs to be slightly adjusted according to different dislocation types, for example, the traction direction of the anterior dislocation of the cervical vertebrae (i.e. the upper cervical vertebrae moves to the front of the lower cervical vertebrae) should be slightly deviated to the rear of the axial line, so that the traction force in the axial direction is provided, and the component force of the traction is provided to the rear; similarly, 29309Hv of the cervical vertebra dislocation person, the leading direction should be slightly deviated to the front of the axis; when a patient with long-term lateral curvature of spine and solidification carries out reduction of cervical vertebra fracture, the lateral traction angle of the head of the patient needs to be adjusted according to the lateral curvature of spine; even in the case of partial craniocervical junction area malformation surgery, the patient needs to be changed from the supine position to the prone position, but most of the existing head traction devices are in a fixed form and cannot well meet the surgery requirements; in addition, the traditional head traction device adopts the skull nail to be connected with the head of a patient, the traditional skull nail needs to be screwed up every day in the process of postoperative care, the phenomenon that the traction object falls and the scalp is torn due to loosening and loosening is prevented, the workload of medical staff is increased, and in case of neglect, the serious injury to the patient is possibly caused.
Disclosure of Invention
In order to solve the defects of the prior art, the invention aims to provide a multi-angle head support traction device which can realize traction on the head of a patient at multiple angles and can solve the problem that a traditional fixed traction frame cannot rotate when the patient changes from a supine position to a prone position.
The technical scheme adopted by the invention is as follows: multi-angle head supports draw gear, its characterized in that: a hollow groove is longitudinally arranged in the middle of the support frame, the front end of the support frame is fixedly arranged at the lower side of one end of the operating bed, and two longitudinally parallel guide rails are arranged at the upper side of the support frame; the guide cylinder is arranged in a hollow groove of the support frame and is arranged on two guide rails on the upper side of the support frame through two sliding blocks to form a moving pair, the lifting column is arranged in the guide cylinder and can move up and down and be positioned, and the motor is fixedly arranged at the upper end of the lifting column and can realize the rotation and the positioning of the transverse swing arm on the horizontal plane so as to change the traction direction of the head of a patient; the spring cylinder is arranged on the front side of the guide cylinder through a push rod, the spring, the gasket and the first pressure sensor are sequentially and coaxially arranged in the spring cylinder from front to back, the electric cylinder arranged on the front side of the spring cylinder can push the spring cylinder to move, the traction cylinder can apply thrust to the push rod through the spring to further push the guide cylinder to move so as to realize traction on the head of a patient, and the first pressure sensor can monitor the magnitude of traction force in real time; the sliding chute frame is arranged on the upper side of the front end of the transverse swinging arm to form a revolute pair, the thrust bearing and the second pressure sensor are sequentially and coaxially arranged between the sliding chute frame and the transverse swinging arm from top to bottom, the second pressure sensor can monitor the supporting force on the head of a patient in real time and can transmit the numerical value of the supporting force to the control system, and the revolute frame is arranged on the upper end of the sliding chute frame to form the revolute pair; a plurality of circular concave platforms are uniformly distributed at the front end of the retainer in the circumferential direction, each circular concave platform is provided with a threaded hole and fourteen positioning holes, the retainer is rotatably connected with the rotating frame, the rear end of the retainer is connected with a steel wire rope, skull nails are arranged in the threaded holes in the circular concave platforms to form a thread pair, and the skull nails realize the connection of the retainer and the head of a patient; the torsion column can be coaxially nested with the skull nail, an elastic energy storage part is arranged in the torsion column and can perform rotation stopping positioning through a positioning hole on the circular concave platform, and the elastic energy storage part always has the tendency of driving the skull nail to be screwed clockwise, so that the skull nail can be prevented from loosening and falling off.
Preferably, fourteen positioning holes are distributed at equal intervals in a circle by taking the corresponding threaded holes as centers.
Preferably, a regular hexagon nut is arranged at the right end of the skull nail, an inserted link at the left end of the skull nail is smaller than the small diameter of the threaded section, and transition is carried out between the inserted link and the threaded section through an inclined plane.
Preferably, the number of cranial nails is no less than four.
Preferably, when the body position changes, the height position of the head of the patient can be fluctuated inevitably, and in the process, the lifting column can move up and down dynamically according to the pressure monitored by the second pressure sensor and provide stable support and traction for the head of the patient all the time.
Preferably, a spacer is provided in front of the first pressure sensor, and the spacer can uniformly transmit the urging force of the spring to the first pressure sensor.
Preferably, the torsion column mainly comprises an outer cylinder, an inner cylinder, elastic sheets and a positioning rod, wherein the inner cylinder is coaxially arranged inside the outer cylinder to form a revolute pair, the elastic energy storage component comprises three elastic sheets made of elastic rubber, and the three elastic sheets are uniformly arranged between the inner cylinder and the outer cylinder in the circumferential direction.
Preferably, the outer side of the outer barrel is provided with anti-slip stripes, the bottom side of the outer barrel is provided with two positioning rods, and the two positioning rods can be inserted into two opposite positioning holes to realize the rotation stopping positioning of the outer barrel.
Preferably, the center of the inner cylinder is a regular hexagon hole, and the regular hexagon hole can be embedded and sleeved outside the screw cap, so that the inner cylinder and the skull nail form a rotating whole.
The invention has the beneficial effects that: the retainer has six spatial degrees of freedom, wherein the retainer is rotationally connected with the rotating frame to form a transverse axis rotational degree of freedom, the rotating frame is rotationally connected with the chute frame to form a longitudinal axis rotational degree of freedom, the chute frame is rotationally connected with the transverse swing arm to form a vertical axis rotational degree of freedom, the lifting action of the lifting column forms a vertical axis moving degree of freedom, the back and forth movement of the guide cylinder forms a longitudinal axis moving degree of freedom, and the transverse swing arm is rotationally connected with the lifting column to form a transverse axis moving degree of freedom; the rich freedom degree can lead the holder to realize multi-angle traction to the head of the patient. The gasket can uniformly transmit the thrust of the spring to the first pressure sensor, the first pressure sensor can monitor the traction force on the head of the patient in real time and transmit the pressure value to the control system, so that the operation data can be conveniently quantized, and the damage to the patient caused by the overlarge traction force can be avoided; the second pressure sensor can monitor the supporting force on the head of the patient in real time, and the lifting column can dynamically move up and down according to the pressure monitored by the second pressure sensor and always provide stable support and traction for the head of the patient; EXAMPLE V: when the patient needs to change between the supine position and the prone position, the head of the patient can rotate with the body, and in the process, the holder drives the rotating frame to rotate along the longitudinal axis; the spring cylinder applies thrust to the guide cylinder through the spring, so that the compression amount of the spring can be changed by controlling the movement amount of the guide cylinder, and the magnitude of traction force is further adjusted, namely the traction force is controlled by controlling the movement amount, and the traction force is easy to accurately control and maintain; sixthly, the small diameter of the thread section of the skull nail is larger than the diameter of the drilled hole, so that the inclined plane can be tightly pressed at the outer end of the drilled hole, and the four skull nails are circumferentially distributed and are connected with the skull of the patient together, thereby not only realizing the fixation of the head of the patient, but also preventing the skull nail from excessively rotating deeply to cause irreversible damage to the patient; and seventhly, after the skull nail is screwed, a regular hexagonal hole in the center of the inner cylinder of the torsion column can be sleeved outside the screw cap, the outer cylinder is pressed downwards after the rotary outer cylinder rotates clockwise for a certain angle, the two positioning rods are inserted into the positioning holes, and the three elastic sheets are stretched in the process, so that the inner cylinder always has the tendency of driving the skull nail to be screwed clockwise under the action of the tensile force of the three elastic sheets, and the skull nail can be prevented from loosening and falling off.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a partial cross-sectional enlarged structural view of the spring case position.
Fig. 3 is a partial cross-sectional enlarged structural diagram of the position of the chute frame.
Fig. 4 is a partially enlarged schematic view of the position of the cage.
Fig. 5 is a structural schematic diagram of a cranial nail.
Fig. 6 is a partial sectional view of the torsion bar.
Fig. 7 is a schematic view of the overall structure of the torsion column.
Fig. 8 is a schematic view showing a state when the vehicle is pulled in a lower right direction.
Reference numerals: 1 supporting frame, 2 guide cylinders, 2.1 sliding plates, 2.2 connecting lugs, 3 spring cylinders, 4 electric cylinders, 5 lifting columns, 6 motors, 7 transverse swing arms, 8 sliding groove frames, 9 rotating frames, 9.1 annular guide rails, 10 retaining frames, 10.1 threaded holes, 10.2 positioning holes, 10.3 rotating shafts, 11 torsion columns, 11.1 outer cylinders, 11.2 inner cylinders, 11.3 elastic sheets, 11.4 positioning rods, 12 operating tables, 13 locking wheels, 14 push rods, 14.1 pressing plates, 15 first pressure sensors, 16 springs, 17 gaskets, 18 thrust bearings, 19 second pressure sensors, 20 cranial nails, 20.1 screw caps, 20.2 inserted rods and 20.3 inclined planes.
Detailed Description
The present invention will be further described with reference to specific examples, which are illustrative of the invention and are not to be construed as limiting the invention.
As shown in fig. 1, the multi-angle head supporting traction device mainly comprises a support frame 1, a guide cylinder 2, a spring cylinder 3, an electric cylinder 4, a lifting column 5, a motor 6, a transverse swing arm 7, a sliding groove frame 8, a rotating frame 9, a retainer 10, a twisting column 11, an operating table 12, a locking wheel 13, a push rod 14, a first pressure sensor 15, a spring 16, a gasket 17, a thrust bearing 18, a second pressure sensor 19 and a skull nail 20, wherein the front end of the support frame 1 is fixedly arranged at the lower side of one end of the operating table 12 through screws, the rear end of the support frame 1 is of a horizontal structure, a hollow groove is longitudinally arranged at the middle position of the support frame, and two longitudinally parallel guide rails are arranged at the upper side of the support frame 1; guide cylinder 2 be square, its inside vertical square cavity that is equipped with, 2 upper end front sides of guide cylinder are equipped with engaging lug 2.2, 2 upper ends of guide cylinder are fixed and are equipped with slide 2.1, slide 2.1 is the platelike structure of horizontal setting, slide 2.1 downside is provided with two sliders through the fix with screw, these two sliders respectively with two guide rail cooperation installations of 1 upside of support frame and constitute the sliding pair.
As shown in fig. 1 and 2, a smooth cylindrical cavity is arranged inside the spring barrel 3, and a smooth circular hole is arranged at the center of the rear end of the cylindrical cavity; a circular pressing plate 14.1 is arranged at the front end of the push rod 14, the push rod 14 is coaxially arranged in a smooth round hole at the rear end of the spring barrel 3 and can move back and forth and rotate, meanwhile, the pressing plate 14.1 is positioned in a cylindrical cavity in the spring barrel 3, and the rear end of the push rod 14 is rotatably connected with the connecting lug 2.2; the first pressure sensor 15 is a pressure sensor with a ring structure, the first pressure sensor 15 and the gasket 17 are coaxially arranged on the front side of the pressure plate 14.1, and the gasket 17 is positioned on the front side of the first pressure sensor 15; the spring 16 is arranged in a cylindrical cavity in the spring barrel 3, the front end of the spring 16 is pressed against the front end in the spring barrel 3, and the rear end of the spring 16 is pressed against the front side of the gasket 17; the front end of the electric cylinder 4 is rotatably connected with the front end inside the support frame 1, and the rear end of the electric cylinder 4 is fixedly connected with the front end of the spring barrel 3 through threads; therefore, the electric cylinder 4 extends to enable the spring cylinder 3 to move backwards, the spring cylinder 3 enables the guide cylinder 2 to move backwards through the compression spring 16 so as to achieve traction on the head of a patient, and in the process of traction on the head of the patient, the first pressure sensor 15 can monitor axial pressure from the spring 16 in real time, namely the magnitude of traction force, and feed back the traction force value to the control system in real time.
As shown in fig. 1, the lower end of the lifting column 5 is of a square structure, the cross section of the square structure is the same as that of the square cavity in the guide cylinder 2, the lifting column 5 is installed in the square cavity in the guide cylinder 2 and forms a moving pair, and an electric lifting structure is arranged in the guide cylinder 2 and can realize the up-down movement and the positioning of the lifting column 5; an encoder and a brake are integrated in the motor 6, so that accurate angle rotation and locking positioning can be realized, and the motor 6 is fixedly arranged at the upper end of the lifting column 5; the transverse swing arm 7 is arranged at the upper end of the lifting column 5, and the rear end of the transverse swing arm 7 is fixedly connected with an output shaft of the motor 6, so that the motor 6 can realize the rotation and the positioning of the transverse swing arm 7.
As shown in fig. 1 and 3, the upper end of the chute frame 8 is a transversely arranged arc surface structure, an arc groove is circumferentially arranged on the inner side of the arc surface structure, the cross section of the arc groove is of an inverted T-shaped structure, a locking screw hole is arranged at the right end of the chute frame 8, and the locking screw hole is communicated with the arc groove at the upper end of the chute frame 8; the lower end of the locking wheel 13 is of a circular hand wheel structure, the upper end of the locking wheel 13 is of a thread structure, and the locking wheel 13 and a locking screw hole at the right end of the chute frame 8 are coaxially arranged to form a thread pair; the lower end of the sliding chute frame 8 is arranged on the upper side of the front end of the transverse swing arm 7 to form a revolute pair, the second pressure sensor 19 is a pressure sensor with a ring structure, the thrust bearing 18 and the second pressure sensor 19 are coaxially arranged between the sliding chute frame 8 and the transverse swing arm 7, and the thrust bearing 18 is arranged on the upper side of the second pressure sensor 19, so that the second pressure sensor 19 can monitor the axial pressure from the sliding chute frame 8 in real time.
As shown in fig. 1 and 4, the rotating frame 9 is of an annular structure, two coaxial circular holes are transversely formed in the front end of the rotating frame 9, an annular guide rail 9.1 is circumferentially arranged on the outer side of the rotating frame 9, the cross section of the annular guide rail 9.1 is of a T-shaped structure, the cross section size of the T-shaped structure is the same as that of the circular arc groove in the upper end of the chute frame 8, the rotating frame 9 is mounted at the upper end of the chute frame 8, and the annular guide rail 9.1 and the circular arc groove in the upper end of the chute frame 8 are mounted in a matched mode, so that the rotating frame 9 can freely rotate relative to the chute frame 8; turning the locking wheel 13 clockwise causes its upper end to press against the endless guide 9.1, thereby locking the turret 9 against rotation.
As shown in fig. 4, the retainer 10 is a circular ring structure, two coaxial rotating shafts 10.3 are transversely arranged at the rear end of the retainer 10, the two rotating shafts 10.3 are respectively and coaxially and rotatably connected with two round holes at the front end of the rotating frame 9, a plurality of threaded holes 10.1 are circumferentially arranged at equal intervals at the front end of the retainer 10, the axis of each threaded hole 10.1 is the radial direction of the retainer 10, a circular concave table is arranged at the outer end of each threaded hole 10.1, fourteen positioning holes 10.2 are arranged on each concave table, and the fourteen positioning holes 10.2 are circularly distributed at equal intervals by taking the corresponding threaded holes 10.1 as centers.

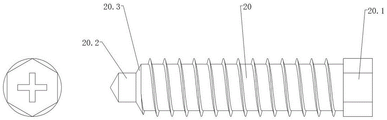

As shown in fig. 5, the skull nail 20 is provided with a thread, the right end of the skull nail 20 is provided with a nut 20.1, the nut 20.1 is in a regular hexagon structure, the end surface of the nut 20.1 is provided with a cross slot structure capable of being matched with a screwdriver, the left end of the skull nail 20 is provided with an inserted bar 20.2, the diameter of the inserted bar 20.2 is smaller than the small diameter of the thread section of the skull nail 20, and the inserted bar 20.2 and the thread section are transited through an inclined plane 20.3.
As shown in fig. 6 and 7, the torsion column 11 is a cylindrical structure, the torsion column 11 mainly includes an outer cylinder 11.1, an inner cylinder 11.2, elastic pieces 11.3, and a positioning rod 11.4, wherein the inner cylinder 11.2 is coaxially installed inside the outer cylinder 11.1 and forms a revolute pair, the elastic pieces 11.3 are sheet-shaped structures made of elastic rubber, the three elastic pieces 11.3 are uniformly and circumferentially installed between the inner cylinder 11.2 and the outer cylinder 11.1, and one end of each elastic piece 11.3 is fixedly connected with the outer side surface of the inner cylinder 11.2, and the other end is fixedly connected with the inner side surface of the outer cylinder 11.1; the center of the inner cylinder 11.2 is a regular hexagonal hole, and the size of the regular hexagonal hole is slightly larger than that of the regular hexagonal structure of the screw cap 20.1; the outer side of the outer barrel 11.1 is provided with anti-skid stripes, the bottom side of the outer barrel 11.1 is provided with two positioning rods 11.4, the diameter of each positioning rod 11.4 is slightly smaller than that of each positioning hole 10.2, and the positions of the two positioning rods 11.4 are symmetrically distributed about the axis of the torsion column 11.
As shown in fig. 4 and 5, the skull nail 20 can be installed in the threaded hole 10.1 and form a thread pair, the insertion rod 20.2 can be inserted into a drilled hole on the skull by rotating the screw cap 20.1 clockwise, the small diameter of the threaded section of the skull nail 20 is larger than the diameter of the drilled hole, so that the inclined plane 20.3 can be pressed on the outer end of the drilled hole, the four skull nails 20 are circumferentially distributed and are connected with the skull of a patient together, not only can the head of the patient be fixed, but also the skull nail 20 can be prevented from being excessively deeply screwed to cause irreversible damage to the patient; after the skull nail 20 is screwed, the regular hexagonal hole in the center of the inner cylinder 11.2 of the twisting column 11 is sleeved outside the screw cap 20.1, the outer cylinder 11.1 is rotated clockwise by a certain angle and then the outer cylinder 11.1 is pressed downwards, so that the two positioning rods 11.4 are inserted into the positioning holes 10.2, and in the process, the three elastic pieces 11.3 are stretched, so that under the action of the tensile force of the three elastic pieces 11.3, the inner cylinder 11.2 always has the tendency of driving the skull nail 20 to be screwed clockwise, and the skull nail 20 can be prevented from loosening and falling off.
The first embodiment is as follows: a plurality of threaded holes 10.1 are circumferentially arranged on the retainer 10 at equal intervals, and the four skull nails 20 can be used for fixing the head of a patient by adopting proper positioning points according to the actual conditions of different patients.
Example two: the retainer 10 has six spatial degrees of freedom, wherein the retainer 10 is rotationally connected with the rotating frame 9 to form a transverse axis rotational degree of freedom, the rotating frame 9 is rotationally connected with the chute frame 8 to form a longitudinal axis rotational degree of freedom, the chute frame 8 is rotationally connected with the transverse swing arm 7 to form a vertical axis rotational degree of freedom, the lifting action of the lifting column 5 forms a vertical axis moving degree of freedom, the back and forth movement of the guide cylinder 2 forms a longitudinal axis moving degree of freedom, and the transverse swing arm 7 is rotationally connected with the lifting column 5 to form a transverse axis moving degree of freedom; the rich freedom allows the holder 10 to achieve multi-angle traction on the patient's head.
Example three: the electric cylinder 4 drives the guide cylinder 2 to move backwards so that the retainer 10 can realize traction on the head of the patient; when the transverse swing arm 7 is in a longitudinal state and the center of the rotating frame 9 is as high as the center of the head of the patient, the longitudinal axis traction can be realized on the head of the patient; when the transverse swing arm 7 is in a longitudinal state and the center of the rotating frame 9 is higher than the center of the head of a patient, the head of the patient can be dragged upwards in a deviation manner; when the transverse swing arm 7 is in a longitudinal state and the center of the rotating frame 9 is lower than the center of the head of the patient, the head of the patient can be dragged to be deflected downwards; when the transverse swing arm 7 rotates leftwards and is positioned, the retainer 10 can move leftwards and the rotating frame 9 deflects clockwise, so that the head of the patient is drawn to deflect leftwards; when the transverse swing arm 7 rotates rightwards and is positioned, the retainer 10 can move rightwards, and the rotating frame 9 deflects anticlockwise, so that the head of the patient is drawn to be deviated to the right.
Example four: the lifting column 5 can adjust the supporting height of the head of the patient, the second pressure sensor 19 can monitor the supporting force of the head of the patient in real time, and after stable support is formed, the control system can set the pressure value measured by the second pressure sensor 19 as a standard value A; when the pressure value detected by the second pressure sensor 19 is smaller than A, the lifting column 5 can be lifted upwards until the pressure value detected by the second pressure sensor 19 is equal to A; when the pressure value detected by the second pressure sensor 19 is greater than A, the lifting column 5 can be lowered downwards until the pressure value detected by the second pressure sensor 19 is equal to A; therefore, when the body position of the patient is changed in the operation, the height position of the head of the patient is inevitably fluctuated, and in the process, the lifting column 5 can move up and down dynamically according to the pressure monitored by the second pressure sensor 19 all the time and provide stable support and traction for the head of the patient all the time.
Example five: when the patient needs to change between the supine position and the prone position, the head of the patient can rotate with the body, the locking wheel 13 is firstly unscrewed anticlockwise before the patient is turned over, the rotating frame 9 can rotate freely, and the retainer 10 can drive the rotating frame 9 to rotate freely along the longitudinal axis in the process of turning the patient.

Claims (9)
1. Multi-angle head supports draw gear, its characterized in that mainly includes:
the middle position of the support frame is longitudinally provided with a hollow groove, the front end of the support frame is fixedly arranged at the lower side of one end of the operating bed, and the upper side of the support frame is provided with two longitudinally parallel guide rails;
the guide cylinder is arranged in the empty groove of the support frame and is arranged on two guide rails on the upper side of the support frame through two sliding blocks to form a moving pair, the lifting column is arranged in the guide cylinder and can move up and down and be positioned, and the motor is fixedly arranged at the upper end of the lifting column and can realize the rotation and the positioning of the transverse swing arm on the horizontal plane so as to change the traction direction of the head of a patient;
the spring cylinder is arranged on the front side of the guide cylinder through a push rod, the spring, the gasket and the first pressure sensor are sequentially and coaxially arranged in the spring cylinder from front to back, the electric cylinder arranged on the front side of the spring cylinder can push the spring cylinder to move, the traction cylinder can apply thrust to the push rod through the spring to further push the guide cylinder to move so as to realize traction on the head of a patient, and the first pressure sensor can monitor the magnitude of the traction force in real time;
the device comprises a sliding chute frame, a thrust bearing, a second pressure sensor, a control system and a rotating frame, wherein the sliding chute frame is arranged on the upper side of the front end of a transverse swinging arm and forms a rotating pair;
the skull nail is arranged in the threaded hole on the circular concave platform to form a thread pair, and the skull nail realizes the connection of the holder and the head of a patient;
the torsion column can be coaxially nested with the skull nail, an elastic energy storage part is arranged in the torsion column and can perform rotation stopping positioning through a positioning hole on the circular concave platform, and the elastic energy storage part always has the tendency of driving the skull nail to be screwed clockwise, so that the skull nail can be prevented from loosening and falling off.
2. The multi-angle head support traction device of claim 1, wherein: the fourteen positioning holes are distributed in a circular shape at equal intervals by taking the corresponding threaded holes as centers.
3. The multi-angle head support traction device of claim 1, wherein: the right end of the skull nail is provided with a regular hexagon nut, an inserted link at the left end of the skull nail is smaller than the small diameter of the threaded section, and transition is carried out between the inserted link and the threaded section through an inclined plane.
4. The multi-angle head support traction device of claim 1, wherein: the number of the skull nails is not less than four.
5. The multi-angle head support traction device of claim 1, wherein: when the body position of the patient changes, the height position of the head of the patient can fluctuate inevitably, and in the process, the lifting column can dynamically move up and down according to the pressure monitored by the second pressure sensor and provide stable support and traction for the head of the patient all the time.
6. The multi-angle head support traction device of claim 1, wherein: the gasket is positioned on the front side of the first pressure sensor and can uniformly transmit the pushing force of the spring to the first pressure sensor.
7. The multi-angle head support traction device of claim 1, wherein: the torsion column mainly comprises an outer cylinder, an inner cylinder, elastic sheets and a positioning rod, wherein the inner cylinder is coaxially arranged inside the outer cylinder and forms a revolute pair, the elastic energy storage component consists of three elastic sheets made of elastic rubber, and the three elastic sheets are uniformly arranged between the inner cylinder and the outer cylinder in the circumferential direction.
8. The multi-angle head support traction device of claim 7, wherein: the outer side of the outer barrel is provided with anti-slip stripes, the bottom side of the outer barrel is provided with two positioning rods, and the two positioning rods can be inserted into two opposite positioning holes to achieve rotation stopping positioning of the outer barrel.
9. The multi-angle head support traction device of claim 7, wherein: the center of the inner cylinder is a regular hexagon hole, and the regular hexagon hole can be embedded and sleeved outside the screw cap, so that the inner cylinder and the skull nail form a rotating whole.
