CN111686866B - Construction waste crushing device for constructional engineering and use method thereof - Google Patents
Construction waste crushing device for constructional engineering and use method thereof Download PDFInfo
- Publication number
- CN111686866B CN111686866B CN202010577331.7A CN202010577331A CN111686866B CN 111686866 B CN111686866 B CN 111686866B CN 202010577331 A CN202010577331 A CN 202010577331A CN 111686866 B CN111686866 B CN 111686866B
- Authority
- CN
- China
- Prior art keywords
- wall
- box
- water
- rotating shaft
- crushing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000010276 construction Methods 0.000 title claims abstract description 58
- 239000002699 waste material Substances 0.000 title claims abstract description 54
- 238000000034 method Methods 0.000 title claims abstract description 25
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 124
- 239000000428 dust Substances 0.000 claims abstract description 101
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 claims description 21
- 238000001179 sorption measurement Methods 0.000 claims description 17
- 229910052799 carbon Inorganic materials 0.000 claims description 13
- 239000007921 spray Substances 0.000 claims description 13
- 230000001360 synchronised effect Effects 0.000 claims description 12
- 239000010865 sewage Substances 0.000 claims description 11
- 239000012535 impurity Substances 0.000 claims description 6
- 241000883990 Flabellum Species 0.000 claims description 2
- 238000010521 absorption reaction Methods 0.000 claims description 2
- 239000013589 supplement Substances 0.000 claims 3
- 230000001502 supplementing effect Effects 0.000 claims 2
- 238000005507 spraying Methods 0.000 abstract description 9
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 238000007599 discharging Methods 0.000 abstract 1
- 238000004064 recycling Methods 0.000 abstract 1
- 239000010813 municipal solid waste Substances 0.000 description 8
- 230000003020 moisturizing effect Effects 0.000 description 6
- 238000010586 diagram Methods 0.000 description 5
- 230000000694 effects Effects 0.000 description 4
- 239000002689 soil Substances 0.000 description 3
- 230000002411 adverse Effects 0.000 description 1
- 238000009412 basement excavation Methods 0.000 description 1
- 125000004122 cyclic group Chemical group 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 238000003912 environmental pollution Methods 0.000 description 1
- 238000001125 extrusion Methods 0.000 description 1
- 239000000126 substance Substances 0.000 description 1
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B02—CRUSHING, PULVERISING, OR DISINTEGRATING; PREPARATORY TREATMENT OF GRAIN FOR MILLING
- B02C—CRUSHING, PULVERISING, OR DISINTEGRATING IN GENERAL; MILLING GRAIN
- B02C4/00—Crushing or disintegrating by roller mills
- B02C4/02—Crushing or disintegrating by roller mills with two or more rollers
- B02C4/08—Crushing or disintegrating by roller mills with two or more rollers with co-operating corrugated or toothed crushing-rollers
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D47/00—Separating dispersed particles from gases, air or vapours by liquid as separating agent
- B01D47/06—Spray cleaning
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B02—CRUSHING, PULVERISING, OR DISINTEGRATING; PREPARATORY TREATMENT OF GRAIN FOR MILLING
- B02C—CRUSHING, PULVERISING, OR DISINTEGRATING IN GENERAL; MILLING GRAIN
- B02C23/00—Auxiliary methods or auxiliary devices or accessories specially adapted for crushing or disintegrating not provided for in preceding groups or not specially adapted to apparatus covered by a single preceding group
- B02C23/18—Adding fluid, other than for crushing or disintegrating by fluid energy
- B02C23/24—Passing gas through crushing or disintegrating zone
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B02—CRUSHING, PULVERISING, OR DISINTEGRATING; PREPARATORY TREATMENT OF GRAIN FOR MILLING
- B02C—CRUSHING, PULVERISING, OR DISINTEGRATING IN GENERAL; MILLING GRAIN
- B02C4/00—Crushing or disintegrating by roller mills
- B02C4/28—Details
- B02C4/30—Shape or construction of rollers
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B02—CRUSHING, PULVERISING, OR DISINTEGRATING; PREPARATORY TREATMENT OF GRAIN FOR MILLING
- B02C—CRUSHING, PULVERISING, OR DISINTEGRATING IN GENERAL; MILLING GRAIN
- B02C4/00—Crushing or disintegrating by roller mills
- B02C4/28—Details
- B02C4/42—Driving mechanisms; Roller speed control
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B08—CLEANING
- B08B—CLEANING IN GENERAL; PREVENTION OF FOULING IN GENERAL
- B08B15/00—Preventing escape of dirt or fumes from the area where they are produced; Collecting or removing dirt or fumes from that area
- B08B15/04—Preventing escape of dirt or fumes from the area where they are produced; Collecting or removing dirt or fumes from that area from a small area, e.g. a tool
-
- C—CHEMISTRY; METALLURGY
- C02—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F1/00—Treatment of water, waste water, or sewage
- C02F1/001—Processes for the treatment of water whereby the filtration technique is of importance
-
- C—CHEMISTRY; METALLURGY
- C02—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F1/00—Treatment of water, waste water, or sewage
- C02F1/28—Treatment of water, waste water, or sewage by sorption
- C02F1/283—Treatment of water, waste water, or sewage by sorption using coal, charred products, or inorganic mixtures containing them
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B02—CRUSHING, PULVERISING, OR DISINTEGRATING; PREPARATORY TREATMENT OF GRAIN FOR MILLING
- B02C—CRUSHING, PULVERISING, OR DISINTEGRATING IN GENERAL; MILLING GRAIN
- B02C2201/00—Codes relating to disintegrating devices adapted for specific materials
- B02C2201/06—Codes relating to disintegrating devices adapted for specific materials for garbage, waste or sewage
-
- C—CHEMISTRY; METALLURGY
- C02—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F—TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE
- C02F2103/00—Nature of the water, waste water, sewage or sludge to be treated
- C02F2103/18—Nature of the water, waste water, sewage or sludge to be treated from the purification of gaseous effluents
Landscapes
- Engineering & Computer Science (AREA)
- Food Science & Technology (AREA)
- Chemical & Material Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- Hydrology & Water Resources (AREA)
- Environmental & Geological Engineering (AREA)
- Water Supply & Treatment (AREA)
- Organic Chemistry (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Crushing And Pulverization Processes (AREA)
Abstract
The invention discloses a construction waste crushing device for constructional engineering and a using method thereof, and belongs to the technical field of constructional engineering. The construction waste crushing device for the construction engineering comprises a crushing box and a waste collection vehicle, wherein the waste collection vehicle is arranged at the bottom of the crushing box, the upper side and the lower side of the crushing box are respectively connected with a feeding hole and a discharging hole, a crushing mechanism is connected in the crushing box, the outer wall of the crushing box is connected with a dust falling box, a water replenishing box and a water spraying box are respectively connected in the dust falling box, a first pipeline and a second pipeline are connected between the water replenishing box and the water spraying box, the bottom of the dust falling box is connected with a water delivery pipe, one end of the water delivery pipe, far away from the dust falling box, is connected to the top of the water replenishing box, the outer wall of the water delivery pipe is connected with a water pump, and the water pump is connected to the outer wall of the water replenishing box; the invention is beneficial to recycling water resources for dust fall, saving water resources and reducing the cost of crushing construction waste.
Description
Technical Field
The invention relates to the technical field of constructional engineering, in particular to a construction waste crushing device for constructional engineering and a using method thereof.
Background
The construction waste refers to construction waste generated by human or natural reasons in engineering, and comprises waste residue soil, waste soil, residual mud, waste materials and the like, which are not helpful to the construction per se, but are substances generated in the construction process and need to be treated correspondingly.
China is in the period of high-speed development of economic construction, hundreds of millions of tons of construction wastes are inevitably generated every year, the quantity of the Chinese construction wastes accounts for one third of the total quantity of the urban wastes at present, if the Chinese construction wastes are not timely treated and utilized, the Chinese construction wastes inevitably bring adverse effects to the society, the environment and resources, and the Chinese construction wastes are mainly treated by burying the Chinese construction wastes underground, occupy a large amount of land, cause serious environmental pollution, destroy soil structures and cause surface subsidence.
In the prior art, a Chinese patent with the patent number of CN201911187461.3 discloses a construction waste crushing device for construction engineering, which comprises a crushing box body, a stable supporting column and a construction waste collecting box, wherein the crushing box body is arranged at the top of the inner side of the stable supporting column, a crushing pressing mechanism is arranged at the top of the crushing box body, and a dust-fall atomizing connecting pipe is arranged at one end of the crushing box body; still have the defect, the device can't carry out cyclic utilization to the required rivers of dust fall, leads to the waste a large amount of moisture of dust fall in-process, is unfavorable for the water economy resource, and improves use cost.
Disclosure of Invention
The invention aims to solve the problem of serious water resource waste required by dust fall in the prior art, and provides a construction waste crushing device for construction engineering and a using method thereof.
In order to achieve the purpose, the invention adopts the following technical scheme:
the utility model provides a building rubbish breaker for building engineering, includes broken case and garbage truck, the bottom of broken case is arranged in to the garbage truck, the upper and lower both sides of broken case are connected with feed inlet and discharge gate respectively, broken incasement is connected with broken mechanism, broken incasement outer wall connection has the case of falling dust, the dust fall incasement is connected with moisturizing case and watering case respectively, be connected with first pipeline and second pipeline between moisturizing case and the watering case, the bottom of the case of falling dust is connected with the raceway, the raceway is kept away from the one end of falling the case of dust and is connected at the top of moisturizing case, raceway outer wall connection has the water pump, the outer wall at the moisturizing case is connected to the water pump.
Preferably, the outer walls of the first pipeline and the second pipeline are respectively connected with a second one-way valve and a third one-way valve.
Preferably, broken mechanism includes the motor, broken case outer wall connection has the supporting seat, the outer wall at the supporting seat is connected to the motor, the output of motor is connected with the pivot, the one end that the motor was kept away from in the pivot is passed broken case and is connected with first pivot, first pivot outer wall connection has first gear, first gear outer wall meshing is connected with the second gear, first gear and second gear all rotate the outer wall of connection at broken case, second gear outer wall connection has the second pivot, second pivot and first pivot outer wall all are connected with the crushing roller, the crushing roller outer wall is provided with evenly distributed's broken tooth.
Preferably, the outer wall of the feeding port is connected with a fixed plate, the outer wall of the fixed plate is connected with a third rotating shaft, the outer walls of the first rotating shaft and the third rotating shaft are both connected with first synchronizing wheels, and a first synchronizing belt is connected between the first synchronizing wheels.
Preferably, third pivot outer wall connection has the rotor plate, rotor plate outer wall connection has the dead lever, watering case inner wall swing joint has the piston, piston outer wall connection has the push rod, the one end that the piston was kept away from to the push rod is connected with the removal frame, it has the shrinkage pool to remove the frame outer wall excavation, dead lever sliding connection is in the shrinkage pool.
Preferably, the bottom of the sprinkling tank is connected with a spray head, and a first one-way valve is connected between the spray head and the sprinkling tank.
Preferably, dust fall incasement wall is excavated the recess, fluted wall is connected with the fourth pivot, fourth pivot and second pivot outer wall connection have matched with second synchronizing wheel, two be connected with the second hold-in range between the second synchronizing wheel, fourth pivot outer wall connection has the disc, disc outer wall connection has the dust absorption flabellum, broken incasement wall has still excavated the through-hole that communicates each other with the recess.
Preferably, dust fall incasement wall chisel has first spout, first spout inner wall sliding connection has the slider, be connected with elastic element between the diapire of slider and the first spout inner wall, slider outer wall swing joint has the filter screen, the one end that the slider was kept away from to the filter screen passes through hinged joint at the inner wall of dust fall case, fourth pivot outer wall connection has the swinging arms, the swinging arms offsets with the filter screen activity.
Preferably, dust fall incasement wall sliding connection has the active carbon adsorption net, the below of filter screen is arranged in to the active carbon adsorption net, the active carbon adsorption net both sides outer wall all is connected with the movable block, dust fall incasement wall is opened chisel and is had the second spout with movable block matched with, dust fall incasement wall has the baffle through the round pin hub connection, the baffle offsets with the active carbon adsorption net activity.
The invention also discloses a use method of the construction waste crushing device for the construction engineering, which comprises the following steps:
s1, pouring the construction waste from the feeding hole, controlling the motor to operate, enabling the output end of the motor to drive the first rotating shaft to rotate, enabling the first gear and the second gear to be meshed with each other, enabling the crushing rollers on the outer sides of the first rotating shaft and the second rotating shaft to rotate relatively, crushing the construction waste, and enabling the crushed construction waste to generate dust;
s2, the fourth rotating shaft rotates with the second rotating shaft under the action of the second synchronous belt, so that the fourth rotating shaft drives the dust-absorbing fan blade to rotate, the dust-absorbing fan blade enables dust generated in the crushing box to enter the dust-falling box through the through hole, the third rotating shaft rotates with the first rotating shaft under the action of the first synchronous belt, further the third rotating shaft drives the rotating plate to rotate, the fixed rod at the end part of the rotating plate moves in the moving frame, the moving frame drives the push rod to reciprocate and move up and down, the piston extrudes water flow in the water spraying box in the process that the push rod drives the piston to move down, the water flow penetrates through the first one-way valve and is sprayed out from the spray head, dust falling treatment is carried out on the dust entering the dust-falling box, dust pollution is reduced, in the process that the push rod drives the piston to move up, air pressure at the upper end of the piston of the water spraying box penetrates through the second one-way valve to extrude water flow in the water spraying box, and water flow in the water spraying box enters the water spraying box through the second pipeline, replenishing the water flow lost in the sprinkler tank;
and S3, falling dust on the filter screen after water flow dust settling treatment, adsorbing impurities in the sewage when the sewage passes through the activated carbon adsorption screen, enabling relatively clean water flow to enter the bottom of the dust settling box, and enabling the water flow at the bottom of the dust settling box to enter the water replenishing box through the water pipe by controlling the operation of the water pump when the water flow in the water replenishing box is insufficient.
Compared with the prior art, the invention has the following beneficial effects:
1. according to the construction waste crushing device for the construction engineering and the using method thereof, the dust falling box is arranged to perform dust falling on dust generated by crushed waste, sewage after dust falling treatment is conveyed into the water replenishing box through the water conveying pipe, and the water replenishing box replenishes water consumption of each dust falling of the water sprinkling box.
2. According to the construction waste crushing device for the construction engineering and the using method thereof, the motor is controlled to operate, the output end of the motor drives the first rotating shaft to rotate, the first gear is meshed with the second gear, the crushing rollers outside the first rotating shaft and the second rotating shaft rotate relatively, the construction waste is crushed, the crushing teeth which are uniformly distributed are arranged outside the crushing rollers, and the crushing effect of the crushing rollers is improved.
3. According to the construction waste crushing device for the building engineering and the using method of the construction waste crushing device, the synchronous belts are arranged on the outer sides of the fourth rotating shaft and the second rotating shaft, so that the fourth rotating shaft rotates along with the second rotating shaft, the dust suction fan blades absorb dust generated during crushing, the dust enters the dust falling box to fall, and dust pollution is avoided.
4. According to the construction waste crushing device for the construction engineering and the using method thereof, the first synchronous belt is arranged, the third rotating shaft rotates along with the first rotating shaft, the push rod moves up and down in a reciprocating mode on the piston, the sprinkling pipe intermittently performs dust falling work on dust, and the loss of water resources is further reduced.
5. This building rubbish breaker for building engineering and application method thereof through set up the swinging arms in the fourth pivot outside, makes the swinging arms rotate along with the fourth pivot, and at the swinging arms pivoted in-process, intermittent type nature's extrusion filter screen makes the filter screen drive the slider and slide in first spout and extrude elastic element, and when the swinging arms did not offset with the filter screen, elastic element promoted the filter screen and resumeed the normal position, and then made the filter screen shake, avoided the mesh of filter screen to be blockked up by some impurity, influence the flow of sewage.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the invention and, together with the description, serve to explain the invention and not to limit the invention.
In the drawings:

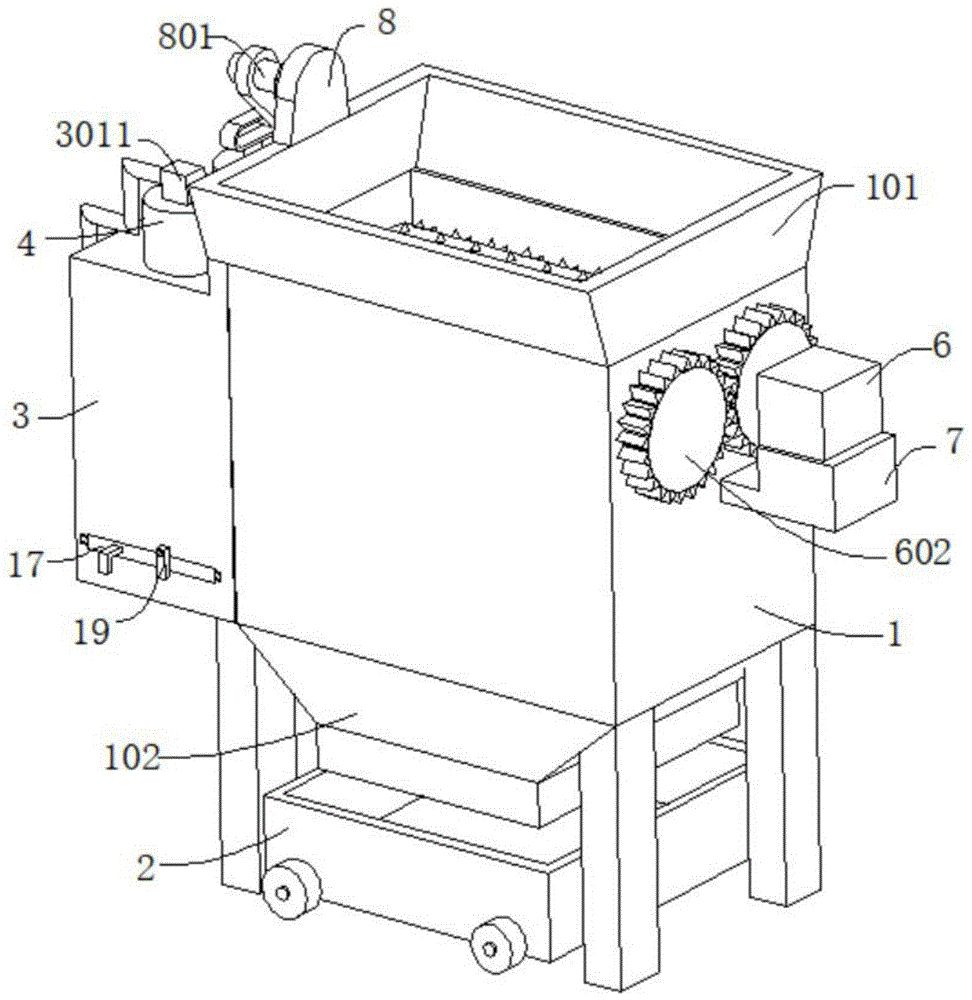

FIG. 1 is a first schematic structural diagram according to the present invention;
FIG. 2 is a second schematic structural diagram according to the present invention;
FIG. 3 is a schematic structural view of a crushing box according to the present invention;
fig. 4 is a schematic structural diagram of a crushing mechanism according to the present invention;
fig. 5 is a schematic structural diagram of a dust settling box provided by the invention;
FIG. 6 is a schematic structural view of the replenishing water tank and the sprinkling water tank according to the present invention;
fig. 7 is a schematic diagram of a groove structure according to the present invention.
Wherein the figures include the following reference numerals:
1. a crushing box; 101. a feed inlet; 102. a discharge port; 2. a collection vehicle; 3. a dust falling box; 301. a water delivery pipe; 3011. a water pump; 4. a water replenishing tank; 401. a first conduit; 402. a second conduit; 5. a water sprinkling tank; 501. a piston; 502. a push rod; 503. moving the frame; 5031. concave holes; 504. a spray head; 505. a first check valve; 6. a motor; 601. a first rotating shaft; 6011. a first gear; 602. a second gear; 6021. a second rotating shaft; 603. a crushing roller; 7. a supporting seat; 8. a fixing plate; 801. a third rotating shaft; 9. a first synchronizing wheel; 10. a first synchronization belt; 11. a rotating plate; 111. fixing the rod; 12. a groove; 121. a fourth rotating shaft; 122. a through hole; 13. a second synchronizing wheel; 14. a second synchronous belt; 15. a disc; 151. dust-absorbing fan blades; 16. a first chute; 161. a slider; 162. an elastic element; 163. a filter screen; 17. an activated carbon adsorption net; 171. a moving block; 18. a second chute; 19. a baffle plate; 20. a second one-way valve; 21. a third check valve; 22. a swing lever.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Example 1:
referring to fig. 1-4, a construction waste crushing device for construction engineering comprises a crushing box 1 and a waste collection vehicle 2, wherein the waste collection vehicle 2 is arranged at the bottom of the crushing box 1, the upper side and the lower side of the crushing box 1 are respectively connected with a feed inlet 101 and a discharge outlet 102, a crushing mechanism is connected in the crushing box 1, the outer wall of the crushing box 1 is connected with a dust falling box 3, the inner part of the dust falling box 3 is respectively connected with a water replenishing box 4 and a water spraying box 5, a first pipeline 401 and a second pipeline 402 are connected between the water replenishing box 4 and the water spraying box 5, the bottom of the dust falling box 3 is connected with a water conveying pipe 301, one end of the water conveying pipe 301, which is far away from the dust falling box 3, is connected at the top of the water replenishing box 4, the outer wall of the water conveying pipe 301 is connected with a water pump 3011, the water pump 3011 is connected at the outer wall of the water replenishing box 4, the crushing mechanism comprises a motor 6, the outer wall of the crushing box 1 is connected with a support seat 7, the motor 6 is connected at the outer wall of the support seat 7, the output end of the motor 6 is connected with a rotating shaft, one end of the rotating shaft far away from the motor 6 penetrates through the crushing box 1 and is connected with a first rotating shaft 601, the outer wall of the first rotating shaft 601 is connected with a first gear 6011, the outer wall of the first gear 6011 is meshed with a second gear 602, the first gear 6011 and the second gear 602 are both rotatably connected to the outer wall of the crushing box 1, the outer wall of the second gear 602 is connected with a second rotating shaft 6021, the outer walls of the second rotating shaft 6021 and the first rotating shaft 601 are both connected with crushing rollers 603, and the outer wall of each crushing roller 603 is provided with crushing teeth which are uniformly distributed.
Building garbage is poured into the feeding hole 101, the motor 6 is controlled to operate, the output end of the motor 6 drives the first rotating shaft 601 to rotate, the first gear 6011 and the second gear 602 are meshed with each other, the crushing rollers 603 on the outer sides of the first rotating shaft 601 and the second rotating shaft 6021 rotate relatively to crush the building garbage, dust generated by the crushed building garbage enters the dust falling box 3, the dust falling box 3 falls dust generated by the crushed garbage, water flow after dust falling treatment is conveyed into the water replenishing box 4 through the water conveying pipe 301, and the water replenishing box 4 replenishes water consumption of the water sprinkling box 5 for each dust falling.
Example 2:
referring to fig. 1-7, a construction waste crushing device for construction engineering, which is substantially the same as that of embodiment 1, further comprising a fixed plate 8 connected to an outer wall of the feeding port 101, a third rotating shaft 801 connected to an outer wall of the fixed plate 8, first synchronizing wheels 9 connected to outer walls of the first rotating shaft 601 and the third rotating shaft 801, a first synchronizing belt 10 connected between the first synchronizing wheels 9, a rotating plate 11 connected to an outer wall of the third rotating shaft 801, a fixing rod 111 connected to an outer wall of the rotating plate 11, a piston 501 movably connected to an inner wall of the sprinkling tank 5, a push rod 502 connected to an outer wall of the piston 501, a moving frame 503 connected to an end of the push rod 502 far away from the piston 501, a concave hole 5031 drilled on an outer wall of the moving frame 503, the fixing rod 111 slidably connected to the concave hole 5031, a nozzle 504 connected to a bottom of the sprinkling tank 5, a first one-way valve 505 connected between the nozzle 504 and the sprinkling tank 5, and a dust settling groove 12 drilled on an inner wall of the tank 3, the inner wall of the groove 12 is connected with a fourth rotating shaft 121, the outer walls of the fourth rotating shaft 121 and the second rotating shaft 6021 are connected with second synchronizing wheels 13 matched with each other, a second synchronous belt 14 is connected between the two second synchronizing wheels 13, the outer wall of the fourth rotating shaft 121 is connected with a disc 15, the outer wall of the disc 15 is connected with dust collection fan blades 151, the inner wall of the crushing box 1 is further provided with a through hole 122 communicated with the groove 12, and the outer walls of the first pipeline 401 and the second pipeline 402 are respectively connected with a second one-way valve 20 and a third one-way valve 21.
The fourth rotating shaft 121 rotates with the second rotating shaft 6021 under the action of the second synchronous belt 14, so that the fourth rotating shaft 121 drives the dust collection fan blade 151 to rotate, so that the dust collection fan blade 151 enters the dust collection box 3 through the through hole 122, the third rotating shaft 801 rotates with the first rotating shaft 601 under the action of the first synchronous belt 10, so that the third rotating shaft 801 drives the rotating plate 11 to rotate, the fixing rod 111 at the end of the rotating plate 11 moves in the moving frame 503, so that the moving frame 503 drives the push rod 502 to reciprocate up and down, in the process that the push rod 502 drives the piston 501 to move down, the piston 501 presses the water flow in the water collection box 5, so that the water flow passes through the first one-way valve 505 and is sprayed out from the spray head 504, dust collection treatment is performed on the dust collected in the dust collection box 3, dust pollution is reduced, in the process that the push rod 502 drives the piston 501 to move up, the air pressure at the upper end of the piston 501 of the water collection box 5 presses the water flow in the water collection box 4 through the second one-way valve 20, the water flow in the refill tank 4 is directed through the second conduit 402 into the tank 5 to replenish the water lost in the tank 5.
Example 3:
referring to fig. 1-7, a construction waste crushing device for construction engineering is substantially the same as that in embodiment 1, further, a first chute 16 is drilled on an inner wall of a dust settling tank 3, a sliding block 161 is slidably connected to an inner wall of the first chute 16, an elastic element 162 is connected between a bottom wall of the sliding block 161 and the inner wall of the first chute 16, a filter screen 163 is movably connected to an outer wall of the sliding block 161, one end of the filter screen 163, which is far away from the sliding block 161, is connected to the inner wall of the dust settling tank 3 through a hinge, a swing rod 22 is connected to an outer wall of a fourth rotating shaft 121, and the swing rod 22 movably abuts against the filter screen 163; by arranging the swing rod 22 outside the fourth rotating shaft 121, the swing rod 22 rotates along with the fourth rotating shaft 121, and in the rotating process of the swing rod 22, the filter screen 163 is intermittently extruded, so that the filter screen 163 drives the sliding block 161 to slide in the first sliding groove 16 and extrude the elastic element 162, when the swing rod 22 does not abut against the filter screen 163, the elastic element 162 pushes the filter screen 163 to recover to the original position, and then the filter screen 163 shakes, and the problem that the meshes of the filter screen 163 are blocked by some impurities to influence the flow of sewage is avoided.
The inner wall of the dust falling box 3 is connected with an active carbon adsorption net 17 in a sliding mode, the active carbon adsorption net 17 is arranged below the filter screen 163, the outer walls of two sides of the active carbon adsorption net 17 are connected with moving blocks 171, a second sliding groove 18 matched with the moving blocks 171 is formed in the inner wall of the dust falling box 3 in a chiseled mode, the outer wall of the dust falling box 3 is connected with a baffle plate 19 through a pin shaft, and the baffle plate 19 is movably abutted to the active carbon adsorption net 17; when sewage passed active carbon adsorption net 17, impurity in the sewage was adsorbed, and comparatively clean rivers get into dust fall case 3 bottom, and when rivers in moisturizing case 4 were not enough, through the operation of control water pump 3011, the rivers that make dust fall case 3 bottom pass through raceway 301 and get into in the moisturizing case 4.
The invention also discloses a use method of the construction waste crushing device for the construction engineering, which comprises the following steps:
s1, pouring the construction waste from the feeding hole 101, controlling the motor 6 to operate, enabling the output end of the motor 6 to drive the first rotating shaft 601 to rotate, enabling the first gear 6011 and the second gear 602 to be meshed with each other, enabling the first rotating shaft 601 and the crushing roller 603 on the outer side of the second rotating shaft 6021 to rotate relatively, crushing the construction waste, and enabling the crushed construction waste to generate dust;
s2, the fourth rotating shaft 121 rotates with the second rotating shaft 6021 under the action of the second synchronous belt 14, so that the fourth rotating shaft 121 drives the dust collection fan blade 151 to rotate, the dust collection fan blade 151 enables dust generated in the crushing box 1 to enter the dust collection box 3 through the through hole 122, the third rotating shaft 801 rotates with the first rotating shaft 601 under the action of the first synchronous belt 10, so that the third rotating shaft 801 drives the rotating plate 11 to rotate, the fixed rod 111 at the end of the rotating plate 11 moves in the moving frame 503, the moving frame 503 drives the push rod 502 to reciprocate up and down, in the process that the push rod 502 drives the piston 501 to move downwards, the piston 501 extrudes water flow in the water collection box 5, the water flow penetrates through the first one-way valve 505 and is sprayed out from the spray head 504, dust falling treatment is performed on the dust entering the dust collection box 3, dust pollution is reduced, in the process that the push rod 502 drives the piston 501 to move upwards, air pressure at the upper end of the piston 501 of the water collection box 5 penetrates through the second one-way valve 20 to extrude water flow in the water collection box 4, the water flow in the make-up water tank 4 enters the water spray tank 5 through the second pipe 402 to make up the water flow lost in the water spray tank 5;
and S3, enabling dust to fall on the filter screen 163 after water flow dust falling treatment, enabling impurities in sewage to be adsorbed when the sewage passes through the activated carbon adsorption net 17, enabling relatively clean water flow to enter the bottom of the dust falling box 3, and enabling water flow at the bottom of the dust falling box 3 to enter the water replenishing box 4 through the water pipe 301 by controlling the water pump 3011 to operate when the water flow in the water replenishing box 4 is insufficient.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (4)
1. A construction waste crushing device for construction engineering comprises a crushing box (1) and a waste collection vehicle (2), wherein the waste collection vehicle (2) is arranged at the bottom of the crushing box (1), and is characterized in that the upper side and the lower side of the crushing box (1) are respectively connected with a feed inlet (101) and a discharge outlet (102), a crushing mechanism is connected in the crushing box (1), the outer wall of the crushing box (1) is connected with a dust falling box (3), a water replenishing box (4) and a water sprinkling box (5) are respectively connected in the dust falling box (3), a first pipeline (401) and a second pipeline (402) are connected between the water replenishing box (4) and the water sprinkling box (5), the bottom of the dust falling box (3) is connected with a water conveying pipe (301), one end, far away from the dust falling box (3), of the water conveying pipe (301) is connected to the top of the water replenishing box (4), and the outer wall of the water conveying pipe (301) is connected with a water pump (3011), the water pump (3011) is connected to the outer wall of the water replenishing tank (4); the crushing mechanism comprises a motor (6), the outer wall of the crushing box (1) is connected with a supporting seat (7), the motor (6) is connected with the outer wall of the supporting seat (7), the output end of the motor (6) is connected with a rotating shaft, one end of the rotating shaft, which is far away from the motor (6), penetrates through the crushing box (1) and is connected with a first rotating shaft (601), a first gear (6011) is connected to the outer wall of the first rotating shaft (601), a second gear (602) is connected to the outer wall of the first gear (6011) in a meshed manner, the first gear (6011) and the second gear (602) are both rotatably connected to the outer wall of the crushing box (1), the outer wall of the second gear (602) is connected with a second rotating shaft (6021), the outer walls of the second rotating shaft (6021) and the first rotating shaft (601) are both connected with a crushing roller (603), and crushing teeth which are uniformly distributed are arranged on the outer wall of the crushing roller (603); a first sliding groove (16) is formed in the inner wall of the dust falling box (3), a sliding block (161) is connected to the inner wall of the first sliding groove (16) in a sliding mode, an elastic element (162) is connected between the bottom wall of the sliding block (161) and the inner wall of the first sliding groove (16), a filter screen (163) is movably connected to the outer wall of the sliding block (161), one end, far away from the sliding block (161), of the filter screen (163) is connected to the inner wall of the dust falling box (3) through a hinge, a swing rod (22) is connected to the outer wall of a fourth rotating shaft (121), and the swing rod (22) is movably abutted to the filter screen (163); the inner wall of the dust falling box (3) is connected with an active carbon adsorption net (17) in a sliding mode, the active carbon adsorption net (17) is arranged below the filter screen (163), the outer walls of two sides of the active carbon adsorption net (17) are connected with moving blocks (171), a second sliding groove (18) matched with the moving blocks (171) is formed in the inner wall of the dust falling box (3) in a chiseled mode, the outer wall of the dust falling box (3) is connected with a baffle (19) through a pin shaft, and the baffle (19) is movably abutted to the active carbon adsorption net (17);
the outer wall of the feeding hole (101) is connected with a fixing plate (8), the outer wall of the fixing plate (8) is connected with a third rotating shaft (801), the outer walls of the first rotating shaft (601) and the third rotating shaft (801) are both connected with first synchronizing wheels (9), and a first synchronizing belt (10) is connected between the two first synchronizing wheels (9);
the outer wall of the third rotating shaft (801) is connected with a rotating plate (11), the outer wall of the rotating plate (11) is connected with a fixing rod (111), the inner wall of the water sprinkling tank (5) is movably connected with a piston (501), the outer wall of the piston (501) is connected with a push rod (502), one end, far away from the piston (501), of the push rod (502) is connected with a moving frame (503), a concave hole (5031) is formed in the outer wall of the moving frame (503), and the fixing rod (111) is connected in the concave hole (5031) in a sliding mode;
fall dirt case (3) inner wall and cut recess (12), recess (12) inner wall connection has fourth pivot (121), fourth pivot (121) and second pivot (6021) outer wall connection have matched with second synchronizing wheel (13), two be connected with second hold-in range (14) between second synchronizing wheel (13), fourth pivot (121) outer wall connection has disc (15), disc (15) outer wall connection has dust absorption flabellum (151), broken case (1) inner wall is still cut and is cut through-hole (122) that communicate each other with recess (12).
2. The construction waste crushing device for the construction engineering as claimed in claim 1, wherein a second check valve (20) and a third check valve (21) are respectively connected to the outer walls of the first pipeline (401) and the second pipeline (402).
3. A construction waste crushing device for building engineering according to any one of claims 1-2, characterized in that a spray head (504) is connected to the bottom of the water spray tank (5), and a first one-way valve (505) is connected between the spray head (504) and the water spray tank (5).
4. The use method of the construction waste crushing device for the construction engineering, which is characterized by comprising the following steps:
s1, pouring the construction waste from the feeding hole (101), controlling the motor (6) to operate, enabling the output end of the motor (6) to drive the first rotating shaft (601) to rotate, enabling the first gear (6011) and the second gear (602) to be meshed with each other, enabling the first rotating shaft (601) and the crushing roller (603) on the outer side of the second rotating shaft (6021) to rotate relatively, crushing the construction waste, and enabling the crushed construction waste to generate dust;
s2, a fourth rotating shaft (121) rotates along with a second rotating shaft (6021) under the action of a second synchronous belt (14), so that the fourth rotating shaft (121) drives a dust suction fan blade (151) to rotate, the dust suction fan blade (151) enables dust generated in the crushing box (1) to enter a dust falling box (3) through a through hole (122), a third rotating shaft (801) rotates along with a first rotating shaft (601) under the action of a first synchronous belt (10), further the third rotating shaft (801) drives a rotating plate (11) to rotate, a fixed rod (111) at the end part of the rotating plate (11) moves in a moving frame (503), the moving frame (503) drives a push rod (502) to reciprocate up and down, the piston (501) extrudes water flow in a water sprinkling box (5) in the process that the push rod (502) drives the piston (501) to move down, the piston (501) penetrates through a first one-way valve (505) and spills out from a spray nozzle (504), and dustfall entering the dust falling box (3) is treated, in the process that the push rod (502) drives the piston (501) to move upwards, air pressure at the upper end of the piston (501) of the water sprinkling tank (5) penetrates through the second one-way valve (20) to extrude water flow in the water supplementing tank (4), so that the water flow in the water supplementing tank (4) enters the water sprinkling tank (5) through the second pipeline (402) to supplement the water flow lost in the water sprinkling tank (5);
and S3, dust falls on the filter screen (163) after water flow dust reduction treatment, impurities in the sewage are adsorbed when the sewage passes through the activated carbon adsorption net (17), cleaner water flow enters the bottom of the dust reduction box (3), and when the water flow in the water supplement box (4) is insufficient, the water flow at the bottom of the dust reduction box (3) enters the water supplement box (4) through the water conveying pipe (301) by controlling the operation of the water pump (3011).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010577331.7A CN111686866B (en) | 2020-06-22 | 2020-06-22 | Construction waste crushing device for constructional engineering and use method thereof |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010577331.7A CN111686866B (en) | 2020-06-22 | 2020-06-22 | Construction waste crushing device for constructional engineering and use method thereof |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN111686866A CN111686866A (en) | 2020-09-22 |
| CN111686866B true CN111686866B (en) | 2021-12-07 |
Family
ID=72483033
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010577331.7A Active CN111686866B (en) | 2020-06-22 | 2020-06-22 | Construction waste crushing device for constructional engineering and use method thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111686866B (en) |
Families Citing this family (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113441205B (en) * | 2021-07-13 | 2022-07-08 | 菏泽城建绿源环保科技有限公司 | Multi-stage dust-settling noise-reducing environment-friendly multi-mode building solid waste regeneration treatment system |
| CN113522430B (en) * | 2021-07-15 | 2022-06-21 | 深圳市和容电子有限公司 | Environment-friendly recycling device for waste electronic components |
| CN113649115A (en) * | 2021-08-20 | 2021-11-16 | 宋燕燕 | Building rubbish reducing mechanism based on building site |
| CN115382619B (en) * | 2022-10-27 | 2023-01-13 | 山东省地质矿产勘查开发局八〇一水文地质工程地质大队(山东省地矿工程勘察院) | Rock crushing device for geological exploration detection |
Citations (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN204841293U (en) * | 2015-08-17 | 2015-12-09 | 南通天蓝环保能源成套设备有限公司 | A dust suppression device for building broken hole of rubbish |
| CN206381784U (en) * | 2017-01-10 | 2017-08-08 | 广州百仕达建筑科技有限公司 | It is a kind of to build special energy-saving dedusting equipment |
| CN107158869A (en) * | 2017-06-29 | 2017-09-15 | 荆门宁杰机电技术服务有限公司 | A kind of device of absorption air dust |
| CN107575261A (en) * | 2017-10-30 | 2018-01-12 | 彭斌明 | A kind of constructing tunnel watering and lowering dust equipment |
| CN206911445U (en) * | 2017-05-18 | 2018-01-23 | 青岛特固德商砼有限公司 | A kind of construction waste crushing device with dust-absorbing function |
| CN108178416A (en) * | 2018-01-24 | 2018-06-19 | 荆门宁杰机电技术服务有限公司 | A kind of iron ore processing purifier |
| CN208253628U (en) * | 2018-05-02 | 2018-12-18 | 国网技术学院 | A kind of energy saving and environment friendly boiler of power plant |
| CN208500548U (en) * | 2018-05-24 | 2019-02-15 | 广州市汇政科技有限公司 | A kind of sewage discharge filter device |
| CN209109244U (en) * | 2018-11-12 | 2019-07-16 | 石家庄市曲寨水泥有限公司 | A kind of roll squeezer dust pelletizing system |
| CN111215179A (en) * | 2019-11-28 | 2020-06-02 | 徐州宇立建设工程有限公司 | Building rubbish breaker for building engineering |
Family Cites Families (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| DE19649756B4 (en) * | 1996-04-18 | 2005-05-25 | Bayer Chemicals Ag | Process for the preparation of briquetting and pressed granules from carbon black pigments and their use |
| CN209109248U (en) * | 2018-09-18 | 2019-07-16 | 辽宁铁道职业技术学院 | A kind of mining waste recycling device |
| CN209279182U (en) * | 2018-10-16 | 2019-08-20 | 湖南联新能源环保科技股份有限公司 | A kind of environment protection type energy saving boiler cinder recycle device |
| CN109718930A (en) * | 2019-01-02 | 2019-05-07 | 西安航空学院 | A kind of construction waste crushing processing equipment and its breaking method |
-
2020
- 2020-06-22 CN CN202010577331.7A patent/CN111686866B/en active Active
Patent Citations (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN204841293U (en) * | 2015-08-17 | 2015-12-09 | 南通天蓝环保能源成套设备有限公司 | A dust suppression device for building broken hole of rubbish |
| CN206381784U (en) * | 2017-01-10 | 2017-08-08 | 广州百仕达建筑科技有限公司 | It is a kind of to build special energy-saving dedusting equipment |
| CN206911445U (en) * | 2017-05-18 | 2018-01-23 | 青岛特固德商砼有限公司 | A kind of construction waste crushing device with dust-absorbing function |
| CN107158869A (en) * | 2017-06-29 | 2017-09-15 | 荆门宁杰机电技术服务有限公司 | A kind of device of absorption air dust |
| CN107575261A (en) * | 2017-10-30 | 2018-01-12 | 彭斌明 | A kind of constructing tunnel watering and lowering dust equipment |
| CN108178416A (en) * | 2018-01-24 | 2018-06-19 | 荆门宁杰机电技术服务有限公司 | A kind of iron ore processing purifier |
| CN208253628U (en) * | 2018-05-02 | 2018-12-18 | 国网技术学院 | A kind of energy saving and environment friendly boiler of power plant |
| CN208500548U (en) * | 2018-05-24 | 2019-02-15 | 广州市汇政科技有限公司 | A kind of sewage discharge filter device |
| CN209109244U (en) * | 2018-11-12 | 2019-07-16 | 石家庄市曲寨水泥有限公司 | A kind of roll squeezer dust pelletizing system |
| CN111215179A (en) * | 2019-11-28 | 2020-06-02 | 徐州宇立建设工程有限公司 | Building rubbish breaker for building engineering |
Also Published As
| Publication number | Publication date |
|---|---|
| CN111686866A (en) | 2020-09-22 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN111686866B (en) | Construction waste crushing device for constructional engineering and use method thereof | |
| CN111995113A (en) | Anti-blocking municipal sewage treatment device and using method thereof | |
| CN106890697A (en) | A kind of building waste environmental protection reducing mechanism | |
| CN114669095A (en) | Building water supply and drainage system and method | |
| CN108380479A (en) | A kind of Environmental-protection garbage screening machine with self-cleaning function | |
| CN114950611A (en) | Equipment based on building rubbish preparation road bed material | |
| CN108970697A (en) | Produced garbage reclamation processing unit in a kind of construction site work progress | |
| CN113529907A (en) | Rainwater recovery device with anti-blocking function | |
| CN114768930A (en) | Building waste grinding and separating equipment and separating method | |
| CN209612338U (en) | A kind of building waste water waste material processing unit | |
| CN209531050U (en) | A kind of building rubbish treatment device of low pollution | |
| CN208341104U (en) | A kind of Environmental-protection garbage screening machine with self-cleaning function | |
| CN215562476U (en) | Garbage cleaning equipment that hydraulic engineering used | |
| CN113976282B (en) | Construction waste treatment device and treatment method thereof | |
| CN216856935U (en) | Building waste breaker | |
| CN113967662B (en) | Special system is restoreed to soil high efficiency that feature of environmental protection is strong | |
| CN213792634U (en) | Sand and stone separator waste fitting discharging | |
| CN211547660U (en) | Hydraulic engineering rubbish cleaning device | |
| CN208356874U (en) | A kind of building waste crushing reuse means | |
| CN113202073A (en) | But ecological environment construction that decrement was handled drags for except that device with river course white rubbish | |
| CN113123398A (en) | Hydraulic engineering desilting device | |
| CN112502230A (en) | Spiral rotating device for cleaning water outlet of hydropower station and implementation method | |
| CN112588783A (en) | Intelligent waste recovery device for environmental art design | |
| CN112387747A (en) | Afforestation rubbish recovery processing system | |
| CN214399906U (en) | Landfill leachate preprocessing device |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| TA01 | Transfer of patent application right | ||
| TA01 | Transfer of patent application right |
Effective date of registration: 20211119 Address after: Room 2259, No. 661, MaoYuan Road, Fengxian District, Shanghai 201403 Applicant after: Shanghai Xiaoqi New Energy Technology Co.,Ltd. Address before: 430074 Room 302, unit 1, building 7, Hongxiang garden, 544 Guanshan Avenue, Hongshan District, Wuhan City, Hubei Province Applicant before: Li Chunli |
|
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20220902 Address after: 750200 No.128 Xingsheng Road, Ligang Town People's government, Ligang Town, Helan County, Yinchuan City, Ningxia Hui Autonomous Region Patentee after: Huiren (Ningxia) Environmental Protection Technology Co.,Ltd. Address before: Room 2259, No. 661, MaoYuan Road, Fengxian District, Shanghai 201403 Patentee before: Shanghai Xiaoqi New Energy Technology Co.,Ltd. |
|
| PE01 | Entry into force of the registration of the contract for pledge of patent right | ||
| PE01 | Entry into force of the registration of the contract for pledge of patent right |
Denomination of invention: A construction waste crushing device for construction engineering and its usage method Granted publication date: 20211207 Pledgee: Bank of China Limited Ningxia Hui Autonomous Region Branch Pledgor: Huiren (Ningxia) Environmental Protection Technology Co.,Ltd. Registration number: Y2024980017293 |
