Abstract

The invention relates to a quick-opening mechanism for doors and windows, in particular to a quick-opening mechanism for doors and windows of fire escapes. Technical problem to be solved: to provide a quick opening mechanism for fire escape doors and windows that does not hinder people's escape and can save time. The technical solution is: a quick opening mechanism for doors and windows of a fire escape, comprising a frame, a compressed gas cylinder, a first knob, an air pipe, a beam, a clamping device, an independent power supply, a wire, a hand-held cutting machine, an L-shaped cylinder, a beating A compressed gas cylinder is installed on the left part of the frame, and a first knob for compressing gas is arranged on the top of the compressed gas cylinder, and the shape of the first knob is T-shaped. In the present invention, the lock on the fire escape door can be cut off by a hand-held cutting machine, and then the fire escape door can be opened, so as to escape, so that people can escape without being hindered, and the door and window glass can be broken by hitting the block, so that the door and window glass can be broken quickly. The window glass is broken, which saves time.

Description

Quick opening mechanism for doors and windows of fire escape

technical field

The invention relates to a quick opening mechanism for doors and windows, in particular to a quick opening mechanism for doors and windows of fire escapes.

Background technique

Fire escapes are passages used to rescue and evacuate people. They are generally set at stair entrances and corridors. They play a role that cannot be underestimated in various dangerous situations. When people escape from the fire escape, if the fire escape door is locked, it will hinder people. To escape, the glass of doors and windows is generally relatively hard, and people need to spend more time to break the glass of doors and windows; in order to save time, people will directly break the glass of doors and windows, so that people are easily injured.

SUMMARY OF THE INVENTION

In order to overcome the disadvantage that the door of the fire escape is locked, which will hinder people's escape, and people need to spend more time to break the glass of doors and windows, the technical problem to be solved is to provide a fire escape that does not hinder people's escape and can save time. Door and window quick opening mechanism.

The technical scheme is: a quick opening mechanism for doors and windows of a fire escape, comprising a frame, a compressed gas cylinder, a first knob, an air pipe, a beam, a clamping device, an independent power supply, a wire, a hand-held cutting machine, an L-shaped cylinder, a beating block, the third compression spring and suction cup, a compressed gas cylinder is installed on the left part of the frame, the top of the compressed gas cylinder is provided with a first knob for compressing gas, the shape of the first knob is T-shaped, and the upper part of the right side of the compressed gas cylinder is The air pipe for making the air flow is connected, the upper part of the frame is installed with a beam for installation, the left and right sides of the front side of the beam are provided with clamping devices, the independent power supply is bolted to the bottom of the frame, and the top of the independent power supply is connected with wires. A hand-held cutter is connected to the wire, the hand-held cutter is clamped to the clamping device on the right, an L-shaped cylinder is connected to the air pipe, the L-shaped cylinder is clamped to the clamping device on the left, and the upper part of the L-shaped cylinder is A beating block is provided for beating the glass of doors and windows, a third compression spring is connected between the rear side of the beating block and the rear side of the L-shaped cylinder body, and a suction cup is connected to the upper part of the rear side of the L-shaped cylinder body.

Further, the clamping device includes a clamping rod, a push block, a first compression spring, a first cylinder, a second compression spring, a push rod, a steel wire, a pulling ball and a pulley, and the left and right parts of the beam are bolted with The pulley that plays a guiding role, the left and right sides of the front side of the beam are provided with first through holes that play a guiding role, and the two first through holes are both provided with a T-shaped push block, the rear side of the push block and the front of the beam A first compression spring is connected between the sides, the first compression spring is wound on the push block, the left side of the left push block and the right side of the right push block are provided with a semicircular first card slot, and the beam The inner left part and the right part are both bolted with a first cylinder body, both of the two first cylinders are provided with push rods that can clamp the push block, the push rods pass through the left and right sides of the first cylinder body, and the two push rods The rods are respectively in contact with the two push blocks, and the two push rods are wound with second compression springs. One end of the second compression spring is connected to the push rod, and the other end of the second compression spring is connected to the inner wall of the first cylinder. The left end of the rod and the right end of the push rod on the right side are connected with steel wires. The two steel wires go around the two pulleys respectively. The two steel wires pass through the front side of the beam. There are two clamping rods connected by rotation, and the middle of the clamping rod is connected with the inner middle of the beam in a rotary manner. The clamping rod passes through the front side of the beam, and the handheld cutting machine is clamped between the two clamping rods on the right side. between the two clamp bars on the left.

Further, it also includes a fourth compression spring, a valve core, a grip rod and a first torsion spring, a blind hole is opened in the lower part of the L-shaped cylinder, and a valve core that can block the air is arranged in the blind hole, and the valve core is wound on the upper part. There is a fourth compression spring, one end of the fourth compression spring is fixedly connected to the valve core, the other end of the fourth compression spring is fixedly connected to the inner front side of the blind hole, and the lower part of the rear side of the L-shaped cylinder is connected in a rotating manner to push the valve core. The grip rod, the front side of the grip rod is in contact with the rear end of the valve core, the connection between the grip rod and the L-shaped cylinder is provided with a first torsion spring, one end of the first torsion spring is connected with the L-shaped cylinder, and the other end of the first torsion spring is connected with the L-shaped cylinder. Grip connection.

Further, it also includes a second cylinder, a fifth compression spring, a trigger rod, a special-shaped claw, a second torsion spring, a hook block, a bearing and a second knob, and the second cylinder is bolted to the middle of the right side of the L-shaped cylinder. , a trigger rod is placed in the second cylinder, a fifth compression spring is wound around the trigger rod, one end of the fifth compression spring is connected with the trigger rod, the other end of the fifth compression spring is connected with the inner wall of the second cylinder, and the rear end of the trigger rod rotates There are two special-shaped claws for knocking door and window glass, the connection between the special-shaped claws and the trigger rod is provided with a second torsion spring, one end of the second torsion spring is connected with the special-shaped claw, and the other end of the second torsion spring is connected with the trigger rod. A bearing is embedded in the front side of the second cylinder body, a second knob is installed in the bearing, a hook block for fixing is connected with the rear end of the second knob, and the hook block hooks the trigger rod.

Further, it also includes a safety bolt, the upper right part of the compressed gas cylinder is provided with a safety bolt for fixing, the safety bolt clamps the first knob, and the gas pipe is located under the safety bolt.

Beneficial effects of the present invention: the present invention can cut off the lock on the fire exit door through the hand-held cutting machine, and then open the fire exit door, thereby escaping. In this way, the door and window glass can be quickly broken, which can save time; through the action of the valve core, the beating block can continuously hit the door and window glass, so that the door and window glass of different materials can be broken; Completely smash the door and window glass, so that the door and window glass can be completely smashed quickly.

Description of drawings

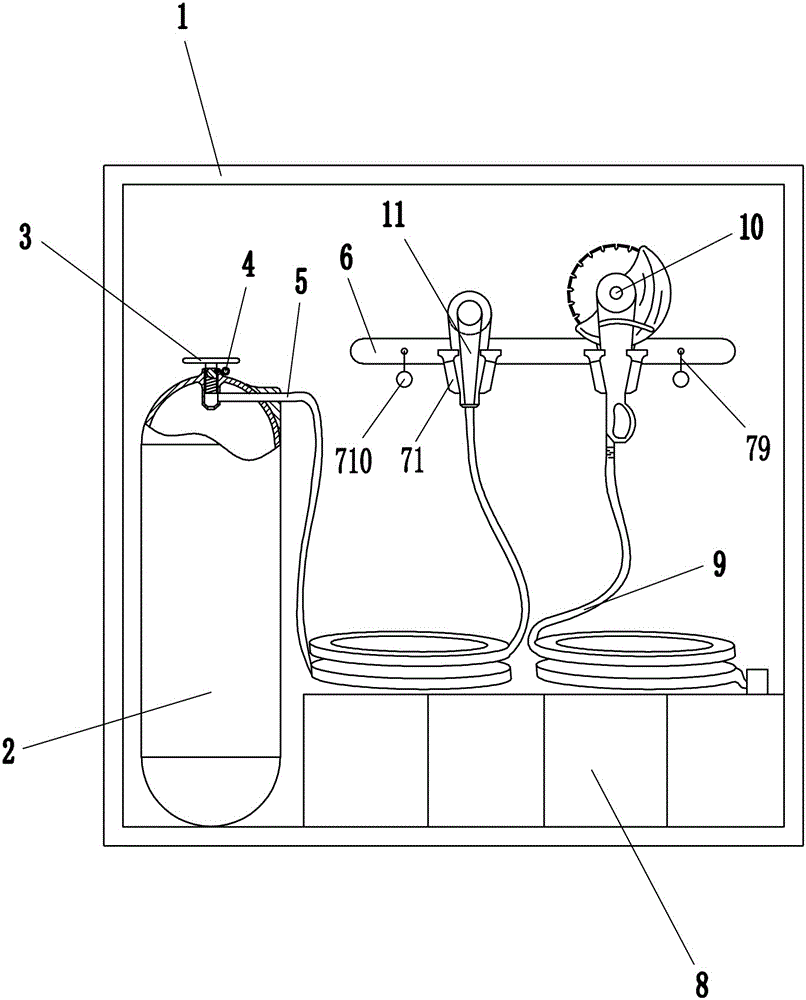

FIG. 1 is a schematic view of the front structure of the present invention.

FIG. 2 is a schematic structural diagram of a top view of the clamping device of the present invention.

FIG. 3 is a partial left-view structural schematic diagram of the present invention.

FIG. 4 is an enlarged schematic view of the structure of the present invention A. FIG.

Reference number: 1 frame, 2 compressed gas cylinder, 3 first knob, 4 safety bolt, 5 gas pipe, 6 cross beam, 7 clamping device, 71 clamping rod, 72 first through hole, 73 push block, 74 first Compression Spring, 75 1st Slot, 76 1st Cylinder, 77 2nd Compression Spring, 78 Push Rod, 79 Wire, 710 Pull Ball, 711 Pulley, 8 Independent Power Supply, 9 Wire, 10 Hand Cutter, 11 L Shape Cylinder, 12 Striker Block, 13 Third Compression Spring, 14 Suction Cup, 15 Door Glass, 16 Blind Hole, 17 Fourth Compression Spring, 18 Spool, 19 Grip, 20 First Torsion Spring, 21 Second Cylinder , 22 fifth compression spring, 23 trigger lever, 24 special-shaped claw, 25 second torsion spring, 26 hook block, 27 bearing, 28 second knob.

Detailed ways

The present invention will be described in detail below with reference to the accompanying drawings.

Example 1

A quick opening mechanism for fire escape doors and windows, as shown in Figures 1-3, includes a frame 1, a compressed gas cylinder 2, a first knob 3, an air pipe 5, a beam 6, a clamping device 7, an independent power supply 8, and an electric wire 9 , Handheld cutting machine 10, L-shaped cylinder 11, hitting block 12, third compression spring 13 and suction cup 14, a compressed gas cylinder 2 is installed in the left part of the frame 1, and the frame 1 is connected with the compressed gas cylinder by means of bolts Body 2 is connected, the top of the compressed gas cylinder 2 is provided with a first knob 3 for compressing gas, the shape of the first knob 3 is T-shaped, the upper right side of the compressed gas cylinder 2 is connected with an air pipe 5 for air flow, the frame 1 A beam 6 for installation is installed on the upper inner part, the frame 1 is connected with the beam 6 by means of bolt connection, the left and right sides of the front side of the beam 6 are provided with clamping devices 7, and the independent power supply 8 is bolted to the inner bottom of the frame 1, The top of the independent power supply 8 is connected with a wire 9, the wire 9 is connected with a hand-held cutting machine 10, the hand-held cutting machine 10 is clamped on the right clamping device 7, and the air pipe 5 is connected with an L-shaped cylinder 11, and the L-shaped cylinder 11 Clamped on the clamping device 7 on the left side, the upper part of the L-shaped cylinder 11 is provided with a hitting block 12 for hitting the door and window glass 15, and the rear side of the hitting block 12 is connected with the inner rear side of the L-shaped cylinder 11. The third compression spring 13 , the striking block 12 and the L-shaped cylinder 11 are all connected to the third compression spring 13 by welding, and a suction cup 14 is connected to the upper part of the rear side of the L-shaped cylinder 11 .

Example 2

A quick opening mechanism for fire escape doors and windows, as shown in Figures 1-3, includes a frame 1, a compressed gas cylinder 2, a first knob 3, an air pipe 5, a beam 6, a clamping device 7, an independent power supply 8, and an electric wire 9 , handheld cutting machine 10, L-shaped cylinder 11, hitting block 12, third compression spring 13 and suction cup 14, a compressed gas cylinder 2 is installed in the left part of the frame 1, and the top of the compressed gas cylinder 2 is provided with a compressed air The first knob 3, the shape of the first knob 3 is T-shaped, the upper right side of the compressed gas cylinder block 2 is connected with an air pipe 5 for making air flow, the upper part of the frame 1 is installed with a beam 6 for installation, and the front side of the beam 6 is installed The left and right sides are provided with clamping devices 7, the independent power supply 8 is bolted to the inner bottom of the frame 1, the top of the independent power supply 8 is connected with a wire 9, the wire 9 is connected with a hand-held cutting machine 10, and the hand-held cutting machine 10 is clamped on the right side On the clamping device 7, the air pipe 5 is connected with an L-shaped cylinder 11, the L-shaped cylinder 11 is clamped on the left clamping device 7, and the upper part of the L-shaped cylinder 11 is provided with a hammer for knocking the door and window glass 15. When hitting the block 12 , a third compression spring 13 is connected between the rear side of the hitting block 12 and the inner rear side of the L-shaped cylinder 11 , and a suction cup 14 is connected to the upper part of the rear side of the L-shaped cylinder 11 .

The clamping device 7 includes a clamping rod 71, a push block 73, a first compression spring 74, a first cylinder 76, a second compression spring 77, a push rod 78, a steel wire 79, a pull ball 710 and a pulley 711. A pulley 711 for guiding is bolted on the front and the right part, and first through holes 72 for guiding are opened on the left and right sides of the front side of the beam 6, and the two first through holes 72 are both provided with a shape of T. Shaped push block 73, a first compression spring 74 is connected between the rear side of the push block 73 and the front side of the beam 6, the push block 73 and the beam 6 are connected with the first compression spring 74 by welding, and the first compression spring 74 is wound around the push block 73, the left push block 73 on the left side and the right side of the push block 73 on the right side are provided with a semicircular first card slot 75, and the left and right parts of the beam 6 are bolted. A first cylinder 76 is connected, and two first cylinders 76 are provided with push rods 78 that can clamp the push block 73. The push rods 78 pass through the left and right sides of the first cylinder 76, and the two push rods 78 In contact with the two push blocks 73 respectively, a second compression spring 77 is wound around the two push rods 78, one end of the second compression spring 77 is connected with the push rod 78, and the second compression spring 77 is connected with the push rod 78 by welding. Connection, the other end of the second compression spring 77 is connected to the inner wall of the first cylinder 76, the left end of the push rod 78 on the left side and the right end of the push rod 78 on the right side are connected with steel wires 79, and the two steel wires 79 respectively bypass the two pulleys 711 , the two steel wires 79 pass through the front side of the beam 6, the two steel wires 79 are connected with a pulling ball 710, and the rear sides of the two push blocks 73 are rotatably connected with two clamping rods 71, and the middle of the clamping rod 71 is connected with the beam 6. The inner middle is connected in a rotary manner, the clamp rod 71 passes through the front side of the beam 6, the hand-held cutting machine 10 is clamped between the two clamp rods 71 on the right side, and the L-shaped cylinder 11 is clamped between the two clamp rods 71 on the left side .

Example 3

A quick opening mechanism for fire escape doors and windows, as shown in Figures 1-3, includes a frame 1, a compressed gas cylinder 2, a first knob 3, an air pipe 5, a beam 6, a clamping device 7, an independent power supply 8, and an electric wire 9 , handheld cutting machine 10, L-shaped cylinder 11, hitting block 12, third compression spring 13 and suction cup 14, a compressed gas cylinder 2 is installed in the left part of the frame 1, and the top of the compressed gas cylinder 2 is provided with a compressed air The first knob 3, the shape of the first knob 3 is T-shaped, the upper right side of the compressed gas cylinder block 2 is connected with an air pipe 5 for making air flow, the upper part of the frame 1 is installed with a beam 6 for installation, and the front side of the beam 6 is installed The left and right sides are provided with clamping devices 7, the independent power supply 8 is bolted to the inner bottom of the frame 1, the top of the independent power supply 8 is connected with a wire 9, the wire 9 is connected with a hand-held cutting machine 10, and the hand-held cutting machine 10 is clamped on the right side On the clamping device 7, the air pipe 5 is connected with an L-shaped cylinder 11, the L-shaped cylinder 11 is clamped on the left clamping device 7, and the upper part of the L-shaped cylinder 11 is provided with a hammer for knocking the door and window glass 15. When hitting the block 12 , a third compression spring 13 is connected between the rear side of the hitting block 12 and the inner rear side of the L-shaped cylinder 11 , and a suction cup 14 is connected to the upper part of the rear side of the L-shaped cylinder 11 .

The clamping device 7 includes a clamping rod 71, a push block 73, a first compression spring 74, a first cylinder 76, a second compression spring 77, a push rod 78, a steel wire 79, a pull ball 710 and a pulley 711. A pulley 711 for guiding is bolted on the front and the right part, and first through holes 72 for guiding are opened on the left and right sides of the front side of the beam 6, and the two first through holes 72 are both provided with a shape of T. Shaped push block 73, a first compression spring 74 is connected between the rear side of the push block 73 and the front side of the cross beam 6, the first compression spring 74 is wound around the push block 73, the left push block 73 on the left and the right The right side of the push block 73 is provided with a semicircular first clamping slot 75, the left and right parts of the cross beam 6 are both bolted with a first cylinder 76, and the two first cylinders 76 are provided with adjustable cylinders. The push rods 78 that hold the push blocks 73, the push rods 78 pass through the left and right sides of the first cylinder body 76, the two push rods 78 are in contact with the two push blocks 73 respectively, and the two push rods 78 are surrounded by a second push rod 78. Compression spring 77, one end of the second compression spring 77 is connected to the push rod 78, the other end of the second compression spring 77 is connected to the inner wall of the first cylinder 76, the left end of the left push rod 78 and the right end of the right push rod 78 are connected with The steel wire 79, the two steel wires 79 go around the two pulleys 711 respectively, the two steel wires 79 pass through the front side of the beam 6, the pulling balls 710 are connected to the two steel wires 79, and the rear sides of the two push blocks 73 are connected in a rotary manner There are two clamping rods 71, the middle of the clamping rod 71 is rotatably connected with the inner middle part of the beam 6, the clamping rod 71 passes through the front side of the beam 6, and the hand-held cutting machine 10 is clamped between the two clamping rods 71 on the right side, and the L-shaped cylinder The body 11 is sandwiched between two clamping bars 71 on the left side.

It also includes a fourth compression spring 17, a valve core 18, a grip rod 19 and a first torsion spring 20. A blind hole 16 is opened in the lower part of the L-shaped cylinder 11, and the blind hole 16 is provided with a valve core 18 that can block the air. , the valve core 18 is wound with a fourth compression spring 17, one end of the fourth compression spring 17 is fixedly connected to the valve core 18, the fourth compression spring 17 is connected to the valve core 18 by welding, and the other end of the fourth compression spring 17 is connected to the valve core 18. The inner front side of the blind hole 16 is fixedly connected, and the lower part of the rear side of the L-shaped cylinder 11 is connected with a grip rod 19 for pushing the valve core 18 in a rotating manner. The front side of the grip rod 19 contacts with the rear end of the valve core 18. A first torsion spring 20 is provided at the connection of the L-shaped cylinder 11. One end of the first torsion spring 20 is connected to the L-shaped cylinder 11. The first torsion spring 20 is connected to the L-shaped cylinder 11 by welding. The other end of the torsion spring 20 is connected with the grip rod 19 , and the first torsion spring 20 is connected with the grip rod 19 by welding.

Example 4

A quick opening mechanism for fire escape doors and windows, as shown in Figures 1-4, includes a frame 1, a compressed gas cylinder 2, a first knob 3, an air pipe 5, a beam 6, a clamping device 7, an independent power supply 8, and an electric wire 9 , handheld cutting machine 10, L-shaped cylinder 11, hitting block 12, third compression spring 13 and suction cup 14, a compressed gas cylinder 2 is installed in the left part of the frame 1, and the top of the compressed gas cylinder 2 is provided with a compressed air The first knob 3, the shape of the first knob 3 is T-shaped, the upper right side of the compressed gas cylinder block 2 is connected with an air pipe 5 for making air flow, the upper part of the frame 1 is installed with a beam 6 for installation, and the front side of the beam 6 is installed The left and right sides are provided with clamping devices 7, the independent power supply 8 is bolted to the inner bottom of the frame 1, the top of the independent power supply 8 is connected with a wire 9, the wire 9 is connected with a hand-held cutting machine 10, and the hand-held cutting machine 10 is clamped on the right side On the clamping device 7, the air pipe 5 is connected with an L-shaped cylinder 11, the L-shaped cylinder 11 is clamped on the left clamping device 7, and the upper part of the L-shaped cylinder 11 is provided with a hammer for knocking the door and window glass 15. When hitting the block 12 , a third compression spring 13 is connected between the rear side of the hitting block 12 and the inner rear side of the L-shaped cylinder 11 , and a suction cup 14 is connected to the upper part of the rear side of the L-shaped cylinder 11 .

The clamping device 7 includes a clamping rod 71, a push block 73, a first compression spring 74, a first cylinder 76, a second compression spring 77, a push rod 78, a steel wire 79, a pull ball 710 and a pulley 711. A pulley 711 for guiding is bolted on the front and the right part, and first through holes 72 for guiding are opened on the left and right sides of the front side of the beam 6, and the two first through holes 72 are both provided with a shape of T. Shaped push block 73, a first compression spring 74 is connected between the rear side of the push block 73 and the front side of the cross beam 6, the first compression spring 74 is wound around the push block 73, the left push block 73 on the left and the right The right side of the push block 73 is provided with a semicircular first clamping slot 75, the left and right parts of the cross beam 6 are both bolted with a first cylinder 76, and the two first cylinders 76 are provided with adjustable cylinders. The push rods 78 that hold the push blocks 73, the push rods 78 pass through the left and right sides of the first cylinder body 76, the two push rods 78 are in contact with the two push blocks 73 respectively, and the two push rods 78 are surrounded by a second push rod 78. Compression spring 77, one end of the second compression spring 77 is connected to the push rod 78, the other end of the second compression spring 77 is connected to the inner wall of the first cylinder 76, the left end of the left push rod 78 and the right end of the right push rod 78 are connected with The steel wire 79, the two steel wires 79 go around the two pulleys 711 respectively, the two steel wires 79 pass through the front side of the beam 6, the pulling balls 710 are connected to the two steel wires 79, and the rear sides of the two push blocks 73 are connected in a rotary manner There are two clamping rods 71, the middle of the clamping rod 71 is rotatably connected with the inner middle part of the beam 6, the clamping rod 71 passes through the front side of the beam 6, and the hand-held cutting machine 10 is clamped between the two clamping rods 71 on the right side, and the L-shaped cylinder The body 11 is sandwiched between two clamping bars 71 on the left side.

It also includes a fourth compression spring 17, a valve core 18, a grip rod 19 and a first torsion spring 20. A blind hole 16 is opened in the lower part of the L-shaped cylinder 11, and the blind hole 16 is provided with a valve core 18 that can block the air. , the valve core 18 is wound with a fourth compression spring 17, one end of the fourth compression spring 17 is fixedly connected to the valve core 18, the other end of the fourth compression spring 17 is fixedly connected to the inner front side of the blind hole 16, and the rear side of the L-shaped cylinder 11 The lower part is connected with a grip rod 19 for pushing the valve core 18 in a rotating manner, the front side of the grip rod 19 is in contact with the rear end of the valve core 18, and a first torsion spring 20 is provided at the connection between the grip rod 19 and the L-shaped cylinder 11, One end of the first torsion spring 20 is connected to the L-shaped cylinder 11 , and the other end of the first torsion spring 20 is connected to the grip rod 19 .

It also includes a second cylinder 21, a fifth compression spring 22, a trigger rod 23, a special-shaped claw 24, a second torsion spring 25, a hook block 26, a bearing 27 and a second knob 28. The second cylinder 21 is bolted to the L In the middle of the right side of the cylinder block 11, a trigger rod 23 is placed in the second cylinder block 21, a fifth compression spring 22 is wound around the trigger rod 23, one end of the fifth compression spring 22 is connected with the trigger rod 23, and the fifth compression spring 22 passes through the The welding connection is connected with the trigger rod 23, the other end of the fifth compression spring 22 is connected with the inner wall of the second cylinder block 21, the fifth compression spring 22 is connected with the second cylinder block 21 by welding connection, and the rear end of the trigger rod 23 rotates There are two special-shaped claws 24 for knocking the door and window glass 15, the connection between the special-shaped claws 24 and the trigger lever 23 is provided with a second torsion spring 25, one end of the second torsion spring 25 is connected with the special-shaped claws 24, the second torsion spring The other end of 25 is connected to the trigger rod 23, the front side of the second cylinder 21 is embedded with a bearing 27, a second knob 28 is installed in the bearing 27, and the rear end of the second knob 28 is connected with a fixing hook 26, The two knobs 28 are connected to the hook block 26 by welding, and the hook block 26 hooks the trigger rod 23 .

Example 5

A quick opening mechanism for fire escape doors and windows, as shown in Figures 1-4, includes a frame 1, a compressed gas cylinder 2, a first knob 3, an air pipe 5, a beam 6, a clamping device 7, an independent power supply 8, and an electric wire 9 , handheld cutting machine 10, L-shaped cylinder 11, hitting block 12, third compression spring 13 and suction cup 14, a compressed gas cylinder 2 is installed in the left part of the frame 1, and the top of the compressed gas cylinder 2 is provided with a compressed air The first knob 3, the shape of the first knob 3 is T-shaped, the upper right side of the compressed gas cylinder block 2 is connected with an air pipe 5 for making air flow, the upper part of the frame 1 is installed with a beam 6 for installation, and the front side of the beam 6 is installed The left and right sides are provided with clamping devices 7, the independent power supply 8 is bolted to the inner bottom of the frame 1, the top of the independent power supply 8 is connected with a wire 9, the wire 9 is connected with a hand-held cutting machine 10, and the hand-held cutting machine 10 is clamped on the right side On the clamping device 7, the air pipe 5 is connected with an L-shaped cylinder 11, the L-shaped cylinder 11 is clamped on the left clamping device 7, and the upper part of the L-shaped cylinder 11 is provided with a hammer for knocking the door and window glass 15. When hitting the block 12 , a third compression spring 13 is connected between the rear side of the hitting block 12 and the inner rear side of the L-shaped cylinder 11 , and a suction cup 14 is connected to the upper part of the rear side of the L-shaped cylinder 11 .

The clamping device 7 includes a clamping rod 71, a push block 73, a first compression spring 74, a first cylinder 76, a second compression spring 77, a push rod 78, a steel wire 79, a pull ball 710 and a pulley 711. A pulley 711 for guiding is bolted on the front and the right part, and first through holes 72 for guiding are opened on the left and right sides of the front side of the beam 6, and the two first through holes 72 are both provided with a shape of T. Shaped push block 73, a first compression spring 74 is connected between the rear side of the push block 73 and the front side of the cross beam 6, the first compression spring 74 is wound around the push block 73, the left push block 73 on the left and the right The right side of the push block 73 is provided with a semicircular first clamping slot 75, the left and right parts of the cross beam 6 are both bolted with a first cylinder 76, and the two first cylinders 76 are provided with adjustable cylinders. The push rods 78 that hold the push blocks 73, the push rods 78 pass through the left and right sides of the first cylinder body 76, the two push rods 78 are in contact with the two push blocks 73 respectively, and the two push rods 78 are surrounded by a second push rod 78. Compression spring 77, one end of the second compression spring 77 is connected to the push rod 78, the other end of the second compression spring 77 is connected to the inner wall of the first cylinder 76, the left end of the left push rod 78 and the right end of the right push rod 78 are connected with The steel wire 79, the two steel wires 79 go around the two pulleys 711 respectively, the two steel wires 79 pass through the front side of the beam 6, the pulling balls 710 are connected to the two steel wires 79, and the rear sides of the two push blocks 73 are connected in a rotary manner There are two clamping rods 71, the middle of the clamping rod 71 is rotatably connected with the inner middle part of the beam 6, the clamping rod 71 passes through the front side of the beam 6, and the hand-held cutting machine 10 is clamped between the two clamping rods 71 on the right side, and the L-shaped cylinder The body 11 is sandwiched between two clamping bars 71 on the left side.

It also includes a fourth compression spring 17, a valve core 18, a grip rod 19 and a first torsion spring 20. A blind hole 16 is opened in the lower part of the L-shaped cylinder 11, and the blind hole 16 is provided with a valve core 18 that can block the air. , the valve core 18 is wound with a fourth compression spring 17, one end of the fourth compression spring 17 is fixedly connected to the valve core 18, the other end of the fourth compression spring 17 is fixedly connected to the inner front side of the blind hole 16, and the rear side of the L-shaped cylinder 11 The lower part is connected with a grip rod 19 for pushing the valve core 18 in a rotating manner, the front side of the grip rod 19 is in contact with the rear end of the valve core 18, and a first torsion spring 20 is provided at the connection between the grip rod 19 and the L-shaped cylinder 11, One end of the first torsion spring 20 is connected to the L-shaped cylinder 11 , and the other end of the first torsion spring 20 is connected to the grip rod 19 .

It also includes a second cylinder 21, a fifth compression spring 22, a trigger rod 23, a special-shaped claw 24, a second torsion spring 25, a hook block 26, a bearing 27 and a second knob 28. The second cylinder 21 is bolted to the L In the middle of the right side of the cylinder block 11, a trigger rod 23 is placed in the second cylinder block 21, a fifth compression spring 22 is wound around the trigger rod 23, one end of the fifth compression spring 22 is connected with the trigger rod 23, and the other side of the fifth compression spring 22 is One end is connected with the inner wall of the second cylinder block 21, and the rear end of the trigger rod 23 is rotatably connected with two special-shaped claws 24 for knocking the door and window glass 15. The connection between the special-shaped claws 24 and the trigger rod 23 is provided with a second torsion spring 25, One end of the second torsion spring 25 is connected to the special-shaped claw 24 , the other end of the second torsion spring 25 is connected to the trigger rod 23 , a bearing 27 is embedded in the front side of the second cylinder 21 , and a second knob 28 is installed in the bearing 27 . The rear end of the two knobs 28 is connected with a fixing hook 26 , and the hook 26 hooks the trigger rod 23 .

It also includes a safety bolt 4 , the upper right side of the compressed gas cylinder 2 is provided with a safety bolt 4 for fixing, the safety bolt 4 clamps the first knob 3 , and the gas pipe 5 is located below the safety bolt 4 .

The device is installed in the fire escape through the frame 1. When people escape from the fire escape, they control the clamping device 7 on the right to release the hand-held cutting machine 10, and then use the hand-held cutting machine 10 to cut off the lock on the fire escape door. , and then open the anti-access door to escape, so that it does not hinder people's escape. When the door and window glass 15 needs to be broken, people control the left clamping device 7 to release the L-shaped cylinder 11, and then hold the L-shaped cylinder 11. The cylinder block 11 makes the suction cup 14 suck on the door and window glass 15, and then rotates the first knob 3 to move down to compress the air. The air in the compressed gas cylinder block 2 is sprayed into the L-shaped cylinder block 11 through the air pipe 5, and then pushes and strikes The block 12 moves backward rapidly to break the door and window glass 15 . In this way, the door and window glass 15 can be broken quickly, thereby saving time. At this time, the third compression spring 13 is compressed. When the door and window glass 15 is broken, people stop turning the first knob 3, under the action of the third compression spring 13, the striking block 12 is reset forward, and people can break the door and window glass 15 completely to escape.

Initially, the second compression spring 77 is in a compressed state. People put the hand-held cutting machine 10 between the two clamp bars 71 on the right side, and then push the push block 73 on the right side backward, the first compression spring 74 on the right side is compressed, and the push block 73 on the right side moves backward Drive the right clamping rod 71 to close inwardly, and clamp the handheld cutting machine 10. When the right push rod 78 corresponds to the right first slot 75, under the action of the right second compression spring 77 , the push rod 78 on the right moves to the left and gets stuck into the first slot 75 on the right, and the push block 73 on the right is fixed, and people can stop pushing the push block 73 on the right, and then repeat the above operation to make the L-shaped The cylinder block 11 is sandwiched between the two clamping rods 71 on the left side. When people escape from the fire escape, they hold the hand-held cutting machine 10, then pull the pull ball 710 on the right side forward, and drive the push rod 78 on the right side to move to the right through the steel wire 79 on the right side, and the second compression on the right side The spring 77 is compressed, when the push rod 78 on the right moves out of the first slot 75 on the right, under the action of the first compression spring 74 on the right, the push block 73 on the right resets forward, driving the The clamp bar 71 is opened outward, and the hand-held cutting machine 10 is released, and people can stop pulling the pull ball 710 on the right side, and then use the hand-held cutting machine 10 to cut off the lock on the fire escape door, and then escape. When the 15 is broken, people repeat the above-mentioned operations to release the L-shaped cylinder 11 from between the two clamp bars 71 on the left side.

People turn the first knob 3 to move down to press the air, and the valve core 18 blocks the L-shaped cylinder 11, so that the air cannot enter the L-shaped cylinder 11. After pressing the air, people pull the handle 19 forward, the first The torsion spring 20 is twisted and rolled, and the handle 19 swings forward to push the valve core 18 to move forward, opening the L-shaped cylinder 11, and the air in the compressed gas cylinder 2 is discharged into the L-shaped cylinder 11 through the air pipe 5, and then Push the hitting block 12 to move backwards to hit the door and window glass 15. At this time, the fourth compression spring 17 is compressed, and people release the grip 19. Under the action of the first torsion spring 20, the grip 19 moves backward. Swing, under the action of the fourth compression spring 17, the valve core 18 is reset back to block the L-shaped cylinder 11, and people pull the handle 19 forward again. 15 is knocked, so that the door and window glass 15 of different materials can be broken. When the window glass 15 is broken, people release the grip 19.

Initially, the fifth compression spring 22 is in a compressed state, and the second torsion spring 25 is twisted. When the suction cup 14 is sucked on the door and window glass 15, the second cylinder 21 is in contact with the door and window glass 15. When the door and window glass 15 is broken, people turn the second knob 28180 degrees, which drives the hook 26 to rotate 180 degrees, and the trigger rod 23 Released, under the action of the fifth compression spring 22, the trigger rod 23 moves backward, driving the special-shaped claw 24 to move backward. When the special-shaped claw 24 moves out of the second cylinder 21, under the action of the second torsion spring 25 , the special-shaped claws 24 are opened outward, and the door and window glass 15 is completely broken, so that the door and window glass 15 can be completely broken quickly.

The safety pin 4 can hold the first knob 3 to prevent the first knob 3 from being detached from the compressed gas cylinder 2 . When it is necessary to compress the gas, people can pull out the safety pin 4 .

Those skilled in the art should understand that the above-mentioned embodiments do not limit the present invention in any form, and all technical solutions obtained by means of equivalent replacement or equivalent transformation fall within the protection scope of the present invention.

Claims (4)

1. A quick-opening mechanism for doors and windows of a fire escape, comprising a frame, a compressed gas cylinder, a first knob, a gas pipe and a beam, a compressed gas cylinder is installed on the left part of the frame, and the top of the compressed gas cylinder is provided with a No. A knob, the shape of the first knob is T-shaped, the upper part of the right side of the compressed gas cylinder is connected with an air pipe for making air flow, and the upper part of the frame is installed with a beam for installation, which is characterized in that it also includes a clamping device, Independent power supply, wire, hand-held cutter, L-shaped cylinder, hitting block, third compression spring and suction cup, clamping devices are provided on the left and right sides of the front side of the beam, the independent power supply is bolted to the bottom of the frame, and the independent power supply The top is connected with a wire, the wire is connected with a hand-held cutter, the hand-held cutter is clamped to the clamping device on the right, the air pipe is connected with an L-shaped cylinder, the L-shaped cylinder is clamped on the left clamping device, L The upper part of the cylinder body is provided with a beating block for hitting the glass of doors and windows, a third compression spring is connected between the rear side of the beating block and the rear side of the L-shaped cylinder body, and a suction cup is connected to the upper part of the rear side of the L-shaped cylinder body; The tightening device includes a clamping rod, a push block, a first compression spring, a first cylinder, a second compression spring, a push rod, a steel wire, a pulling ball and a pulley, and the left and right parts of the beam are bolted with guiding guides. The pulley, the left and right sides of the front side of the beam are provided with first through holes for guiding, and the two first through holes are provided with T-shaped push blocks, and the rear side of the push blocks is connected with the front side of the beam There is a first compression spring, the first compression spring is wound around the push block, the left side of the left push block and the right side of the right push block are provided with a semicircular first card slot, and the left and The right part is bolted with a first cylinder, both of the two first cylinders are provided with push rods that can clamp the push block, the push rods pass through the left and right sides of the first cylinder body, and the two push rods are respectively connected with the two push rods. A second compression spring is wound around the two push rods, one end of the second compression spring is connected with the push rod, the other end of the second compression spring is connected with the inner wall of the first cylinder, the left end of the left push rod and the right The right end of the push rod on the side is connected with steel wires, the two steel wires go around the two pulleys respectively, the two steel wires pass through the front side of the beam, the pulling balls are connected to the two steel wires, and the rear sides of the two push blocks are connected in a rotary manner. There are two clamp rods, the middle part of the clamp rod is connected with the inner middle part of the beam, the clamp rod passes through the front side of the beam, the hand-held cutting machine is clamped between the two clamp rods on the right side, and the L-shaped cylinder is clamped between the two clamp rods on the left side. between the clamps. 2. A fire escape door and window quick opening mechanism according to claim 1, characterized in that it further comprises a fourth compression spring, a valve core, a grip rod and a first torsion spring, and a blind hole is opened in the lower part of the L-shaped cylinder. There is a valve core that can block the air in the blind hole, a fourth compression spring is wound around the valve core, one end of the fourth compression spring is fixedly connected to the valve core, and the other end of the fourth compression spring is fixedly connected to the inner front side of the blind hole , The lower part of the rear side of the L-shaped cylinder is connected with a grip rod for pushing the valve core in a rotating manner, the front side of the grip rod is in contact with the rear end of the valve core, and the connection between the grip rod and the L-shaped cylinder is provided with a first torsion spring, One end of the first torsion spring is connected with the L-shaped cylinder body, and the other end of the first torsion spring is connected with the grip rod. 3. A fire escape door and window quick opening mechanism according to claim 2, characterized in that it further comprises a second cylinder, a fifth compression spring, a trigger rod, a special-shaped claw, a second torsion spring, a hook block, a bearing and the second knob, the second cylinder is bolted to the middle of the right side of the L-shaped cylinder, a trigger rod is placed in the second cylinder, a fifth compression spring is wound around the trigger rod, and one end of the fifth compression spring is connected to the trigger rod, The other end of the fifth compression spring is connected to the inner wall of the second cylinder, and the rear end of the trigger rod is rotatably connected with two special-shaped claws for knocking the door and window glass. The connection between the special-shaped claws and the trigger rod is provided with a second torsion spring. One end of the torsion spring is connected with the special-shaped claw, the other end of the second torsion spring is connected with the trigger rod, a bearing is embedded in the front side of the second cylinder, a second knob is installed in the bearing, and the rear end of the second knob is connected with a fixing function The hook block hooks the trigger lever. 4. A fire escape door and window quick opening mechanism according to claim 3, characterized in that it further comprises a safety bolt, the upper right part of the compressed gas cylinder is provided with a safety bolt for fixing, and the safety bolt connects the first knob Stuck, the trachea is under the safety catch.
