Abstract
The invention discloses a shoe bearing device convenient for adjusting bearing area, which comprises a strip-shaped bearing plate, wherein the upper surface of the strip-shaped bearing plate is provided with a shoe bearing mechanism for adjusting the area, and the lower surface of the strip-shaped bearing plate is provided with a moving mechanism. The shoe storage device has the beneficial effects that the use is convenient, the bearing state can be conveniently adjusted according to different bearing areas, the interior cleaning is convenient, the water drainage is convenient, the movement is convenient, and the shoes are always placed in the forward direction.
Description
Technical Field
The invention relates to the field of shoe bearing, in particular to a shoe bearing device convenient for adjusting the bearing area.
Background
Shoe carrying is a device for uniformly putting a large number of shoes together.
In life, due to the change of seasons, everyone needs a lot of pairs of shoes, in order to save the occupied space of the shoes, the shoe bearing device can be installed indoors, the height and the inner space of the traditional shoe bearing device are fixed, some shoes can be higher, for the common shoe bearing device, some high shoes need to be obliquely placed, so that the shoes can be squeezed and easily deformed, if the space for placing the shoe bearing device is lower, the shoe bearing device needs to be replaced, money is wasted, if the space is saved, a large number of shoes are placed under a bed, for the common shoe bearing frame, the shoes need to be horizontally placed, at the moment, the placement of the internal shoes can be vertically placed, the heads of the shoes face downwards, the shoes are easy to squeeze, and when the traditional shoe bearing device is cleaned, the shoe carrying device is inconvenient to drain, can only be cleaned by using cleaning cloth, and is not thorough in cleaning, so that the shoe carrying device is necessary to solve the problems, and is convenient to adjust the carrying state, clean and place forwards.
Disclosure of Invention
The invention aims to solve the problems and designs a shoe bearing device with a bearing area convenient to adjust.
The technical scheme of the invention is that the shoe bearing device convenient for adjusting the bearing area comprises a strip-shaped bearing plate, wherein the upper surface of the strip-shaped bearing plate is provided with a shoe bearing mechanism for adjusting the bearing area, the lower surface of the strip-shaped bearing plate is provided with a moving mechanism, and the shoe bearing mechanism for adjusting the bearing area comprises a strip-shaped opening processed at the center of the upper surface of the strip-shaped bearing plate, two groups of horizontal fixing frames embedded on two opposite side surfaces in the strip-shaped opening, a vertical slide rail arranged on the inner side surface of each horizontal fixing frame, an electric control moving trolley arranged in each vertical slide rail, a folded fixing frame fixedly connected on the side surface of each electric control moving trolley, a strip-shaped hollow bearing box arranged in the strip-shaped opening and overlapped with the side surfaces of the two groups of folded fixing frames, a group of fixing nails arranged on the side surface of each folded fixing frame and between the side surfaces of, A second strip-shaped opening processed on the front surface of the strip-shaped hollow bearing box, a group of horizontal round rods embedded at the upper ends of the left and right surfaces of the strip-shaped hollow bearing box, a group of stretching swing arms sleeved on each horizontal round rod, a horizontal fixed cylinder sleeved on the side surface of each stretching swing arm, a plurality of strip-shaped bulges fixedly connected on the inner side surface of each horizontal fixed cylinder, a strip-shaped hollow box arranged between each two groups of stretching swing arms, rotating bulges embedded on the left and right opposite side surfaces of each strip-shaped hollow box and matched with the horizontal fixed cylinder, a notch groove processed on the side surface of each rotating bulge and matched with the corresponding plurality of strip-shaped bulges, a second strip-shaped opening processed on the front surface of each strip-shaped hollow box, a bearing frame arranged at the center of each strip-shaped hollow box, two groups of strip-shaped grooves processed at four corners of the inner surface of each, The device comprises a horizontal round shaft, a swinging arm, a miniature universal wheel, a group of swinging limiting rods, an anti-slip layer and a group of swinging hooks, wherein the horizontal round shaft is arranged in each strip-shaped groove, the swinging arm is sleeved on each horizontal round shaft, the miniature universal wheel is arranged on the lower surface of each swinging arm, the swinging limiting rods are hinged to the lower end of the front surface of each strip-shaped hollow box, the anti-slip layer is sleeved on each swinging limiting rod, the swinging hooks are hinged to the upper surface of each strip-shaped hollow box and are close to the corresponding two strip-shaped openings, the controller is embedded in the side surface of each strip-shaped bearing plate.
The moving mechanism is composed of two groups of notch grooves processed at the edge of the lower surface of the strip-shaped bearing plate, vertical supporting plates fixedly connected in each notch groove, a group of horizontal stretching round rods fixedly connected on the side surface of each vertical supporting plate, strip-shaped supporting frames sleeved on the end surfaces of each group of horizontal stretching round rods, and rolling wheels embedded on the lower surface of each strip-shaped supporting frame.
The height of each strip-shaped hollow box is matched with that of the strip-shaped hollow bearing box.
The number of the strip-shaped bulges is 3-5, and the strip-shaped bulges are positioned on the same circumference at equal angles.
A plurality of vertical movable partition frames are arranged in the strip-shaped hollow bearing box.
The cross section of each folded fixing frame is L-shaped.
The utility model discloses a controller, strip loading board, controller, commercial power interface, the preceding surface of strip loading board inlays and installs commercial power interface, controller and commercial power interface electric connection.
The height of each vertical slide rail is higher than that of the strip-shaped bearing plate.
And the lower end surface of each vertical slide rail is sleeved with a rubber support sleeve.
And the end surface of each horizontal round rod is sleeved with a limiting cap.
The shoe bearing device which is manufactured by the technical scheme of the invention and is convenient for adjusting the bearing area is a device which is convenient to use, is convenient for adjusting the bearing state according to different bearing areas, is convenient for cleaning the inside, is convenient for draining water, is convenient to move and is used for positively placing shoes forever.
Drawings

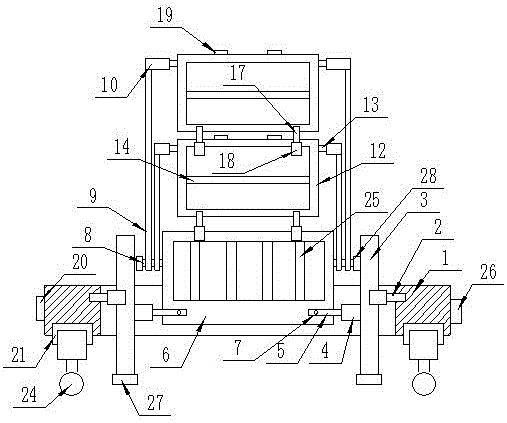

FIG. 1 is a schematic view of a shoe carrying device with adjustable carrying area according to the present invention;
FIG. 2 is a top view of a shoe support device of the present invention with the support area easily adjustable;
FIG. 3 is a front view of a shoe carrier of the present invention facilitating adjustment of the bearing area;
FIG. 4 is a side view of a shoe carrier device of the present invention that facilitates adjustment of the bearing area;
FIG. 5 is a cross-sectional side view of the horizontal fixed cylinder, the bar-shaped protrusions and the rotating protrusions of the shoe carrying device for conveniently adjusting the carrying area of the present invention;
in the figure, 1, a strip-shaped bearing plate; 2. a horizontal fixing frame; 3. a vertical slide rail; 4. an electrically controlled travelling car; 5. a fold-shaped fixing frame; 6. a strip-shaped hollow bearing box; 7. fixing nails; 8. a horizontal round bar; 9. stretching the swing arm; 10. horizontally fixing the cylinder; 11. a strip-shaped bulge; 12. a strip-shaped hollow box; 13. rotating the projection; 14. a carrier; 15. a swing arm; 16. a micro universal wheel; 17. swinging the limiting rod; 18. an anti-slip layer; 19. swinging the hook; 20. a controller; 21. a vertical support plate; 22. horizontally stretching the round rod; 23. a strip-shaped support frame; 24. a rolling wheel; 25. vertically moving the partition frame; 26. a mains supply interface; 27. a rubber support sleeve; 28. a limiting cap; 29. a horizontal circular shaft.
Detailed Description
The invention is described in detail with reference to the accompanying drawings, as shown in fig. 1-5, a shoe carrying device convenient for adjusting the carrying area comprises a bar-shaped carrying plate 1, a shoe carrying mechanism for adjusting the carrying area is arranged on the upper surface of the bar-shaped carrying plate 1, a moving mechanism is arranged on the lower surface of the bar-shaped carrying plate 1, and the shoe carrying mechanism for adjusting the carrying area comprises a bar-shaped opening processed at the center of the upper surface of the bar-shaped carrying plate 1, two groups of horizontal fixing frames 2 embedded on two opposite side surfaces in the bar-shaped opening, a vertical slide rail 3 arranged on the inner side surface of each horizontal fixing frame 2, an electric control moving trolley 4 arranged in each vertical slide rail 3, a folded fixing frame 5 fixedly connected on the side surface of each electric control moving trolley 4, a bar-shaped hollow carrying box 6 arranged in the bar-shaped opening and lapped with the side surfaces of the, A group of fixing nails 7 arranged on the side surface of each zigzag fixing frame 5 and between the side surface of the strip-shaped hollow bearing box 6, a second strip-shaped opening processed on the front surface of the strip-shaped hollow bearing box 6, a group of horizontal round rods 8 embedded at the upper ends of the left and right surfaces of the strip-shaped hollow bearing box 6, a group of stretching swing arms 9 sleeved on each horizontal round rod 8, a horizontal fixing cylinder 10 sleeved on the side surface of each stretching swing arm 9, a plurality of strip-shaped bulges 11 fixedly connected on the inner side surface of each horizontal fixing cylinder 10, a strip-shaped hollow box 12 arranged between each opposite group of stretching swing arms 9, rotating bulges 13 embedded on the left and right opposite side surfaces of each strip-shaped hollow box 12 and matched with the horizontal fixing cylinder 10, a notch processed on the side surface of each rotating bulge 13 and matched with the corresponding plurality of strip-shaped bulges 11, a second strip-shaped opening processed on the front surface of each strip-shaped hollow box, A bearing frame 14 arranged at the center of each strip-shaped hollow box 12, two groups of strip-shaped grooves processed at four corners of the inner lower surface of each strip-shaped hollow box 12, a horizontal round shaft 29 arranged in each strip-shaped groove, a swing arm 15 sleeved on each horizontal round shaft 29, a micro universal wheel 16 arranged at the lower surface of each swing arm 15, a group of swing limiting rods 17 hinged at the lower end of the front surface of each strip-shaped hollow box 12, an anti-skid layer 18 sleeved on each swing limiting rod 17, and a group of swing hooks 19 hinged at the upper surface of each strip-shaped hollow box 12 and close to the corresponding two strip-shaped openings, wherein a controller 20 is embedded at the side surface of the strip-shaped bearing plate 1, the controller 20 is electrically connected with an electric control moving trolley 4 in the area-adjusting shoe bearing mechanism, and the moving mechanism is composed of two groups of slots processed at the edge of the lower surface of the strip, The vertical supporting plates 21 fixedly connected in each notch, a group of horizontal stretching round rods 22 fixedly connected on the side surface of each vertical supporting plate 21, strip-shaped supporting frames 23 sleeved on the end surfaces of each group of horizontal stretching round rods 22 and rolling wheels 24 embedded on the lower surfaces of the strip-shaped supporting frames 23 are formed together, the height of each strip-shaped hollow box 12 is matched with that of a strip-shaped hollow bearing box 6, the number of the strip-shaped bulges 11 is 3-5, the strip-shaped bulges 11 are positioned on the same circumference at equal angles, a plurality of vertical moving partition frames 25 are arranged in the strip-shaped hollow bearing box 6, the cross section of each folded fixing frame 5 is L-shaped, a mains supply interface 26 is embedded on the front surface of the strip-shaped bearing plate 1, the controller 20 is electrically connected with the mains supply interface 26, the height of each vertical slide rail 3 is higher than that of the strip-shaped bearing plate 1, and a rubber supporting sleeve 27 is sleeved on the lower end surface of each vertical slide The end surface of each horizontal round rod 8 is sleeved with a limiting cap 28.
The characteristic of this embodiment is, it is convenient to place shoes in the bar hollow bearing box 6 and each bar hollow box 12, wherein the bar hollow bearing box 6 is connected with two sets of electric control mobile trolleys 4 through two sets of zigzag fixing frames 5, wherein each electric control mobile trolley 4 is connected with one bar opening in the bar bearing plate 1 through the vertical careless 3, wherein each vertical slide rail 3 is connected with the inner side of the one bar opening through the horizontal fixing frame 2 more stably, wherein each electric control mobile trolley 4 can move up and down on the corresponding vertical slide rail 3 through control, the position of support is adjusted, wherein two ends of each zigzag fixing frame 5 are connected with the side surface of the bar hollow bearing box 6 through a set of fixing nails 7, so that the connection is stable, wherein each bar hollow box 12 is connected with a corresponding set of horizontal fixing cylinders 10 through a set of rotating protrusions 13, wherein a plurality of strip-shaped bulges 11 on the inner side surface of each horizontal fixed cylinder 10 are convenient to be matched with a plurality of notches on the corresponding rotating bulge 13, so that the fixation is firmer and the disassembly is convenient, wherein each horizontal fixed cylinder 10 is connected with horizontal round rods 8 on two opposite side surfaces of a strip-shaped hollow bearing box 6 through stretching swing arms 9, each stretching swing arm 9 can rotate on the corresponding horizontal round rod 8, if a group of strip-shaped hollow boxes 12 and the strip-shaped hollow bearing box 6 are vertically placed, the vertical lap joint is sequentially carried out, if the strip-shaped hollow bearing box 6 is moved to the lowest part, shoes can be conveniently placed on the upper surface of the strip-shaped hollow bearing box 6, wherein if the device is horizontally placed, each strip-shaped hollow box 12 can swing horizontally, the swing arm 15 on the lower surface of each strip-shaped hollow box 12 can swing down, the micro universal wheel 16 on the lower surface of each swing arm 15 is contacted with the ground, so that the corresponding strip-shaped hollow box 12 is effectively supported, wherein each swing arm 15 is connected with the lower surface of the corresponding strip-shaped hollow box 12 through a horizontal round shaft 29, if the swing arms 15 are not used, the bearing frame 14 in each strip-shaped hollow box 12 is convenient for placing shoes in sections, if a group of strip-shaped hollow boxes 12 and strip-shaped hollow bearing boxes 6 are vertically placed, a group of swing limiting plates 17 on the front surface of each strip-shaped hollow box 12 can be swung to the front surface of the strip-shaped hollow box 12 or strip-shaped hollow bearing box 6 below, so that the limitation is convenient, wherein the rear surface of the device can be placed on the wall surface, and the anti-skid layer 18 on each swing limiting rod 17 is convenient for anti-skid, wherein a set of swing couple 19 that is located every bar hollow box 12 upper surface is convenient for place the curtain that shelters from, is convenient for shelter from inside, and the controller 20 that wherein is located on the side surface of bar loading board 1 is convenient for control the operation of this device, and a use is more convenient, is convenient for carry on inside cleanness according to the state that the bearing area adjustment of difference bore, is convenient for also, the drainage of being convenient for, and it is convenient to remove, the device that shoes forward placed forever.
In this embodiment, the controller 20 is of the type ATmega4, an output terminal of the controller 20 of this type is connected to the input terminal of the electrically controlled moving cart 4 through a lead, and the output terminal of the commercial power interface 26 is connected to the electrical connection terminal of the controller 20 through a lead, so that after the controller 20 is programmed by a person skilled in the art, the working sequence of each electric device can be completely controlled, and the specific working principle is as follows: shoes are conveniently placed in the strip-shaped hollow bearing box 6 and each strip-shaped hollow box 12, wherein the strip-shaped hollow bearing box 6 is connected with two groups of electric control moving trolleys 4 through two groups of folded fixing frames 5, each electric control moving trolley 4 is connected with one strip-shaped opening in the strip-shaped bearing plate 1 through a vertical berm 3, each vertical slide rail 3 is more stably connected with the inner side of the strip-shaped opening through a horizontal fixing frame 2, each electric control moving trolley 4 can move up and down on the corresponding vertical slide rail 3 through control, the position of support is adjusted, two ends of each folded fixing frame 5 are connected with the side surface of the strip-shaped hollow bearing box 6 through a group of fixing nails 7 so as to be stably connected, and each strip-shaped hollow box 12 is connected with a corresponding group of horizontal fixing cylinders 10 through a group of rotating bulges 13, wherein a plurality of strip-shaped bulges 11 on the inner side surface of each horizontal fixed cylinder 10 are convenient to be matched with a plurality of notches on the corresponding rotating bulge 13, so that the fixation is firmer and the disassembly is convenient, wherein each horizontal fixed cylinder 10 is connected with horizontal round rods 8 on two opposite side surfaces of a strip-shaped hollow bearing box 6 through stretching swing arms 9, each stretching swing arm 9 can rotate on the corresponding horizontal round rod 8, if a group of strip-shaped hollow boxes 12 and the strip-shaped hollow bearing box 6 are vertically placed, the vertical lap joint is sequentially carried out, if the strip-shaped hollow bearing box 6 is moved to the lowest part, shoes can be conveniently placed on the upper surface of the strip-shaped hollow bearing box 6, wherein if the device is horizontally placed, each strip-shaped hollow box 12 can swing horizontally, the swing arm 15 on the lower surface of each strip-shaped hollow box 12 can swing down, the micro universal wheel 16 on the lower surface of each swing arm 15 is contacted with the ground, so that the corresponding strip-shaped hollow box 12 is effectively supported, wherein each swing arm 15 is connected with the lower surface of the corresponding strip-shaped hollow box 12 through a horizontal round shaft 29, if the swing arms 15 are not used, the bearing frame 14 in each strip-shaped hollow box 12 is convenient for placing shoes in sections, if a group of strip-shaped hollow boxes 12 and strip-shaped hollow bearing boxes 6 are vertically placed, a group of swing limiting plates 17 on the front surface of each strip-shaped hollow box 12 can be swung to the front surface of the strip-shaped hollow box 12 or strip-shaped hollow bearing box 6 below, so that the limitation is convenient, wherein the rear surface of the device can be placed on the wall surface, and the anti-skid layer 18 on each swing limiting rod 17 is convenient for anti-skid, wherein a group of swing hooks 19 positioned on the upper surface of each strip-shaped hollow box 12 is convenient for placing a sheltered curtain and is convenient for sheltering the inside, a controller 20 positioned on the side surface of the strip-shaped bearing plate 1 is convenient for controlling the operation of the device, a plurality of rolling wheels 24 positioned below the strip-shaped bearing plate 1 are convenient for moving when being manually pushed, wherein the rolling wheels 24 are all connected with a group of horizontal stretching round rods 22 through strip-shaped support frames 23 and are convenient for adjusting the moving distance of the support through manual pulling, wherein each group of horizontal stretching round rods 22 are all connected with the lower surface of the strip-shaped bearing plate 1 through vertical support plates 21, a plurality of vertical moving partition frames 25 positioned in the strip-shaped hollow bearing box 6 are convenient for partitioning and are convenient for partitioning to bear shoes, wherein a mains supply interface 26 positioned on the front surface of the strip-shaped bearing plate 1 is convenient for, the device is powered on, wherein the rubber support sleeve 27 on the lower surface of each vertical slide rail 3 is convenient to support and prevent skidding, the limit cap 28 on the end surface of each horizontal round rod 8 is convenient to limit, and the electronic control moving trolley 4 is convenient to rotate and drain when cleaning the interior of each strip-shaped hollow 12, and adopts an eight-bit AT89S52 as a control core power source and an integrated special chip set driven by a stepping motor.
The technical solutions described above only represent the preferred technical solutions of the present invention, and some possible modifications to some parts of the technical solutions by those skilled in the art all represent the principles of the present invention, and fall within the protection scope of the present invention.
Claims (9)
1. The utility model provides a device is born to shoes convenient to adjustment bearing area, includes bar loading board (1), its characterized in that, bar loading board (1) upper surface is equipped with adjustment area shoes and bears mechanism, bar loading board (1) lower surface is equipped with moving mechanism, adjustment area shoes bear mechanism by processing at bar loading board (1) upper surface center department a bar opening, inlay two sets of horizontal fixing frame (2) on double-phase offside surface in a bar opening, set up vertical slide rail (3) on every horizontal fixing frame (2) inboard surface, set up automatically controlled travelling car (4) in every vertical slide rail (3), fixed connection is at folding shape mount (5) on every automatically controlled travelling car (4) side surface, set up in a bar opening and with the corresponding hollow box (6) that bears of bearing of bar of two sets of folding shape mount (5) side surface looks overlap joint, A group of fixing nails (7) arranged on the side surface of each zigzag fixing frame (5) and between the side surfaces of the strip-shaped hollow bearing box (6), a second strip-shaped opening processed on the front surface of the strip-shaped hollow bearing box (6), a group of horizontal round rods (8) embedded at the upper ends of the left and right surfaces of the strip-shaped hollow bearing box (6), a group of stretching swing arms (9) sleeved on each horizontal round rod (8), a horizontal fixing cylinder (10) sleeved on the side surface of each stretching swing arm (9), a plurality of strip-shaped bulges (11) fixedly connected on the inner side surface of each horizontal fixing cylinder (10), a strip-shaped hollow box (12) arranged between each opposite group of stretching swing arms (9), rotating bulges (13) embedded on the left and right opposite side surfaces of each strip-shaped hollow box (12) and matched with the horizontal fixing cylinder (10), and a group of strip-shaped bulges (11) processed on the side surface of each rotating bulge (13) and matched with the corresponding The groove, a second strip-shaped opening processed on the front surface of each strip-shaped hollow box (12), a bearing frame (14) arranged at the center in each strip-shaped hollow box (12), two groups of strip-shaped grooves processed at four corners of the inner lower surface of each strip-shaped hollow box (12), a horizontal round shaft (29) arranged in each strip-shaped groove, a swing arm (15) sleeved on each horizontal round shaft (29), a micro universal wheel (16) arranged on the lower surface of each swing arm (15), a group of swing limiting rods (17) hinged at the lower end of the front surface of each strip-shaped hollow box (12), an anti-skid layer (18) sleeved on each swing limiting rod (17), and a group of swing hooks (19) hinged at the upper surface of each strip-shaped hollow box (12) and close to the corresponding second strip-shaped opening, wherein a controller (20) is embedded in the side surface of the strip-shaped bearing plate (1), the controller (20) is electrically connected with an electric control moving trolley (4) in the area-adjusting shoe bearing mechanism;
the moving mechanism is composed of two groups of grooves machined at the edge of the lower surface of the strip-shaped bearing plate (1), vertical supporting plates (21) fixedly connected in each groove, a group of horizontal stretching round rods (22) fixedly connected on the side surface of each vertical supporting plate (21), strip-shaped supporting frames (23) sleeved on the end surfaces of each group of horizontal stretching round rods (22), and rolling wheels (24) embedded on the lower surface of each strip-shaped supporting frame (23).
2. Shoe carrying device facilitating the adjustment of the carrying area according to claim 1 characterized in that the height of each of said strip-shaped hollow boxes (12) matches the height of the strip-shaped hollow carrying box (6).
3. The shoe carrying device convenient for adjusting carrying area according to claim 1, wherein the number of the plurality of strip-shaped protrusions (11) is 3-5, and the plurality of strip-shaped protrusions (11) are positioned on the same circumference at equal angles.
4. The shoe carrying device convenient for adjusting the carrying area according to claim 1, wherein a plurality of vertically moving partition frames (25) are arranged in the strip-shaped hollow carrying box (6).
5. A shoe carrying device facilitating the adjustment of the carrying area according to claim 1, characterized in that each of said zigzag fixing frames (5) is L-shaped in cross section.
6. The shoe bearing device convenient for adjusting the bearing area according to claim 1, wherein the mains supply interface (26) is embedded in the front surface of the strip bearing plate (1), and the controller (20) is electrically connected with the mains supply interface (26).
7. Shoe carrying device facilitating the adjustment of the carrying area according to claim 1 characterized in that the height of each vertical sliding rail (3) is higher than the height of the strip shaped carrying floor (1).
8. A shoe bearing device facilitating the adjustment of the bearing area according to claim 1 characterized in that the lower end of each vertical sliding rail (3) is sleeved with a rubber support sleeve (27).
9. Shoe carrying device facilitating the adjustment of the carrying area according to claim 1 characterized in that a stop cap (28) is sleeved on the end face of each horizontal round bar (8).
