Abstract

The invention discloses a conducting wire fixer for 10kV live working. The conducting wire fixer comprises two insulating hanging boards, wherein two insulating threaded rods are connected between middle-upper parts of board faces of the two insulating hanging boards in an equal-height and parallel manner, two hanging hooks with inward-opening hanging ports are respectively formed on the insulating hanging boards above the two insulating threaded rods, the top of each hanging hook is arc-shaped, an upper adjusting hole and a lower adjusting hole which are higher than a reinforced concrete pole cross arm and an insulator are reserved in the middle of the lower board face of each insulating hanging board and between the insulating threaded rods, and an insulating support threaded rod is selectively connected into one of the two pairs of mutually-corresponding adjusting holes. The conducting wire fixer for 10kV live working has the advantages that the operation is convenient, the labor intensity is reduced, the work efficiency is increased, an adequate safety distance among phases of conducting wires/between the conducting wires and the ground can be kept, and the live working can be safer.

Description

10kV live line working standoff
Technical field:
The present invention relates to the electric operating apparatus, particularly a kind of charged 10kV live line working standoff that uses when replacing the operation of straight line concrete bar when being applicable to power equipment maintaining.
Background technology:
At present, charged when replacing 10kV straight line concrete bar, the operating personnel is fixed at the concrete bar both sides wire that is about to replace first, make live wire and insulator again colligation fix, run the line accident to prevent from meeting accident in the process of replacing.This manual mode of operation, not only labour intensity is large, and the colligation fixing cord is inconvenient, but also has certain unsafe factor.
Summary of the invention:
The purpose of this invention is to provide and a kind ofly can effectively alleviate operating personnel's labour intensity, handled easily and the guaranteed 10kV live line working wire insulation fixture of safety.
Technical scheme of the present invention is finished as follows, 10kV live line working standoff, it includes two insulation link plates, it is characterized in that: the parallel two eradication edge screw rods that are connected with of equal altitudes between two insulation link plate plate face middle and upper parts, insulation link plate above two eradication edge screw rods is respectively equipped with the hook that a mouth hanging is opened to the inside, the top of each hook is curved, in the middle of the lower panel face of two insulation link plates and reserve up and down a height greater than concrete bar cross-arm and insulator between the insulation blanket stud and be respectively equipped with up and down two adjustment holes, mutually optionally be connected with one in the corresponding adjustment holes at two pairs and thoroughly do away with edge and hold up screw rod.
The present invention not only convenient operation, reduce labor intensity, increase work efficiency, and can make the alternate of wire and keep over the ground enough safe distances, make live line working safer.
Description of drawings:

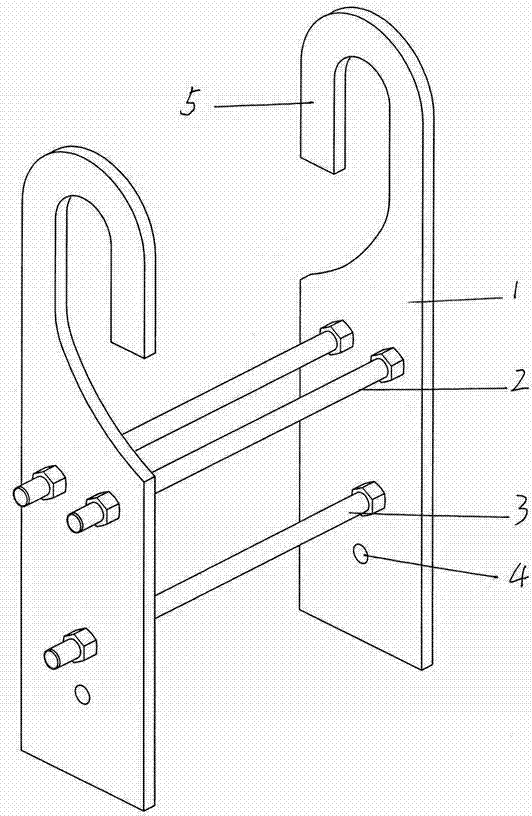

Fig. 1 is structural representation of the present invention.
Embodiment:
Describe embodiment in detail in conjunction with above accompanying drawing, 10kV live line working wire insulation fixture of the present invention, the parallel two eradication edge screw rods 2 that are connected with of equal altitudes between each plate face middle and upper part of two insulation link plates 1, insulation link plate above two eradication edge screw rods is respectively equipped with the hook 5 that a mouth hanging is opened to the inside, the top of each hook is curved, in the middle of the lower panel face of two insulation link plates and reserve up and down a height greater than concrete bar cross-arm and insulator between the insulation blanket stud and be respectively equipped with up and down two adjustment holes 4, mutually optionally be connected with one in the corresponding adjustment holes at two pairs and thoroughly do away with edge and hold up screw rod 3.Insulation holds up screw rod and can be installed in a pair of rise knothole (as shown in Figure 1), also can be installed in a pair of lower adjustment hole, and concrete installation site according to the situation.During use, with hook this fixture is hung over first on the guiding, again cross-arm and insulator are held up screw rod with insulation and hold up and be clipped in below the eradication of two between the two link plates edge screw rod.Be convenient to operation, guarantee safety, increase work efficiency.

Claims (1)

1.10kV live line working standoff, it includes two insulation link plates, it is characterized in that: the parallel two eradication edge screw rods that are connected with of equal altitudes between two insulation link plate plate face middle and upper parts, insulation link plate above two eradication edge screw rods is respectively equipped with the hook that a mouth hanging is opened to the inside, the top of each hook is curved, in the middle of the lower panel face of two insulation link plates and reserve up and down a height greater than concrete bar cross-arm and insulator between the insulation blanket stud and be respectively equipped with up and down two adjustment holes, mutually optionally be connected with one in the corresponding adjustment holes at two pairs and thoroughly do away with edge and hold up screw rod.
