CN101338273A - Device and method for household straw dry fermentation to produce biogas - Google Patents
Device and method for household straw dry fermentation to produce biogas Download PDFInfo
- Publication number
- CN101338273A CN101338273A CNA2008100225476A CN200810022547A CN101338273A CN 101338273 A CN101338273 A CN 101338273A CN A2008100225476 A CNA2008100225476 A CN A2008100225476A CN 200810022547 A CN200810022547 A CN 200810022547A CN 101338273 A CN101338273 A CN 101338273A
- Authority
- CN
- China
- Prior art keywords
- methane
- biogas
- stalk
- generating pit
- straw
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 238000000855 fermentation Methods 0.000 title claims abstract description 37
- 239000010902 straw Substances 0.000 title claims abstract description 33
- 230000004151 fermentation Effects 0.000 title claims abstract description 28
- 238000000034 method Methods 0.000 title claims abstract description 21
- 238000004519 manufacturing process Methods 0.000 claims abstract description 22
- 239000007789 gas Substances 0.000 claims abstract description 13
- 210000003608 fece Anatomy 0.000 claims abstract description 12
- 239000000463 material Substances 0.000 claims abstract description 12
- 239000004033 plastic Substances 0.000 claims abstract description 11
- 229920003023 plastic Polymers 0.000 claims abstract description 11
- 239000002994 raw material Substances 0.000 claims abstract description 11
- 238000005086 pumping Methods 0.000 claims abstract description 10
- 238000009264 composting Methods 0.000 claims abstract description 7
- 238000002386 leaching Methods 0.000 claims abstract description 7
- 238000010992 reflux Methods 0.000 claims abstract description 7
- 239000010871 livestock manure Substances 0.000 claims abstract description 6
- VNWKTOKETHGBQD-UHFFFAOYSA-N methane Chemical compound C VNWKTOKETHGBQD-UHFFFAOYSA-N 0.000 claims description 67
- 239000007788 liquid Substances 0.000 claims description 26
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims description 17
- IJGRMHOSHXDMSA-UHFFFAOYSA-N Atomic nitrogen Chemical compound N#N IJGRMHOSHXDMSA-UHFFFAOYSA-N 0.000 claims description 16
- 239000002893 slag Substances 0.000 claims description 11
- 229910052757 nitrogen Inorganic materials 0.000 claims description 8
- 241000196324 Embryophyta Species 0.000 claims description 7
- 239000002054 inoculum Substances 0.000 claims description 6
- 239000010802 sludge Substances 0.000 claims description 5
- 239000000284 extract Substances 0.000 claims description 4
- 239000003337 fertilizer Substances 0.000 claims description 4
- 238000011081 inoculation Methods 0.000 claims description 4
- XSQUKJJJFZCRTK-UHFFFAOYSA-N Urea Chemical compound NC(N)=O XSQUKJJJFZCRTK-UHFFFAOYSA-N 0.000 claims description 3
- 239000011449 brick Substances 0.000 claims description 3
- 239000004202 carbamide Substances 0.000 claims description 3
- 238000005266 casting Methods 0.000 claims description 3
- 239000000203 mixture Substances 0.000 claims description 3
- 239000000126 substance Substances 0.000 claims description 3
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 claims description 2
- 241000209140 Triticum Species 0.000 claims description 2
- 235000021307 Triticum Nutrition 0.000 claims description 2
- 240000008042 Zea mays Species 0.000 claims description 2
- 235000005824 Zea mays ssp. parviglumis Nutrition 0.000 claims description 2
- 235000002017 Zea mays subsp mays Nutrition 0.000 claims description 2
- JJEJDZONIFQNHG-UHFFFAOYSA-N [C+4].N Chemical compound [C+4].N JJEJDZONIFQNHG-UHFFFAOYSA-N 0.000 claims description 2
- BFNBIHQBYMNNAN-UHFFFAOYSA-N ammonium sulfate Chemical compound N.N.OS(O)(=O)=O BFNBIHQBYMNNAN-UHFFFAOYSA-N 0.000 claims description 2
- 229910052921 ammonium sulfate Inorganic materials 0.000 claims description 2
- 235000011130 ammonium sulphate Nutrition 0.000 claims description 2
- QLULGSLAHXLKSR-UHFFFAOYSA-N azane;phosphane Chemical compound N.P QLULGSLAHXLKSR-UHFFFAOYSA-N 0.000 claims description 2
- 229910052799 carbon Inorganic materials 0.000 claims description 2
- 235000005822 corn Nutrition 0.000 claims description 2
- 239000004744 fabric Substances 0.000 claims description 2
- QJGQUHMNIGDVPM-UHFFFAOYSA-N nitrogen group Chemical group [N] QJGQUHMNIGDVPM-UHFFFAOYSA-N 0.000 claims description 2
- 230000001105 regulatory effect Effects 0.000 claims description 2
- 238000005516 engineering process Methods 0.000 abstract description 17
- 239000002028 Biomass Substances 0.000 abstract description 6
- 244000144972 livestock Species 0.000 abstract description 6
- 244000144977 poultry Species 0.000 abstract description 6
- 238000010276 construction Methods 0.000 abstract description 3
- 230000007613 environmental effect Effects 0.000 abstract description 3
- 239000002002 slurry Substances 0.000 abstract 3
- 230000007423 decrease Effects 0.000 abstract 1
- 239000000618 nitrogen fertilizer Substances 0.000 abstract 1
- 241001074903 Methanobacteria Species 0.000 description 5
- 238000010563 solid-state fermentation Methods 0.000 description 4
- 239000000047 product Substances 0.000 description 3
- 239000002689 soil Substances 0.000 description 3
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 description 2
- 238000013461 design Methods 0.000 description 2
- 238000011161 development Methods 0.000 description 2
- 238000003306 harvesting Methods 0.000 description 2
- 239000002699 waste material Substances 0.000 description 2
- 206010000369 Accident Diseases 0.000 description 1
- 241000894006 Bacteria Species 0.000 description 1
- 241000282414 Homo sapiens Species 0.000 description 1
- 240000007594 Oryza sativa Species 0.000 description 1
- 235000007164 Oryza sativa Nutrition 0.000 description 1
- 101150054854 POU1F1 gene Proteins 0.000 description 1
- 210000001015 abdomen Anatomy 0.000 description 1
- 239000002253 acid Substances 0.000 description 1
- 238000013459 approach Methods 0.000 description 1
- 238000009360 aquaculture Methods 0.000 description 1
- 244000144974 aquaculture Species 0.000 description 1
- 230000004888 barrier function Effects 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000015572 biosynthetic process Effects 0.000 description 1
- 150000001722 carbon compounds Chemical class 0.000 description 1
- 235000013339 cereals Nutrition 0.000 description 1
- 210000000078 claw Anatomy 0.000 description 1
- 238000004140 cleaning Methods 0.000 description 1
- 239000003245 coal Substances 0.000 description 1
- 230000029087 digestion Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000003912 environmental pollution Methods 0.000 description 1
- 239000002360 explosive Substances 0.000 description 1
- 239000012467 final product Substances 0.000 description 1
- 238000007667 floating Methods 0.000 description 1
- 239000000446 fuel Substances 0.000 description 1
- 230000000977 initiatory effect Effects 0.000 description 1
- 238000009413 insulation Methods 0.000 description 1
- 229910052742 iron Inorganic materials 0.000 description 1
- 238000005259 measurement Methods 0.000 description 1
- 238000002156 mixing Methods 0.000 description 1
- 239000010815 organic waste Substances 0.000 description 1
- 239000002245 particle Substances 0.000 description 1
- 239000000843 powder Substances 0.000 description 1
- 238000012545 processing Methods 0.000 description 1
- 238000010298 pulverizing process Methods 0.000 description 1
- 238000011084 recovery Methods 0.000 description 1
- 238000011160 research Methods 0.000 description 1
- 235000009566 rice Nutrition 0.000 description 1
- 238000012216 screening Methods 0.000 description 1
- 238000002791 soaking Methods 0.000 description 1
- 239000007787 solid Substances 0.000 description 1
- 230000004936 stimulating effect Effects 0.000 description 1
- 238000005728 strengthening Methods 0.000 description 1
- 239000000758 substrate Substances 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E50/00—Technologies for the production of fuel of non-fossil origin
- Y02E50/30—Fuel from waste, e.g. synthetic alcohol or diesel
Landscapes
- Processing Of Solid Wastes (AREA)
- Fertilizers (AREA)
Abstract
本发明涉及一种用于户用秸秆干式发酵产沼气的装置及方法，属于农业环境保护与生物质能源利用领域。将秸秆经切碎，加入氮素肥料，调节C/N，堆腐后放入建于地下一圆柱型沼气池中，接种厌氧发酵产物，用红泥塑料密封，进行厌氧发酵产沼气，当产气量降低时，利用手动抽水装置抽取沼液对秸秆进行淋溶，当产气量明显下降时，及时更换新料。本发明可实现秸秆干式厌氧产沼气，达到了基本替代以畜禽粪便为主要原料产沼气的技术要求，采用的秸秆干发酵技术，可减少了湿式厌氧发酵产沼气中沼液沼渣处理的困难，同时也使沼气池容积产气率提高，降低了沼气池建设成本与减少了沼气池占地面积。设计的沼液回流系统解决了秸秆干法发酵中质流与物质交换的困难。
The invention relates to a device and method for household straw dry fermentation to produce biogas, belonging to the fields of agricultural environmental protection and biomass energy utilization. Chop the straw, add nitrogen fertilizer, adjust C/N, put it into a cylindrical biogas digester built underground after composting, inoculate anaerobic fermentation products, seal it with red mud plastic, and carry out anaerobic fermentation to produce biogas. When the gas production decreases, use the manual pumping device to extract the biogas slurry to leaching the straw. When the gas production drops significantly, replace the new material in time. The invention can realize straw dry anaerobic biogas production, and has basically replaced the technical requirements of biogas production with livestock and poultry manure as the main raw material. The adopted straw dry fermentation technology can reduce the treatment of biogas slurry and residue in wet anaerobic fermentation biogas production At the same time, it also increases the volumetric gas production rate of the biogas digester, reduces the construction cost of the biogas digester and reduces the area occupied by the biogas digester. The designed biogas slurry reflux system solves the difficulty of mass flow and material exchange in straw dry fermentation.
Description
Technical field:
The present invention relates to a kind of device and method of home straw producing methane by dry-type fermentation, is a kind of technology of utilizing of stalk energy, belongs to agriculture environmental protection and Biomass Energy Utilization field.
Background technology:
The stalk resource in China rural area is very abundant, and only important crop material just has nearly 20 kinds at present, and output is huge.It is estimated that the annual all kinds of agricultural crop straw generations of China reach 700,000,000 t, this wherein 42% directly or cross also field of abdomen, 30% as agricultural fuel, 8% as industry or other purposes, 20% about 1.2 hundred million tons of residues are not utilized].These remaining agricultural crop straws go out of use in the field, room, threshing ground head, not only account for and pressed a large amount of soils, influenced rural environmental hygiene, particularly in " three summer jobs ", " three autumn jobs as harvesting, tilling and planting " season in every year, the peasant directly burns these residue stalk overwhelming majority in the field in order to rush-harvest and rush-plant then, the open incineration of a large amount of residue stalks not only causes the great wasting of resources, and bring serious topsoil, even influence the safety of the Normal Take-Off And Landing and the running car of aircraft, and frequent initiation fire accident.
And meanwhile, global energy dilemma increases the weight of day by day, demands developing the novel energy of alternative oil, coal, particularly renewable energy source urgently, and biomass energy more receives the great attention and the concern of countries in the world as a kind of reproducible clean energy.Agricultural crop straw is as the waste that is produced in grain or the fodder production; be mainly carbon compound; as energy utilization; enormous amount and renewable not only; thereby exploitation agricultural crop straw recovery energy approach; not only can solve a large amount of stalks and abandon and the environmental pollution and the financial loss problem of generation, and can slow down the world energy sources crisis, especially can solve the difficult problem of urban residents' power supply of huge numbers of families.
For solving Chinese huge numbers of families urban residents, particularly sparsely populated again away from the urban residents' in city or market town clean energy supply bottleneck, the country from last century the seventies begin, just promote the use of with feces of livestock and poultry and human excrement etc. and be the methane-generating pit technology of main substrate, obtained good effect in the rural area.Yet; in recent years along with aquaculture after the development of mass-producing sub-district; the rely raw material-feces of livestock and poultry of aerogenesis of methane-generating pit for farm household is less and less; methane-generating pit is faced with does not have the potable condition of rice, the exploratory development domestic methane tank substitute feces of livestock and poultry raw material technology more and more urgently, more and more important.
Utilize research and the demonstration work of agricultural crop straw as the domestic methane tank raw material, can trace back to the eighties in last century, promptly utilize existing hydraulic type biomass pool, stalk mixed with ight soil carry out producing methane through anaerobic fermentation, its technology exists the stalk come-up, and formation is crusted and influenced aerogenesis easily, and after fermentation ends, natural pond slag and natural pond liquid difficult treatment, particularly dense waterway net region.
Publication number is the patent of CN101020912, a kind of method of the stalk mixing fermentation of methane bacterium refluxing and pulverizing being produced biogas is provided, it is characterized in that, it is that raw material agricultural crop straw with fermentation methane is ground into stalk powder, stalk particle, behind the stalk silk, reenter marsh-gas fermentation tank, marsh-gas fermentation tank bottom discharge pipe is discharged contains the methanobacteria slag charge, contained methanobacteria quantity according to practical measurement, by containing methanobacteria slag charge and the new volume ratio that drops into stalk is to be input to the marsh-gas fermentation tank production biogas that continuously ferments after 0.5～8.0: 1.0 the mixed, remainder contains the methanobacteria slag charge and is discharged into the slag charge pond, this patent only relates to natural pond liquid backflow inoculation, and biogas residue and biogas liquid is discharged by discharge nozzle, easy ingress of air, influence the quantity of anerobe, and need before the inoculation measuring contained methanobacteria quantity, difficulty or ease operation in the practical application of rural area peasant household.
Publication number is the patent of CN1769220, providing a kind of is the biogas production technology of raw material with kitchen excess, stalk, feces of livestock and poultry and active sludge, relate to biogas production gordian technique and high solid substance biogas fermentation reactor technology, but what this patent was related is the wet method anaerobic fermentation technology, and does not fit into the use of rural area peasant household.
Publication number is the patent of CN1403396, provides a kind of period stimulating stalk and municipal wastes to carry out the method for solid state fermentation biogas.It is characterized in that putting into the solid state fermentation tank body after the quick-fried processing of organic waste process vapour with air-dry stalk or screening; Then gas-explosive material is mixed rapidly with biogas, be sealed in the fermentation tank body and carry out solid state fermentation; Feed the air in the biogas emptying tank body that ferments, adopt the speed of extraneous cycle pressure variation with strengthening solid state fermentation; Rapid exhaust gas collection biogas, this method and technology requires high, and facility investment is big, is not suitable for the rural area and uses.
Publication number is the patent of CN2863807, provide a kind of and novelly exempted from clearly that stalk ight soil comprehensively uses thermal insulation methane pool, the technical field of building that relates to methane-generating pit, major technique is characterised in that water pressure house and feed-pipe and is one that the fermentation material enters opening for feed (between setting-out) and enters the methane-generating pit fermentation through soaking automatically after acid is produced in liquefaction.Being provided with discharge nozzle in the methane-generating pit utilizes the inside aerogenesis pressure of methane-generating pit the natural pond slag can be extruded flow direction collected manure hole from discharge nozzle.And need not manually clear pond.And the broken shell microgas is housed in methane-generating pit inside.Make methane-generating pit more convenient in daily administration, improve factor of created gase, aerogenesis is stable.This technology and what relate to is a kind of wet method anaerobic methane production gas technology, and because of stalk be floating matter by being difficult to enter digester between setting-out, technical infeasible.
In sum, existing patented technology is difficult to solve the technical barrier of stalk dry method fermentation, and described technology or to invest big cost high or be not suitable for rural area peasant household and use, and is difficult to apply.
Summary of the invention:
Technical problem the objective of the invention is to: produce the natural pond liquid difficult treatment that biogas exists at dense waterway net region at the family of now applying with hydraulic type methane tank straw wet method, with the stalk is that main raw material is after the hydraulic type biomass pool fermentation ends, stalk residue cleaning inconvenience, existing hydraulic type biomass pool does not have natural pond liquid return-flow system, can't carry out natural pond liquid and return difficulties such as liquid, a kind of new pond type and method of home straw dry method anaerobic methane production gas is provided.
The object of the present invention is achieved like this for technical scheme:
1, the device of the dried fermentation methane production of a kind of home straw, it is characterized in that: methane-generating pit (1) is to infuse or concrete casting and waterproof pond with brick, methane-generating pit is as cylinder shape, the bottom, pond is downward taper shape, with cylindrical junction a porous backing plate (2) is arranged conical, the pipeline (3) that is connected to the methane-generating pit outside is arranged at the bottom of conical awl, pipeline links to each other with the collecting tank of building methane-generating pit one side in (4), the water that is come out by the methane-generating pit leaching can be arranged into collecting tank by pipeline (3), this collecting tank is lower than methane-generating pit, there is vertical shaft (5) the collecting tank top, one pumping plant (6) is installed in vertical shaft, natural pond liquid in the collecting tank can be extracted in the methane-generating pit with plastics tubing (7) by refluxing, form natural pond liquid return-flow system, but the lid (8) that a water seal is arranged on the top of methane-generating pit has biogas to portal (9) on the lid, portals and biogas that methane-generating pit produces can be introduced methane cooker by this, biogas lamp.
2, a kind of method of home straw producing methane by dry-type fermentation, it is characterized in that: with straw chopping, add nitrogen manure, regulate C/N, add promptly in the fertilizer in the nitrogen and stalk that the ratio of carbon content is 1: 25 in the nitrogen content summation and stalk, mix laggard windrow corruption, stalk that will be after piling corruption, put into and be built in subterranean above-mentioned cylinder shape methane-generating pit, inoculation anaerobically fermenting product, fermentation raw material weight is 1 with the ratio of inoculum weight: 0.3-0.4, the limit adds the stalk limit and adds the anaerobically fermenting product, seal with red-sludge plastic, carry out producing methane through anaerobic fermentation, when gas production rate reduces, utilize the manual pumping device to extract natural pond liquid stalk is carried out leaching, when gas production rate is improved, in time change virgin material.
Described chopping is meant that artificial or machinery shreds below the 10cm with stalk, and described nitrogen manure is meant nitrogenous chemical fertilizer, as urea, ammonium sulfate, phosphorus ammonium or carbon ammonium; Described heap is rotten to be meant chopping and the stalk after regulating C/N, by stalk heavy with the water anharmonic ratio be 1: 2.5-3.5, water drenches behind the stalk the above height of composting 50cm and covers with plastic cloth or other material that can reduce moisture loss, and the heap temperature reaches more than 45 ℃ composting 3-6 days; Described stalk is meant corn, straw, wheat straw or herbage; Described anaerobically fermenting product is meant mud, biogas residue and biogas liquid, cow dung or pond sludge.
Described replacing virgin material takes out the residual body of stalk after being meant methane tank cover being opened from methane-generating pit, add the stalk through anticipating, and simultaneously, liquid natural pond, the natural pond slag that extracts from water collecting basin is inoculated initiate raw material as inoculum.
Beneficial effect technology indicators of overall performance of the present invention is with the advantage of similar technology comparison: it can realize stalk dry type anaerobic methane production gas, having reached basic substituting with the feces of livestock and poultry is the technical requirements that main raw material produces biogas, the straw by dry fermentation technology that adopts, can reduce the difficulty that liquid natural pond, natural pond slag is handled in the wet type producing methane through anaerobic fermentation, the methane-generating pit volume yield rate is improved, reduced the methane-generating pit construction cost and reduced the methane-generating pit floor space.The natural pond liquid return-flow system of design has solved the difficulty of matter stream and material in the fermentation of stalk dry method.
Description of drawings

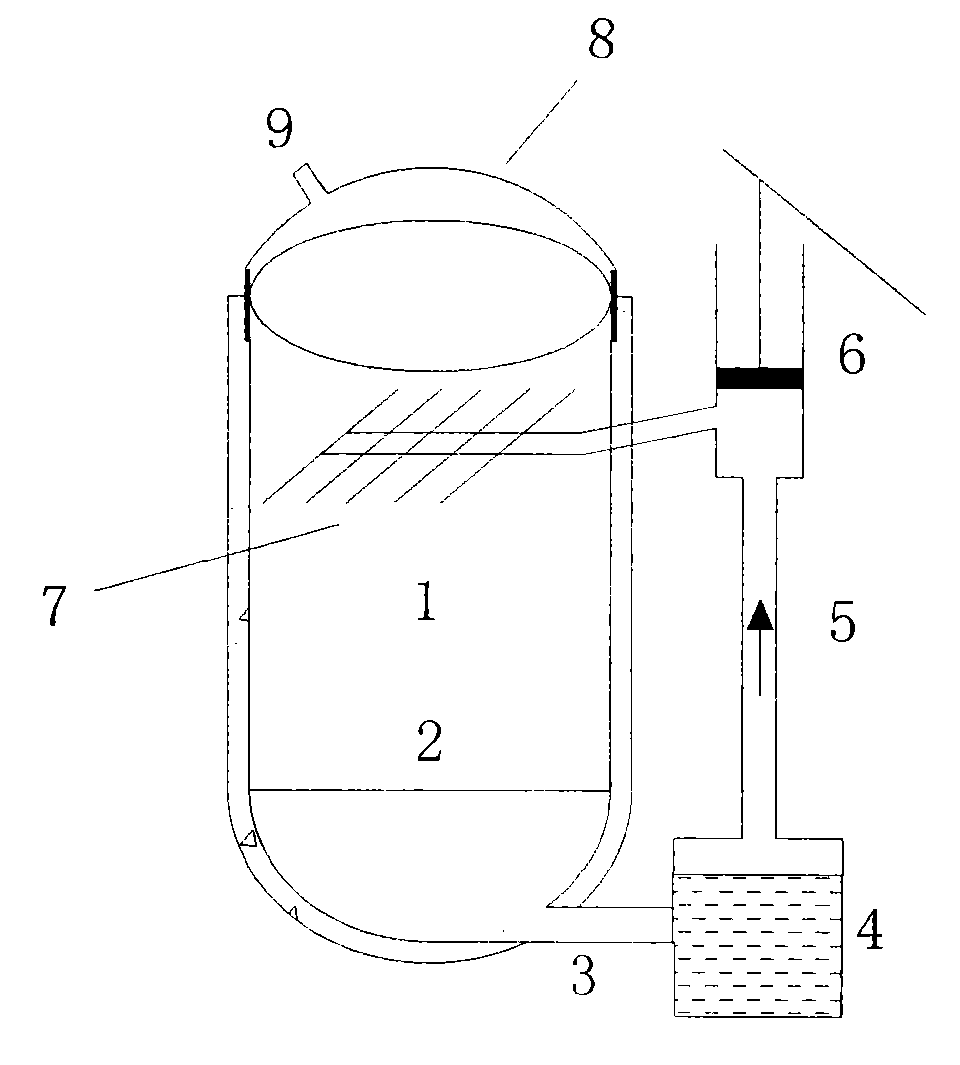

Fig. 1 produces the firedamp gas equipment structure iron
1 methane-generating pit; 2 porous backing plates; 3 pipelines; 4 collecting tanks; 5 vertical shafts; 6 pumping plants; 7 reflux uses plastics tubing; 8 lids; 9 biogas portal
Embodiment
With a three-person household is example, cooks and heats up water the needs of biogas amount, design and construction a bite 6m by technical feature and this resident of stalk producing methane by using dry anaerobic digestion
3Methane-generating pit (schema sees accompanying drawing 1 for details).Methane-generating pit 1 is to infuse or concrete casting and waterproof pond with brick, methane-generating pit is as cylinder shape, the bottom, pond is downward taper shape, with cylindrical junction a porous backing plate 2 is arranged conical, the pipeline 3 that is connected to the methane-generating pit outside is arranged at the bottom of conical awl, pipeline links to each other with the collecting tank 4 of building methane-generating pit one side in, the water that is come out by the methane-generating pit leaching can be arranged into collecting tank by pipeline 3, this collecting tank is lower than methane-generating pit, there is vertical shaft 5 the collecting tank top, one pumping plant 6 is installed in vertical shaft, natural pond liquid in the collecting tank can be extracted in the methane-generating pit with plastics tubing 7 by refluxing, form natural pond liquid return-flow system, but the lid 8 of a water seal is arranged on the top of methane-generating pit, there is biogas to portal 9 on the lid, portals and biogas that methane-generating pit produces can be introduced methane cooker by this, biogas lamp.
Claim 2.0-2.5 ton straw, straw is shredded to 10cm, stalk is drenched with about 6-7 ton water, add about 50 kilograms of urea then, mix, composting becomes 1.5 meters high heaps, cover with plastics film, the heap temperature reached more than 45 ℃ composting 4 days, spread out, air-dry half a day, put into the methane-generating pit of building up then, during charging for the first time, make inoculum with about 500 kilograms of natural pond slags, the limit adds straw, and the limit adds the natural pond slag, after having piled, carry out leaching with about 200 kilograms of natural pond liquid again, the water outlet that refluxes with plastics tubing and pumping plant is connected, build lid and seal, get final product, after fermenting about one month, the natural pond liquid that extracts in the water collecting basin with pumping plant returns liquid, returns about one hour of liquid time.So repeatedly, continue about half a year, the methane tank gas production amount obviously descends, promptly open methane tank cover, instrument with the band claw takes out the stalk residue, the stalk that to pile in advance then after the corruption joins in the methane-generating pit again, directly extracts natural pond liquid as inoculum with pumping plant, seals then and carries out producing methane through anaerobic fermentation.
Claims (4)
1, the device of the dried fermentation methane production of a kind of home straw, it is characterized in that: methane-generating pit (1) is to infuse or concrete casting and waterproof pond with brick, methane-generating pit is as cylinder shape, the bottom, pond is downward taper shape, with cylindrical junction a porous backing plate (2) is arranged conical, the pipeline (3) that is connected to the methane-generating pit outside is arranged at the bottom of conical awl, pipeline links to each other with the collecting tank of building methane-generating pit one side in (4), the water that is come out by the methane-generating pit leaching can be arranged into collecting tank by pipeline (3), this collecting tank is lower than methane-generating pit, there is vertical shaft (5) the collecting tank top, one pumping plant (6) is installed in vertical shaft, natural pond liquid in the collecting tank can be extracted in the methane-generating pit with plastics tubing (7) by refluxing, form natural pond liquid return-flow system, but the lid (8) that a water seal is arranged on the top of methane-generating pit has biogas to portal (9) on the lid, portals and biogas that methane-generating pit produces can be introduced methane cooker by this, biogas lamp.
2, a kind of method of home straw producing methane by dry-type fermentation, it is characterized in that: with straw chopping, add nitrogen manure, regulate C/N, add promptly in the fertilizer in the nitrogen and stalk that the ratio of carbon content is 1: 25 in the nitrogen content summation and stalk, mix laggard windrow corruption, stalk that will be after piling corruption, put into the cylinder shape methane-generating pit that is built in the described device of subterranean claim 1, inoculation anaerobically fermenting product, fermentation raw material weight is 1 with the ratio of inoculum weight: 0.3-0.4, the limit adds the stalk limit and adds the anaerobically fermenting product, seal with red-sludge plastic, carry out producing methane through anaerobic fermentation, when gas production rate reduces, utilize the manual pumping device to extract natural pond liquid stalk is carried out leaching, when gas production rate is improved, in time change virgin material.
3, according to the method for the dried fermentation methane production of right 2 described a kind of home straws, it is characterized in that: described chopping is meant that artificial or machinery shreds below the 10cm with stalk, described nitrogen manure is meant nitrogenous chemical fertilizer, as urea, ammonium sulfate, phosphorus ammonium or carbon ammonium; Described heap is rotten to be meant chopping and the stalk after regulating C/N, by stalk heavy with the water anharmonic ratio be 1: 2.5-3.5, water drenches behind the stalk the above height of composting 50cm and covers with plastic cloth or other material that can reduce moisture loss, and the heap temperature reaches more than 45 ℃ composting 3-6 days; Described stalk is meant corn, straw, wheat straw or herbage; Described anaerobically fermenting product is meant mud, biogas residue and biogas liquid, cow dung or pond sludge.
4, according to the method for claim 2 or the dried fermentation methane production of 3 described a kind of home straws, it is characterized in that: after described replacing virgin material is meant methane tank cover opened, the residual body of stalk is taken out from methane-generating pit, the stalk of adding through anticipating, simultaneously, liquid natural pond, the natural pond slag that extracts from water collecting basin is inoculated initiate raw material as inoculum.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CNA2008100225476A CN101338273A (en) | 2008-08-15 | 2008-08-15 | Device and method for household straw dry fermentation to produce biogas |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CNA2008100225476A CN101338273A (en) | 2008-08-15 | 2008-08-15 | Device and method for household straw dry fermentation to produce biogas |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN101338273A true CN101338273A (en) | 2009-01-07 |
Family
ID=40212443
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CNA2008100225476A Pending CN101338273A (en) | 2008-08-15 | 2008-08-15 | Device and method for household straw dry fermentation to produce biogas |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN101338273A (en) |
Cited By (15)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101973682A (en) * | 2010-10-22 | 2011-02-16 | 东北农业大学 | Wet and dry coupling anaerobic fermentation process method |
| CN102344232A (en) * | 2011-07-21 | 2012-02-08 | 农业部沼气科学研究所 | Method for producing biogas and organic fertilizer by dry fermentation of livestock and poultry feces |
| CN101637778B (en) * | 2009-08-25 | 2012-07-04 | 云南昆船设计研究院 | Comprehensive processing technology of organic wastes |
| CN103468565A (en) * | 2012-06-06 | 2013-12-25 | 安徽阜阳永志环能工程有限公司 | Brick-concrete membrane anaerobic tank |
| CN104561112A (en) * | 2015-01-12 | 2015-04-29 | 南京市环境保护科学研究院 | Household pure straw biogas fermentation technology |
| CN104817244A (en) * | 2015-04-22 | 2015-08-05 | 福建省农业科学院农业工程技术研究所 | Biogas slurry zero-release using system and method |
| CN104843962A (en) * | 2015-05-18 | 2015-08-19 | 东江环保股份有限公司 | Method for preparing marsh gas and producing sintered bricks by using municipal sludge |
| CN105063097A (en) * | 2015-09-21 | 2015-11-18 | 七台河宝泰隆煤化工股份有限公司 | Method for preparing CNG (compressed natural gas) from straws |
| CN105132058A (en) * | 2015-09-21 | 2015-12-09 | 七台河宝泰隆煤化工股份有限公司 | Method for preparing CNG through biomass |
| CN106434762A (en) * | 2016-09-27 | 2017-02-22 | 青岛海之源智能技术有限公司 | Method for producing marsh gas by using wheat straw |
| CN108838196A (en) * | 2018-07-17 | 2018-11-20 | 农业部沼气科学研究所 | A kind of processing method of house refuse quick minimizing and energy recovery |
| CN109055189A (en) * | 2018-08-27 | 2018-12-21 | 河南楚汉实业集团有限公司 | The high-effect biogas production device of one pot type of stalk soiled litter continuous dry fermentation and technique |
| CN111218481A (en) * | 2019-11-28 | 2020-06-02 | 德州众和环保装备制造有限公司 | Method for combined fermentation of organic garbage and sludge |
| CN113105997A (en) * | 2021-04-14 | 2021-07-13 | 河北省农业科技发展中心 | Anaerobic fermentation device capable of extracting biogas slurry |
| CN114736934A (en) * | 2022-05-24 | 2022-07-12 | 东北师范大学 | Method for promoting anaerobic co-fermentation of animal manure and straw to prepare biogas by adding biochar |
-
2008
- 2008-08-15 CN CNA2008100225476A patent/CN101338273A/en active Pending
Cited By (17)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101637778B (en) * | 2009-08-25 | 2012-07-04 | 云南昆船设计研究院 | Comprehensive processing technology of organic wastes |
| CN101973682A (en) * | 2010-10-22 | 2011-02-16 | 东北农业大学 | Wet and dry coupling anaerobic fermentation process method |
| CN102344232A (en) * | 2011-07-21 | 2012-02-08 | 农业部沼气科学研究所 | Method for producing biogas and organic fertilizer by dry fermentation of livestock and poultry feces |
| CN103468565A (en) * | 2012-06-06 | 2013-12-25 | 安徽阜阳永志环能工程有限公司 | Brick-concrete membrane anaerobic tank |
| CN104561112A (en) * | 2015-01-12 | 2015-04-29 | 南京市环境保护科学研究院 | Household pure straw biogas fermentation technology |
| CN104817244A (en) * | 2015-04-22 | 2015-08-05 | 福建省农业科学院农业工程技术研究所 | Biogas slurry zero-release using system and method |
| CN104843962A (en) * | 2015-05-18 | 2015-08-19 | 东江环保股份有限公司 | Method for preparing marsh gas and producing sintered bricks by using municipal sludge |
| CN105132058A (en) * | 2015-09-21 | 2015-12-09 | 七台河宝泰隆煤化工股份有限公司 | Method for preparing CNG through biomass |
| CN105063097A (en) * | 2015-09-21 | 2015-11-18 | 七台河宝泰隆煤化工股份有限公司 | Method for preparing CNG (compressed natural gas) from straws |
| CN106434762A (en) * | 2016-09-27 | 2017-02-22 | 青岛海之源智能技术有限公司 | Method for producing marsh gas by using wheat straw |
| CN108838196A (en) * | 2018-07-17 | 2018-11-20 | 农业部沼气科学研究所 | A kind of processing method of house refuse quick minimizing and energy recovery |
| CN109055189A (en) * | 2018-08-27 | 2018-12-21 | 河南楚汉实业集团有限公司 | The high-effect biogas production device of one pot type of stalk soiled litter continuous dry fermentation and technique |
| CN109055189B (en) * | 2018-08-27 | 2024-02-20 | 河南楚汉实业集团有限公司 | Straw excrement garbage continuous dry fermentation one-pot type high-efficiency biogas producer and process |
| CN111218481A (en) * | 2019-11-28 | 2020-06-02 | 德州众和环保装备制造有限公司 | Method for combined fermentation of organic garbage and sludge |
| CN113105997A (en) * | 2021-04-14 | 2021-07-13 | 河北省农业科技发展中心 | Anaerobic fermentation device capable of extracting biogas slurry |
| CN114736934A (en) * | 2022-05-24 | 2022-07-12 | 东北师范大学 | Method for promoting anaerobic co-fermentation of animal manure and straw to prepare biogas by adding biochar |
| CN114736934B (en) * | 2022-05-24 | 2024-03-26 | 东北师范大学 | Method for preparing biogas by promoting anaerobic co-fermentation of livestock manure straw by adding biochar |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN101338273A (en) | Device and method for household straw dry fermentation to produce biogas | |
| CN102173507B (en) | Method for comprehensively recycling fecal sewage of large-scale livestock and poultry farms and farmland crop straws | |
| CN102212561B (en) | Processing method of straw combined with dry method and wet method | |
| CN109055189A (en) | The high-effect biogas production device of one pot type of stalk soiled litter continuous dry fermentation and technique | |
| CN101235388B (en) | Anaerobic fermentation technique for combined treatment of dejection and straw | |
| CN102174586A (en) | Method and device for recycling edible mushroom residues | |
| CN103289885A (en) | Intestinal-tract type biogas generating system | |
| Khoiyangbam et al. | Biogas Technology: towards sustainable development | |
| CN103602580B (en) | A device for producing biogas from rural multivariate organic waste | |
| CN104692847A (en) | Method for producing high-macroelement liquid organic special fertilizer | |
| CN104004792A (en) | Distributed swine breeder excrement and straw mixed fermentation resource utilization technology | |
| CN104004793A (en) | Power generation technology with biogas produced by mixed fermentation of excrement and straws of distributed swine breeder | |
| CN101524696B (en) | Novel technique for hyacinth resource utilization | |
| CN102674651A (en) | Feces treatment system and feces treatment method with methane project as link | |
| CN109370885A (en) | A kind of anaerobic fermentation system for chicken farm and using method thereof | |
| CN109328537A (en) | An ecological farm that recycles waste resources | |
| CN203451391U (en) | Sealed aerobic bio-organic fertilizer production system of breeding waste and forestry and agricultural waste | |
| CN101774835B (en) | Composting material composition and composting method | |
| CN101575618A (en) | Method for preparing biogas by dry-fermenting sugarcane leaves as raw materials | |
| CN100376335C (en) | A biogas production method using kitchen waste, straw, livestock and poultry manure and activated sludge as raw materials | |
| CN104593434A (en) | Method for producing biogas by mixing and fermenting attapulgite, crop straw and excrement | |
| CN209039466U (en) | The one high-effect biogas production device of pot type of stalk soiled litter continuity dry fermentation | |
| CN203846021U (en) | Biological dry-type fermentation treatment device for domestic garbage and crop straws | |
| Nasiruddin et al. | Assessment of organic loading rate by using a water tank digester for biogas production in Bangladesh | |
| CN106431580A (en) | Method and apparatus for treating fecal contamination and producing organic fertilizer at same time through simulation forest surface ecological system |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C02 | Deemed withdrawal of patent application after publication (patent law 2001) | ||
| WD01 | Invention patent application deemed withdrawn after publication |
Open date: 20090107 |
