WO2021240749A1 - サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体 - Google Patents

サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体 Download PDF

Info

Publication number
WO2021240749A1
WO2021240749A1 PCT/JP2020/021195 JP2020021195W WO2021240749A1 WO 2021240749 A1 WO2021240749 A1 WO 2021240749A1 JP 2020021195 W JP2020021195 W JP 2020021195W WO 2021240749 A1 WO2021240749 A1 WO 2021240749A1
Authority
WO
WIPO (PCT)
Prior art keywords
subsidy
application
payment
applicant
user
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2020/021195
Other languages
English (en)
French (fr)
Japanese (ja)
Inventor
道男 梶
昭彦 市川
泰三 樋口
翼 荻窪
浩司 鈴木
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
NEC Corp
Original Assignee
NEC Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by NEC Corp filed Critical NEC Corp
Priority to PCT/JP2020/021195 priority Critical patent/WO2021240749A1/ja
Priority to JP2020556989A priority patent/JP6908200B1/ja
Priority to JP2021106243A priority patent/JP7548142B2/ja
Publication of WO2021240749A1 publication Critical patent/WO2021240749A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • G—PHYSICS
    • G06—COMPUTING OR CALCULATING; COUNTING
    • G06Q—INFORMATION AND COMMUNICATION TECHNOLOGY [ICT] SPECIALLY ADAPTED FOR ADMINISTRATIVE, COMMERCIAL, FINANCIAL, MANAGERIAL OR SUPERVISORY PURPOSES; SYSTEMS OR METHODS SPECIALLY ADAPTED FOR ADMINISTRATIVE, COMMERCIAL, FINANCIAL, MANAGERIAL OR SUPERVISORY PURPOSES, NOT OTHERWISE PROVIDED FOR
    • G06Q50/00—Information and communication technology [ICT] specially adapted for implementation of business processes of specific business sectors, e.g. utilities or tourism
    • G06Q50/10—Services

Definitions

  • This disclosure relates to server devices, systems, subsidy application methods and non-temporary computer-readable media.
  • a terminal acquires a face image of a user and generates a feature amount (feature vector) that characterizes the face image.
  • the generated features are sent to a server on the network.
  • the server is equipped with a database that stores the biometric information and personal information (name, address, etc.) of the user who receives the service by face recognition.
  • the server searches (collates) the database and identifies the biometric information and personal information corresponding to the collation request from the terminal.
  • the server sends the specified personal information to the terminal, and the terminal installed at the airport or the like performs business based on the acquired personal information.
  • Patent Document 1 discloses a private lodging management server that confirms the identity of a guest and unlocks a room key by using a personal video taken by a mobile terminal in a private lodging service system.
  • the main purpose of this disclosure is to provide server devices, systems, subsidy application methods and non-temporary computer-readable media that contribute to facilitating subsidy applications.
  • the service provider receives and receives payment information including the payment amount related to the payment caused by providing the service to the user and the location information regarding the place where the payment is made.
  • a determination unit that determines whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information.
  • a server device including an application unit for applying for the subsidy is provided.
  • the user terminal owned by the subsidy applicant and the server device connected to the user terminal are included, and the server device is a user of the service provider.
  • the subsidy application request is obtained from the receiving unit and the user terminal that receives the payment information including the payment amount related to the payment caused by providing the service and the location information regarding the place where the payment was made, the above
  • the judgment unit that determines whether the payment information of the applicant is the target of the subsidy application based on the applicant's address and the location information, and the payment information of the applicant is the target of the subsidy application.
  • a system comprising an application unit for applying for the subsidy is provided.
  • the service provider receives and assists payment information including the payment amount related to the payment caused by providing the service to the user and the location information regarding the place where the payment is made.
  • a subsidy application request is obtained from a money applicant, it is determined whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information, and the applicant's payment information. Is provided with a subsidy application method for applying for the subsidy when is the subject of the subsidy application.
  • the payment amount related to the payment generated by the service provider providing the service to the user and the location information regarding the place where the payment is made are performed on the computer mounted on the server device.
  • the process of receiving payment information including A computer-readable non-temporary process that stores a program for executing the process of determining whether or not the application is made, and the process of applying for the subsidy when the payment information of the applicant is the target of the application for the subsidy.
  • Computer-readable media is provided.
  • a server device a system, a subsidy application method, and a non-temporary computer-readable medium that contribute to facilitating the application of a subsidy are provided.
  • the effects of the present disclosure are not limited to the above. According to the present disclosure, other effects may be produced in place of or in combination with the effect.
  • the server device 100 includes a receiving unit 101, a determination unit 102, and an application unit 103 (see FIG. 1).
  • the receiving unit 101 receives payment information including the payment amount related to the payment caused by the service provider providing the service to the user and the location information regarding the place where the payment was made.
  • the determination unit 102 obtains the subsidy application request from the subsidy applicant, the determination unit 102 determines whether or not the applicant's payment information is the target of the subsidy application based on the applicant's address and the above location information.
  • the application unit 103 applies for a subsidy when the payment information of the applicant is the target of the subsidy application.
  • the server device 100 acquires details (payment information) regarding the consumption behavior of the user from the service provider (particularly, the service provider who provides the service using biometric authentication).
  • the server device 100 automatically calculates the subsidy application amount when the consumption behavior satisfies a predetermined subsidy application condition (for example, sightseeing across prefectures).
  • the server device 100 applies for a subsidy using the calculated application amount. As a result, the user does not need to total the amount paid at the tourist spot or calculate the application amount, and can easily apply for the subsidy.
  • FIG. 2 is a diagram showing an example of a schematic configuration of the authentication system (subsidy application system) according to the first embodiment.
  • the authentication system includes a user terminal 10, a management server 20, an authentication terminal 30, and a server device 40.
  • Each device shown in FIG. 2 is connected by a wired or wireless communication means and is configured to be able to communicate with each other.
  • the authentication system shown in FIG. 2 includes a plurality of service providers.
  • Service providers are hotel operators, retailers, etc. that operate in tourist areas and the like.
  • the authentication system performs biometric authentication of the user who visits the service provider.
  • the service provider provides the service to the user specified by biometric authentication.
  • the authentication system shown in FIG. 2 when a user visits a tourist spot or the like and performs an action involving payment of money (consumption behavior), does the consumption behavior fall under the subsidy of a public institution? Judge whether or not. After sightseeing, the user applies for a subsidy.
  • the certification system supports the application for the subsidy. Specifically, the authentication system collectively applies for a subsidy for the consumption behavior of the user who is the target of the subsidy application (on behalf of the application).
  • the user terminal 10 is a terminal possessed by the user of the authentication system.
  • Examples of the user terminal 10 include mobile terminal devices such as smartphones, mobile phones, game machines, and tablets.
  • the user inputs various information into the system via the user terminal 10 or acquires various information from the system and the service provider.
  • a service provider is a business operator that provides various services to users.
  • the service provider installs and manages the management server 20 and the authentication terminal 30.
  • FIG. 2 illustrates two service providers, it is of course not intended to limit the number of service providers.
  • the system may include at least one service provider. Since the configuration of the service providers included in the system can be the same, the service provider S1 will be mainly described and the explanations of the other service providers will be omitted.
  • the management server 20 is a server that controls and manages the entire business of the service provider. For example, when the service provider is a retail store, the management server 20 performs payment processing and the like. Alternatively, if the service provider is a hotel operator, the management server 20 performs check-in and check-out processing for guests.
  • the authentication terminal 30 is a terminal that serves as an interface for users who visit the service provider.
  • the user receives various services via the authentication terminal 30. For example, when the service provider is a retail store, the user pays the price using the authentication terminal 30. Alternatively, if the service provider is a hotel operator, the user performs a check-in procedure using the authentication terminal 30.
  • the server device 40 realizes biometric authentication using biometric information.
  • the server device 40 operates as a certificate authority in the authentication system.
  • the server device 40 stores the user's biological information (for example, a face image or a feature amount generated from the face image) and personal information (for example, a name, an address, a credit information, an e-mail address, etc.) in association with each other.
  • biological information for example, a face image or a feature amount generated from the face image
  • personal information for example, a name, an address, a credit information, an e-mail address, etc.
  • the server device 40 confirms the user's identity by using the identification documents such as the user's passport and My Number card when the user's system is registered.
  • the server device 40 stores biological information and personal information regarding the user whose identity has been confirmed. That is, the information registered in the server device 40 is legitimate information whose identity has been confirmed.
  • the server device 40 stores information about each of the plurality of users whose identities have been confirmed.
  • the biometric information of the user exemplifies data (feature amount) calculated from physical characteristics peculiar to an individual such as a face, a fingerprint, a voice print, a vein, a retina, and an iris pattern (pattern) of the pupil.
  • data feature amount
  • the biometric information of the user may be image data such as a face image and a fingerprint image.
  • the biometric information of the user may be any information that includes the physical characteristics of the user.
  • the authentication terminal 30 acquires the biometric information (face image) of the user and sends it to the management server 20.
  • the management server 20 generates a feature amount from the acquired biometric information, and transmits a "authentication request" including the feature amount to the server device 40.
  • the server device 40 processes the "authentication request" transmitted from the service provider and transmits the authentication result to the service provider.
  • the server device 40 succeeds in authentication using the biometric information of the user, the server device 40 transmits the user ID (Identifier), personal information, etc. of the successful authentication person to the service provider (notifies the success of the authentication). If the authentication fails, the server device 40 notifies the service provider of the authentication failure.
  • the service provider provides the service to the successful authentication person. If the service provider is a hotel operator, the management server 20 performs procedures such as accommodation reservation, check-in, and check-out based on the information acquired from the server device 40. For example, when the management server 20 executes the checkout process, the management server 20 uses the credit information (information for credit payment) acquired from the server device 40 to settle the accommodation expenses and the like.
  • the management server 20 performs payment processing related to product purchase based on credit information.
  • the management server 20 transmits the details as "payment information" to the server device 40.
  • the payment information includes the user ID of the user, the payment amount, the location information of the service provider (the place visited by the user), and the like. That is, the management server 20 reports the payment amount and payment location information to the server device 40 for the user who has completed the payment.
  • the server device 40 stores the payment information acquired from the management server 20 in the database.
  • the server device 40 continues to be related to the "subsidy application". Specifically, the user terminal 10 transmits a "subsidy application request" to the server device 40.
  • the server device 40 determines whether or not each consumption behavior (payment information) of the applicant stored in the database corresponds to the application target of the subsidy determined by the national government or the like. Specifically, the server device 40 determines whether or not each consumption behavior falls under the object of the application based on the address of the applicant and the place of visit (the address of the service provider who paid the money). For example, if the movement (travel) across prefectures is the target of the subsidy application, the user's address is "Kanto", and the visited place is "Kansai", the consumption behavior is judged to be the target of the subsidy. ..
  • the server device 40 After determining whether or not each consumption behavior is subject to subsidy application, the server device 40 calculates the total settlement amount of each payment information determined to be subject to subsidy application.
  • the server device 40 treats the total value as an application amount to be submitted to a public institution. In this way, the server device 40 calculates the total amount of money paid by the user to the hotel operator and the like, and collectively applies for the subsidy associated with tourism.
  • Public institutions pay subsidies to designated bank accounts, credit card accounts, etc.
  • the refund as a subsidy is not limited to cash, but may be points or virtual currency that can be used by various service providers.
  • the user When receiving assistance with points or virtual currency, the user notifies a public institution of information such as an account that accepts the points or the like via the server device 40.
  • the user terminal 10 displays a GUI for obtaining the user's intention as to how to receive the subsidy refund. You may.
  • the configuration shown in FIG. 2 is an example and does not mean to limit the system configuration.
  • the service provider's authentication terminal 30 and the management server 20 may be integrated, and one device may be responsible for the service provider's business.
  • FIG. 3 is a diagram showing an example of the internal configuration of the processing configuration (processing module) of the user terminal 10.
  • a communication control unit 201 a user registration unit 202, a subsidy application request unit 203, a message output unit 204, and a storage unit 205 are provided.
  • the communication control unit 201 is a means for controlling communication with other devices. For example, the communication control unit 201 receives data (packets) from the server device 40. Further, the communication control unit 201 transmits data to the server device 40. The communication control unit 201 passes the data received from the other device to the other processing module. The communication control unit 201 transmits the data acquired from the other processing module to the other device. In this way, the other processing module transmits / receives data to / from the other device via the communication control unit 201.
  • the user registration unit 202 is a means for performing user registration regarding the use of the authentication system.
  • the user registration unit 202 uses a GUI (Graphical User Interface) or the like to provide biometric information (for example, a face image) and personal information (for example, name, date of birth, gender, address, credit information, email address, etc.) of the user. ), Get a copy of your identity verification documents (eg my number card, passport).
  • GUI Graphic User Interface
  • the user's address is the address stated on the user's resident's card.
  • the credit information is a credit account number or the like in the name of the user.
  • the user registration unit 202 transmits the acquired information (biological information, personal information, identity verification document) to the server device 40.
  • the subsidy application request unit 203 is a means for requesting the server device 40 to apply for a subsidy (subsidy application).
  • the subsidy application requesting unit 203 acquires the user's intention regarding the subsidy application by using the GUI or the like.
  • the subsidy application requesting unit 203 transmits a "subsidy application request" to the server device 40.
  • the subsidy application request contains information for identifying the applicant.
  • information for identifying the applicant For example, the name, personal number, passport number, etc. are exemplified as information for identifying the applicant. Alternatively, biometric information may be used as information for identifying the applicant.
  • the message output unit 204 is a means for outputting various messages.
  • the storage unit 205 is a means for storing information necessary for the operation of the user terminal 10.
  • FIG. 4 is a diagram showing an example of the processing configuration (processing module) of the management server 20.
  • the management server 20 includes a communication control unit 301, an authentication request unit 302, a function realization unit 303, a payment information transmission unit 304, and a storage unit 305.
  • the communication control unit 301 is a means for controlling communication with other devices. For example, the communication control unit 301 receives data (packets) from the server device 40. Further, the communication control unit 301 transmits data to the server device 40. The communication control unit 301 passes the data received from the other device to the other processing module. The communication control unit 301 transmits the data acquired from the other processing module to the other device. In this way, the other processing module transmits / receives data to / from another device via the communication control unit 301.
  • the authentication request unit 302 is a means for requesting the server device 40 for biometric authentication of the user.
  • the authentication requesting unit 302 acquires the user's biometric information (face image) from the authentication terminal 30, the authentication requesting unit 302 generates a feature amount from the face image.
  • the authentication request unit 302 transmits an authentication request including the generated feature amount (biological information) to the server device 40.
  • the authentication request unit 302 receives the authentication result from the server device 40.
  • the authentication request unit 302 acquires the authentication success (affirmative response)
  • the authentication request unit 302 transfers the user ID and personal information (for example, name, age, credit information, etc.) of the person to be authenticated included in the response to the function realization unit 303. hand over.
  • the authentication request unit 302 obtains an authentication failure (negative response) from the server device 40, the authentication request unit 302 notifies the person to be authenticated to that effect.
  • the function realization unit 303 is a means for realizing the functions related to the business of each service provider. If the service provider is a hotel operator, the function realization unit 303 performs check-in and check-out procedures.
  • the function realization unit 303 When performing the user's check-in procedure, the function realization unit 303 specifies the corresponding reservation information using the guest's name acquired through the authentication request unit 302. The function realization unit 303 performs a check-in procedure or the like using the specified reservation information.
  • the function realization unit 303 When performing the user's check-out procedure, the function realization unit 303 identifies the accommodation information using the guest's name and calculates the accommodation expenses and the like. The function realization unit 303 setstles the calculated accommodation expenses and the like using the credit information acquired from the server device 40. Specifically, the function realization unit 303 performs a procedure for billing the account or the like indicated by the credit information.
  • the management server 20 (function realization unit 303) of the retail business pays the price using the credit information acquired from the server device 40, as in the hotel checkout process.
  • the function realization unit 303 When the function realization unit 303 performs payment processing using credit information, the details are handed over to the payment information transmission unit 304.
  • the payment information transmission unit 304 is a means for transmitting payment information to the server device 40.
  • the payment information transmission unit 304 transmits payment information including the user ID, payment amount, visited place (service provider's place), etc. of the user (authentication successful person) who is the target of payment processing to the server device 40.
  • the location information latitude, longitude of the place where the service is provided to the user is used.
  • the storage unit 305 is a means for storing information necessary for the operation of the management server 20.
  • FIG. 5 is a diagram showing an example of a processing configuration (processing module) of the authentication terminal 30.
  • the authentication terminal 30 includes a communication control unit 401, a biometric information acquisition unit 402, a message output unit 403, and a storage unit 404.
  • the communication control unit 401 is a means for controlling communication with other devices. For example, the communication control unit 401 receives data (packets) from the management server 20. Further, the communication control unit 401 transmits data to the management server 20. The communication control unit 401 passes the data received from the other device to the other processing module. The communication control unit 401 transmits the data acquired from the other processing module to the other device. In this way, the other processing module transmits / receives data to / from the other device via the communication control unit 401.
  • the biometric information acquisition unit 402 is a means for controlling the camera device to acquire the biometric information (for example, a face image) of the user.
  • the biometric information acquisition unit 402 transmits the acquired biometric information to the management server 20.
  • the message output unit 403 is a means for outputting various messages using a device such as a liquid crystal panel or a speaker.
  • the message output unit 403 notifies the user of a message from the management server 20 (a message according to the authentication result) and a procedural message (a message at the time of the check-in procedure).
  • the storage unit 404 is a means for storing necessary information for the operation of the authentication terminal 30.
  • FIG. 6 is a diagram showing an example of a processing configuration (processing module) of the server device 40.
  • the server device 40 includes a communication control unit 501, a user registration unit 502, an authentication request processing unit 503, a payment information processing unit 504, a subsidy application unit 505, and a storage unit 506. To prepare for.
  • the communication control unit 501 is a means for controlling communication with other devices. For example, the communication control unit 501 receives data (packets) from the management server 20. Further, the communication control unit 501 transmits data to the management server 20. The communication control unit 501 passes the data received from the other device to the other processing module. The communication control unit 501 transmits the data acquired from the other processing module to the other device. In this way, the other processing module transmits / receives data to / from the other device via the communication control unit 501.
  • the communication control unit 501 operates as a receiving unit for receiving payment information, a subsidy application request, and the like.
  • the user registration unit 502 is a means for realizing the system registration of the user.
  • the user registration unit 502 acquires biometric information, personal information, identity verification documents, and the like from the user (user terminal 10).
  • the user registration unit 502 When the user registration unit 502 acquires the above information, the user registration unit 502 confirms the identity (identity confirmation) of the applicant regarding the system registration. Specifically, the user registration unit 502 verifies whether or not the acquired biometric information (face image) and the face image described in the identification document substantially match. When the two facial images substantially match, the user registration unit 502 determines that the identity of the applicant has been successfully confirmed.
  • the user registration unit 502 generates a feature amount (feature vector) from the two face images, and when the distance (Euclidean distance, etc.) of the feature vector is larger than the threshold value, the two face images substantially match. Then it is determined.
  • the user registration unit 502 When the user registration unit 502 succeeds in confirming the identity of the applicant, the user registration unit 502 generates a user ID (Identifier) for uniquely identifying the user. For example, the user registration unit 502 may assign a unique value to the user ID each time the user is registered.
  • a user ID Identity
  • the user registration unit 502 may assign a unique value to the user ID each time the user is registered.
  • the user registration unit 502 registers the user ID, biometric information (feature amount, face image), personal information, identity verification documents, etc. in the authentication information database.

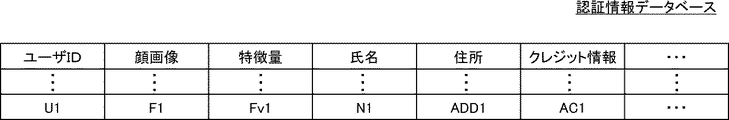

  • the authentication information database stores user IDs, biometric information, personal information, identity verification documents, etc. in association with each other (see FIG. 7). As shown in FIG. 7, the authentication information database stores the user ID, biometric information, and personal information of the user in association with each other.
  • the authentication request processing unit 503 is a means for processing the authentication request acquired from the management server 20.
  • the authentication request processing unit 503 acquires biometric information (feature amount) from the authentication request acquired from the management server 20.
  • the authentication request processing unit 503 sets the acquired feature amount on the collation side and the feature amount stored in the authentication information database on the registration side, and executes one-to-N collation (N is a positive integer, the same applies hereinafter). As a result of the collation process, the authentication request processing unit 503 determines that the authentication has been successful if the feature amount substantially matching the feature amount on the collation side is registered in the authentication information database. .. In this case, the authentication request processing unit 503 sends an acknowledgment to the management server 20. As a result of the collation process, if the feature amount substantially matching the feature amount on the collation side is not registered in the authentication information database, the authentication request processing unit 503 determines that the authentication has failed. In this case, the authentication request processing unit 503 sends a negative response to the management server 20.
  • the authentication request processing unit 503 sends a response including the user ID of the successful authentication person and personal information (for example, name, credit information, etc.) to the management server 20.
  • the payment information processing unit 504 is a means for processing payment information acquired from the service provider (management server 20).
  • the payment information processing unit 504 manages payment information separately for each user. Specifically, when the payment information processing unit 504 acquires the payment information, the payment information is registered in the payment information database.
  • FIG. 8 is a diagram showing an example of a payment information database.
  • the payment information database stores the payment amount and the visited place for each user ID.
  • the location information of the service provider is stored in the visited field.
  • the area names (Kanto, Kansai) of each visited place are shown for easy understanding.
  • the payment information processing unit 504 When the payment information processing unit 504 acquires payment information from the management server 20, it retrieves the user ID and identifies the corresponding entry (user ID stored in the payment information database) using the user ID as a key. The payment information processing unit 504 adds a value included in the payment information to the payment amount field and the visited place field of the specified user ID.
  • the payment information database shown in FIG. 8 is an example, and does not mean to limit the information to be stored.
  • the payment information database may also store the date and time when the payment information was acquired.
  • the subsidy application unit 505 is a means for applying for a subsidy in response to a request from a user.
  • the subsidy application unit 505 receives the subsidy application request from the user terminal 10.
  • the subsidy application unit 505 acquires information (for example, name, personal number, etc.) that identifies the user from the subsidy application request.
  • the subsidy application unit 505 searches the authentication information database using the acquired name and the like as a key, and identifies the corresponding entry.
  • the subsidy application unit 505 reads out the user ID, address, and credit information from the specified entry.
  • the subsidy application unit 505 searches the payment information database using the read user ID as a key, and identifies the corresponding user ID.
  • the subsidy application unit 505 compares the address of the applicant with each visiting place associated with the specified user ID, and determines whether or not the consumption behavior stored in the payment information database is the target of the subsidy application.
  • the applicant's address is "Kanto".
  • the consumption of the first to third lines among the four consumption behaviors of the applicant is performed in Kansai, it is determined to be the target of the subsidy application. ..
  • the consumption in the fourth line of the four consumption behaviors of the applicant is not subject to the subsidy application because it was done in the same Kanto area as the applicant's address.
  • the subsidy application department 505 determines whether or not the applicant's actions correspond to the subsidy application based on the applicant's address and the place of visit of the applicant (the location of the service provider). judge.
  • the subsidy application unit 505 makes the above determination according to the subsidy application criteria. For example, if the condition of the subsidy application is that the "prefecture" to which the applicant's address belongs and the "prefecture" of the visited place are different, the subsidy application department 505 determines whether or not the applicant's movement crosses prefectures. Should be determined. At that time, the subsidy application unit 505 uses the table information (see FIG. 9) of the position range (for example, the range on the rectangle determined by the coordinates of four points) that defines the prefectural border of each prefecture, and each of the two position information is It suffices to determine whether it belongs to a different prefecture or the same prefecture.
  • the position range for example, the range on the rectangle determined by the coordinates of four points
  • the subsidy application unit 505 calculates the distance between the two positions (address, place of visit). , Determine whether or not the subsidy application is applicable according to the distance.
  • the subsidy application unit 505 adds up the payment amount for the payment (consumption behavior) determined to be the target of the subsidy.
  • the total amount of the settlement amounts of the first to third lines of the user U1 is calculated as the application amount of 70,000 yen.
  • the subsidy application department 505 submits a subsidy application including the application amount to a public institution (for example, the Ministry of Economy, Trade and Industry).
  • a public institution for example, the Ministry of Economy, Trade and Industry.
  • the subsidy application unit 505 submits information such as the name of the applicant, the transfer destination of the subsidy (credit information, etc.), the application amount, and the like to the server of a public institution.
  • the storage unit 506 is a means for storing information necessary for the operation of the server device 40.
  • FIG. 10 is a sequence diagram showing an example of the authentication operation of the authentication system according to the first embodiment.
  • the management server 20 transmits an authentication request regarding the user in front of the authentication terminal 30 to the server device 40 (step S01).
  • the server device 40 executes the authentication process in response to receiving the authentication request (step S02).
  • the server device 40 transmits the authentication result (authentication success, authentication failure) to the management server 20 (step S03). If the authentication is successful, the server device 40 transmits a response including the user ID and personal information of the successful authentication person.
  • the management server 20 Upon receiving the successful authentication, the management server 20 provides the service using the acquired personal information and the like (step S04).
  • the management server 20 transmits the payment information to the server device 40 (step S05).
  • the server device 40 stores the received payment information in the payment information database (step S06).
  • FIG. 11 is a sequence diagram showing an example of the subsidy application operation of the authentication system according to the first embodiment.
  • a user who wishes to apply for a subsidy inputs that fact in the user terminal 10.
  • the user terminal 10 transmits a subsidy application request to the server device 40 (step S11).
  • the server device 40 extracts the name and the like from the subsidy application request and identifies the applicant (step S12).
  • the server device 40 refers to the payment information database and determines whether or not each payment information (consumption behavior) of the applicant is subject to the subsidy application (step S13). If the payment information to be applied does not exist, the server device 40 sends a negative response (subsidy application is not possible) to the user terminal 10.
  • the server device 40 totals the payment amounts of the payment information and calculates the application amount (step S14).
  • the server device 40 transmits a subsidy application including the application amount to a server or the like of a public institution (step S15).
  • the server device 40 transmits a response to the subsidy application request (step S16). If the application is normally accepted by the server of a public institution or the like, the server device 40 transmits an acknowledgment (application acceptance) to the user terminal 10. If the application is not normally accepted, the server device 40 sends a negative response (application rejection) to the user terminal 10.
  • the server device 40 is the payment amount related to the payment generated by the service provider providing the service to the user and the location information (visited place) regarding the place where the payment was made. Receive payment information including.
  • the server device 40 obtains the subsidy application request from the subsidy applicant, whether or not the applicant's payment information (consumption behavior) is the target of the subsidy application based on the applicant's address and the applicant's place of visit. To judge.
  • the server device 40 calculates the application amount and applies for the subsidy (collective application for the subsidy). In this way, since the server device 40 automatically calculates the application amount of the subsidy, it is not necessary to total the amount paid by the user at the tourist spot or calculate the application amount. As a result, the user can easily apply for the subsidy.
  • FIG. 12 is a diagram showing an example of the hardware configuration of the server device 40.
  • the server device 40 can be configured by an information processing device (so-called computer), and includes the configuration illustrated in FIG.
  • the server device 40 includes a processor 311, a memory 312, an input / output interface 313, a communication interface 314, and the like.
  • the components such as the processor 311 are connected by an internal bus or the like and are configured to be able to communicate with each other.
  • the configuration shown in FIG. 12 does not mean to limit the hardware configuration of the server device 40.
  • the server device 40 may include hardware (not shown) or may not include an input / output interface 313 if necessary.
  • the number of processors 311 and the like included in the server device 40 is not limited to the example of FIG. 12, and for example, a plurality of processors 311 may be included in the server device 40.
  • the processor 311 is a programmable device such as a CPU (Central Processing Unit), an MPU (Micro Processing Unit), and a DSP (Digital Signal Processor). Alternatively, the processor 311 may be a device such as an FPGA (Field Programmable Gate Array) or an ASIC (Application Specific Integrated Circuit). The processor 311 executes various programs including an operating system (OS).
  • OS operating system
  • the memory 312 is a RAM (RandomAccessMemory), a ROM (ReadOnlyMemory), an HDD (HardDiskDrive), an SSD (SolidStateDrive), or the like.
  • the memory 312 stores an OS program, an application program, and various data.
  • the input / output interface 313 is an interface of a display device or an input device (not shown).
  • the display device is, for example, a liquid crystal display or the like.
  • the input device is, for example, a device that accepts user operations such as a keyboard and a mouse.
  • the communication interface 314 is a circuit, module, etc. that communicates with other devices.
  • the communication interface 314 includes a NIC (Network Interface Card) and the like.
  • the function of the server device 40 is realized by various processing modules.
  • the processing module is realized, for example, by the processor 311 executing a program stored in the memory 312.
  • the program can be recorded on a computer-readable medium that can be read by a computer.
  • the computer-readable medium can be a non-transitory such as a semiconductor memory, a hard disk, a magnetic recording medium, or an optical recording medium. That is, the present disclosure can also be embodied as a computer program product.
  • the program can be downloaded via a network or updated using a computer-readable medium in which the program is stored.
  • the processing module may be realized by a semiconductor chip.
  • the user terminal 10, the management server 20, the authentication terminal 30, and the like can also be configured by the information processing device in the same manner as the server device 40, and the basic hardware configuration thereof is not different from that of the server device 40. Is omitted.
  • the server device 40 is equipped with a computer, and the function of the server device 40 can be realized by causing the computer to execute a program. Further, the server device 40 executes the subsidy application method by the program.
  • the server device 40 may apply for a subsidy each time a user consumes a tourist spot.
  • the subsidy application unit 505 of the server device 40 acquires payment information, it determines whether or not the acquired payment information is the target of the subsidy application. If the payment information is the target of the subsidy application, the subsidy application unit 505 applies for the subsidy using the settlement amount as the application amount.
  • the server device 40 may apply for the subsidy in a plurality of times. For example, when the payment information to be applied reaches a predetermined number, the server device 40 may apply for a subsidy.
  • the payment information processing unit 504 of the server device 40 determines whether or not the payment information is the target of the subsidy application when the payment information is received.
  • the payment information processing unit 504 stores the information to the effect that the payment information is the application target when storing the information in the payment information database.
  • the application target flag field is provided in the payment information database.
  • the payment information processing unit 504 sets "1" in the application target flag field when registering the payment information to be applied for the subsidy in the database.
  • the subsidy application unit 505 may calculate the total settlement amount of the entries in which "1" is set in the application target flag field.
  • the identity verification may be carried out by the public institution that accepts the subsidy application. That is, when applying for a subsidy, the user (user terminal 10) inputs an identity confirmation to the server device 40.
  • the server device 40 may submit the identification document to a public institution at the time of applying for the subsidy.
  • the server device 40 may pay out the user ID generated at the time of registering the user's system to the user terminal 10.
  • the user terminal 10 may use the issued user ID instead of the name or the like as the information for identifying the applicant.
  • the biometric information related to the "feature amount generated from the face image” is transmitted from the management server 20 to the server device 40.
  • the biometric information related to the "face image” may be transmitted from the management server 20 to the server device 40.
  • the server device 40 may generate a feature amount from the acquired face image and execute an authentication process (verification process).
  • the action history may be generated based on other information.
  • the action history may be generated by utilizing the reservation information (hotel reservation information), the position information by the GPS (Global Positioning System) signal, and the like.
  • the location information of the service provider is expressed by latitude and longitude has been described, but the location information may be generated for each facility.
  • the visited place may be in the form of "shopping mall A”.
  • the server device 40 may determine whether the user's consumption behavior (payment information) is the target of the subsidy application according to the different conditions.
  • the service provider may provide the server device 40 with information for realizing the determination.
  • the management server 20 may transmit payment information including information about its own industry (industry information) to the server device 40. For example, if the service provider is a hotel operator, the management server 20 sets "hotel" in the industry information and transmits it to the server device 40.
  • the server device 40 determines whether or not the subsidy application is possible by referring to the industry information registered in the payment information database. You may. With such a measure, if the consumption is made at a tourist resort (resort), it is possible to deal with the case where visiting the tourist resort is a condition for payment of the subsidy regardless of the address of the user (tourist).
  • the payment information may be transmitted to the server device 40 only to the service provider who is the target of the subsidy application.
  • the server device 40 calculates the total payment amount registered in the payment information database. It can be used as the application amount.
  • the server device 40 applies for the subsidy to a public institution.
  • the user may apply for the subsidy himself.
  • the server device 40 generates a document (electronic file) for subsidy application and transmits the document to the user terminal 10.
  • the user may print out the obtained application documents and submit them to a public institution.
  • the server device 40 applies for the subsidy in response to receiving the subsidy application from the user.
  • the server device 40 may apply for a subsidy triggered by other conditions and information. For example, before sightseeing (travel), the user inputs to the server device 40 that he / she wants to receive a refund of the subsidy.
  • the server device 40 receives the subsidy for the user who has indicated in advance the intention to receive the subsidy refund when the subsidy refund target period (the period during which the subsidy target consumption behavior is performed) has elapsed.
  • the server device 40 may determine whether or not the receipt date and time of the payment information is included in the subsidy refund period, and determine whether or not it corresponds to the consumption behavior of the subsidy application.
  • each device user terminal 10, management server 20, authentication terminal 30, server device 40
  • the data transmitted / received between these devices may be encrypted.
  • Biometric information is transmitted and received between these devices, and it is desirable that encrypted data be transmitted and received in order to appropriately protect the biometric information.
  • each embodiment may be used alone or in combination. For example, it is possible to replace a part of the configuration of the embodiment with the configuration of another embodiment, or to add the configuration of another embodiment to the configuration of the embodiment. Further, it is possible to add, delete, or replace a part of the configuration of the embodiment with another configuration.
  • this disclosure is suitably applicable to an authentication system or the like that supports a user's subsidy application.
  • [Appendix 1] A receiver that receives payment information including the payment amount related to the payment caused by the service provider providing the service to the user and the location information regarding the place where the payment was made.
  • a determination unit that determines whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information, When the payment information of the applicant is the target of the subsidy application, the application department and the application department, which applies for the subsidy, A server device.
  • the determination unit determines whether or not each of the plurality of payment information regarding the applicant is subject to the application for the subsidy.
  • the server device uses the total amount of payment information determined to be the application target among the plurality of payment information as the application amount of the subsidy.
  • Appendix 3 The user terminal owned by the subsidy applicant and The server device connected to the user terminal and Including The server device is A receiver that receives payment information including the payment amount related to the payment caused by the service provider providing the service to the user and the location information regarding the place where the payment was made.
  • a determination unit that determines whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information, When the payment information of the applicant is the target of the subsidy application, the application department and the application department, which applies for the subsidy, The system.
  • the service provider Upon receiving payment information including the payment amount related to the payment caused by the service provider providing the service to the user and the location information regarding the place where the payment was made, the service provider receives the payment information.
  • a subsidy application request is obtained from a subsidy applicant, it is determined whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information.
  • a subsidy application method for applying for the subsidy when the payment information of the applicant is the target of the subsidy application For the computer installed in the server device, The process of receiving payment information including the payment amount related to the payment caused by the service provider providing the service to the user and the location information regarding the place where the payment was made, and When a subsidy application request is obtained from a subsidy applicant, it is determined whether or not the applicant's payment information is subject to the subsidy application based on the applicant's address and the location information.
  • the process of applying for the subsidy and the process of applying for the subsidy A computer-readable, non-transitory computer-readable medium that stores programs for running.
  • Authentication terminal 40 100 Server device 101 Reception unit 102 Judgment unit 103 Application unit 201, 301, 401, 501 Communication control unit 202, 502 User registration unit 203 Subsidy application request unit 204, 403 Message output unit 205, 305, 404, 506 Storage unit 302 Authentication request unit 303 Function realization unit 304 Payment information transmission unit 311 Processor 312 Memory 313 Input / output interface 314 Communication interface 402 Biometric information acquisition unit 503 Authentication request processing unit 504 Payment information processing Department 505 Subsidy Application Department

Landscapes

  • Business, Economics & Management (AREA)
  • Tourism & Hospitality (AREA)
  • Health & Medical Sciences (AREA)
  • Economics (AREA)
  • General Health & Medical Sciences (AREA)
  • Human Resources & Organizations (AREA)
  • Marketing (AREA)
  • Primary Health Care (AREA)
  • Strategic Management (AREA)
  • Physics & Mathematics (AREA)
  • General Business, Economics & Management (AREA)
  • General Physics & Mathematics (AREA)
  • Engineering & Computer Science (AREA)
  • Theoretical Computer Science (AREA)
  • Management, Administration, Business Operations System, And Electronic Commerce (AREA)
  • Financial Or Insurance-Related Operations Such As Payment And Settlement (AREA)
PCT/JP2020/021195 2020-05-28 2020-05-28 サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体 Ceased WO2021240749A1 (ja)

Priority Applications (3)

Application Number Priority Date Filing Date Title
PCT/JP2020/021195 WO2021240749A1 (ja) 2020-05-28 2020-05-28 サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体
JP2020556989A JP6908200B1 (ja) 2020-05-28 2020-05-28 サーバ装置、システム、補助金申請方法及びプログラム
JP2021106243A JP7548142B2 (ja) 2020-05-28 2021-06-28 サーバ装置、補助金申請方法及びプログラム

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
PCT/JP2020/021195 WO2021240749A1 (ja) 2020-05-28 2020-05-28 サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体

Publications (1)

Publication Number Publication Date
WO2021240749A1 true WO2021240749A1 (ja) 2021-12-02

Family

ID=76919727

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2020/021195 Ceased WO2021240749A1 (ja) 2020-05-28 2020-05-28 サーバ装置、システム、補助金申請方法及び非一時的なコンピュータ可読媒体

Country Status (2)

Country Link
JP (2) JP6908200B1 (https=)
WO (1) WO2021240749A1 (https=)

Families Citing this family (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2023007768A1 (ja) * 2021-07-30 2023-02-02 日本電気株式会社 情報処理システム、情報処理方法、及びコンピュータ読み取り可能な記憶媒体
JP7786075B2 (ja) * 2021-08-24 2025-12-16 Ｔｏｐｐａｎホールディングス株式会社 情報処理システム、情報管理サーバ、情報管理方法、及びプログラム
JP2023096270A (ja) * 2021-12-27 2023-07-07 株式会社日本総合研究所 クレジットカードシステム

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2006350679A (ja) * 2005-06-16 2006-12-28 Jtb Corp 補助金支給システムとそれを実現するためのコンピュータプログラムとその方法
KR101600071B1 (ko) * 2015-03-17 2016-04-04 (주)에니아소프트 택시보조금 관리 시스템 및 그 방법
WO2016158121A1 (ja) * 2015-03-30 2016-10-06 フェリカネットワークス株式会社 情報処理装置、情報処理方法、および情報処理システム

Family Cites Families (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP4922497B2 (ja) 2001-04-09 2012-04-25 株式会社ジェーシービー 逆ポイントシステム
JP2009161080A (ja) 2008-01-08 2009-07-23 Nec Saitama Ltd 降車補助サービスシステム、サーバ装置、降車補助サービス方法、及びプログラム
JP2019082972A (ja) 2017-10-31 2019-05-30 株式会社ｊｉｎｚｙ 管理装置、管理方法、管理プログラム及び管理システム
JP2019175402A (ja) 2018-03-29 2019-10-10 株式会社バンダイナムコエンターテインメント サーバシステム

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2006350679A (ja) * 2005-06-16 2006-12-28 Jtb Corp 補助金支給システムとそれを実現するためのコンピュータプログラムとその方法
KR101600071B1 (ko) * 2015-03-17 2016-04-04 (주)에니아소프트 택시보조금 관리 시스템 및 그 방법
WO2016158121A1 (ja) * 2015-03-30 2016-10-06 フェリカネットワークス株式会社 情報処理装置、情報処理方法、および情報処理システム

Also Published As

Publication number Publication date
JPWO2021240749A1 (https=) 2021-12-02
JP2021190132A (ja) 2021-12-13
JP6908200B1 (ja) 2021-07-21
JP7548142B2 (ja) 2024-09-10

Similar Documents

Publication Publication Date Title
JP7036300B1 (ja) システム、認証方法、認証端末、認証端末の制御方法及びプログラム
US20240169429A1 (en) Method and system for obtaining credit
JP7548142B2 (ja) サーバ装置、補助金申請方法及びプログラム
JP7124979B2 (ja) サーバ装置、認証システム、認証方法、プログラム及び方法
JP2015049908A (ja) 識別システム
JP7794257B2 (ja) 端末、システム、端末の制御方法及びプログラム
US12212563B2 (en) Authentication system, terminal, control method for terminal, and storage medium
JP7409411B2 (ja) サーバ、システム、サーバの制御方法、プログラム、端末、及び端末の制御方法
JP2025088095A (ja) 端末、システム、端末の制御方法及びプログラム
JP7827188B2 (ja) サーバ装置、システム、サーバ装置の制御方法及びプログラム
JP7363982B2 (ja) 認証端末、認証端末の制御方法及びプログラム
JP2022157339A (ja) 電子決済システム、電子決済方法、及びプログラム
JP2022060300A (ja) 障害者支援の情報処理方法、プログラム及び障害者支援の情報処理装置
JP7589863B2 (ja) サーバ装置、システム、サーバ装置の制御方法及びプログラム
JP7589865B2 (ja) サーバ装置、システム、サーバ装置の制御方法及びプログラム
JP7589864B2 (ja) サーバ装置、システム、サーバ装置の制御方法及びプログラム
JP7643643B2 (ja) サーバ装置、システム、サーバ装置の制御方法及びプログラム
JP7609166B2 (ja) 認証システム、端末、管理サーバ、個人情報提供方法及びプログラム
EP3090402A1 (en) Check-in systems and methods
JP2025030345A (ja) サーバ装置、サーバ装置の制御方法及びプログラム
WO2025009106A1 (ja) サーバ装置、サーバ装置の制御方法及び記憶媒体
WO2024241546A1 (ja) サーバ装置、システム、サーバ装置の制御方法及び記憶媒体
WO2025262768A1 (ja) サーバ装置、システム、サーバ装置の制御方法及び記憶媒体
WO2025027828A1 (ja) サーバ装置、サーバ装置の制御方法、記憶媒体及びシステム
JP2023076529A (ja) 方法、サーバ装置及びプログラム

Legal Events

Date Code Title Description
ENP Entry into the national phase

Ref document number: 2020556989

Country of ref document: JP

Kind code of ref document: A

121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 20938199

Country of ref document: EP

Kind code of ref document: A1

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 20938199

Country of ref document: EP

Kind code of ref document: A1
