WO2016132727A1 - 重合体およびポジ型レジスト組成物 - Google Patents

重合体およびポジ型レジスト組成物 Download PDF

Info

Publication number
WO2016132727A1
WO2016132727A1 PCT/JP2016/000772 JP2016000772W WO2016132727A1 WO 2016132727 A1 WO2016132727 A1 WO 2016132727A1 JP 2016000772 W JP2016000772 W JP 2016000772W WO 2016132727 A1 WO2016132727 A1 WO 2016132727A1
Authority
WO
WIPO (PCT)
Prior art keywords
polymer
molecular weight
positive resist
less
average molecular
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2016/000772
Other languages
English (en)
French (fr)
Inventor
学 星野
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Zeon Corp
Original Assignee
Zeon Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Zeon Corp filed Critical Zeon Corp
Priority to JP2017500514A priority Critical patent/JP6680291B2/ja
Publication of WO2016132727A1 publication Critical patent/WO2016132727A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • CCHEMISTRY; METALLURGY
    • C08ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08FMACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F212/00Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by an aromatic carbocyclic ring
    • C08F212/02Monomers containing only one unsaturated aliphatic radical
    • C08F212/04Monomers containing only one unsaturated aliphatic radical containing one ring
    • C08F212/06Hydrocarbons
    • CCHEMISTRY; METALLURGY
    • C08ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08FMACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F220/00Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical or a salt, anhydride ester, amide, imide or nitrile thereof
    • C08F220/02Monocarboxylic acids having less than ten carbon atoms; Derivatives thereof
    • C08F220/10Esters
    • C08F220/22Esters containing halogen
    • GPHYSICS
    • G03PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03FPHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F7/00Photomechanical, e.g. photolithographic, production of textured or patterned surfaces, e.g. printing surfaces; Materials therefor, e.g. comprising photoresists; Apparatus specially adapted therefor
    • G03F7/004Photosensitive materials
    • G03F7/039Macromolecular compounds which are photodegradable, e.g. positive electron resists
    • GPHYSICS
    • G03PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03FPHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F7/00Photomechanical, e.g. photolithographic, production of textured or patterned surfaces, e.g. printing surfaces; Materials therefor, e.g. comprising photoresists; Apparatus specially adapted therefor
    • G03F7/20Exposure; Apparatus therefor

Definitions

  • the present invention relates to a polymer and a positive resist composition, and particularly to a polymer that can be suitably used as a positive resist and a positive resist composition containing the polymer.
  • ionizing radiation such as an electron beam and short wavelength light such as ultraviolet rays (hereinafter, ionizing radiation and short wavelength light may be collectively referred to as “ionizing radiation or the like”).
  • ionizing radiation and short wavelength light may be collectively referred to as “ionizing radiation or the like”.
  • a polymer whose main chain is cleaved by irradiation and has increased solubility in a developing solution is used as a main chain-cutting positive resist.
  • Patent Document 1 discloses ⁇ -methylstyrene / ⁇ -methyl chloroacrylate containing ⁇ -methylstyrene units and ⁇ -methyl chloroacrylate units as high-sensitivity main-chain-breaking positive resists.
  • a positive resist made of a copolymer is disclosed.
  • the following is required in order to efficiently form a high resolution resist pattern. It is done. That is, while suppressing the dissolution of the unexposed part in the developer to ensure the resolution of the resist pattern, by suppressing the phenomenon that the exposed part remains in the developer without being dissolved (tailing), There is a demand for reducing the amount of ionizing radiation and the like required for forming a resist pattern while improving the resolution.
  • the positive resist composed of ⁇ -methylstyrene / ⁇ -methyl chloroacrylate copolymer described in Patent Document 1 has both a high level of both tailing and dissolution in a developer in an unexposed area. It was difficult to suppress. In recent years, methods for eliminating tailing by adjusting development process conditions (processing time, rotational speed of the developing platform in shower development, etc.) have been studied, but this method tends to complicate the development process. There is also a possibility that the unexposed portion is excessively dissolved in the developer. Therefore, there is a demand for a technology that achieves both the suppression of tailing in the positive resist and the securing of the dissolution resistance of the unexposed portion in a balanced manner by improving the properties of the polymer constituting the positive resist.
  • an object of the present invention is to provide a polymer that can be used satisfactorily as a positive resist in which tailing is suppressed and dissolution resistance to a developing solution in an unexposed portion is sufficiently secured.
  • Another object of the present invention is to provide a positive resist composition that can efficiently form a high-resolution resist pattern.
  • the present inventor has intensively studied to achieve the above object.
  • the inventor has found that the ⁇ -methylstyrene / ⁇ -chloromethyl acrylate copolymer having a predetermined molecular weight distribution and a ratio of the component having a molecular weight of less than 6000 is within a predetermined range has no tailing.
  • the present invention has been completed by finding out that it can be satisfactorily used as a positive resist which is sufficiently suppressed and sufficiently resistant to dissolution in a developer in an unexposed portion.
  • the present invention aims to advantageously solve the above-mentioned problems, and the polymer of the present invention contains ⁇ -methylstyrene units and ⁇ -methyl chloroacrylate units, and has a molecular weight distribution.
  • Mw / Mn is less than 1.25, and the proportion of components having a molecular weight of less than 6000 is more than 0.5% and not more than 5.0%.
  • molecular weight distribution (Mw / Mn) refers to the ratio of the weight average molecular weight (Mw) to the number average molecular weight (Mn).
  • “number average molecular weight (Mn)” and “weight average molecular weight (Mw)” can be measured using gel permeation chromatography.
  • the proportion of the component having a molecular weight of more than 20000 is preferably 35% or more and 70% or less. If the proportion of the component having a molecular weight of more than 20000 is 35% or more and 70% or less, the tailing is further suppressed while sufficiently securing the dissolution resistance to the developer in the unexposed area when used as a positive resist, This is because the sensitivity can be increased.
  • the polymer of the present invention preferably has a weight average molecular weight (Mw) of 25000 or less. This is because if the weight average molecular weight (Mw) is 25000 or less, the sensitivity can be enhanced while further suppressing tailing when used as a positive resist.
  • the present invention aims to advantageously solve the above-mentioned problems, and the positive resist composition of the present invention is characterized by containing any of the above-mentioned polymers and a solvent. If the polymer described above is contained as a positive resist, a high-resolution resist pattern can be efficiently formed.
  • the polymer of the present invention it is possible to provide a positive resist in which tailing is suppressed and dissolution resistance to a developing solution in an unexposed portion is sufficiently ensured. Moreover, according to the positive resist composition of the present invention, a high-resolution resist pattern can be efficiently formed.
  • the polymer of the present invention can be used favorably as a main chain-cutting positive resist in which the main chain is cut by irradiation with ionizing radiation such as an electron beam or light having a short wavelength such as ultraviolet light to reduce the molecular weight. can do.
  • the positive resist composition of the present invention contains the polymer of the present invention as a positive resist.
  • the polymer of the present invention is an ⁇ -methylstyrene / ⁇ -chloromethyl acrylate copolymer containing ⁇ -methylstyrene units and methyl ⁇ -chloroacrylate units, and has a molecular weight distribution (Mw / Mn).
  • Mw / Mn molecular weight distribution
  • the proportion of components having a molecular weight of less than 1.25 and a molecular weight of less than 6000 is more than 0.5% and not more than 5.0%.
  • the polymer of the present invention contains structural units (methyl ⁇ -chloroacrylate units) derived from methyl ⁇ -chloroacrylate having a chloro group (—Cl) at the ⁇ -position, so that ionizing radiation or the like (for example, when irradiated with an electron beam, a KrF laser, an ArF laser, an EUV laser, or the like, the main chain is easily cleaved to reduce the molecular weight.
  • the polymer of the present invention has a molecular weight distribution (Mw / Mn) of less than 1.25 and a proportion of components having a molecular weight of less than 6000 is more than 0.5% and not more than 5.0%.
  • Mw / Mn molecular weight distribution
  • the tailing when used as a resist is suppressed, and the dissolution resistance of the unexposed portion with respect to the developing solution is sufficiently ensured, so that the resist can be used favorably as a main chain cutting type positive resist.
  • the ⁇ -methylstyrene unit is a structural unit derived from ⁇ -methylstyrene. Since the polymer of the present invention has ⁇ -methylstyrene units, it exhibits excellent dry etching resistance due to the protective stability of the benzene ring when used as a positive resist.
  • the polymer of the present invention preferably contains ⁇ -methylstyrene units in a proportion of 30 mol% to 70 mol%.
  • the ⁇ -methyl chloroacrylate unit is a structural unit derived from methyl ⁇ -chloroacrylate. Since the polymer of the present invention has methyl ⁇ -chloroacrylate units, when irradiated with ionizing radiation or the like, chlorine atoms are eliminated and the main chain is easily cleaved by ⁇ -cleavage reaction. . Therefore, the positive resist made of the polymer of the present invention exhibits high sensitivity.
  • the polymer of the present invention preferably contains methyl ⁇ -chloroacrylate at a ratio of 30 mol% to 70 mol%.
  • the molecular weight distribution (Mw / Mn) of the polymer of the present invention needs to be less than 1.25, preferably 1.20 or less, more preferably 1.19 or less, and 1. More preferably, it is 16 or less.
  • the molecular weight distribution (Mw / Mn) of the polymer is 1.25 or more, tailing when used as a positive resist cannot be suppressed.
  • the molecular weight distribution (Mw / Mn) of the polymer of the present invention is preferably 1.10 or more.
  • the weight average molecular weight (Mw) of the polymer of the present invention is preferably 25000 or less, more preferably 18000 or less, preferably 9000 or more, more preferably 10,000 or more, and 12000 or more. More preferably, it is particularly preferably 15000 or more. If the weight average molecular weight (Mw) of the polymer is 25000 or less, tailing when used as a positive resist can be further suppressed, and the sensitivity can be increased. On the other hand, if the polymer has a weight average molecular weight (Mw) of 9000 or more, sufficient solubility resistance to the developer in the unexposed area can be ensured when used as a positive resist.
  • the number average molecular weight (Mn) of the polymer of the present invention is preferably 20000 or less, more preferably 16000 or less, preferably 8000 or more, more preferably 9000 or more, and 10,000 or more. It is more preferable that it is 13,000 or more. If the number average molecular weight (Mn) of the polymer is 20000 or less, tailing when used as a positive resist can be further suppressed, and the sensitivity can be increased. On the other hand, when the number average molecular weight (Mn) of the polymer is 8000 or more, when used as a positive resist, sufficient resistance to dissolution in a developer in an unexposed portion can be ensured.
  • the proportion of the component having a molecular weight of less than 6000 needs to be more than 0.5% and 5.0% or less, preferably 1.0% or more, and 2.0% More preferably, it is more preferably 4.0% or less.
  • the proportion of the component having a molecular weight of less than 6000 is 0.5% or less, tailing when used as a positive resist cannot be suppressed, and sensitivity is lowered.
  • the proportion of the component having a molecular weight of less than 6000 is more than 5.0%, when used as a positive resist, it is impossible to ensure the solubility resistance to the developer in the unexposed area.
  • the proportion of the component having a molecular weight of more than 20000 is preferably 35% or more, more preferably 40% or more, preferably 70% or less, and 60% or less. Is more preferable, and it is still more preferable that it is 50% or less.
  • the proportion of the component having a molecular weight exceeding 20000 is 35% or more, when used as a positive resist, it is possible to sufficiently ensure dissolution resistance to the developer in the unexposed area.
  • the proportion of the component having a molecular weight of more than 20000 is 70% or less, tailing when used as a positive resist can be further suppressed, and the sensitivity can be increased.
  • the ratio of the component having a molecular weight of more than 40000 is preferably 0.1% or more, preferably 4.0% or less, and more preferably 1.0% or less. . If the proportion of the component having a molecular weight of more than 40000 is 0.1% or more, sufficient solubility resistance to the developer in the unexposed area can be secured when used as a positive resist. On the other hand, if the proportion of the component having a molecular weight exceeding 40,000 is 4.0% or less, tailing when used as a positive resist can be further suppressed, and the sensitivity can be increased.
  • the polymer of the present invention preferably does not contain a proportion of components having a molecular weight of more than 60000. If it does not contain a component having a molecular weight exceeding 60,000, tailing when used as a positive resist can be further suppressed, and sensitivity can be increased.
  • the polymer having the properties described above is prepared, for example, by polymerizing a monomer composition containing ⁇ -methylstyrene and ⁇ -methyl chloroacrylate, and then purifying the obtained polymer. be able to.
  • the composition, molecular weight distribution, weight average molecular weight and number average molecular weight of the polymer, and the proportion of each molecular weight component in the polymer can be adjusted by changing the polymerization conditions and purification conditions. Specifically, for example, the weight average molecular weight and the number average molecular weight can be reduced by increasing the polymerization temperature. Further, the weight average molecular weight and the number average molecular weight can be reduced by shortening the polymerization time.
  • a monomer composition used for preparing the polymer of the present invention a monomer containing ⁇ -methylstyrene and ⁇ -methyl chloroacrylate, a solvent, and a polymerization initiator are optionally added. Mixtures with additives can be used.
  • the polymerization of the monomer composition can be performed using a known method. Among them, it is preferable to use cyclopentanone or the like as the solvent, and it is preferable to use a radical polymerization initiator such as azobisisobutyronitrile as the polymerization initiator.
  • the composition of the polymer can be adjusted by changing the content ratio of each monomer in the monomer composition used for the polymerization. Further, the proportion of the component having a high molecular weight contained in the polymer can be adjusted by changing the amount of the polymerization initiator. For example, if the amount of the polymerization initiator is decreased, The percentage can be increased.
  • the polymer obtained by polymerizing the monomer composition is not particularly limited, and after adding a good solvent such as tetrahydrofuran to the solution containing the polymer, the solution to which the good solvent is added is methanol or the like.
  • the polymer can be recovered by dripping it into a poor solvent and purified as follows.
  • the purification method used when the obtained polymer is purified to obtain the polymer having the above-described properties is not particularly limited, and a known purification method such as a reprecipitation method or a column chromatography method is used. Can do. Among them, it is preferable to use a reprecipitation method as a purification method.
  • the purification of the polymer may be repeated a plurality of times.
  • the purification of the polymer by the reprecipitation method is performed, for example, by dissolving the obtained polymer in a good solvent such as tetrahydrofuran, and then mixing the obtained solution with a good solvent such as tetrahydrofuran and a poor solvent such as methanol. It is preferable to carry out by dropping into a solvent and precipitating a part of the polymer. Thus, if the polymer solution is purified by dropping a polymer solution into a mixed solvent of a good solvent and a poor solvent, the weight obtained by changing the type and mixing ratio of the good solvent and the poor solvent can be obtained.
  • the molecular weight distribution, the weight average molecular weight, the number average molecular weight, and the proportion of components having a low molecular weight can be easily adjusted. Specifically, for example, the molecular weight of the polymer precipitated in the mixed solvent can be increased as the proportion of the good solvent in the mixed solvent is increased.
  • a polymer precipitated in a mixed solvent of a good solvent and a poor solvent may be used as long as the desired properties are satisfied
  • a polymer that has not precipitated in the mixed solvent that is, a polymer dissolved in the mixed solvent
  • the polymer which did not precipitate in the mixed solvent can be recovered from the mixed solvent by using a known method such as concentration to dryness.
  • the positive resist composition of the present invention contains the above-described polymer and a solvent, and optionally further contains known additives that can be blended into the resist composition. And since the positive resist composition of the present invention contains the above-mentioned polymer as a positive resist, if a resist film obtained by applying and drying the positive resist composition of the present invention is used, A high-resolution resist pattern can be formed efficiently.
  • solvent if it is a solvent which can dissolve the polymer mentioned above, a known solvent can be used. Among these, from the viewpoint of obtaining a positive resist composition having an appropriate viscosity and improving the coating property of the positive resist composition, it is preferable to use anisole as the solvent.
  • the obtained polymer was measured for weight average molecular weight (Mw) and number average molecular weight (Mn) using gel permeation chromatography, and molecular weight distribution (Mw / Mn) was calculated. Specifically, a gel permeation chromatograph (manufactured by Tosoh Corporation, HLC-8220) is used, tetrahydrofuran is used as a developing solvent, and the weight average molecular weight (Mw) and number average molecular weight (Mn) of the polymer are converted into standard polystyrene values. As sought. And molecular weight distribution (Mw / Mn) was computed.
  • Mw weight average molecular weight
  • Mn number average molecular weight
  • the applied positive resist composition was heated on a hot plate at a temperature of 180 ° C. for 3 minutes to form a resist film on the silicon wafer. Then, using an electron beam drawing apparatus (ELS-5700, manufactured by Elionix Co., Ltd.), a plurality of patterns (dimensions 500 ⁇ m ⁇ 500 ⁇ m) having different electron beam doses are drawn on the resist film, and amyl acetate is used as a resist developer. (Developed by Nippon Zeon, ZED-N50) was developed at a temperature of 23 ° C. for 1 minute, and then rinsed with isopropyl alcohol for 10 seconds. The dose of electron beam was varied by 4 ⁇ C within a range of 4 ⁇ C to 152 ⁇ C.
  • the thickness of the resist film in the drawn portion is measured with an optical film thickness meter (Dainippon Screen, Lambda Ace), the common logarithm of the total irradiation amount of the electron beam, and the remaining film ratio of the resist film after development
  • an optical film thickness meter Dainippon Screen, Lambda Ace
  • the common logarithm of the total irradiation amount of the electron beam was measured.
  • the remaining film ratio of the obtained sensitivity curve (horizontal axis: common logarithm of the total irradiation amount of electron beam, vertical axis: remaining film ratio of resist film (0 ⁇ remaining film ratio ⁇ 1.00))
  • the sensitivity curve was fitted to a quadratic function in the range of 0.80, and the point of the remaining film rate 0 and the remaining film rate 0 on the obtained quadratic function (a function of the remaining film rate and the common logarithm of the total irradiation amount).
  • a straight line connecting the points of .50 (an approximate line of the slope of the sensitivity curve) was created.
  • Eth ( ⁇ C / cm 2 ) of the electron beam when the remaining film ratio of the obtained straight line was 0 was determined. And it evaluated according to the following criteria. It shows that the sensitivity of a resist is so high that the value of Eth is small.
  • sensitivity a resist film was formed on a silicon wafer, and a sensitivity curve was created.
  • the remaining film ratio is 0. 1 from the irradiation amount of the electron beam required for until 0.01 E 1 ( ⁇ C / cm 2 ), the dose E 2 of the electron beam required for the residual film rate is from 0.07 to 0.01 ([mu] C / cm 2 ) and the electron beam dose E 3 ( ⁇ C / cm 2 ) required for the remaining film ratio to be 0.05 to 0.01 were obtained and evaluated according to the following criteria.
  • E 1 is 10 [mu] C / cm 2 or less
  • B E 1 is 10 [mu] C / cm 2 ultra 15 .mu.C / cm 2 or less
  • E 1 is 15 .mu.C / cm 2 than [footing (2) - of the electron beam irradiation amount E 2 - ]
  • A: E 2 is 10 [mu] C / cm 2 or less
  • B: E 2 is 10 [mu] C / cm 2 ultra 15 .mu.C / cm 2 or less
  • C E 2 is 15 .mu.C / cm 2 than [footing (3) - of the electron beam irradiation amount E 3 - ]
  • A: E 3 is 4 ⁇ C / cm 2 or less
  • B: E 3 is 4 ⁇ C / cm 2 ultra
  • C Unexposed residual film ratio is less than 0.965
  • Example 1 ⁇ Preparation of polymer> [Polymerization of monomer composition] 3.0 g of methyl ⁇ -chloroacrylate and 6.88 g of ⁇ -methylstyrene as monomers, 2.47 g of cyclopentanone as a solvent, 0.08728 g of azobisisobutyronitrile as a polymerization initiator, The monomer composition containing was put in a glass container, the glass container was sealed and purged with nitrogen, and stirred in a constant temperature bath at 78 ° C. for 6.5 hours under a nitrogen atmosphere.
  • Example 2 Polymer, polymer and positive resist composition in the same manner as in Example 1 except that the amount of azobisisobutyronitrile as a polymerization initiator used in the polymerization of the monomer composition was changed to 0.10910 g. A product was prepared. Measurements and evaluations were performed in the same manner as in Example 1. The results are shown in Table 1. In addition, the weight average molecular weight (Mw) of the polymer before purification was 15000, and the molecular weight distribution (Mw / Mn) was 1.42.
  • Mw weight average molecular weight
  • Example 3 Polymer, polymer and positive resist composition in the same manner as in Example 1 except that the amount of azobisisobutyronitrile as a polymerization initiator used in the polymerization of the monomer composition was changed to 0.21821 g. A product was prepared. Measurements and evaluations were performed in the same manner as in Example 1. The results are shown in Table 1. In addition, the weight average molecular weight (Mw) of the polymer before purification was 10,000, and the molecular weight distribution (Mw / Mn) was 1.47.
  • Mw weight average molecular weight
  • the solution containing the coagulum was filtered through a Kiriyama funnel to obtain a precipitated white coagulum.
  • the obtained coagulated product had a weight average molecular weight (Mw) of 65000 and a molecular weight distribution (Mw / Mn) of 1.47.
  • Mw weight average molecular weight
  • Mw / Mn molecular weight distribution
  • the obtained coagulated product was dissolved again in 100 g of THF, and the obtained solution was added again dropwise to a mixed solvent of 650 g of THF and 350 g of MeOH to precipitate a white coagulated product again.
  • the solution containing the reprecipitated coagulum was filtered through a Kiriyama funnel, and the filtrate was recovered.
  • Example 2 shows the results obtained by measuring the weight average molecular weight, number average molecular weight and molecular weight distribution, and the ratio of each molecular weight component in the polymer in the same manner as in Example 1.
  • ⁇ Preparation of positive resist composition> A positive resist composition was prepared in the same manner as in Example 1 except that the polymer prepared as described above was used. Then, evaluation was performed in the same manner as in Example 1. The results are shown in Table 2.
  • 1 to 3 can provide a positive resist in which tailing is suppressed and the dissolution resistance of the unexposed portion with respect to the developer is sufficiently secured. From Tables 1 and 2, it can be seen that in Examples 1 to 3, the sensitivity of the positive resist is excellent.
  • the polymer of the present invention it is possible to provide a positive resist in which tailing is suppressed and the dissolution resistance of the unexposed portion with respect to the developer is sufficiently ensured. Moreover, according to the positive resist composition of the present invention, a high-resolution resist pattern can be efficiently formed.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Physics & Mathematics (AREA)
  • General Physics & Mathematics (AREA)
  • Health & Medical Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Organic Chemistry (AREA)
  • Spectroscopy & Molecular Physics (AREA)
  • Materials For Photolithography (AREA)
  • Addition Polymer Or Copolymer, Post-Treatments, Or Chemical Modifications (AREA)

Abstract

 本発明は、裾引きが抑制され、且つ未露光部の現像液に対する耐溶解性が十分に確保されたポジ型レジストとして良好に使用し得る重合体、および、高解像度のパターンを効率良く形成し得るポジ型レジスト組成物を提供することを目的とする。本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、分子量分布(Mw/Mn)が1.25未満であり、分子量が6000未満の成分の割合が0.5%超5.0%以下である。また、本発明のポジ型レジスト組成物は、上述の重合体と、溶剤とを含む。

Description

重合体およびポジ型レジスト組成物
 本発明は、重合体およびポジ型レジスト組成物に関し、特には、ポジ型レジストとして好適に使用し得る重合体および当該重合体を含むポジ型レジスト組成物に関するものである。
 従来、半導体製造等の分野において、電子線などの電離放射線や紫外線などの短波長の光(以下、電離放射線と短波長の光とを合わせて「電離放射線等」と称することがある。)の照射により主鎖が切断されて現像液に対する溶解性が増大する重合体が、主鎖切断型のポジ型レジストとして使用されている。
 そして、例えば特許文献1には、高感度な主鎖切断型のポジ型レジストとして、α-メチルスチレン単位とα-クロロアクリル酸メチル単位とを含有するα-メチルスチレン・α-クロロアクリル酸メチル共重合体よりなるポジ型レジストが開示されている。
特公平8-3636号公報
 ここで、未露光部と露光部との間の現像液に対する溶解速度の差を利用してレジストパターンを形成する場合、高解像度のレジストパターンを効率良く形成するためには、以下のことが求められる。すなわち、未露光部の現像液への溶解を抑制してレジストパターンの解像度を確保する一方で、露光部が現像液に溶解せず一部残存してしまう現象(裾引き)を抑えることで、解像度を向上させつつレジストパターン形成に要する電離放射線等の照射量を低減することが求められている。
 しかし、特許文献1に記載のα-メチルスチレン・α-クロロアクリル酸メチル共重合体よりなるポジ型レジストは、裾引きと、未露光部の現像液への溶解との双方を、高いレベルで抑制することが困難であった。また近年、現像工程の条件(処理時間やシャワー現像における現像台の回転速度等)を調整することにより裾引きを解消する手法も検討されているが、この手法では現像工程が煩雑となり易く、また未露光部が現像液に過度に溶解してしまう虞もあった。よって、ポジ型レジストを構成する重合体の性状を改良することにより、ポジ型レジストにおける裾引き抑制および未露光部の耐溶解性確保の双方をバランスよく達成する技術が望まれる。
 そこで、本発明は、裾引きが抑制され、且つ未露光部の現像液に対する耐溶解性が十分に確保されたポジ型レジストとして良好に使用し得る重合体を提供することを目的とする。
 また、本発明は、高解像度のレジストパターンを効率良く形成し得るポジ型レジスト組成物を提供することを目的とする。
 本発明者は、上記目的を達成するために鋭意検討を行った。そして、本発明者は、所定の分子量分布を有し、且つ分子量が6000未満の成分の割合が所定の範囲内であるα-メチルスチレン・α-クロロアクリル酸メチル共重合体が、裾引きが十分に抑制され、そして未露光部の現像液に対する耐溶解性が十分に確保されたポジ型レジストとして良好に使用し得ることを見出し、本発明を完成させた。
 即ち、この発明は、上記課題を有利に解決することを目的とするものであり、本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、分子量分布(Mw/Mn)が1.25未満であり、分子量が6000未満の成分の割合が0.5%超5.0%以下であることを特徴とする。分子量分布(Mw/Mn)が1.25未満であって、分子量が6000未満の成分の割合が0.5%超5.0%以下であるα-メチルスチレン・α-クロロアクリル酸メチル共重合体は、ポジ型レジストとして使用した際の裾引きが十分に抑制され、また未露光部の現像液に対する耐溶解性に優れており、ポジ型レジストとして良好に使用することができる。
 ここで、本発明において、「分子量分布(Mw/Mn)」とは、数平均分子量(Mn)に対する重量平均分子量(Mw)の比を指す。そして、本発明において、「数平均分子量(Mn)」および「重量平均分子量(Mw)」は、ゲル浸透クロマトグラフィーを用いて測定することができる。また、本発明において、「分子量が6000未満の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が6000未満の成分のピークの面積の合計(B)の割合(=(B/A)×100%)を算出することにより求めることができる。
 ここで、本発明の重合体は、分子量が20000超の成分の割合が35%以上70%以下であることが好ましい。分子量が20000超の成分の割合が35%以上70%以下であれば、ポジ型レジストとして使用した際の未露光部の現像液に対する耐溶解性を十分に確保しつつ裾引きを更に抑制し、また感度を高めることができるからである。
 ここで、本発明において、「分子量が20000超の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が20000超の成分のピークの面積の合計(C)の割合(=(C/A)×100%)を算出することにより求めることができる。
 そして、本発明の重合体は、重量平均分子量(Mw)が25000以下であることが好ましい。重量平均分子量(Mw)が25000以下であれば、ポジ型レジストとして使用した際の裾引きを更に抑制しつつ、感度を高めることができるからである。
 また、この発明は、上記課題を有利に解決することを目的とするものであり、本発明のポジ型レジスト組成物は、上述した重合体の何れかと、溶剤とを含むことを特徴とする。上述した重合体をポジ型レジストとして含有すれば、高解像度のレジストパターンを効率良く形成することができる。
 本発明の重合体によれば、裾引きが抑制され、且つ未露光部の現像液に対する耐溶解性が十分に確保されたポジ型レジストを提供することができる。
 また、本発明のポジ型レジスト組成物によれば、高解像度のレジストパターンを効率良く形成することができる。
 以下、本発明の実施形態について詳細に説明する。
 ここで、本発明の重合体は、電子線などの電離放射線や紫外線などの短波長の光の照射により主鎖が切断されて低分子量化する、主鎖切断型のポジ型レジストとして良好に使用することができる。そして、本発明のポジ型レジスト組成物は、ポジ型レジストとして本発明の重合体を含むものである。
(重合体)
 本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有するα-メチルスチレン・α-クロロアクリル酸メチル共重合体であり、分子量分布(Mw/Mn)が1.25未満であり、分子量が6000未満の成分の割合が0.5%超5.0%以下であることを特徴とする。そして、本発明の重合体は、α位にクロロ基(-Cl)を有するα-クロロアクリル酸メチルに由来する構造単位(α-クロロアクリル酸メチル単位)を含んでいるので、電離放射線等(例えば、電子線、KrFレーザー、ArFレーザー、EUVレーザーなど)が照射されると、主鎖が容易に切断されて低分子量化する。また、本発明の重合体は、分子量分布(Mw/Mn)が1.25未満であり、且つ分子量が6000未満の成分の割合が0.5%超5.0%以下であるので、ポジ型レジストとして使用した際の裾引きが抑制され、且つ未露光部の現像液に対する耐溶解性が十分に確保されており、主鎖切断型のポジ型レジストとして良好に使用することができる。
<α-メチルスチレン単位>
 ここで、α-メチルスチレン単位は、α-メチルスチレンに由来する構造単位である。そして、本発明の重合体は、α-メチルスチレン単位を有しているので、ポジ型レジストとして使用した際に、ベンゼン環の保護安定性により優れた耐ドライエッチング性を発揮する。
 なお、本発明の重合体は、α-メチルスチレン単位を30mol%以上70mol%以下の割合で含有することが好ましい。
<α-クロロアクリル酸メチル単位>
 また、α-クロロアクリル酸メチル単位は、α-クロロアクリル酸メチルに由来する構造単位である。そして、本発明の重合体は、α-クロロアクリル酸メチル単位を有しているので、電離放射線等が照射されると、塩素原子が脱離し、β開裂反応によって主鎖が容易に切断される。従って、本発明の重合体よりなるポジ型レジストは、高い感度を示す。
 なお、本発明の重合体は、α-クロロアクリル酸メチル単位を30mol%以上70mol%以下の割合で含有することが好ましい。
<分子量分布>
 本発明の重合体の分子量分布(Mw/Mn)は、1.25未満であることが必要であり、1.20以下であることが好ましく、1.19以下であることがより好ましく、1.16以下であることが更に好ましい。重合体の分子量分布(Mw/Mn)が1.25以上の場合、ポジ型レジストとして使用した際の裾引きを抑制することができない。なお、重合体の調製の容易性の観点からは、本発明の重合体の分子量分布(Mw/Mn)は、1.10以上であることが好ましい。
[重量平均分子量]
 本発明の重合体の重量平均分子量(Mw)は、25000以下であることが好ましく、18000以下であることがより好ましく、9000以上であることが好ましく、10000以上であることがより好ましく、12000以上であることが更に好ましく、15000以上であることが特に好ましい。重合体の重量平均分子量(Mw)が25000以下であれば、ポジ型レジストとして使用した際の裾引きを更に抑制することができ、また感度を高めることができる。一方、重合体の重量平均分子量(Mw)が9000以上であれば、ポジ型レジストとして使用した際に、未露光部の現像液に対する耐溶解性を十分に確保することができる。
[数平均分子量]
 本発明の重合体の数平均分子量(Mn)は、20000以下であることが好ましく、16000以下であることがより好ましく、8000以上であることが好ましく、9000以上であることがより好ましく、10000以上であることが更に好ましく、13000以上であることが特に好ましい。重合体の数平均分子量(Mn)が20000以下であれば、ポジ型レジストとして使用した際の裾引きを更に抑制することができ、また感度を高めることができる。一方、重合体の数平均分子量(Mn)が8000以上であれば、ポジ型レジストとして使用した際に、未露光部の現像液に対する耐溶解性を十分に確保することができる。
<分子量が6000未満の成分の割合>
 本発明の重合体は、分子量が6000未満の成分の割合が、0.5%超5.0%以下であることが必要であり、1.0%以上であることが好ましく、2.0%以上であることがより好ましく、4.0%以下であることが好ましい。分子量が6000未満の成分の割合が0.5%以下の場合、ポジ型レジストとして使用した際の裾引きを抑制することができず、また感度が低下する。一方、分子量6000未満の成分の割合が5.0%超の場合、ポジ型レジストとして使用した際に、未露光部の現像液に対する耐溶解性を確保することができない。
<分子量が20000超の成分の割合>
 本発明の重合体は、分子量が20000超の成分の割合が、35%以上であることが好ましく、40%以上であることがより好ましく、70%以下であることが好ましく、60%以下であることがより好ましく、50%以下であることが更に好ましい。分子量が20000超の成分の割合が35%以上であれば、ポジ型レジストとして使用した際に、未露光部の現像液に対する耐溶解性を十分に確保することができる。一方、分子量が20000超の成分の割合が70%以下であれば、ポジ型レジストとして使用した際の裾引きを更に抑制することができ、また感度を高めることができる。
<分子量が40000超の成分の割合>
 本発明の重合体は、分子量が40000超の成分の割合が、0.1%以上であることが好ましく、4.0%以下であることが好ましく、1.0%以下であることがより好ましい。分子量が40000超の成分の割合が0.1%以上であれば、ポジ型レジストとして使用した際に、未露光部の現像液に対する耐溶解性を十分に確保することができる。一方、分子量が40000超の成分の割合が4.0%以下であれば、ポジ型レジストとして使用した際の裾引きを更に抑制することができ、また感度を高めることができる。
 なお、本発明において、「分子量が40000超の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が40000超の成分のピークの面積の合計(D)の割合(=(D/A)×100%)を算出することにより求めることができる。
<分子量が60000超の成分の割合>
 本発明の重合体は、分子量が60000超の成分の割合を含有しないことが好ましい。分子量が60000超の成分を含有しなければ、ポジ型レジストとして使用した際の裾引きを更に抑制することができ、また感度を高めることができる。
 ここで、本発明において、「分子量が60000超の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が60000超の成分のピークの面積の合計(E)の割合(=(E/A)×100%)を算出することにより求めることができる。
(重合体の調製方法)
 そして、上述した性状を有する重合体は、例えば、α-メチルスチレンとα-クロロアクリル酸メチルとを含む単量体組成物を重合させた後、得られた重合物を精製することにより調製することができる。
 なお、重合体の組成、分子量分布、重量平均分子量および数平均分子量、並びに、重合体中の各分子量の成分の割合は、重合条件および精製条件を変更することにより調整することができる。具体的には、例えば、重量平均分子量および数平均分子量は、重合温度を高くすれば、小さくすることができる。また、重量平均分子量および数平均分子量は、重合時間を短くすれば、小さくすることができる。
<単量体組成物の重合>
 ここで、本発明の重合体の調製に用いる単量体組成物としては、α-メチルスチレンおよびα-クロロアクリル酸メチルを含む単量体と、溶媒と、重合開始剤と、任意に添加される添加剤との混合物を用いることができる。そして、単量体組成物の重合は、既知の方法を用いて行うことができる。中でも、溶媒としては、シクロペンタノンなどを用いることが好ましく、重合開始剤としては、アゾビスイソブチロニトリルなどのラジカル重合開始剤を用いることが好ましい。
 なお、重合体の組成は、重合に使用した単量体組成物中の各単量体の含有割合を変更することにより調整することができる。また、重合体中に含まれている分子量が高い成分の割合は、重合開始剤の量を変更することにより調整することができ、例えば重合開始剤の量を少なくすれば、分子量が高い成分の割合を増加させることができる。
 そして、単量体組成物を重合して得られた重合物は、特に限定されることなく、重合物を含む溶液にテトラヒドロフラン等の良溶媒を添加した後、良溶媒を添加した溶液をメタノール等の貧溶媒中に滴下して重合物を凝固させることにより回収し、以下のようにして精製することができる。
<重合物の精製>
 得られた重合物を精製して上述した性状を有する重合体を得る際に用いる精製方法としては、特に限定されることなく、再沈殿法やカラムクロマトグラフィー法などの既知の精製方法を用いることができる。中でも、精製方法としては、再沈殿法を用いることが好ましい。
 なお、重合物の精製は、複数回繰り返して実施してもよい。
 そして、再沈殿法による重合物の精製は、例えば、得られた重合物をテトラヒドロフラン等の良溶媒に溶解した後、得られた溶液を、テトラヒドロフラン等の良溶媒とメタノール等の貧溶媒との混合溶媒に滴下し、重合物の一部を析出させることにより行うことが好ましい。このように、良溶媒と貧溶媒との混合溶媒中に重合物の溶液を滴下して重合物の精製を行えば、良溶媒および貧溶媒の種類や混合比率を変更することにより、得られる重合体の分子量分布、重量平均分子量、数平均分子量および分子量が低い成分の割合を容易に調整することができる。具体的には、例えば、混合溶媒中の良溶媒の割合を高めるほど、混合溶媒中で析出する重合体の分子量を大きくすることができる。
 なお、再沈殿法により重合物を精製する場合、本発明の重合体としては、所望の性状を満たせば、良溶媒と貧溶媒との混合溶媒中で析出した重合体を用いてもよいし、混合溶媒中で析出しなかった重合体(即ち、混合溶媒中に溶解している重合体)を用いてもよい。ここで、混合溶媒中で析出しなかった重合体は、濃縮乾固などの既知の手法を用いて混合溶媒中から回収することができる。
(ポジ型レジスト組成物)
 本発明のポジ型レジスト組成物は、上述した重合体と、溶剤とを含み、任意に、レジスト組成物に配合され得る既知の添加剤を更に含有する。そして、本発明のポジ型レジスト組成物は、上述した重合体をポジ型レジストとして含有しているので、本発明のポジ型レジスト組成物を塗布および乾燥させて得られるレジスト膜を使用すれば、高解像度のレジストパターンを効率良く形成することができる。
<溶剤>
 なお、溶剤としては、上述した重合体を溶解可能な溶剤であれば既知の溶剤を用いることができる。中でも、適度な粘度のポジ型レジスト組成物を得てポジ型レジスト組成物の塗工性を向上させる観点からは、溶剤としてはアニソールを用いることが好ましい。
 以下、本発明について実施例に基づき具体的に説明するが、本発明はこれら実施例に限定されるものではない。なお、以下の説明において、量を表す「%」および「部」は、特に断らない限り、質量基準である。
 そして、実施例および比較例において、重合体の重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合、並びに、重合体よりなるレジストの感度および裾引き、未露光レジスト膜の現像液に対する耐溶解性は、下記の方法で測定および評価した。
<重量平均分子量、数平均分子量および分子量分布>
 得られた重合体についてゲル浸透クロマトグラフィーを用いて重量平均分子量(Mw)および数平均分子量(Mn)を測定し、分子量分布(Mw/Mn)を算出した。
 具体的には、ゲル浸透クロマトグラフ(東ソー製、HLC-8220)を使用し、展開溶媒としてテトラヒドロフランを用いて、重合体の重量平均分子量(Mw)および数平均分子量(Mn)を標準ポリスチレン換算値として求めた。そして、分子量分布(Mw/Mn)を算出した。
<重合体中の各分子量の成分の割合>
 ゲル浸透クロマトグラフ(東ソー製、HLC-8220)を使用し、展開溶媒としてテトラヒドロフランを用いて、重合体のクロマトグラフを得た。そして、得られたクロマトグラムから、ピークの総面積(A)、分子量が6000未満の成分のピークの面積の合計(B)、分子量が20000超の成分のピークの面積の合計(C)、分子量が40000超の成分のピークの面積の合計(D)、および分子量が60000超の成分のピークの面積の合計(E)を求めた。そして、下記式を用いて各分子量の成分の割合を算出した。
 分子量が6000未満の成分の割合(%)=(B/A)×100
 分子量が20000超の成分の割合(%)=(C/A)×100
 分子量が40000超の成分の割合(%)=(D/A)×100
 分子量が60000超の成分の割合(%)=(E/A)×100
<感度>
 スピンコーター(ミカサ製、MS-A150)を使用し、ポジ型レジスト組成物を直径4インチのシリコンウェハ上に厚さ500nmになるように塗布した。そして、塗布したポジ型レジスト組成物を温度180℃のホットプレートで3分間加熱して、シリコンウェハ上にレジスト膜を形成した。そして、電子線描画装置(エリオニクス社製、ELS-5700)を用いて、電子線の照射量が互いに異なるパターン(寸法500μm×500μm)をレジスト膜上に複数描画し、レジスト用現像液として酢酸アミル(日本ゼオン社製、ZED-N50)を用いて温度23℃で1分間の現像処理を行った後、イソプロピルアルコールで10秒間リンスした。なお、電子線の照射量は、4μCから152μCの範囲内で4μCずつ異ならせた。次に、描画した部分のレジスト膜の厚みを光学式膜厚計(大日本スクリーン製、ラムダエース)で測定し、電子線の総照射量の常用対数と、現像後のレジスト膜の残膜率(=現像後のレジスト膜の膜厚/シリコンウェハ上に形成したレジスト膜の膜厚)との関係を示す感度曲線を作成した。そして、得られた感度曲線(横軸:電子線の総照射量の常用対数、縦軸:レジスト膜の残膜率(0≦残膜率≦1.00))の残膜率0.20~0.80の範囲において感度曲線を二次関数にフィッティングし、得られた二次関数(残膜率と総照射量の常用対数との関数)上の残膜率0の点と残膜率0.50の点とを結ぶ直線(感度曲線の傾きの近似線)を作成した。次いで、得られた直線の残膜率が0となる際の、電子線の総照射量Eth(μC/cm)を求めた。そして以下の基準に従って評価した。Ethの値が小さいほど、レジストの感度が高いことを示す。
 A:Ethが55μC/cm未満
 B:Ethが55μC/cm以上60μC/cm未満
 C:Ethが60μC/cm以上
<裾引き>
「感度」の評価と同様にして、シリコンウェハ上にレジスト膜を形成し、感度曲線を作成した。そして、得られた感度曲線(横軸:電子線の総照射量の常用対数、縦軸:レジスト膜の残膜率(0≦残膜率≦1.00))から、残膜率が0.1から0.01になるまでに要する電子線の照射量E(μC/cm)、残膜率が0.07から0.01になるまでに要する電子線の照射量E(μC/cm)、および残膜率が0.05から0.01になるまでに要する電子線の照射量E(μC/cm)を求め、それぞれ以下の基準に従って評価した。E、EおよびEの値が小さいほど、露光したレジスト膜の現像液に対する溶解性が高く、裾引きが抑制されていることを示す。
[裾引き(1)-電子線の照射量E-]
 A:Eが10μC/cm以下
 B:Eが10μC/cm超15μC/cm以下
 C:Eが15μC/cm
[裾引き(2)-電子線の照射量E-]
 A:Eが10μC/cm以下
 B:Eが10μC/cm超15μC/cm以下
 C:Eが15μC/cm
[裾引き(3)-電子線の照射量E-]
 A:Eが4μC/cm以下
 B:Eが4μC/cm超10μC/cm以下
 C:Eが10μC/cm
<未露光レジスト膜の現像液に対する耐溶解性>
 「感度」の評価と同様にして、シリコンウェハ上にレジスト膜を形成した。そして、レジスト膜を形成したシリコンウェハを温度23℃の酢酸アミルよりなる現像液(日本ゼオン社製、ZED-N50)に1分間浸漬し、その後、イソプロピルアルコールでリンスした。そして、未露光残膜率(=浸漬後のレジスト膜の膜厚/シリコンウェハ上に形成したレジスト膜の膜厚)を求め、以下の基準に従って評価した。未露光残膜率が大きいほど、未露光のレジスト膜の現像液に対する溶解性が低いことを示す。
 A:未露光残膜率が0.985以上
 B:未露光残膜率が0.965以上0.985未満
 C:未露光残膜率が0.965未満
(実施例1)
<重合体の調製>
[単量体組成物の重合]
 単量体としてのα-クロロアクリル酸メチル3.0gおよびα-メチルスチレン6.88gと、溶媒としてのシクロペンタノン2.47gと、重合開始剤としてのアゾビスイソブチロニトリル0.08728gとを含む単量体組成物をガラス容器に入れ、ガラス容器を密閉および窒素置換して、窒素雰囲気下、78℃の恒温槽内で6.5時間撹拌した。その後、室温に戻し、ガラス容器内を大気解放した後、得られた溶液にテトラヒドロフラン(THF)30gを加えた。そして、THFを加えた溶液をメタノール300g中に滴下し、重合物を析出させた。その後、析出した重合物を含む溶液をキリヤマ漏斗によりろ過し、白色の凝固物(重合物)を得た。得られた重合物の重量平均分子量(Mw)は17000であり、分子量分布(Mw/Mn)は1.46であった。また、得られた重合物は、α-メチルスチレン単位とα-クロロアクリル酸メチル単位とを50mol%ずつ含んでいた。
[重合物の精製]
 次いで、得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF500gとメタノール(MeOH)500gとの混合溶媒に滴下し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を析出させた。その後、析出した重合体を含む溶液をキリヤマ漏斗によりろ過し、白色の重合体を得た。そして、得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を測定した。結果を表1に示す。
<ポジ型レジスト組成物の調製>
 得られた重合体を溶剤としてのアニソールに溶解させ、重合体の濃度が11質量%であるレジスト溶液(ポジ型レジスト組成物)を調製した。そして、レジストの感度および裾引き、並びに未露光レジスト膜の現像液に対する耐溶解性を評価した。結果を表1に示す。
(実施例2)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.10910gに変更した以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は15000であり、分子量分布(Mw/Mn)は1.42であった。
(実施例3)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.21821gに変更した以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は10000であり、分子量分布(Mw/Mn)は1.47であった。
(比較例1)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.32731gに変更し、重合物の精製時に混合溶媒としてTHF450gとMeOH550gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は8200であり、分子量分布(Mw/Mn)は1.48であった。
(比較例2)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.43641gに変更し、重合物の精製時に混合溶媒としてTHF450gとMeOH550gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は6700であり、分子量分布(Mw/Mn)は1.48であった。
(比較例3)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.54552gに変更し、重合物の精製時に混合溶媒としてTHF400gとMeOH600gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は5900であり、分子量分布(Mw/Mn)は1.47であった。
(比較例4)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.81827gに変更し、重合物の精製時に混合溶媒としてTHF350gとMeOH650gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は5000であり、分子量分布(Mw/Mn)は1.43であった。
(比較例5)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を1.09103gに変更し、重合物の精製時に混合溶媒としてTHF300gとMeOH700gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は4000であり、分子量分布(Mw/Mn)は1.38であった。
(比較例6)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更し、重合物の精製を実施することなく、単量体組成物を重合した際にろ過により回収した重合物をそのまま重合体として用いてポジ型レジスト組成物を調製した以外は実施例1と同様にして、重合物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
(比較例7)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更し、重合物の精製時に混合溶媒としてTHF600gとMeOH400gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
(比較例8)
<重合体の調製>
[単量体組成物の重合]
 重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更した以外は実施例1と同様にして単量体組成物を重合し、重合物を得た。なお、重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
[重合物の精製]
 得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF600gとMeOH400gとの混合溶媒に滴下し、白色の凝固物を析出させた。その後、凝固物を含む溶液をキリヤマ漏斗によりろ過し、ろ液を回収した。そして、ろ液を濃縮乾固し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を得た。得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を実施例1と同様にして測定した結果を表2に示す。
<ポジ型レジスト組成物の調製>
 上述のようにして調製した重合体を用いた以外は実施例1と同様にして、ポジ型レジスト組成物を調製した。そして、実施例1と同様にして評価を行った。結果を表2に示す。
(比較例9)
<重合体の調製>
[単量体組成物の重合]
 重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更した以外は実施例1と同様にして単量体組成物を重合し、重合物を得た。なお、重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
[重合物の精製]
 得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF600gとMeOH400gとの混合溶媒に滴下し、白色の凝固物を析出させた。その後、凝固物を含む溶液をキリヤマ漏斗によりろ過し、析出した白色の凝固物を得た。得られた凝固物の重量平均分子量(Mw)は65000であり、分子量分布(Mw/Mn)は1.47であった。
 次いで、得られた凝固物を100gのTHFに再び溶解させ、得られた溶液をTHF650gとMeOH350gとの混合溶媒に再び滴下し、白色の凝固物を再び析出させた。その後、再析出した凝固物を含む溶液をキリヤマ漏斗によりろ過し、ろ液を回収した。そして、ろ液を濃縮乾固し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を得た。得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を実施例1と同様にして測定した結果を表2に示す。
<ポジ型レジスト組成物の調製>
 上述のようにして調製した重合体を用いた以外は実施例1と同様にして、ポジ型レジスト組成物を調製した。そして、実施例1と同様にして評価を行った。結果を表2に示す。
(比較例10)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.02182gに変更し、重合物の精製時に混合溶媒としてTHF600gとMeOH400gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は35000であり、分子量分布(Mw/Mn)は1.60であった。
(比較例11)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.02182gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は35000であり、分子量分布(Mw/Mn)は1.60であった。
(比較例12)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.03273gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は29000であり、分子量分布(Mw/Mn)は1.56であった。
(比較例13)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.04364gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は24000であり、分子量分布(Mw/Mn)は1.53であった。
(比較例14)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.06546gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表2に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は20000であり、分子量分布(Mw/Mn)は1.48であった。
Figure JPOXMLDOC01-appb-T000001

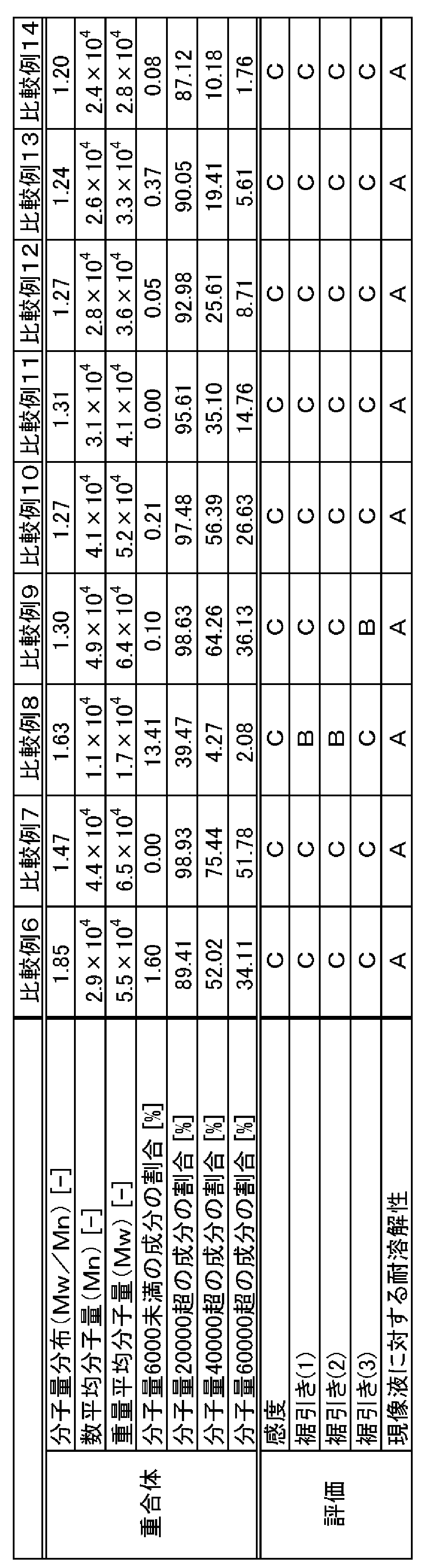

Figure JPOXMLDOC01-appb-T000002
 表1および表2より、分子量分布(Mw/Mn)が1.25未満であり、分子量が6000未満の成分の割合が0.5%超5.0%以下である重合体を用いた実施例1~3では、裾引きが抑制され、そして未露光部の現像液に対する耐溶解性が十分に確保されたポジ型レジストを提供可能であることがわかる。また表1および表2より、実施例1~3では、ポジ型レジストの感度も優れていることがわかる。
 本発明の重合体によれば、裾引きが抑制され、且つ現像液に対する未露光部の耐溶解性が十分に確保されたポジ型レジストを提供することができる。
 また、本発明のポジ型レジスト組成物によれば、高解像度のレジストパターンを効率良く形成することができる。


Claims (4)

  1.  α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、
     分子量分布(Mw/Mn)が1.25未満であり、
     分子量が6000未満の成分の割合が0.5%超5.0%以下である、重合体。
  2.  分子量が20000超の成分の割合が35%以上70%以下である、請求項1に記載の重合体。
  3.  重量平均分子量(Mw)が25000以下である、請求項1または2に記載の重合体。
  4.  請求項1~3の何れかに記載の重合体と、溶剤とを含む、ポジ型レジスト組成物。
PCT/JP2016/000772 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物 Ceased WO2016132727A1 (ja)

Priority Applications (1)

Application Number Priority Date Filing Date Title
JP2017500514A JP6680291B2 (ja) 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2015-031735 2015-02-20
JP2015031735 2015-02-20

Publications (1)

Publication Number Publication Date
WO2016132727A1 true WO2016132727A1 (ja) 2016-08-25

Family

ID=56688965

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2016/000772 Ceased WO2016132727A1 (ja) 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物

Country Status (3)

Country Link
JP (1) JP6680291B2 (ja)
TW (1) TWI689522B (ja)
WO (1) WO2016132727A1 (ja)

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPWO2016132726A1 (ja) * 2015-02-20 2017-11-30 日本ゼオン株式会社 重合体およびポジ型レジスト組成物
US10241405B2 (en) * 2015-02-20 2019-03-26 Zeon Corporation Polymer and positive resist composition

Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016012104A (ja) * 2014-06-30 2016-01-21 大日本印刷株式会社 ポジ型レジスト組成物及びその製造方法、並びに、当該ポジ型レジスト組成物を用いたレジストパターンの製造方法

Family Cites Families (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPWO2016132726A1 (ja) * 2015-02-20 2017-11-30 日本ゼオン株式会社 重合体およびポジ型レジスト組成物

Patent Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016012104A (ja) * 2014-06-30 2016-01-21 大日本印刷株式会社 ポジ型レジスト組成物及びその製造方法、並びに、当該ポジ型レジスト組成物を用いたレジストパターンの製造方法

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
KATSUYA OKUBO ET AL.: "Cho Bisai Kako-yo Denshisen Polymer Resist no Kaihatsu to Hyoka", POLYMER MATERIAL FORUM KOEN YOKOSHU, vol. 21, 2012, pages 38 *
T. YAMAGUCHI ET AL.: "Molecular weight effect on line -edge roughness", PROCEEDINGS OF SPIE, vol. 5039, 2013, pages 1212 - 1219 *

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPWO2016132726A1 (ja) * 2015-02-20 2017-11-30 日本ゼオン株式会社 重合体およびポジ型レジスト組成物
US10241405B2 (en) * 2015-02-20 2019-03-26 Zeon Corporation Polymer and positive resist composition

Also Published As

Publication number Publication date
TW201639894A (zh) 2016-11-16
TWI689522B (zh) 2020-04-01
JPWO2016132727A1 (ja) 2017-11-30
JP6680291B2 (ja) 2020-04-15

Similar Documents

Publication Publication Date Title
TWI714711B (zh) 光阻圖案形成方法
JP6680289B2 (ja) 重合体およびポジ型レジスト組成物
JP6680290B2 (ja) 重合体およびポジ型レジスト組成物
TWI675856B (zh) 聚合物及正型光阻組合物
TWI714686B (zh) 光阻圖案形成方法及顯影條件的決定方法
JP6575141B2 (ja) レジストパターン形成方法および現像条件の決定方法
JP2017119744A (ja) 重合体およびポジ型レジスト組成物
JP6680291B2 (ja) 重合体およびポジ型レジスト組成物
JP6680292B2 (ja) 重合体およびポジ型レジスト組成物、並びに、レジストパターン形成方法
WO2016132726A1 (ja) 重合体およびポジ型レジスト組成物
WO2016132724A1 (ja) 重合体およびポジ型レジスト組成物
JP6812636B2 (ja) レジストパターン形成方法および現像条件の決定方法
JP2017120287A (ja) レジストパターン形成方法および現像条件の決定方法
JP6750317B2 (ja) 共重合体およびポジ型レジスト組成物

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 16752116

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 2017500514

Country of ref document: JP

Kind code of ref document: A

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 16752116

Country of ref document: EP

Kind code of ref document: A1
